Model Speed Queen SWNNY2SP115CW01 Washer – Common Parts & Diagrams

Meter Case Assembly (Drawing 1 of 2)

Meter Case Assembly (Drawing 2 of 2)

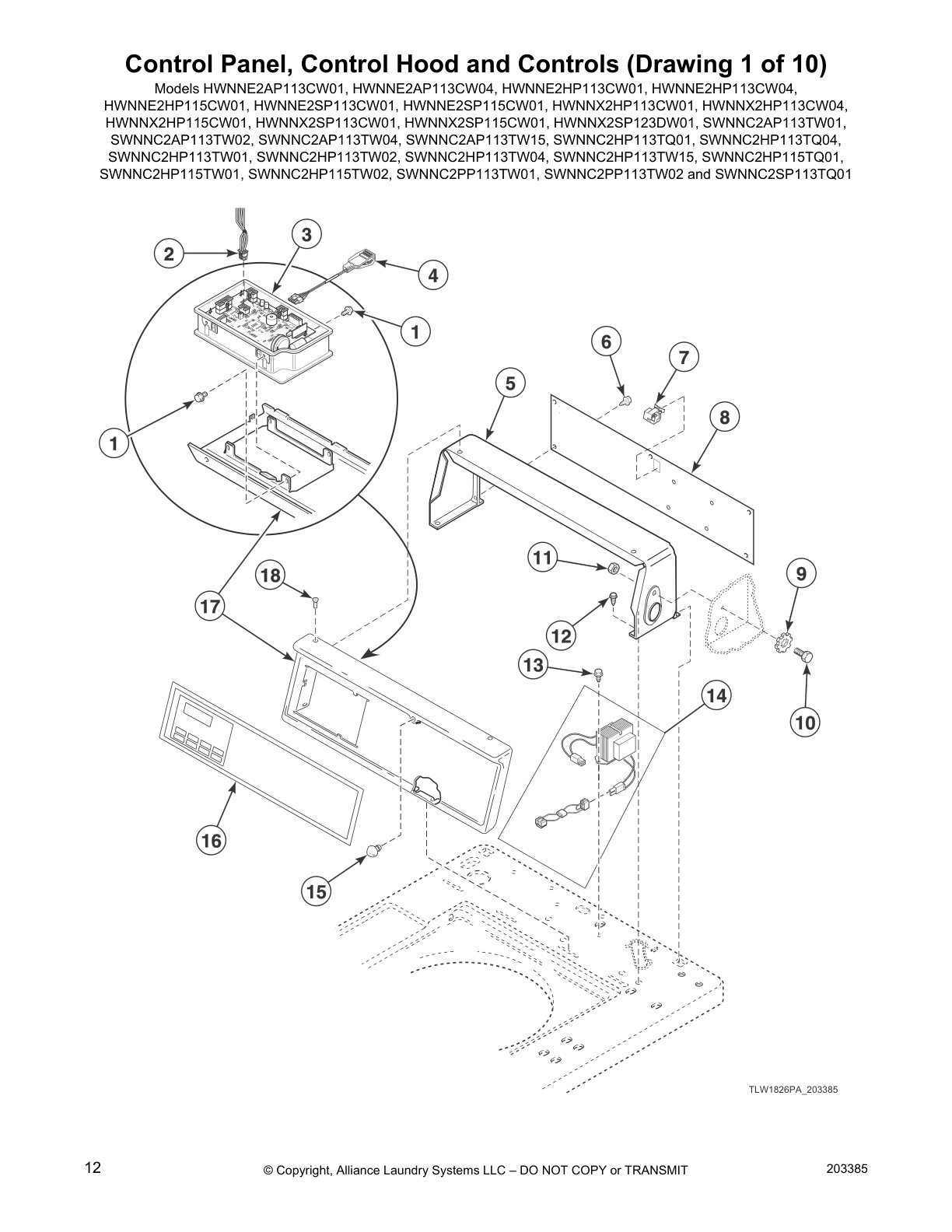

Control Panel, Control Hood and Controls (Drawing 1 of 10)

Control Panel, Control Hood and Controls (Drawing 2 of 10)

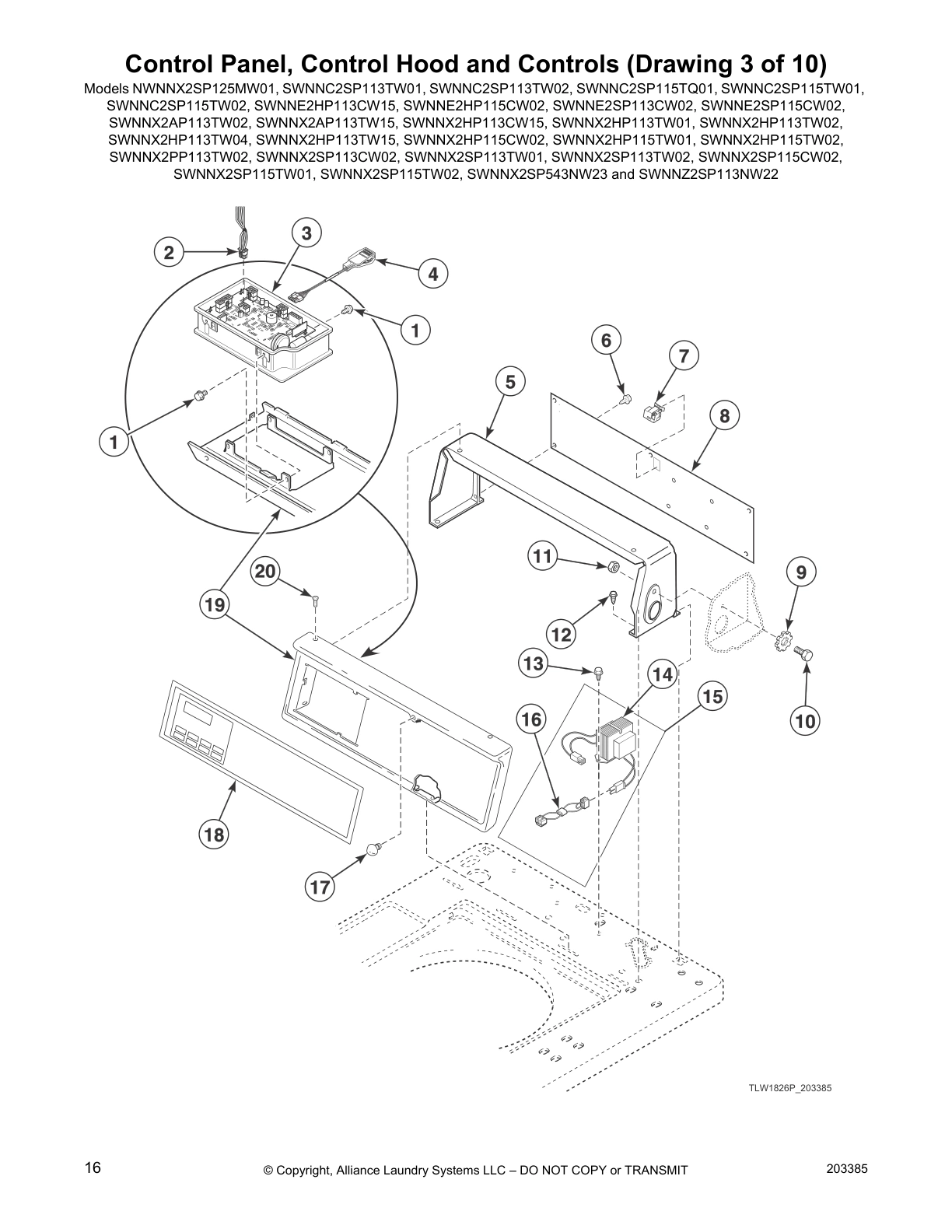

Control Panel, Control Hood and Controls (Drawing 3 of 10)

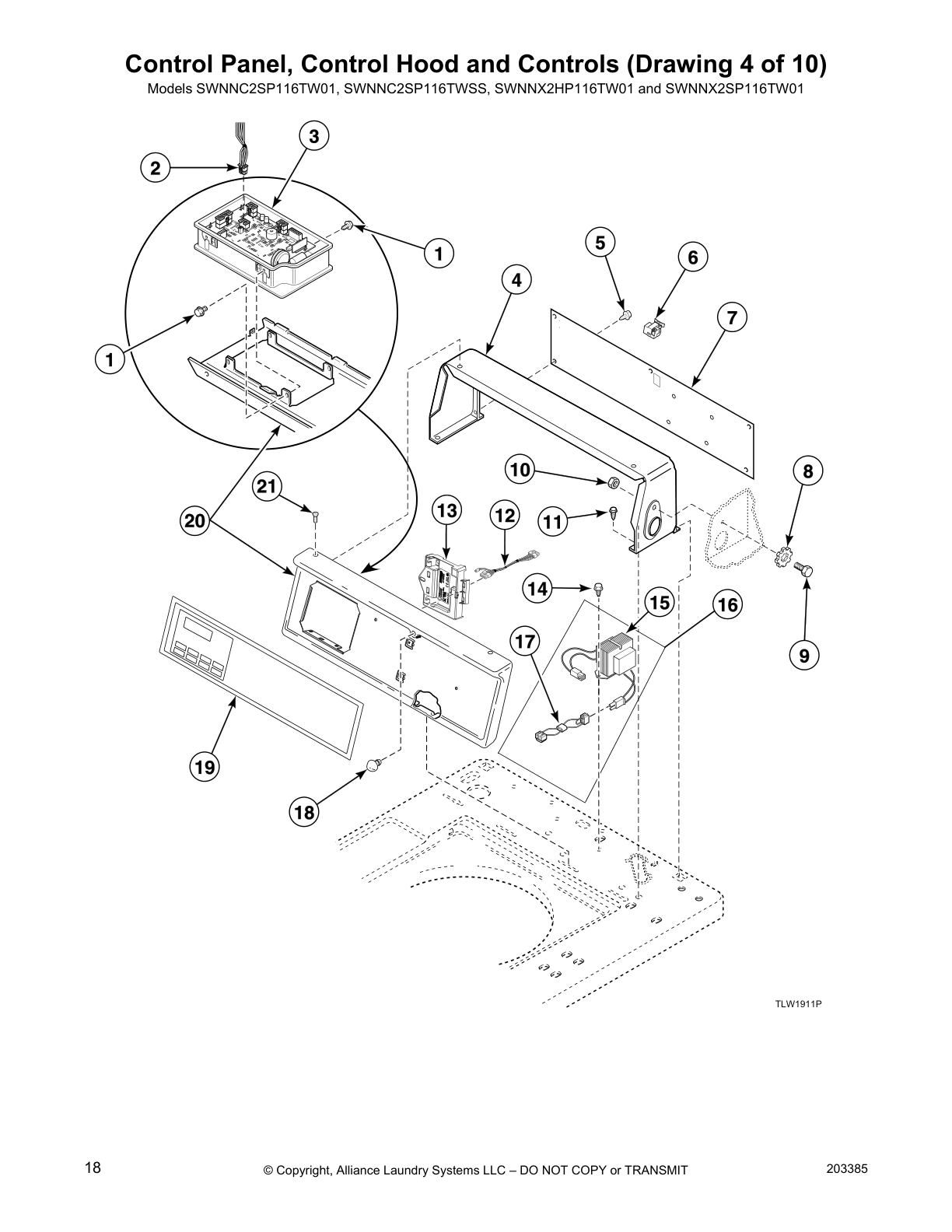

Control Panel, Control Hood and Controls (Drawing 4 of 10)

Control Panel, Control Hood and Controls (Drawing 5 of 10)

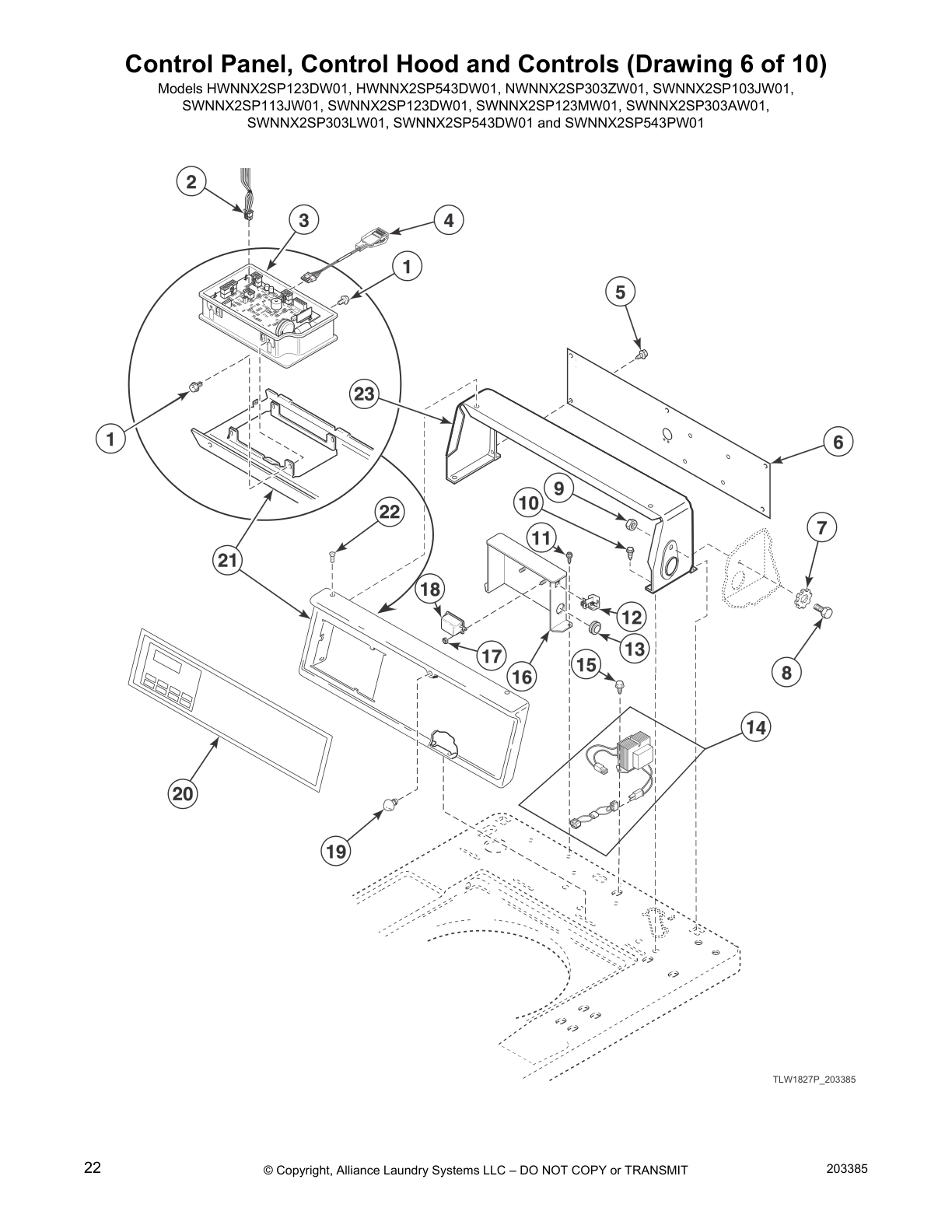

Control Panel, Control Hood and Controls (Drawing 6 of 10)

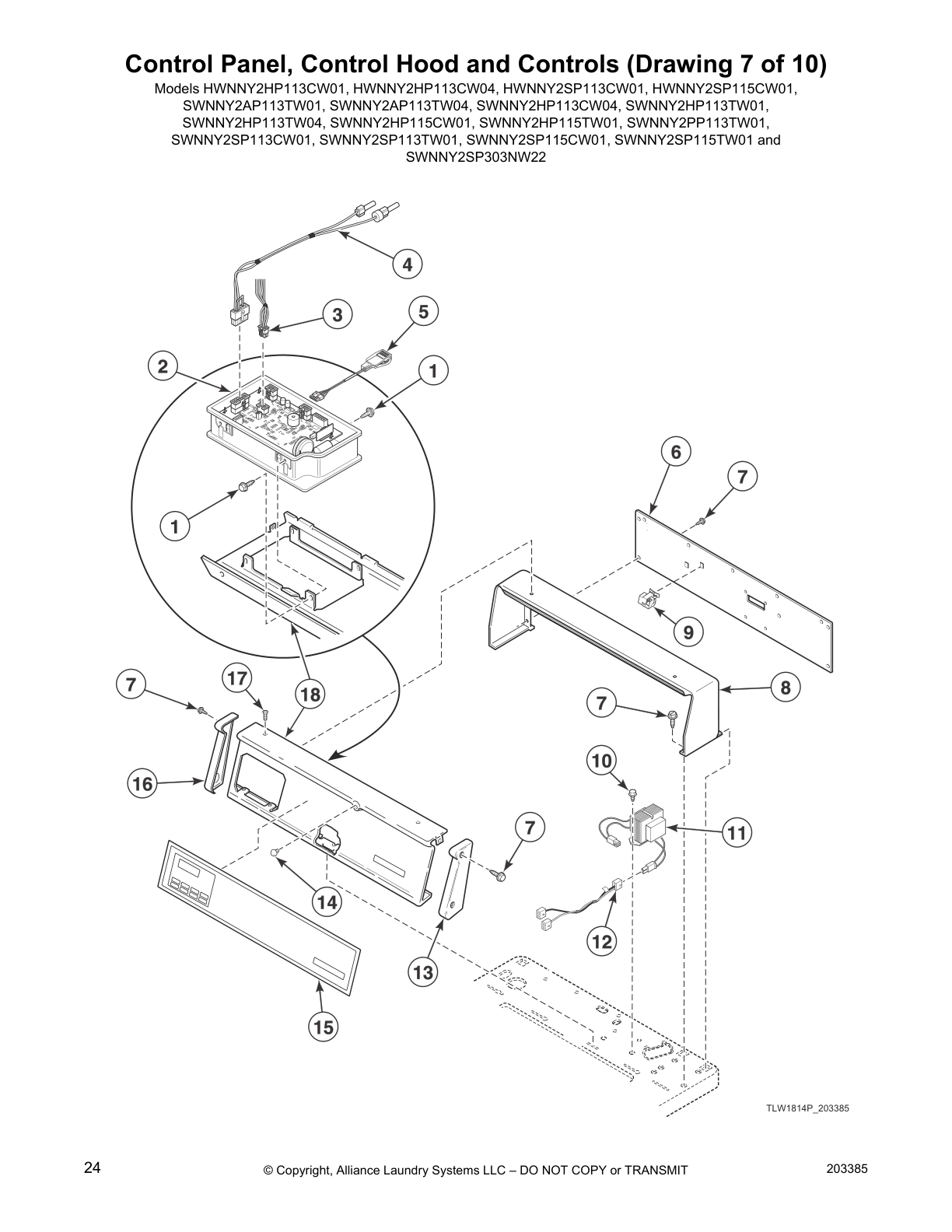

Control Panel, Control Hood and Controls (Drawing 7 of 10)

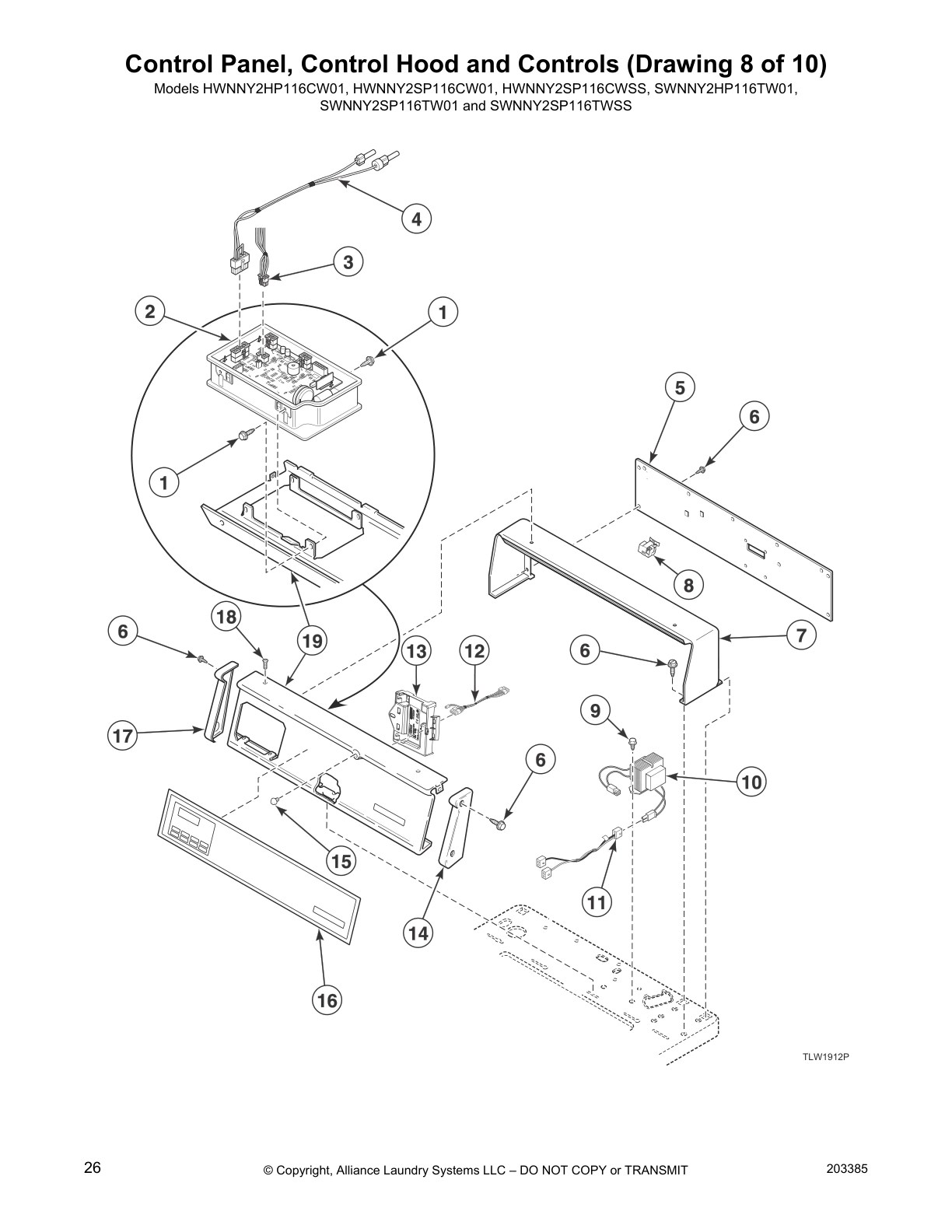

Control Panel, Control Hood and Controls (Drawing 8 of 10)

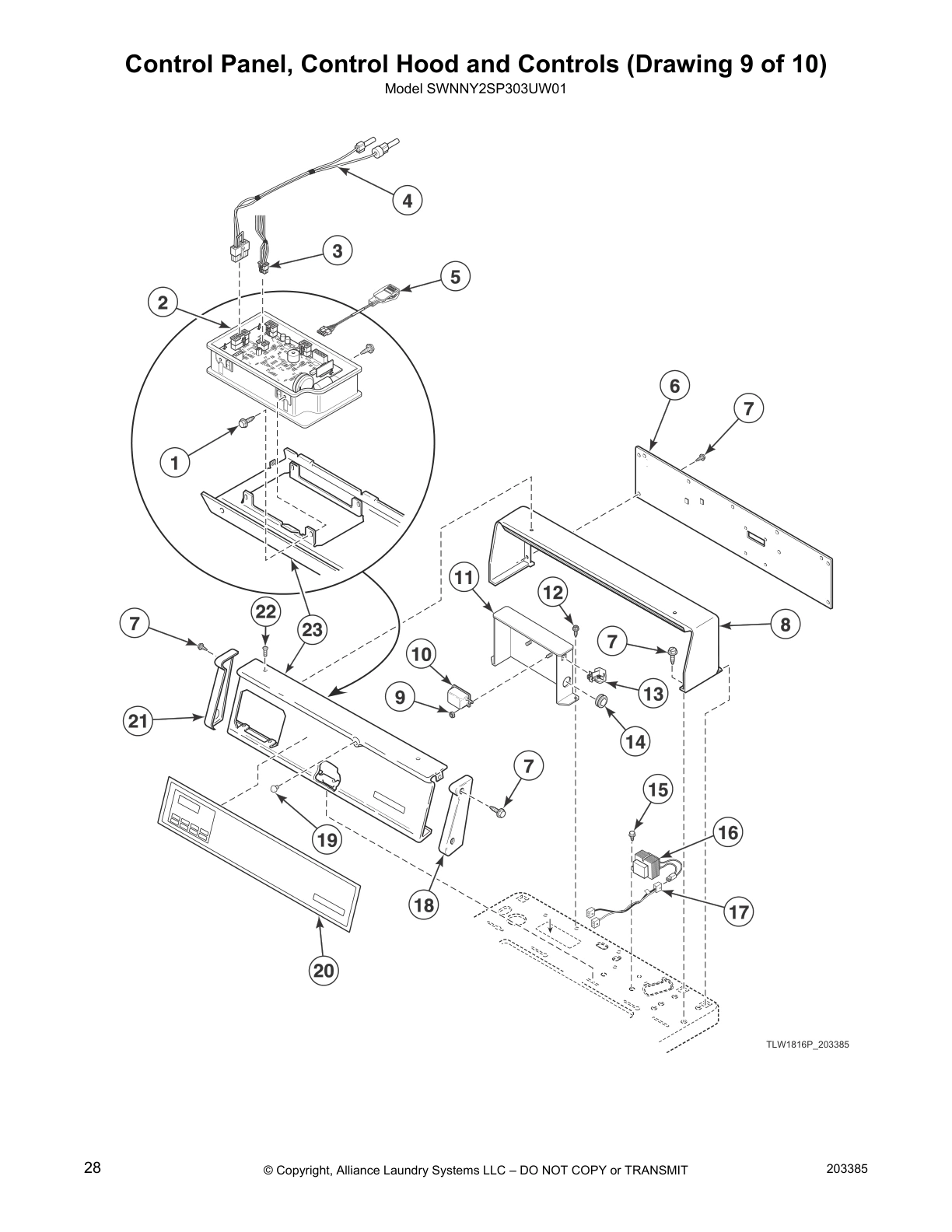

Control Panel, Control Hood and Controls (Drawing 9 of 10)

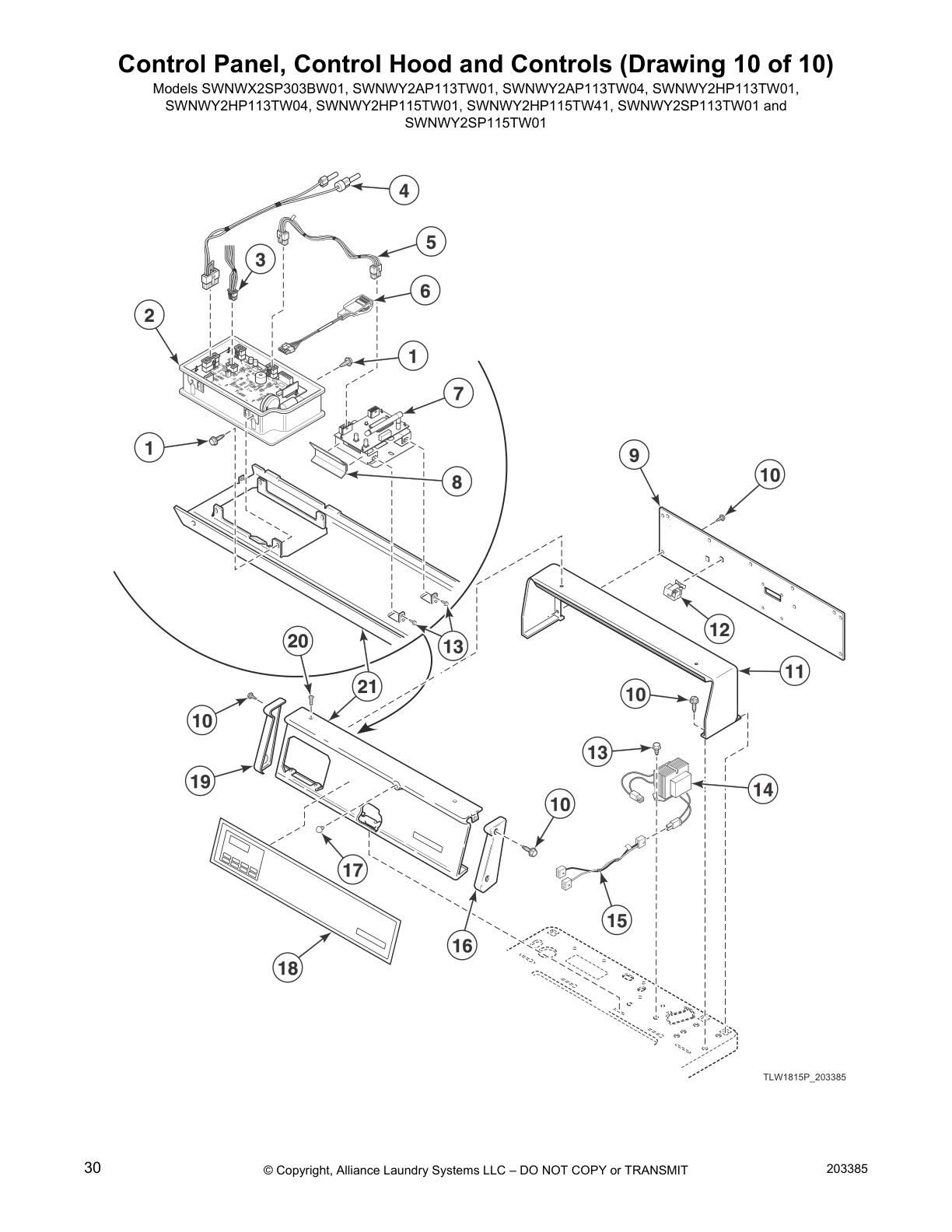

Control Panel, Control Hood and Controls (Drawing 10 of 10)

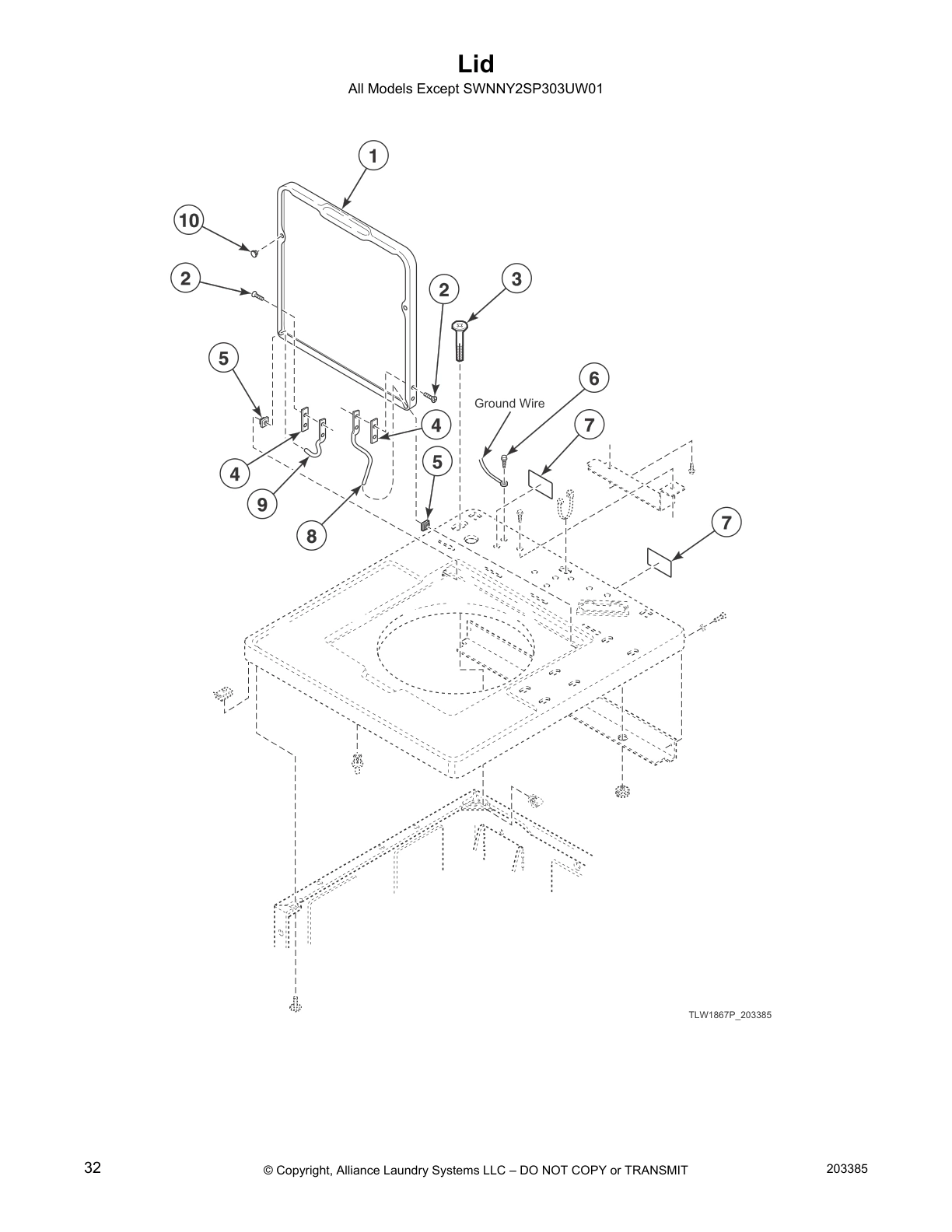

Lid

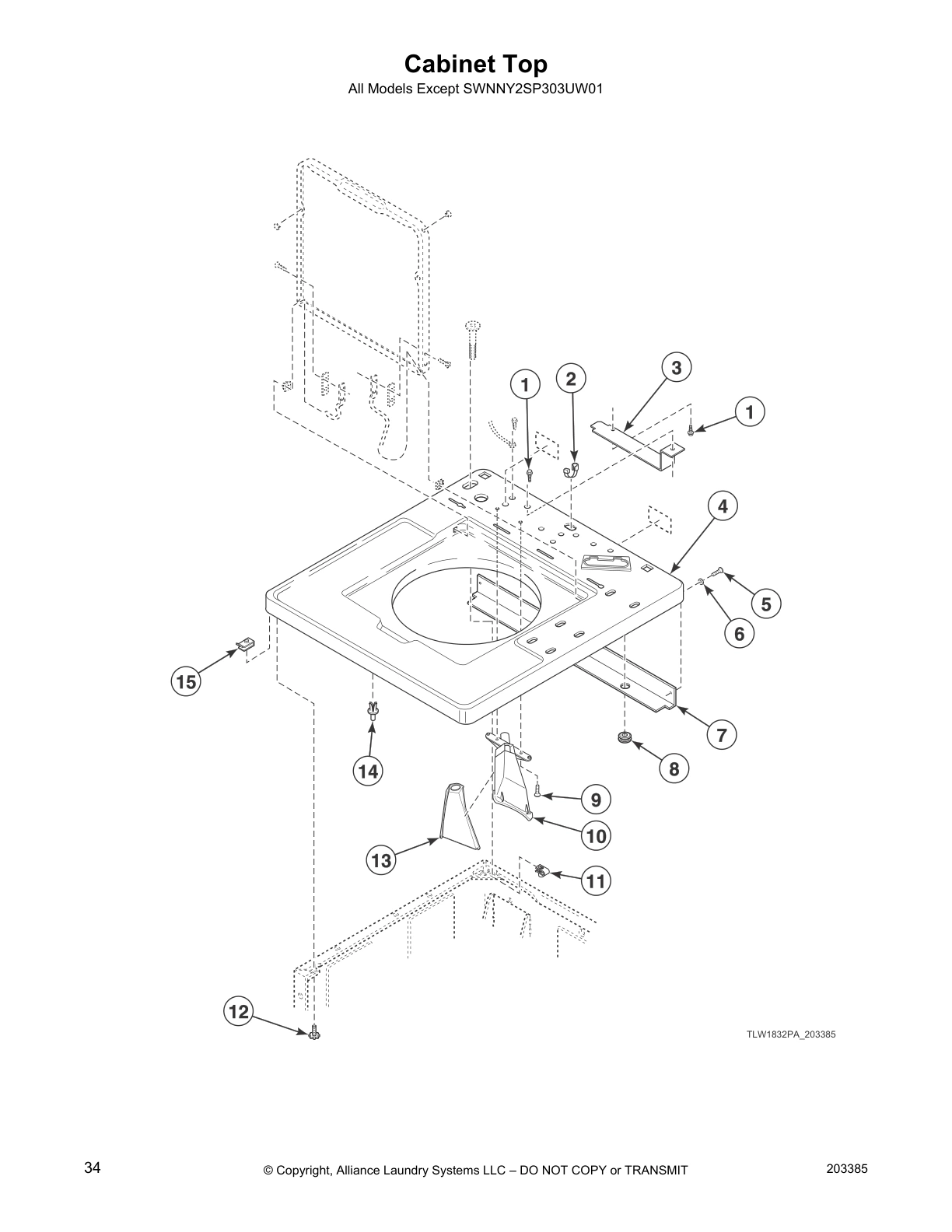

Cabinet Top

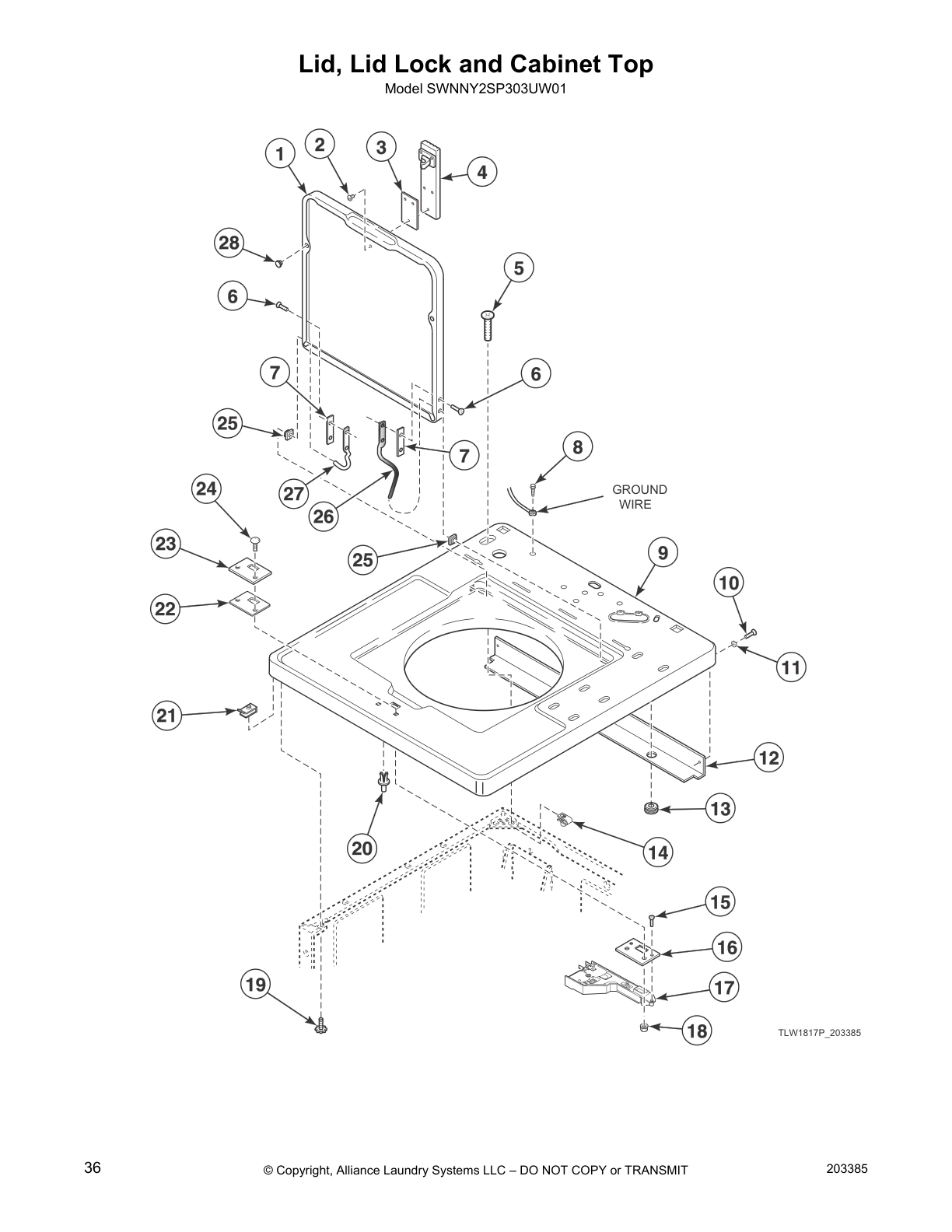

Lid, Lid Lock and Cabinet Top

Lid Switch

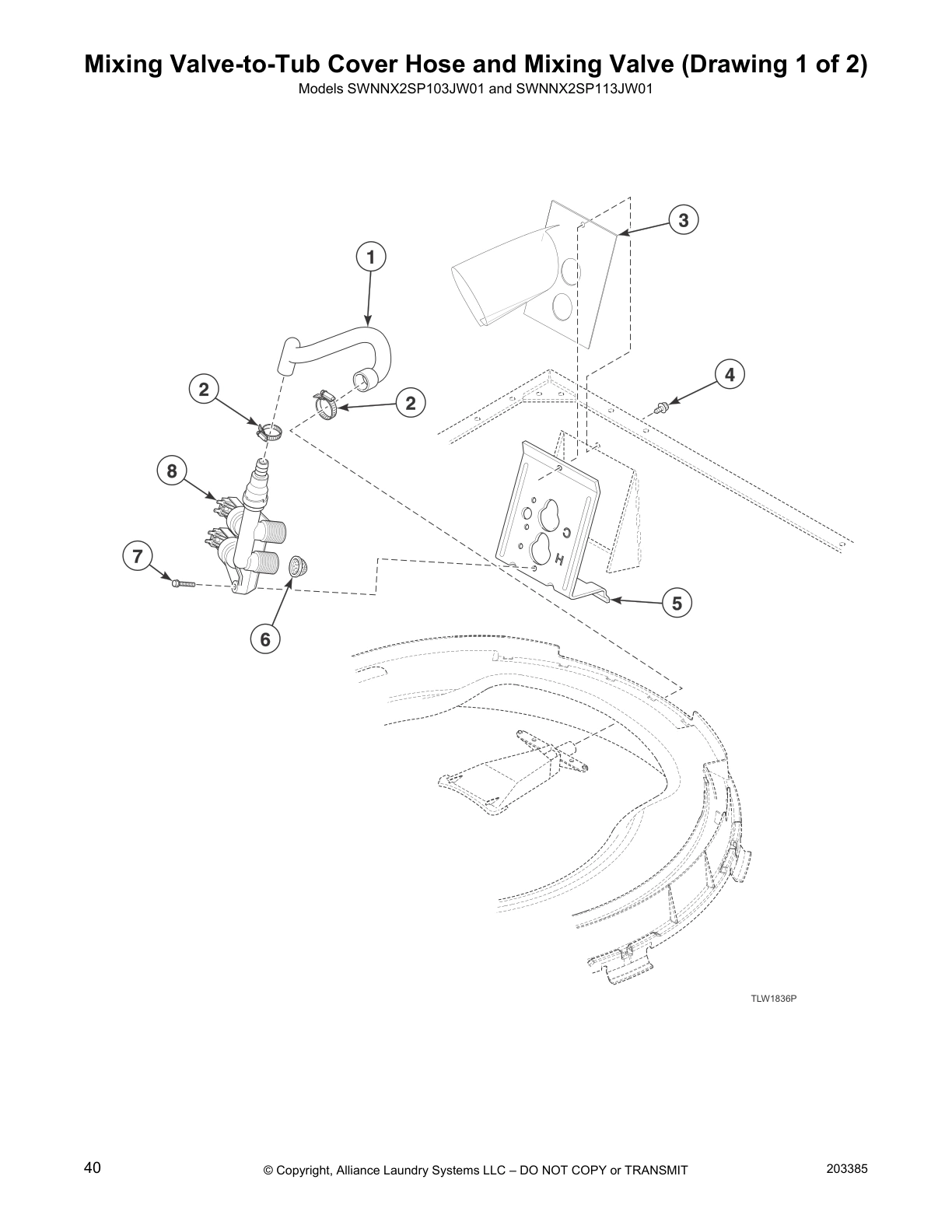

Mixing Valve-to-Tub Cover Hose and Mixing Valve (Drawing 1 of 2)

Mixing Valve-to-Tub Cover Hose and Mixing Valve (Drawing 2 of 2)

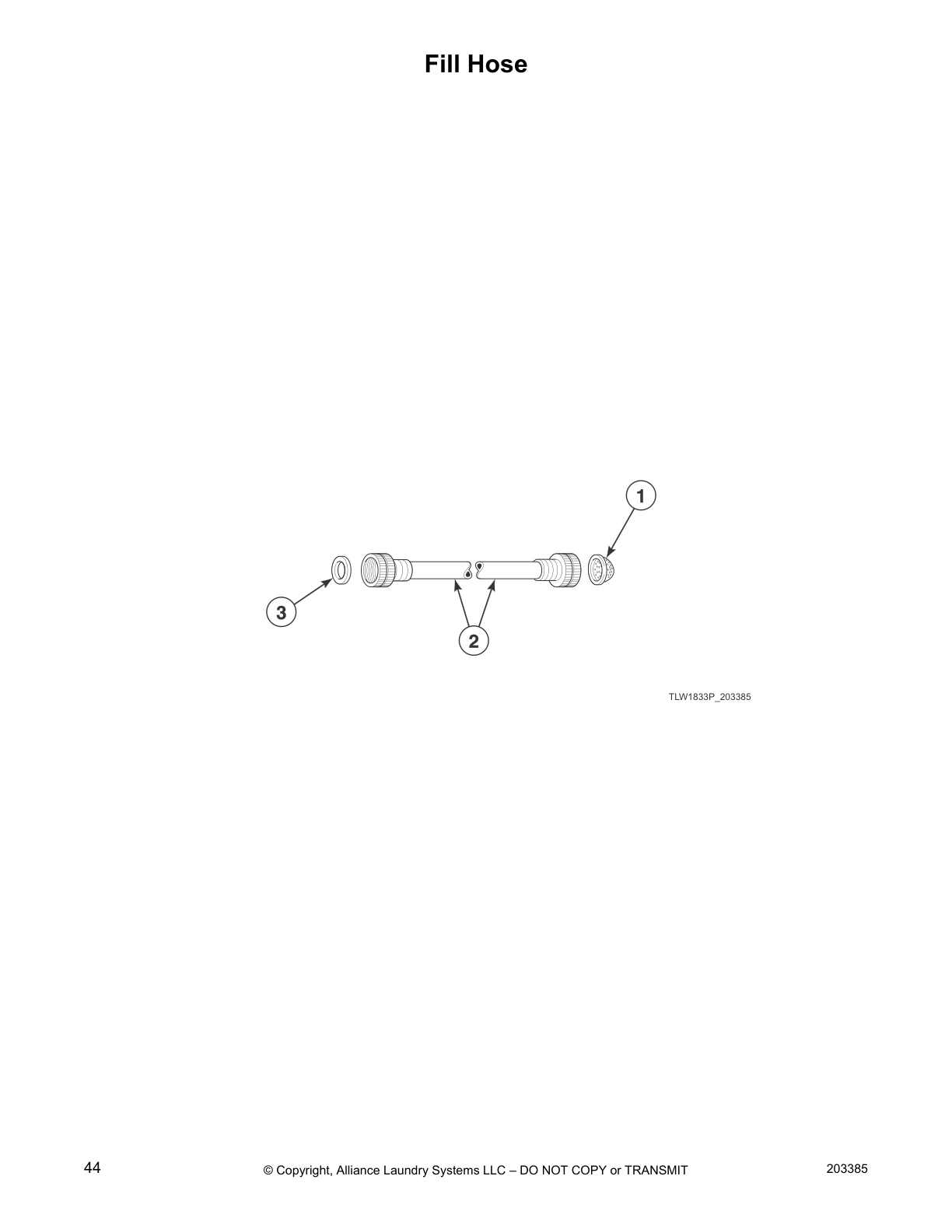

Fill Hose

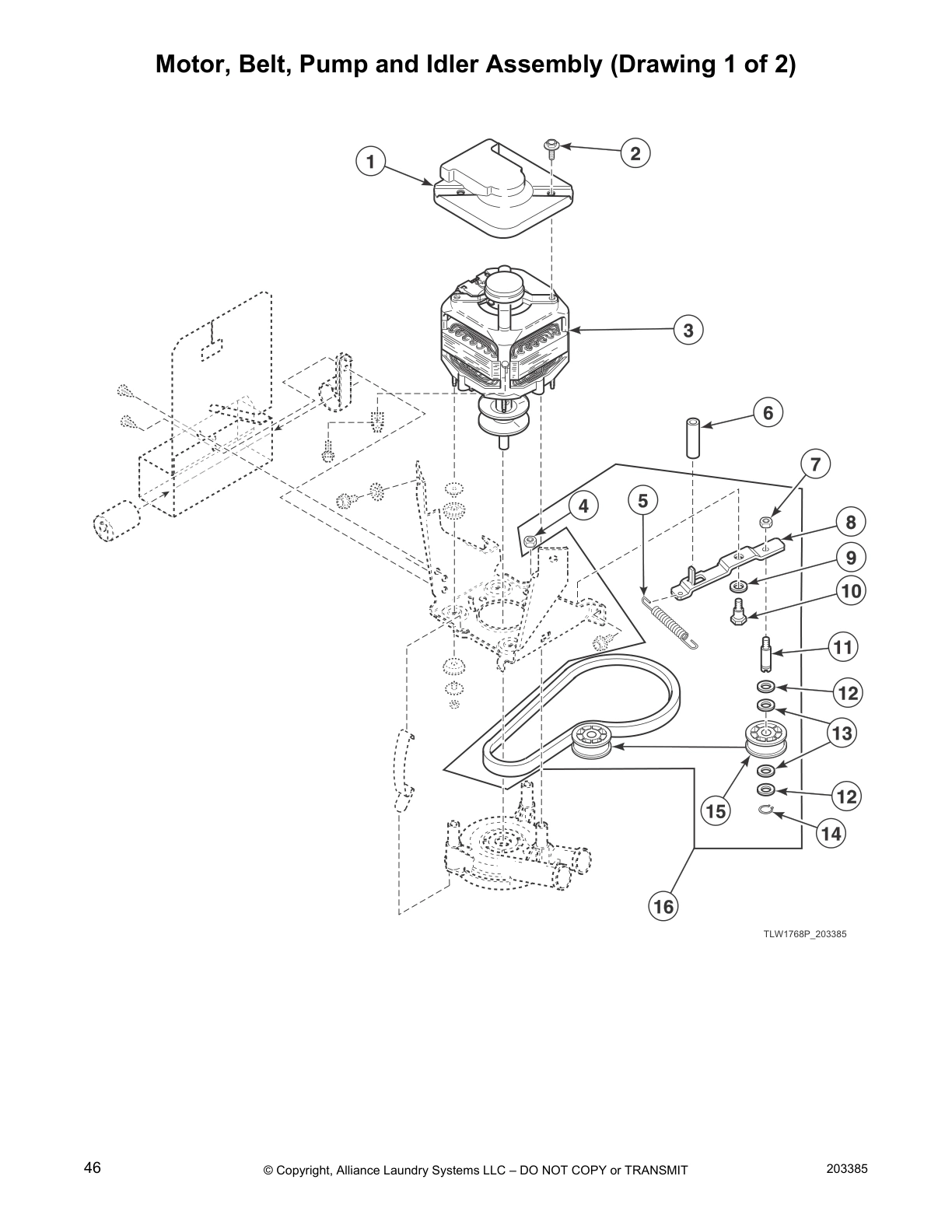

Motor, Belt, Pump and Idler Assembly (Drawing 1 of 2)

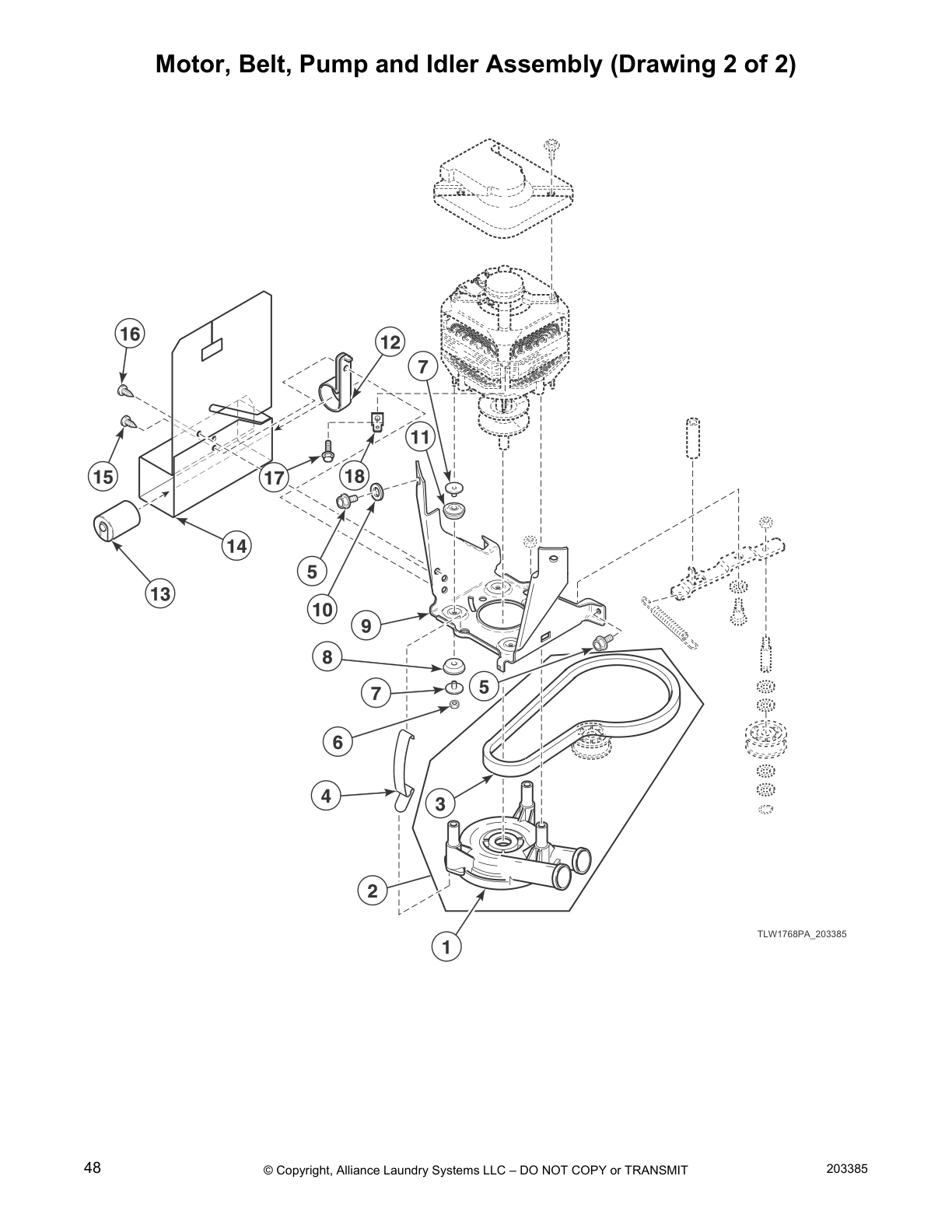

Motor, Belt, Pump and Idler Assembly (Drawing 2 of 2)

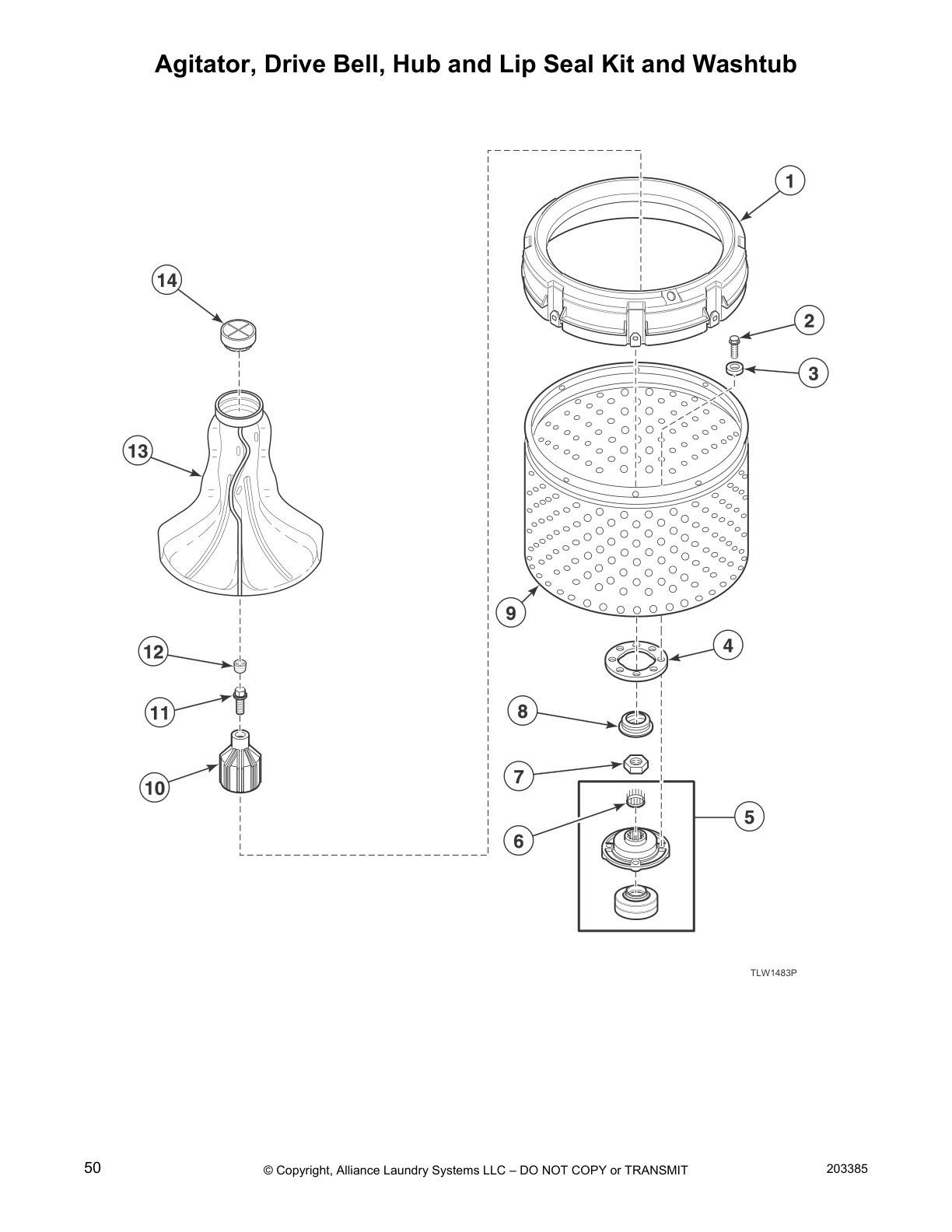

Agitator, Drive Bell, Hub and Lip Seal Kit and Washtub

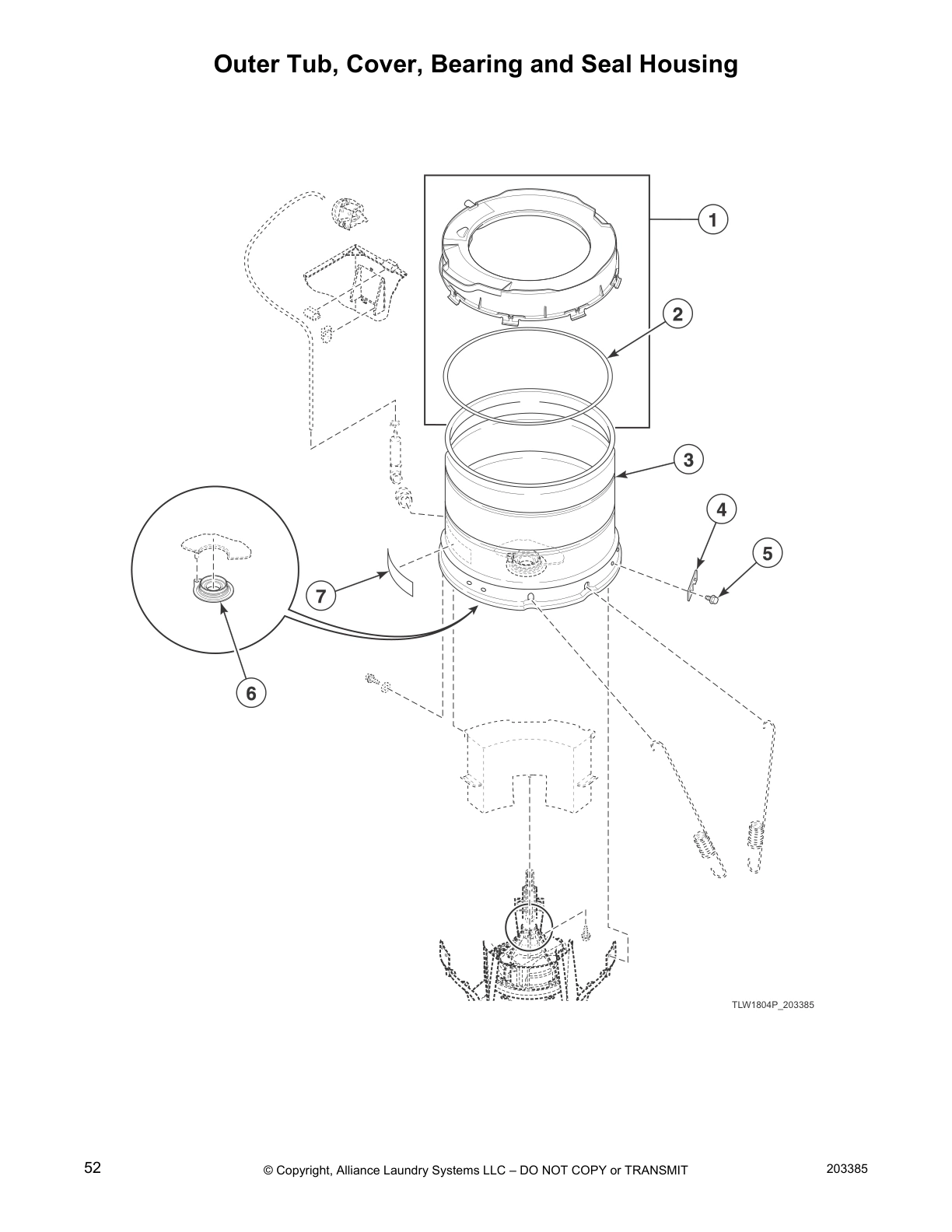

Outer Tub, Cover, Bearing and Seal Housing

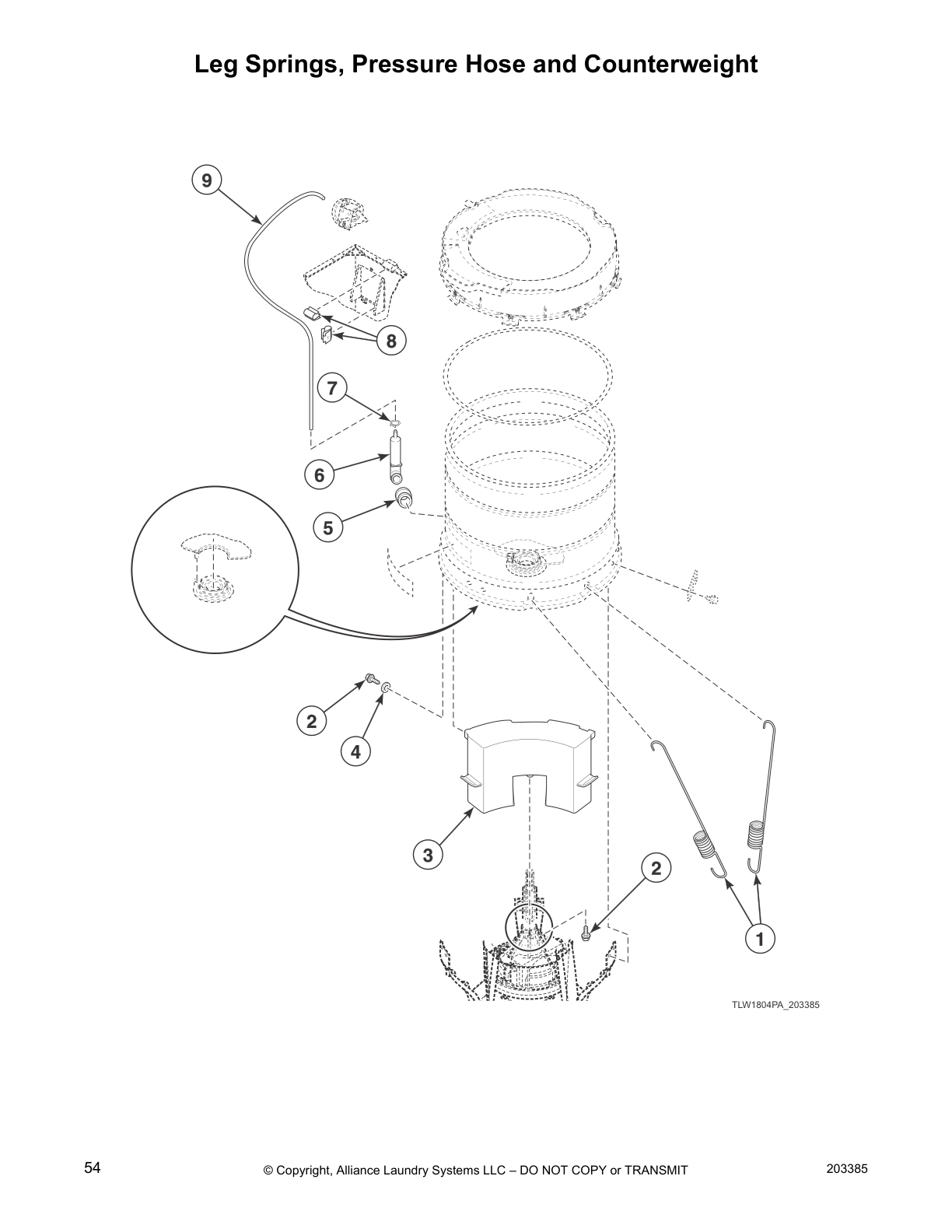

Leg Springs, Pressure Hose and Counterweight

Transmission Assembly

Drain Hoses and Siphon Break Kit

Weldment and Bearing Assembly, Brake and Pulley

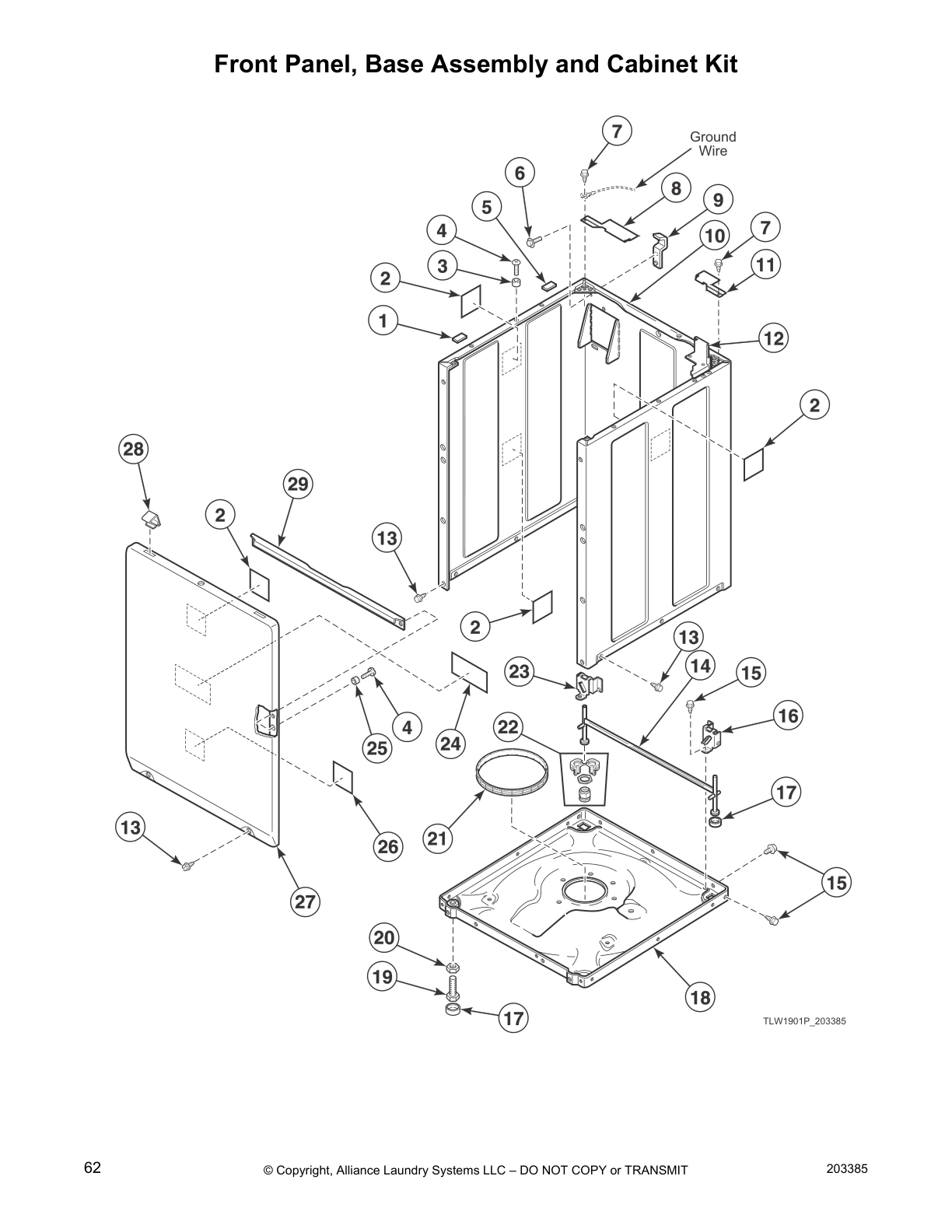

Front Panel, Base Assembly and Cabinet Kit

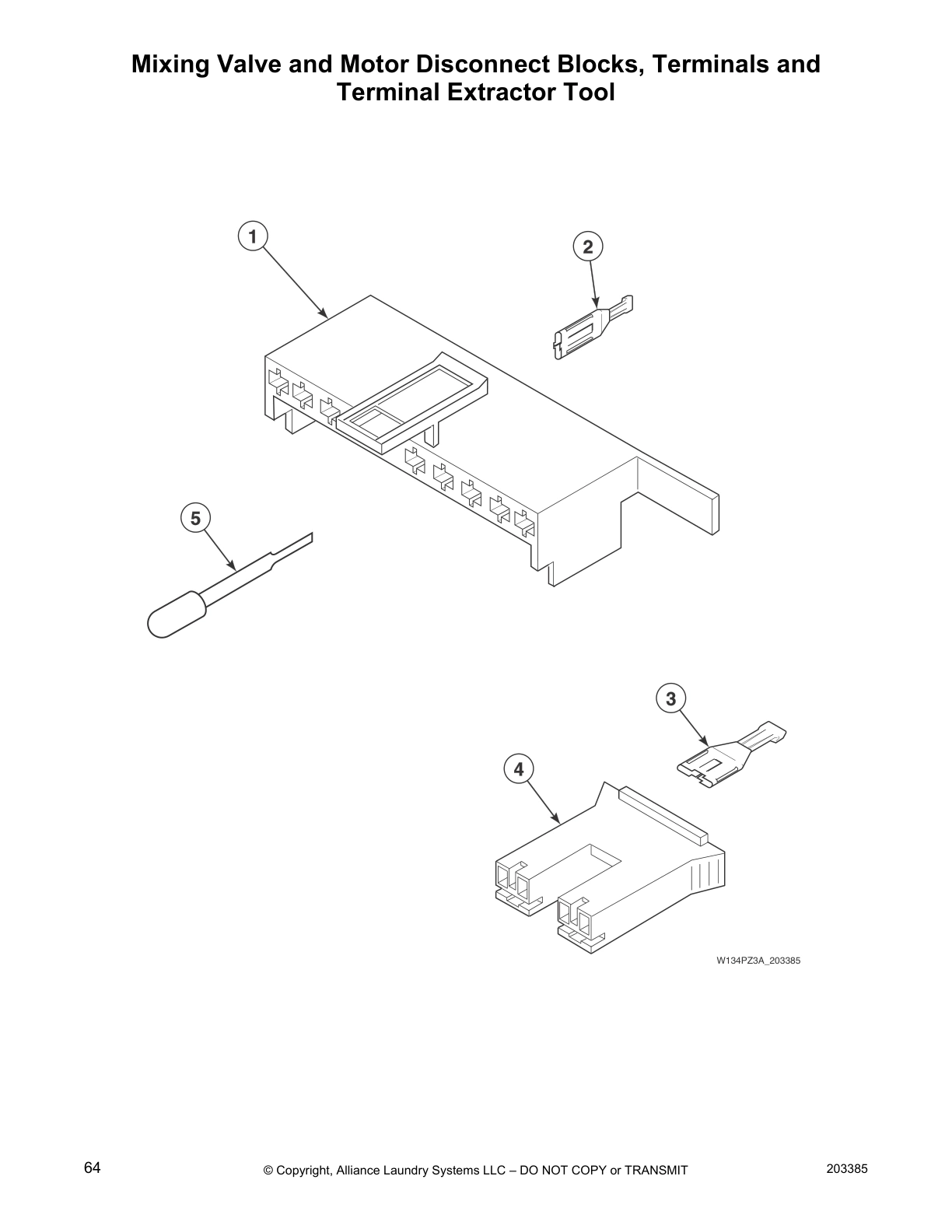

Mixing Valve and Motor Disconnect Blocks, Terminals and Terminal Extractor Tool

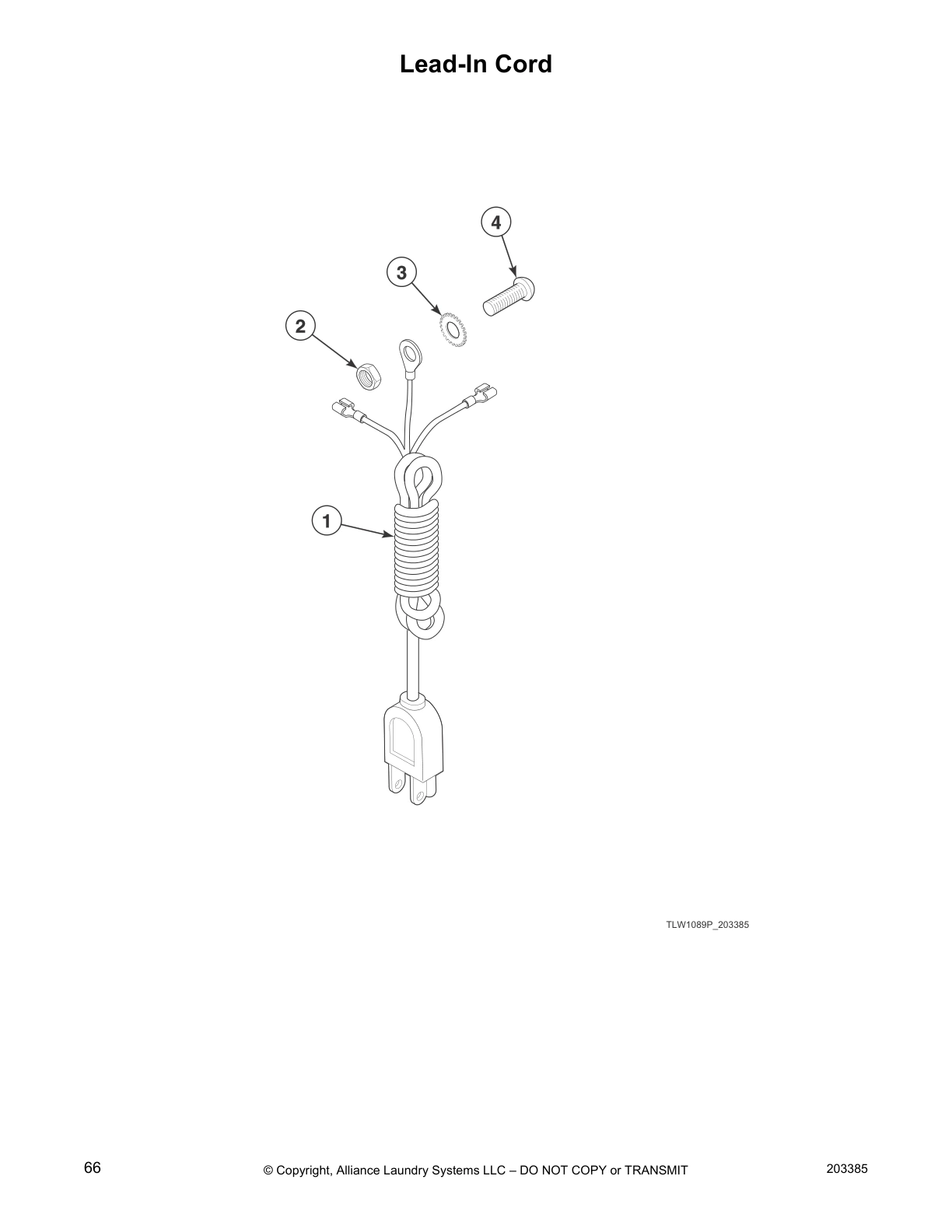

Lead-In Cord

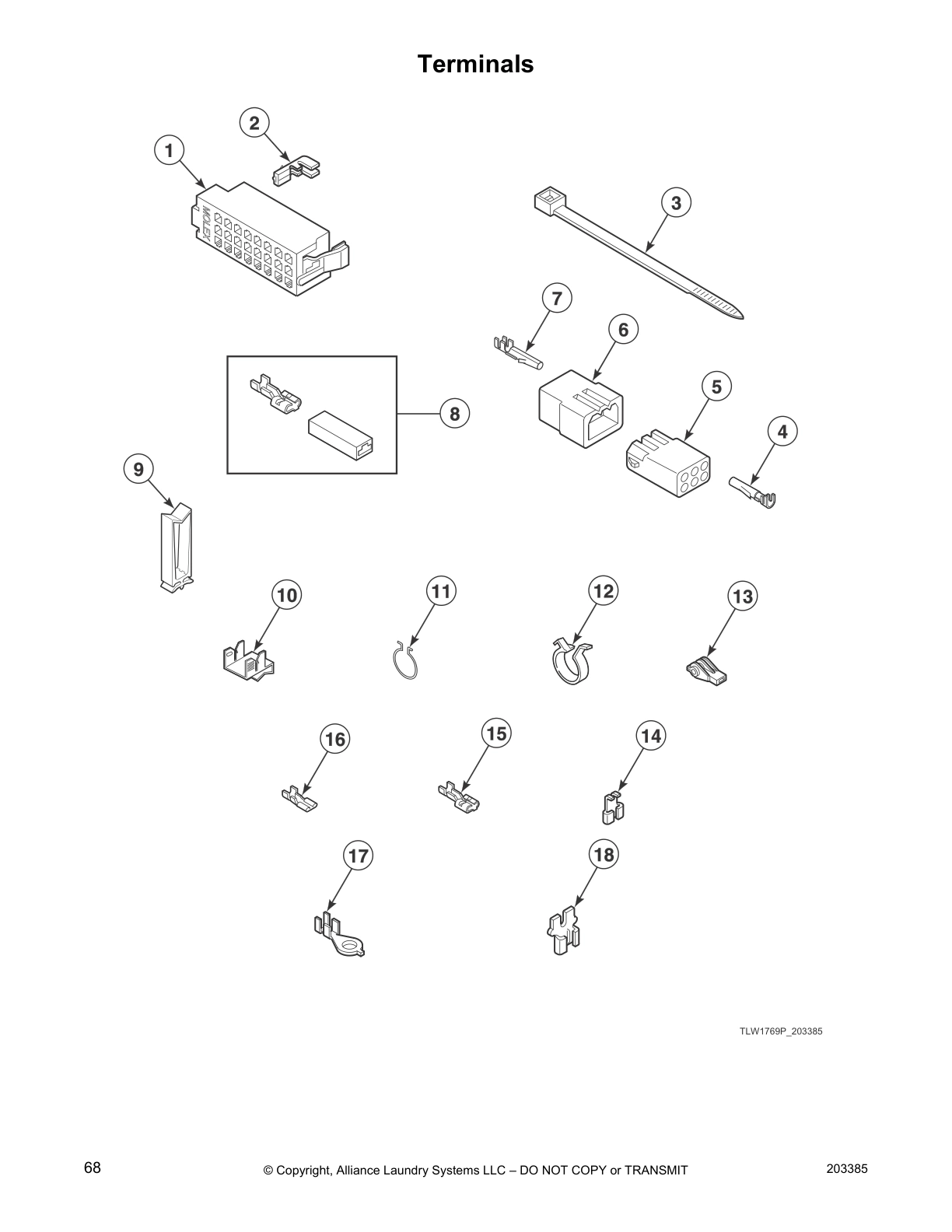

Terminals

Shipping Materials and Special Tools

Special Tools

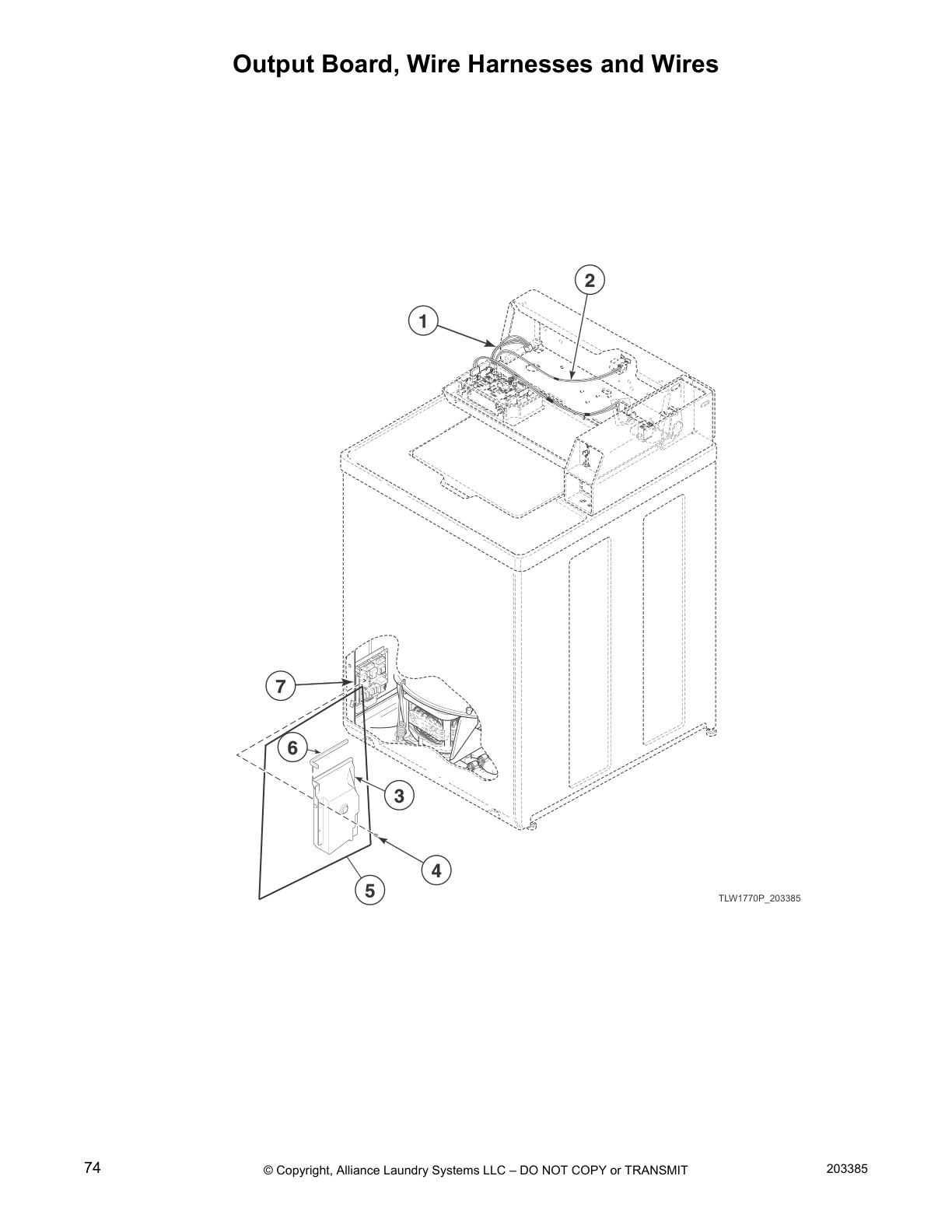

Output Board, Wire Harnesses and Wires

Common parts from model Speed Queen SWNNY2SP115CW01 Washer
