Model Speed Queen STGA19*H Stacked Washer and Dryer – Common Parts & Diagrams

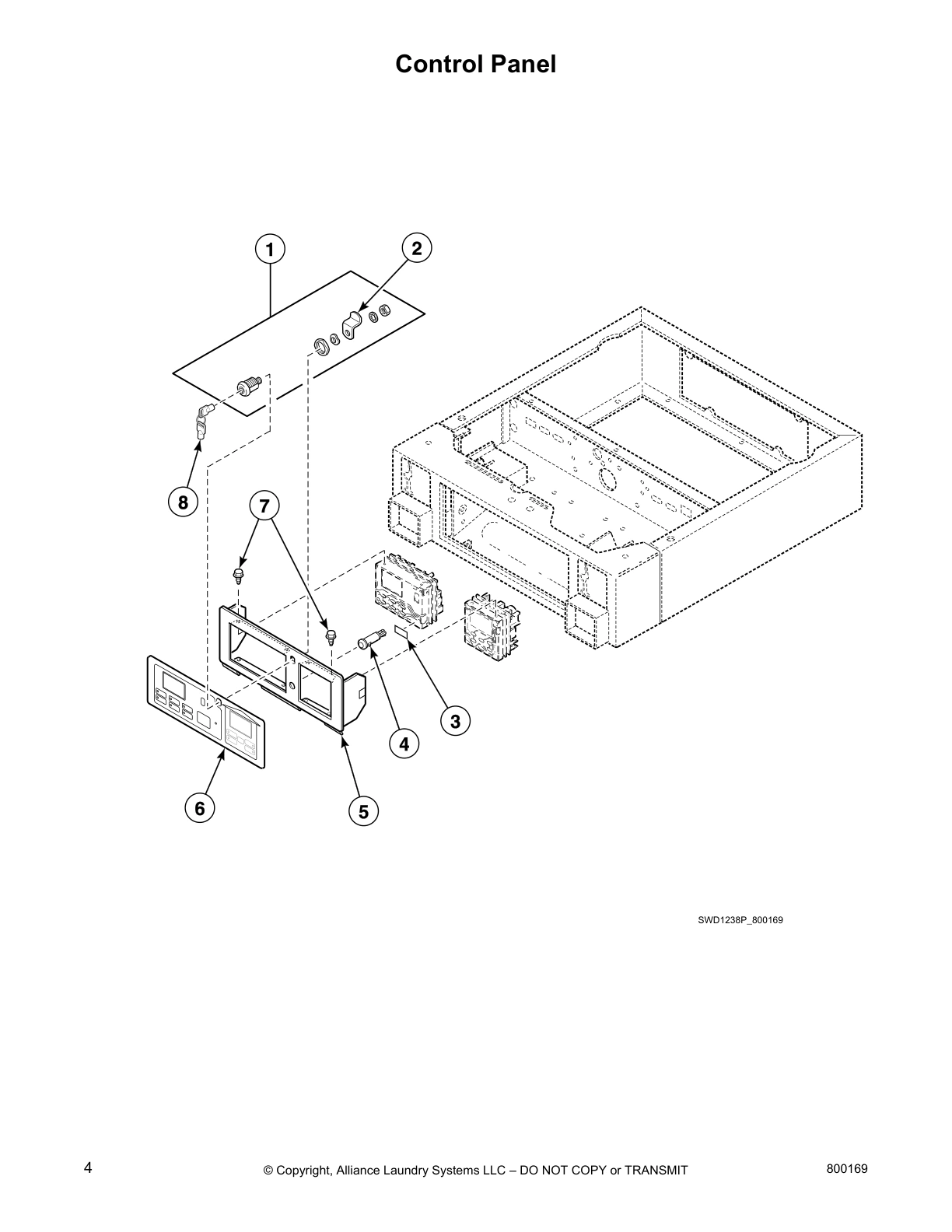

Control Panel
Controls
Control Cabinet Controls
Cabinet Wrapper and Coin Drop
Electronic Coin Drop
Control Cabinet and Card Reader (Drawing 1 of 2)
Control Cabinet and Card Reader (Drawing 2 of 2)
Washer Front Panel, Older Style Door Assembly and Door Seal
Washer Front Panel, Newer Style Door Assembly and Door Seal
Dispenser Assembly
Mixing Valve, Valve-to-Dispenser Inlet Hose and Fill Hose
Outer Tub, Front and Clamp Ring
Inner Basket, Trunnion, Bearing Housing and Pulley
Washer Motor and Belt
Hoses and Pump
Washer Base, Side Panels and Rear Panel
Washer Power Cord, Wire Ties and Harness Clips
Dryer Loading Door
Dryer Access Panel, Front Panel and Seal
Dryer Motor, Exhaust Fan and Belt
Front Bulkhead, Air Duct, Felt Seal and Cylinder
Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block
Heater Duct and Element Assembly
Heater Duct Assembly
Gas Valve, Igniter and Gas Conversion Kits
Dryer Cabinet, Exhaust Duct and Base
Dryer Power Cord
Dryer Motor Connection Block, Terminal Extractor Tools
Shipping Materials
Special Tools
Wire Harnesses and Wires
Common parts from model Speed Queen STGA19*H Stacked Washer and Dryer
3
Sealant SPQ 802434P Contact Us For Availability
4
Harness Strap SPQ 800211 Contact Us For Availability
9
SPQ 801784P SPQ 801784P Contact Us For Availability
15
Screw SPQ 801476P Contact Us For Availability
16
Inner Basket Assembly SPQ 800428P Contact Us For Availability
24
Locking Catch SPQ 62853 Contact Us For Availability
NI
SPQ 800232P SPQ 800232P Contact Us For Availability
× ![]()
