Model Speed Queen STEX77*N4351 Stacked Washer and Dryer – Common Parts & Diagrams
Control Panel and Controls (Drawing 1 of 2)

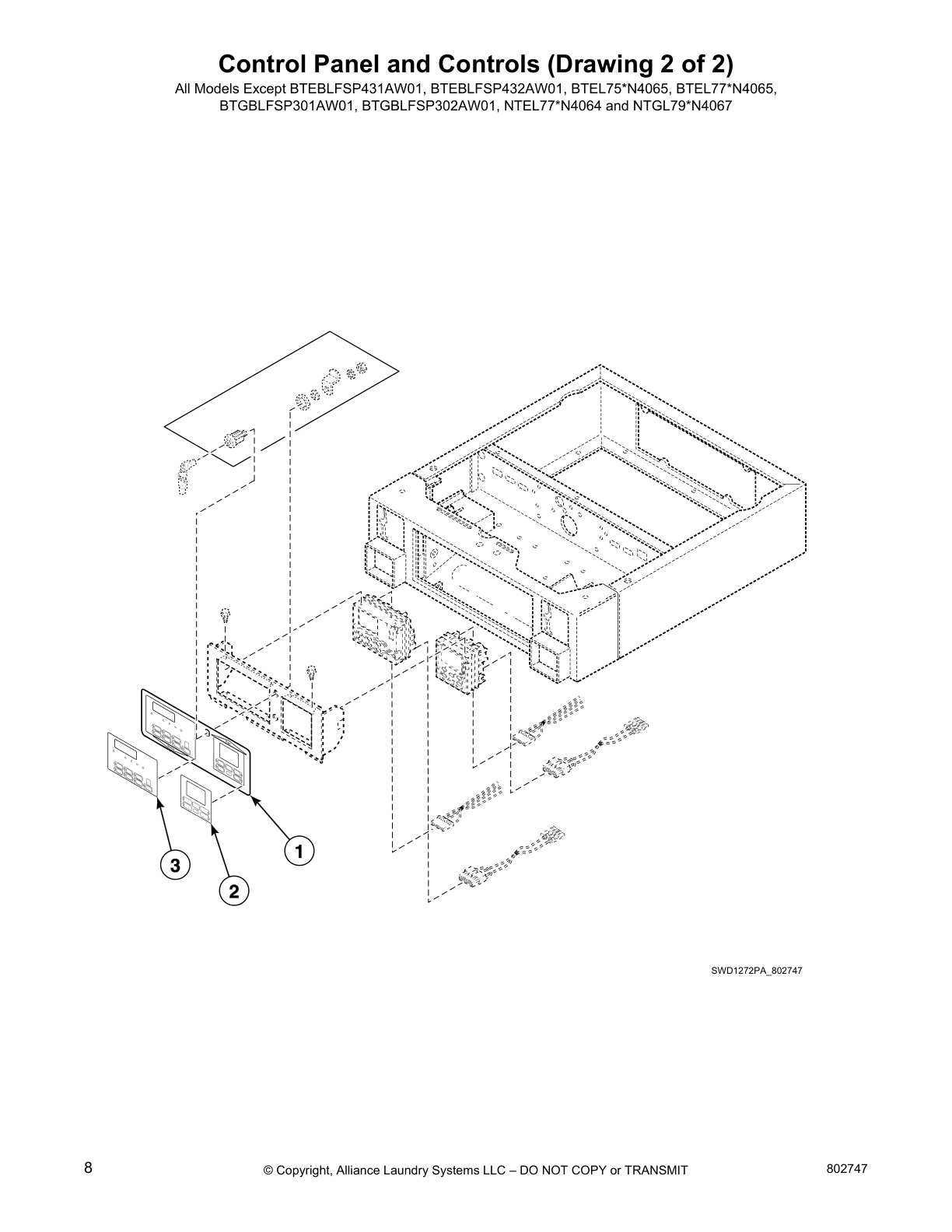

Control Panel and Controls (Drawing 2 of 2)
Control Cabinet Controls (Drawing 1 of 2)
Control Cabinet Controls (Drawing 2 of 2)
Electrical Access Panel, Filters and Terminal Block
Cabinet Wrapper and Coin Drop
Electronic Coin Drop
Cabinet Wrapper and Card Reader
Control Cabinet and Controls
Electrical Access Panel, Filters and Terminal Block
Washer Front Panel and Door Assembly
Dispenser Assembly and Door Seal
Mixing Valve, Valve-to-Dispenser Inlet Hose and Fill Hose
Tub Front and Clamp Ring
Outer Tub
Inner Basket, Trunnion, Bearing Housing and Pulley
Washer Motor and Belt
Drain Hoses and Valve
Hoses and Pump
Washer Base, Side Panels and Rear Panel
Junction Box and Power Cord
Wire Ties, Harness Clips and Washer Lead-In Cord
Dryer Loading Door with Window (Drawing 1 of 3)
Dryer Loading Door with Window (Drawing 2 of 3)
Dryer Loading Door with Window (Drawing 3 of 3)
Dryer Access Panel, Front Panel and Seal
Dryer Motor, Blower Fan and Belt
Thermistor and Thermostat
Front Bulkhead, Air Duct, Felt Seal and Cylinder
Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block
Heater Duct and Element Assembly (Drawing 1 of 2)
Heater Duct and Element Assembly (Drawing 2 of 2)
Heater Duct Assembly
Gas Valve, Igniter and Gas Conversion Kits
Dryer Cabinet, Exhaust Duct and Base
Dryer Power Cord
Dryer Motor Connection Block, Terminal Extractor Tools
Terminals
Shipping Materials
Labels
Special Tools
Dryer Wire Harnesses and Wires
Dryer Wire Harnesses and Wires - Models Through
Serial Nos. Beginning 0904
Dryer Wire Harnesses and Wires - Models Starting
Serial Nos. Beginning 0904
Dryer Wire Harnesses and Wires - Models Starting Serial Nos.
Beginning 0904 and Continuing Through Serial Nos.
Beginning 1303
Dryer Wire Harnesses and Wires - Models Starting
Serial Nos. Beginning 1303
Washer Wire Harnesses and Wires (Drawing 1 of 2)
Washer Wire Harnesses and Wires (Drawing 2 of 2)
Common parts from model Speed Queen STEX77*N4351 Stacked Washer and Dryer
16
Nut SPQ 800428P Contact Us For Availability
16
Dispenser Drawer SPQ 801476P Contact Us For Availability
16
Gasket SPQ 802434P Contact Us For Availability
× ![]()
