Model Whirlpool SAWS900JQ0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $9.99

1

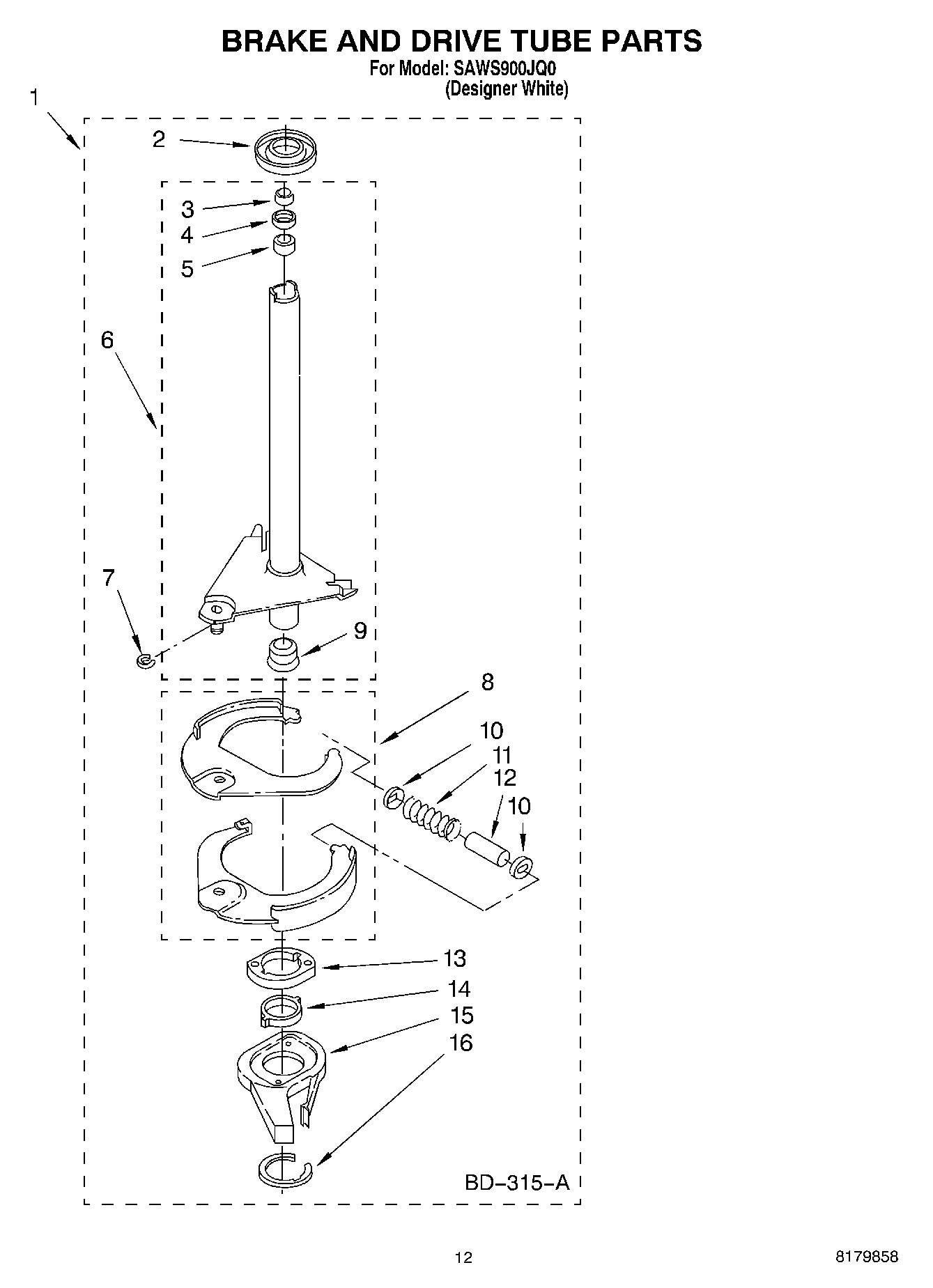

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

Clip, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

285321 Whirlpool Sleeve Backorder WPL 285321 $26.75

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $89.14

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $4.98

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

WP3347288 Whirlpool Washer Agitator Base In Stock WPL WP3347288 $73.90

4

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

4

Support & Brake, Tub WPL 3362087 Contact Us For Availability

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $18.42

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $255.69

5

W10880720 Whirlpool Tub Ring Backorder WPL W10880720 $76.64

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

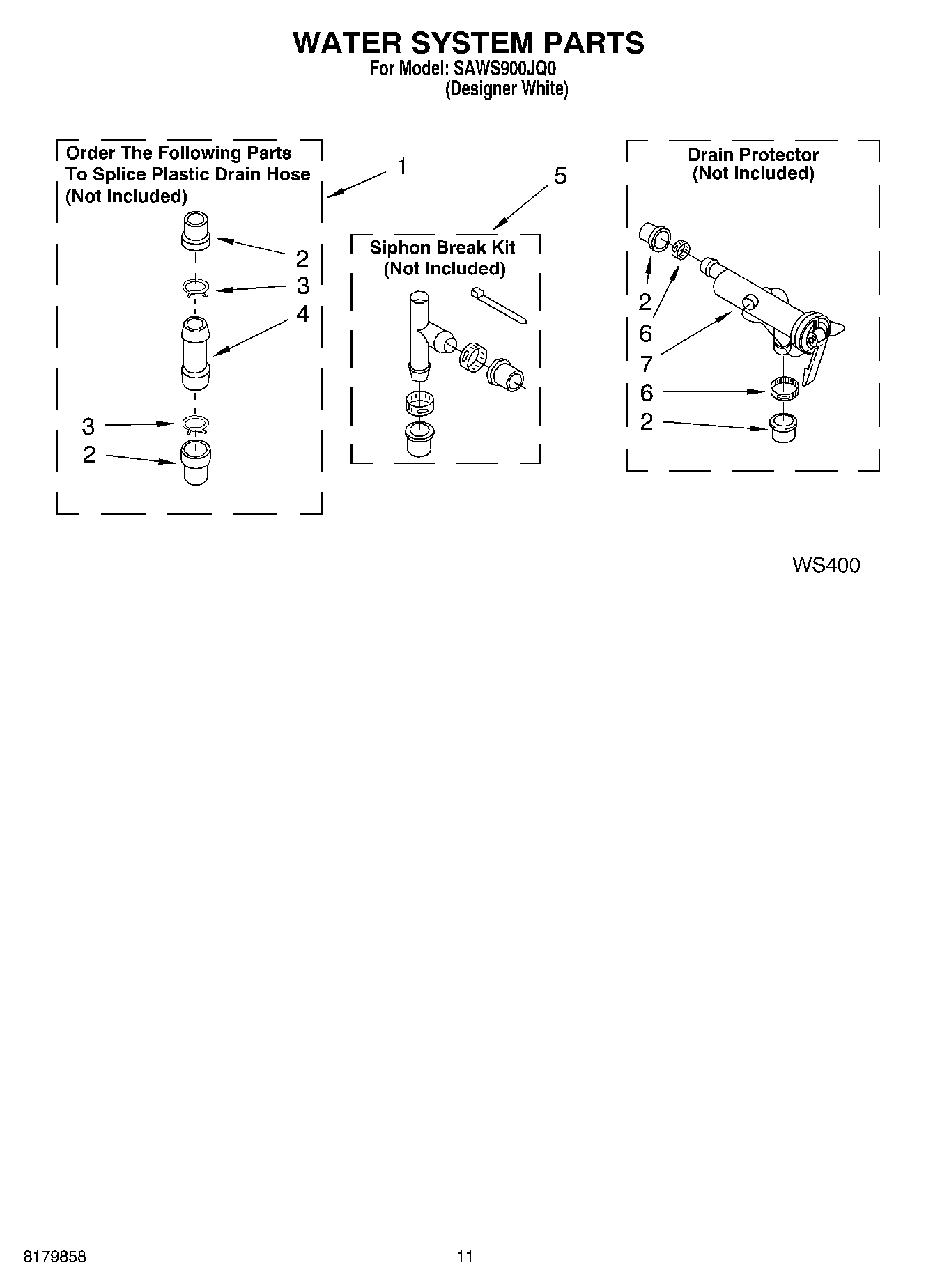

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $28.49

6

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

6

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

6

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

6

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $9.42

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.70

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

7

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

WP3356311 Whirlpool Screw Backorder WPL WP3356311 $2.51

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $3.70

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $5.27

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $10.82

9

285811 Whirlpool Washer Agitator Repair Kit In Stock WPL 285811 $8.76

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

Timer, Control (60 Hz.) (Motor Not A Service WPL 3955501 Contact Us For Availability

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $1.10

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $28.80

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $2.51

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

WP8271956 Whirlpool Shield Backorder WPL WP8271956 $58.10

Spring, Agitate WPL 62676 Contact Us For Availability

11

353424 Whirlpool Connector Backorder WPL 353424 $10.76

11

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $3.70

11

WP62611 Whirlpool Plate Backorder WPL WP62611 $37.28

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

13

W10389328 Whirlpool Basket Backorder WPL W10389328 $190.38

13

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

285868 Whirlpool Washer Filter Plug Kit In Stock WPL 285868 $9.92

W10820044 Whirlpool Power Cord Backorder WPL W10820044 $56.25

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

285901 Whirlpool Spring Kit Assembly In Stock WPL 285901 $27.29

WP387240 Whirlpool Balance Ring Backorder WPL WP387240 $64.40

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $10.60

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $126.36

WP91770 Whirlpool Hinge Backorder WPL WP91770 $8.80

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

WP3979346 Whirlpool Water Inlet Valve In Stock WPL WP3979346 $42.31

Clamp, Hose WPL 3976395 No Longer Available

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

WP8529935 Whirlpool Drive Motor Backorder WPL WP8529935 $236.28

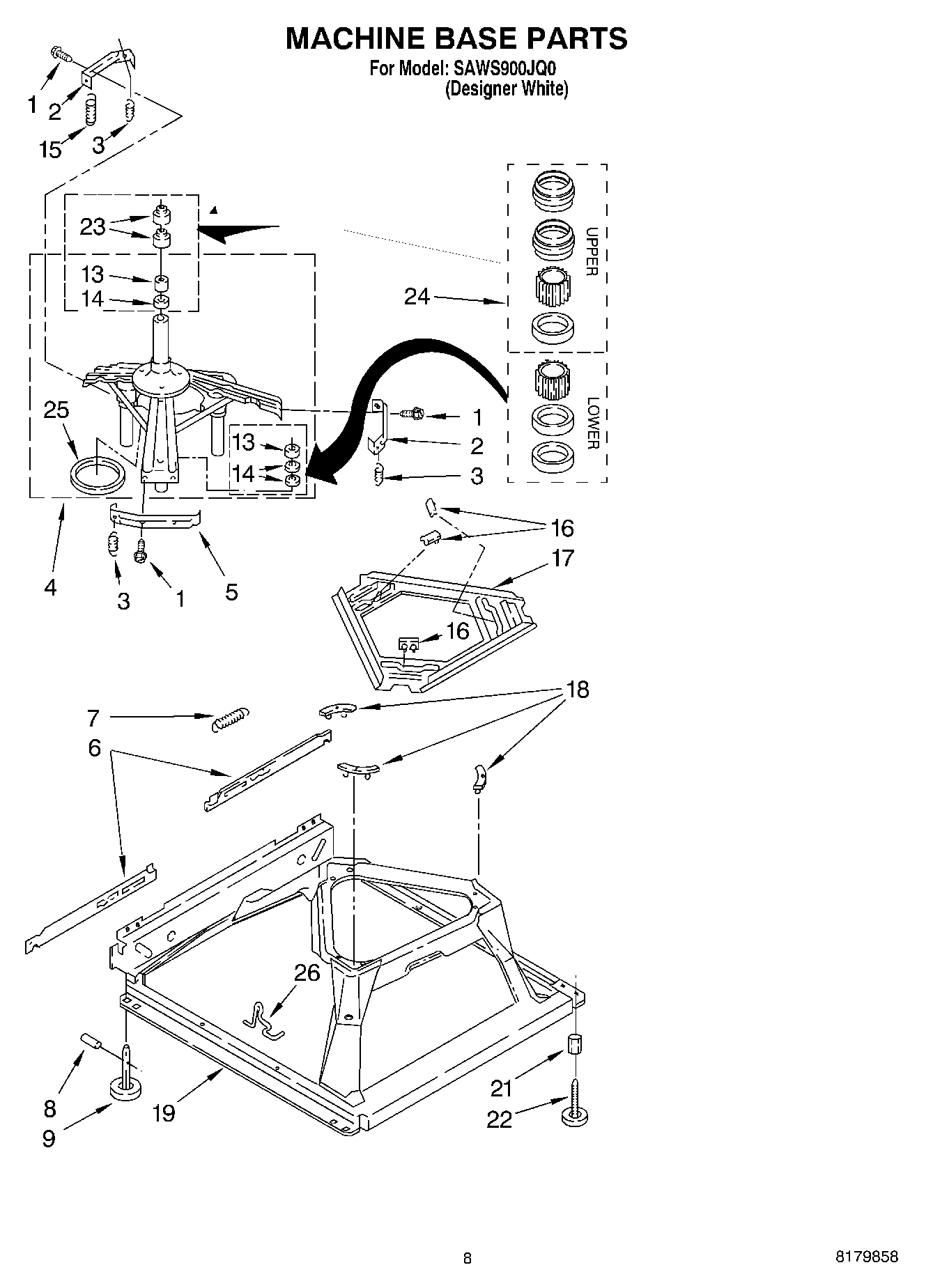

Base Assembly (Includes Illus, 6, 7, 8, 9, 16 WPL 3946512 Contact Us For Availability

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $49.52

Agitator, Asy (Complete) WPL 3946501 Contact Us For Availability

Switch, Main Drive Motor WPL 8529896 Contact Us For Availability

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

21

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

21

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.70

285587 Whirlpool Thrust Washer In Stock WPL 285587 $1.43

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

WP8317926 Whirlpool Inlet Hose In Stock WPL WP8317926 $10.61

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.47

Ring, Retaining WPL 3362552 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $3.70

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

26

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.72

26

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

27

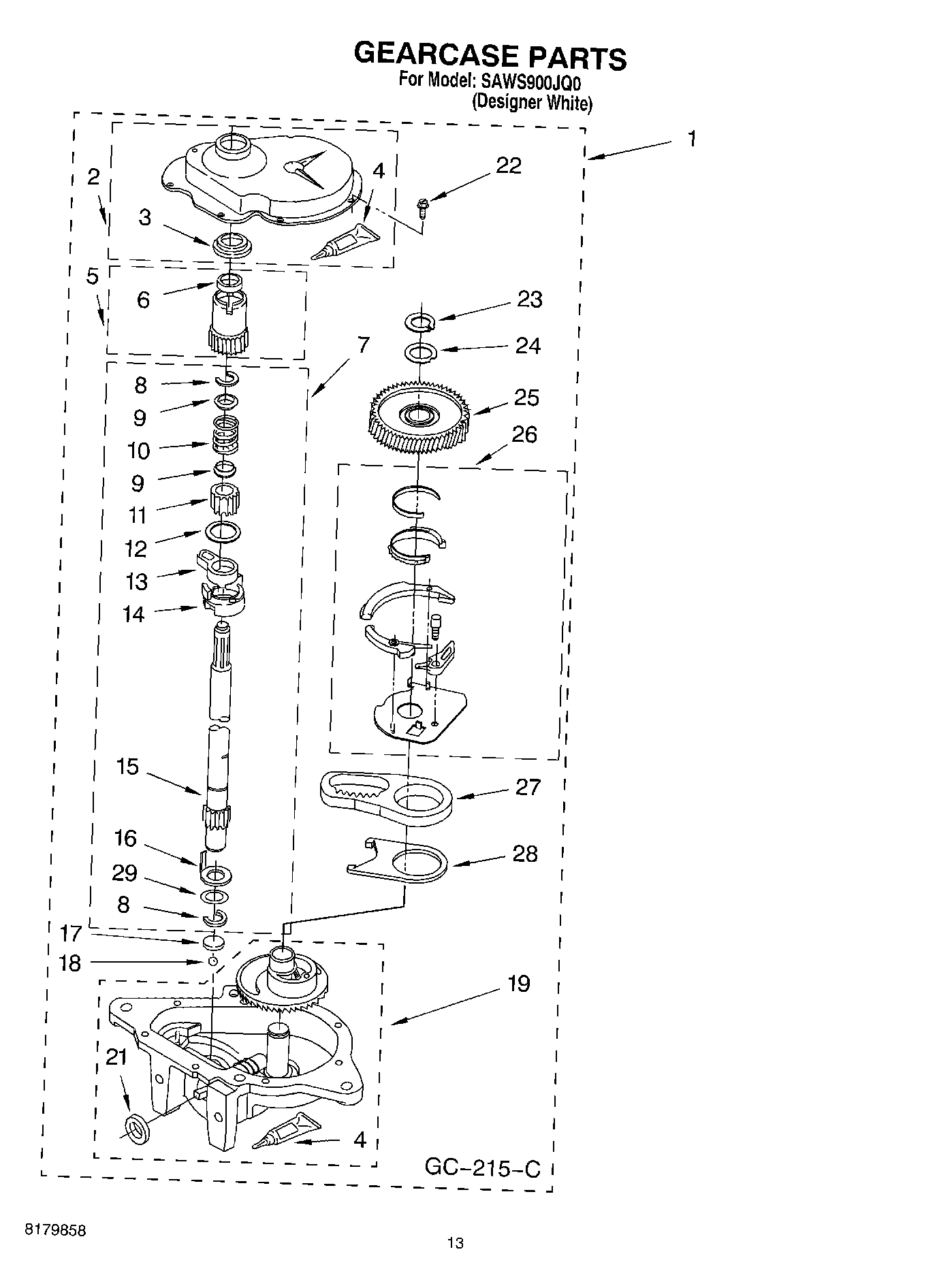

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

27

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $8.69

28

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

29

W10168264 Whirlpool Cycle Switch Backorder WPL W10168264 $47.51

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

38

Control, ETC WPL 3955728 Contact Us For Availability

44

WP3364293 Whirlpool Timer Knob Backorder WPL WP3364293 $30.07

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

60

WPL 3956124 WPL 3956124 Contact Us For Availability
