Model Whirlpool RAS8445KQ0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $9.99

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

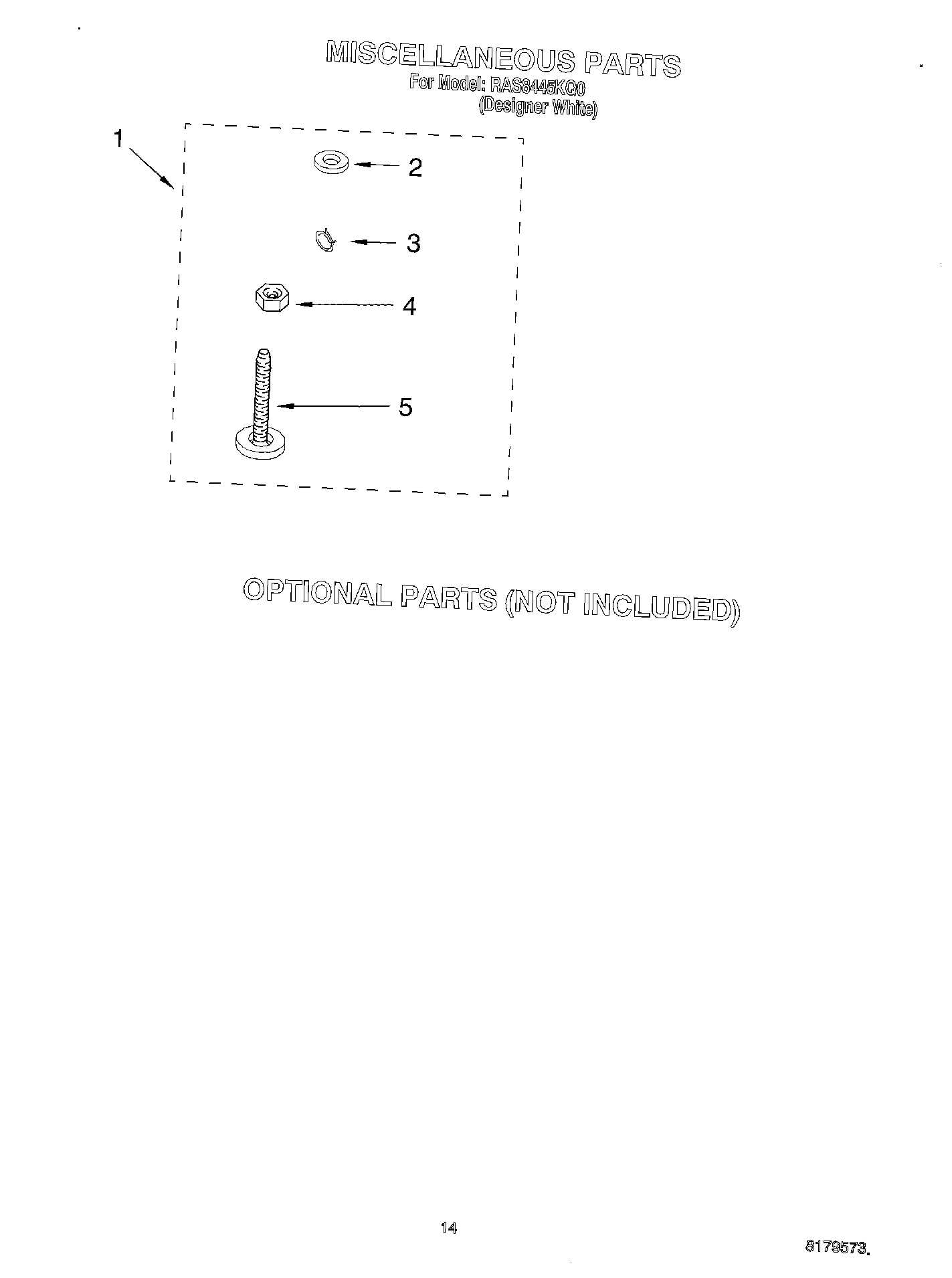

Miscellaneous Parts Bag WPL 3976263 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

285321 Whirlpool Sleeve Backorder WPL 285321 $26.75

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

3

WP3348752 Whirlpool Agitator Mover Backorder WPL WP3348752 $85.90

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $3.62

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $4.98

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $28.80

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

5

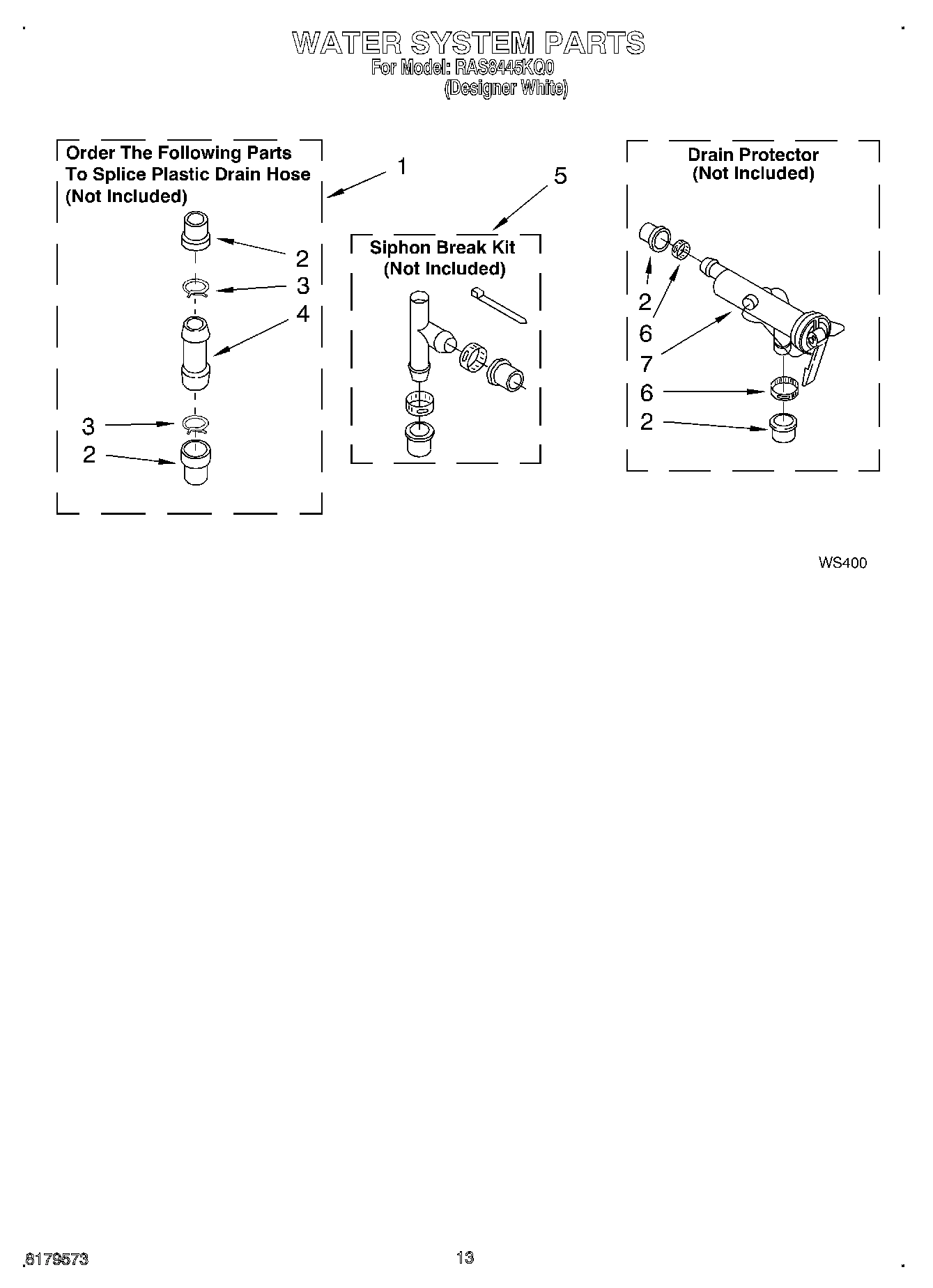

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $18.42

5

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

5

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

5

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $255.69

5

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

5

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

5

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

5

WP3347288 Whirlpool Washer Agitator Base In Stock WPL WP3347288 $73.90

5

WP8568314 Whirlpool Strap In Stock WPL WP8568314 $3.70

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

5

Shipping Kit WPL 3348675 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $28.49

6

WP3357978 Whirlpool Rear Panel Backorder WPL WP3357978 $152.90

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $28.37

8

285702 Whirlpool Extensions Backorder WPL 285702 $37.95

8

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

8

WP3356311 Whirlpool Screw Backorder WPL WP3356311 $2.51

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $3.70

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP3948852 Whirlpool Timer Assembly Backorder WPL WP3948852 $188.87

10

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $2.51

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

10

Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability

11

353424 Whirlpool Connector Backorder WPL 353424 $10.76

11

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $126.36

11

WP62611 Whirlpool Plate Backorder WPL WP62611 $37.28

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W10335056 Whirlpool Washer Water Level Pressu In Stock WPL W10335056 $43.32

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

13

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

13

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $41.82

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

W10820044 Whirlpool Power Cord Backorder WPL W10820044 $56.25

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

Strain Relief, Power Cord WPL 3952821 Contact Us For Availability

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

16

WP91770 Whirlpool Hinge Backorder WPL WP91770 $8.80

3400073 Whirlpool Screw Backorder WPL 3400073 $5.65

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.72

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

18

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $13.91

18

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

19

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $138.84

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

20

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.70

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $7.83

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

23

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

24

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

24

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $26.24

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

25

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $5.27

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

26

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $14.40

27

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $8.69

27

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

28

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

28

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

33

Clip, Capacitor WPL 8318201 Contact Us For Availability

34

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $42.80

35

Switch, Water Temperature WPL 661614 Contact Us For Availability

36

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $2.51

39

Panel, Console WPL 3954262 Contact Us For Availability

44

W10807860 Whirlpool White Control Knob In Stock WPL W10807860 $30.03

45

Dial, Timer WPL 8274395 Contact Us For Availability

47

Knob, Control WPL 8274378 Contact Us For Availability

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

51

279960 Whirlpool Endcap Assembly Backorder WPL 279960 $46.30

55

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

56

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

59

Sheild, Suds WPL 3348424 Contact Us For Availability

60

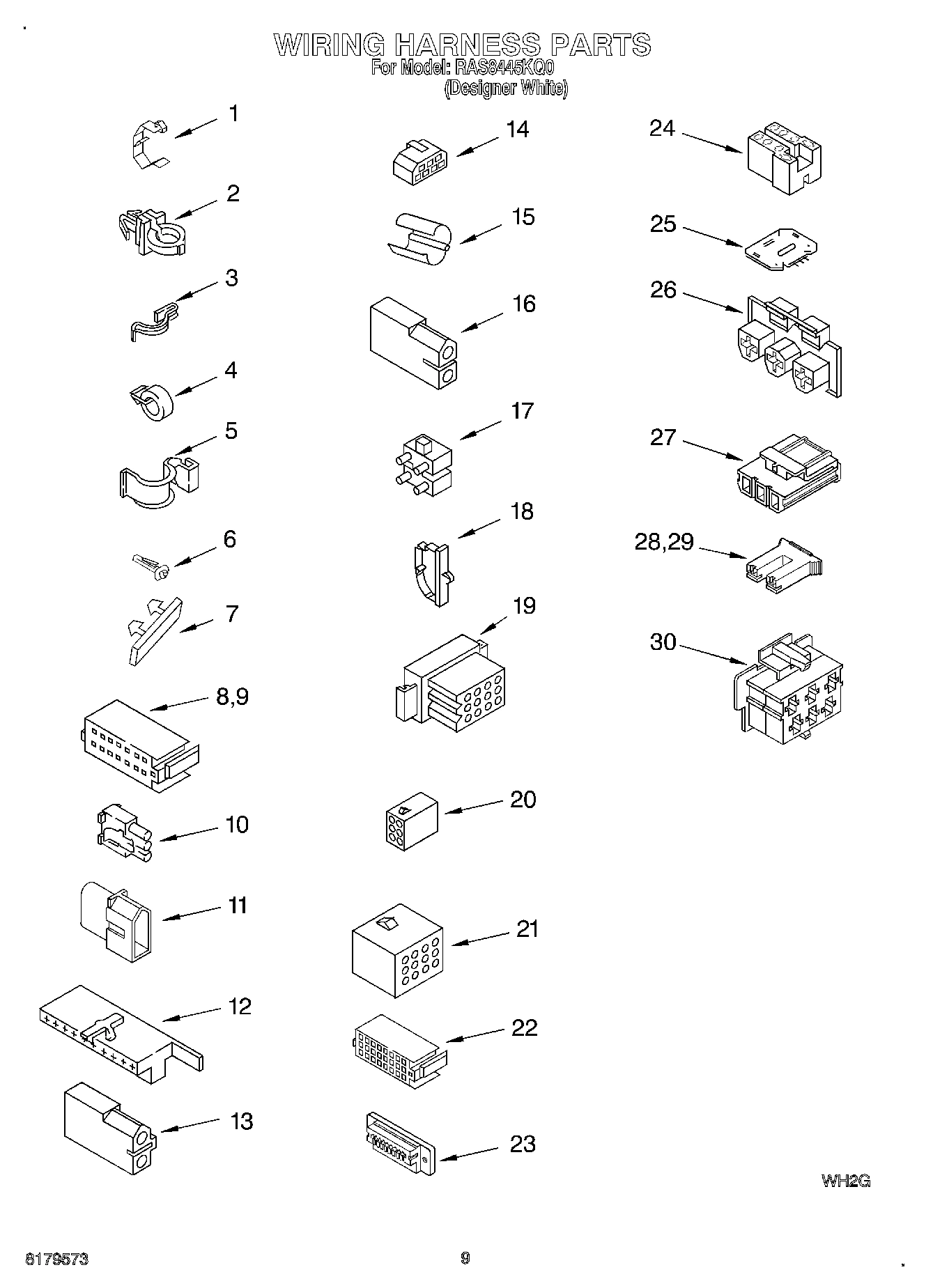

Harness, Wiring WPL 3955015 Contact Us For Availability
