Model GE PDT720SGH6BB Dishwasher – Common Parts & Diagrams
ESCUTCHEON & DOOR ASSEMBLY
BODY PARTS

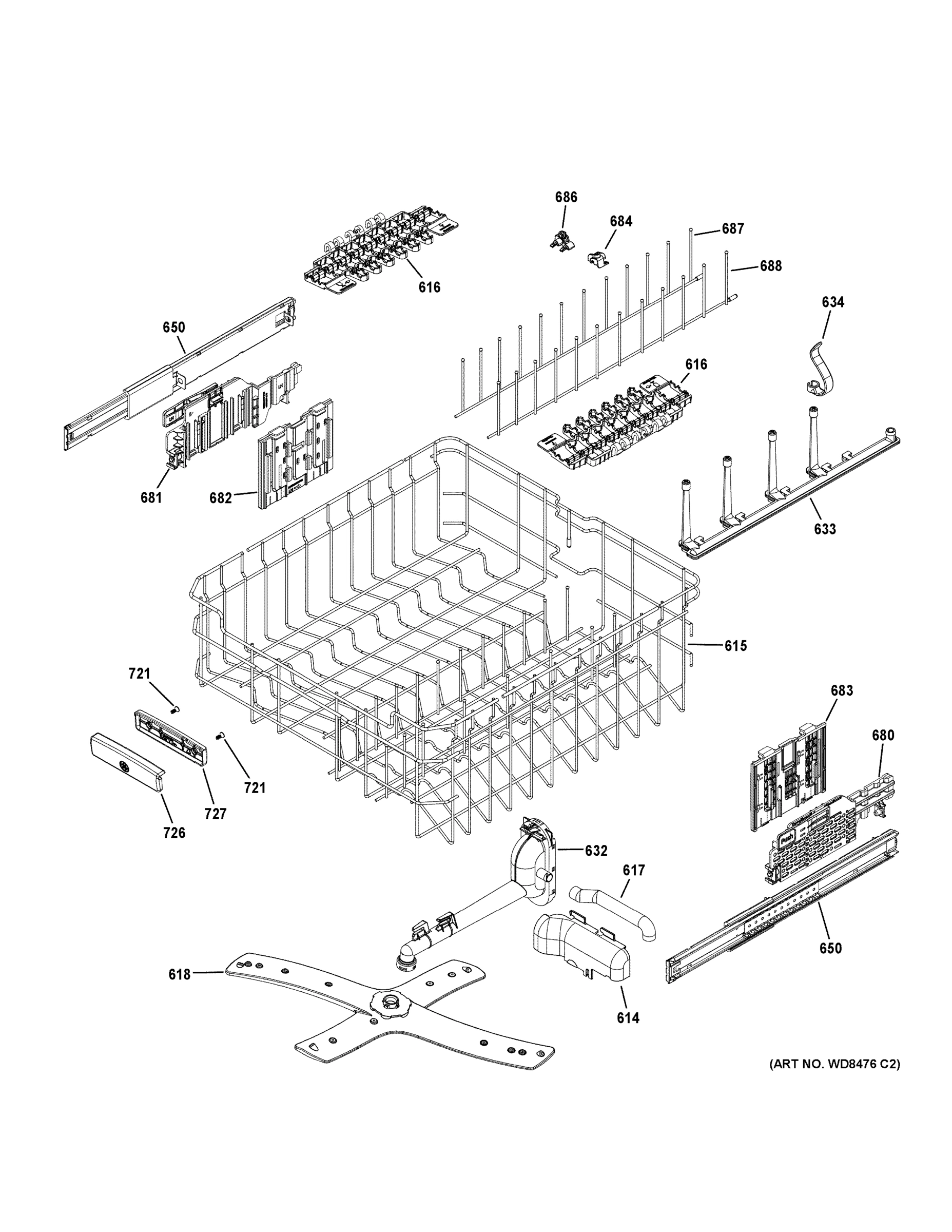

UPPER RACK ASSEMBLY

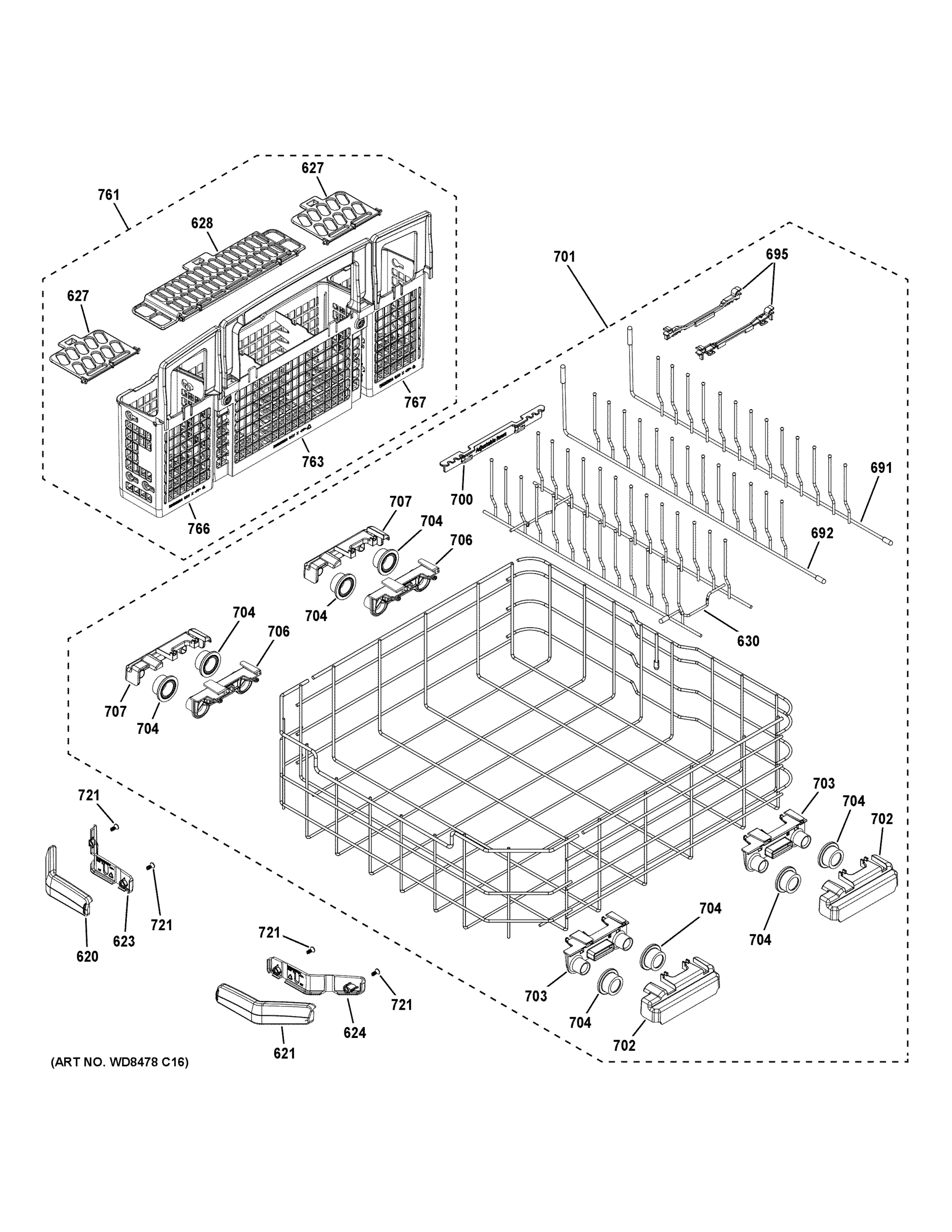

LOWER RACK ASSEMBLY

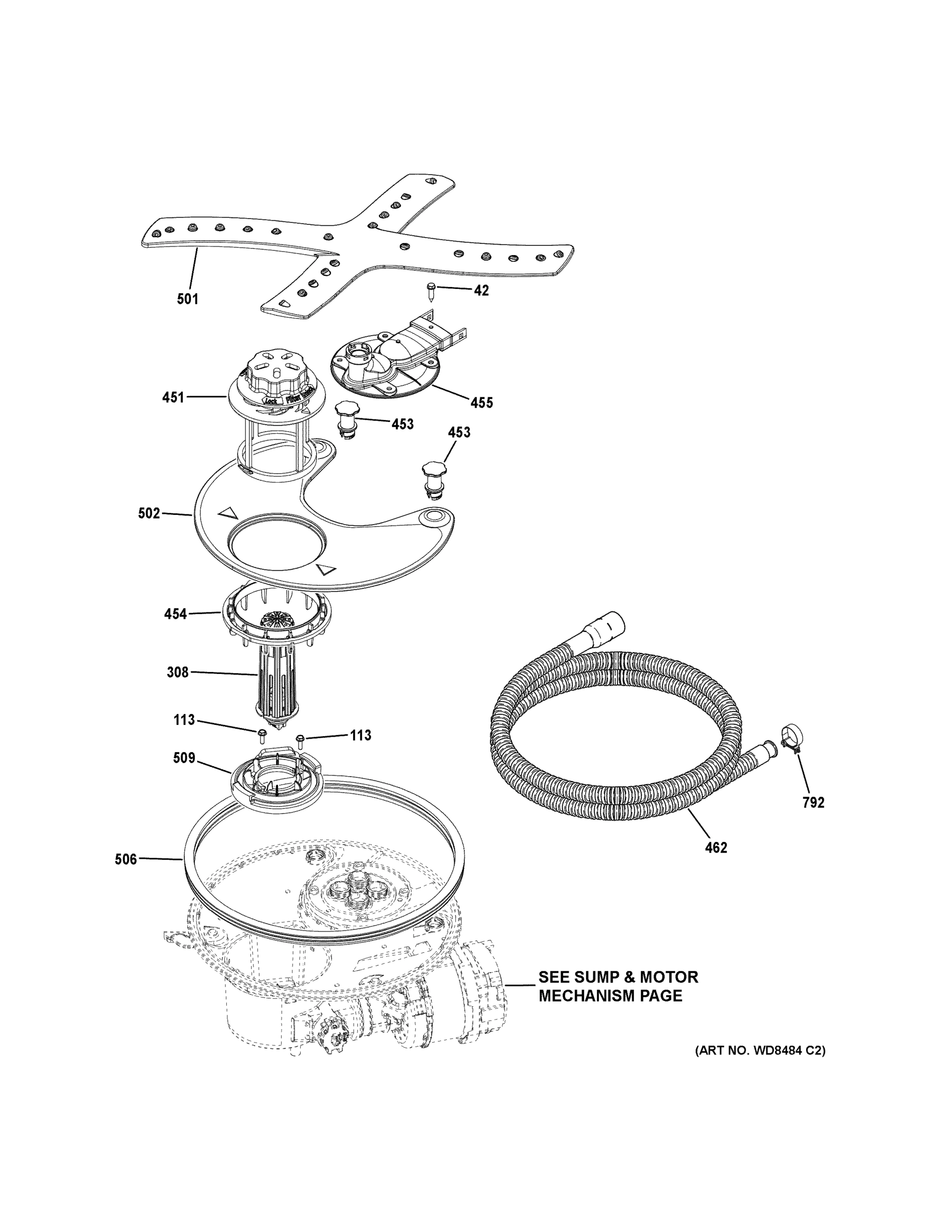

SUMP & FILTER ASSEMBLY

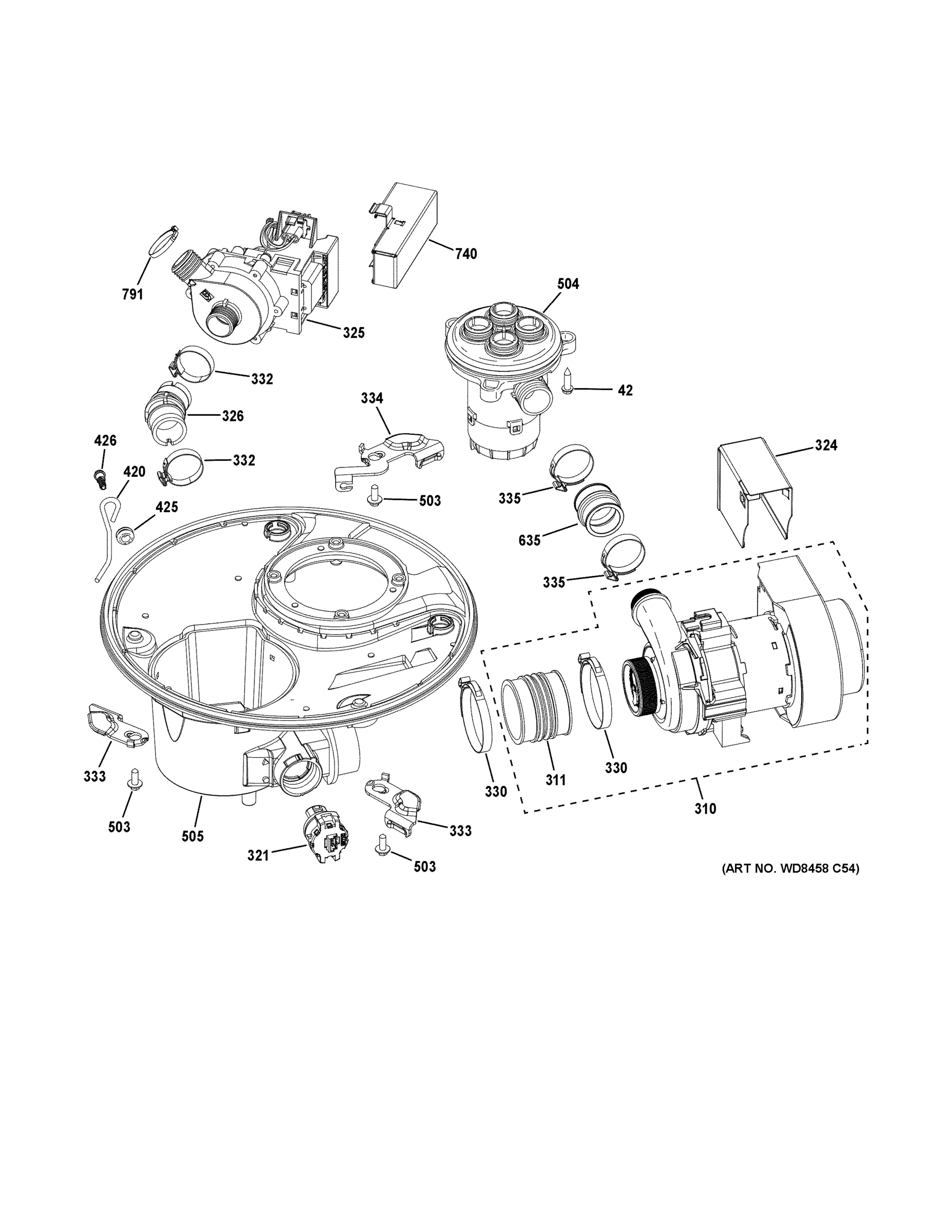

SUMP & MOTOR MECHANISM
Common parts from model GE PDT720SGH6BB Dishwasher
30
SPRING DOOR GEN WD03X20316 Contact Us For Availability
102
PAN LEAK GEN WD18X20461 Contact Us For Availability
104
NUT TOWER HEATER GEN WD01X10070 Contact Us For Availability
113
SCREW 8-16 HXW 1/2 SS GEN WD02X10067 Contact Us For Availability
200
ARM HINGE ASM GEN WD14X20129 Contact Us For Availability
201
ARM HINGE ASM GEN WD14X20128 Contact Us For Availability
310
P2A WASH PUMP KIT GEN WD49X23781 Contact Us For Availability
311
HOSE WASH PUMP INLET GEN WD24X10059 Contact Us For Availability
321
SENSOR TURBIDITY ASM GEN WD21X10494 Contact Us For Availability
324
SHIELD WASH PUMP GEN WD01X10580 Contact Us For Availability
326
HOSE ELBOW DRAIN GEN WD24X10060 Contact Us For Availability
333
LATCH CAM GEN WD01X10632 Contact Us For Availability
334
LATCH CAM GEN WD01X10575 Contact Us For Availability
425
GROMMET GEN WD01X10101 Contact Us For Availability
453
VENT FILTER GEN WD24X10057 Contact Us For Availability
454
ADAPTOR FILTER GEN WD12X10419 Contact Us For Availability
462
DRAIN TUBE ASM GEN WD24X10062 Contact Us For Availability
502
FILTER COARSE SS GEN WD22X10093 Contact Us For Availability
503
SCR 10-16 AB HXW .532 GEN WB01T10103 Contact Us For Availability
504
ACTIVE DIVERTER ASM KIT GEN WD35X20598 Contact Us For Availability
505
SUMP MANIFOLD GEN WD18X10055 Contact Us For Availability
509
PLATE FLOOR MANUAL GEN WD12X10421 Contact Us For Availability
576
HOSE FILL GEN WD24X10064 Contact Us For Availability
578
HOSE FILL GEN WD21X20339 Contact Us For Availability
585
CONDUIT MAIN ASM GEN WD12X20117 Contact Us For Availability
586
DOCKING PORT SS GEN WD12X20118 Contact Us For Availability
587
SEAL CONDUIT GEN WD08X10098 Contact Us For Availability
614
COVER BOTTLE BLASTER GEN WD24X20263 Contact Us For Availability
616
SHELF CUP GEN WD28X20177 Contact Us For Availability
617
HOSE BOTTLE BLASTER GEN WD24X20262 Contact Us For Availability
630
TINE BLOCK COATED GEN WD28X20163 Contact Us For Availability
632
CONDUIT TIERED BLAST ASM GEN WD21X20192 Contact Us For Availability
650
INNER RAIL UPR RACK ASM GEN WD30X20110 Contact Us For Availability
680
BRACKET ASM UPPER RACK GEN WD12X20108 Contact Us For Availability
681
BRACKET ASM UPPER RACK GEN WD12X20109 Contact Us For Availability
682
BRACKET FIXED GEN WD12X20112 Contact Us For Availability
683
BRACKET FIXED GEN WD12X20113 Contact Us For Availability
684
FDT CLIP TIER RK RT GEN WD28X20196 Contact Us For Availability
686
FDT CLIP TIER RK LT GEN WD28X20195 Contact Us For Availability
687
FDT ASM UPPER COATED GEN WD28X20193 Contact Us For Availability
691
FDT COATED LOWER RACK GEN WD28X20164 Contact Us For Availability
692
FDT COATED LOWER RACK GEN WD28X20165 Contact Us For Availability
695
CLIP LOWER RACK GEN WD12X20171 Contact Us For Availability
700
INDEXER GEN WD28X20166 Contact Us For Availability
702
COVER ROLLER GEN WD12X20161 Contact Us For Availability
708
BRACE DOOR ASM GEN WD30X10045 Contact Us For Availability
709
SCREW 1/4-20 TPT 1H 1/2 GEN WH02X10123 Contact Us For Availability
710
BLOCK FOAM DOOR GEN WD01X10585 Contact Us For Availability
711
KIT DOOR ASM OUTER GEN WD34X20529 Contact Us For Availability
713
DOOR HANDLE ASM GEN WD09X10086 Contact Us For Availability
714
SCR 8-18 B HXW .480 S GEN WD02X10160 Contact Us For Availability
715
SCR 10-32 GX HXW 3/8 GEN WD02X10220 Contact Us For Availability
720
SILICONE LIGHT PIPE GEN WD12X20185 Contact Us For Availability
722
LENS AND ADHESIVE ASM GEN WD09X20066 Contact Us For Availability
723
CONSOLE TOP CONTROL GEN WD12X20184 Contact Us For Availability
724
HOUSING BOTTOM GEN WD12X10470 Contact Us For Availability
725
BUTTON AND GRAPHICS ASM GEN WD09X22799 Contact Us For Availability
733
CABLE ASM PULLEY GEN WD01X10569 Contact Us For Availability
735
PULLEY SCREW GEN WD02X10206 Contact Us For Availability
743
COVER JUNCTION BOX GEN WD12X10412 Contact Us For Availability
745
SCR 10-32 TT HXW 14/25 S GEN WD02X10221 Contact Us For Availability
752
HARNESS ASM DC GEN WD21X20186 Contact Us For Availability
753
HARNESS ASM DOOR GEN WD21X20149 Contact Us For Availability
754
SHIELD DIELECTRIC GEN WD01X21974 Contact Us For Availability
755
CONTROL BOX BOTTOM GEN WD30X21714 Contact Us For Availability
756
CONTROL BOX TOP GEN WD27X10390 Contact Us For Availability
777
INSULATION TUB BLANKET GEN WD01X20187 Contact Us For Availability
792
CLAMP GEN WD01X10104 Contact Us For Availability
795
ATTACHMENT STRIP TOP GEN WD01X10639 Contact Us For Availability
801
SCR 10-32 GX IHXW 9/16 S GEN WD01X22514 Contact Us For Availability
802
SCREW 10-32 GXTT FLP 595 GEN WR01X10065 Contact Us For Availability
804
STRIKER LATCH GEN WD13X10071 Contact Us For Availability
812
COVER VENT GEN WD24X20586 Contact Us For Availability
813
PLATE DETERGENT GEN WD12X10462 Contact Us For Availability
816
DOOR VENT SEAL GEN WD08X10092 Contact Us For Availability
820
VENT FAN ASM GEN WD24X20256 Contact Us For Availability
833
SCR 10-16 PL PNT 2.25 S GEN WD02X20140 Contact Us For Availability
889
CT SCREW ASM GEN WD35X10383 Contact Us For Availability
906
BADGE GE ASM GEN WR04X10181 Contact Us For Availability
920
CLIP CONTROL BOARD GEN WD01X21975 Contact Us For Availability
× ![]()
