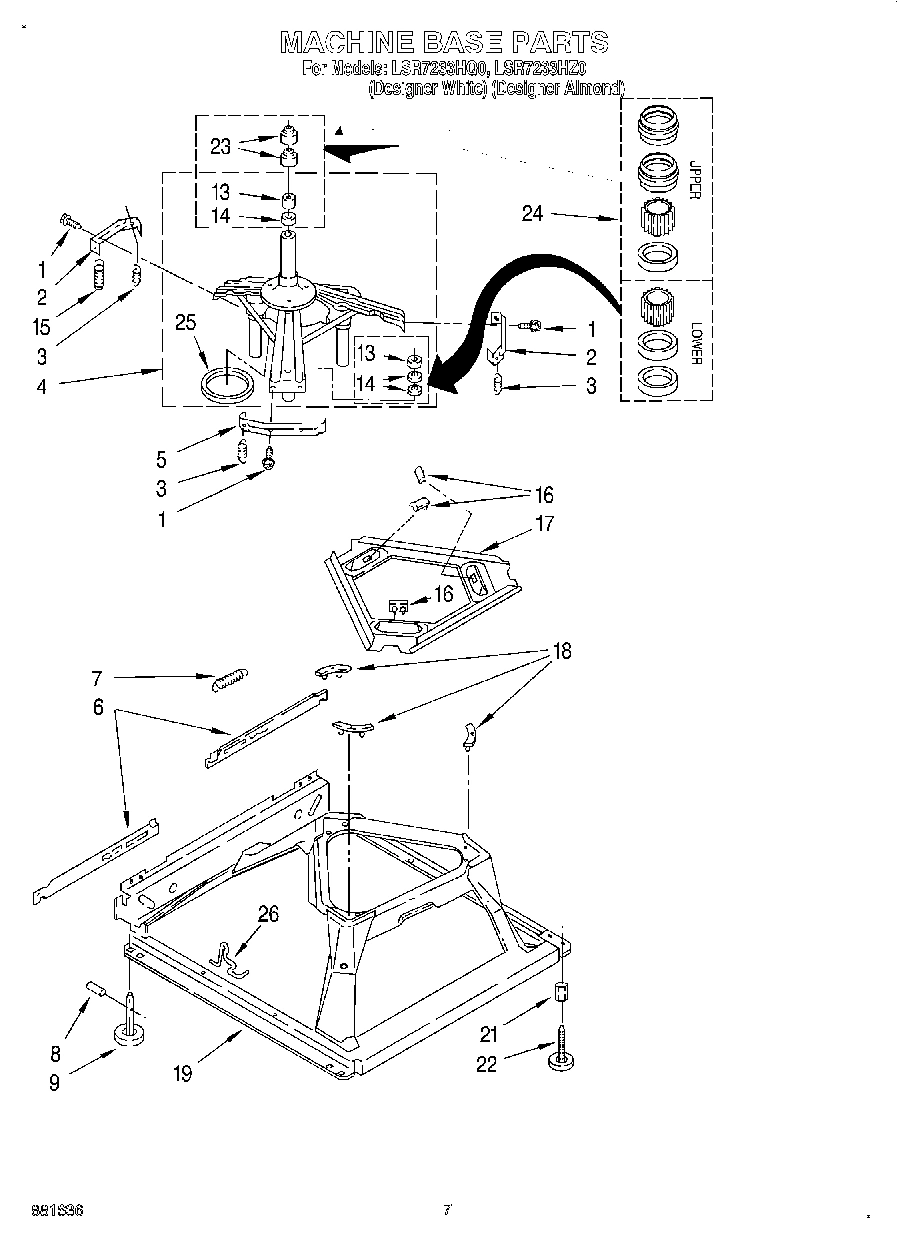

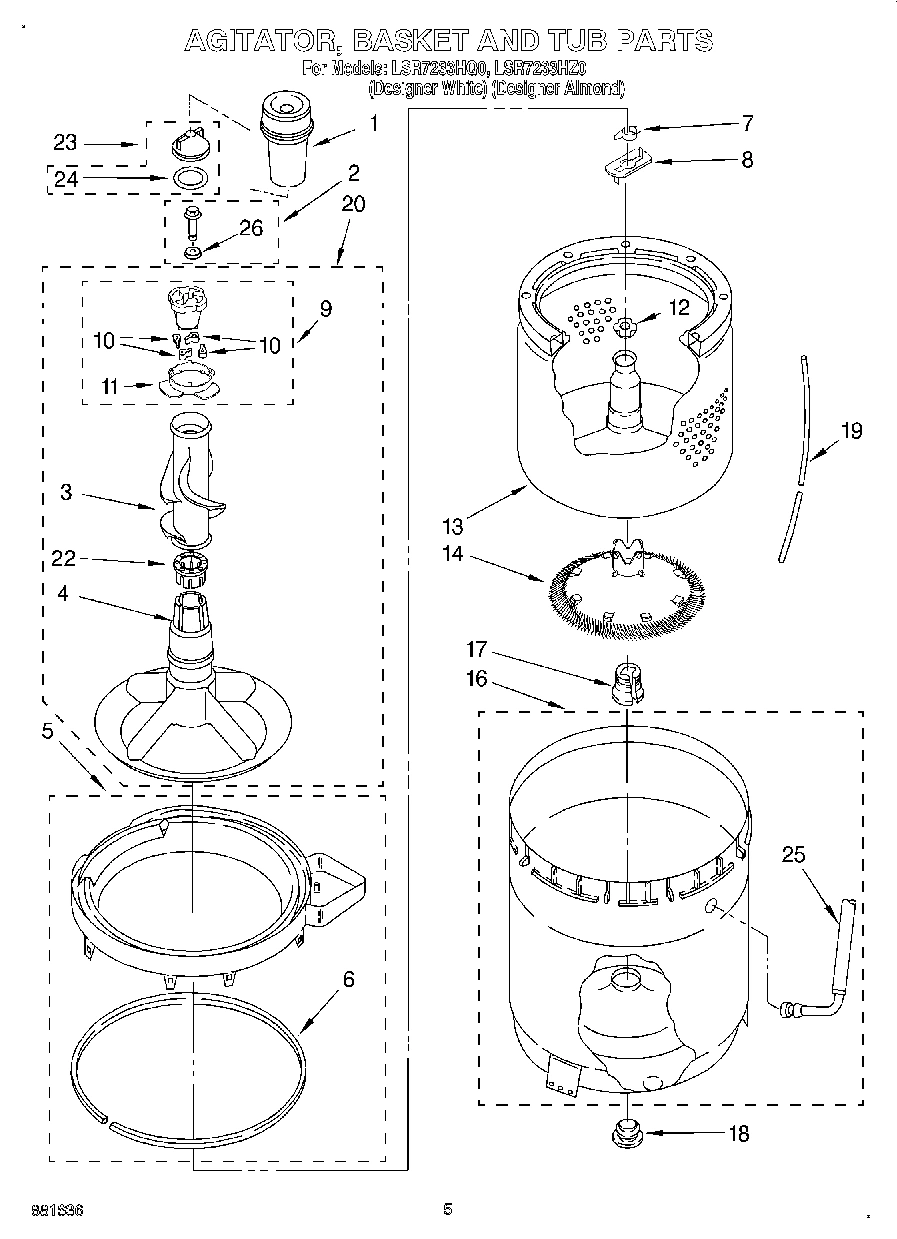

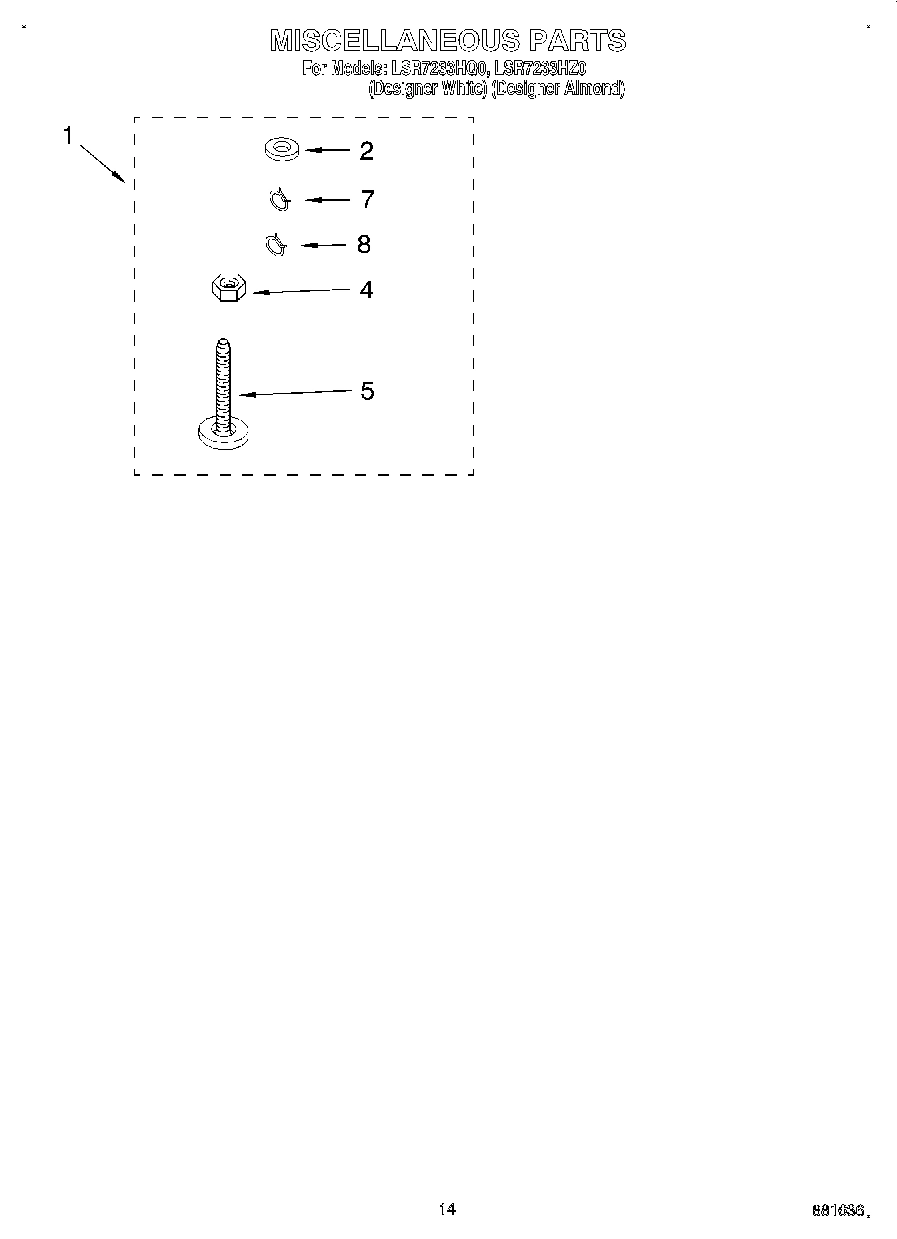

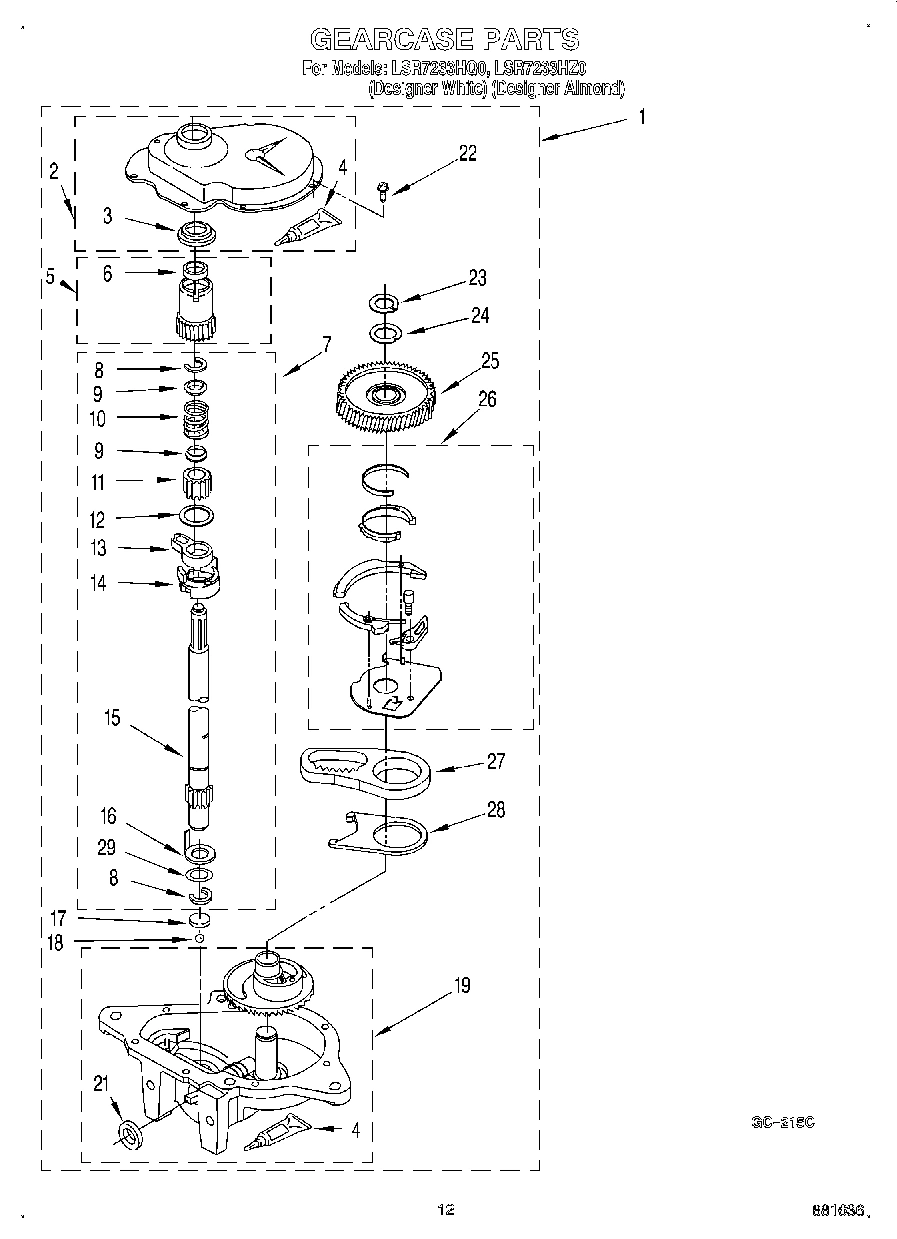

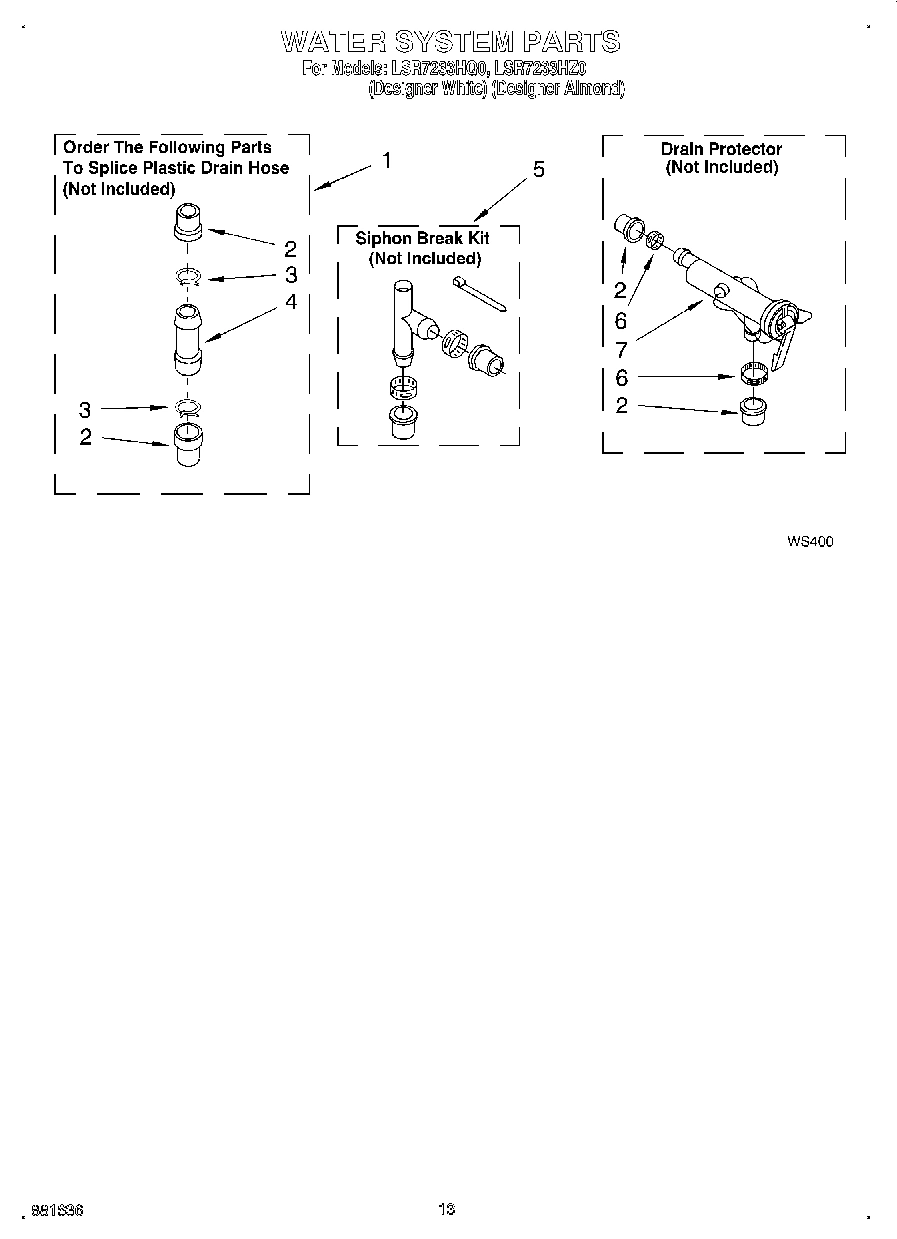

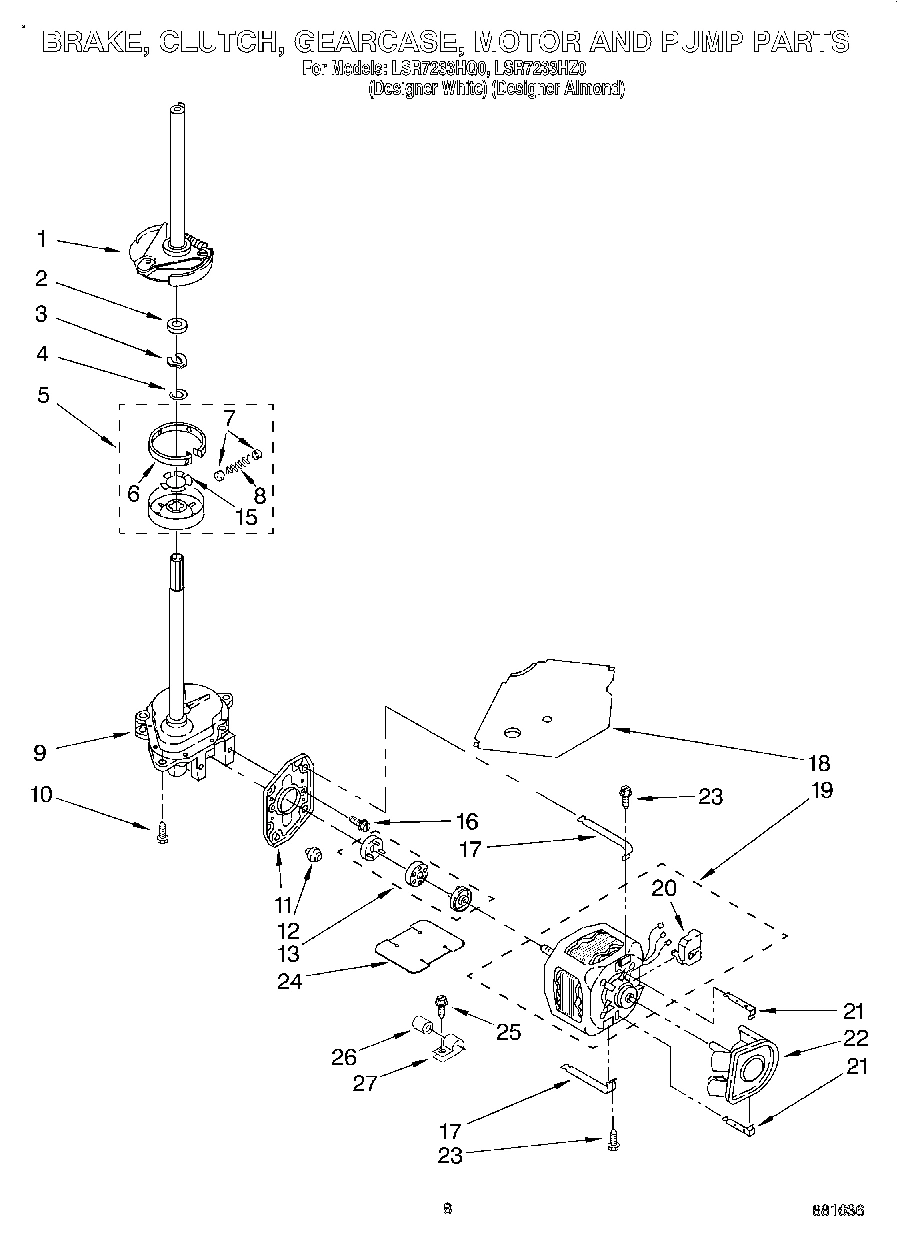

Model Whirlpool LSR7233HZ0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $10.49

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

1

Clip, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

2

285321 Whirlpool Sleeve Backorder WPL 285321 $28.09

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

2

Top (White) WPL 3949476 Contact Us For Availability

2

Clip, Harness WPL 388498 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $93.60

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.07

4

8559320 Whirlpool Clip Backorder WPL 8559320 $13.91

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

4

WP3951632 Whirlpool Washer Lower Agitator In Stock WPL WP3951632 $81.07

4

Support & Brake, Tub WPL 3362087 Contact Us For Availability

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

W10880720 Whirlpool Tub Ring Backorder WPL W10880720 $80.47

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $11.67

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $133.70

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Clip, Harness WPL 3390496 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.88

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

7

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $3.70

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $78.79

8

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $32.56

8

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

8

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

8

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

8

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

8

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.51

8

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

8

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $5.53

8

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

8

Shipping Kit WPL 3348675 Contact Us For Availability

8

Stand-Pipe Kit WPL 89121 Contact Us For Availability

8

Almond (Uncut) WPL 978883 Contact Us For Availability

8

Timer, Block Disconnect (White) WPL 352090 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $11.36

9

285809 Whirlpool Washer Agitator Cam Kit In Stock WPL 285809 $5.87

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

W10876590 Whirlpool Connector In Stock WPL W10876590 $4.94

9

WP3953321 Whirlpool Timer In Stock WPL WP3953321 $198.49

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.88

10

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

10

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $1.25

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

353424 Whirlpool Connector Backorder WPL 353424 $10.76

WP3952374 Whirlpool Bearing In Stock WPL WP3952374 $3.70

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

Spring, Brake WPL 387806 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

W10389329 Whirlpool Washer Basket Backorder WPL W10389329 $176.56

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

Block, Disconnect (Motor 3 Speed) (Use Term. WPL 3348075 Contact Us For Availability

285868 Whirlpool Washer Filter Plug Kit In Stock WPL 285868 $14.59

W10820044 Whirlpool Power Cord In Stock WPL W10820044 $59.06

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

Protector WPL 63523 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $20.97

3361596 Whirlpool Outer Tub Primary In Stock WPL 3361596 $180.24

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $80.64

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Plug, Terminal (4-Way) (Power Cord) (Use M3 S WPL 387566 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

Clip, Harness WPL 3352944 Contact Us For Availability

WP353244 Whirlpool Hose In Stock WPL WP353244 $32.17

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $145.78

Base Assembly (Includes Illus, 6, 7, 8, 9, 16 WPL 3946512 Contact Us For Availability

Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability

20

285565 Whirlpool Agitator Assembly In Stock WPL 285565 $140.64

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

20

Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $30.69

21

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

21

Plug, Terminal (12-Way) (Use Term. 94613 Or 9 WPL 388818 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $8.22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $35.58

WP3951608 Whirlpool Washer Agitator Thrust Sp In Stock WPL WP3951608 $3.88

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.64

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

Timer, Block Disconnect (Black) (Amp) (Use Te WPL 3369366 Contact Us For Availability

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

23

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.83

23

Connector, Etc WPL 3349494 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $75.19

24

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $3.88

24

Connector, Relay (Use Term. 308569) WPL 60687 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

Hose, Bleach WPL 3948705 Contact Us For Availability

25

Control, ETC WPL 3407125 Contact Us For Availability

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

WP2172937 Whirlpool Connector In Stock WPL WP2172937 $8.66

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.96

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

27

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

27

Connector (T.P.A) (3-Circuit) (Pressure Switc WPL 3360056 Contact Us For Availability

28

3354925 Whirlpool Connector Backorder WPL 3354925 $10.76

29

WPL 3354926 WPL 3354926 Contact Us For Availability

30

WPL 3948615 WPL 3948615 Contact Us For Availability

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

50

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

61

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $30.25
