Model Whirlpool LSQ8512KT0 AUTOMATIC WASHER – Common Parts & Diagrams
02 - CONTROLS AND REAR PANEL
04 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP

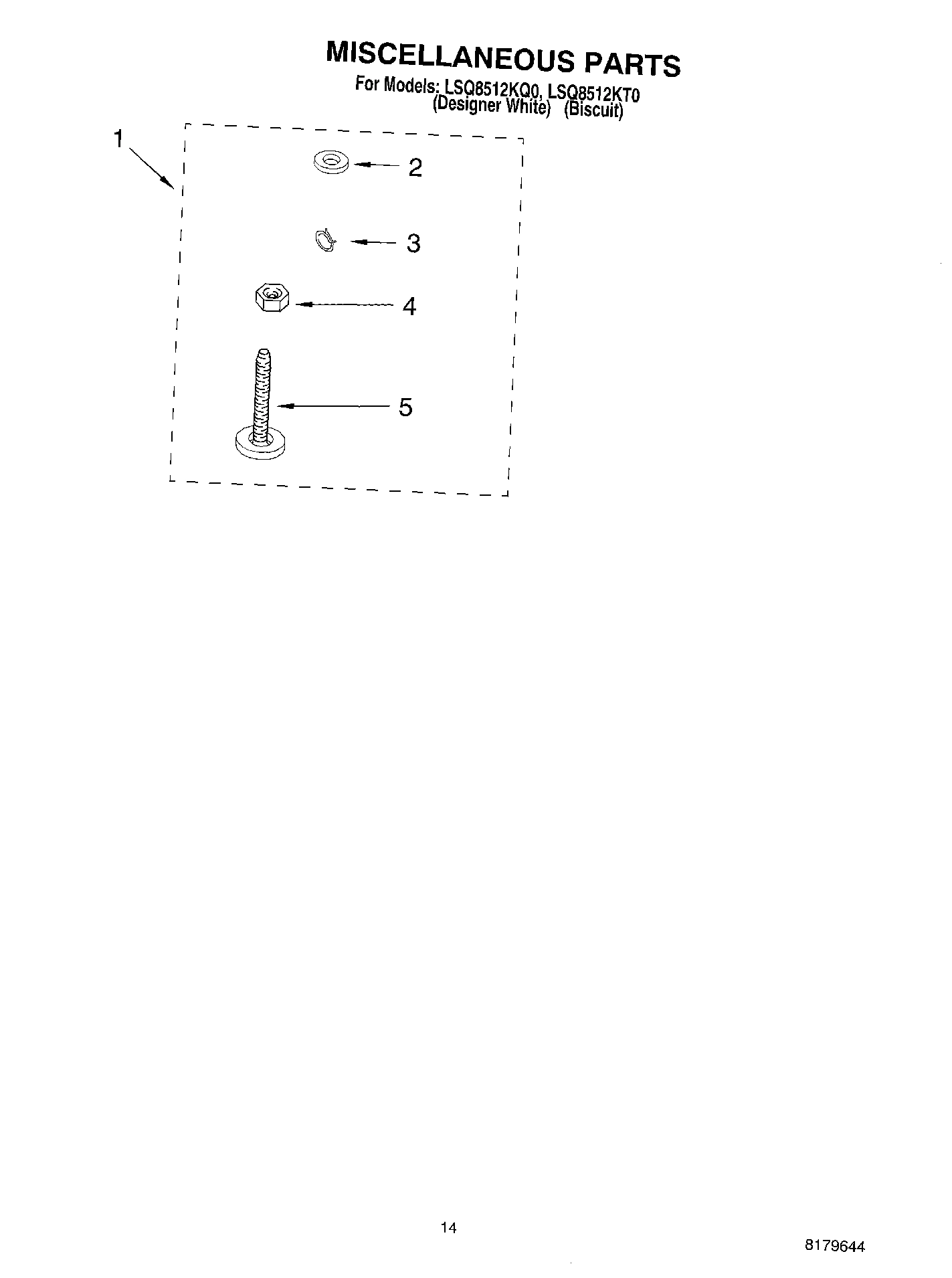

10 - MISCELLANEOUS, OPTIONAL
06 - WIRING HARNESS

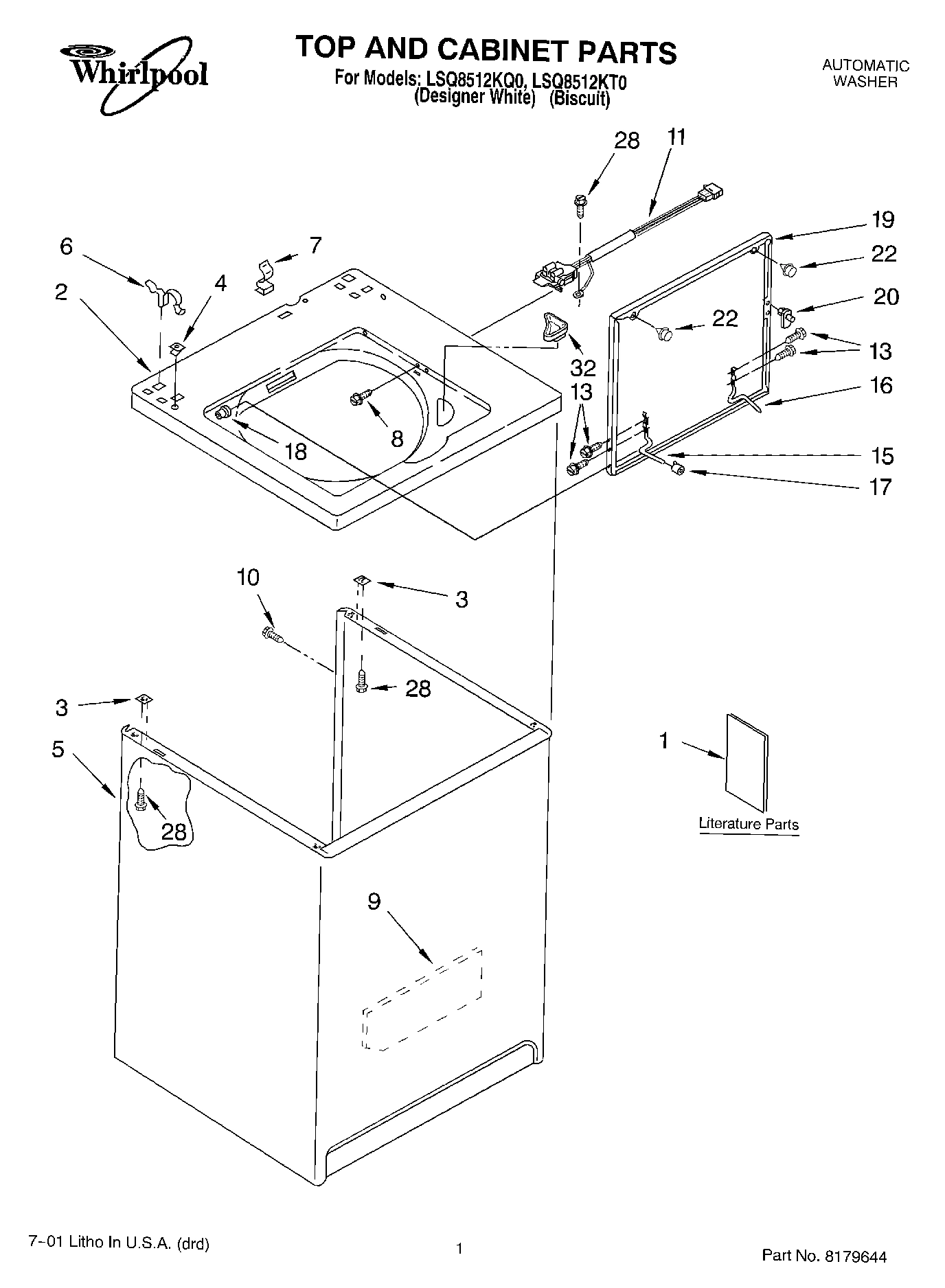

01 - TOP AND CABINET, LITERATURE

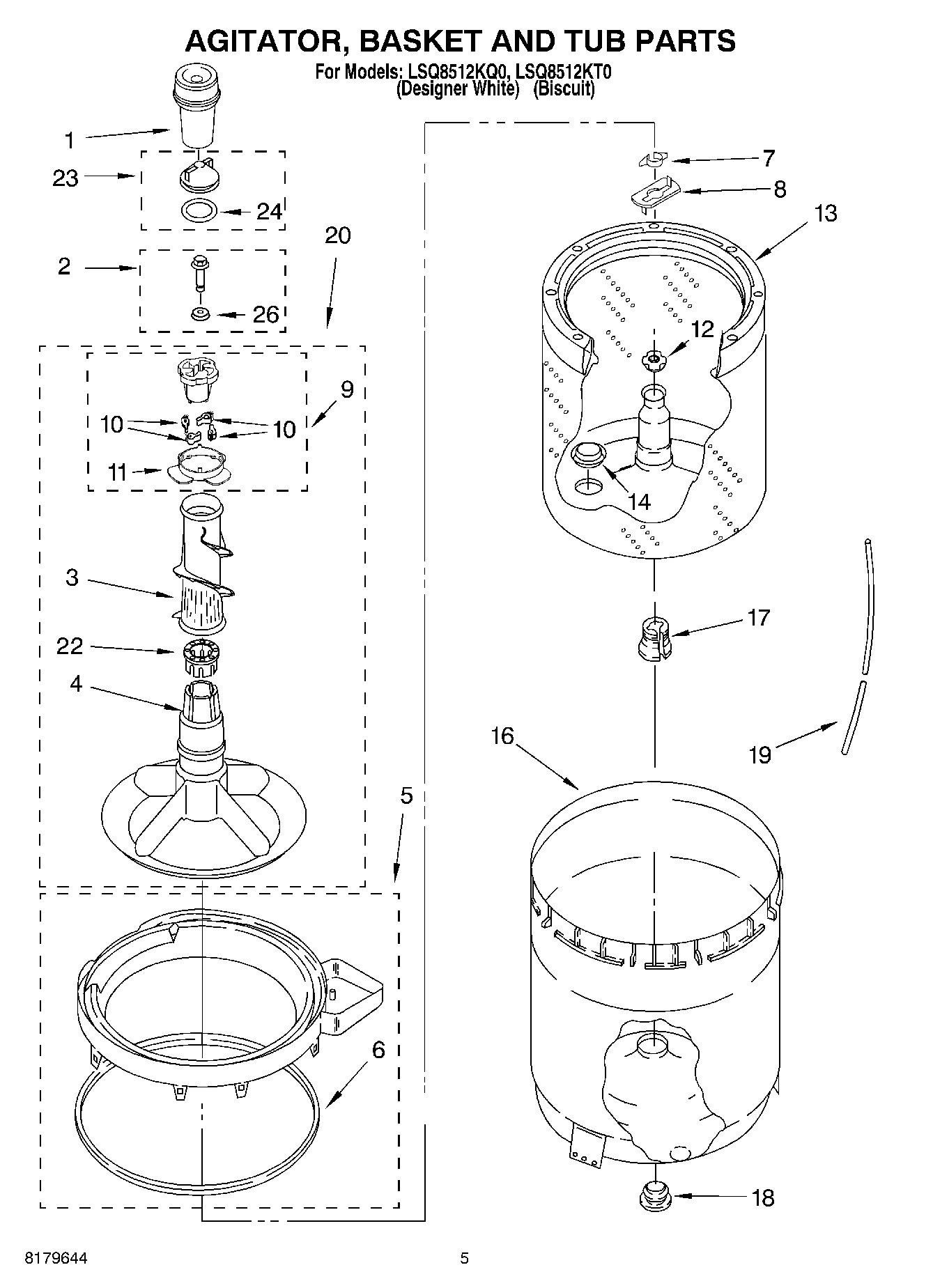

03 - AGITATOR, BASKET AND TUB

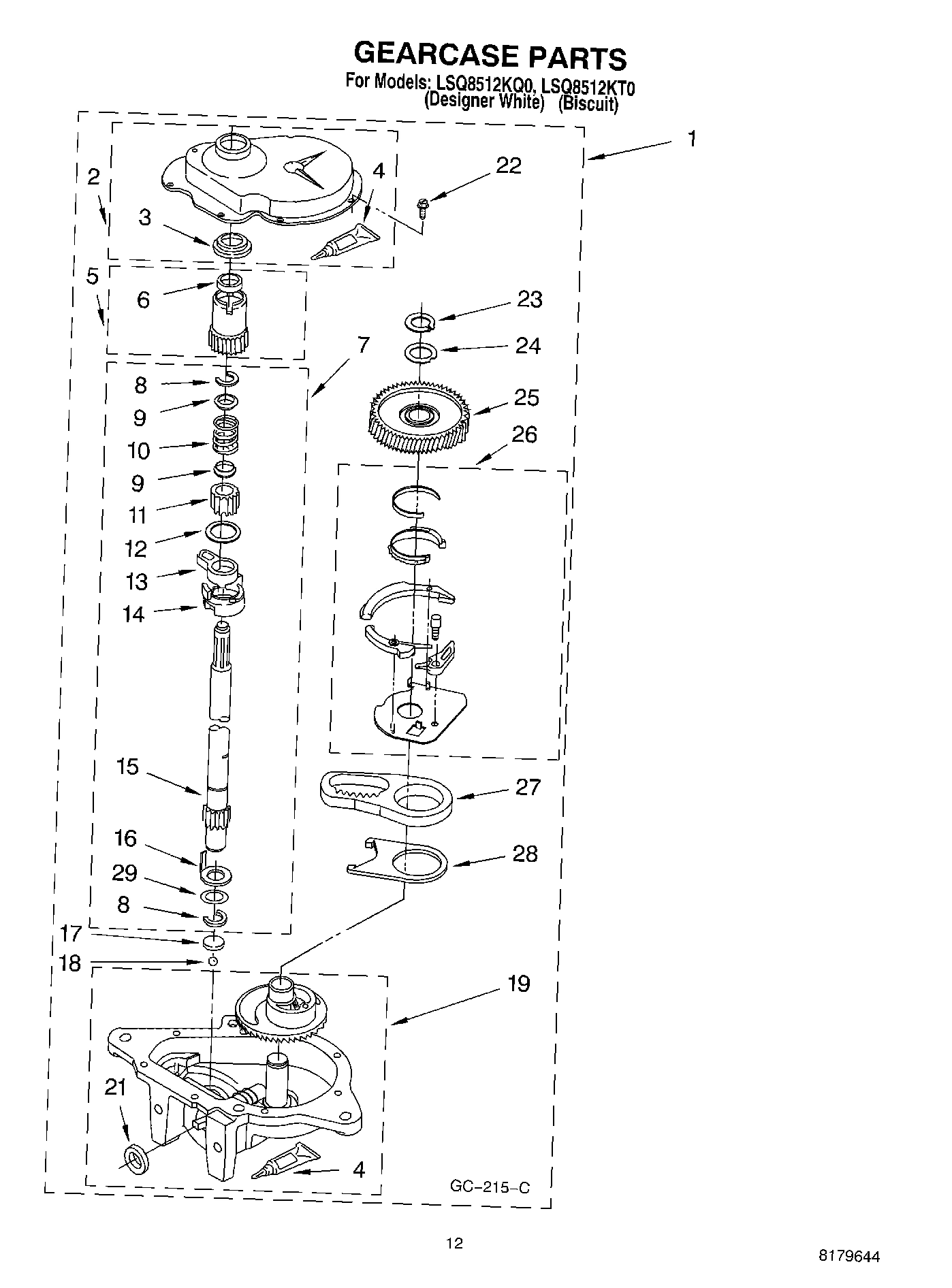

08 - GEARCASE

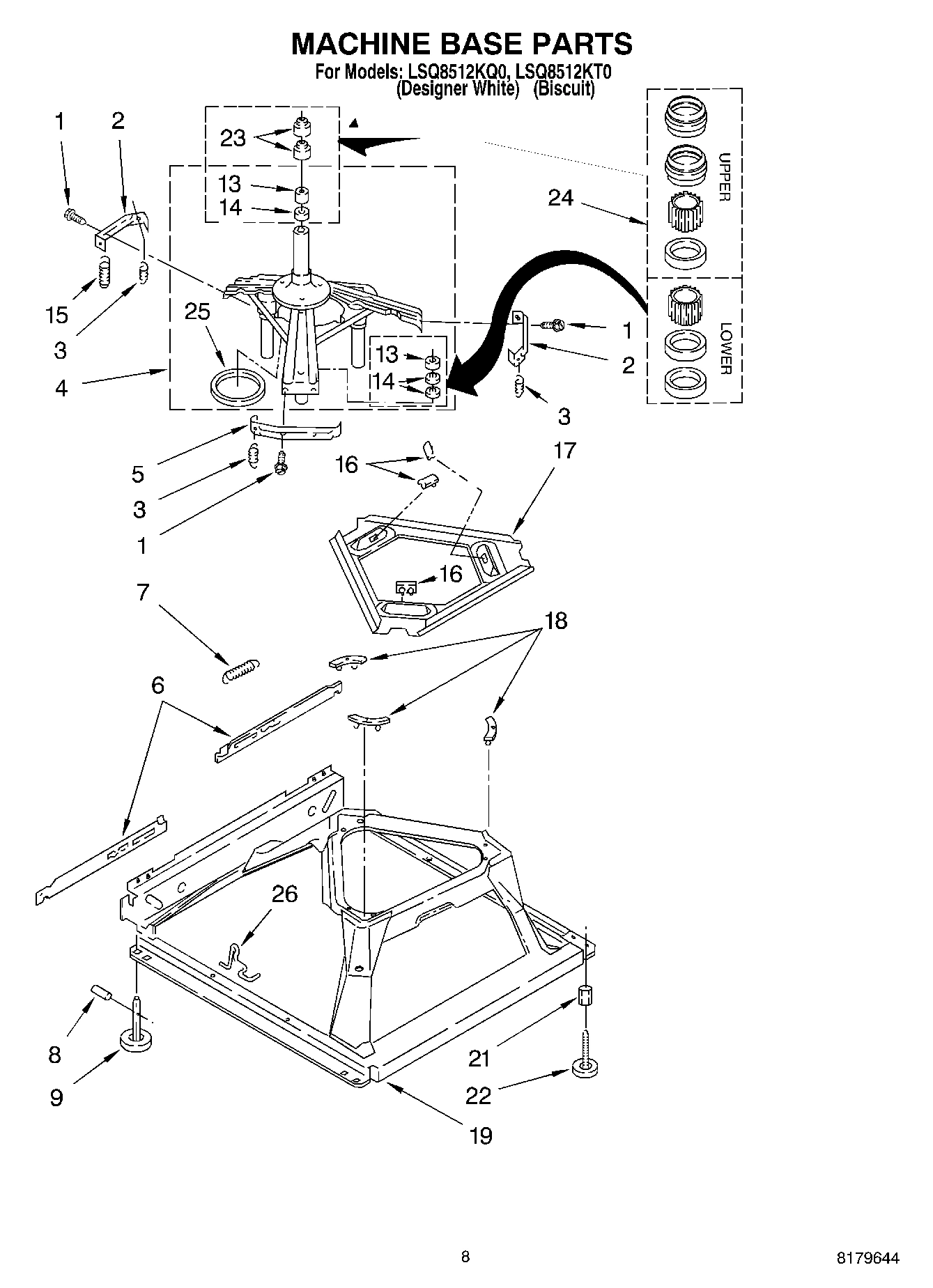

05 - MACHINE BASE

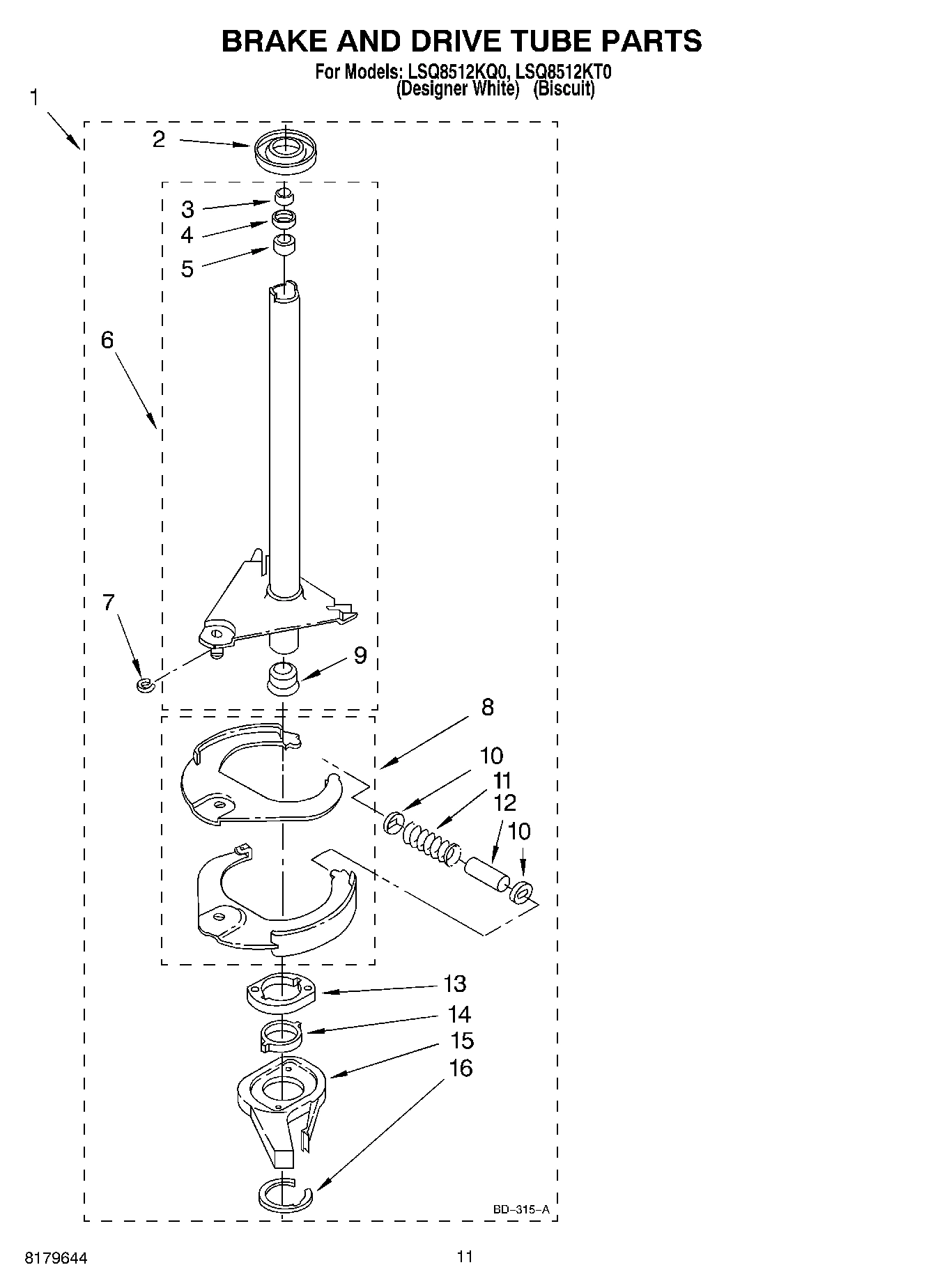

07 - BRAKE AND DRIVE TUBE
09 - WATER SYSTEM
Common parts from model Whirlpool LSQ8512KT0 AUTOMATIC WASHER
Manual, (Washer) WPL LIT4313896 Contact Us For Availability
1
Dispenser WPL 63580 Contact Us For Availability
1
Connector Kit, Plastic Drain Hose WPL 285442 Contact Us For Availability
1
Clip, Harness WPL 3349557 Contact Us For Availability
1
LITERATURE PARTS WPL ARI157579A Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT3951578 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT3952817 Contact Us For Availability
1
Literature Parts (Use & Care Guide) (Energy G WPL LIT3954538 Contact Us For Availability
1
Literature Parts (Use & Care Guide) (French) WPL LIT3954821 Contact Us For Availability
1
Literature Parts (Use & Care Guide) (English) WPL LIT3955178 Contact Us For Availability
1
Literature Parts (Use & Care Guide) (Wiring D WPL LIT3955499 Contact Us For Availability
2
Cover, Gearcase WPL 285202 Contact Us For Availability
2
Top (White) WPL 8271378 Contact Us For Availability
2
Top (Biscuit) WPL 8271380 Contact Us For Availability
2
Sleeve Kit, (Contains 2 Sleeves) WPL 285321 Contact Us For Availability
4
Support & Brake, Tub WPL 3362087 Contact Us For Availability
5
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
5
Biscuit WPL 4392899 Contact Us For Availability
5
PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT) WPL 4392901 Contact Us For Availability
5
Siphon Break Kit (Not Included) WPL 285320 Contact Us For Availability
5
OIL WPL 350572 Contact Us For Availability
5
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GR WPL 350938 Contact Us For Availability
5
Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability
5
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
5
Cabinet (White) WPL 63424 Contact Us For Availability
5
Cabinet (Biscuit) WPL 3954357 Contact Us For Availability
5
Spacer, Drive Tube WPL 356937 Contact Us For Availability
6
Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability
7
Drain Protector (Not Included) WPL 367031 Contact Us For Availability
8
Ring, Retaining (2) WPL 90369 Contact Us For Availability
9
Retainer, Spring WPL 62677 Contact Us For Availability
9
Cabinet-Sound Damper WPL 3349654 Contact Us For Availability
10
Spring, Agitator WPL 62676 Contact Us For Availability
11
Plug, Terminal (3-Way) (Power Cord) (Use Term WPL 353424 Contact Us For Availability
11
Spring, Brake WPL 387806 Contact Us For Availability
12
Washer, Agitator Gear WPL 62619 Contact Us For Availability
15
Protector WPL 63523 Contact Us For Availability
16
Tub WPL 63849 Contact Us For Availability
16
Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability
16
Washer, Cam Thrust WPL 62618 Contact Us For Availability
16
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability
17
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
17
Plug, Terminal (4-Way) (Power Cord) (Use M3 S WPL 387566 Contact Us For Availability
18
Clip, Harness WPL 3352944 Contact Us For Availability
19
Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability
19
Lid (White) WPL 3954489 Contact Us For Availability
19
Lid (Biscuit) WPL 3954491 Contact Us For Availability
19
Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability
19
Base Assembly (Includes Illus, 6, 7, 8, 9, 16 WPL 3946512 Contact Us For Availability
20
Switch, Main Drive Motor WPL 3952056 Contact Us For Availability
20
Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability
21
Seal, Thrust Plug WPL 285352 Contact Us For Availability
21
Plug, Terminal (12-Way) (Use Term. 94613 Or 9 WPL 388818 Contact Us For Availability
22
Timer, Block Disconnect (Black) (Amp) (Use Te WPL 3369366 Contact Us For Availability
23
Connector, Etc WPL 3349494 Contact Us For Availability
23
Ring, Retaining WPL 3362552 Contact Us For Availability
24
Centerpost Bearing Kit (Includes Illus. 13, 1 WPL 285203 Contact Us For Availability
24
Connector, Relay (Use Term. 308569) WPL 60687 Contact Us For Availability
24
Washer Kit, Thrust WPL 285735 Contact Us For Availability
25
Control, ETC WPL 3407125 Contact Us For Availability
28
Clamp, Hose WPL 3976395 Contact Us For Availability
28
Block, Connector (Cold Valve) (Use Term. 6932 WPL 3354925 Contact Us For Availability
29
WPL 3354926 WPL 3354926 Contact Us For Availability
30
WPL 3948615 WPL 3948615 Contact Us For Availability
× ![]()
