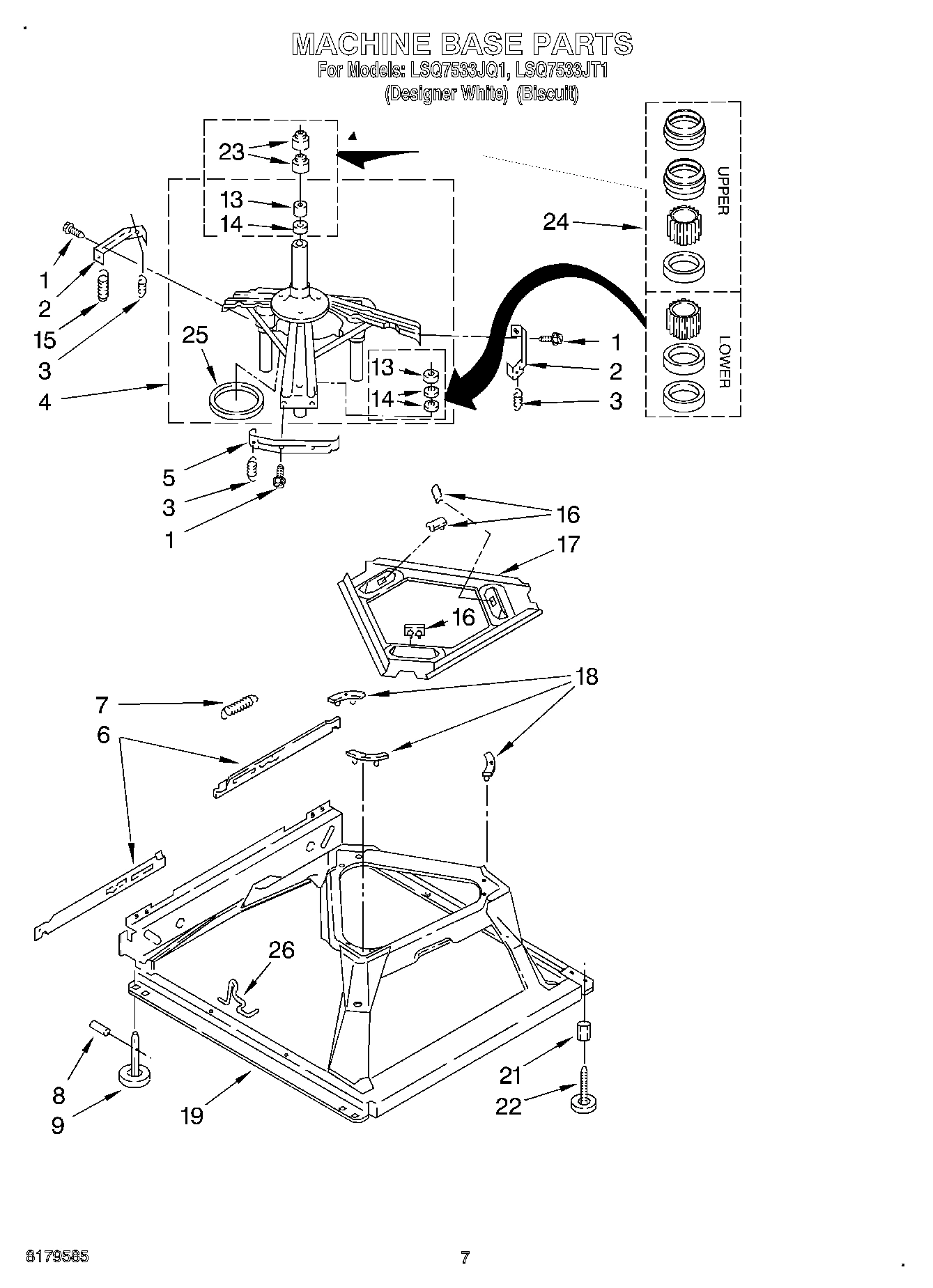

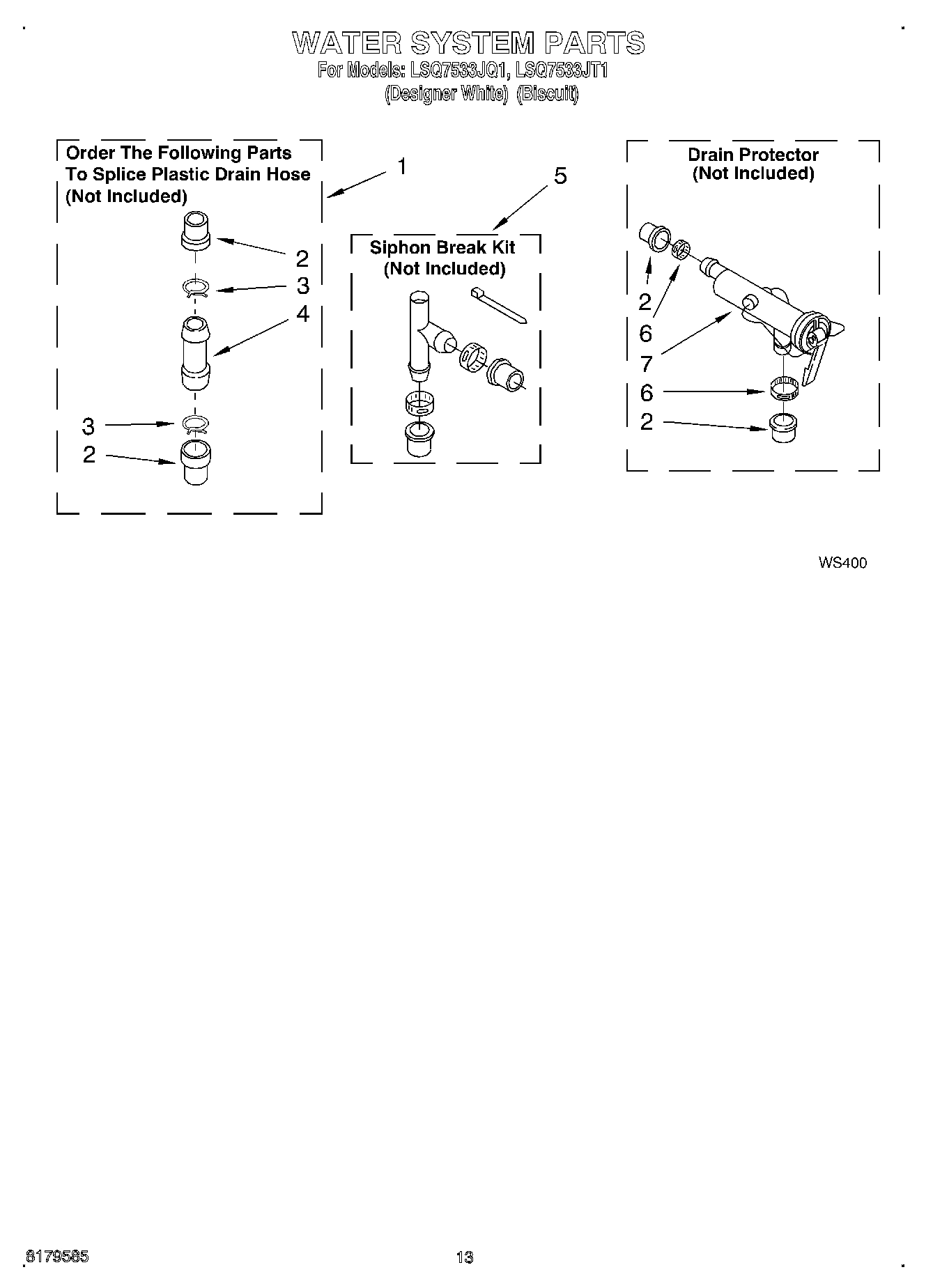

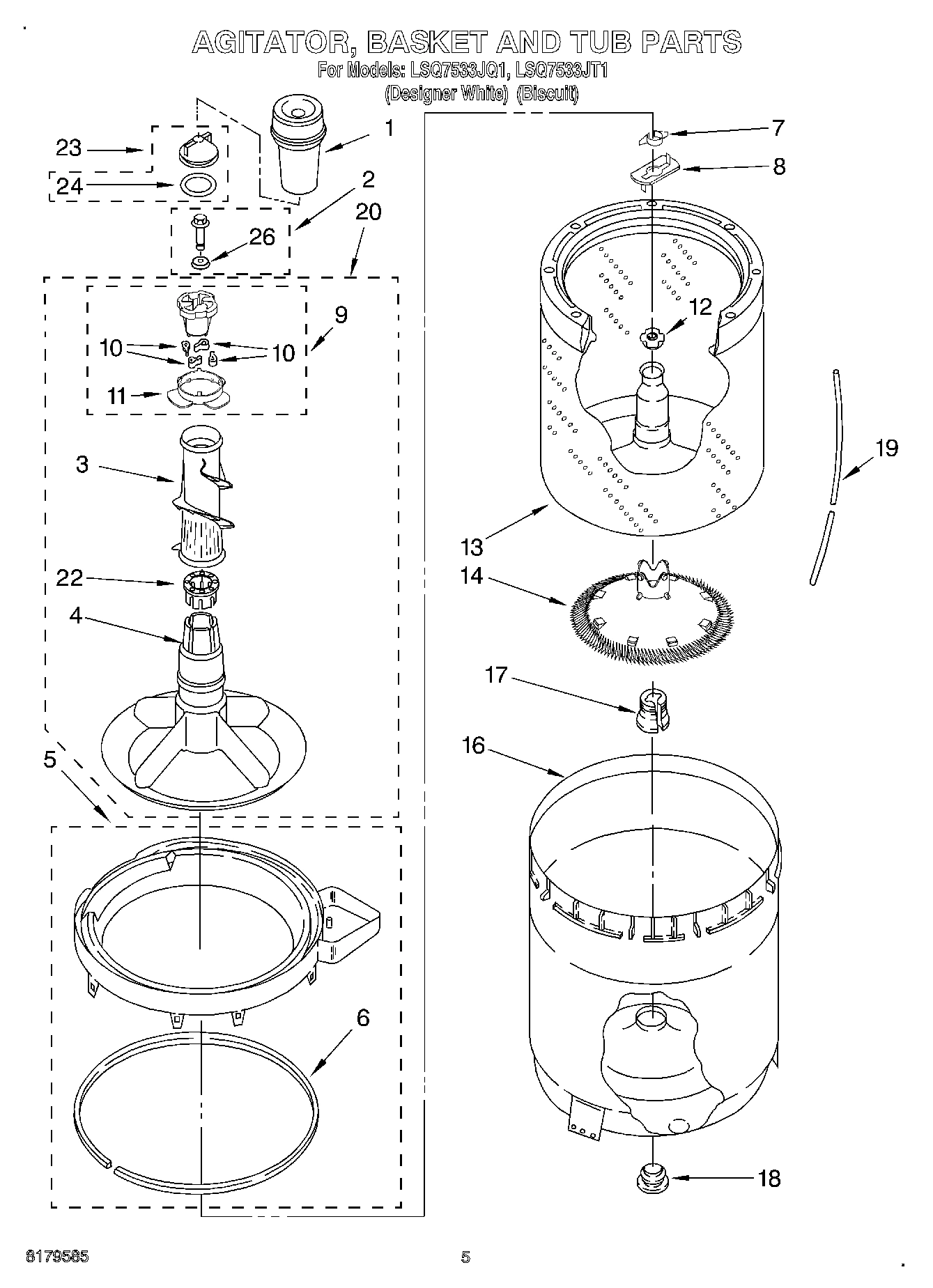

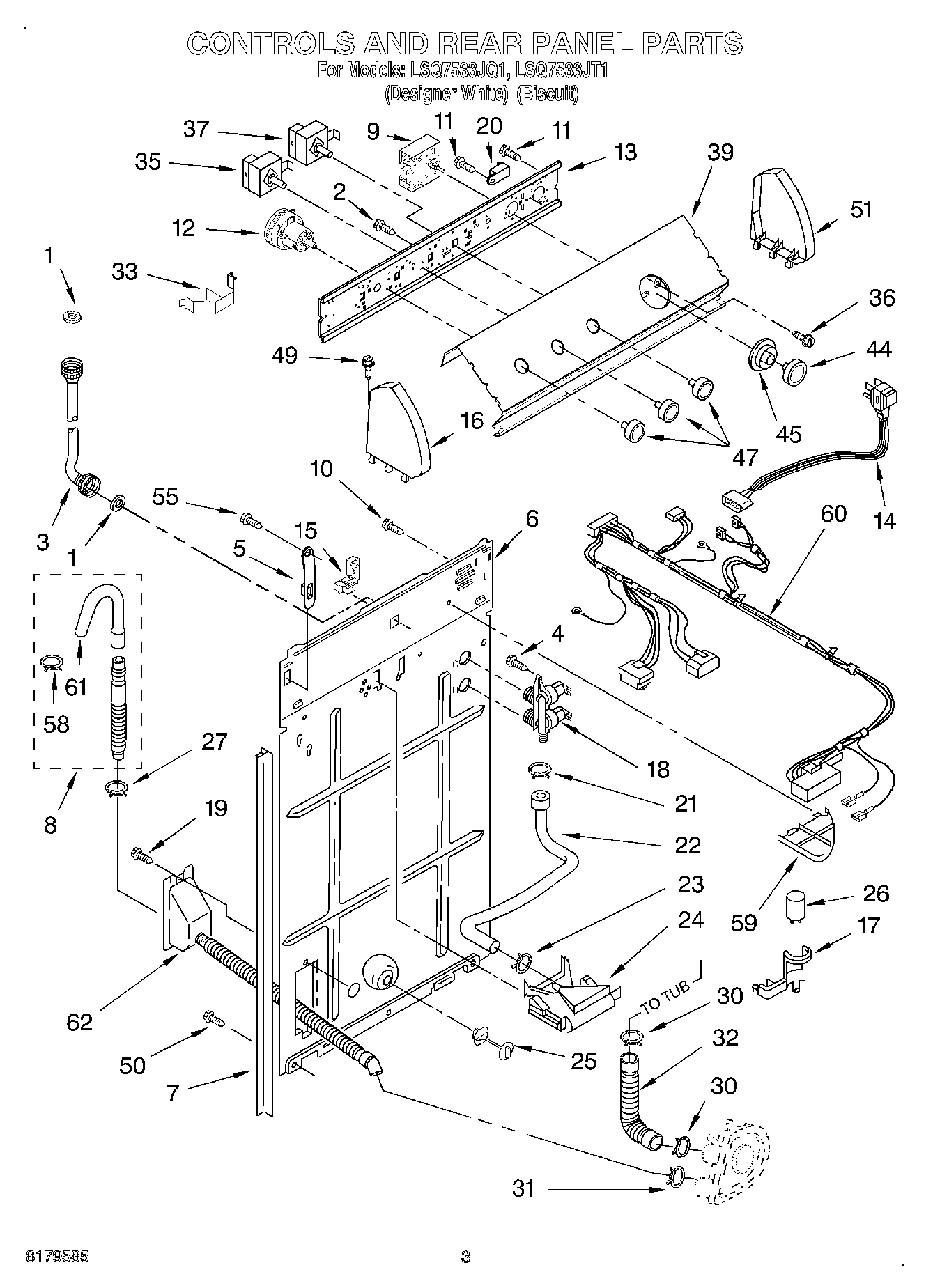

Model Whirlpool LSQ7533JQ1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $11.31

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

Clip, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

2

285321 Whirlpool Sleeve Backorder WPL 285321 $28.09

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $3.11

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $4.52

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $4.70

2

Clip, Harness WPL 388498 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.52

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $10.17

3

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $93.60

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $4.52

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.70

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.07

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $4.98

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

8559320 Whirlpool Clip Backorder WPL 8559320 $13.91

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

4

WP3951632 Whirlpool Washer Lower Agitator In Stock WPL WP3951632 $81.88

4

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $31.44

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

W10880720 Whirlpool Tub Ring Backorder WPL W10880720 $81.29

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $30.74

6

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $33.38

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

6

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

6

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

6

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

6

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.70

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $11.67

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $4.70

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $133.70

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

6

Clip, Harness WPL 3390496 Contact Us For Availability

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $3.70

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $3.33

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $79.60

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.51

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $3.70

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $6.35

8

Timer, Block Disconnect (White) WPL 352090 Contact Us For Availability

9

285809 Whirlpool Washer Agitator Cam Kit In Stock WPL 285809 $6.70

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $195.01

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

W10876590 Whirlpool Connector In Stock WPL W10876590 $4.94

9

WP3953321 Whirlpool Timer In Stock WPL WP3953321 $198.49

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $4.70

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $1.25

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $2.51

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

353424 Whirlpool Connector Backorder WPL 353424 $10.76

WP3952374 Whirlpool Bearing In Stock WPL WP3952374 $3.70

WP62611 Whirlpool Plate In Stock WPL WP62611 $39.14

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

Spring, Brake WPL 387806 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.52

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $10.45

W10389329 Whirlpool Washer Basket Backorder WPL W10389329 $177.36

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

Block, Disconnect (Motor 3 Speed) (Use Term. WPL 3348075 Contact Us For Availability

285868 Whirlpool Washer Filter Plug Kit In Stock WPL 285868 $15.41

W10820044 Whirlpool Power Cord In Stock WPL W10820044 $59.87

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

Protector WPL 63523 Contact Us For Availability

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $133.48

WP91770 Whirlpool Hinge In Stock WPL WP91770 $8.80

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $5.78

Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $9.26

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $80.64

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Plug, Terminal (4-Way) (Power Cord) (Use M3 S WPL 387566 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $3.40

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

Clip, Harness WPL 3352944 Contact Us For Availability

19

WP353244 Whirlpool Hose In Stock WPL WP353244 $32.99

19

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $146.58

19

Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability

285565 Whirlpool Agitator Assembly In Stock WPL 285565 $140.64

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $51.99

Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $31.51

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

Plug, Terminal (12-Way) (Use Term. 94613 Or 9 WPL 388818 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $9.04

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $35.58

WP3951608 Whirlpool Washer Agitator Thrust Sp In Stock WPL WP3951608 $4.70

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $3.46

Timer, Block Disconnect (Black) (Amp) (Use Te WPL 3369366 Contact Us For Availability

23

WP273556 Whirlpool Screw In Stock WPL WP273556 $3.33

23

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $8.66

23

Connector, Etc WPL 3349494 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $76.00

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $4.70

Connector, Relay (Use Term. 308569) WPL 60687 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

25

Control, ETC WPL 3407125 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

26

WP2172937 Whirlpool Connector In Stock WPL WP2172937 $8.66

26

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.78

27

Connector (T.P.A) (3-Circuit) (Pressure Switc WPL 3360056 Contact Us For Availability

28

3354925 Whirlpool Connector Backorder WPL 3354925 $10.76

28

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $3.33

29

WPL 3354926 WPL 3354926 Contact Us For Availability

30

WPL 3948615 WPL 3948615 Contact Us For Availability

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.84

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

51

WPL 8271362 WPL 8271362 Contact Us For Availability

55

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.46

58

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $4.52

59

WPL 3348424 WPL 3348424 Contact Us For Availability

60

WPL 3955020 WPL 3955020 Contact Us For Availability

61

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $30.25

62

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $15.23
