Model Huebsch HWNSX2SP115TW01 Washer – Common Parts & Diagrams
Coin Slide Extension, Meter Case and Control
Meter Case

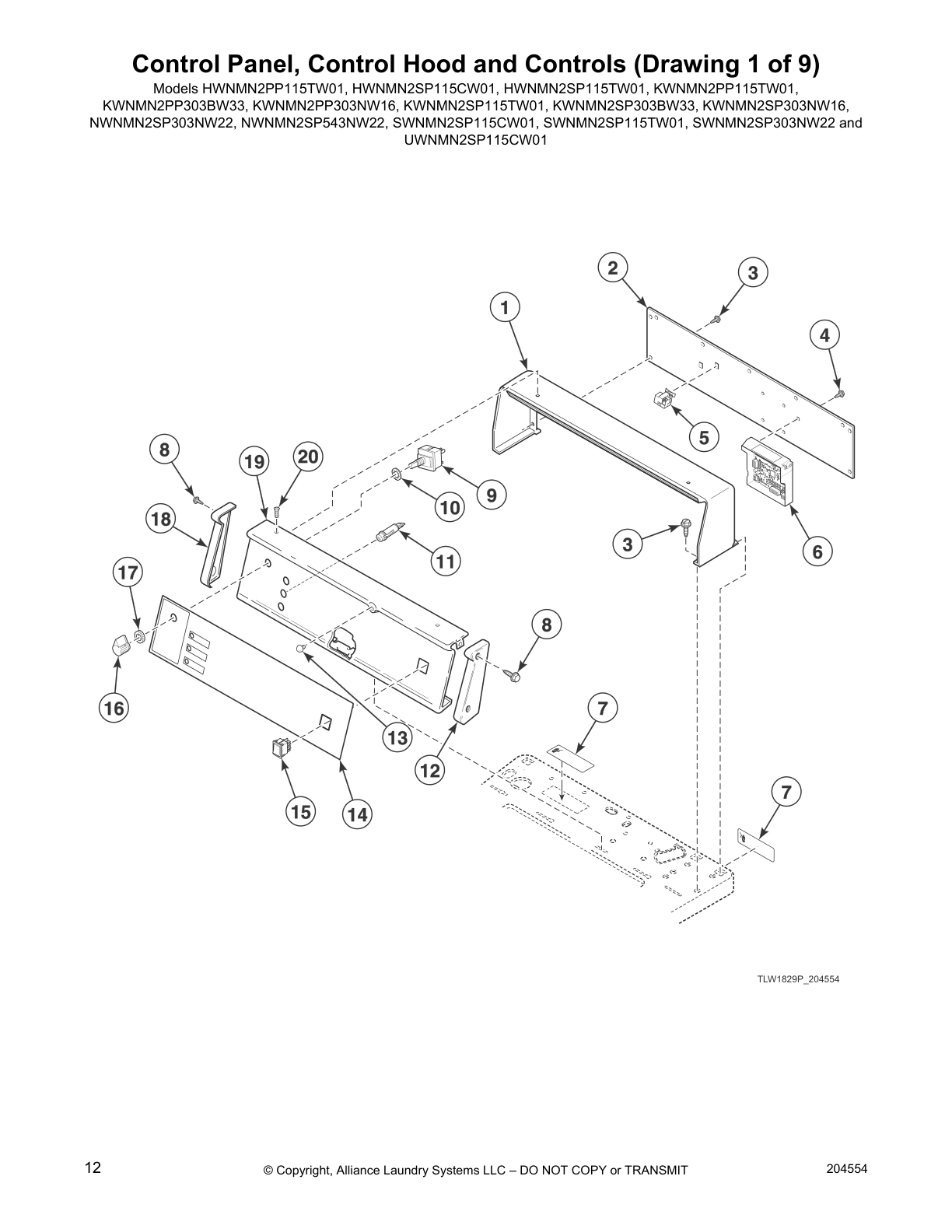

Control Panel, Control Hood and Controls (Drawing 1 of 9)

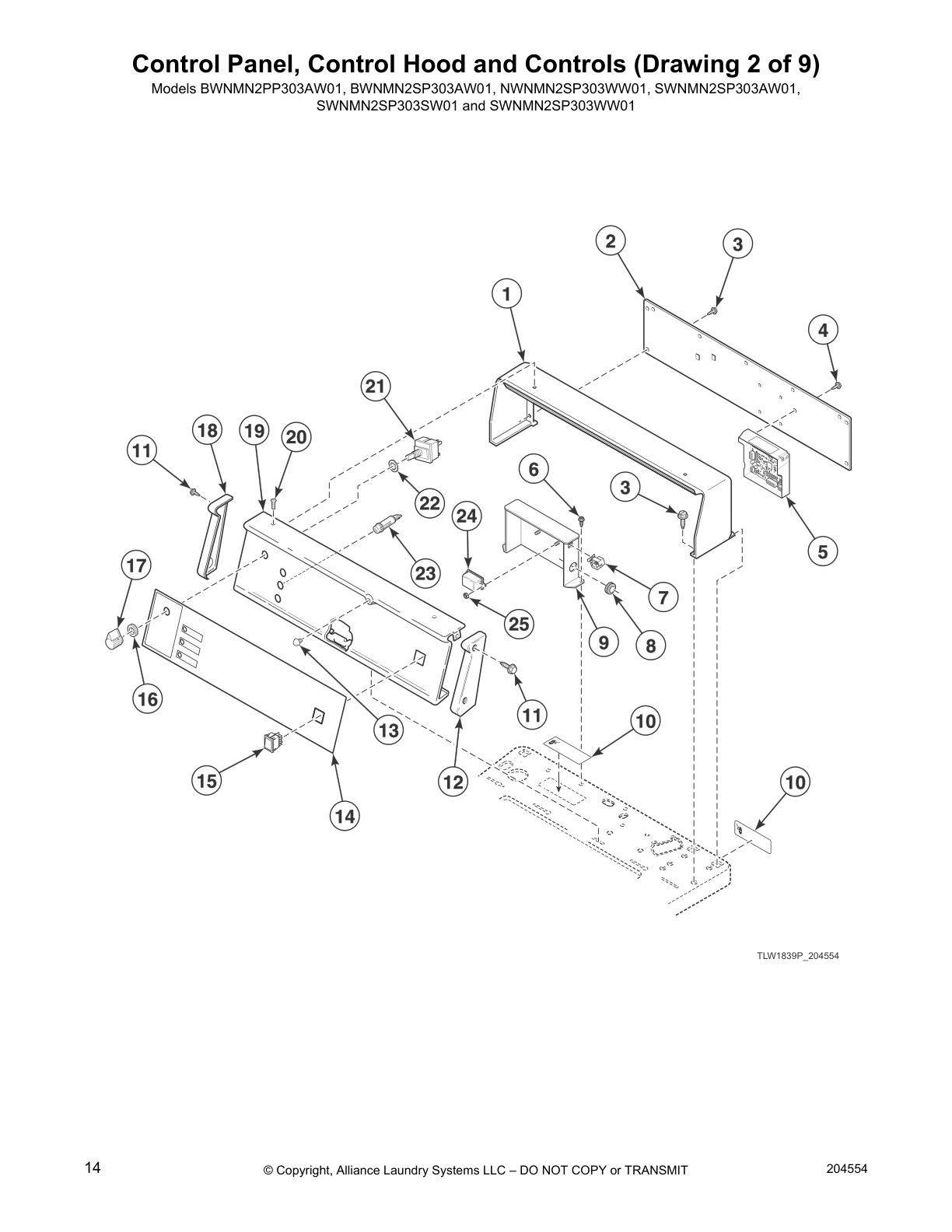

Control Panel, Control Hood and Controls (Drawing 2 of 9)

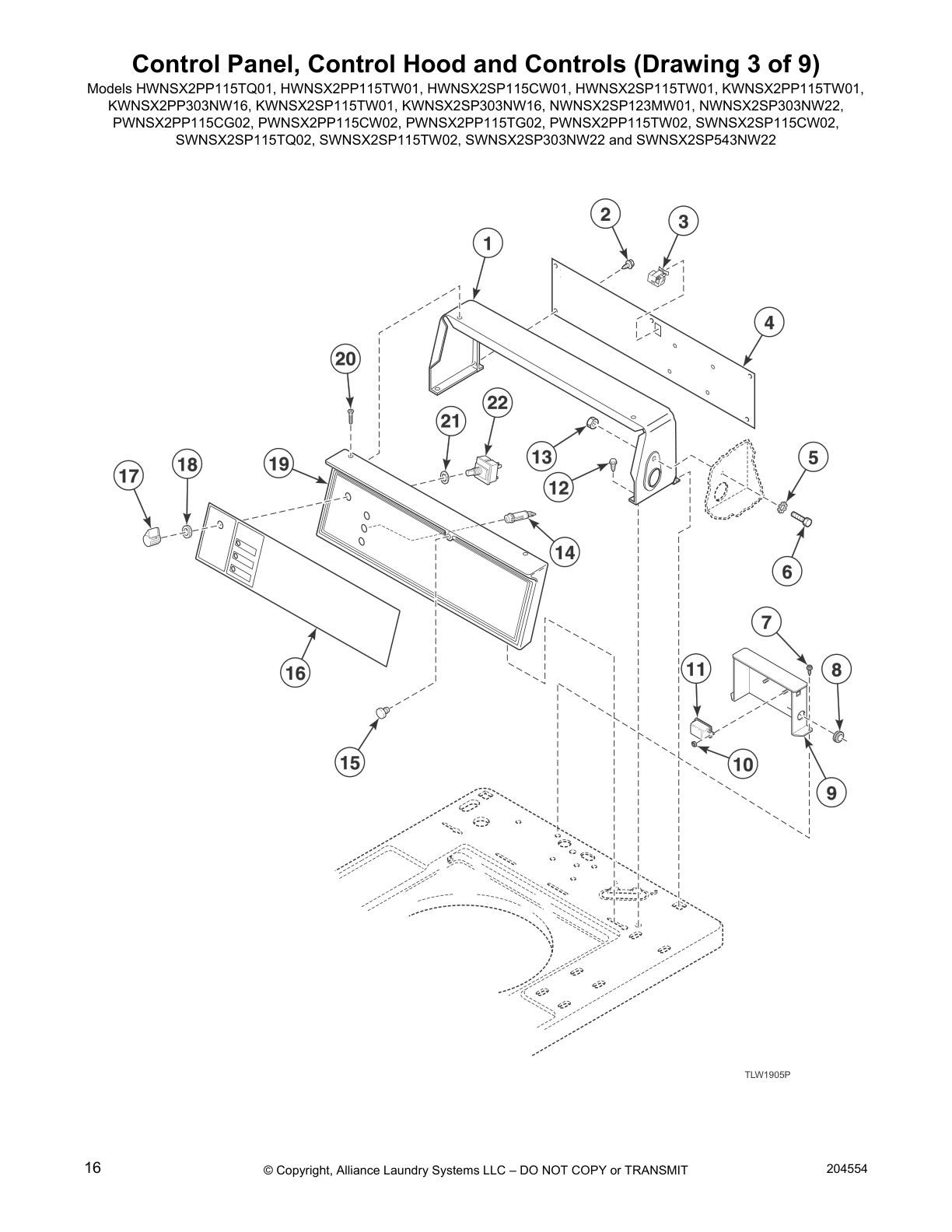

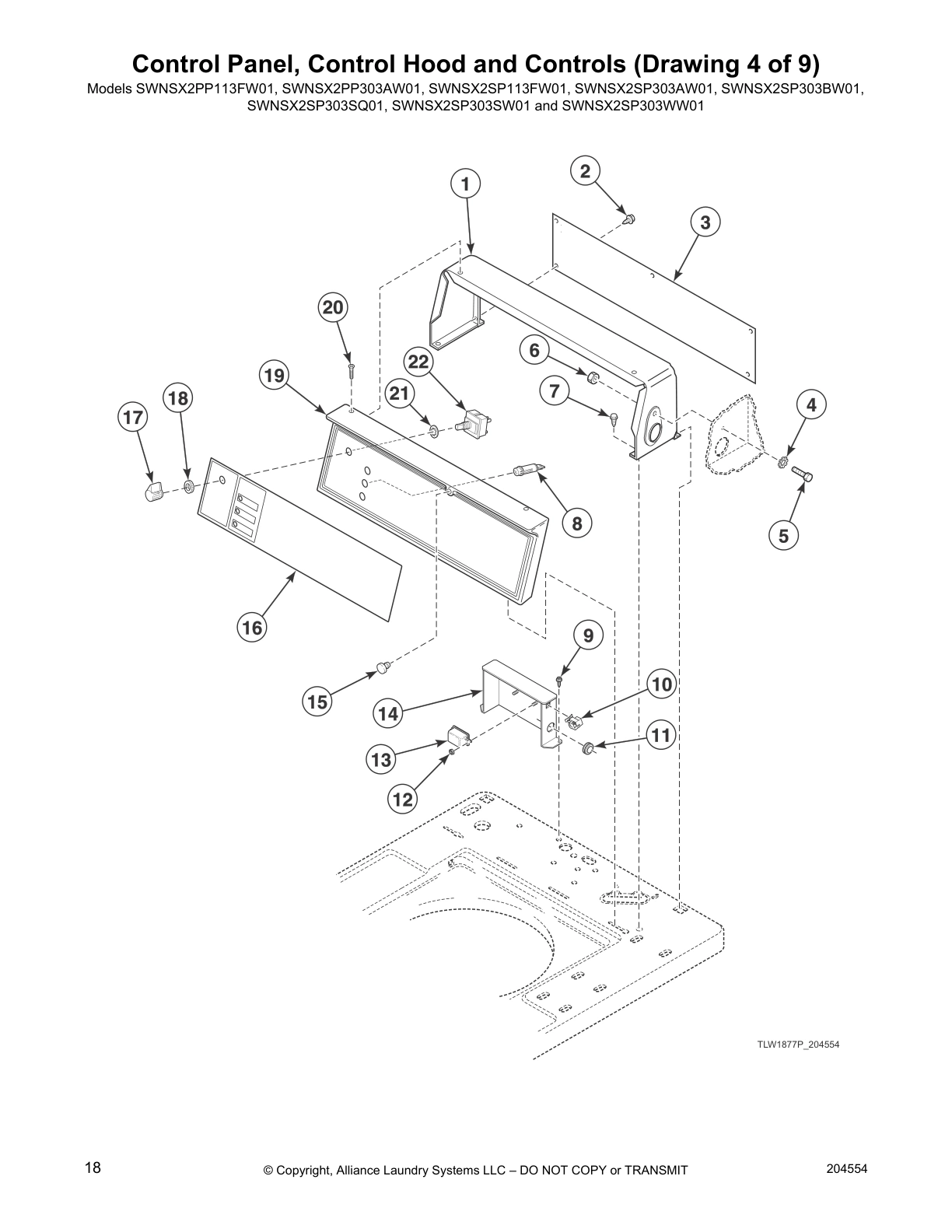

Control Panel, Control Hood and Controls (Drawing 3 of 9)
Control Panel, Control Hood and Controls (Drawing 4 of 9)

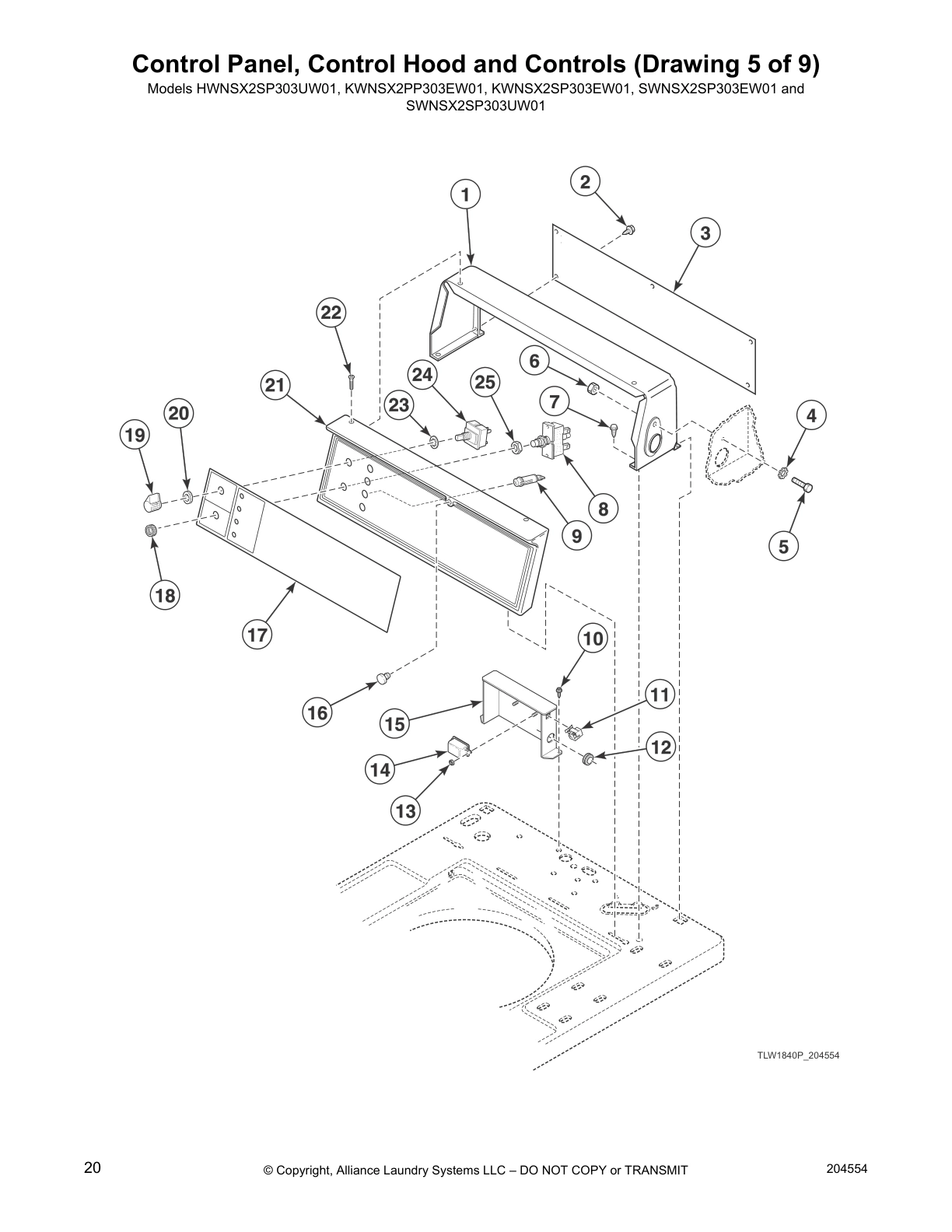

Control Panel, Control Hood and Controls (Drawing 5 of 9)

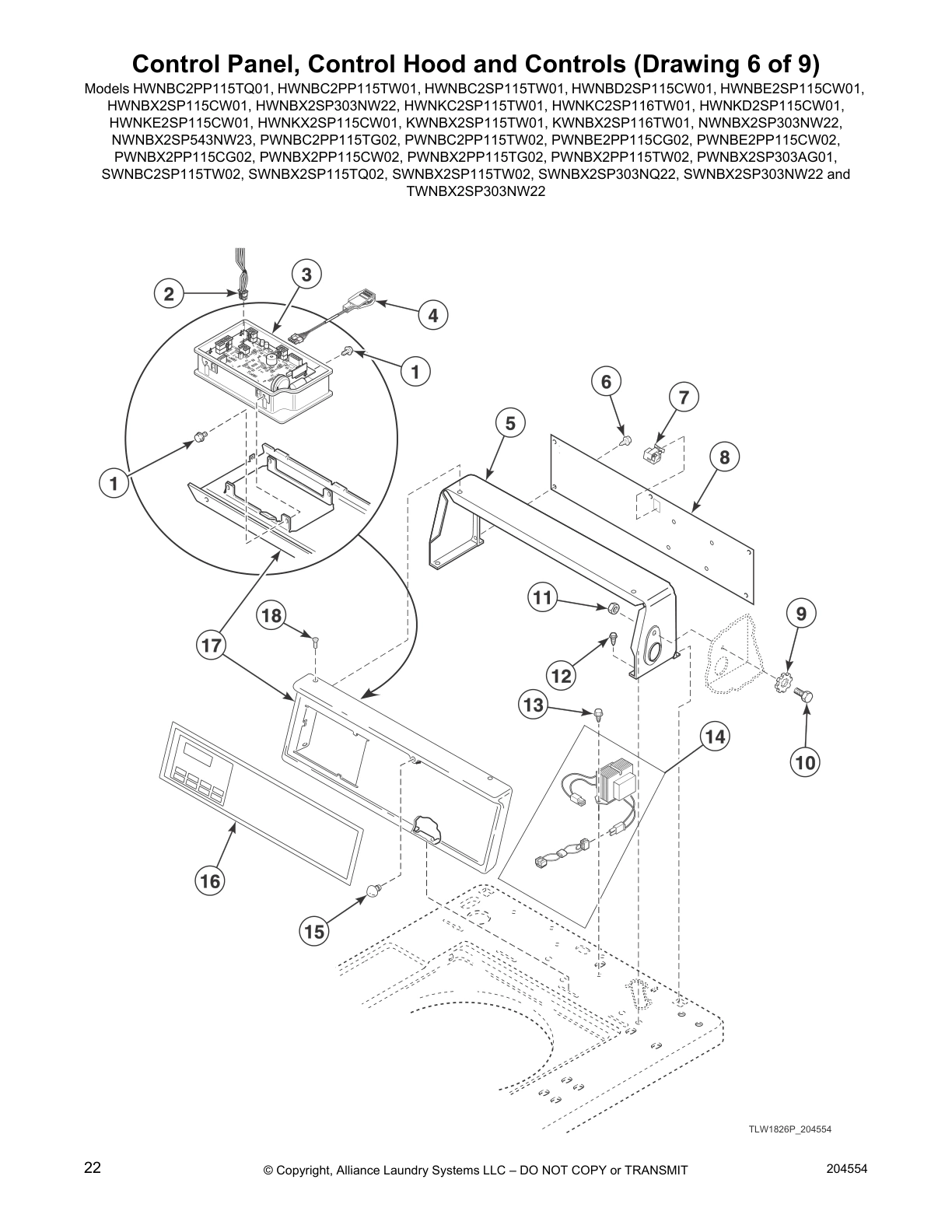

Control Panel, Control Hood and Controls (Drawing 6 of 9)
Control Panel, Control Hood and Controls (Drawing 7 of 9)

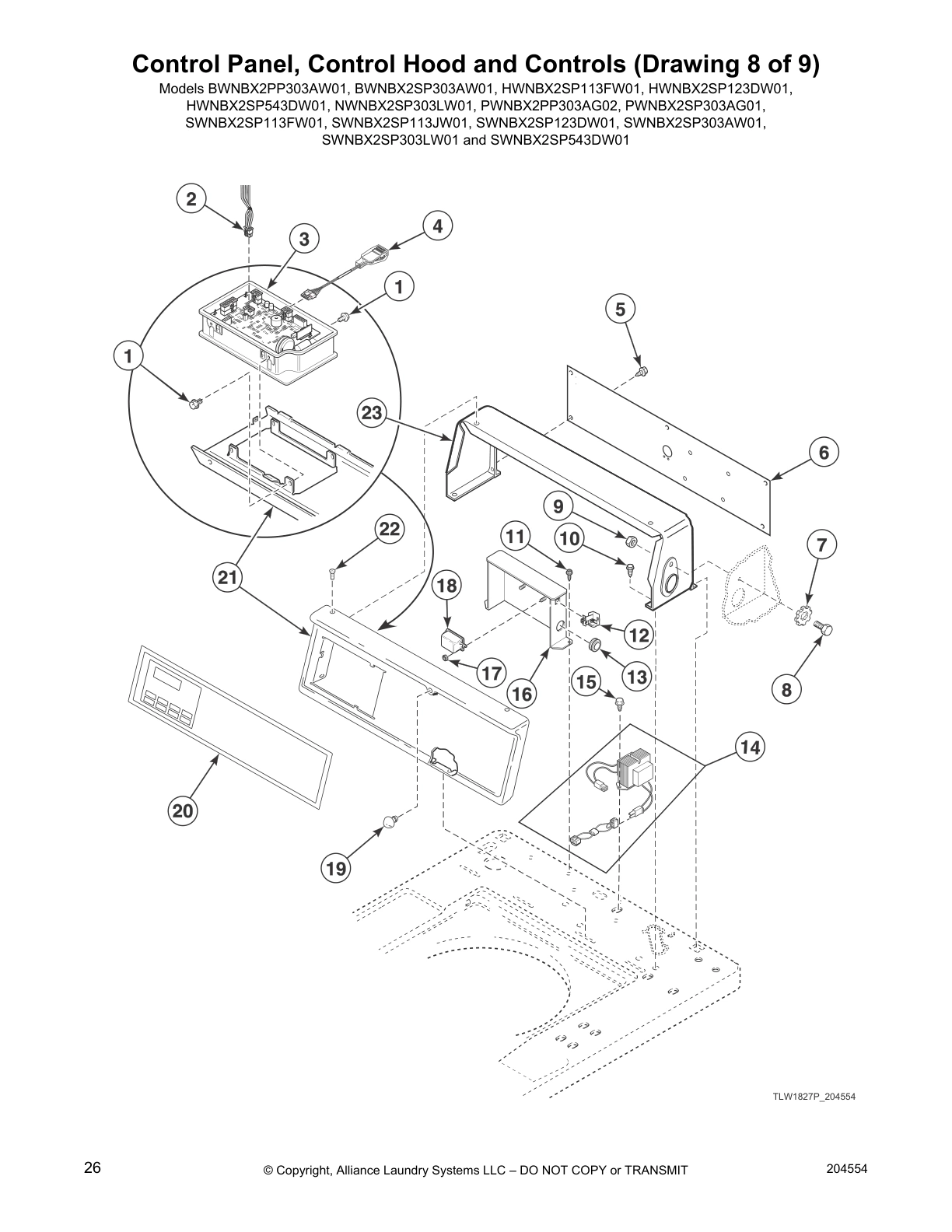

Control Panel, Control Hood and Controls (Drawing 8 of 9)

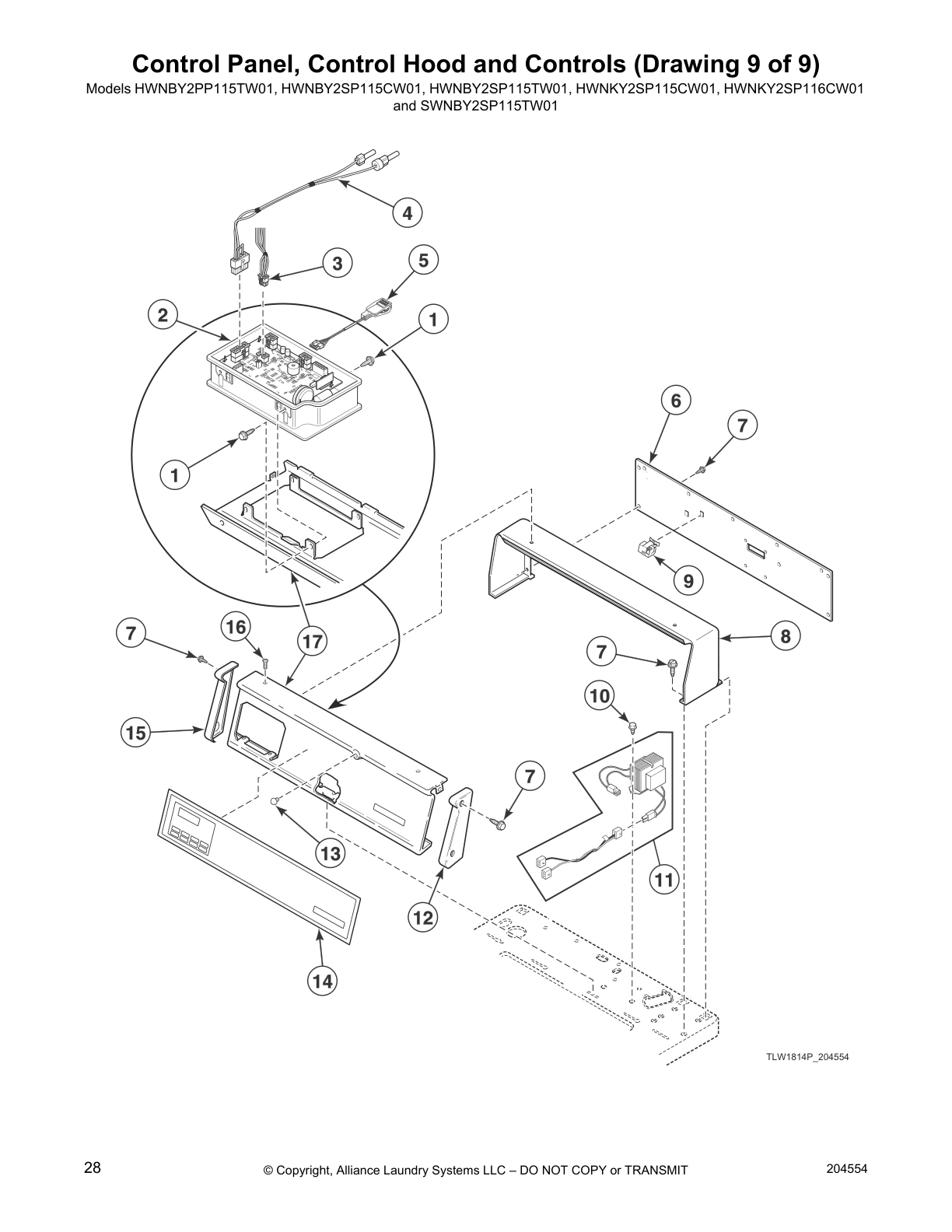

Control Panel, Control Hood and Controls (Drawing 9 of 9)

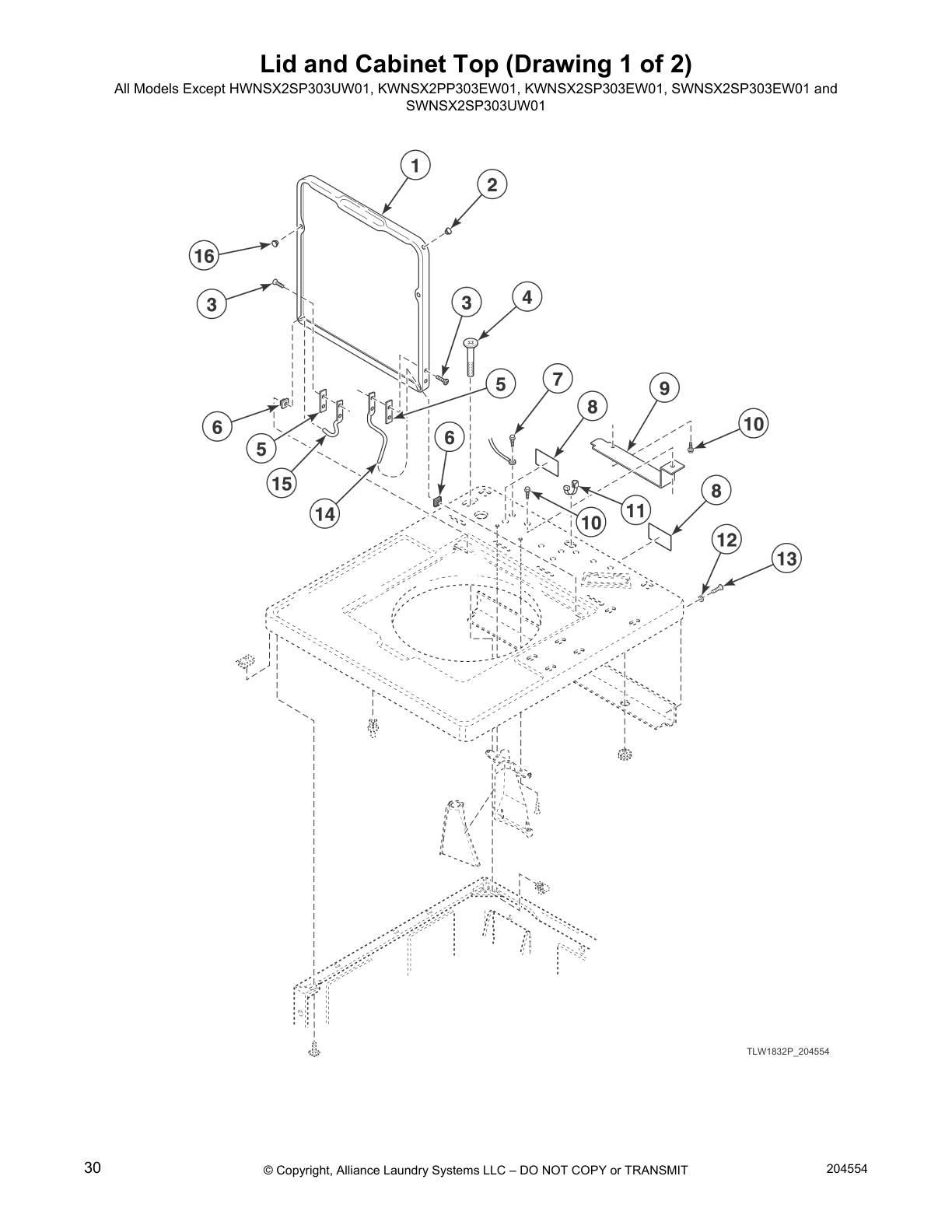

Lid and Cabinet Top (Drawing 1 of 2)

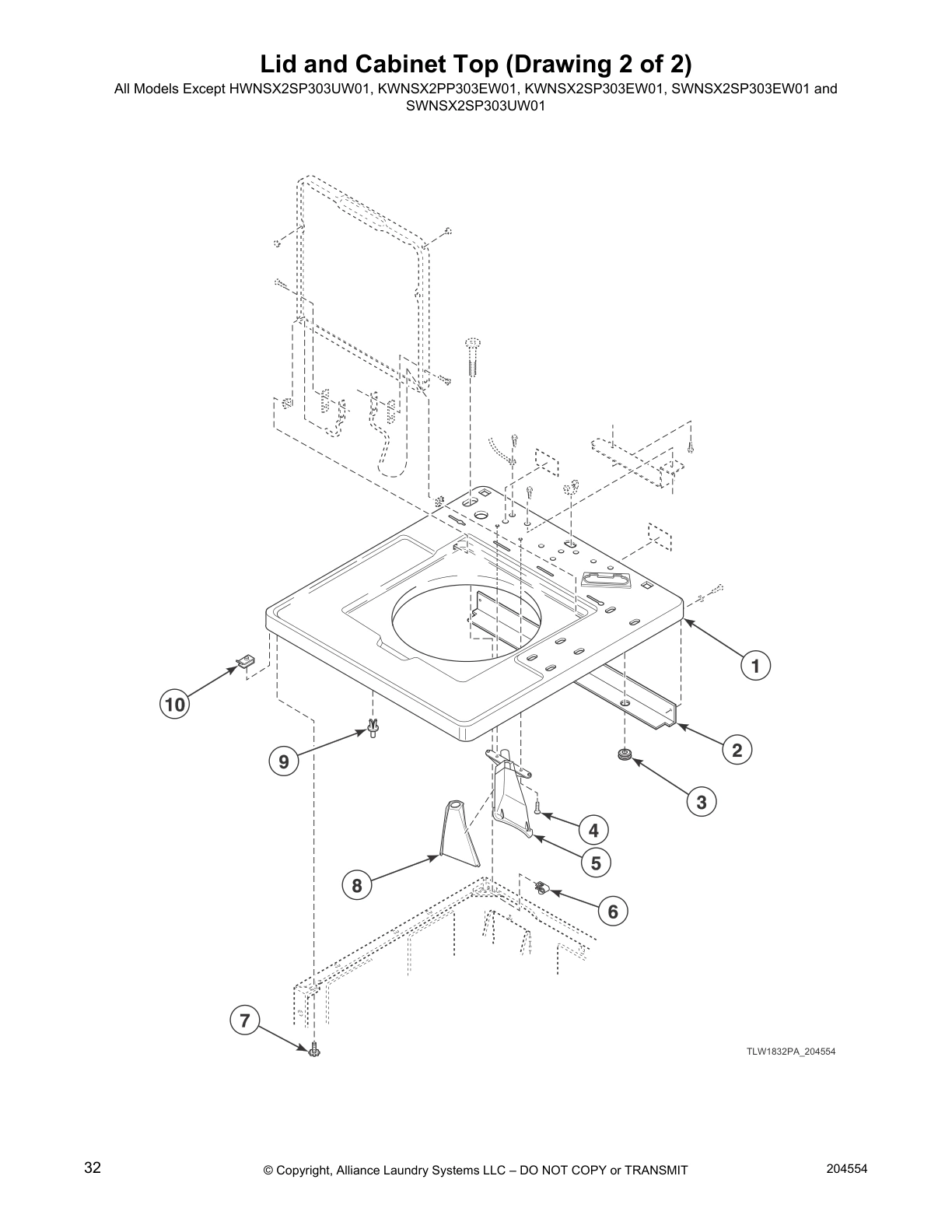

Lid and Cabinet Top (Drawing 2 of 2)

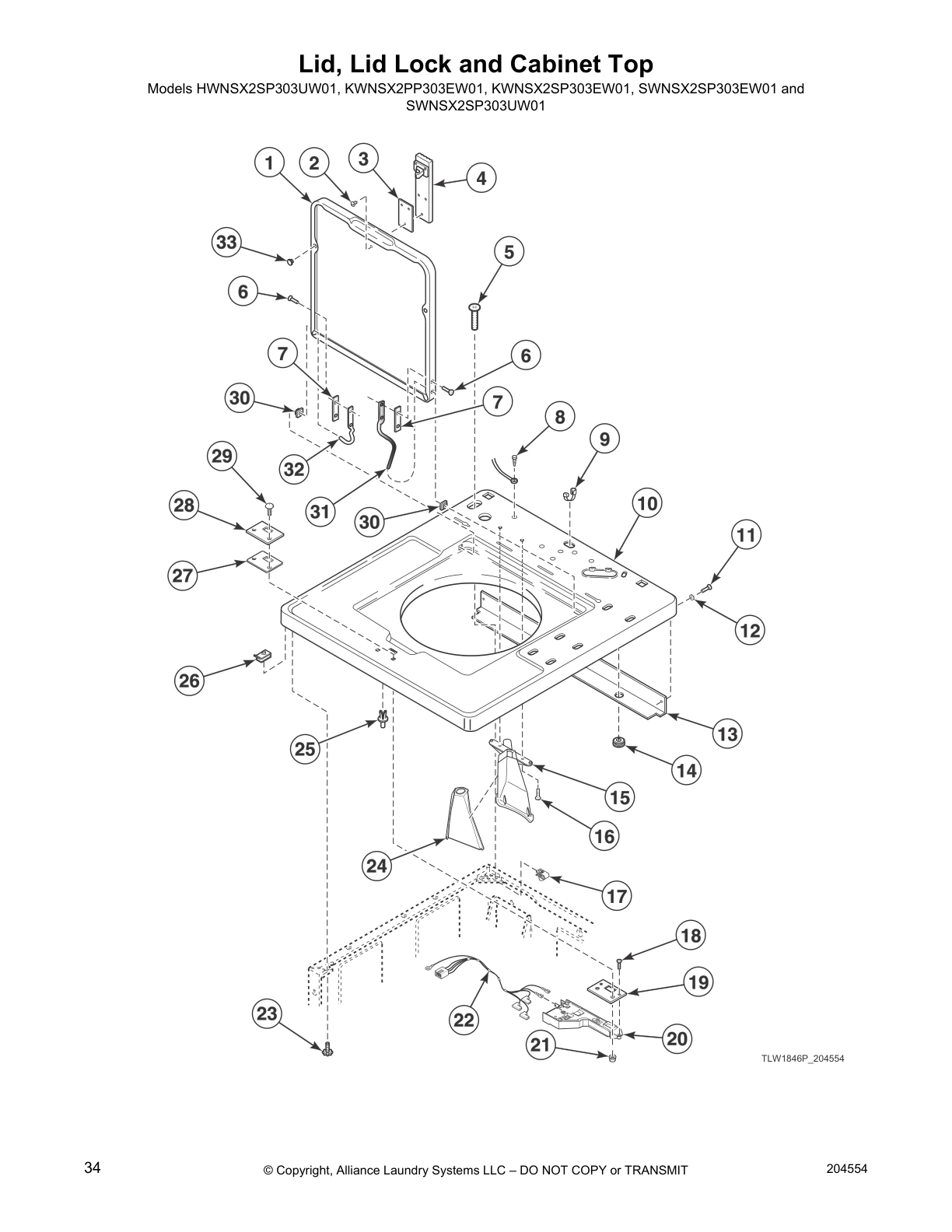

Lid, Lid Lock and Cabinet Top

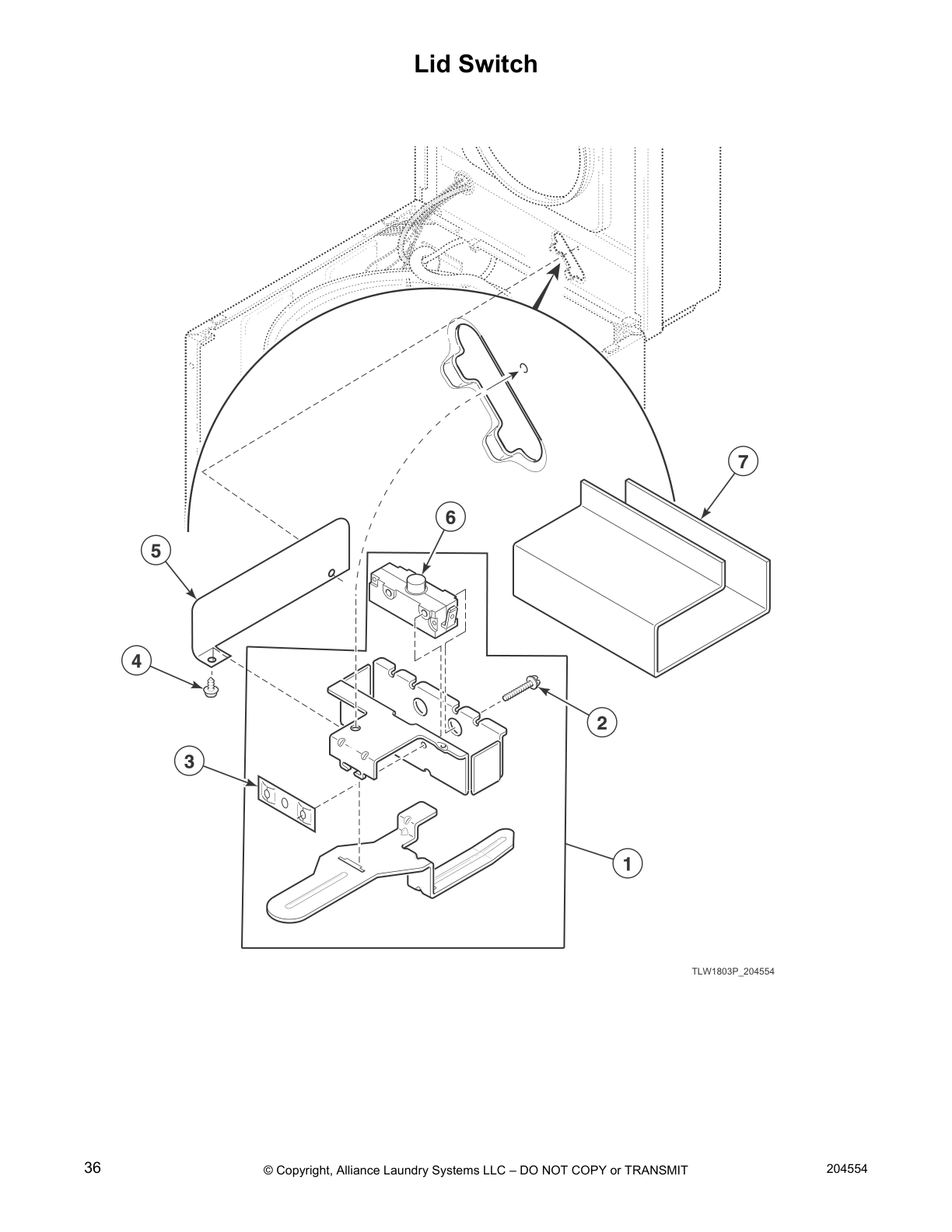

Lid Switch
Mixing Valve (Drawing 1 of 2)

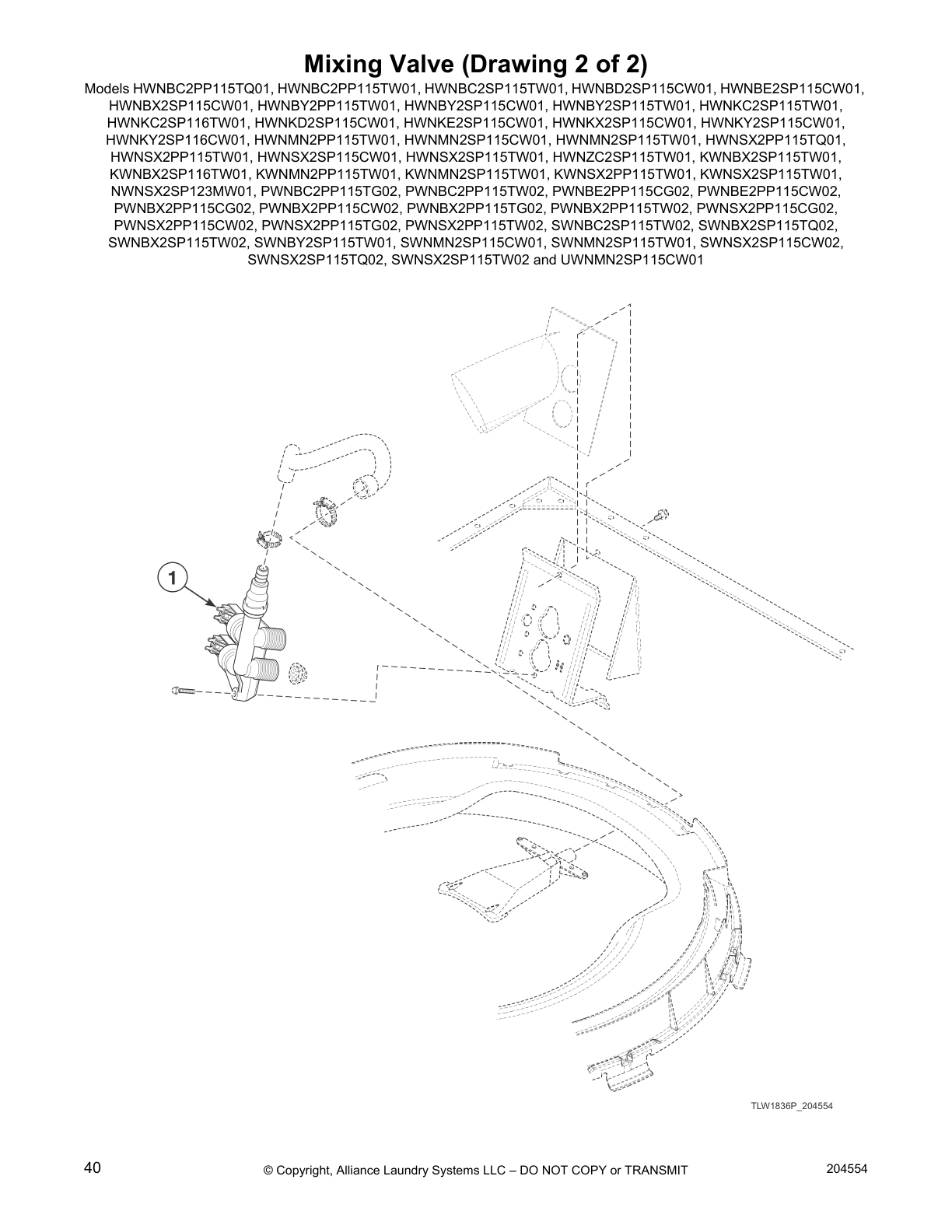

Mixing Valve (Drawing 2 of 2)

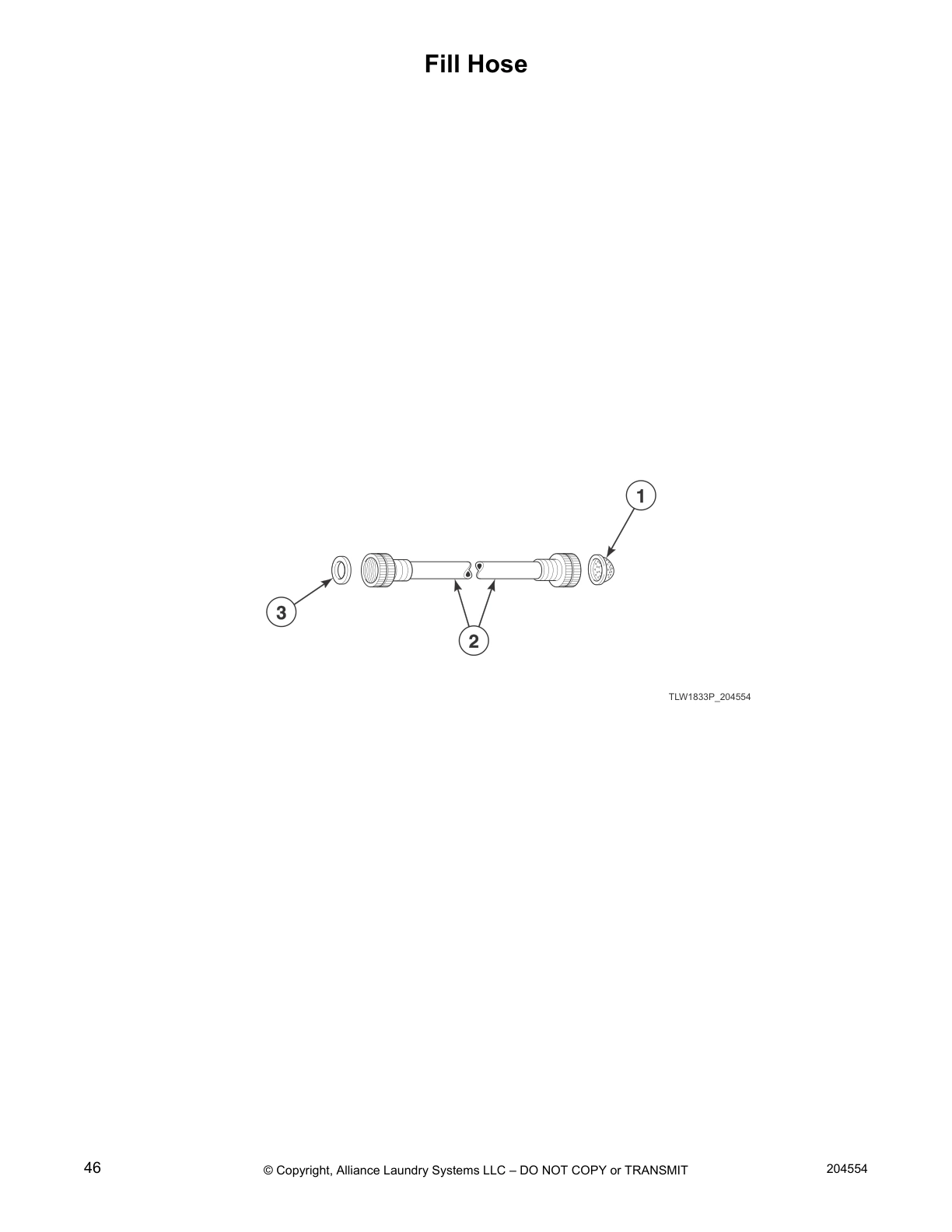

Fill Hose

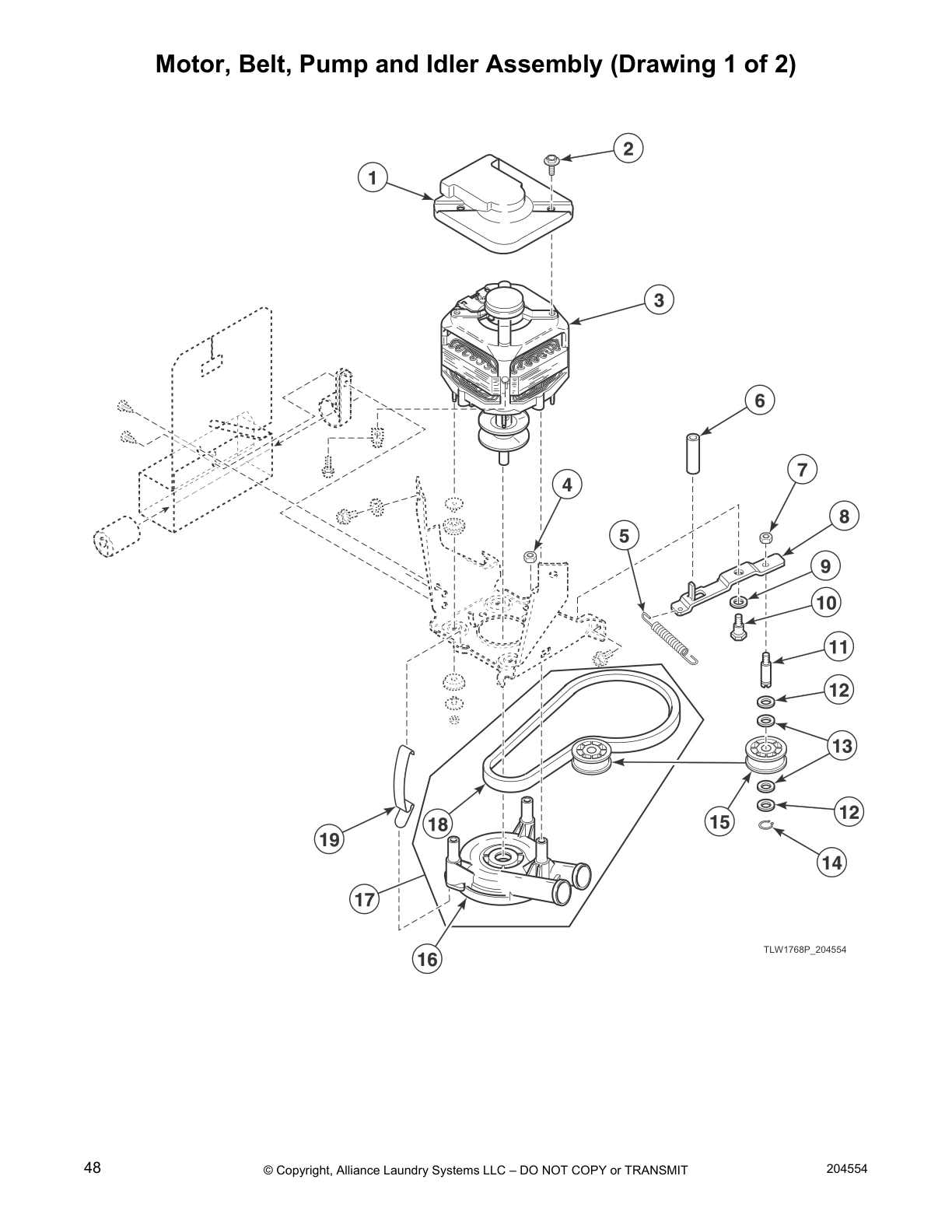

Motor, Belt, Pump and Idler Assembly (Drawing 1 of 2)

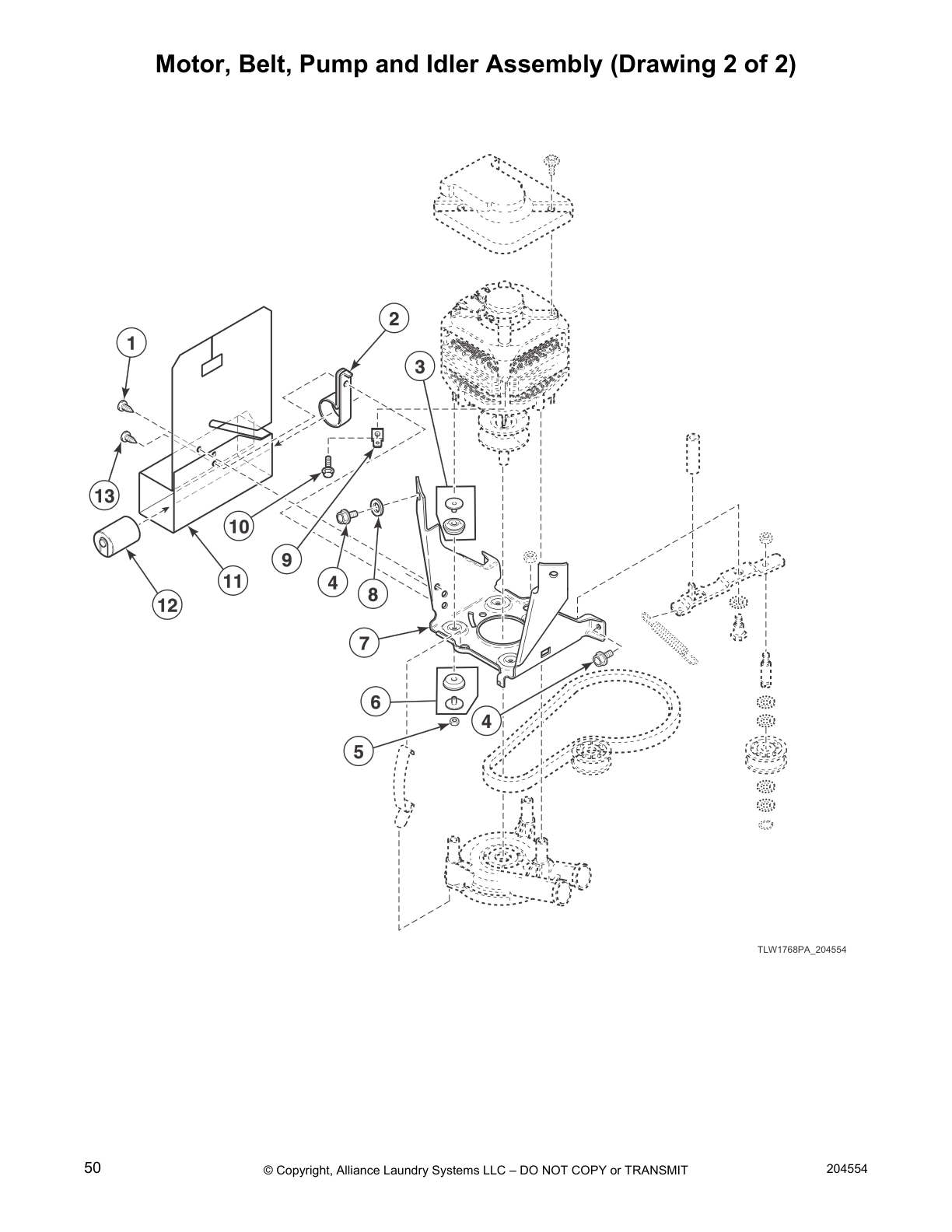

Motor, Belt, Pump and Idler Assembly (Drawing 2 of 2)

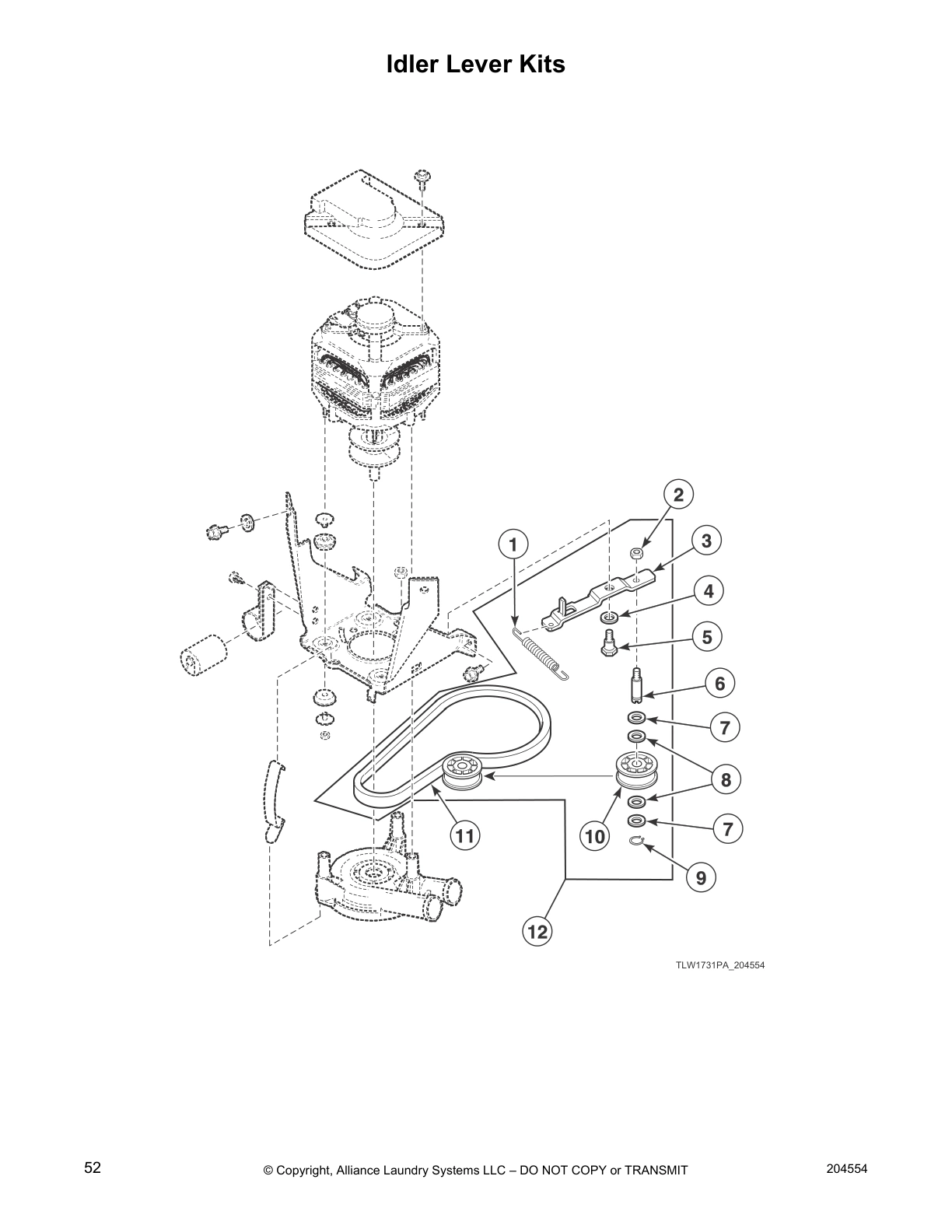

Idler Lever Kits

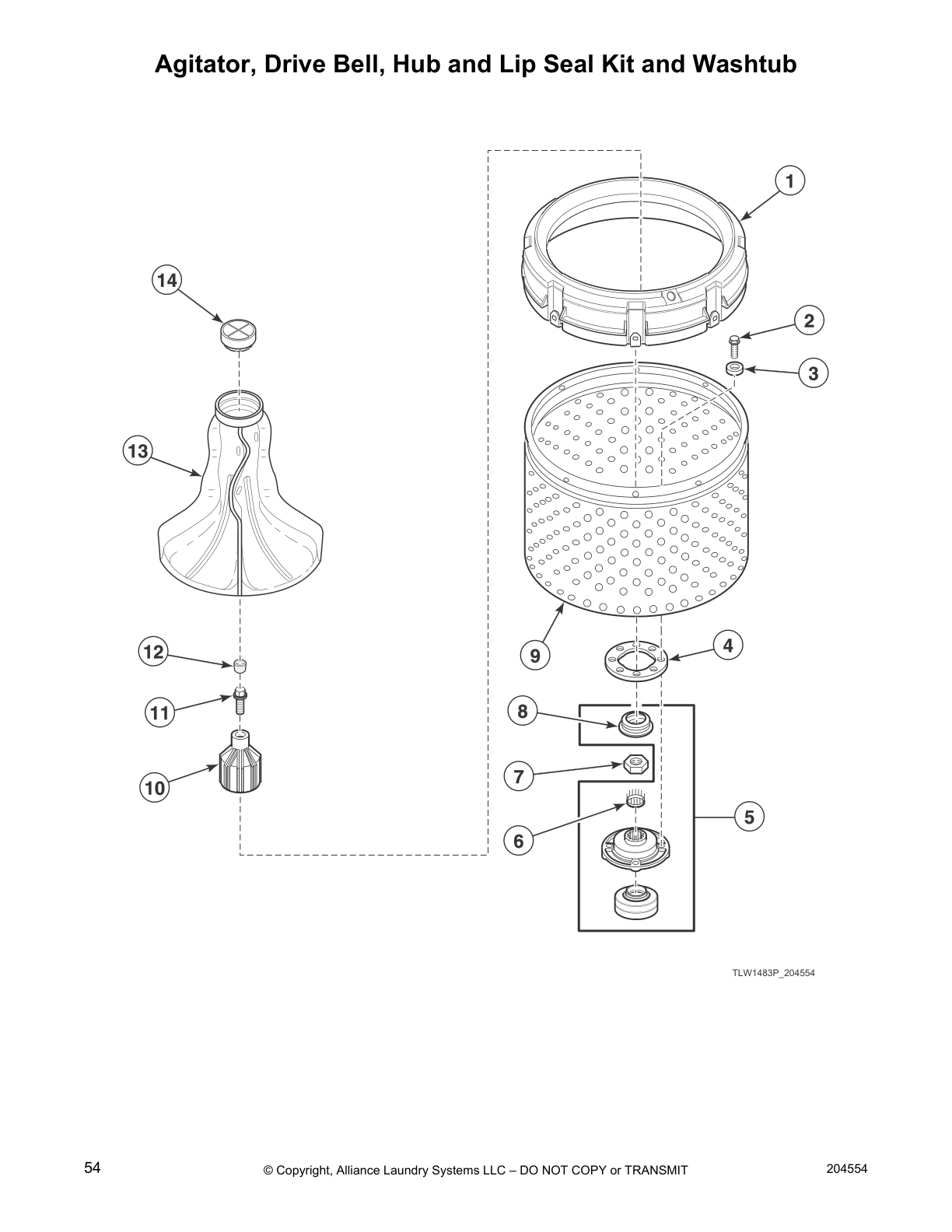

Agitator, Drive Bell, Hub and Lip Seal Kit and Washtub

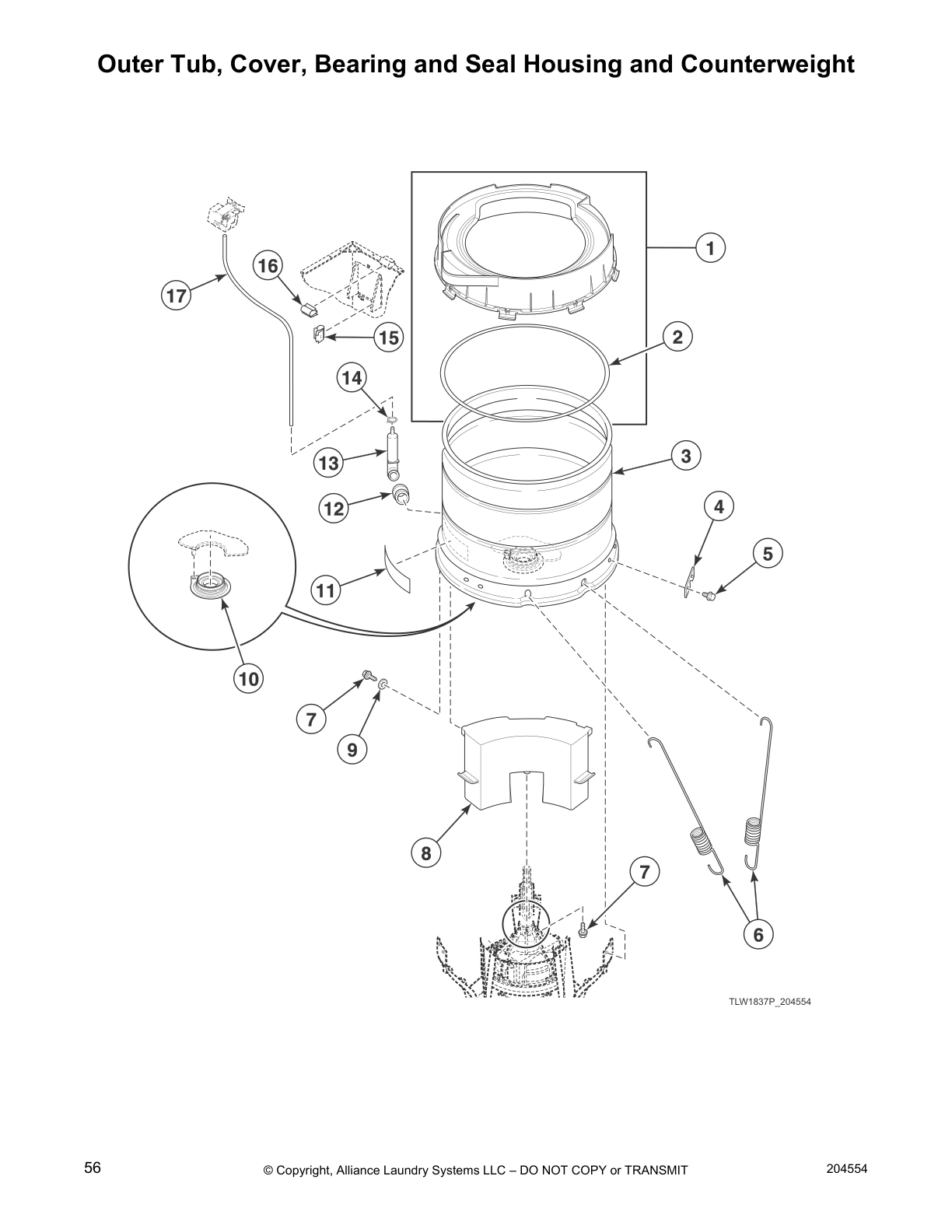

Outer Tub, Cover, Bearing and Seal Housing and Counterweight

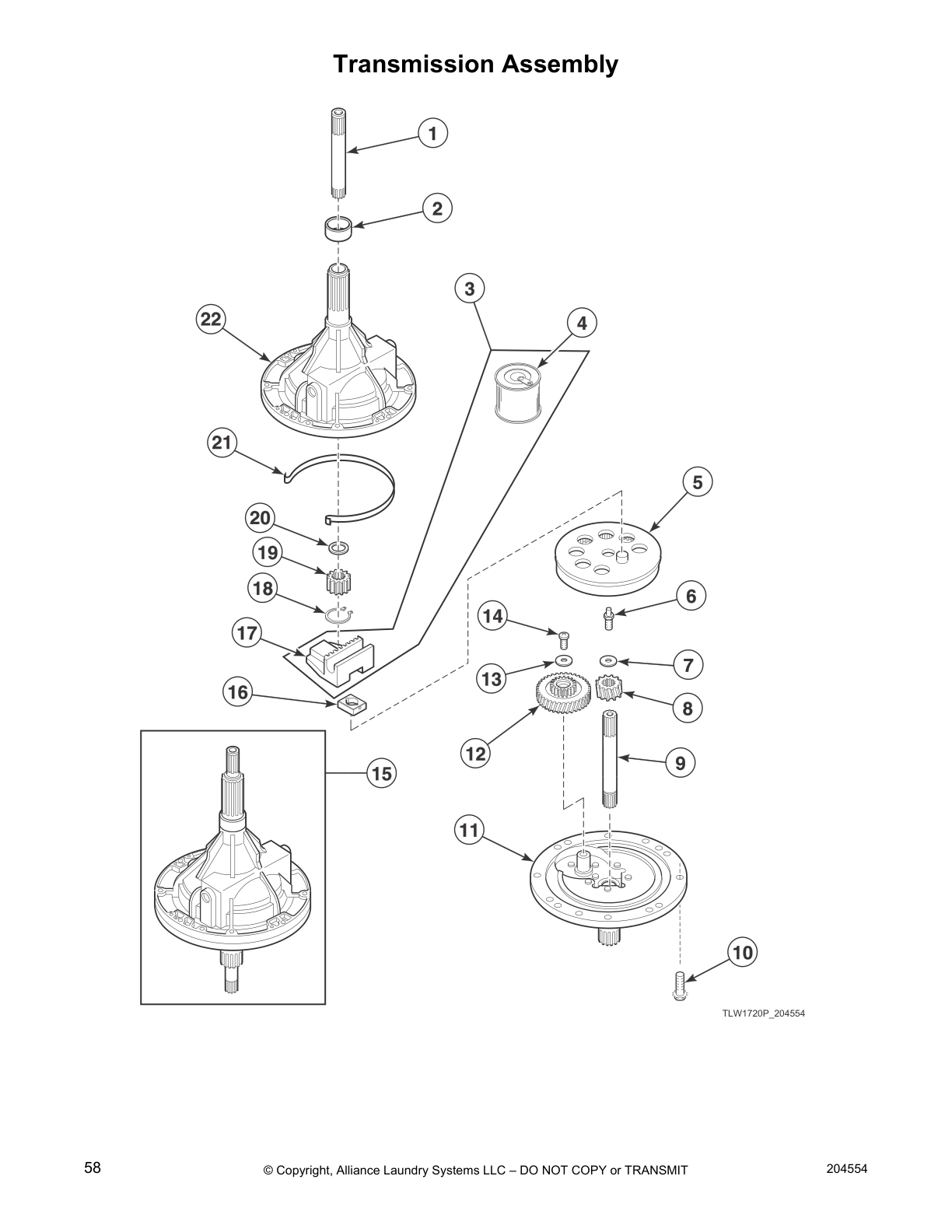

Transmission Assembly
Drain Hoses and Siphon Break Kit
Weldment and Bearing Assembly, Brake and Pulley

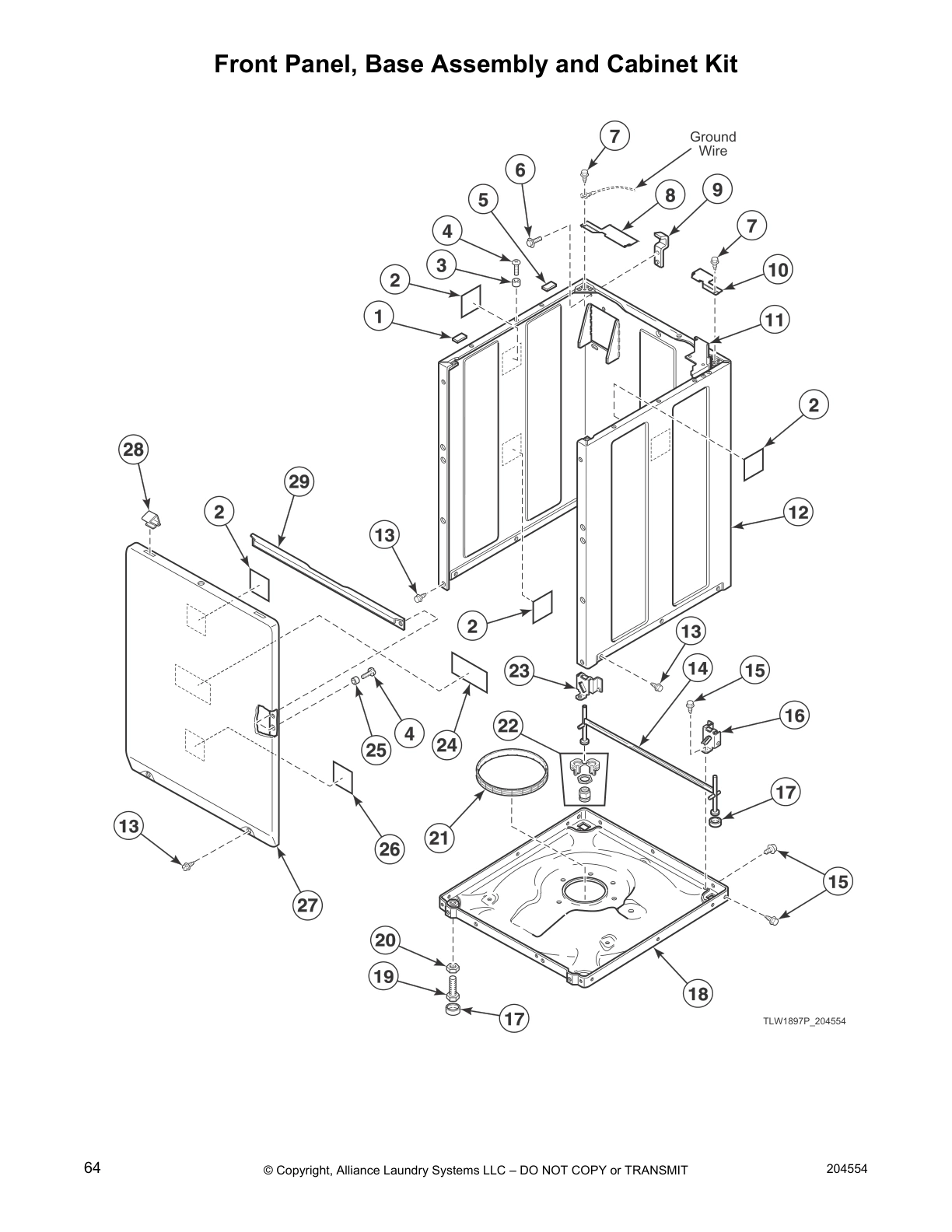

Front Panel, Base Assembly and Cabinet Kit

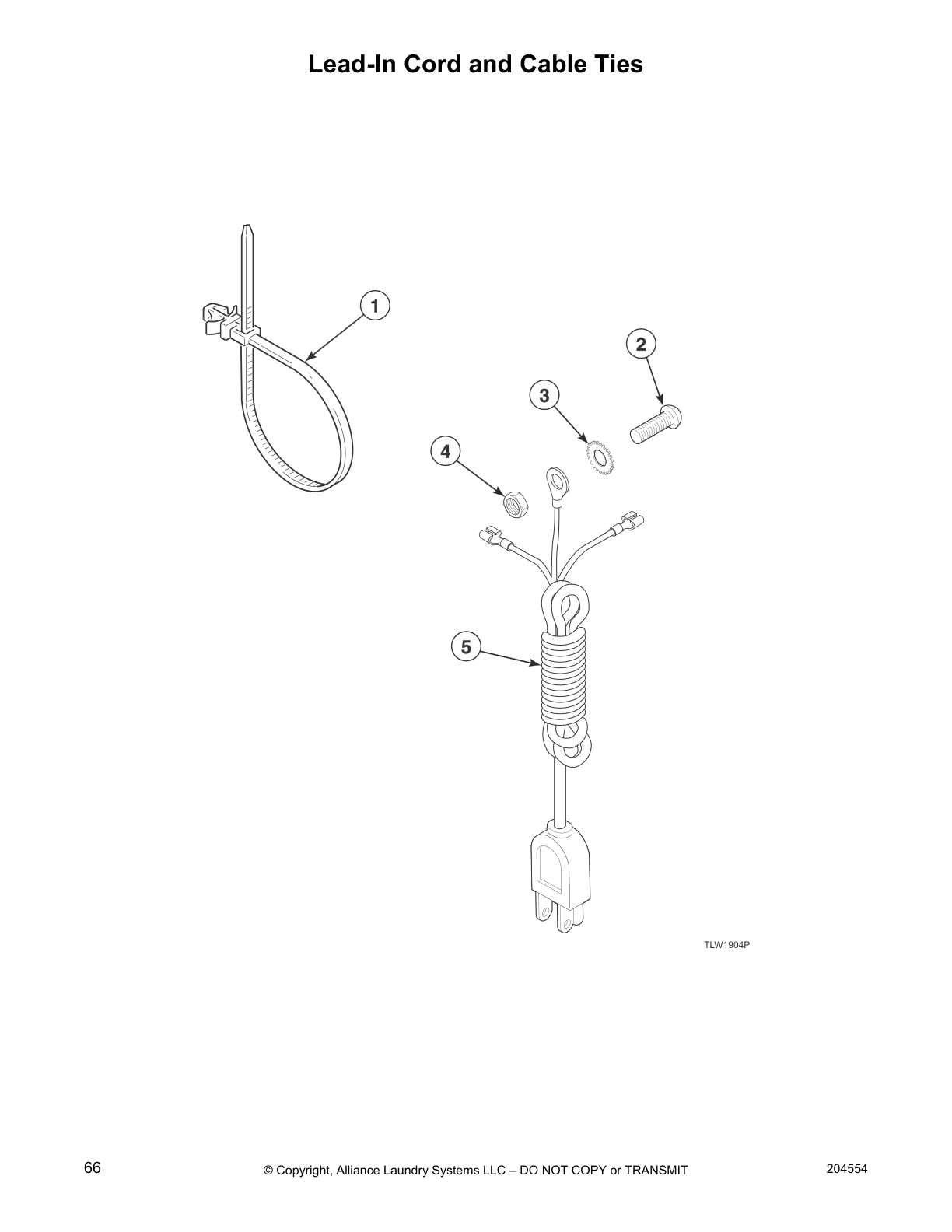

Lead-In Cord and Cable Ties
Shipping Materials and Special Tools

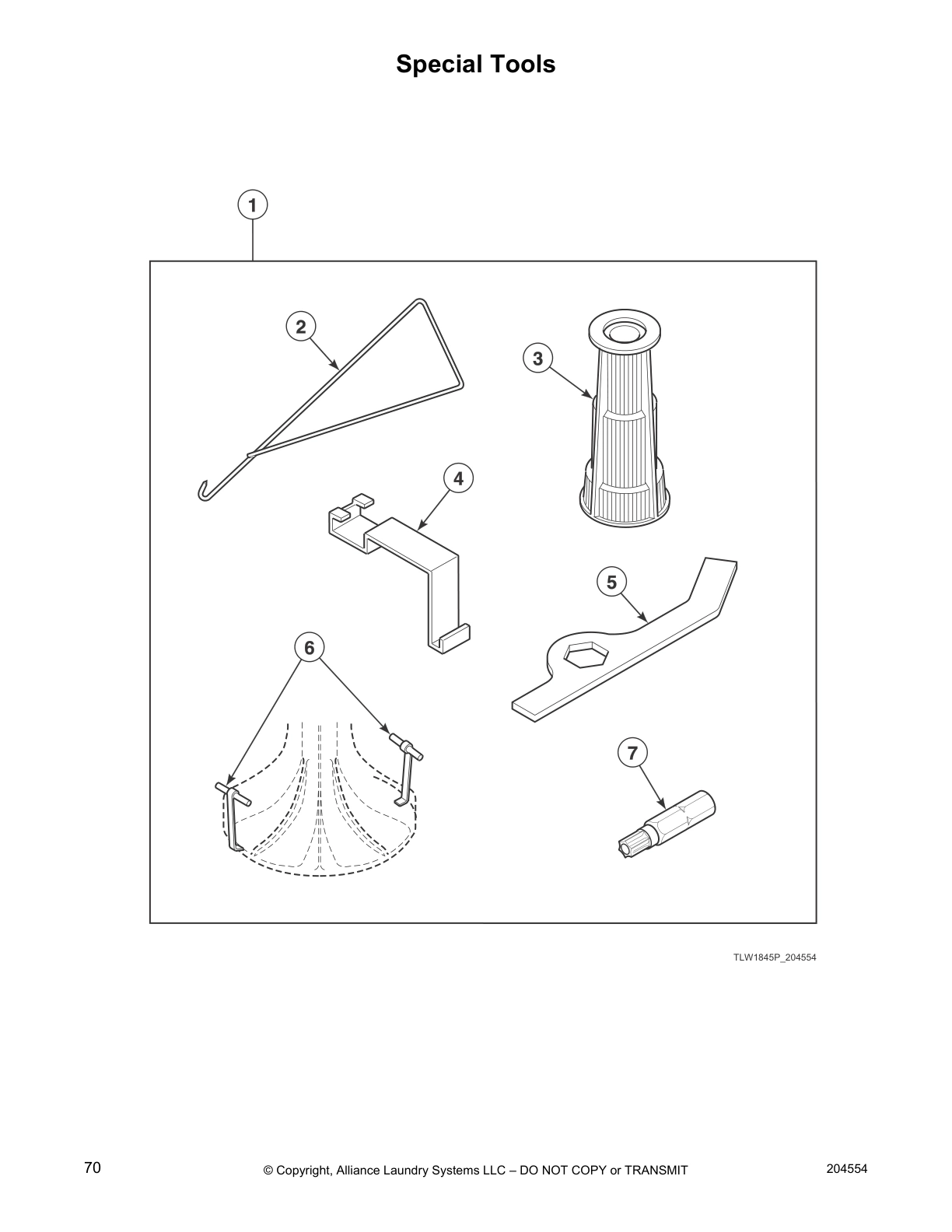

Special Tools
Output Board, Wire Harnesses and Wires (Drawing 1 of 3)

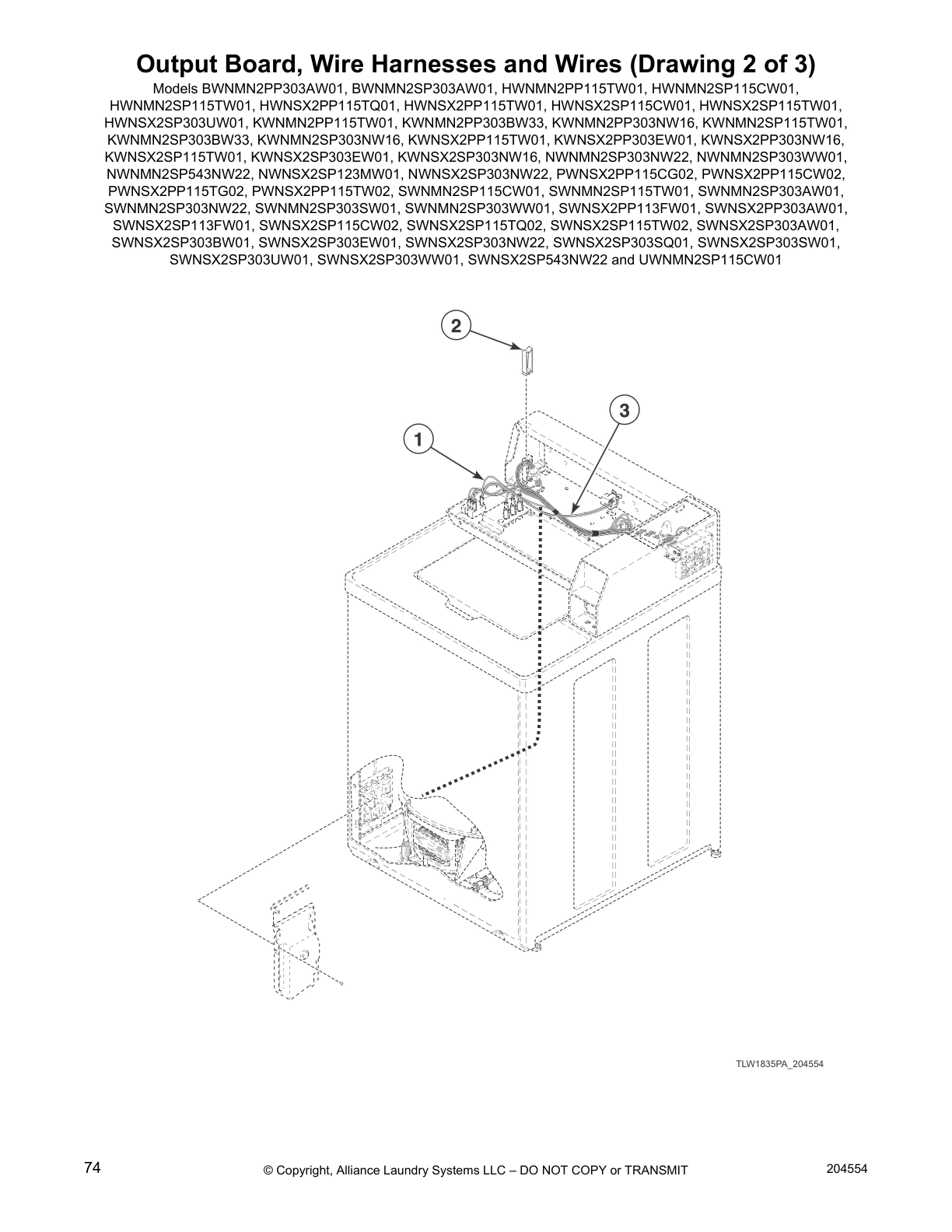

Output Board, Wire Harnesses and Wires (Drawing 2 of 3)
Output Board, Wire Harnesses and Wires (Drawing 3 of 3)
Common parts from model Huebsch HWNSX2SP115TW01 Washer
3
Coin Funnel Kit SPQ 201280P Contact Us For Availability
19
Meter Case Lockdown Bracket SPQ 201010QP Contact Us For Availability
× ![]()
