Model Huebsch HTEBDFSP282CW01 Stacked Washer and Dryer – Common Parts & Diagrams
Control Panel and Controls (Drawing 1 of 2)

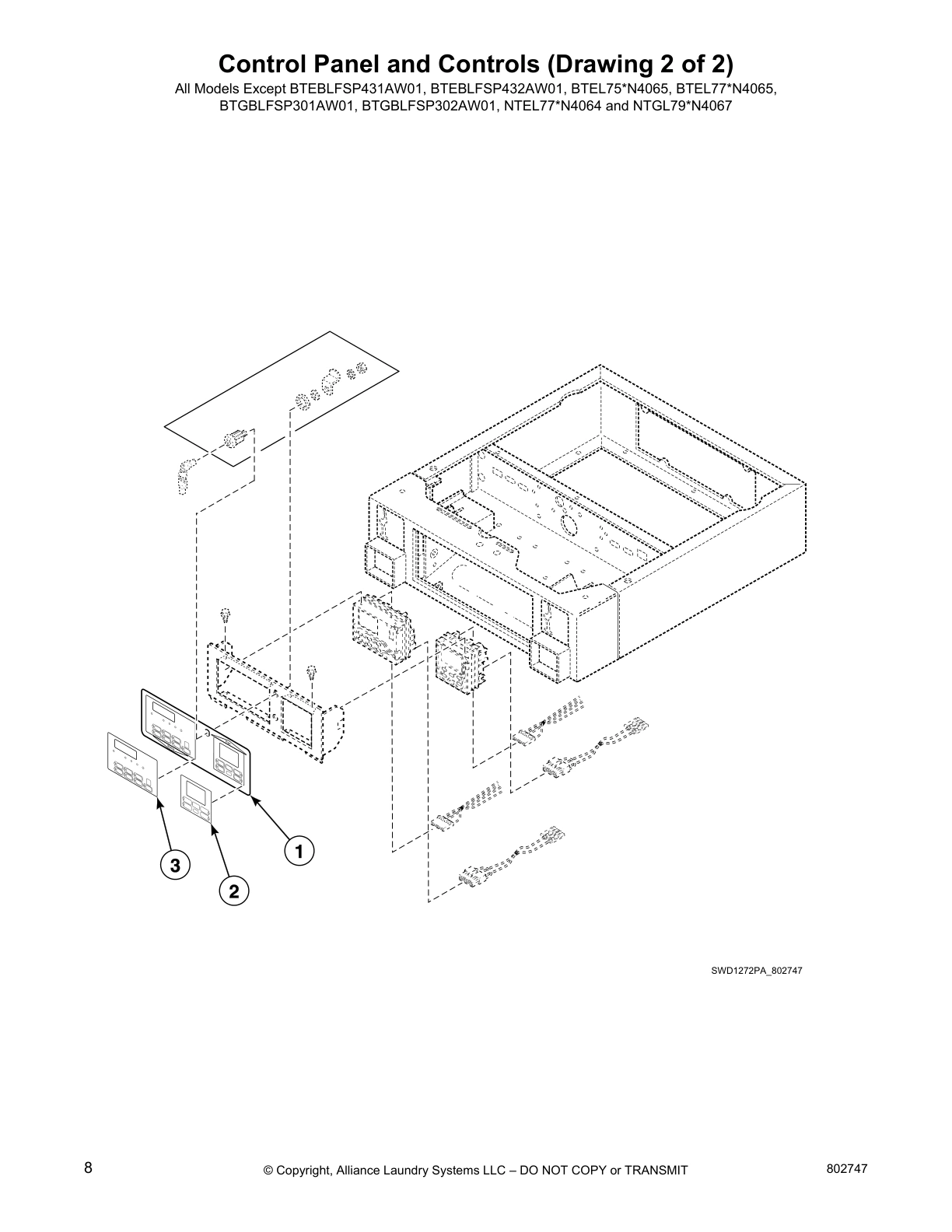

Control Panel and Controls (Drawing 2 of 2)
Control Cabinet Controls (Drawing 1 of 2)
Control Cabinet Controls (Drawing 2 of 2)
Electrical Access Panel, Filters and Terminal Block
Cabinet Wrapper and Coin Drop
Electronic Coin Drop
Cabinet Wrapper and Card Reader
Control Cabinet and Controls
Electrical Access Panel, Filters and Terminal Block
Washer Front Panel and Door Assembly
Dispenser Assembly and Door Seal
Mixing Valve, Valve-to-Dispenser Inlet Hose and Fill Hose
Tub Front and Clamp Ring
Outer Tub
Inner Basket, Trunnion, Bearing Housing and Pulley
Washer Motor and Belt
Drain Hoses and Valve
Hoses and Pump
Washer Base, Side Panels and Rear Panel
Junction Box and Power Cord
Wire Ties, Harness Clips and Washer Lead-In Cord
Dryer Loading Door with Window (Drawing 1 of 3)
Dryer Loading Door with Window (Drawing 2 of 3)
Dryer Loading Door with Window (Drawing 3 of 3)
Dryer Access Panel, Front Panel and Seal
Dryer Motor, Blower Fan and Belt
Thermistor and Thermostat
Front Bulkhead, Air Duct, Felt Seal and Cylinder
Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block
Heater Duct and Element Assembly (Drawing 1 of 2)
Heater Duct and Element Assembly (Drawing 2 of 2)
Heater Duct Assembly
Gas Valve, Igniter and Gas Conversion Kits
Dryer Cabinet, Exhaust Duct and Base
Dryer Power Cord
Dryer Motor Connection Block, Terminal Extractor Tools
Terminals
Shipping Materials
Labels
Special Tools
Dryer Wire Harnesses and Wires
Dryer Wire Harnesses and Wires - Models Through
Serial Nos. Beginning 0904
Dryer Wire Harnesses and Wires - Models Starting
Serial Nos. Beginning 0904
Dryer Wire Harnesses and Wires - Models Starting Serial Nos.
Beginning 0904 and Continuing Through Serial Nos.
Beginning 1303
Dryer Wire Harnesses and Wires - Models Starting
Serial Nos. Beginning 1303
Washer Wire Harnesses and Wires (Drawing 1 of 2)
Washer Wire Harnesses and Wires (Drawing 2 of 2)
Common parts from model Huebsch HTEBDFSP282CW01 Stacked Washer and Dryer
SPQ D510145 SPQ D510145 Contact Us For Availability
SPQ 801993 SPQ 801993 Contact Us For Availability
SPQ 62588 SPQ 62588 Contact Us For Availability
SPQ CK110 SPQ CK110 Contact Us For Availability
1
Seal Kit SPQ RB170001 Contact Us For Availability
1
Front Bulkhead Assembly SPQ D510266P Contact Us For Availability
1
Door Pull and Wedge Kit SPQ D510103WP Contact Us For Availability
1
Outer Door Bezel Kit SPQ 802313WP Contact Us For Availability
1
Mounting Tool Kit SPQ CK096 Contact Us For Availability
1
Blower Housing Seal SPQ D510238P Contact Us For Availability
1
Lock Kit SPQ 27260P Contact Us For Availability
1
Drain Hose SPQ 27154 Contact Us For Availability
1
Speed Clip SPQ 28835 Contact Us For Availability
1
Window Trim SPQ D503981W Contact Us For Availability
1
Bumper Pad SPQ 36226 Contact Us For Availability
1
Harness Assembly SPQ 803107 Contact Us For Availability
1
Tension Rod Assembly SPQ 800666 Contact Us For Availability
1
Screw SPQ D503661 Contact Us For Availability
2
Thermistor Assembly SPQ D510523 Contact Us For Availability
2
Outlet Cover SPQ D500820 Contact Us For Availability
2
Roller Kit SPQ 23748 Contact Us For Availability
2
Out-of-Balance Switch Assembly Kit SPQ 806512 Contact Us For Availability
2
Ratchet Extension Tool SPQ 310P4 Contact Us For Availability
2
Inverter Control Assem SPQ 803254P Contact Us For Availability
2
Insert SPQ 685715WP Contact Us For Availability
2
Washer SPQ 26509 Contact Us For Availability
2
Door Handle Wedge SPQ D500226 Contact Us For Availability
2
Washer SPQ M400014 Contact Us For Availability
2
Transformer SPQ 201375P Contact Us For Availability
2
Strain Relief SPQ 38384 Contact Us For Availability
3
Screw SPQ RB170002 Contact Us For Availability
3
Cylinder Seal Assembly SPQ RB170003 Contact Us For Availability
3
Dispenser-to-Door Seal Hose SPQ 802866P Contact Us For Availability
3
Out-of-Balance Switch Assembly SPQ 803415 Contact Us For Availability
3
Cylinder Belt SPQ D511969WP Contact Us For Availability
3
Front Panel Seal SPQ D511056 Contact Us For Availability
3
Dispenser Drawer Tool SPQ 318P4 Contact Us For Availability
3
Cabinet Rear Panel SPQ 56079 Contact Us For Availability
3
Dryer Door Window SPQ D510129W Contact Us For Availability
4
Motor Pulley SPQ D511629P Contact Us For Availability
4
Front Panel SPQ D510066WP Contact Us For Availability
4
Pulley Bolt Tightening Fixture SPQ 802336 Contact Us For Availability
4
Thermostat Opening Cover SPQ 800004WP Contact Us For Availability
4
Door Strike Mount SPQ D503982P Contact Us For Availability
4
Resistor SPQ 210100 Contact Us For Availability
4
Harness Assembly SPQ 38462P Contact Us For Availability
4
Window Clip SPQ D505295 Contact Us For Availability
4
Cable Tie SPQ 802291 Contact Us For Availability
4
Wire Assembly SPQ D518256 Contact Us For Availability
5
Door Strike SPQ D510127 Contact Us For Availability
5
Terminal Block Shield SPQ D511082P Contact Us For Availability
5
Nut SPQ D511036 Contact Us For Availability
5
Wrench SPQ 392P4 Contact Us For Availability
5
Backflow Preventer SPQ 35766 Contact Us For Availability
5
Clothes Guard Deflector SPQ 802596 Contact Us For Availability
5
Flexible Venting Kit SPQ 56128 Contact Us For Availability
6
Liner Door Seal SPQ D510181 Contact Us For Availability
6
SPQ D503688 SPQ D503688 Contact Us For Availability
6
Terminal Block Assembly SPQ D501285 Contact Us For Availability
6
Motor Hub Ring Kit SPQ D510180 Contact Us For Availability
6
Clothes Guard SPQ 804482 Contact Us For Availability
6
Backflow Preventer SPQ 687500 Contact Us For Availability
7
SPQ D511255P SPQ D511255P Contact Us For Availability
7
Security Cabinet Front Assembly SPQ 70441601P Contact Us For Availability
7
Fill Hose Kit SPQ F200116 Contact Us For Availability
7
Control Panel and Bracket Assembly SPQ 803146P Contact Us For Availability
7
Clothes Guard and Deflector Kit SPQ 804174P Contact Us For Availability
7
Cylinder Glide Bracket SPQ D510102W Contact Us For Availability
7
Power Harness Assembly SPQ D510237 Contact Us For Availability
7
SPQ 802256 SPQ 802256 Contact Us For Availability
7
Access Panel Assembly SPQ 33562 Contact Us For Availability
7
SPQ D510136 SPQ D510136 Contact Us For Availability
7
Heater Assembly SPQ D518255 Contact Us For Availability
7
SPQ 804914WP SPQ 804914WP Contact Us For Availability
7
SPQ 44071201 SPQ 44071201 Contact Us For Availability
7
Nut SPQ 800663 Contact Us For Availability
8
Wire Harness Assembly SPQ D510190P Contact Us For Availability
8
Liner and Seal Assembl SPQ D510147P Contact Us For Availability
8
SPQ D510102LG SPQ D510102LG Contact Us For Availability
8
SPQ D514632P SPQ D514632P Contact Us For Availability
8
Panel Locator SPQ 201595P Contact Us For Availability
8
SPQ 803537 SPQ 803537 Contact Us For Availability
8
SPQ D500222 SPQ D500222 Contact Us For Availability
8
SPQ 804914QP SPQ 804914QP Contact Us For Availability
8
SPQ M400080 SPQ M400080 Contact Us For Availability
8
Electrical Shock Label SPQ 803388 Contact Us For Availability
9
SPQ D512973 SPQ D512973 Contact Us For Availability
9
SPQ D500011 SPQ D500011 Contact Us For Availability
9
Fill Hose SPQ 802254 Contact Us For Availability
9
SPQ D510265LGP SPQ D510265LGP Contact Us For Availability
9
SPQ 808095 SPQ 808095 Contact Us For Availability
9
SPQ D510903 SPQ D510903 Contact Us For Availability
9
SPQ D510324P SPQ D510324P Contact Us For Availability
9
SPQ 800310 SPQ 800310 Contact Us For Availability
9
SPQ 802343 SPQ 802343 Contact Us For Availability
9
SPQ 802164 SPQ 802164 Contact Us For Availability
10
Adhesive SPQ D511637P Contact Us For Availability
10
Pressure Bulb SPQ 205241 Contact Us For Availability
10
Air Duct Assembly SPQ D518433 Contact Us For Availability
10
Exhaust Duct SPQ D516196 Contact Us For Availability
10
Screw SPQ D501086 Contact Us For Availability
11
Blower Fan Assembly SPQ D510139P Contact Us For Availability
11
Cylinder Seal Assembly SPQ D510207P Contact Us For Availability
11
Cabinet Side Panel SPQ D510002WP Contact Us For Availability
11
Clamp Ring SPQ 800312 Contact Us For Availability
11
Tubing SPQ 800648P Contact Us For Availability
11
Glass Mounting Clip SPQ 23951 Contact Us For Availability
11
Screw SPQ 800379 Contact Us For Availability
12
Cylinder Roller SPQ D510708P Contact Us For Availability
12
Door Catch Assembly SPQ D510177 Contact Us For Availability
12
Idler Spring SPQ D510185 Contact Us For Availability
12
Screw SPQ 685831 Contact Us For Availability
12
Hose Clamp SPQ 39282 Contact Us For Availability
12
Panel Locator SPQ 802700 Contact Us For Availability
12
Coin Drop SPQ 70441602 Contact Us For Availability
13
Felt Pad SPQ D503980W Contact Us For Availability
13
Washer SPQ M403958 Contact Us For Availability
13
Outer Tub Assembly SPQ 801081P Contact Us For Availability
13
Cap SPQ F200206 Contact Us For Availability
14
Shaft SPQ 56461P Contact Us For Availability
14
Screw SPQ D503980LG Contact Us For Availability
14
Dryer Base SPQ D510135 Contact Us For Availability
14
Hinge Hole Plug SPQ D510186 Contact Us For Availability
14
Bearing Housing Kit SPQ 807679 Contact Us For Availability
14
Cabinet Brace SPQ 806492 Contact Us For Availability
14
Pump Housing Assembly SPQ 802429P Contact Us For Availability
15
Hinge Plate SPQ 802317P Contact Us For Availability
15
Glide Kit SPQ D510189 Contact Us For Availability
15
Base Shock Absorber Ki SPQ 807875 Contact Us For Availability
15
Washer SPQ D504082 Contact Us For Availability
15
Washer SPQ D514245 Contact Us For Availability
15
Dispenser Assembly SPQ 685756P Contact Us For Availability
15
Front Panel Assembly SPQ D513781WP Contact Us For Availability
16
Retaining Ring SPQ 52549 Contact Us For Availability
16
Nut SPQ 800428P Contact Us For Availability
16
Screw SPQ 801476P Contact Us For Availability
16
Gasket SPQ 802434P Contact Us For Availability
16
Membrane Switch SPQ D510036P Contact Us For Availability
16
Wire Ring and Spring SPQ 802206 Contact Us For Availability
17
Idler Wheel and Bearing Assembly SPQ D510142P Contact Us For Availability
17
Leveling Leg SPQ 34318 Contact Us For Availability
17
Control Assembly SPQ D511867P Contact Us For Availability
17
Hose Clamp SPQ 806466 Contact Us For Availability
17
Lid Assembly SPQ 802428 Contact Us For Availability
18
Door Seal Kit SPQ 802281 Contact Us For Availability
18
Panel Locator SPQ 802844P Contact Us For Availability
18
Standpipe Strap SPQ 802427 Contact Us For Availability
19
Idler Lever and Wheel Assembly SPQ D500824 Contact Us For Availability
19
Nut SPQ 685715QP Contact Us For Availability
19
Tub-to-Pump Hose SPQ 802426P Contact Us For Availability
20
Blower Housing SPQ D516792 Contact Us For Availability
22
Wire Clip SPQ 55881 Contact Us For Availability
23
Left Hand Thread Label SPQ 918P3 Contact Us For Availability
24
Boot Nozzle SPQ 801001 Contact Us For Availability
25
Wire Clip SPQ 802830P Contact Us For Availability
26
Top Kit SPQ D510146 Contact Us For Availability
28
Bumper Pad SPQ D510001WP Contact Us For Availability
29
Inner Door Bezel Kit SPQ 36020 Contact Us For Availability
33
SPQ D514250WP SPQ D514250WP Contact Us For Availability
NI
SPQ 802803 SPQ 802803 Contact Us For Availability
NI
SPQ D513710 SPQ D513710 Contact Us For Availability
NI
SPQ D510265WP SPQ D510265WP Contact Us For Availability
NI
SPQ 54612 SPQ 54612 Contact Us For Availability
NI
SPQ 802934 SPQ 802934 Contact Us For Availability
NI
SPQ CK115 SPQ CK115 Contact Us For Availability
NI
SPQ 802299P SPQ 802299P Contact Us For Availability
NI
SPQ 29175 SPQ 29175 Contact Us For Availability
NI
SPQ D510100 SPQ D510100 Contact Us For Availability
NI
SPQ 803615 SPQ 803615 Contact Us For Availability
NI
SPQ 38717 SPQ 38717 Contact Us For Availability
NI
SPQ RB160001 SPQ RB160001 Contact Us For Availability
NI
12 Gauge Wire SPQ 803581 Contact Us For Availability
NI
SPQ 801464 SPQ 801464 Contact Us For Availability
NI
SPQ D516737W SPQ D516737W Contact Us For Availability
NI
SPQ D503870W SPQ D503870W Contact Us For Availability
NI
SPQ 34500 SPQ 34500 Contact Us For Availability
NI
SPQ 804560P SPQ 804560P Contact Us For Availability
NI
SPQ 590P3 SPQ 590P3 Contact Us For Availability
NI
SPQ 38676 SPQ 38676 Contact Us For Availability
NI
Hose Clip SPQ 36985 Contact Us For Availability
NI
SPQ 38725 SPQ 38725 Contact Us For Availability
NI
SPQ 802905 SPQ 802905 Contact Us For Availability
NI
18 Gauge Wire SPQ 45001 Contact Us For Availability
NI
12 Gauge Wire SPQ 802351P Contact Us For Availability
× ![]()
