Model GE GTW680BSJ3WS – Common Parts & Diagrams

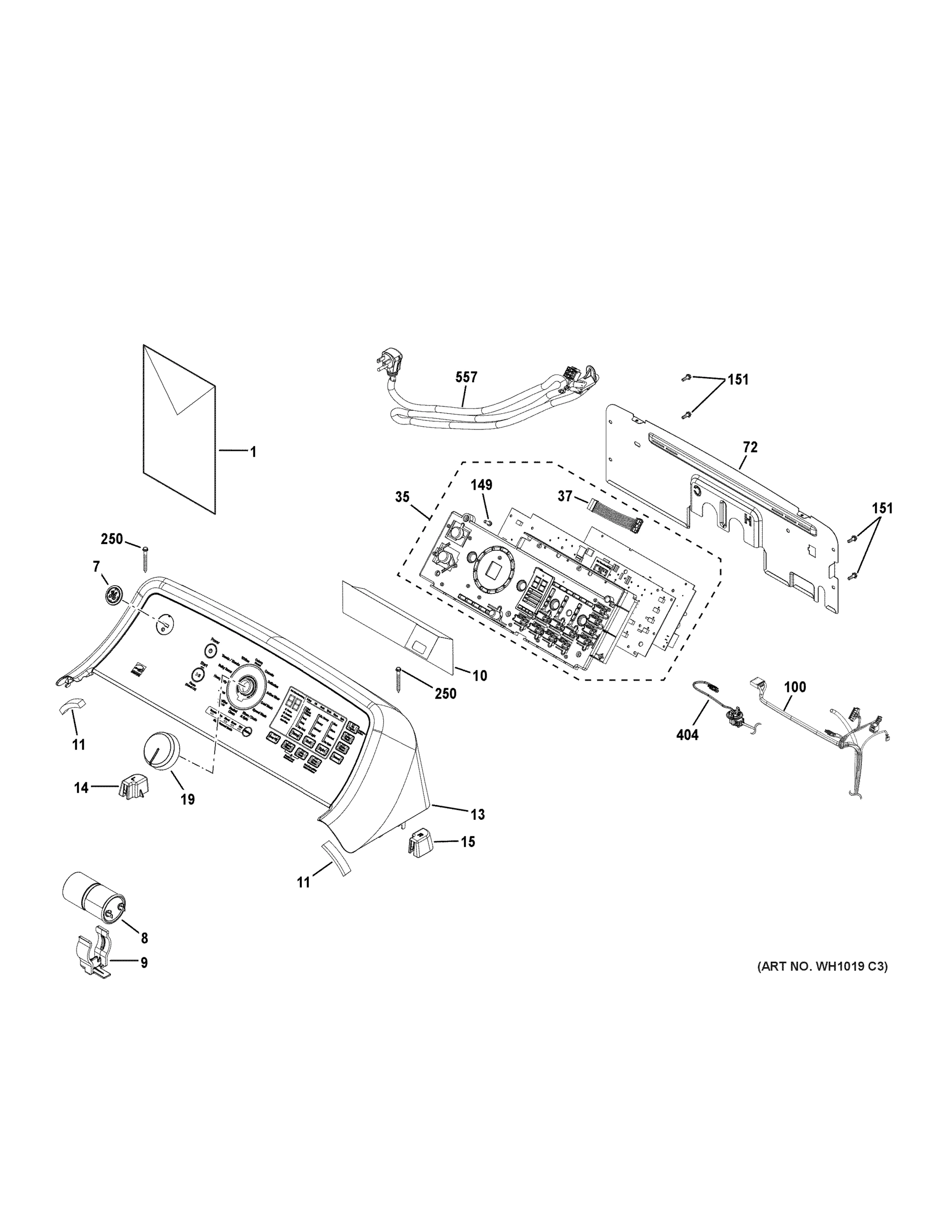

CONTROLS & BACKSPLASH

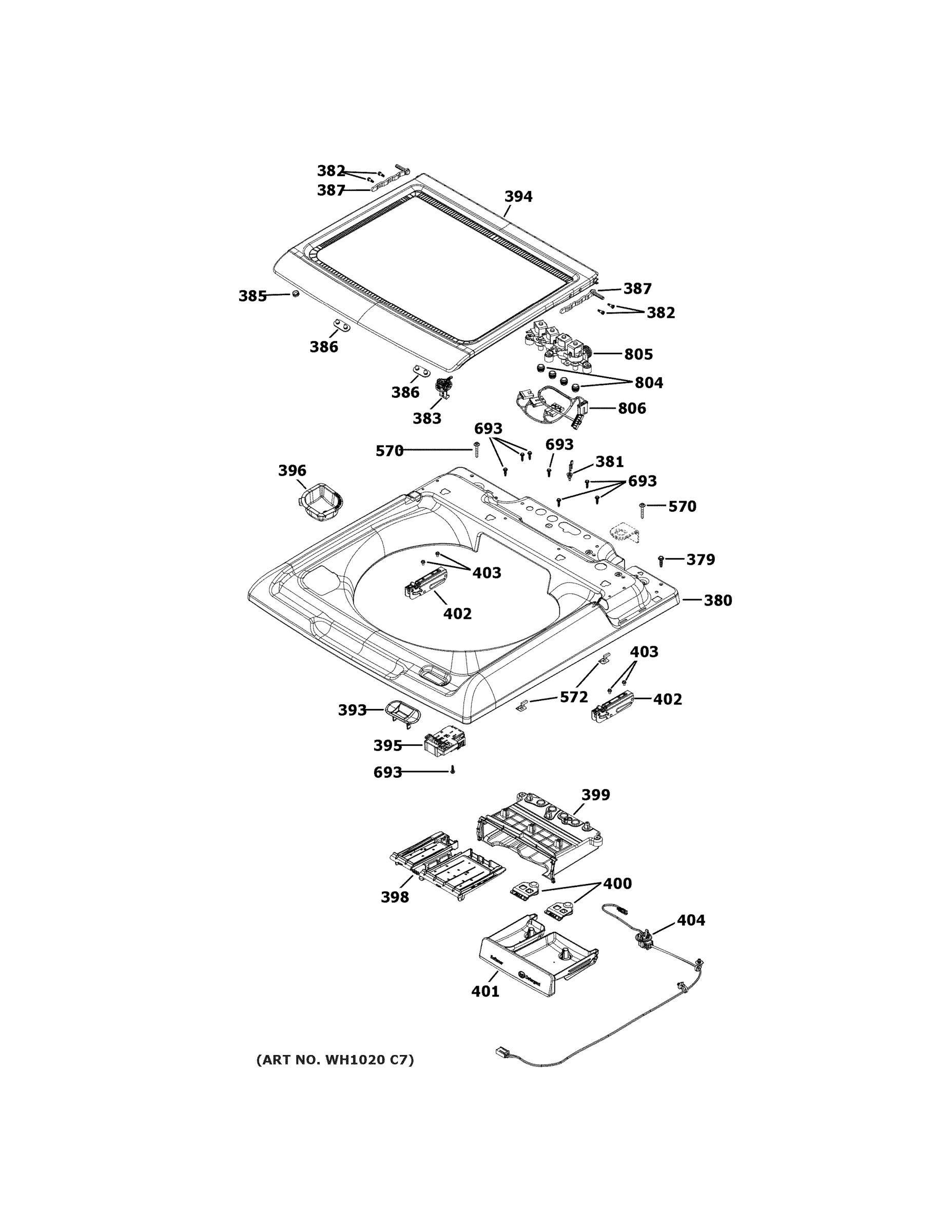

TOP PANEL & LID
TUB & MOTOR
CABINET
Common parts from model GE GTW680BSJ3WS
7
BADGE GE GEN WH42X24097 Contact Us For Availability
14
LEFT BACKSPLASH SUPPORT GEN WH16X24095 Contact Us For Availability
15
RIGHT BACKSPLASH SUPPORT GEN WH16X24096 Contact Us For Availability
19
KNOB ASM GEN WE01X23886 Contact Us For Availability
99
HARNESS WIRE TIE GEN WH01X24190 Contact Us For Availability
100
HARNESS MAIN ORANGE GEN WH19X27496 Contact Us For Availability
102
DUAL HARNESS CONNECTOR B GEN WH16X24192 Contact Us For Availability
149
SCREW 8-18 HI/LO 5/8 GEN WR01X10196 Contact Us For Availability
250
SCR 8-18 AB 13/4 S HXW GEN WR01X10634 Contact Us For Availability
303
SCR 1/4-20, 2A SINULOC GEN WH02X24374 Contact Us For Availability
313
WASHER HUB GEN WH02X10364 Contact Us For Availability
314
BELLEVILLE WASHER GEN WH01X26190 Contact Us For Availability
315
NUT HUB GEN WH02X10363 Contact Us For Availability
319
SCR 1/4-20 TT HXT .485 S GEN WH02X24154 Contact Us For Availability
323
WASHER SPRING GEN WH01X10759 Contact Us For Availability
324
SCREW PLATFORM GEN WH02X10376 Contact Us For Availability
326
CLUTCH GEN WH05X24185 Contact Us For Availability
327
SPRING CLUTCH GEN WH01X24434 Contact Us For Availability
328
CLIP SPRING COVER GEN WH02X24334 Contact Us For Availability
329
TUB COVER GEN WH44X24150 Contact Us For Availability
332
INNER DRAIN HOSE MOUNTIN GEN WH10X24149 Contact Us For Availability
333
SCR 10-16 B HXW 3/8 S GEN WH02X10396 Contact Us For Availability
379
SCR 10-32 GX HXW 7/16 S GEN WE02X10107 Contact Us For Availability
383
LID LOCK STRIKER GEN WH02X24106 Contact Us For Availability
387
LID LEVER ARM GEN WH01X24111 Contact Us For Availability
393
LID LOCK BEZEL GEN WH01X24112 Contact Us For Availability
396
BLEACH CUP GEN WH47X24115 Contact Us For Availability
402
LID HINGE GEN WH02X24139 Contact Us For Availability
403
LID HINGE SCREW GEN WH02X24140 Contact Us For Availability
404
LID LOCK HARNESS GEN WH19X24141 Contact Us For Availability
413
BALL JOINT UPPER GEN WH01X26970 Contact Us For Availability
414
ROD AND SPRING ASM LEFT WHITE GEN WH16X26911 Contact Us For Availability
557
POWER CORD GEN WH08X28843 Contact Us For Availability
570
SCR 10-32 GX 1.309 HWX S GEN WH02X24116 Contact Us For Availability
572
LID LOCK HARNESS CLIP GEN WH02X24143 Contact Us For Availability
604
NUT PULLEY GEN WH02X24417 Contact Us For Availability
630
1/2 HP MOTOR AND NUT GEN WH49X25375 Contact Us For Availability
649
DRAIN PUMP SEAL GEN WH08X24179 Contact Us For Availability
655
RECIRCULATION PUMP ASM GEN WH23X24175 Contact Us For Availability
656
RECIRCULATION TUBE GEN WH41X24174 Contact Us For Availability
658
INTERNAL DRAIN HOSE ASM GEN WH41X24177 Contact Us For Availability
693
SCR 8-16 PLASTITE HXW 5/ GEN WH02X24057 Contact Us For Availability
804
WATER VALVE SEAL GEN WH13X24094 Contact Us For Availability
824
CLAMP GEN WH01X24494 Contact Us For Availability
826
CLIP ANT-SIP GEN WH1X2725 Contact Us For Availability
× ![]()
