Model GE GTW490ACJ4WW Washer – Common Parts & Diagrams
CONTROLS & BACKSPLASH
TOP PANEL & LID

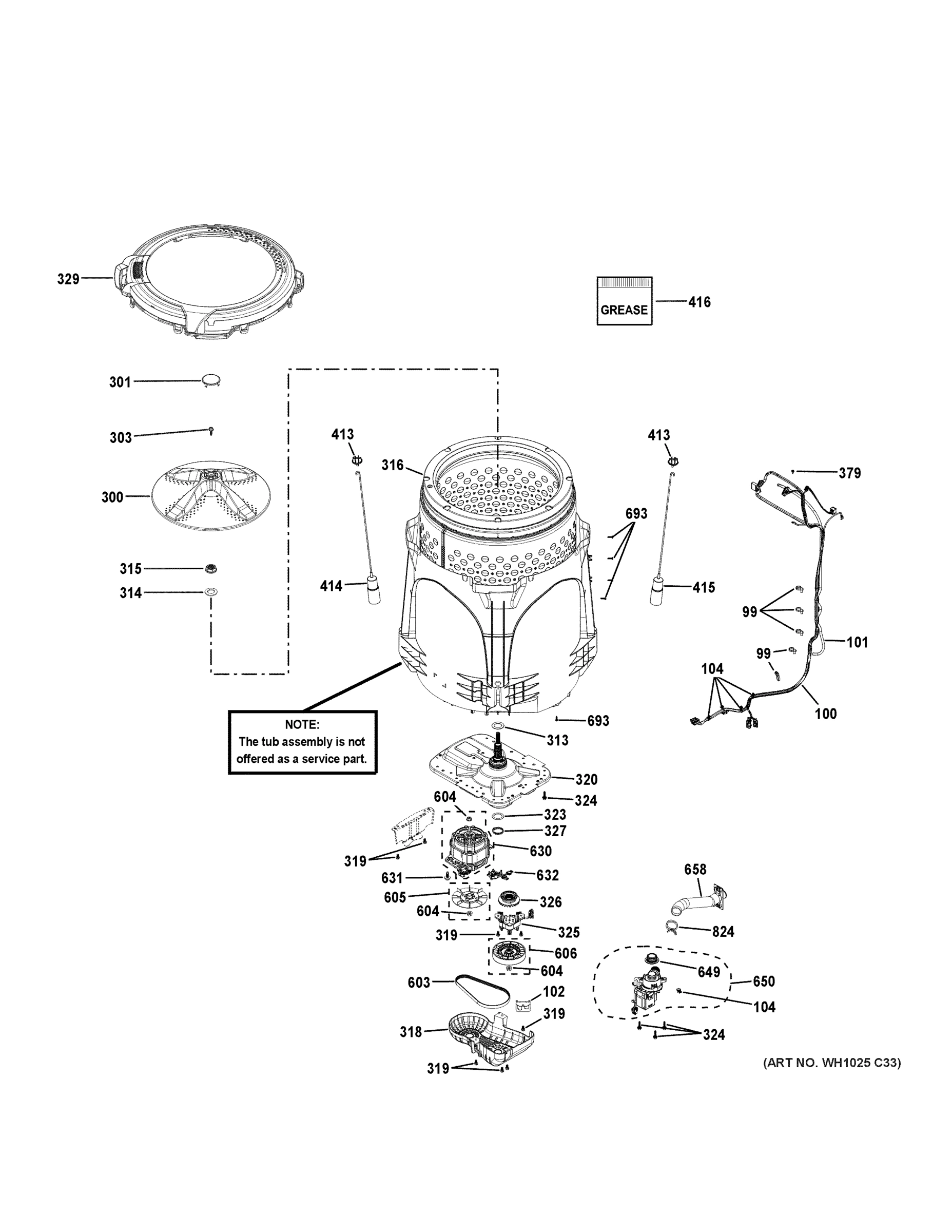

TUB & MOTOR

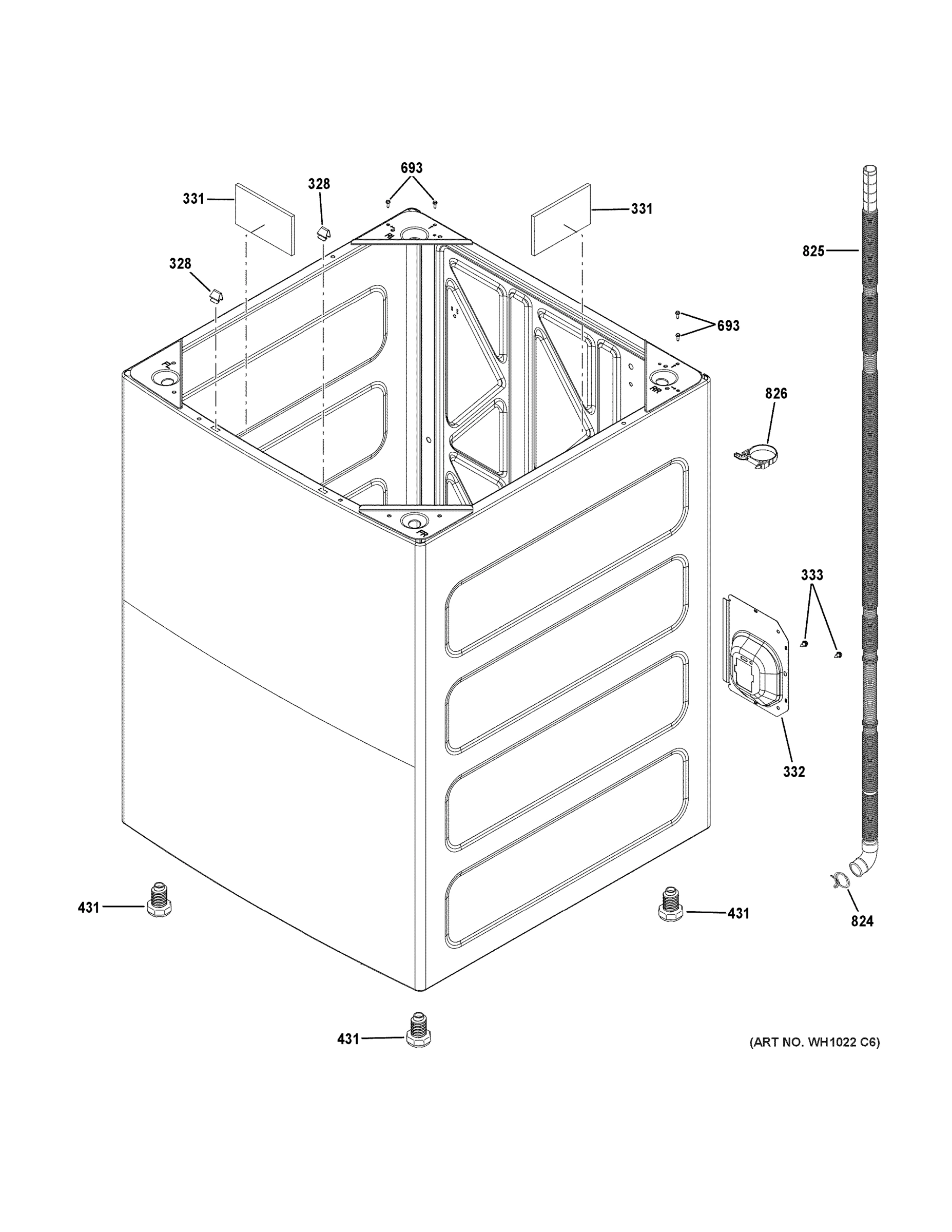

CABINET
Common parts from model GE GTW490ACJ4WW Washer
7
BADGE GE GEN WH42X24097 Contact Us For Availability
10
CONTROL BOARD SHIELD GEN WH01X24396 Contact Us For Availability
15
RIGHT BACKSPLASH SUPPORT GEN WH16X24477 Contact Us For Availability
19
KNOB MAIN ASM GEN WH01X24377 Contact Us For Availability
21
THERMISTOR CLIP GEN WH02X24390 Contact Us For Availability
22
LARGE LID BUSHING RIGHT GEN WH02X24389 Contact Us For Availability
30
SCR 8-18 BS TRP 3/8 S GEN WH02X24296 Contact Us For Availability
32
SCREW 10-32 GXTT FLP 595 GEN WR01X10065 Contact Us For Availability
99
HARNESS WIRE TIE GEN WH01X24190 Contact Us For Availability
102
DUAL HARNESS CONNECTOR B GEN WH16X24192 Contact Us For Availability
150
BRACKET PCB GEN WH16X24375 Contact Us For Availability
303
SCR 1/4-20, 2A SINULOC GEN WH02X24374 Contact Us For Availability
319
SCR 1/4-20 TT HXT .485 S GEN WH02X24154 Contact Us For Availability
323
WASHER SPRING GEN WH01X10759 Contact Us For Availability
324
SCREW PLATFORM GEN WH02X10376 Contact Us For Availability
326
CLUTCH GEN WH05X24185 Contact Us For Availability
327
SPRING CLUTCH GEN WH01X24434 Contact Us For Availability
328
CLIP SPRING COVER GEN WH02X24334 Contact Us For Availability
331
OUTER CABINET BUMPER PAD GEN WH01X24146 Contact Us For Availability
332
INNER DRAIN HOSE MOUNTIN GEN WH10X24149 Contact Us For Availability
333
SCR 10-16 B HXW 3/8 S GEN WH02X10396 Contact Us For Availability
380
TOP COVER WHITE GEN WH44X24383 Contact Us For Availability
382
HINGE LID SCR 6-32 MCH F GEN WH02X24634 Contact Us For Availability
383
LID LOCK STRIKER GEN WH02X24399 Contact Us For Availability
387
WIREFORM HINGE LID RIGHT GEN WH02X24394 Contact Us For Availability
394
LARGE LID WHITE GEN WH44X24385 Contact Us For Availability
413
BALL JOINT UPPER GEN WH01X26970 Contact Us For Availability
414
ROD AND SPRING ASM LEFT WHITE GEN WH16X26911 Contact Us For Availability
415
ROD AND SPRING ASM RIGHT - GREEN GEN WH16X26910 Contact Us For Availability
570
SCR 10-32 GX 1.309 HWX S GEN WH02X24116 Contact Us For Availability
572
LID LOCK HARNESS CLIP GEN WH02X24143 Contact Us For Availability
603
DRIVE BELT GEN WH01X24180 Contact Us For Availability
604
NUT PULLEY GEN WH02X24417 Contact Us For Availability
630
1/2 HP MOTOR AND NUT GEN WH49X25375 Contact Us For Availability
649
DRAIN PUMP SEAL GEN WH08X24179 Contact Us For Availability
693
SCR 8-16 PLASTITE HXW 5/ GEN WH02X24057 Contact Us For Availability
826
CLIP ANT-SIP GEN WH1X2725 Contact Us For Availability
× ![]()
