Model GE GRDN550GD0WS Dryer Gas – Common Parts & Diagrams

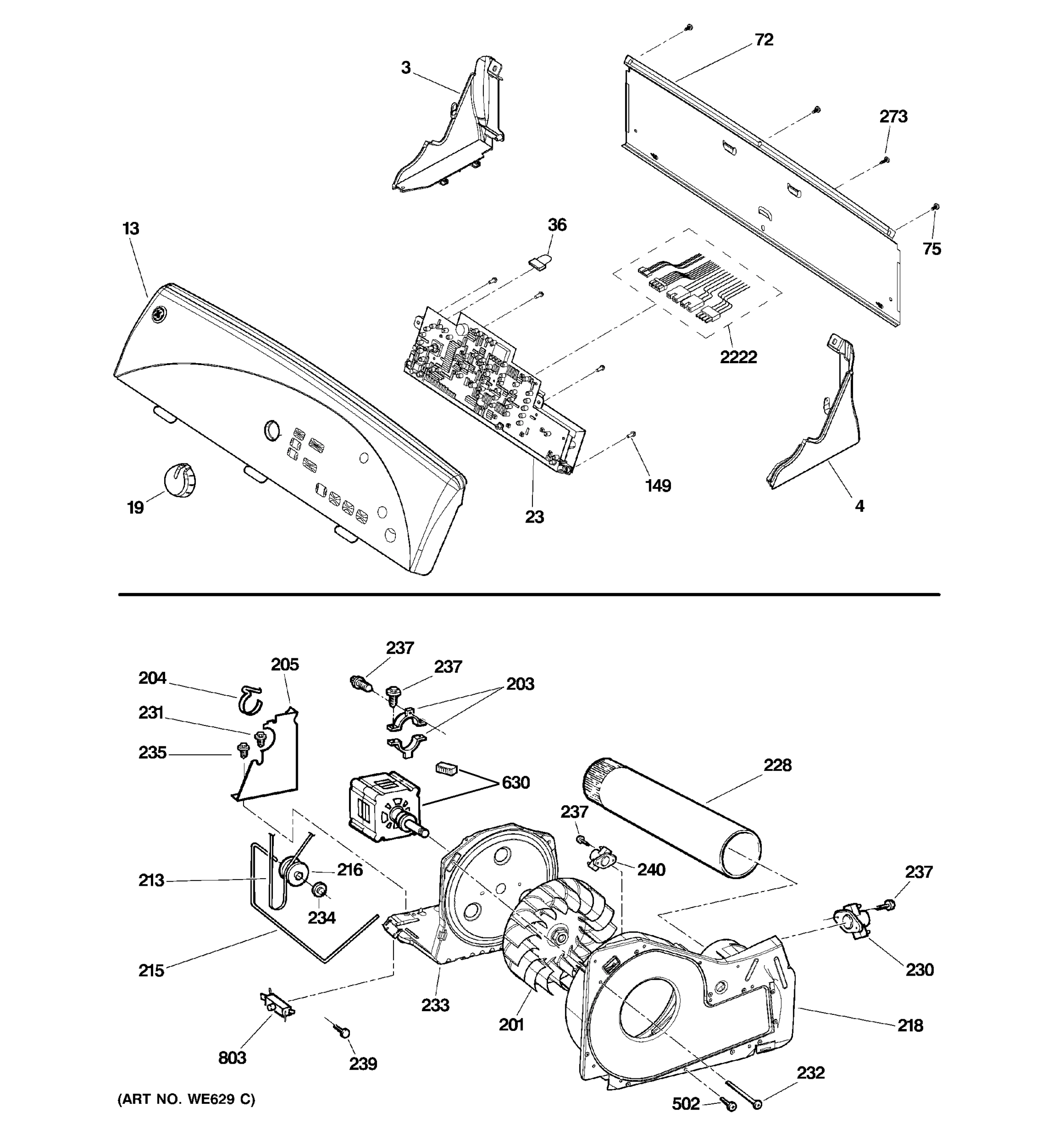

BACKSPLASH, BLOWER & MOTOR ASSEMBLY

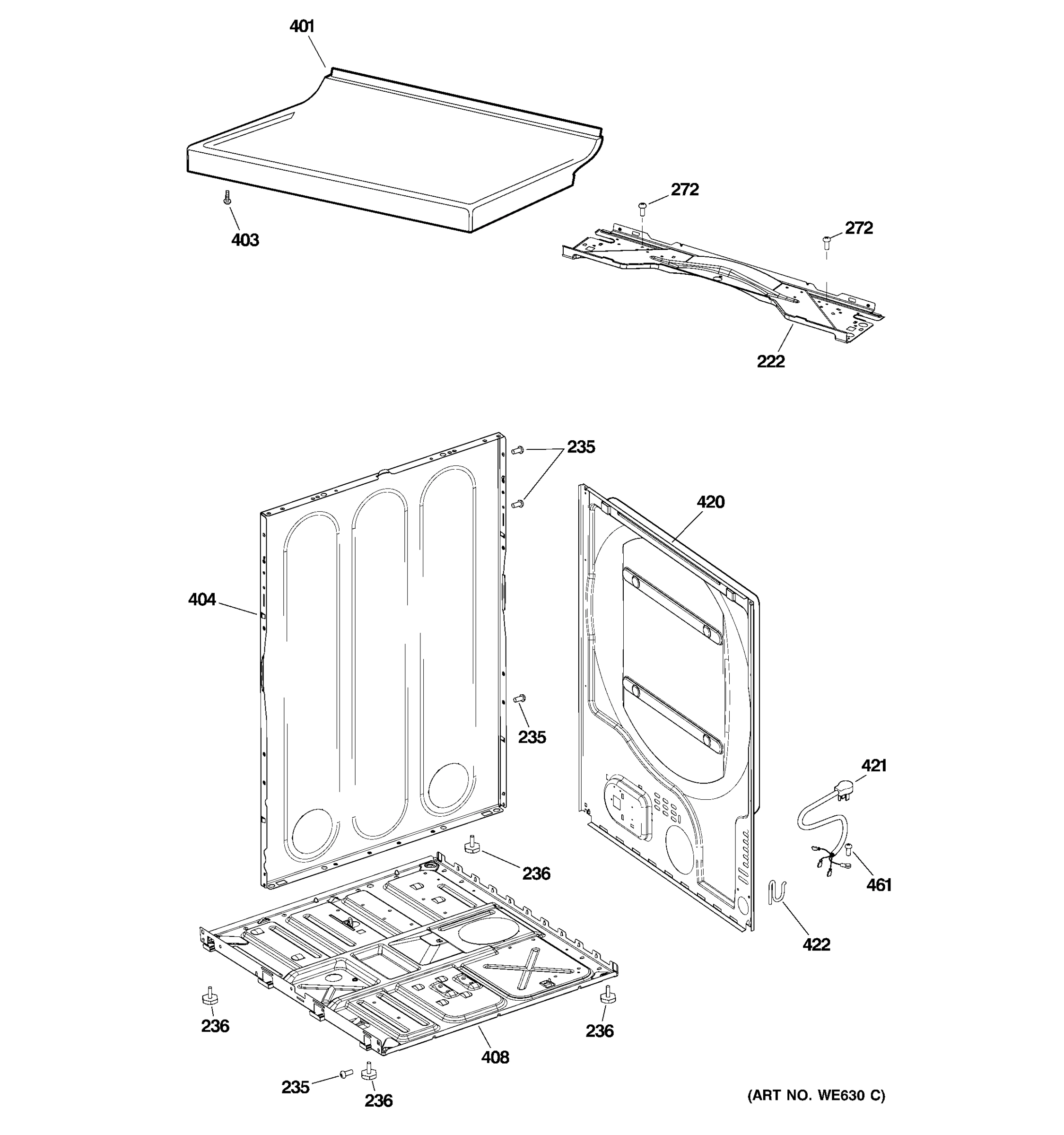

CABINET & TOP PANEL

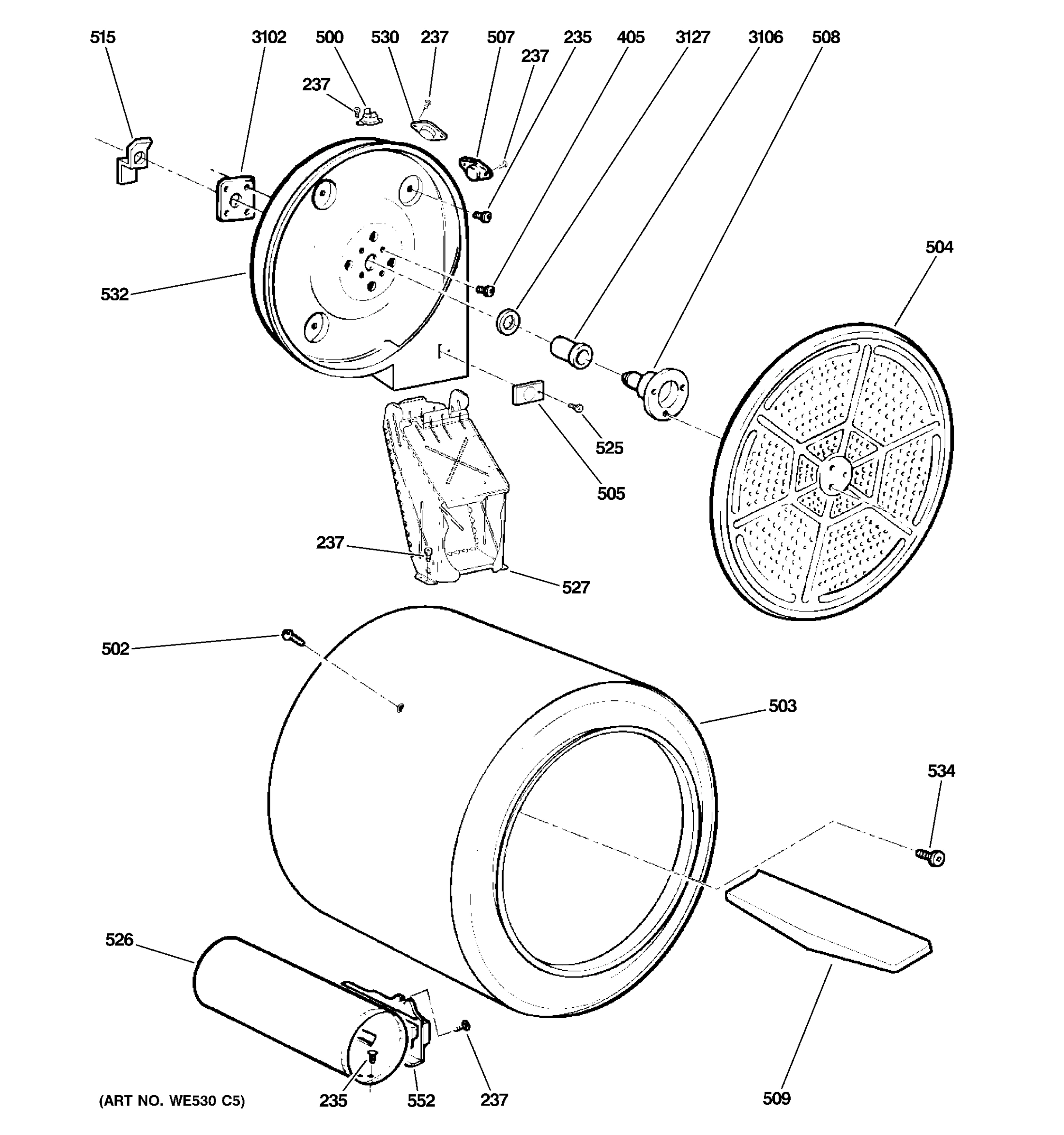

DRUM

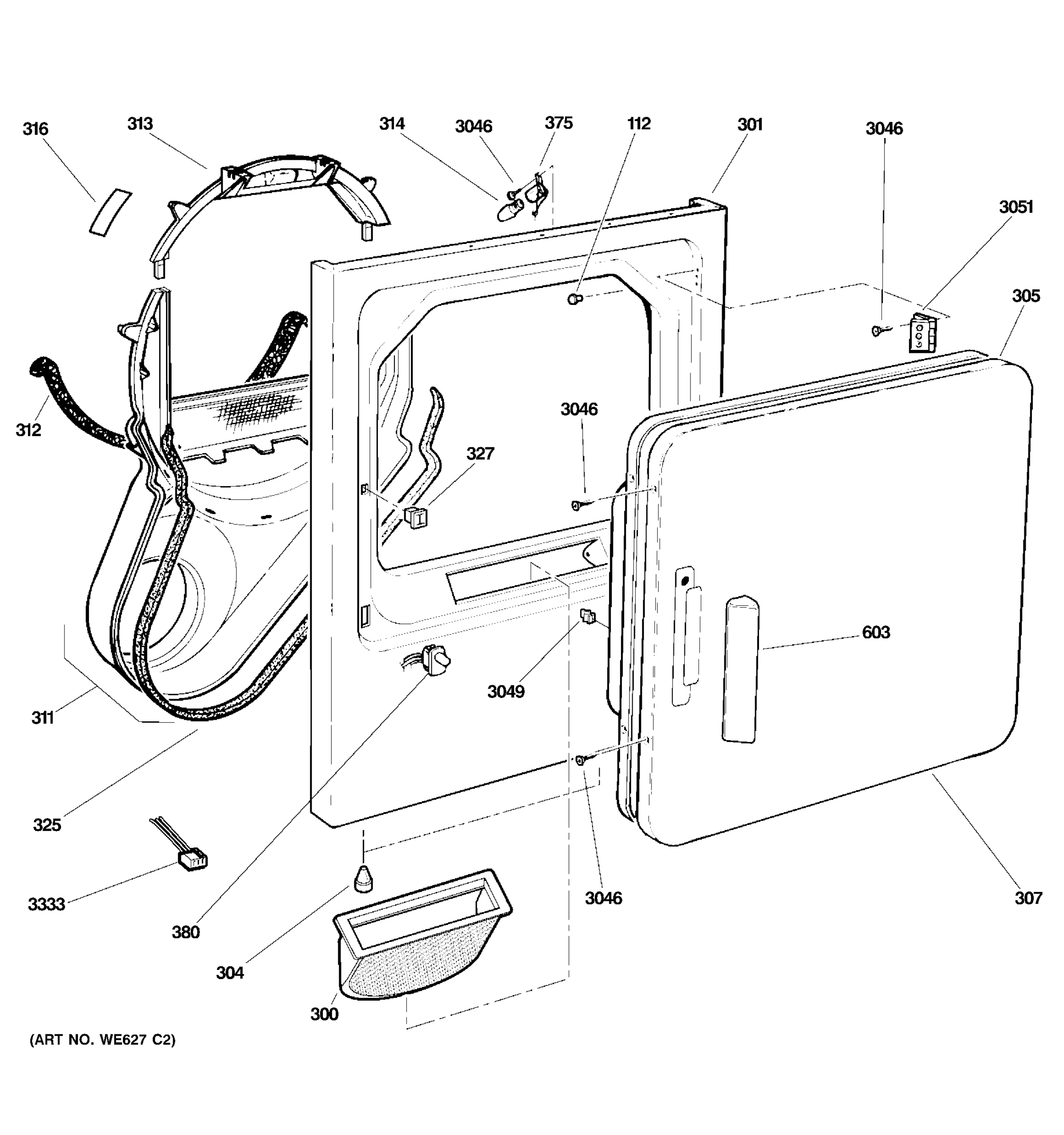

FRONT PANEL & DOOR

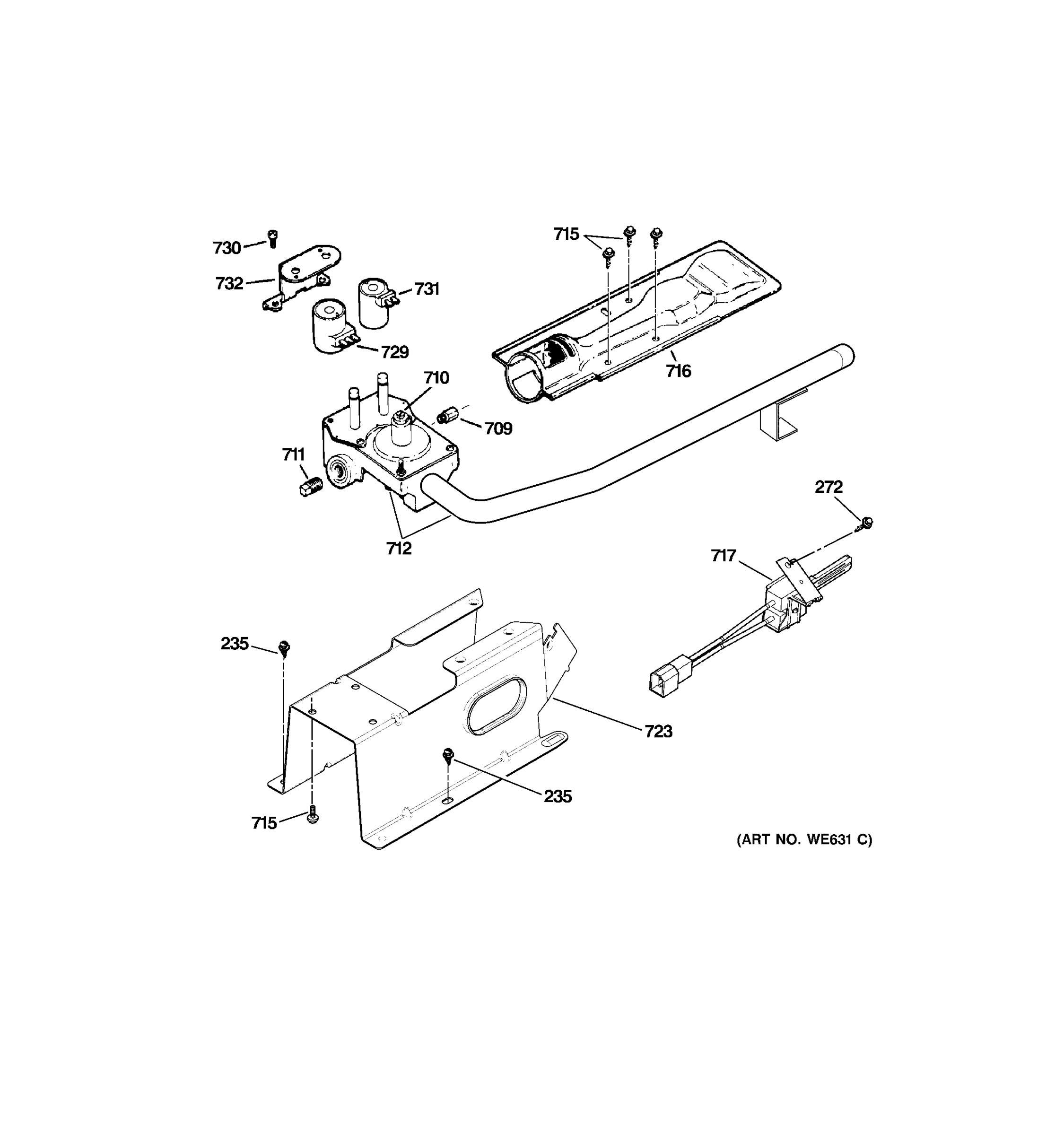

GAS VALVE & BURNER ASSEMBLY
Common parts from model GE GRDN550GD0WS Dryer Gas
19
GEN WH01X10645 GEN WH01X10645 Contact Us For Availability
23
GEN WE4M539 GEN WE4M539 Contact Us For Availability
75
GEN WE2M173 GEN WE2M173 Contact Us For Availability
149
GEN WR01X10196 GEN WR01X10196 Contact Us For Availability
205
GEN WE13M39 GEN WE13M39 Contact Us For Availability
232
GEN WE2M202 GEN WE2M202 Contact Us For Availability
234
GEN WE2M96 GEN WE2M96 Contact Us For Availability
311
GEN WE1M575 GEN WE1M575 Contact Us For Availability
313
TOP BEARING GEN WE3M26 Contact Us For Availability
375
GEN WE5M48 GEN WE5M48 Contact Us For Availability
380
GEN WE4M415 GEN WE4M415 Contact Us For Availability
403
GEN WE2M160 GEN WE2M160 Contact Us For Availability
502
SCREW #10 GEN WE2M174 Contact Us For Availability
507
T'STAT HI-LIMIT GEN WE4M137 Contact Us For Availability
509
GEN WE14M75 GEN WE14M75 Contact Us For Availability
515
GEN WE1M1015 GEN WE1M1015 Contact Us For Availability
530
GEN WE4M80 GEN WE4M80 Contact Us For Availability
534
GEN WE2M163 GEN WE2M163 Contact Us For Availability
552
FLAME DETECTOR GEN WE4X448 Contact Us For Availability
715
SCREW GEN WD2M101 Contact Us For Availability
716
BURNER GAS GEN WE14M104 Contact Us For Availability
717
GAS IGNITER ASM GEN WE4M449 Contact Us For Availability
3046
GEN WE2M196 GEN WE2M196 Contact Us For Availability
3102
GEN WE1M300 GEN WE1M300 Contact Us For Availability
3127
O-RING GEN WE1M461 Contact Us For Availability
3333
GEN WE5M39 GEN WE5M39 Contact Us For Availability
× ![]()
