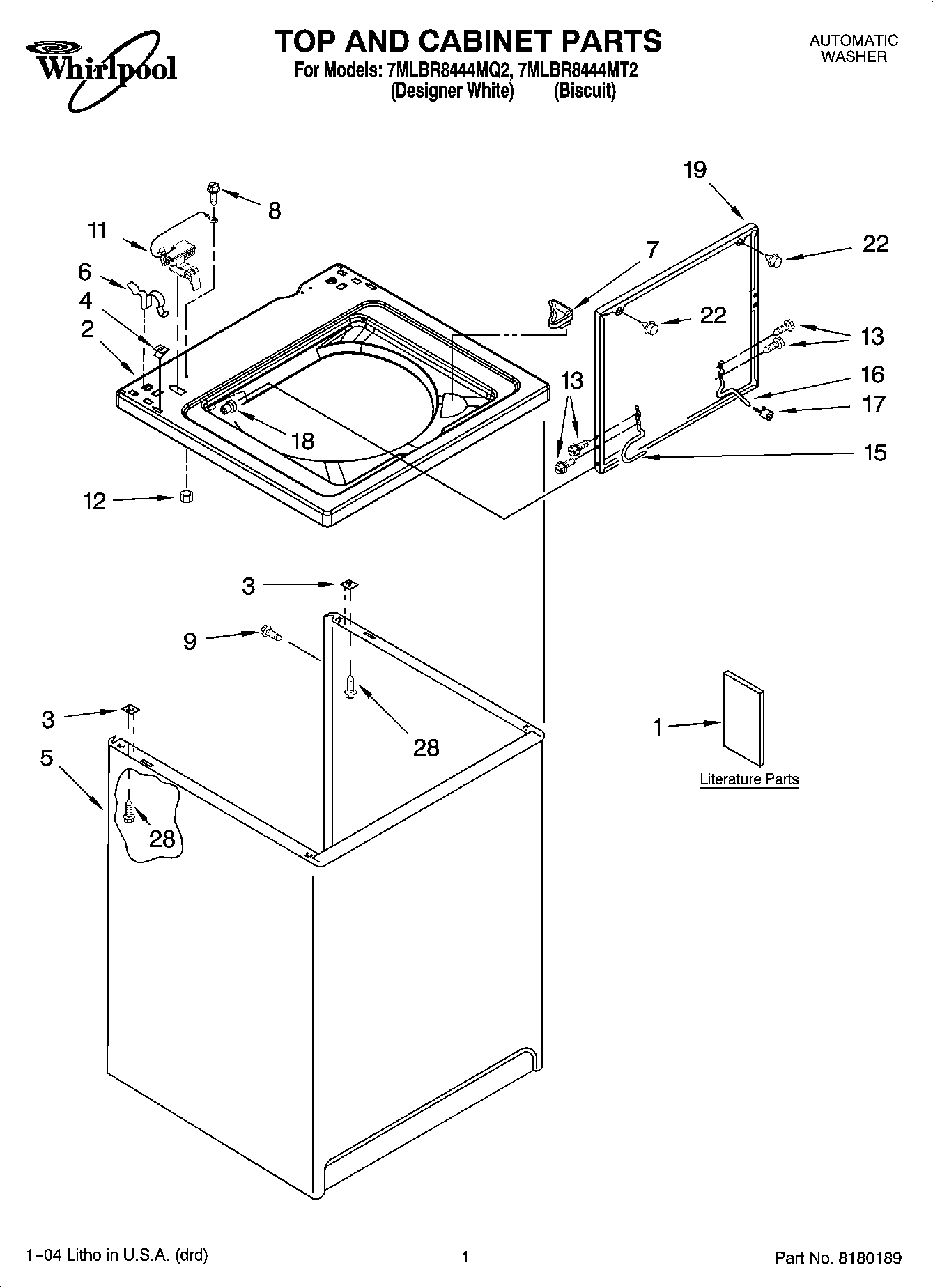

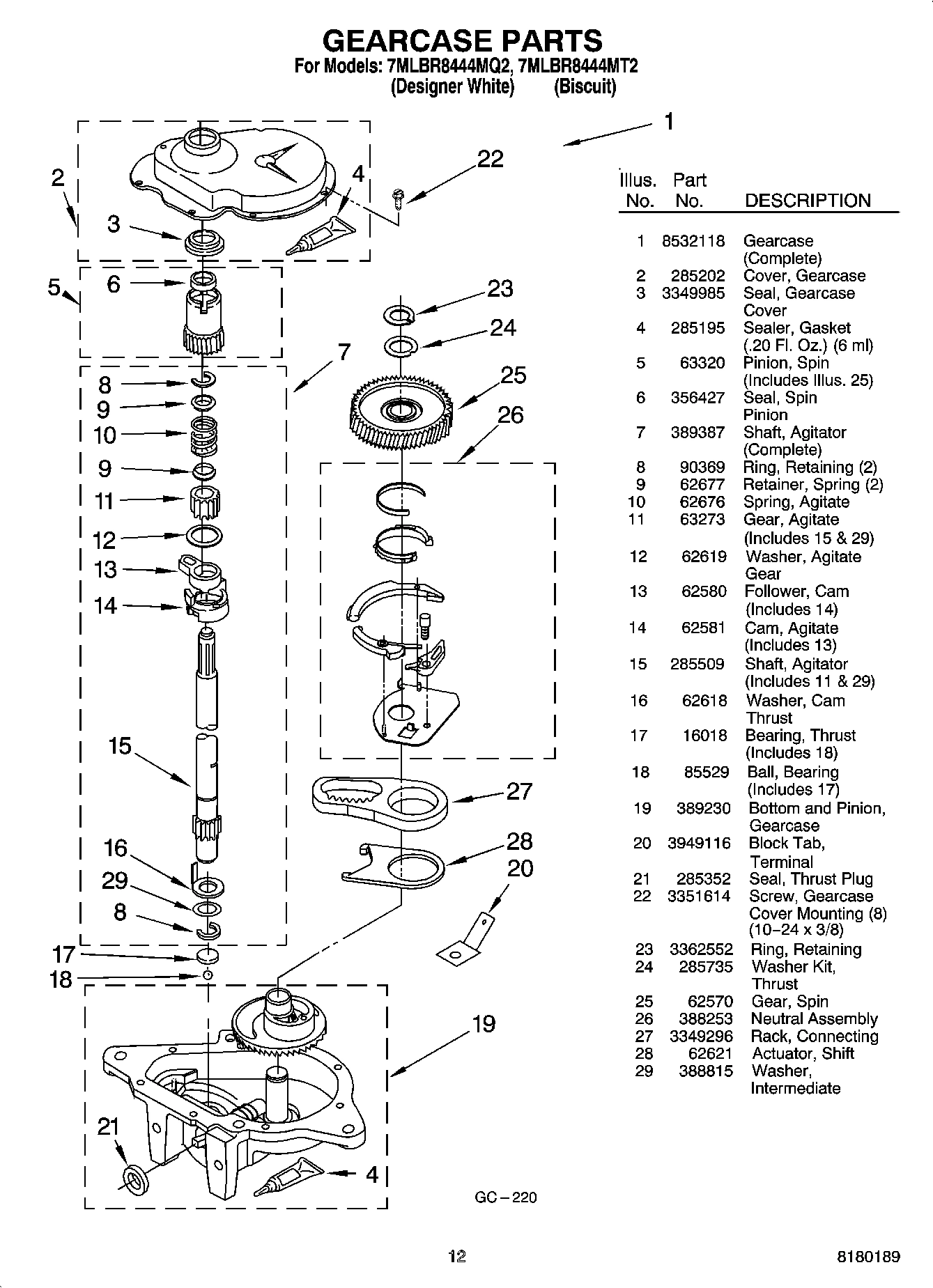

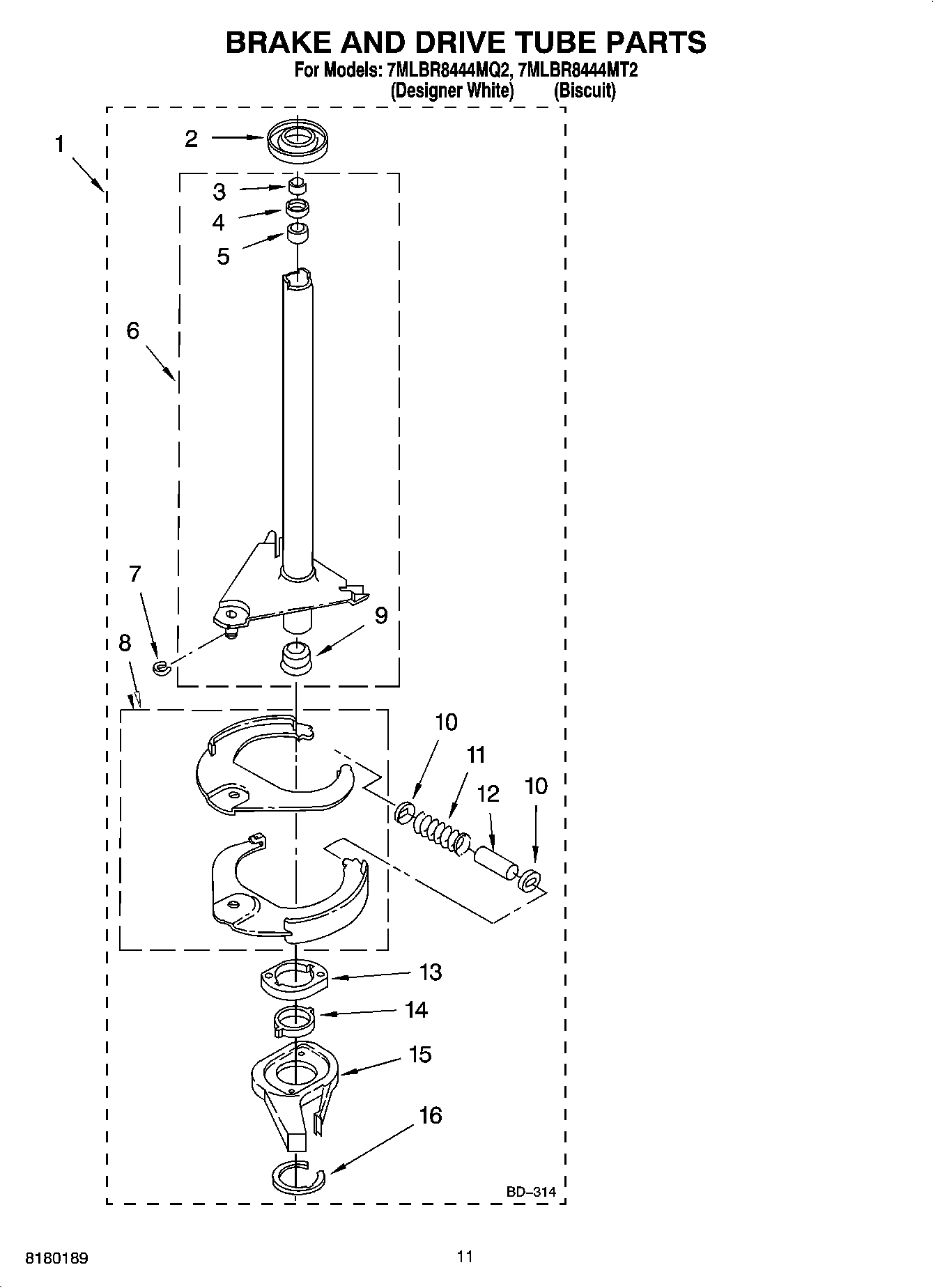

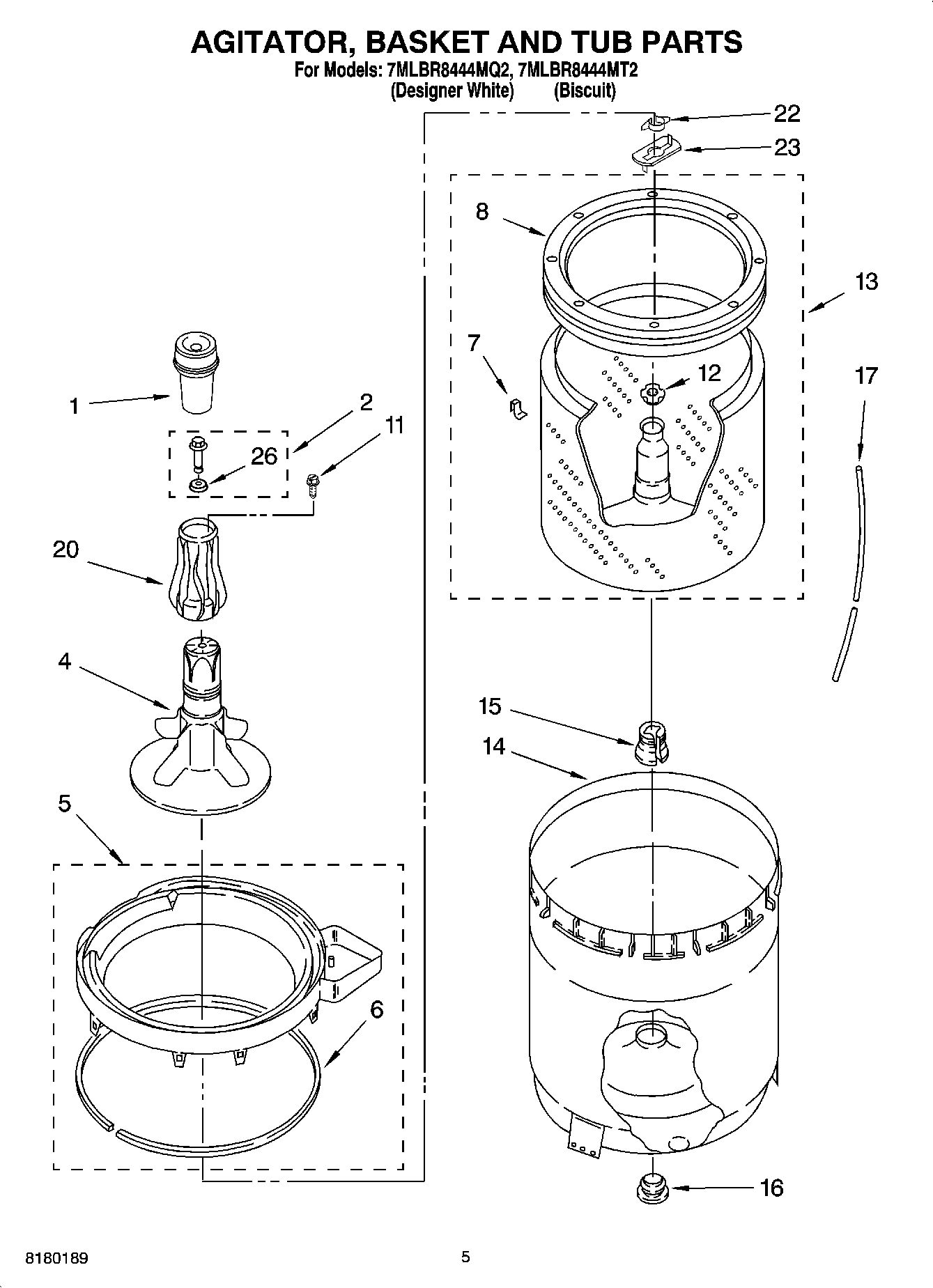

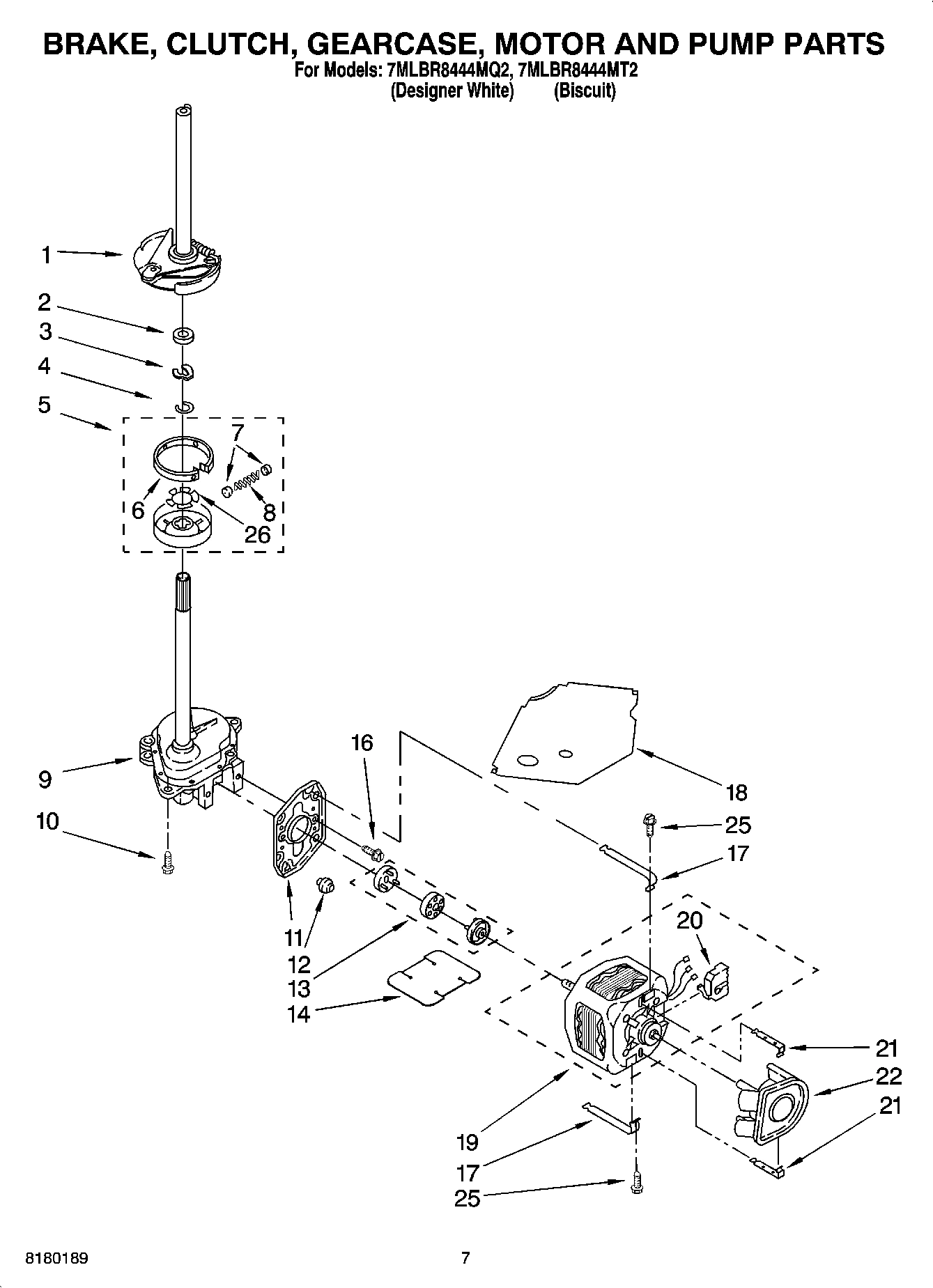

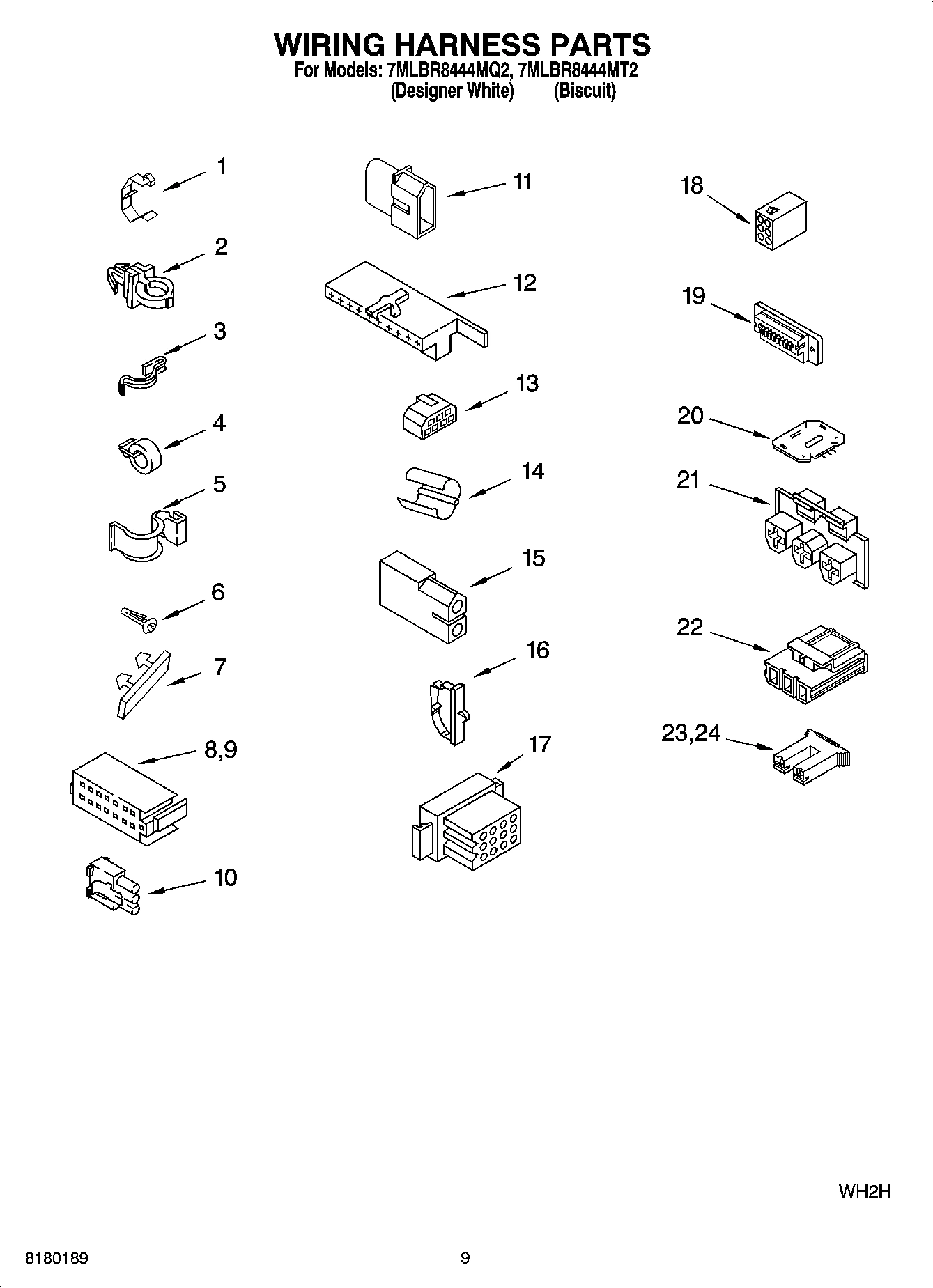

Model Whirlpool 7MLBR8444MQ2 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $9.99

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

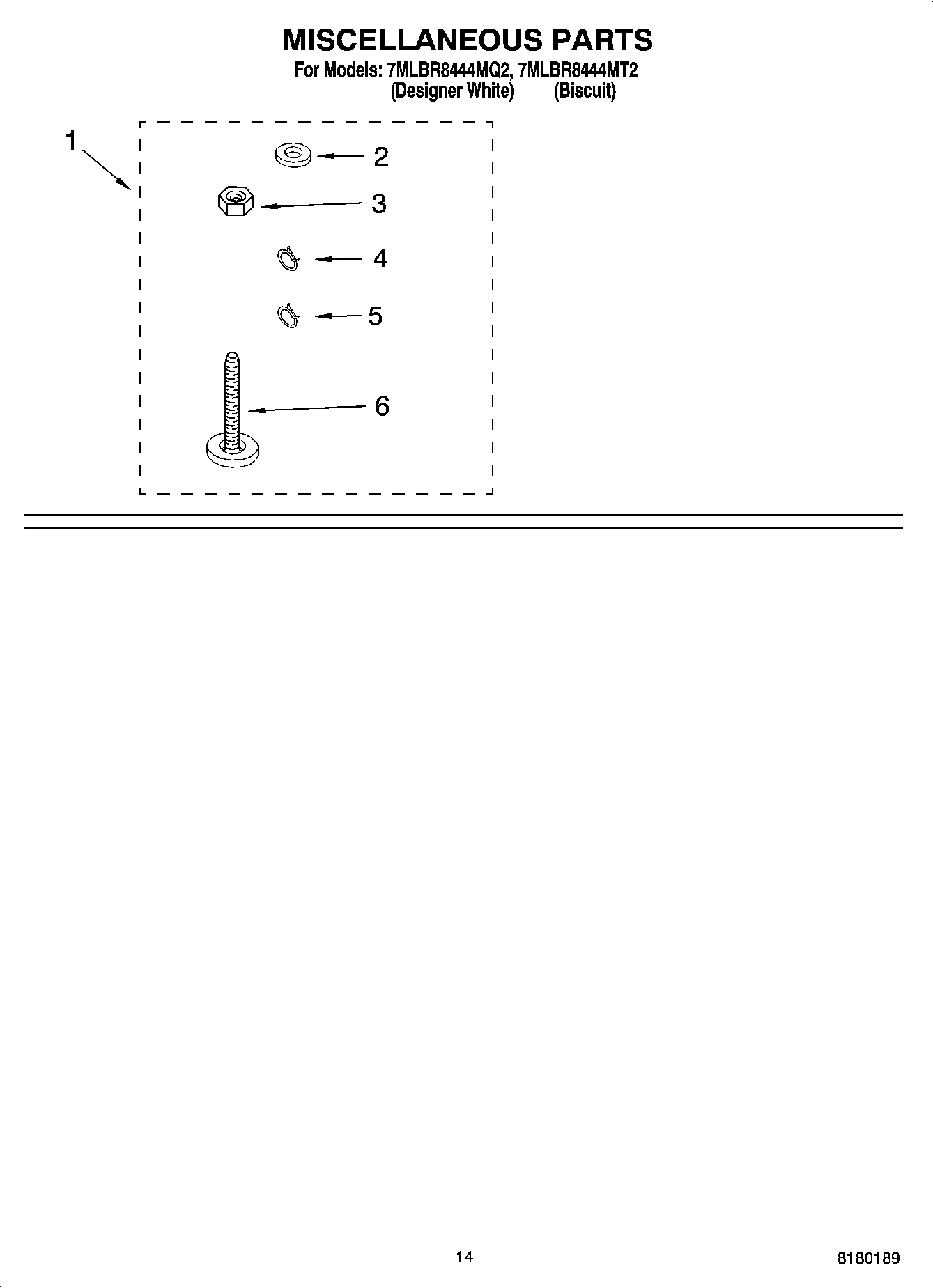

Miscellaneous Parts Bag WPL 3976253 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT3954763 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT8539738 Contact Us For Availability

1

Literature Parts (Energy Guide) WPL LIT8539773 Contact Us For Availability

1

Wiring Diagram WPL LIT8543286 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

285321 Whirlpool Sleeve Backorder WPL 285321 $26.75

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

Top (White) WPL 8541617 Contact Us For Availability

2

Top (Biscuit) WPL 8541619 Contact Us For Availability

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $28.80

4

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

4

Agitator WPL 64214 Contact Us For Availability

5

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

Tub Ring WPL 3360611 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

5

Cabinet (Biscuit) WPL 3954777 Contact Us For Availability

5

Cabinet (White) WPL 63128 Contact Us For Availability

6

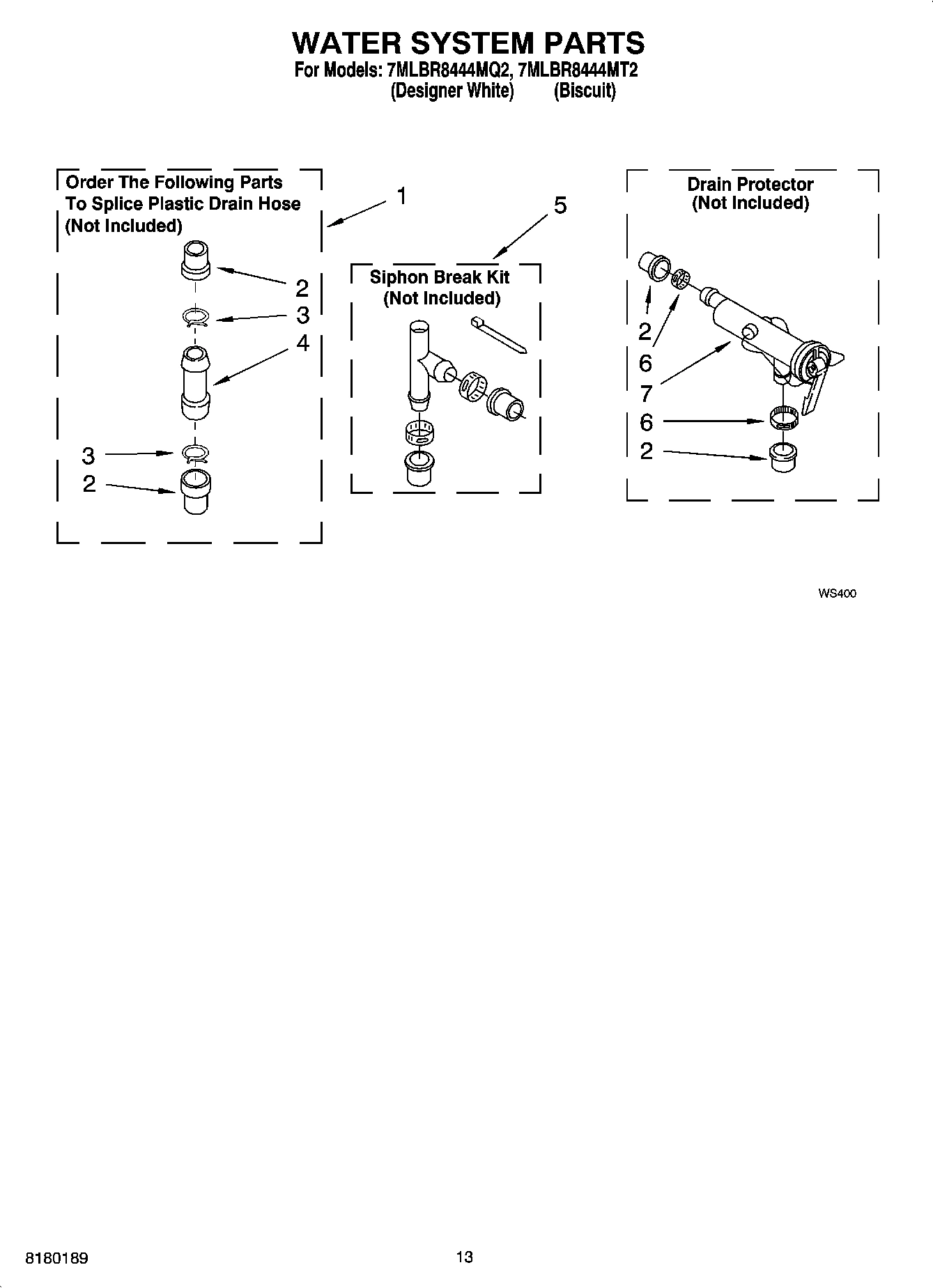

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

6

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

6

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

6

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

6

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

6

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

6

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

6

WP3359586 Whirlpool Tub Seal Backorder WPL WP3359586 $28.80

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $127.32

6

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

6

Link, Leveling Mechanism (2) WPL 63138 Contact Us For Availability

6

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

6

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

6

OIL WPL ARI142108A Contact Us For Availability

6

LUBRICANT WPL ARI142109A Contact Us For Availability

6

SEALER WPL ARI142110A Contact Us For Availability

6

ACCESSORY PARTS WPL ARI142111A Contact Us For Availability

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

7

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $2.51

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $75.04

8

WP3956205 Whirlpool Balance Ring Backorder WPL WP3956205 $71.69

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Timer, Block Disconnect (White) WPL 3948614 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.70

9

Timer, Control (50 Hz.) (Motor Not A Service WPL 3951603 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

Switch, Water Temperature WPL 661614 Contact Us For Availability

Spring, Agitate WPL 62676 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $10.76

WP62647 Whirlpool Spring Pressure Backorder WPL WP62647 $3.51

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $16.93

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W10080180 Whirlpool Nut Backorder WPL W10080180 $9.59

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

BASKET WPL 3956206 Contact Us For Availability

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

14

Tub WPL 63125 Contact Us For Availability

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $28.49

8318088 Whirlpool Hinge Assembly Backorder WPL 8318088 $12.08

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Washer, Cam Thrust WPL 62618 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI142107A Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

Clamp, Hose WPL 3976395 No Longer Available

WPW10193857 Whirlpool Lid Assembly Backorder WPL WPW10193857 $188.00

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

Lid (Biscuit) WPL 8557514 Contact Us For Availability

20

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

20

BLOCK TAB, TERMINAL WPL 3949116 Contact Us For Availability

20

Extention, Agitator WPL 64210 Contact Us For Availability

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

21

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

21

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.70

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $8.69

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

23

3354925 Whirlpool Connector Backorder WPL 3354925 $10.76

23

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $5.27

23

Ring, Retaining WPL 3362552 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $28.69

Block, Connector (Hot Valve) WPL 3354926 Contact Us For Availability

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

26

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.72

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

28

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

50

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51
