Model Whirlpool 3SLSR6233MQ0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $9.99

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

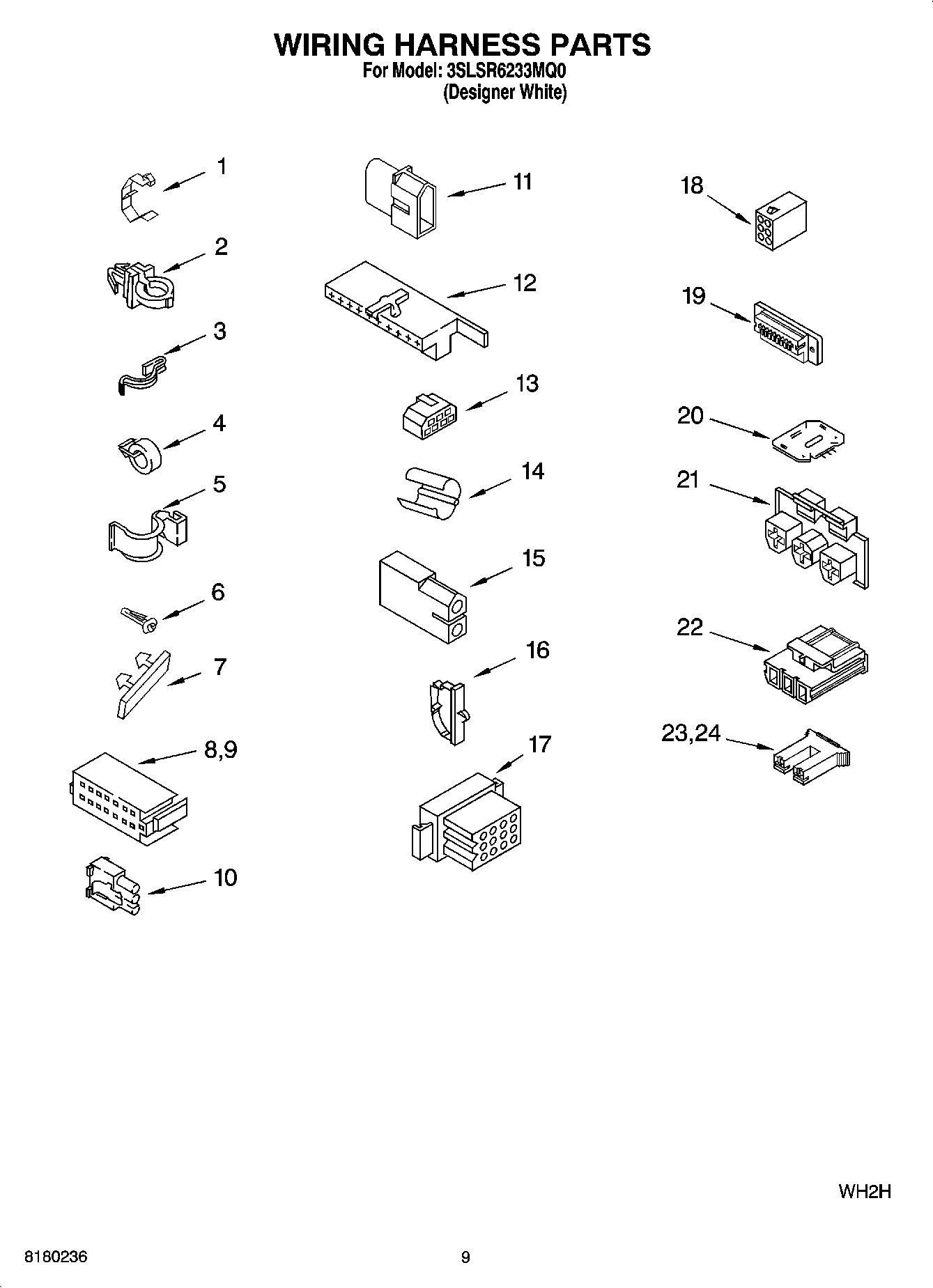

Clip, Harness WPL 3349557 Contact Us For Availability

1

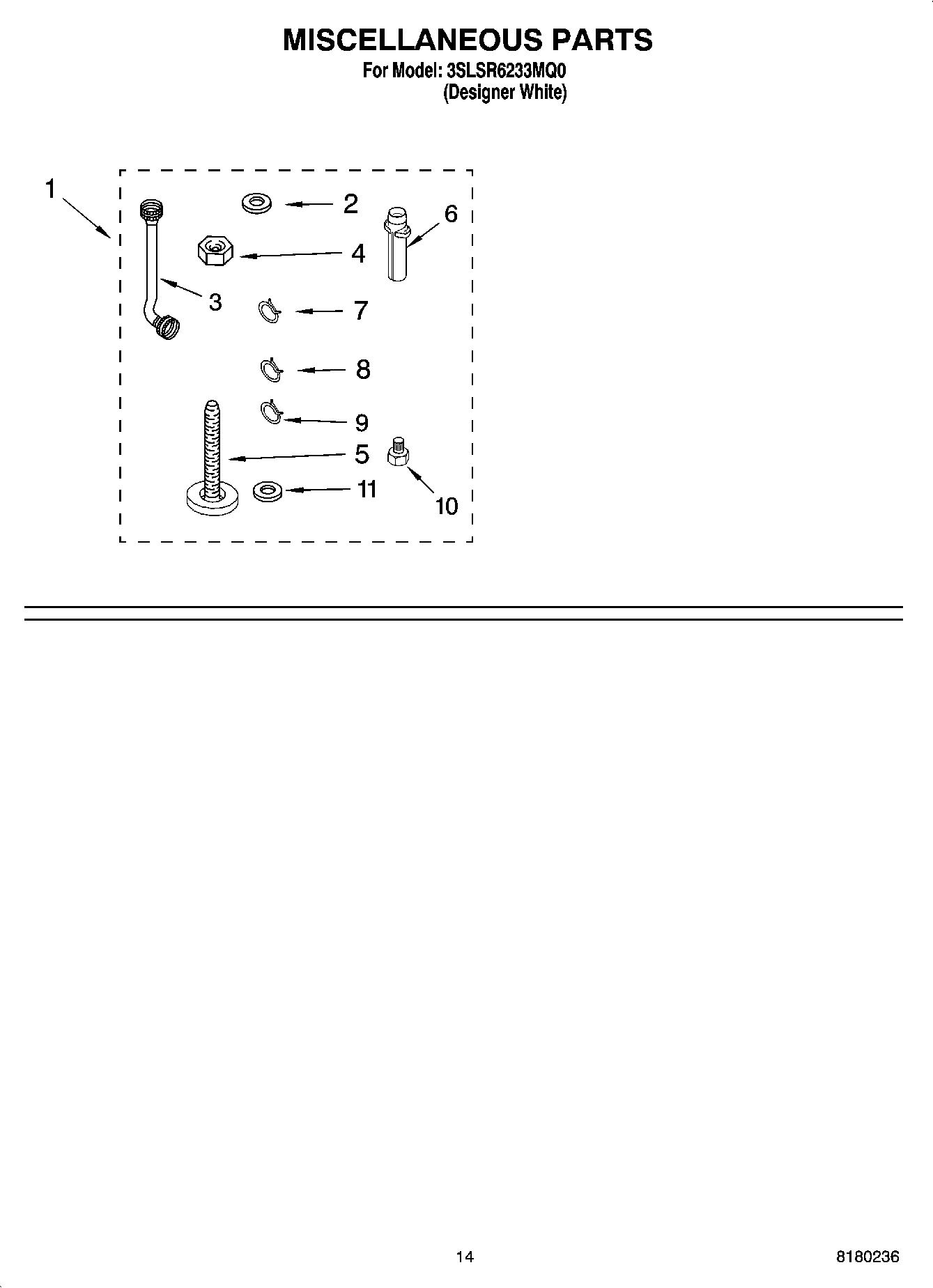

Miscellaneous Parts Bag WPL 8541754 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT8539790 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT8539794 Contact Us For Availability

1

Literature Parts (Wiring Diagram) WPL LIT8546182 Contact Us For Availability

1

Literature Parts (Feature Sheet) WPL LIT8558482 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

TOP WPL 8318064 Contact Us For Availability

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $89.14

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

3

WPW10615809 Whirlpool Fill Hose Backorder WPL WPW10615809 $38.56

3

WPW10615831 Whirlpool Fill Hose Backorder WPL WPW10615831 $38.56

4

WP3347288 Whirlpool Washer Agitator Base In Stock WPL WP3347288 $73.90

4

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $28.80

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

4

Support & Brake, Tub WPL 3362087 Contact Us For Availability

5

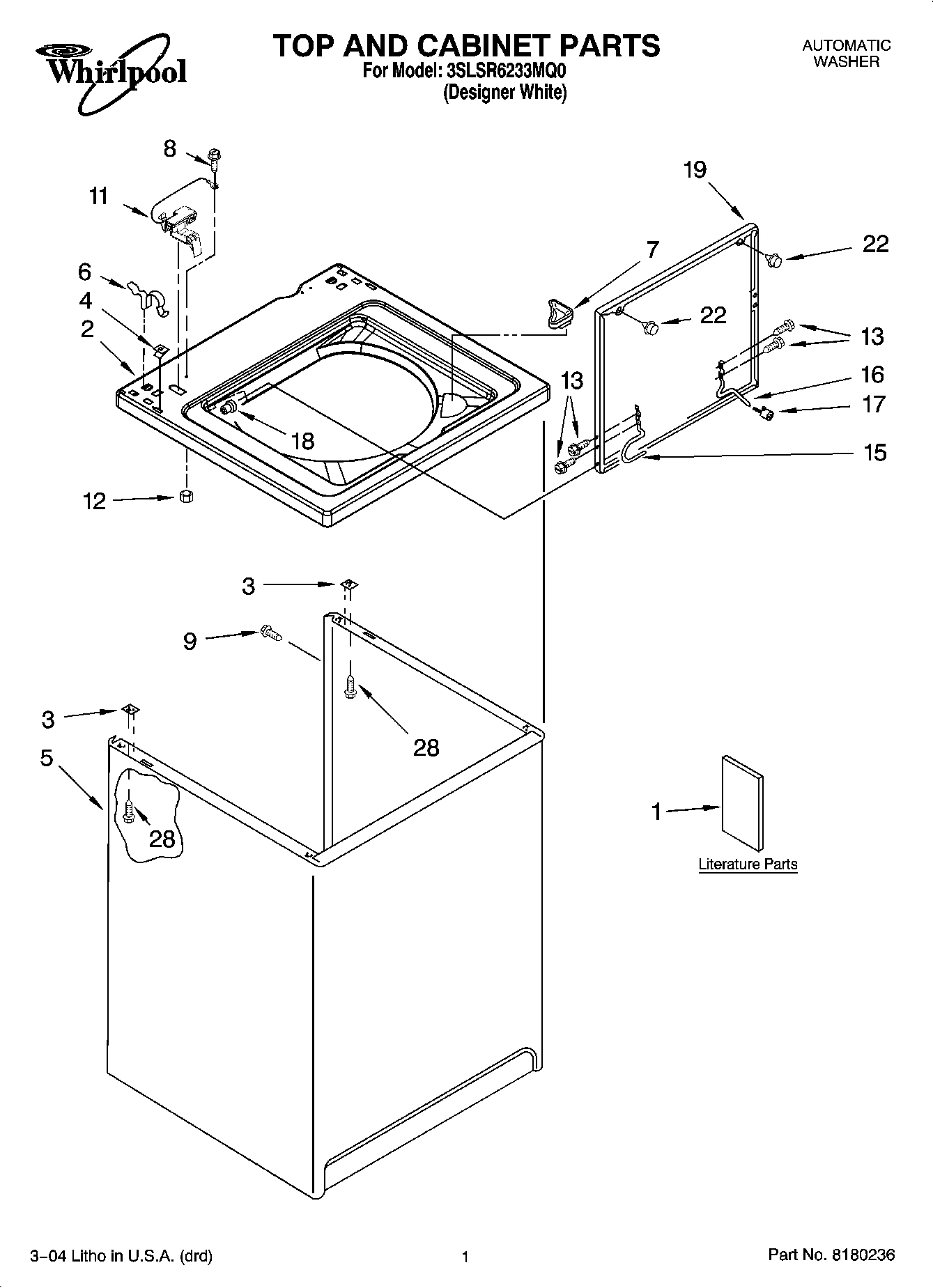

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $255.69

5

W10880720 Whirlpool Tub Ring Backorder WPL W10880720 $76.64

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

3363920A Whirlpool Adapter Assembly Backorder WPL 3363920A $2.73

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $9.42

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.70

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

7

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

7

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

8

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

8

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $3.70

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Timer, Block Disconnect (White) WPL 3948614 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $10.82

9

285811 Whirlpool Washer Agitator Repair Kit In Stock WPL 285811 $8.76

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

9

Timer, Control (50 Hz.) (Motor Not A Service WPL 3950560 Contact Us For Availability

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $1.10

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

WP3357397 Whirlpool Adapter Backorder WPL WP3357397 $29.43

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

Spring, Agitate WPL 62676 Contact Us For Availability

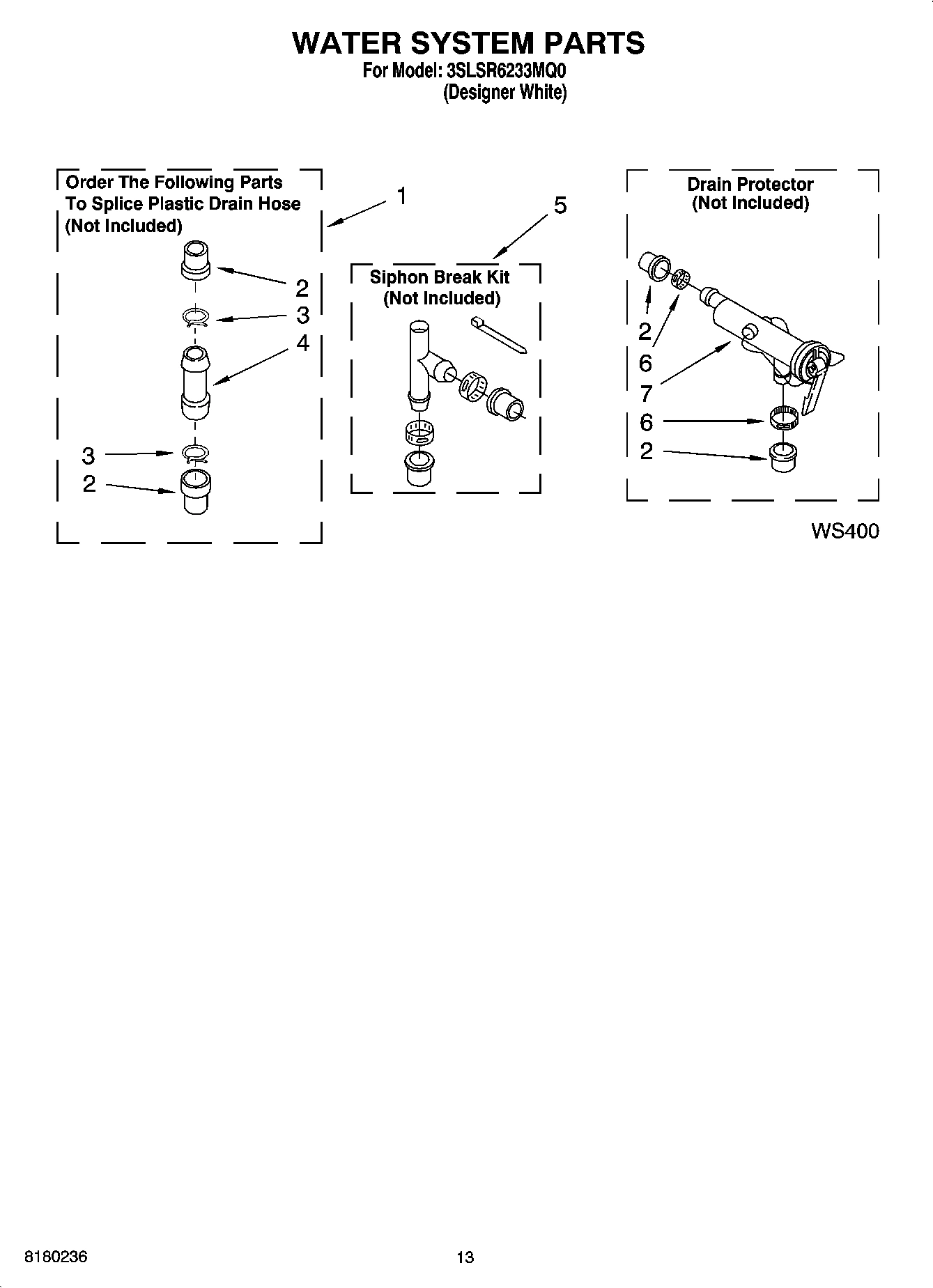

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

353424 Whirlpool Connector Backorder WPL 353424 $10.76

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

WP3357450 Whirlpool Washer Assembly Backorder WPL WP3357450 $4.72

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $16.93

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

Spring, Brake WPL 387806 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Drain Protector WPL 367031 Contact Us For Availability

OIL WPL ARI140318A Contact Us For Availability

LUBRICANT WPL ARI140319A Contact Us For Availability

SEALER WPL ARI140320A Contact Us For Availability

ACCESSORY PARTS WPL ARI140321A Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W10080180 Whirlpool Nut Backorder WPL W10080180 $9.59

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

W10389328 Whirlpool Basket Backorder WPL W10389328 $190.38

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

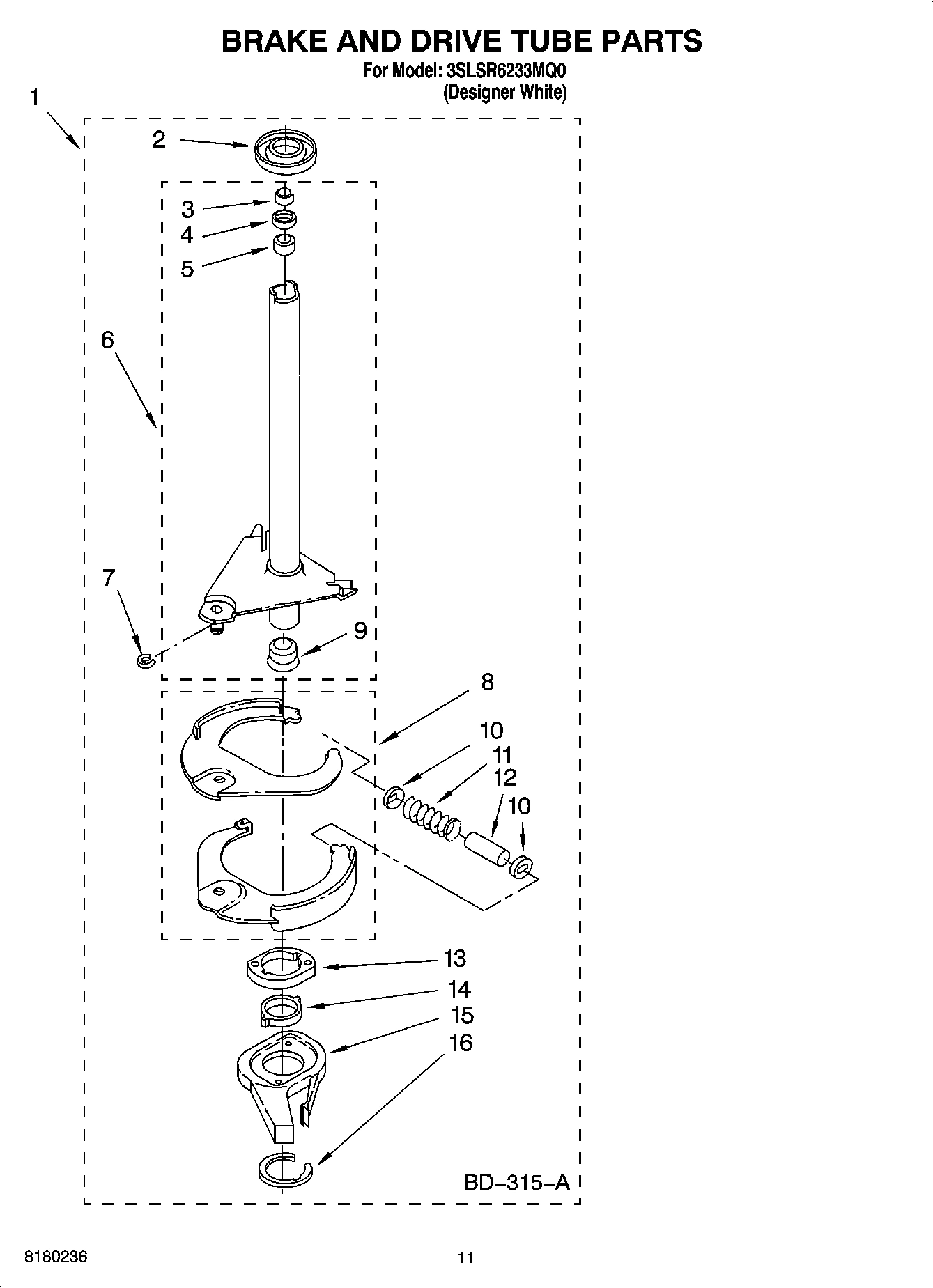

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

14

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

14

WP387240 Whirlpool Balance Ring Backorder WPL WP387240 $64.40

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $28.49

8318088 Whirlpool Hinge Assembly Backorder WPL 8318088 $12.08

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $5.27

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $10.60

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $126.36

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI140316A Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

WP3360397 Whirlpool Valve Backorder WPL WP3360397 $151.58

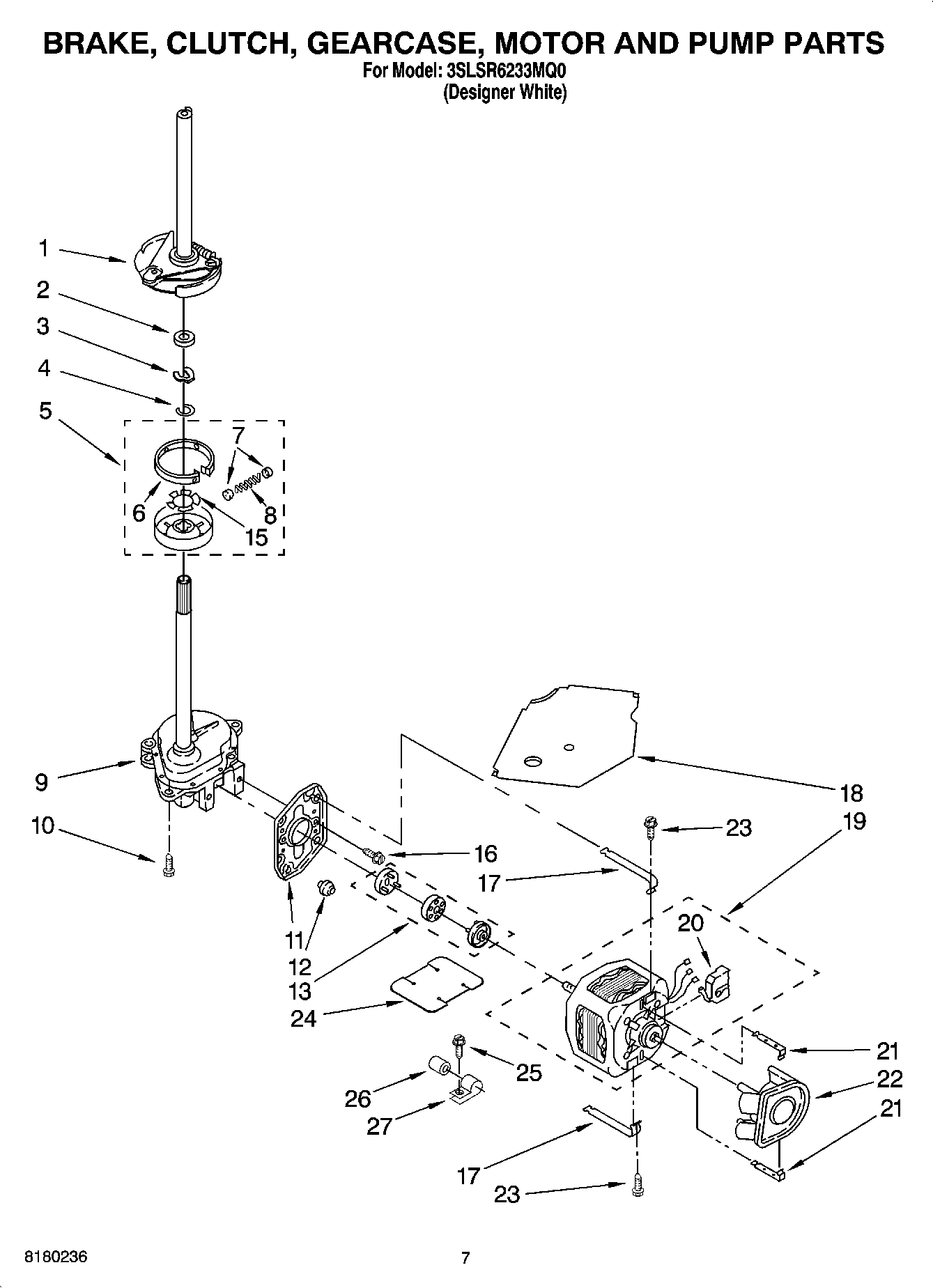

3363395 Whirlpool Gearcase Backorder WPL 3363395 $242.05

Clamp, Hose WPL 3976395 No Longer Available

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

Motor, Main Drive WPL 3950297 Contact Us For Availability

Base Assembly (Includes Illus, 6, 7, 8, 9, 18 WPL 3946512 Contact Us For Availability

Lid WPL 8541743 Contact Us For Availability

20

Agitator, Asy (Complete) WPL 3946501 Contact Us For Availability

20

Switch, Main Drive Motor WPL 8529896 Contact Us For Availability

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

21

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

21

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.70

285587 Whirlpool Thrust Washer In Stock WPL 285587 $1.43

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $7.83

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $8.69

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

23

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.47

23

Ring, Retaining WPL 3362552 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

24

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $3.70

24

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

WPW10233584 Whirlpool Spin Gear Backorder WPL WPW10233584 $84.65

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

26

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.72

26

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

27

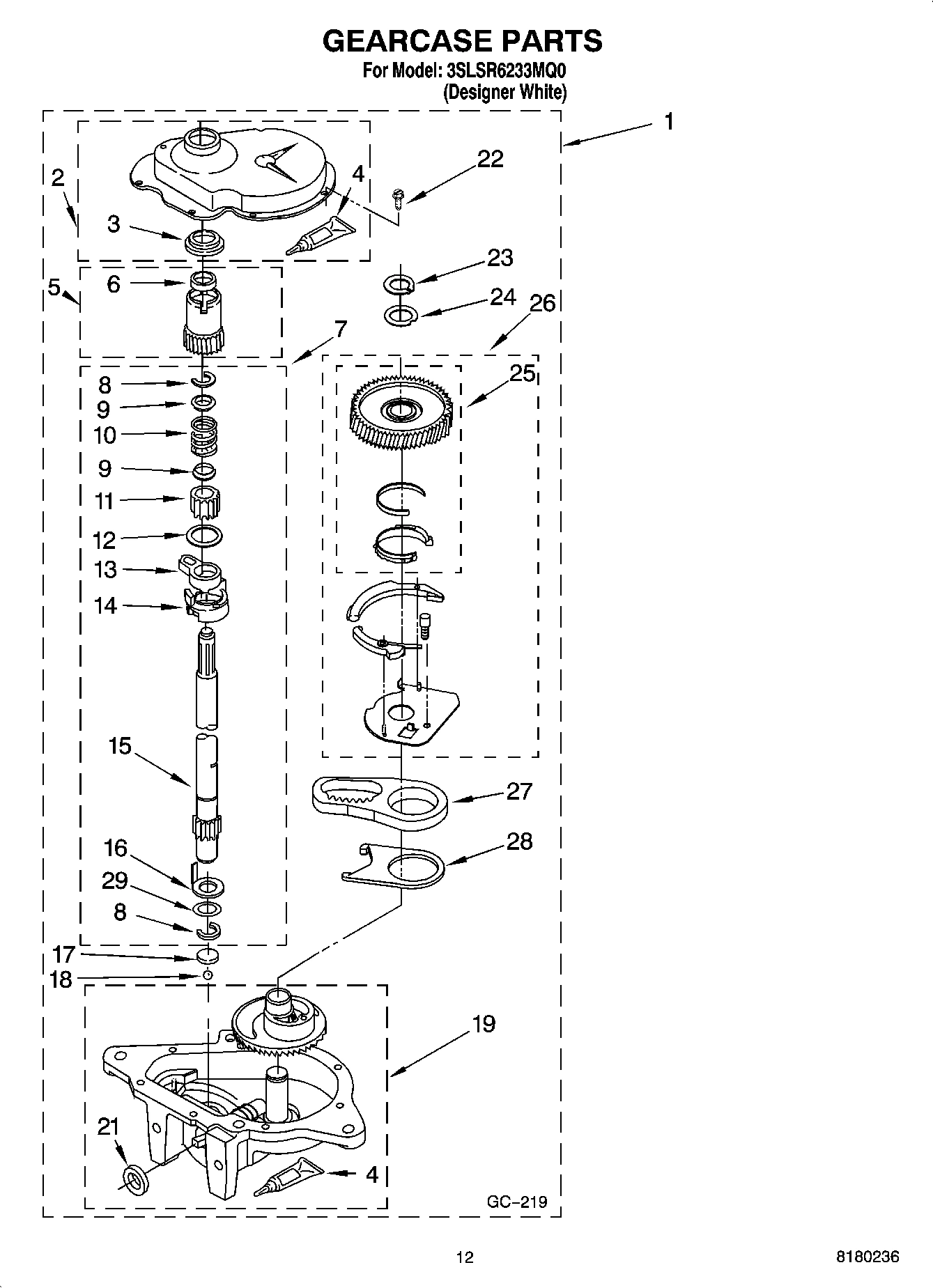

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

28

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

29

GC-219 WPL ARI140317A Contact Us For Availability

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51
