Model Whirlpool 110.80764000 Washer/Dryer Laundry System (Kenmore 11080764000) – Common Parts &amp; Diagrams

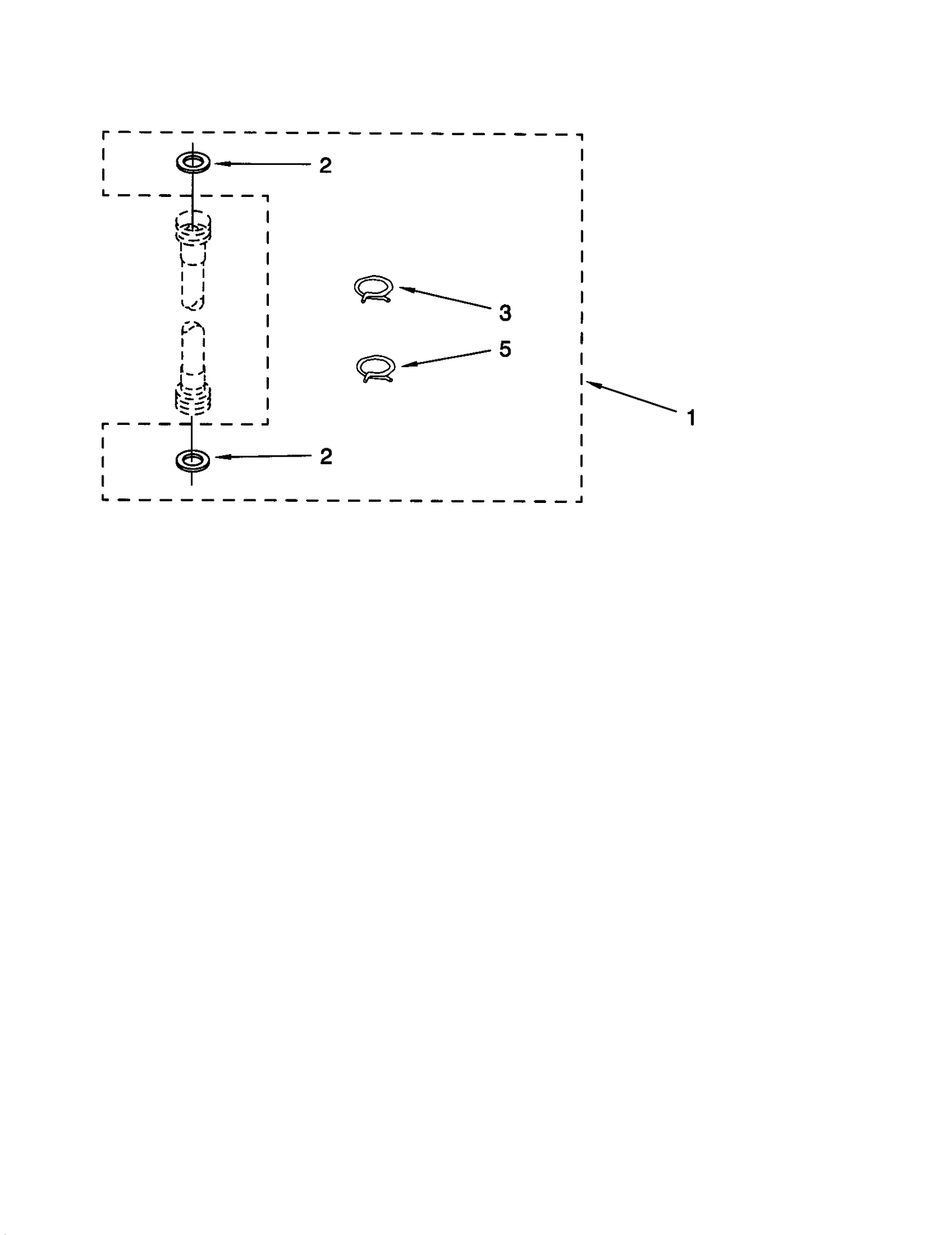

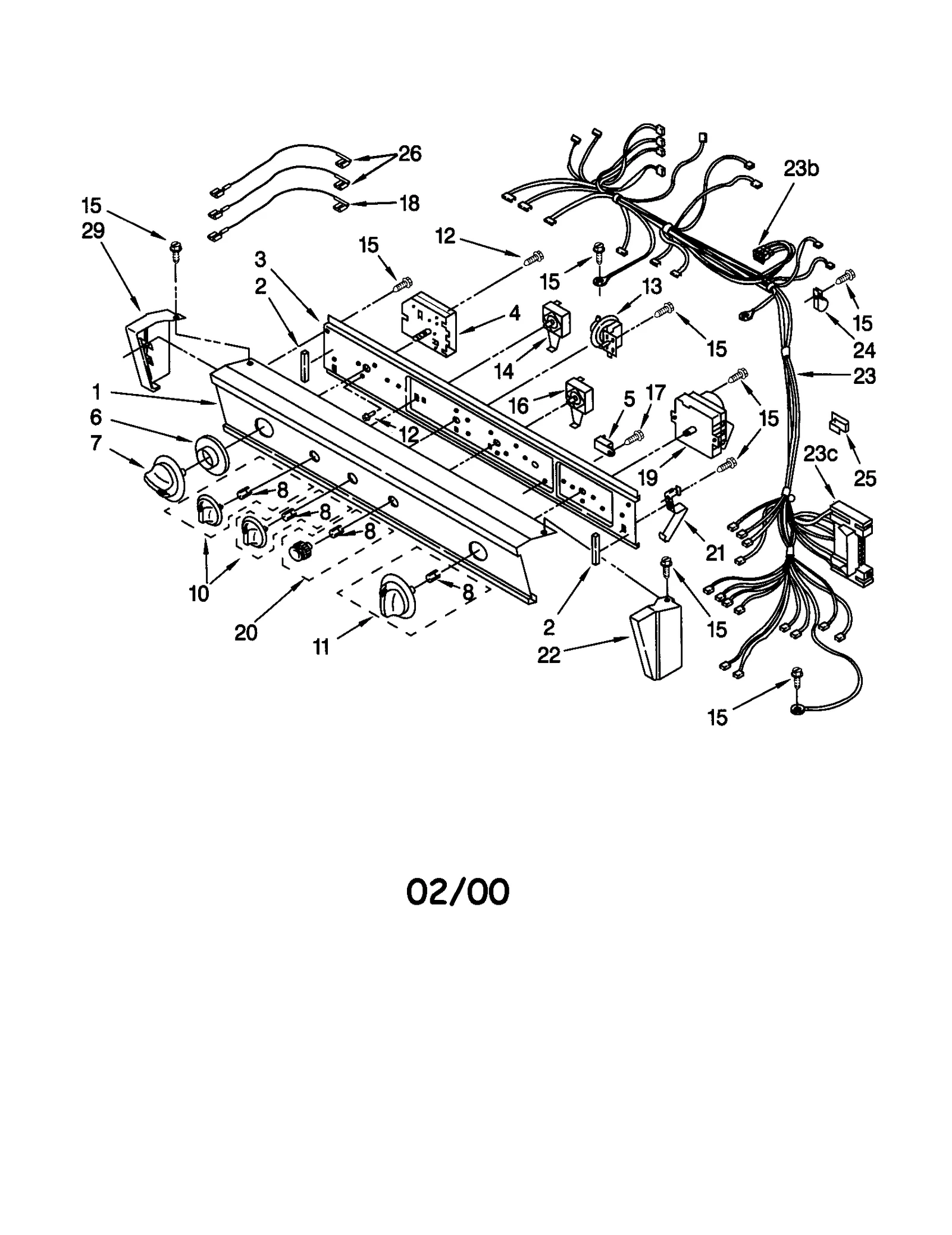

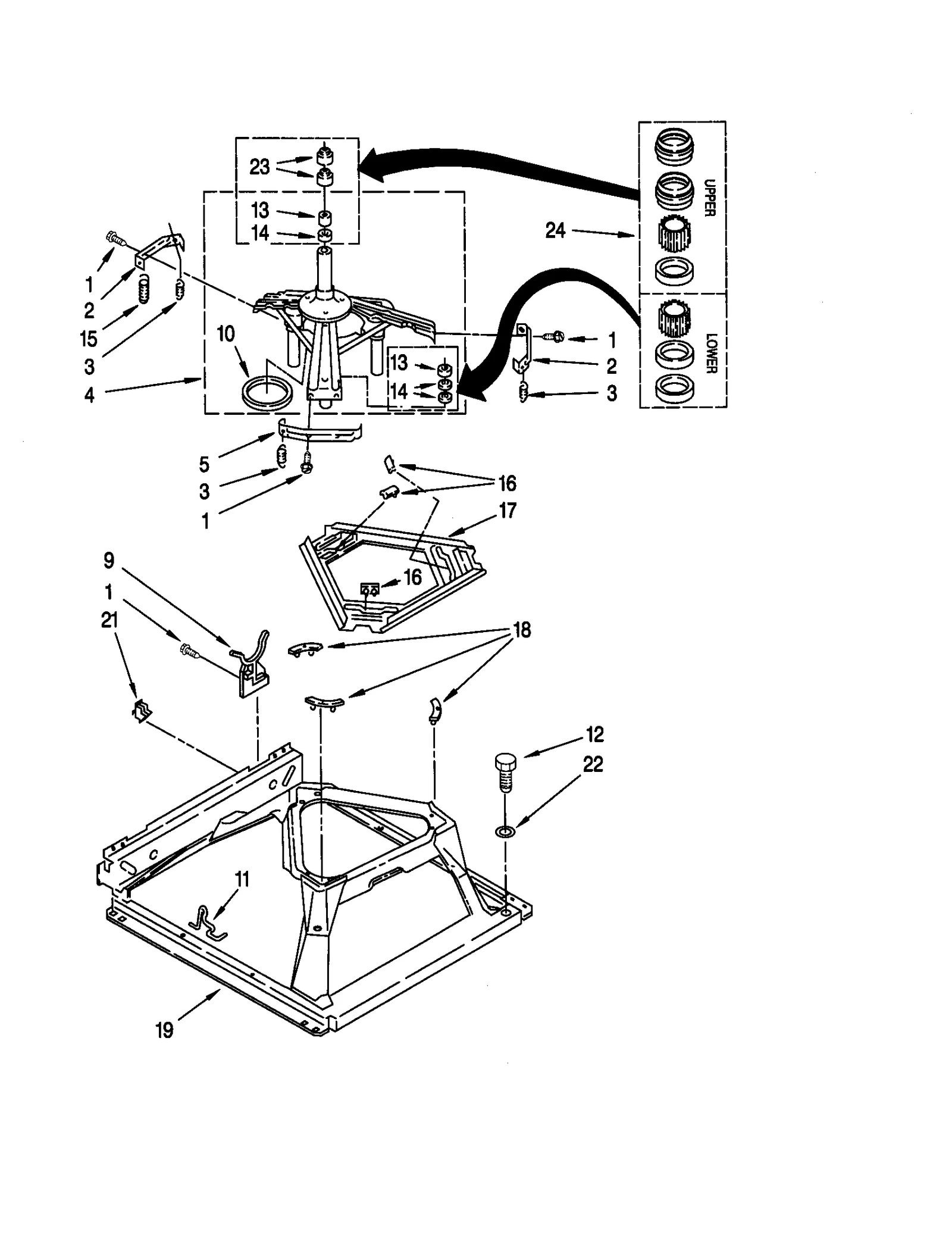

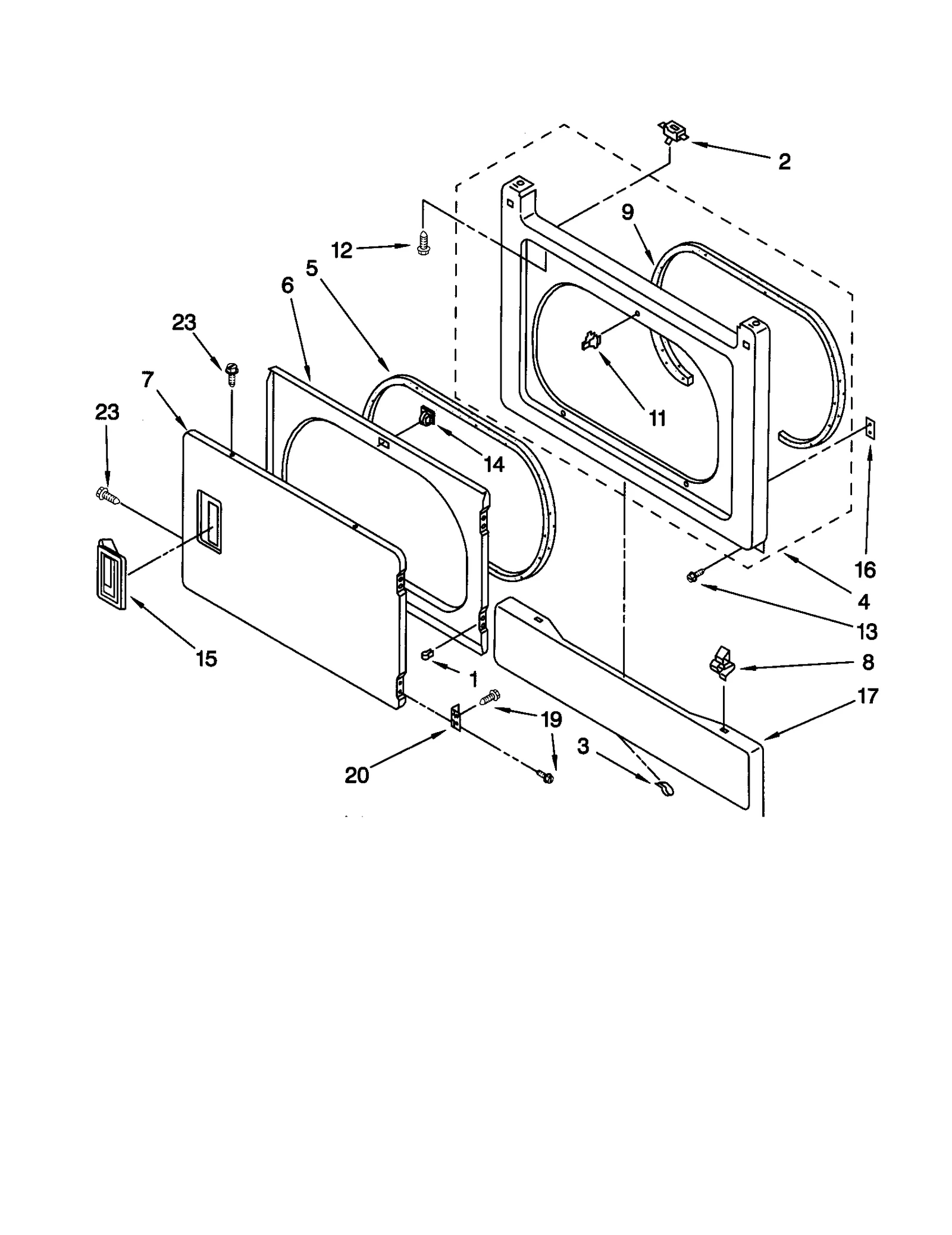

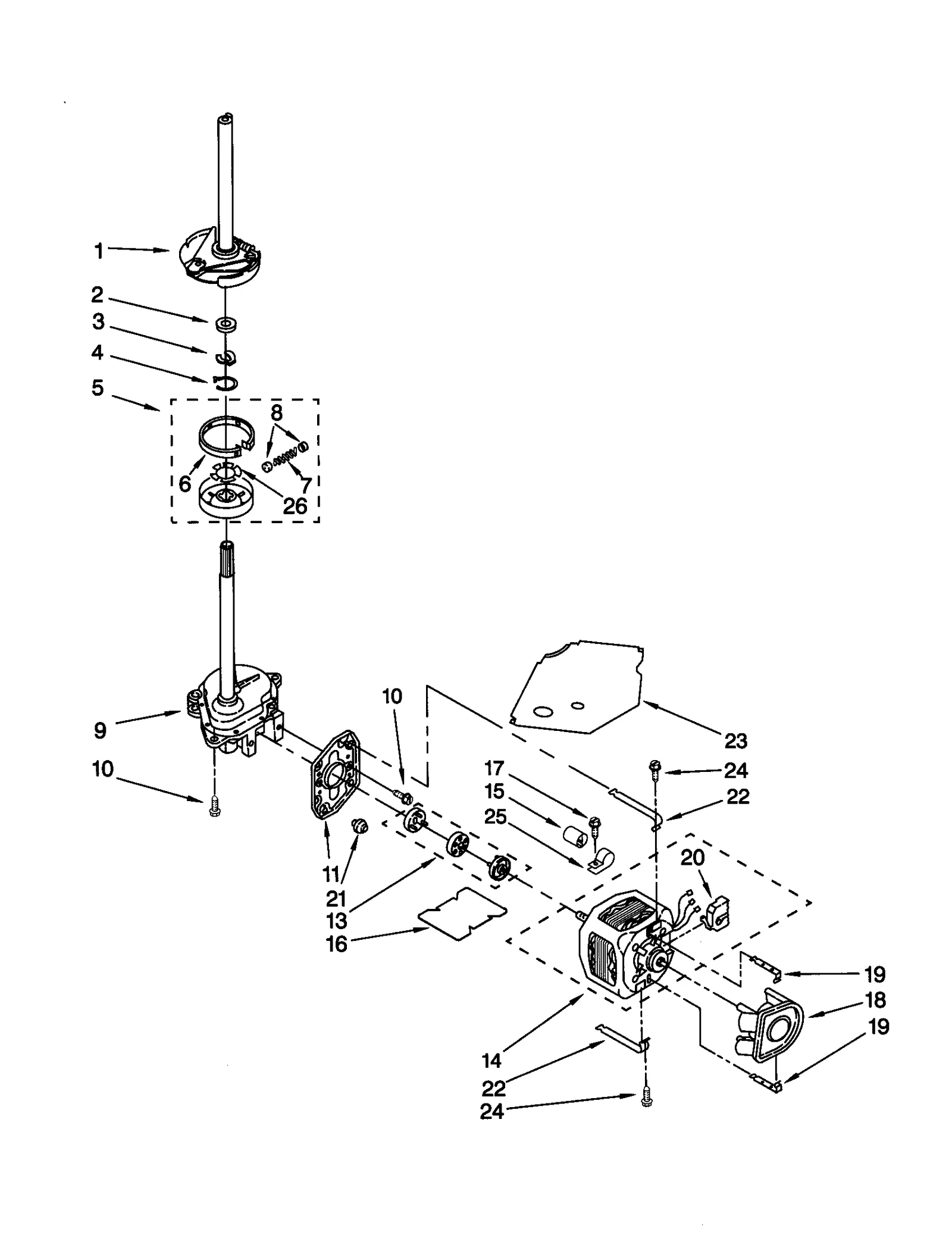

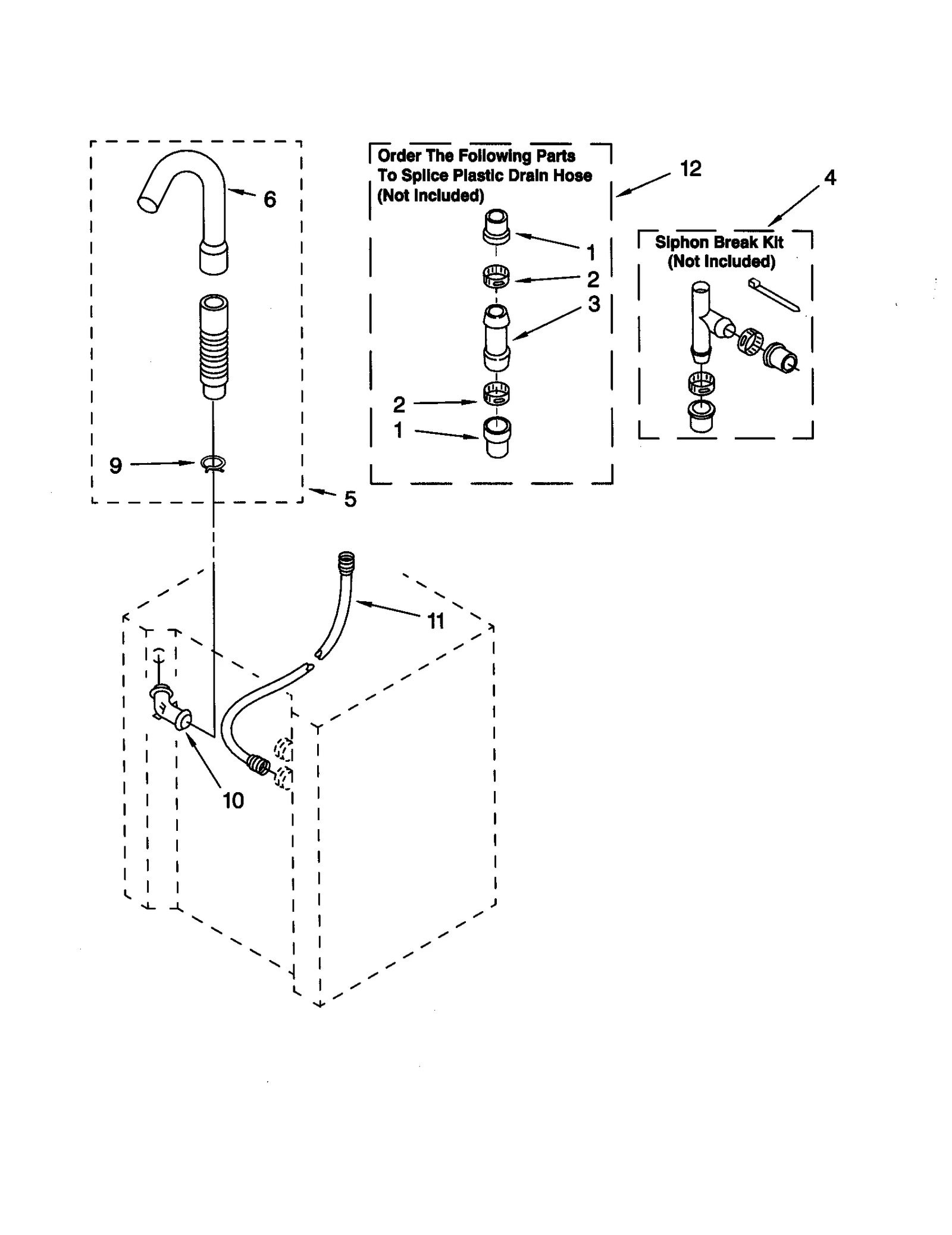

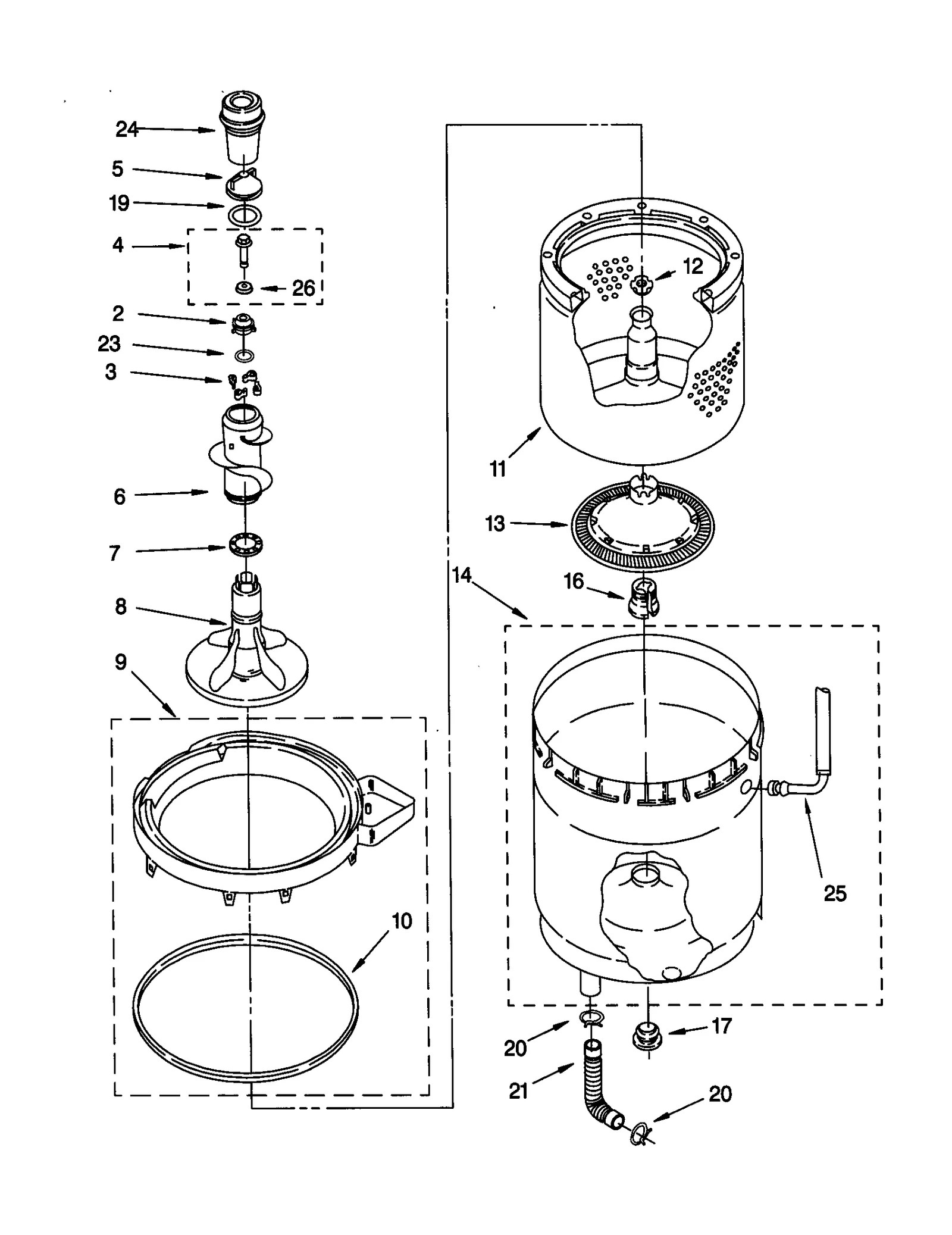

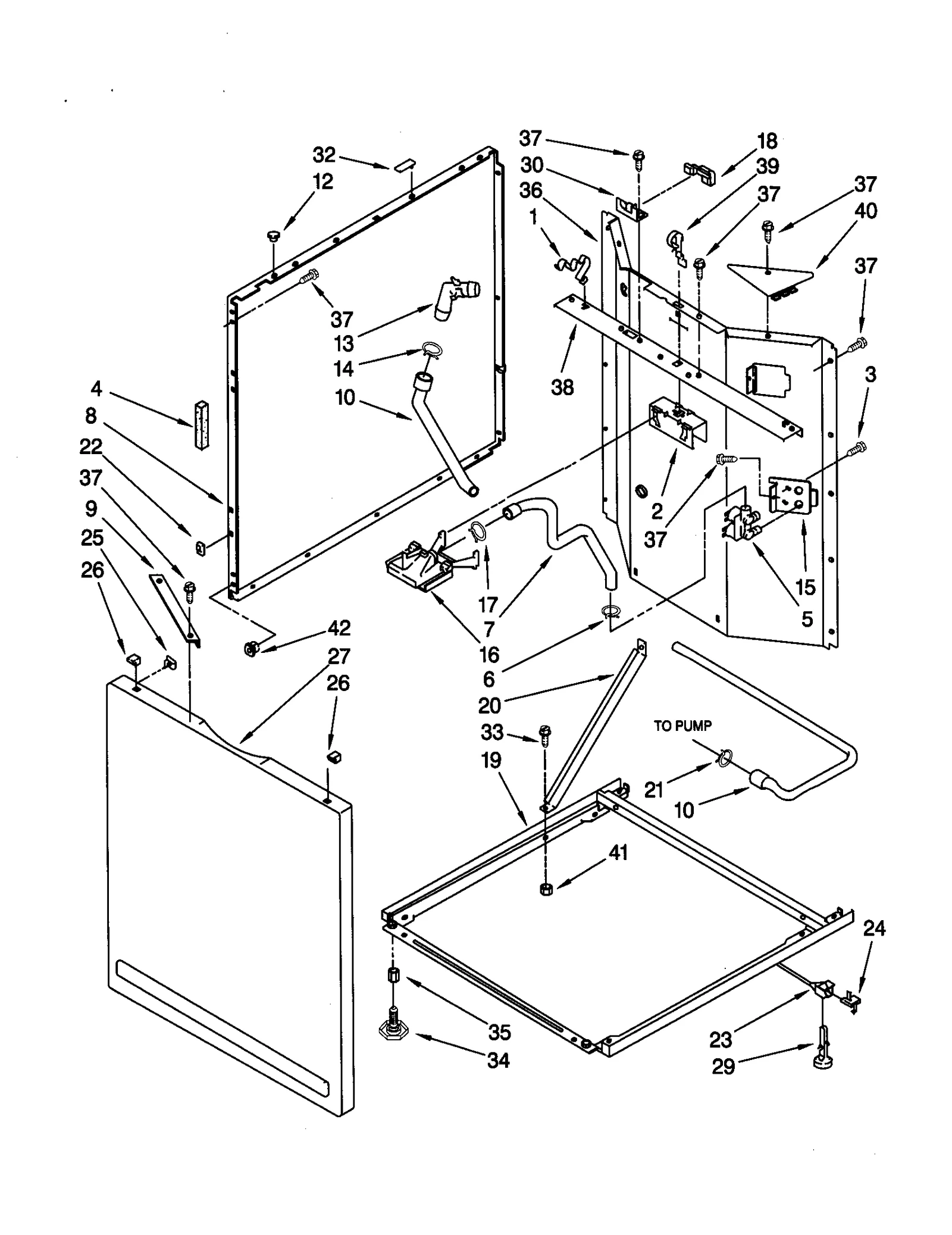

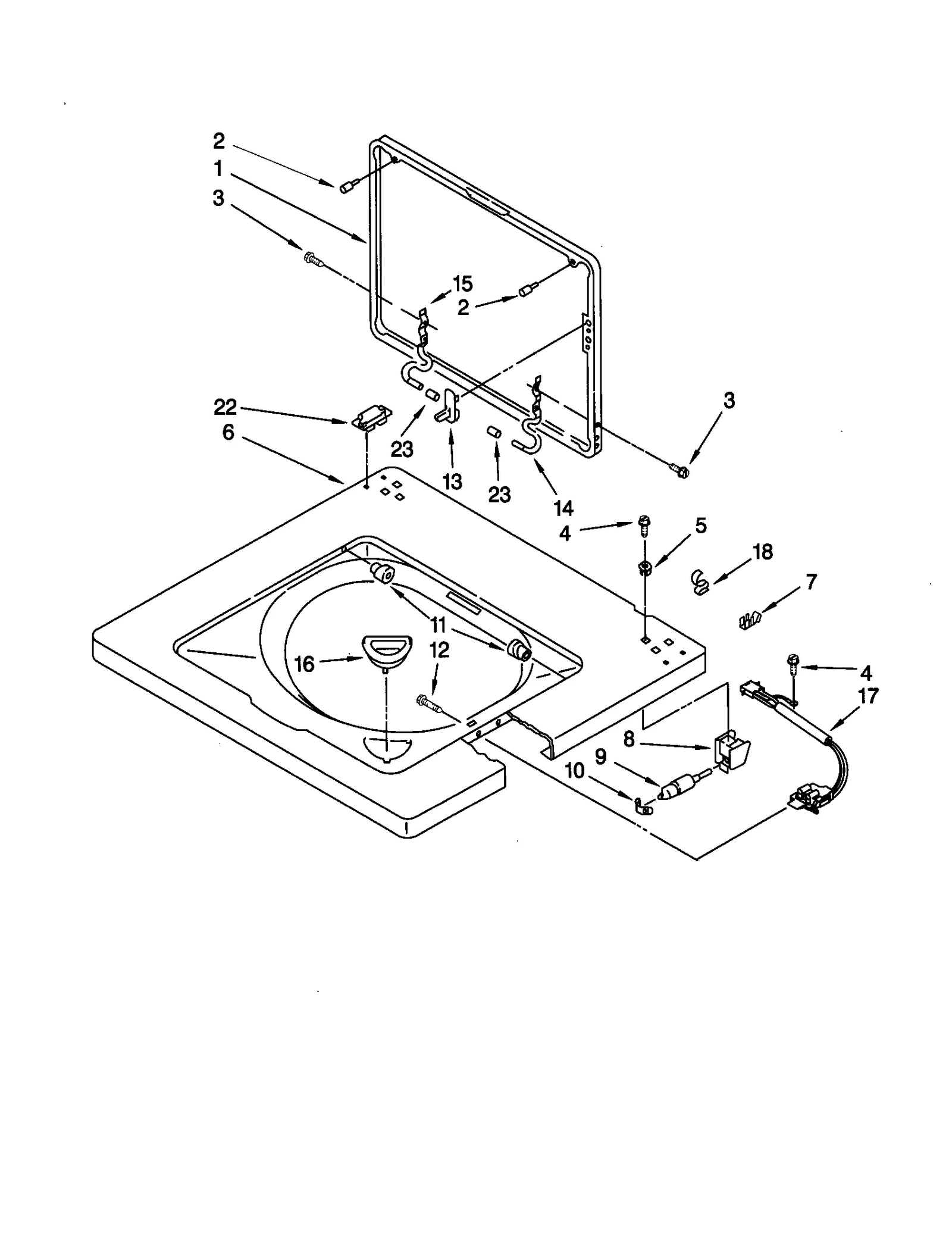

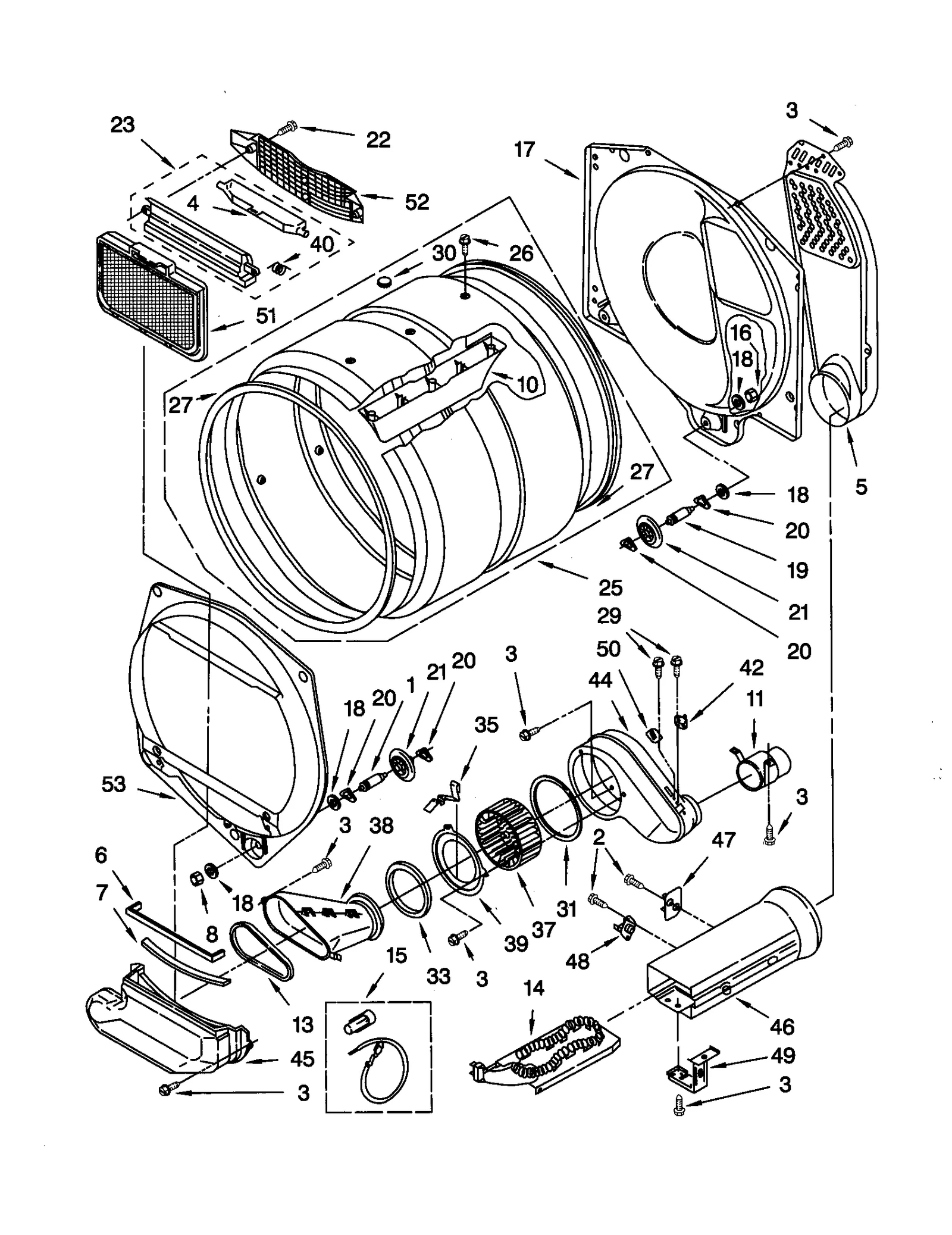

1

3349770 Whirlpool Clip Backorder WPL 3349770 $8.73

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

1

WPW10359271 Whirlpool Drum Roller Shaft In Stock WPL WPW10359271 $32.06

1

Replacement Part WPL 3356714 Contact Us For Availability

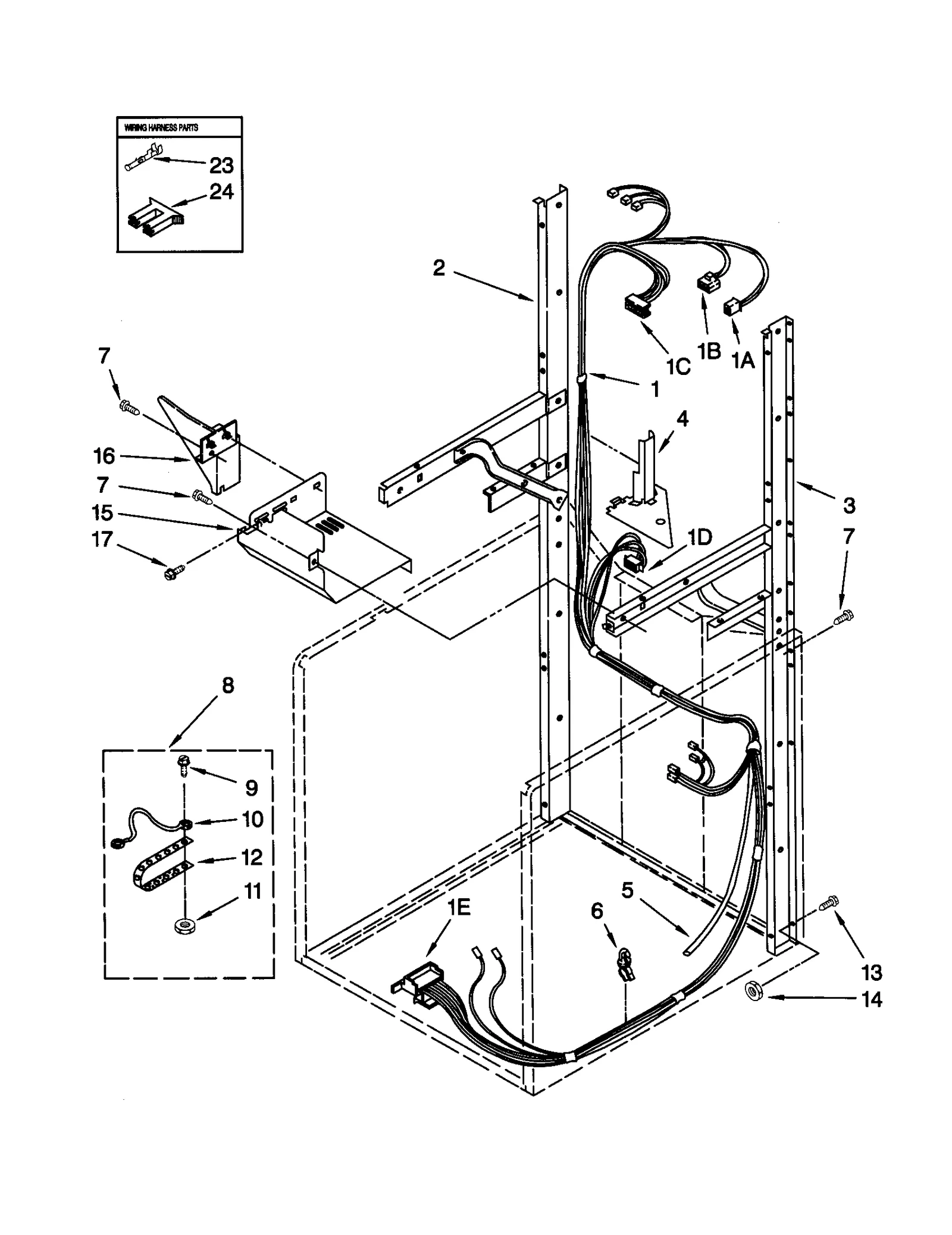

1A

3350130 Whirlpool Connector Backorder WPL 3350130 $8.31

1E

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

2

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

2

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.64

3

3398948 Whirlpool Wire Backorder WPL 3398948 $42.36

3

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $4.98

4

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

W11222846 Whirlpool Door Backorder WPL W11222846 $82.70

4

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.43

4

Laundry Center Control Timer WPL 3951973 Contact Us For Availability

4

Support WPL 3362087 Contact Us For Availability

5

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $21.58

5

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

5

WP3387911 Whirlpool Air Duct Backorder WPL WP3387911 $141.23

5

WP3390735 Whirlpool Door Seal In Stock WPL WP3390735 $45.90

5

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $54.50

5

Bracket WPL 64065 Contact Us For Availability

5A

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $29.79

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

6

W11676449 Whirlpool Agitator Mover Backorder WPL W11676449 $27.14

6

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $32.06

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.88

6

Washer Timer Dial (Bisque) WPL 3949431 Contact Us For Availability

6

Harness Clip WPL 3390496 Contact Us For Availability

7

3352236 Whirlpool Hose Assembly Backorder WPL 3352236 $13.32

7

WP3391906 Whirlpool Seal Backorder WPL WP3391906 $3.70

7

Washer Control Knob WPL 3948415 Contact Us For Availability

7

(338471) (ALT.) WPL N/P Contact Us For Availability

8

3354020 Whirlpool Bracket Backorder WPL 3354020 $4.65

8

WP3349578 Whirlpool Agitator Backorder WPL WP3349578 $80.16

8

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

8

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $3.88

8

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

8

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

8

Wire WPL 685463 Contact Us For Availability

9

3350506 Whirlpool Retainer Clip Backorder WPL 3350506 $8.20

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $251.09

9

WP3350152 Whirlpool Retainer Backorder WPL WP3350152 $179.06

9

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

9

Screw WPL 3400036 Contact Us For Availability

279982 Whirlpool Drum Baffle Backorder WPL 279982 $90.07

W11213338 Whirlpool Connector Backorder WPL W11213338 $29.96

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $2.51

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $9.42

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

Washer Retainer Clip WPL 3350828 Contact Us For Availability

Pump Hose WPL 3353841 Contact Us For Availability

Dryer Timer Knob (White) WPL 3402575 Contact Us For Availability

Wire WPL 685449 Contact Us For Availability

279823 Whirlpool Exhaust Pipe Backorder WPL 279823 $97.29

W10080180 Whirlpool Nut Backorder WPL W10080180 $9.59

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.25

WP62611 Whirlpool Plate In Stock WPL WP62611 $41.49

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $8.29

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

Amana Laundry Center Washer Spin Basket WPL 3352234 Contact Us For Availability

285442 Whirlpool Coupling Backorder WPL 285442 $32.06

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.51

WP3400501 Whirlpool Screw Backorder WPL WP3400501 $2.38

WP660975 Whirlpool Button Plug Backorder WPL WP660975 $3.70

Ground Strap WPL 22965 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.88

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

Screw, 5/16-18 X 1 WPL 3400300 Contact Us For Availability

3350101 Whirlpool Hinge Backorder WPL 3350101 $11.64

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP3349292 Whirlpool Tub Assembly Backorder WPL WP3349292 $110.64

WP3387749 Whirlpool Heating Element In Stock WPL WP3387749 $141.42

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $3.70

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $145.78

WP8054143 Whirlpool Temperature Switch In Stock WPL WP8054143 $55.08

Dryer Belt Switch Jumper Wire WPL 3394081 Contact Us For Availability

Nut WPL 3393930 Contact Us For Availability

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

3349673 Whirlpool Bracket Assembly Backorder WPL 3349673 $8.89

3350102 Whirlpool Hinge Assembly Backorder WPL 3350102 $11.90

W11108181 Whirlpool Shield Assembly Backorder WPL W11108181 $29.59

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $47.63

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $11.13

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.20

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

Laundry Center Dryer Push-to-Start Switch WPL 3405274 Contact Us For Availability

Shield WPL 3390336 Contact Us For Availability

Hex Nut WPL 3387709 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.73

W11299300 Whirlpool Bulkhead Assembly Backorder WPL W11299300 $125.51

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

WP3355458 Whirlpool Lid Switch In Stock WPL WP3355458 $31.92

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $85.47

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

3350145 Whirlpool Shield Assembly Backorder WPL 3350145 $8.00

W11236646 Whirlpool Washer Assembly In Stock WPL W11236646 $10.07

WP3363892 Whirlpool Water Pump In Stock WPL WP3363892 $41.25

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

WP3402724 Whirlpool Washer Base Backorder WPL WP3402724 $131.31

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $24.12

Amana Washer Base WPL 3349343 Contact Us For Availability

20

W11175815 Whirlpool Hinge Backorder WPL W11175815 $34.81

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.79

20

Switch WPL 62850 Contact Us For Availability

3349749 Whirlpool Restrainer Backorder WPL 3349749 $7.69

3389453 Whirlpool Hinge Assembly Backorder WPL 3389453 $32.06

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $8.34

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $6.50

W11116924 Whirlpool Locator Backorder WPL W11116924 $10.76

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.64

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Washer WPL 3349340 Contact Us For Availability

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

W11129408 Whirlpool Out Housing In Stock WPL W11129408 $23.71

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

O-Ring WPL 64002 Contact Us For Availability

23A

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

23C

3395683 Whirlpool Connector Backorder WPL 3395683 $35.69

285203 Whirlpool CP Bearing In Stock WPL 285203 $62.63

W10864899 Whirlpool Fabric Softener Dispenser In Stock WPL W10864899 $48.39

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

WP359364 Whirlpool Clip In Stock WPL WP359364 $3.88

Washer Cold Water Inlet Valve Wire Connector WPL 3354925 Contact Us For Availability

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

W10518375 Whirlpool Drum Assembly Backorder WPL W10518375 $163.03

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

Washer Bleach Dispenser Hose WPL 3948705 Contact Us For Availability

3389683 Whirlpool Cover Assembly Backorder WPL 3389683 $45.97

WP345670 Whirlpool Lock In Stock WPL WP345670 $3.88

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.96

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

Clip WPL 3355454 Contact Us For Availability

27

Drum Seal WPL 694694 Contact Us For Availability

29

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $7.27

29

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $2.51

30

3350144 Whirlpool Bracket Backorder WPL 3350144 $41.82

30

8066086 Whirlpool Plug Backorder WPL 8066086 $4.76

31

3393721 Whirlpool Bracket Backorder WPL 3393721 $9.53

33

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

33

WP8566209 Whirlpool Seal Backorder WPL WP8566209 $32.06

35

3390935 Whirlpool Clip Backorder WPL 3390935 $7.32

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $31.33

38

279704 Whirlpool Duct Assembly Backorder WPL 279704 $69.07

38

WP3389420 Whirlpool Screw Backorder WPL WP3389420 $2.51

39

279780 Whirlpool Plate Cover Backorder WPL 279780 $34.59

39

3350135 Whirlpool Lever Spring Backorder WPL 3350135 $8.09

40

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $32.34

42

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $12.85

44

WP692400 Whirlpool Nut In Stock WPL WP692400 $3.70

44

WP8544363 Whirlpool Housing Backorder WPL WP8544363 $62.79

45

279700 Whirlpool Duct Lint Backorder WPL 279700 $83.12

46

W10802681 Whirlpool Box Assembly In Stock WPL W10802681 $77.20

47

279816 Whirlpool Dryer Thermal Cut-Off Fuse K In Stock WPL 279816 $26.79

47

WP693304 Whirlpool Screw Backorder WPL WP693304 $2.51

48

WP3390291 Whirlpool High Limit Thermostat In Stock WPL WP3390291 $46.74

49

3389648 Whirlpool Bracket Assembly Backorder WPL 3389648 $9.53

50

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

50

WP3403607 Whirlpool Thermoprotector In Stock WPL WP3403607 $20.40

51

279318 Whirlpool Terminal In Stock WPL 279318 $44.05

51

WP3389644 Whirlpool Screen Assembly In Stock WPL WP3389644 $62.75

52

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $14.24

53

WP697557 Whirlpool Bulkhead Assembly Backorder WPL WP697557 $95.33

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.51

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $43.92

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $50.07
