Model Unimac UWT021*M Washer – Common Parts & Diagrams
Timer, Case and Plate
Coin Slide Meter Case and Service Door
Coin Slide Extension, Meter Case and Service Door

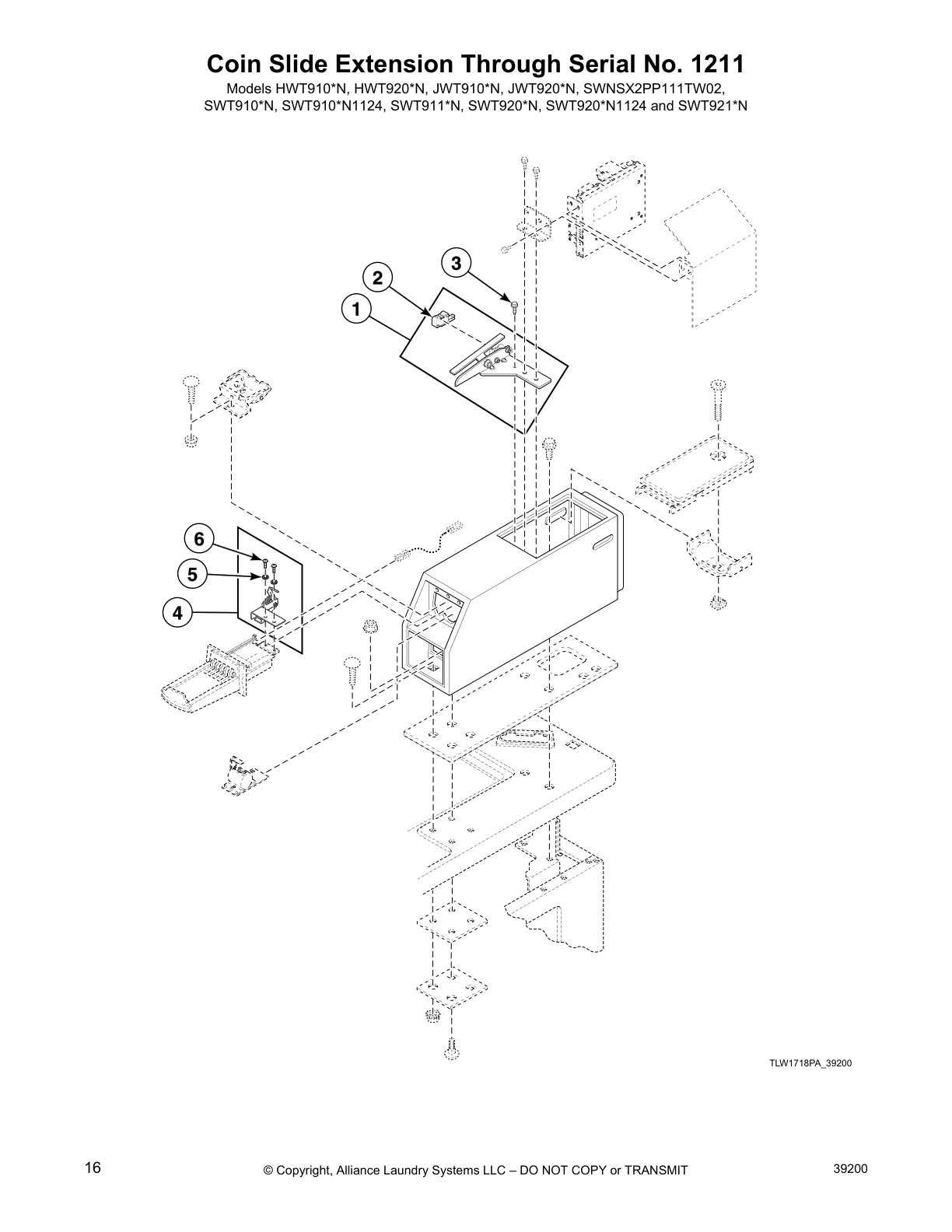

Coin Slide Extension Through Serial No. 1211
Coin Drop, Meter Case and Service Door
Timer Case
Security Case and Card Reader
Control Panel, Control Hood and Controls (Drawing 1 of 13)
Control Panel, Control Hood and Controls (Drawing 2 of 13)
Control Panel, Control Hood and Controls (Drawing 3 of 13)
Control Panel, Control Hood and Controls (Drawing 4 of 13)
Control Panel, Control Hood and Controls (Drawing 5 of 13)
Control Panel, Control Hood and Controls (Drawing 6 of 13)
Control Panel, Control Hood and Controls (Drawing 7 of 13)
Control Panel, Control Hood and Controls (Drawing 8 of 13)
Control Panel, Control Hood and Controls (Drawing 9 of 13)
Control Panel, Control Hood and Controls (Drawing 10 of 13)
Control Panel, Control Hood and Controls (Drawing 11 of 13)
Control Panel, Control Hood and Controls (Drawing 12 of 13)
Control Panel, Control Hood and Controls (Drawing 13 of 13)
Lid
Cabinet Top
Lid Switch
Mixing Valve
Fill Hose, Mixing Valve-to-Tub Cover Hose and Mounting Bracket
Motor, Mounting Bracket, Belt, Pump and Idler Assembly
Agitator, Drive Bell, Hub and Lip Seal Kit and Washtub
Agitator, Drive Bell, Hub and Seal Kit and Washtub
Outer Tub, Cover, Bearing and Seal Housing,
Pressure Hose and Counterweight
Outer Tub, Cover, Bearing Housing, Pressure Hose
and Counterweight
Transmission Assembly
Drain Hose and Siphon Break
Drain Hoses and Siphon Break Kit
Weldment and Bearing Assembly, Brake and Pulley
Front Panel, Base Assembly and Cabinet Kit
Mixing Valve and Motor Disconnect Blocks, Terminals and
Terminal Extractor Tool
Lead-In Cord
Terminals
Shipping Materials and Special Tools
Special Tools
Wire Harnesses and Wires (Drawing 1 of 2)
Wire Harnesses and Wires (Drawing 2 of 2)
Common parts from model Unimac UWT021*M Washer
SPQ 27762 SPQ 27762 Contact Us For Availability
2
Balance Ring Assembly SPQ 39836 Contact Us For Availability
4
Outer Tub Kit SPQ 37981P Contact Us For Availability
8
SPQ 39666 SPQ 39666 Contact Us For Availability
× ![]()
