Model Speed Queen SWT021*M Washer – Common Parts & Diagrams

Timer, Case and Plate

Coin Slide Meter Case and Service Door

Coin Slide Extension, Meter Case and Service Door

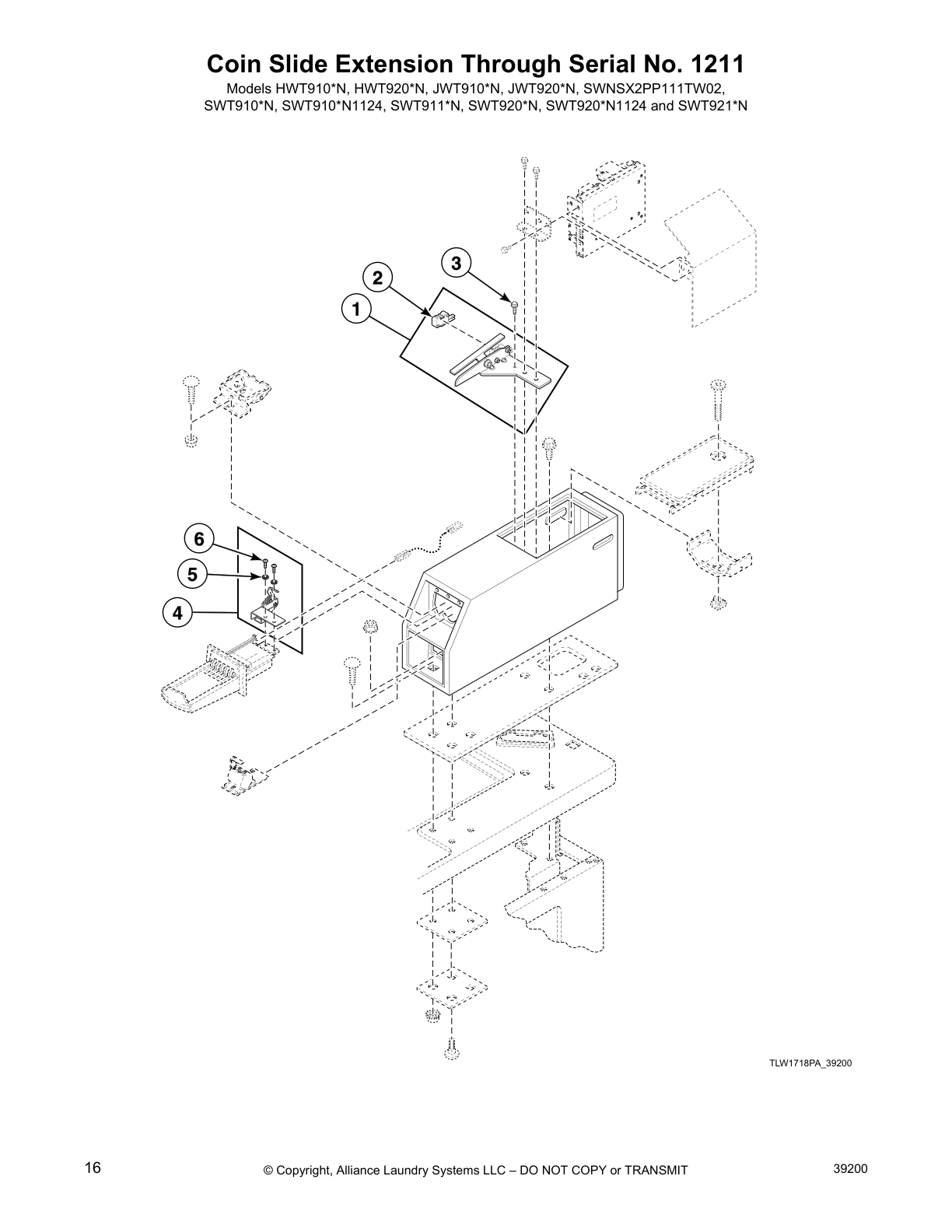

Coin Slide Extension Through Serial No. 1211

Coin Drop, Meter Case and Service Door

Timer Case

Security Case and Card Reader

Control Panel, Control Hood and Controls (Drawing 1 of 13)

Control Panel, Control Hood and Controls (Drawing 2 of 13)

Control Panel, Control Hood and Controls (Drawing 3 of 13)

Control Panel, Control Hood and Controls (Drawing 4 of 13)

Control Panel, Control Hood and Controls (Drawing 5 of 13)

Control Panel, Control Hood and Controls (Drawing 6 of 13)

Control Panel, Control Hood and Controls (Drawing 7 of 13)

Control Panel, Control Hood and Controls (Drawing 8 of 13)

Control Panel, Control Hood and Controls (Drawing 9 of 13)

Control Panel, Control Hood and Controls (Drawing 10 of 13)

Control Panel, Control Hood and Controls (Drawing 11 of 13)

Control Panel, Control Hood and Controls (Drawing 12 of 13)

Control Panel, Control Hood and Controls (Drawing 13 of 13)

Lid

Cabinet Top

Lid Switch

Mixing Valve

Fill Hose, Mixing Valve-to-Tub Cover Hose and Mounting Bracket

Motor, Mounting Bracket, Belt, Pump and Idler Assembly

Agitator, Drive Bell, Hub and Lip Seal Kit and Washtub

Agitator, Drive Bell, Hub and Seal Kit and Washtub

Outer Tub, Cover, Bearing and Seal Housing, Pressure Hose and Counterweight

Outer Tub, Cover, Bearing Housing, Pressure Hose and Counterweight

Transmission Assembly

Drain Hose and Siphon Break

Drain Hoses and Siphon Break Kit

Weldment and Bearing Assembly, Brake and Pulley

Front Panel, Base Assembly and Cabinet Kit

Mixing Valve and Motor Disconnect Blocks, Terminals and Terminal Extractor Tool

Lead-In Cord

Terminals

Shipping Materials and Special Tools

Special Tools

Wire Harnesses and Wires (Drawing 1 of 2)

Wire Harnesses and Wires (Drawing 2 of 2)

Common parts from model Speed Queen SWT021*M Washer

34443 Speed Queen Stabilizer and Leg Assembly Backorder SPQ 34443 $31.66

View on Model

36036 Speed Queen Right Side SLL Bracket In Stock SPQ 36036 $5.25

View on Model

38011 Speed Queen Idler Lever Backorder SPQ 38011 $4.92

View on Model

SPQ 36438 SPQ 36438 Contact Us For Availability

View on Model

SPQ 37577P SPQ 37577P Contact Us For Availability

View on Model

SPQ 27762 SPQ 27762 Contact Us For Availability

View on Model

34458 Speed Queen Lead-in Cord In Stock SPQ 34458 $20.00

View on Model

38155 Speed Queen MIX Valve Hose In Stock SPQ 38155 $18.94

View on Model

38495P Speed Queen 120 Volt Mixing Valve Backorder SPQ 38495P $181.60

View on Model

39169 Speed Queen Tub Cover Assembly Gasket Backorder SPQ 39169 $46.88

View on Model

Grommet SPQ 29175 Contact Us For Availability

View on Model

Tool Kit SPQ 725P3 Contact Us For Availability

View on Model

Wire Harness Assembly SPQ 38661P Contact Us For Availability

View on Model

Weldment and Bearing Assembly SPQ 39254 Contact Us For Availability

View on Model

Agitator Cap SPQ 36515 Contact Us For Availability

View on Model

Output Shaft SPQ 36570P Contact Us For Availability

View on Model

Shipping Brace SPQ 200552 Contact Us For Availability

View on Model

Screw SPQ D503673 Contact Us For Availability

View on Model

Motor Shield SPQ 34754 Contact Us For Availability

View on Model

321P4 Speed Queen Spring Tool Hook In Stock SPQ 321P4 $12.30

View on Model

38149 Speed Queen Plug Backorder SPQ 38149 $2.84

View on Model

Agitate and Spin Belt SPQ 205217P Contact Us For Availability

View on Model

Tubing SPQ 205241 Contact Us For Availability

View on Model

Light SPQ D500226 Contact Us For Availability

View on Model

Screw SPQ 33562 Contact Us For Availability

View on Model

Screw SPQ D501086 Contact Us For Availability

View on Model

Balance Ring Assembly SPQ 39836 Contact Us For Availability

View on Model

28293 Speed Queen Black Drain Hose Rubber Backorder SPQ 28293 $78.03

View on Model

293P4 Speed Queen Seal Install Tool In Stock SPQ 293P4 $31.02

View on Model

294P4 Speed Queen Agitator Drive Bell Puller In Stock SPQ 294P4 $136.43

View on Model

33223P Speed Queen Transmission Case Assembly Backorder SPQ 33223P $180.75

View on Model

Brake Pad Kit SPQ 735P3 Contact Us For Availability

View on Model

Cable Clip SPQ 202700 Contact Us For Availability

View on Model

Lid SPQ 204615W Contact Us For Availability

View on Model

Washer SPQ 27202 Contact Us For Availability

View on Model

Meter Case Mounting Bracket Assembly SPQ 56128 Contact Us For Availability

View on Model

27761 Speed Queen 3-Position Switch In Stock SPQ 27761 $18.76

View on Model

SPQ 38034P SPQ 38034P Contact Us For Availability

View on Model

Silicone Grease SPQ 204253 Contact Us For Availability

View on Model

Mounting Tool Kit SPQ CK096 Contact Us For Availability

View on Model

Drive Pinion SPQ RB150004 Contact Us For Availability

View on Model

Water Hose SPQ 39407 Contact Us For Availability

View on Model

Leg and Stabilizer Assembly SPQ 36226 Contact Us For Availability

View on Model

Washtub Gasket SPQ 28094 Contact Us For Availability

View on Model

6 Circuit Receptacle SPQ 55881 Contact Us For Availability

View on Model

Outer Tub Kit SPQ 37981P Contact Us For Availability

View on Model

27243P Speed Queen Oil CW Transmission In Stock SPQ 27243P $59.37

View on Model

306P4 Speed Queen Washer Hex Wrench In Stock SPQ 306P4 $23.63

View on Model

33445 Speed Queen SPST Switch In Stock SPQ 33445 $5.71

View on Model

Ratchet Extension Tool SPQ 310P4 Contact Us For Availability

View on Model

Washer SPQ F200116 Contact Us For Availability

View on Model

Spline Insert SPQ 39122 Contact Us For Availability

View on Model

Hinge Gasket SPQ 34337 Contact Us For Availability

View on Model

Screw SPQ 39739 Contact Us For Availability

View on Model

Hose Clamp SPQ 36985 Contact Us For Availability

View on Model

Top Assembly SPQ 38384 Contact Us For Availability

View on Model

254P4P Speed Queen Agitator Hook In Stock SPQ 254P4P $75.88

View on Model

Washer SPQ 35535 Contact Us For Availability

View on Model

SPQ 38612WP SPQ 38612WP Contact Us For Availability

View on Model

Washer SPQ 802254 Contact Us For Availability

View on Model

Pump-to-Drain Elbow Hose SPQ 38351 Contact Us For Availability

View on Model

Tub Cover and Gasket Assembly SPQ 39282 Contact Us For Availability

View on Model

SPQ 10416 SPQ 10416 Contact Us For Availability

View on Model

27015 Speed Queen Flat Washer .630 In Stock SPQ 27015 $4.92

View on Model

34338 Speed Queen Hinge Gasket In Stock SPQ 34338 $4.92

View on Model

Nut SPQ 29728 Contact Us For Availability

View on Model

Fill Hose SPQ 803615 Contact Us For Availability

View on Model

Tub Cover Gasket SPQ 38573 Contact Us For Availability

View on Model

20618 Speed Queen Inlet Hose 10 Feet Backorder SPQ 20618 $23.20

View on Model

38273 Speed Queen Hose Pump to Drain Elbow Backorder SPQ 38273 $35.41

View on Model

646P3 Speed Queen Hub and Seal Kit with Seala In Stock SPQ 646P3 $283.47

View on Model

SPQ 204486 SPQ 204486 Contact Us For Availability

View on Model

SPQ 202032 SPQ 202032 Contact Us For Availability

View on Model

Grease SPQ 29220 Contact Us For Availability

View on Model

Lid Hinge SPQ 36474 Contact Us For Availability

View on Model

20617 Speed Queen Inlet Hose 8 Feet Backorder SPQ 20617 $31.33

View on Model

33446 Speed Queen Washer Bushing In Stock SPQ 33446 $4.92

View on Model

SPQ 39666 SPQ 39666 Contact Us For Availability

View on Model

SPQ 26509 SPQ 26509 Contact Us For Availability

View on Model

Bell and Transmission Tube Seal SPQ 36765P Contact Us For Availability

View on Model

SPQ 23008 SPQ 23008 Contact Us For Availability

View on Model

28716P Speed Queen Timer 115/60 Pack Speed Qu In Stock SPQ 28716P $423.47

View on Model

36990 Speed Queen Restricted Drain Hose Elbow Backorder SPQ 36990 $8.49

View on Model

Rubber Foot SPQ 34318 Contact Us For Availability

View on Model

Helix SPQ 38008 Contact Us For Availability

View on Model

Nut SPQ 36020 Contact Us For Availability

View on Model

Screw SPQ 27229 Contact Us For Availability

View on Model

Backflow Preventer SPQ 34500 Contact Us For Availability

View on Model

Tub Assembly SPQ 204429P Contact Us For Availability

View on Model

Leg Plate SPQ 27926 Contact Us For Availability

View on Model

210186 Speed Queen Idler Shaft In Stock SPQ 210186 $5.71

View on Model

27182 Speed Queen Upper Bearing Housing Assem In Stock SPQ 27182 $43.72

View on Model

28944RP Speed Queen Washer Upper or Lower Bea In Stock SPQ 28944RP $24.76

View on Model

Base Assembly SPQ 39788 Contact Us For Availability

View on Model

Drive Bell and Seal Kit SPQ 39508P Contact Us For Availability

View on Model

Screw SPQ 32814 Contact Us For Availability

View on Model

21899 Speed Queen Hex Nut 1/2-13 Backorder SPQ 21899 $4.92

View on Model

Shaft SPQ 56461P Contact Us For Availability

View on Model

Transmission Assembly SPQ 38165P Contact Us For Availability

View on Model

Leg Spring SPQ 37576 Contact Us For Availability

View on Model

Screw SPQ 39432 Contact Us For Availability

View on Model

34319 Speed Queen Leveling Leg 1/2-13 x 1.87 In Stock SPQ 34319 $4.92

View on Model

Control Panel Bumper SPQ 35889P Contact Us For Availability

View on Model

Washer SPQ D504082 Contact Us For Availability

View on Model

Bell Plug SPQ 36511 Contact Us For Availability

View on Model

Counterweight Assembly SPQ 39566 Contact Us For Availability

View on Model

Timer Case Assembly SPQ 23962 Contact Us For Availability

View on Model

Transmission Cover Assembly SPQ 37471 Contact Us For Availability

View on Model

37937 Speed Queen Friction Ring In Stock SPQ 37937 $21.50

View on Model

Retaining Ring SPQ 52549 Contact Us For Availability

View on Model

Agitator SPQ 33174 Contact Us For Availability

View on Model

27222 Speed Queen Nut Retainer Backorder SPQ 27222 $4.92

View on Model

Idler Pulley SPQ 23748 Contact Us For Availability

View on Model

Bracket SPQ 36037 Contact Us For Availability

View on Model

Pressure Bulb SPQ 39249 Contact Us For Availability

View on Model

566P3 Speed Queen Adjustable Leg Extension Ki In Stock SPQ 566P3 $54.11

View on Model

Slide SPQ 29260 Contact Us For Availability

View on Model

Pump Assembly Kit SPQ 959P3 Contact Us For Availability

View on Model

26493 Speed Queen Slide Assembly Backorder SPQ 26493 $6.08

View on Model

Switch SPQ 39897 Contact Us For Availability

View on Model

Panel Locator SPQ 28102 Contact Us For Availability

View on Model

Belt and Pump Kit SPQ 205218P Contact Us For Availability

View on Model

Agitator Pinion SPQ 201664 Contact Us For Availability

View on Model

Washer SPQ 24205 Contact Us For Availability

View on Model

38359 Speed Queen Large Washer Tub Cover Gask In Stock SPQ 38359 $8.56

View on Model

Spring Clip SPQ RB150003 Contact Us For Availability

View on Model

Front Panel Brace SPQ 204870 Contact Us For Availability

View on Model

27003 Speed Queen Series Current Relay Backorder SPQ 27003 $11.11

View on Model

52566 Speed Queen Hex Nut 1/4-20 Jam UNC ZNC In Stock SPQ 52566 $4.92

View on Model

52909 Speed Queen Tap-HXWAHD 10B-16X.5 Screw Backorder SPQ 52909 $4.92

View on Model

Motor Mount and Isolator Assembly SPQ 38174 Contact Us For Availability

View on Model

Hold-Down Lug Hinge SPQ 35865 Contact Us For Availability

View on Model

210202 Speed Queen Spring Clip In Stock SPQ 210202 $4.92

View on Model

35369 Speed Queen 5/16-18 x 1/2 Hex Flange Sc Backorder SPQ 35369 $4.92

View on Model

Service Cabinet Kit SPQ 35097 Contact Us For Availability

View on Model

Motor Kit SPQ 204062 Contact Us For Availability

View on Model

200941 Speed Queen Motor Mount Bracket Backorder SPQ 200941 $33.09

View on Model

Roll Pin SPQ 37377 Contact Us For Availability

View on Model

SPQ 37772 SPQ 37772 Contact Us For Availability

View on Model

122P4P Speed Queen Paint, Porcelain Touch Backorder SPQ 122P4P $38.03

View on Model

20290 Speed Queen Washer 19/32" ID x 1.031" O In Stock SPQ 20290 $4.92

View on Model

23033 Speed Queen 9-Circuit Plug Backorder SPQ 23033 $1.59

View on Model

27604P Speed Queen Anti-Seize Compound, 1 oz In Stock SPQ 27604P $5.01

View on Model

283P4 Speed Queen Terminal Extractor Tool Backorder SPQ 283P4 $60.87

View on Model

45380 Speed Queen Wire 12GA ORG/PER FT Backorder SPQ 45380 $4.92

View on Model

SPQ 36437 SPQ 36437 Contact Us For Availability

View on Model

SPQ 36425 SPQ 36425 Contact Us For Availability

View on Model

SPQ 27220 SPQ 27220 Contact Us For Availability

View on Model

SPQ 21685 SPQ 21685 Contact Us For Availability

View on Model

SPQ RB150001 SPQ RB150001 Contact Us For Availability

View on Model

SPQ 24122 SPQ 24122 Contact Us For Availability

View on Model

SPQ 81392 SPQ 81392 Contact Us For Availability

View on Model

SPQ 32464 SPQ 32464 Contact Us For Availability

View on Model

SPQ 38267 SPQ 38267 Contact Us For Availability

View on Model

18 Gauge Wire SPQ 45001 Contact Us For Availability

View on Model

Model Speed Queen SWT021*M Washer – Common Parts & Diagrams

Common parts from model Speed Queen SWT021*M Washer

Search result for :
