Model Speed Queen SWNSX2SP112TQ01 Washer – Common Parts & Diagrams
Coin Slide Extension, Meter Case and Control
Meter Case

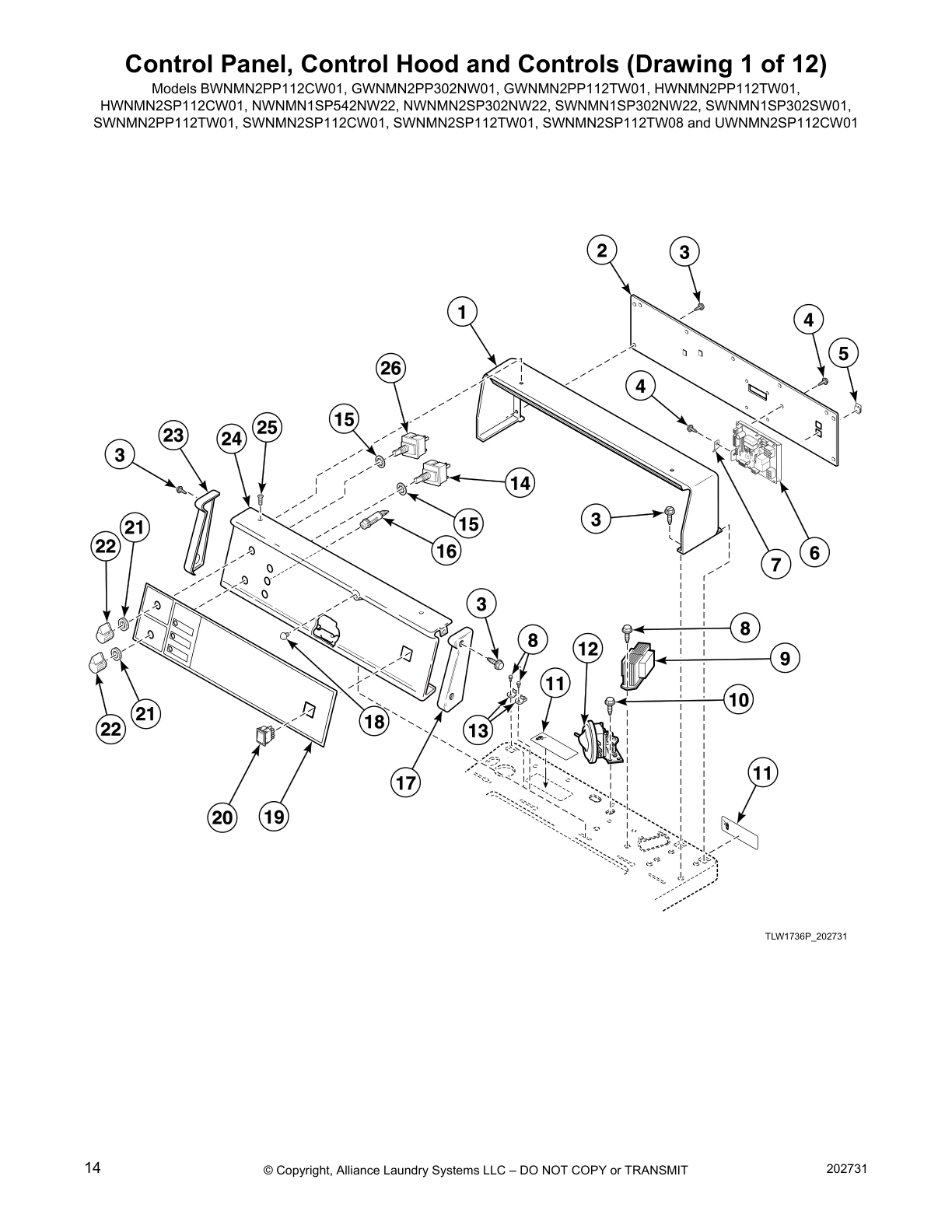

Control Panel, Control Hood and Controls (Drawing 1 of 12)

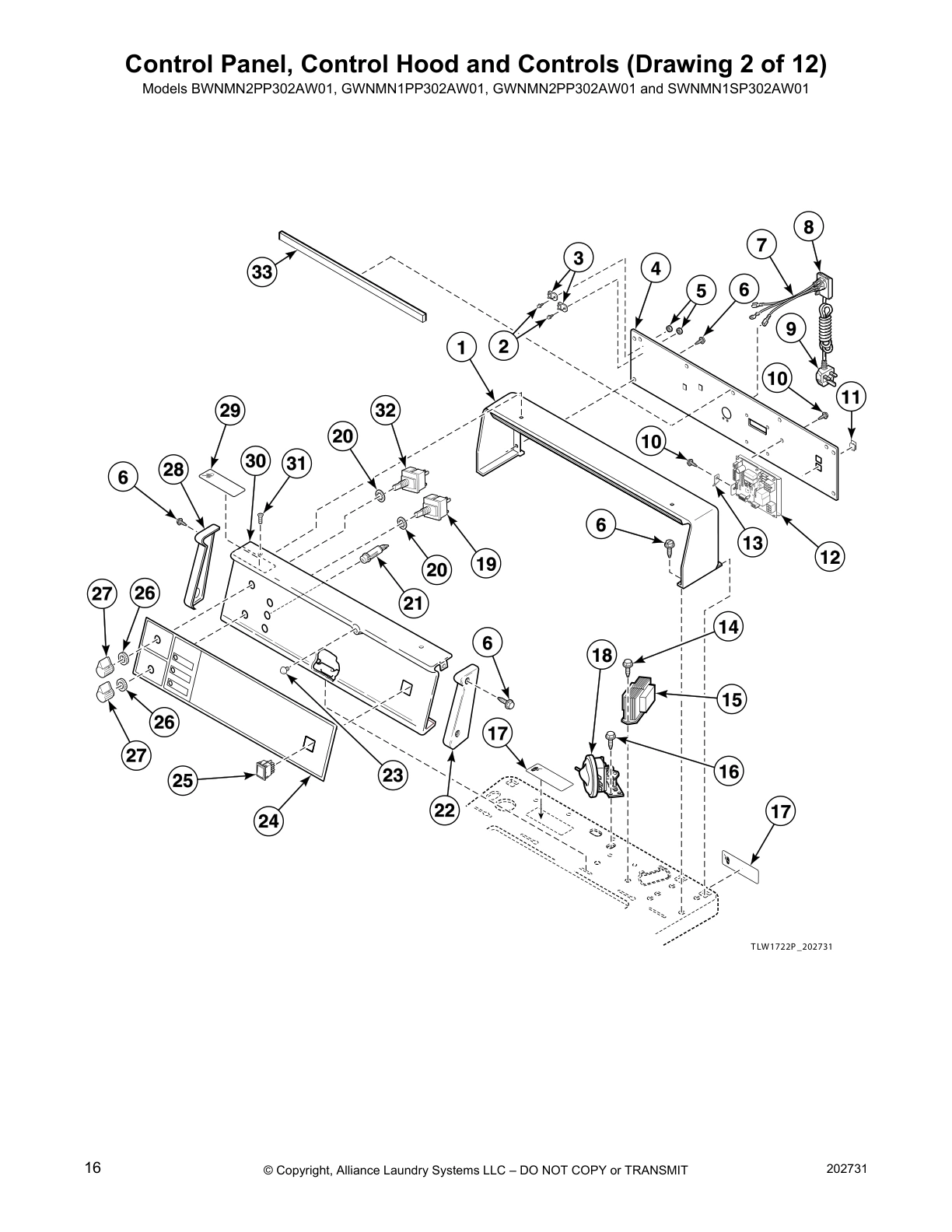

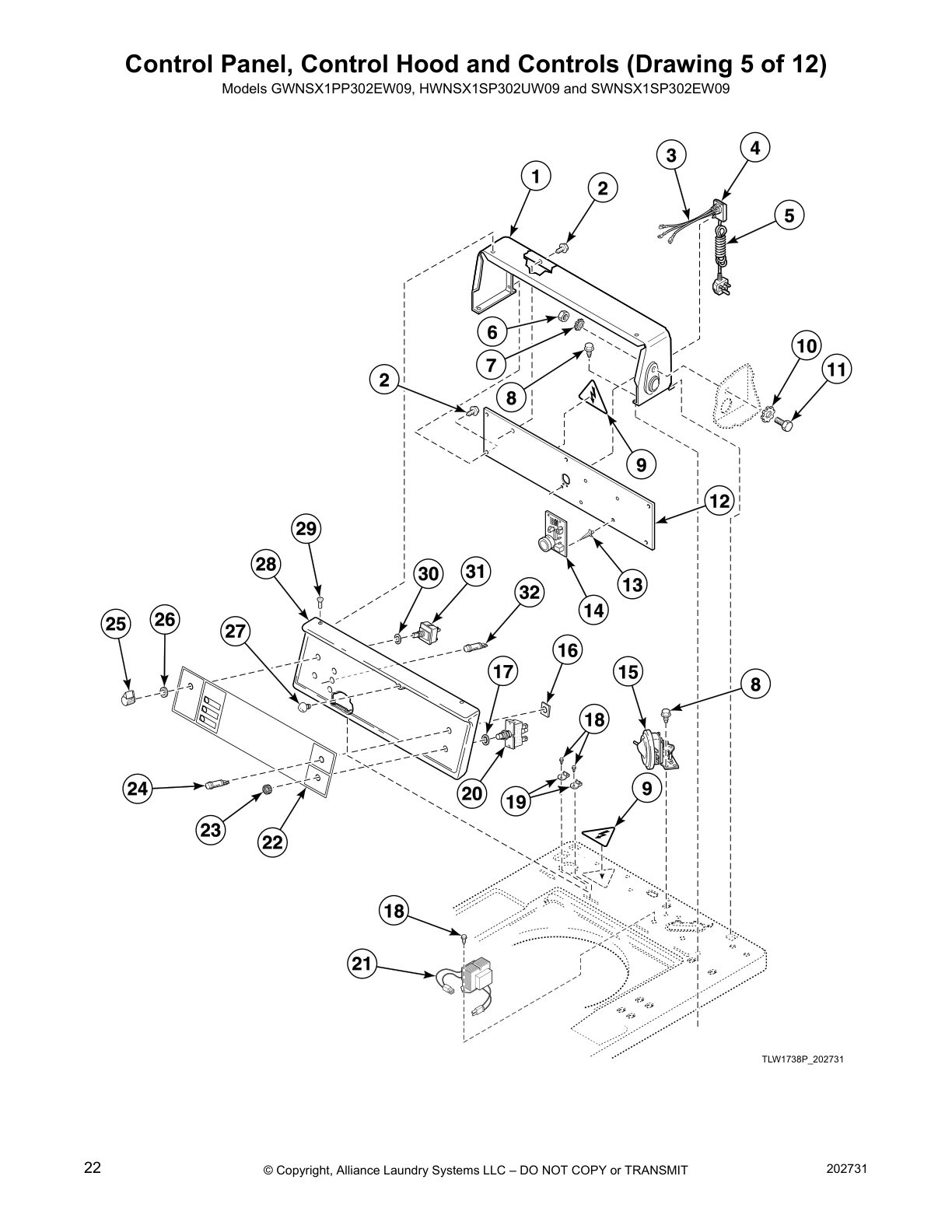

Control Panel, Control Hood and Controls (Drawing 2 of 12)

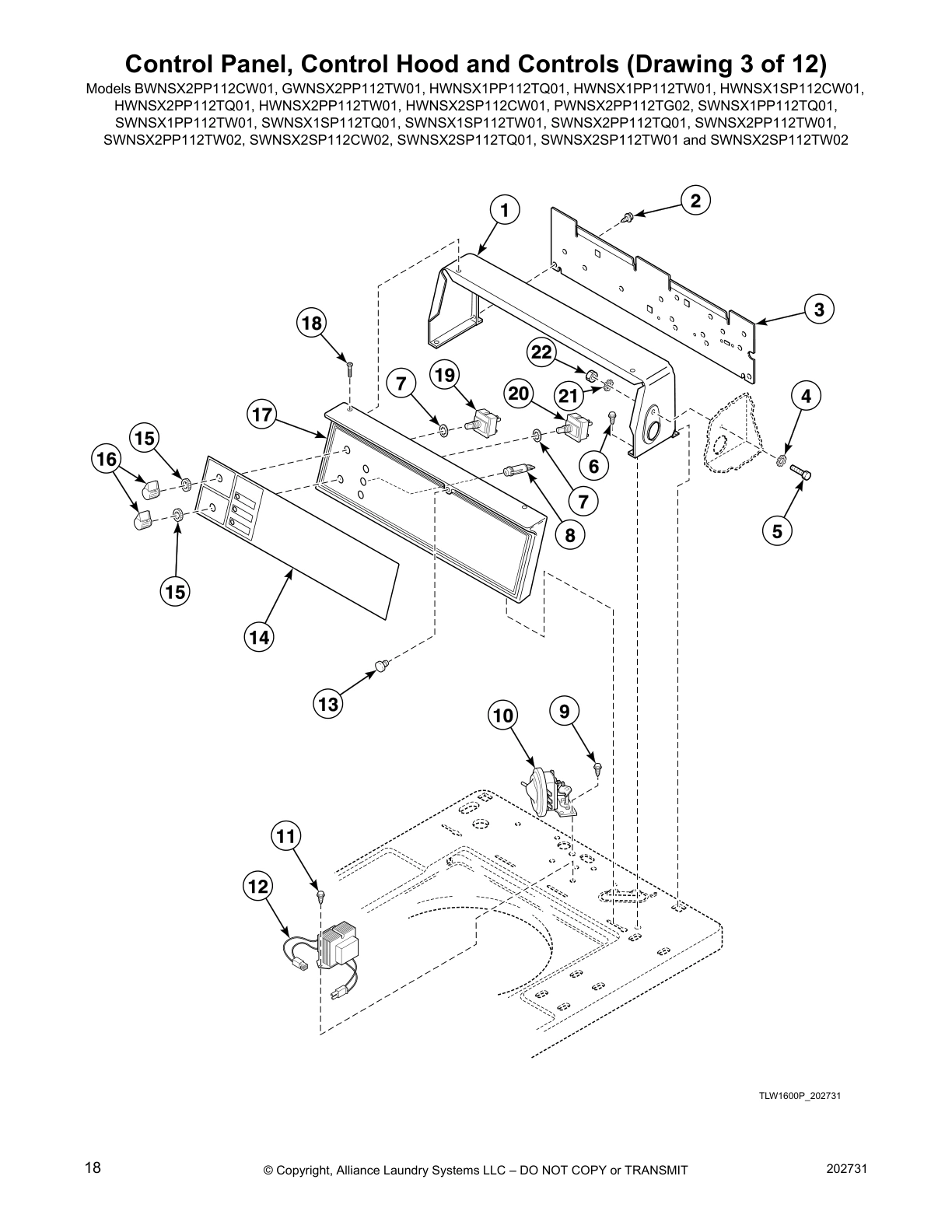

Control Panel, Control Hood and Controls (Drawing 3 of 12)

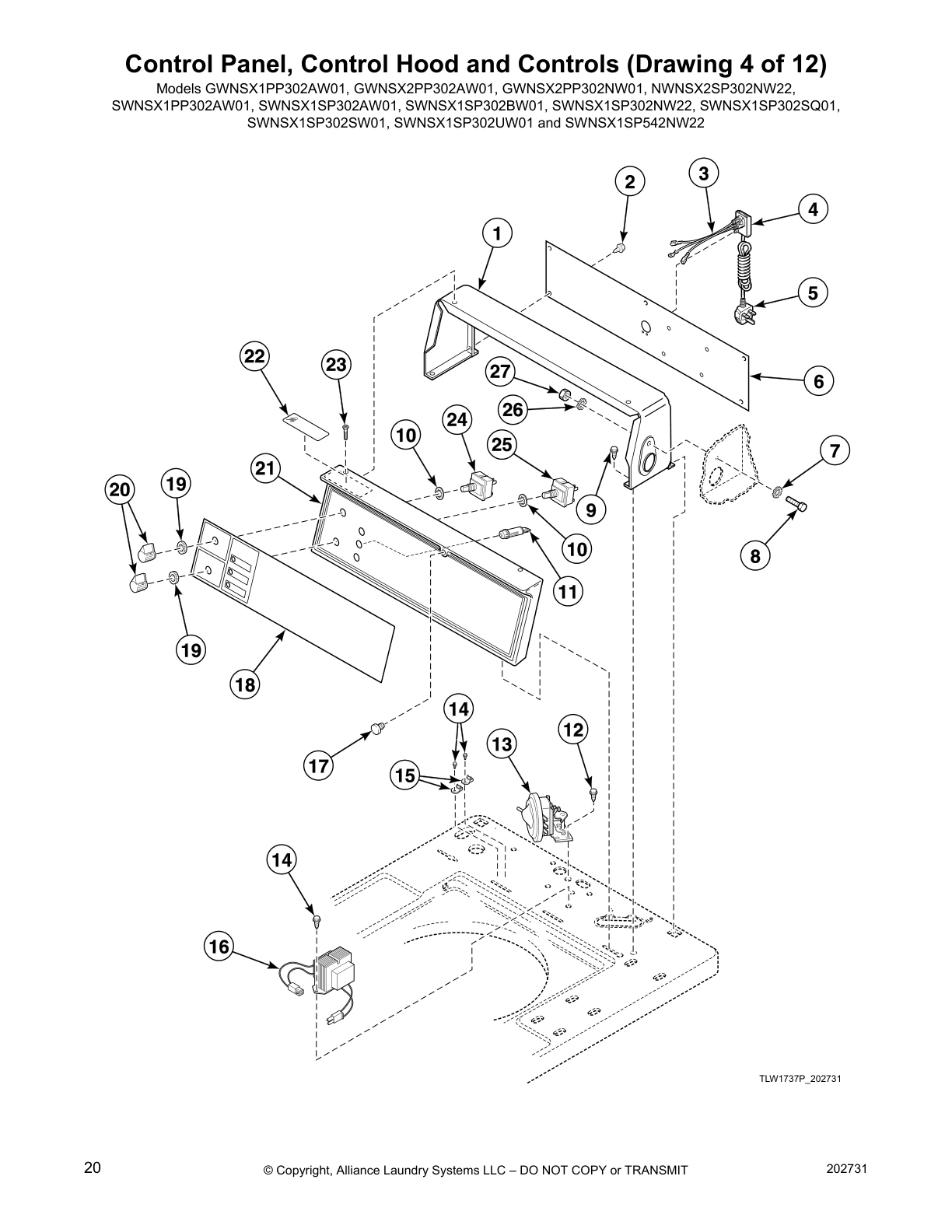

Control Panel, Control Hood and Controls (Drawing 4 of 12)
Control Panel, Control Hood and Controls (Drawing 5 of 12)

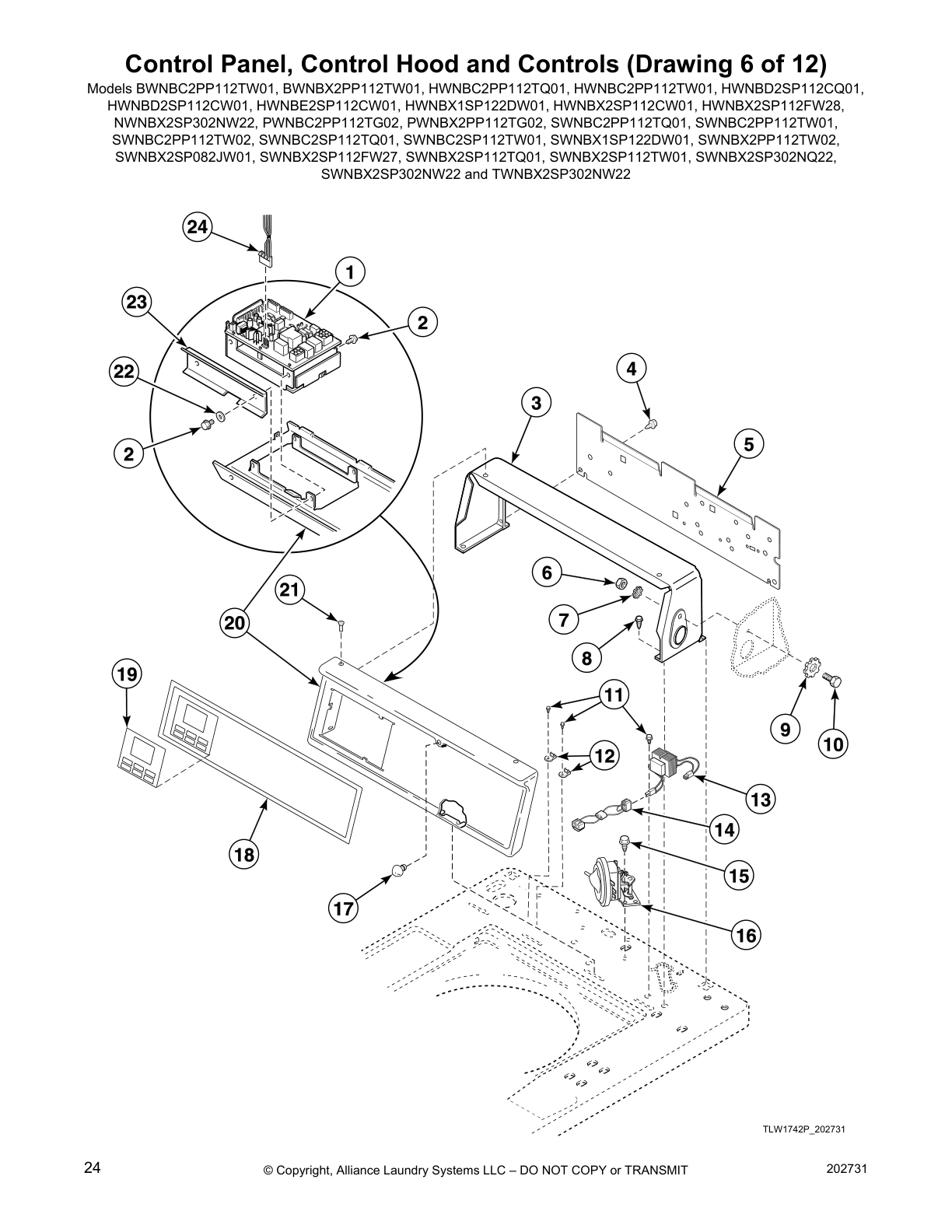

Control Panel, Control Hood and Controls (Drawing 6 of 12)

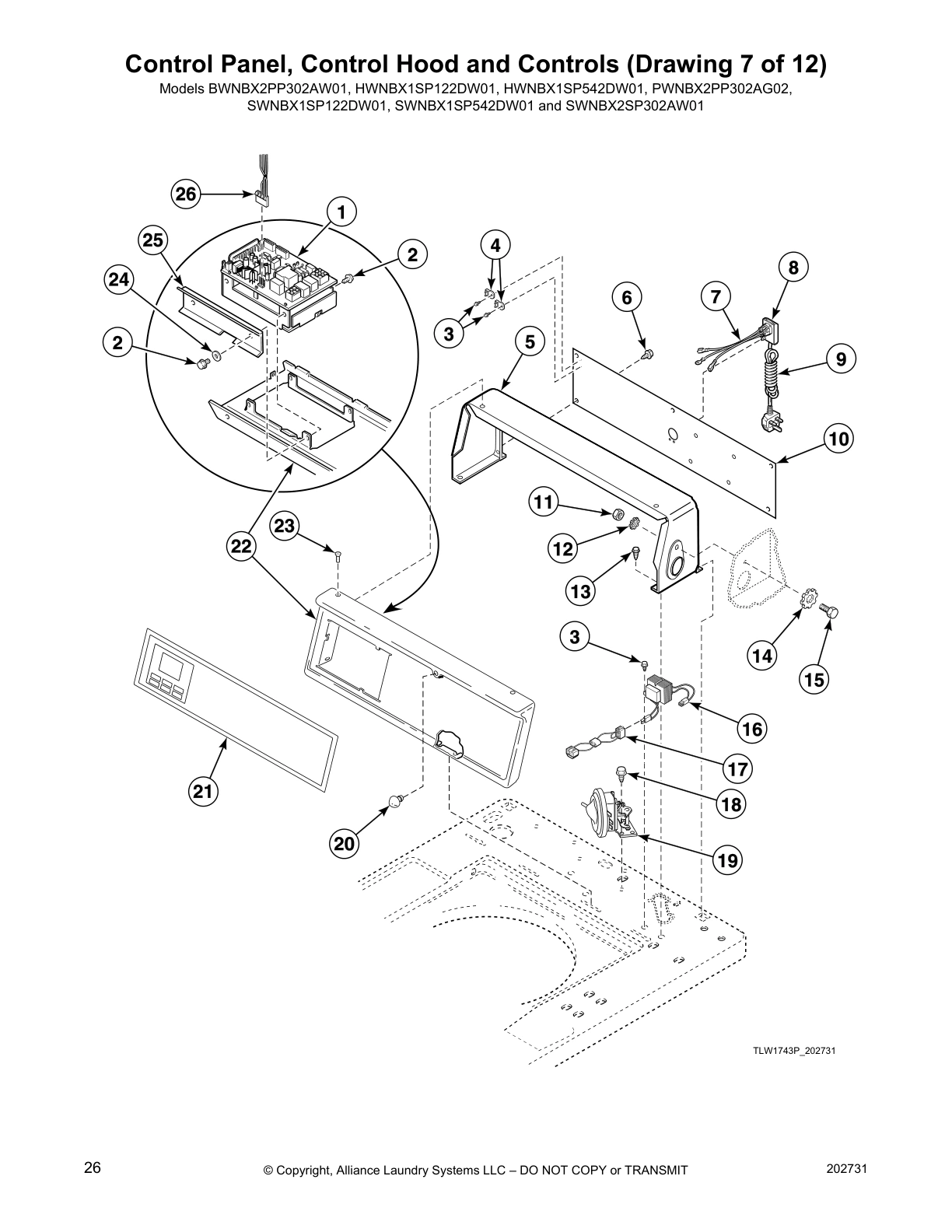

Control Panel, Control Hood and Controls (Drawing 7 of 12)

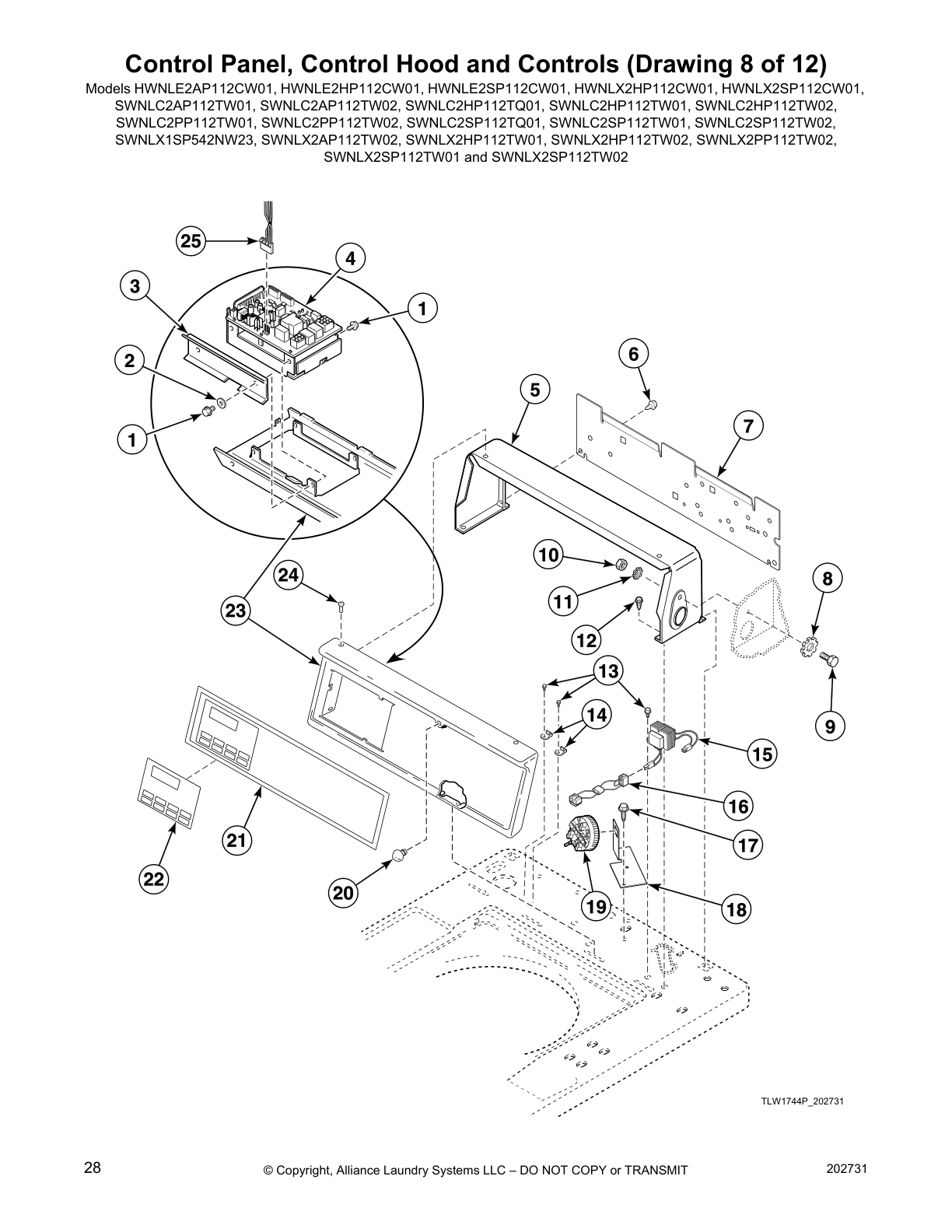

Control Panel, Control Hood and Controls (Drawing 8 of 12)

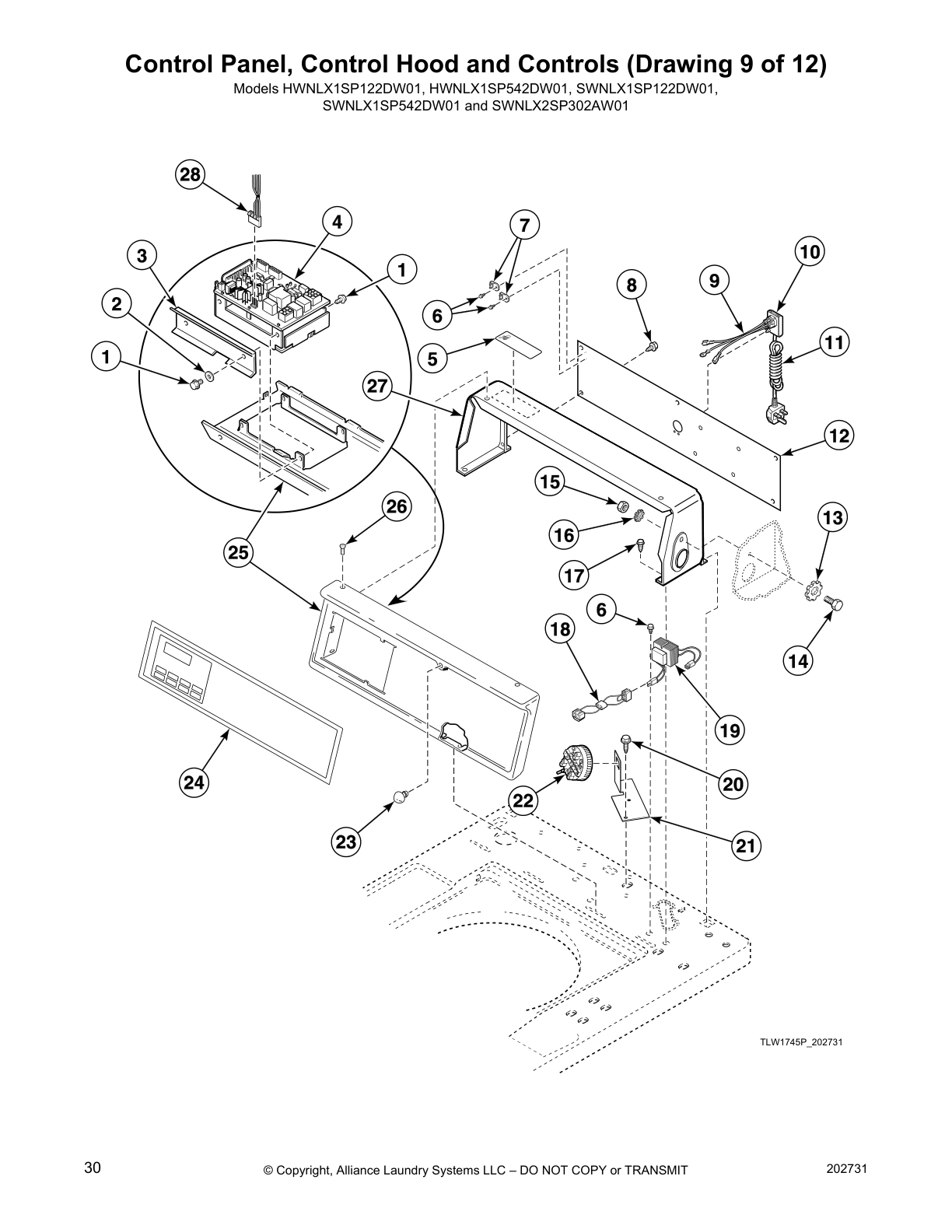

Control Panel, Control Hood and Controls (Drawing 9 of 12)

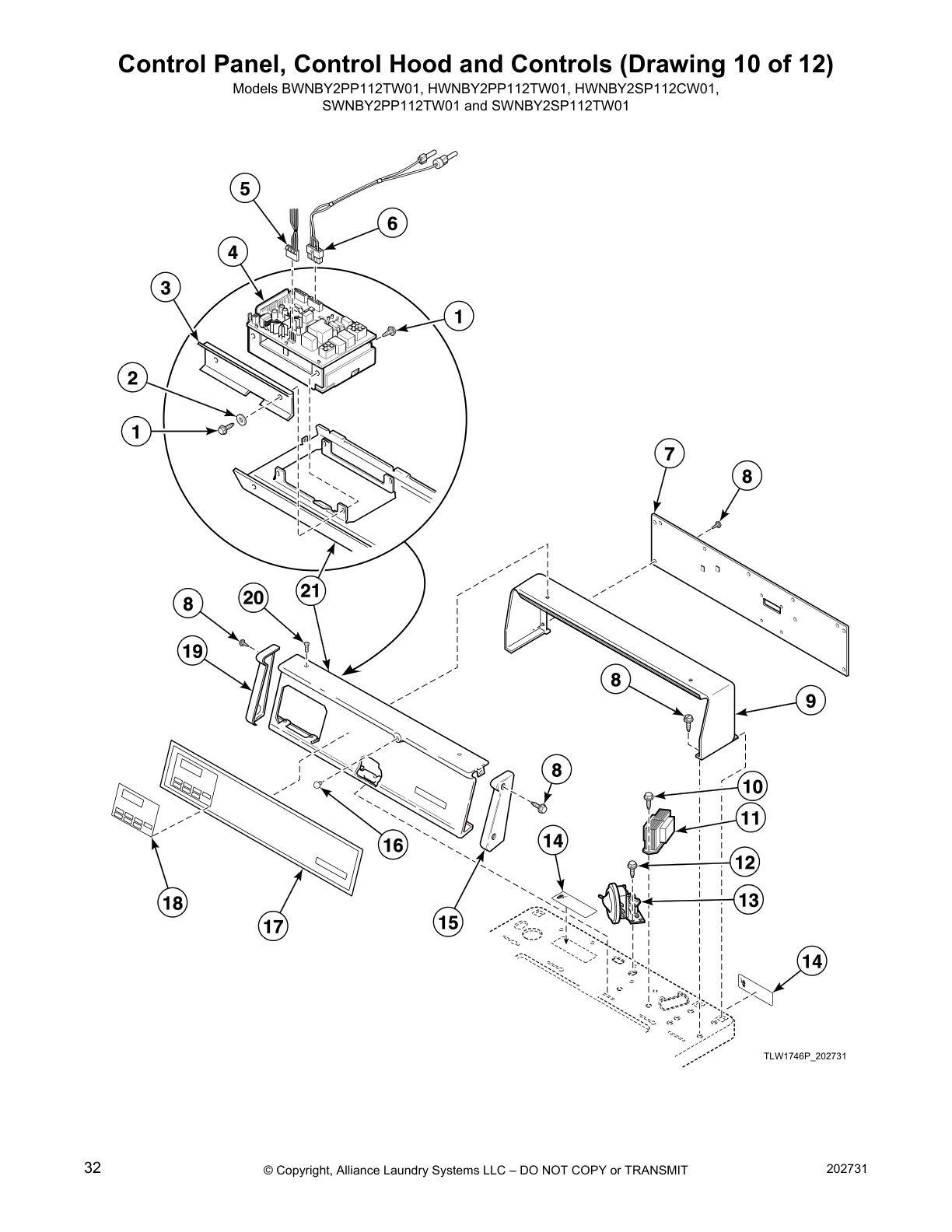

Control Panel, Control Hood and Controls (Drawing 10 of 12)
Control Panel, Control Hood and Controls (Drawing 11 of 12)
Control Panel, Control Hood and Controls (Drawing 12 of 12)

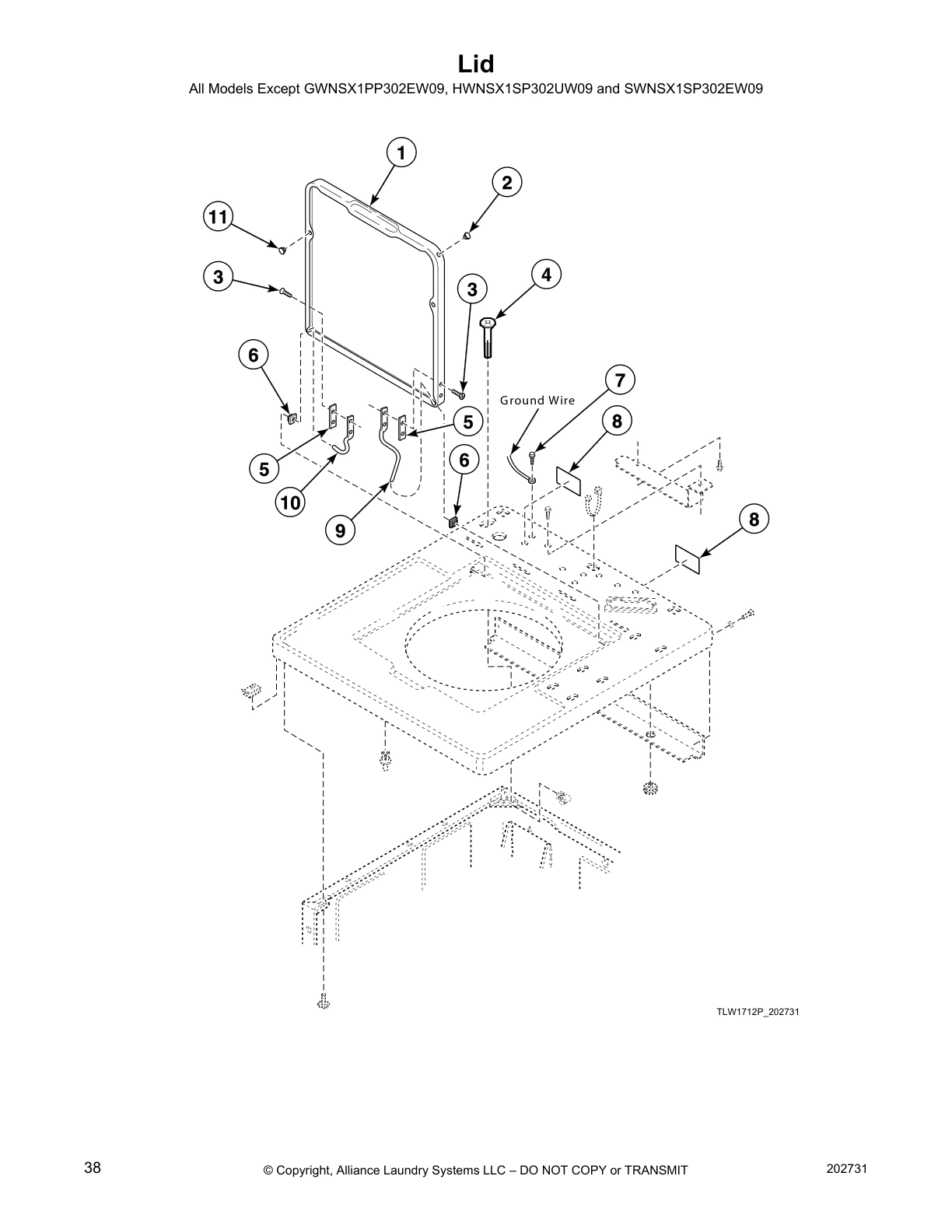

Lid
Cabinet Top
Lid, Lid Lock and Cabinet Top

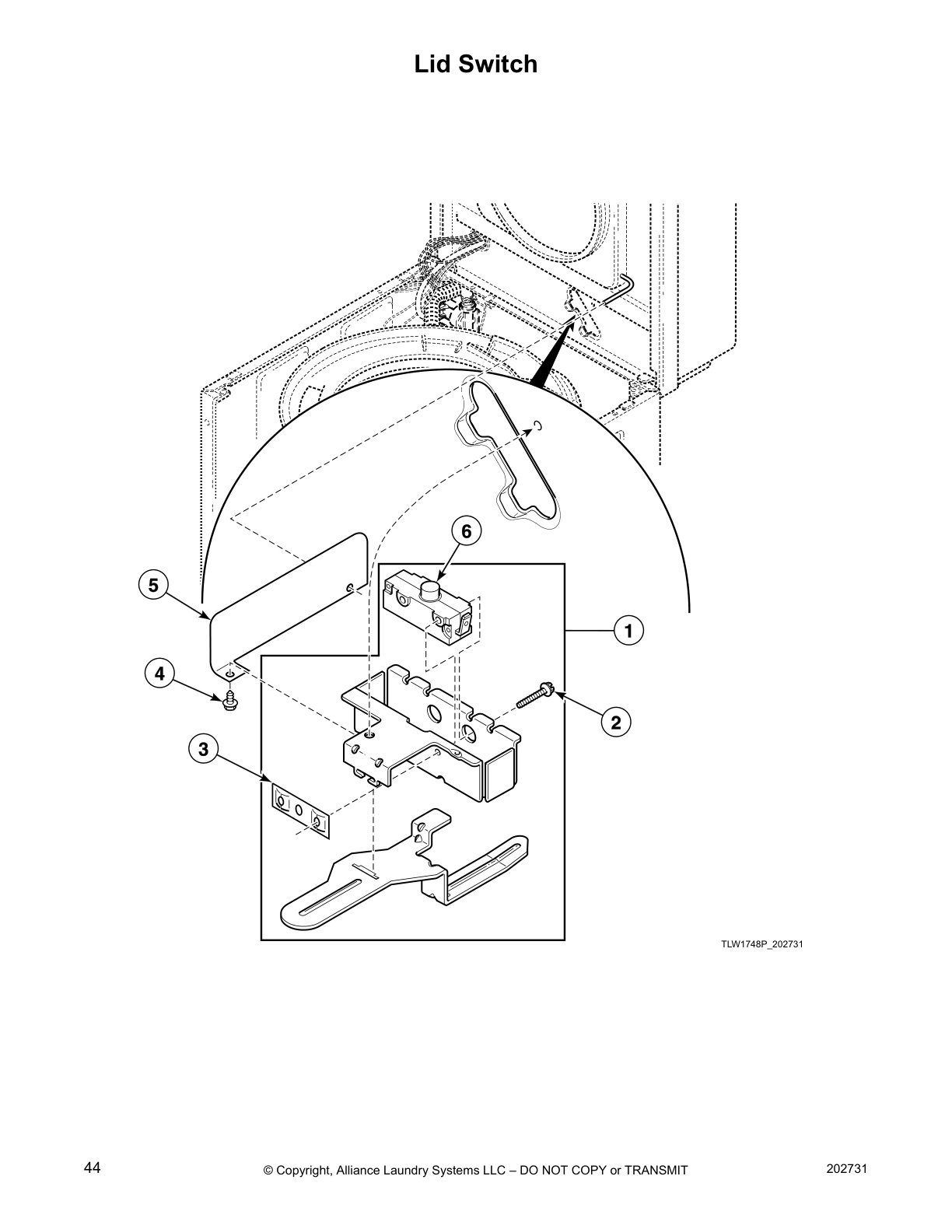

Lid Switch

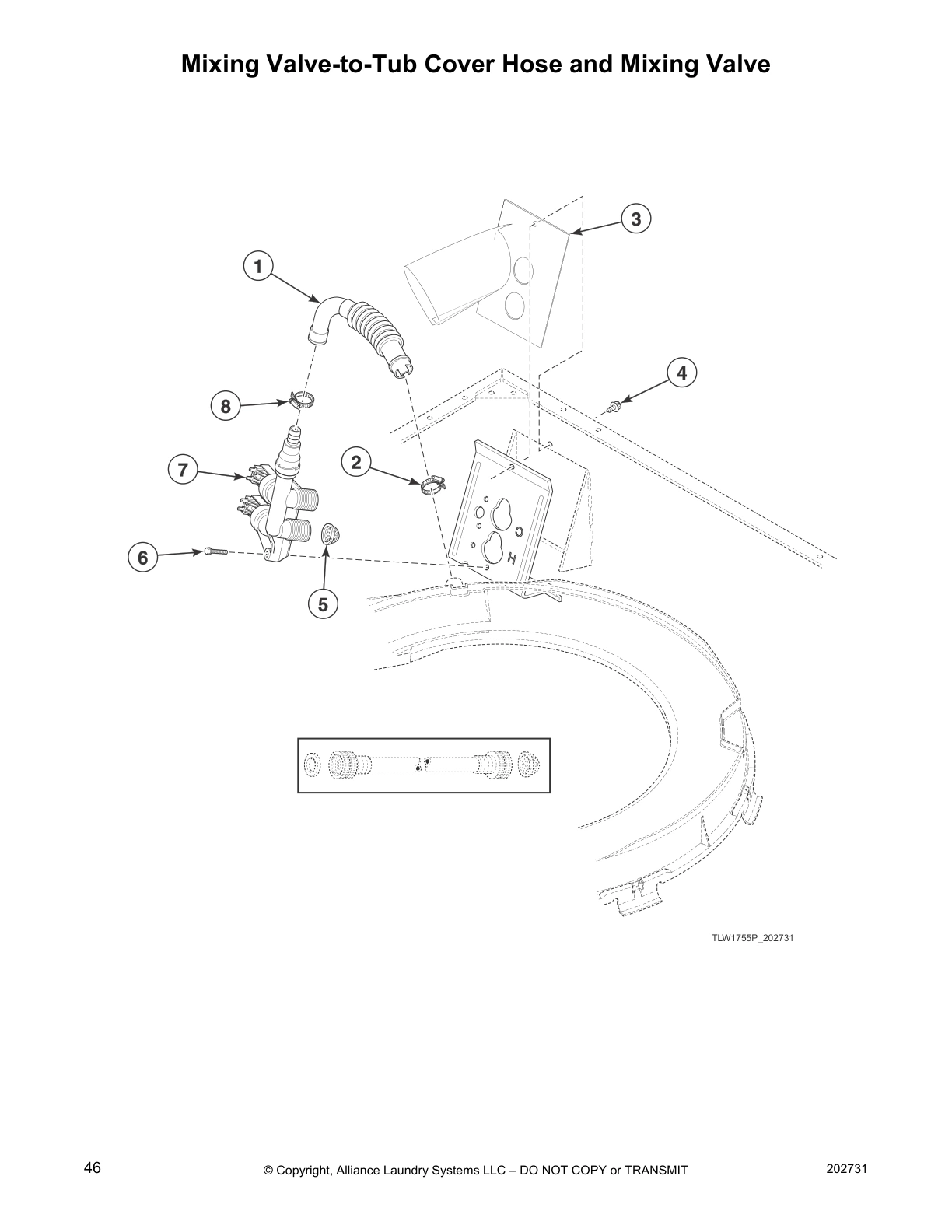

Mixing Valve-to-Tub Cover Hose and Mixing Valve

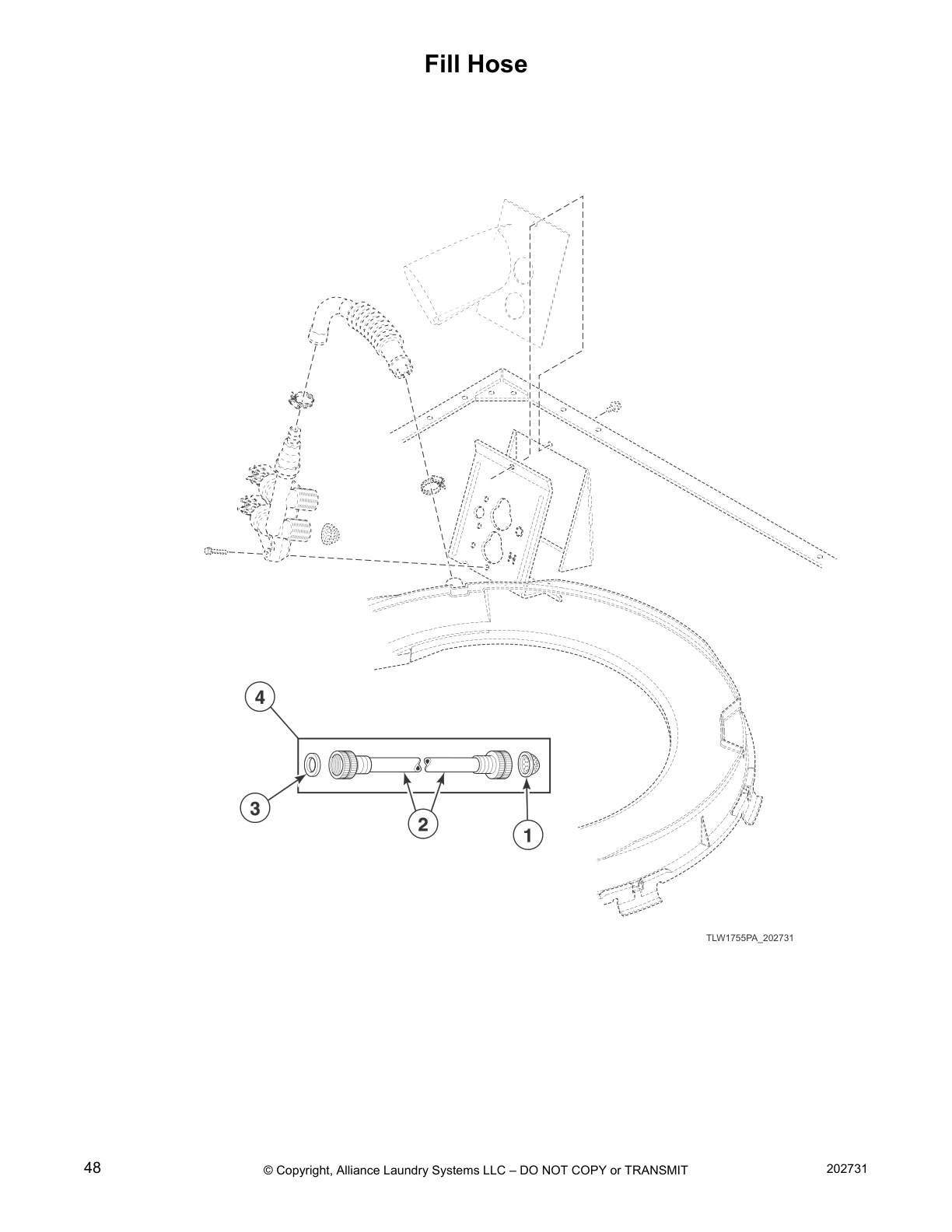

Fill Hose

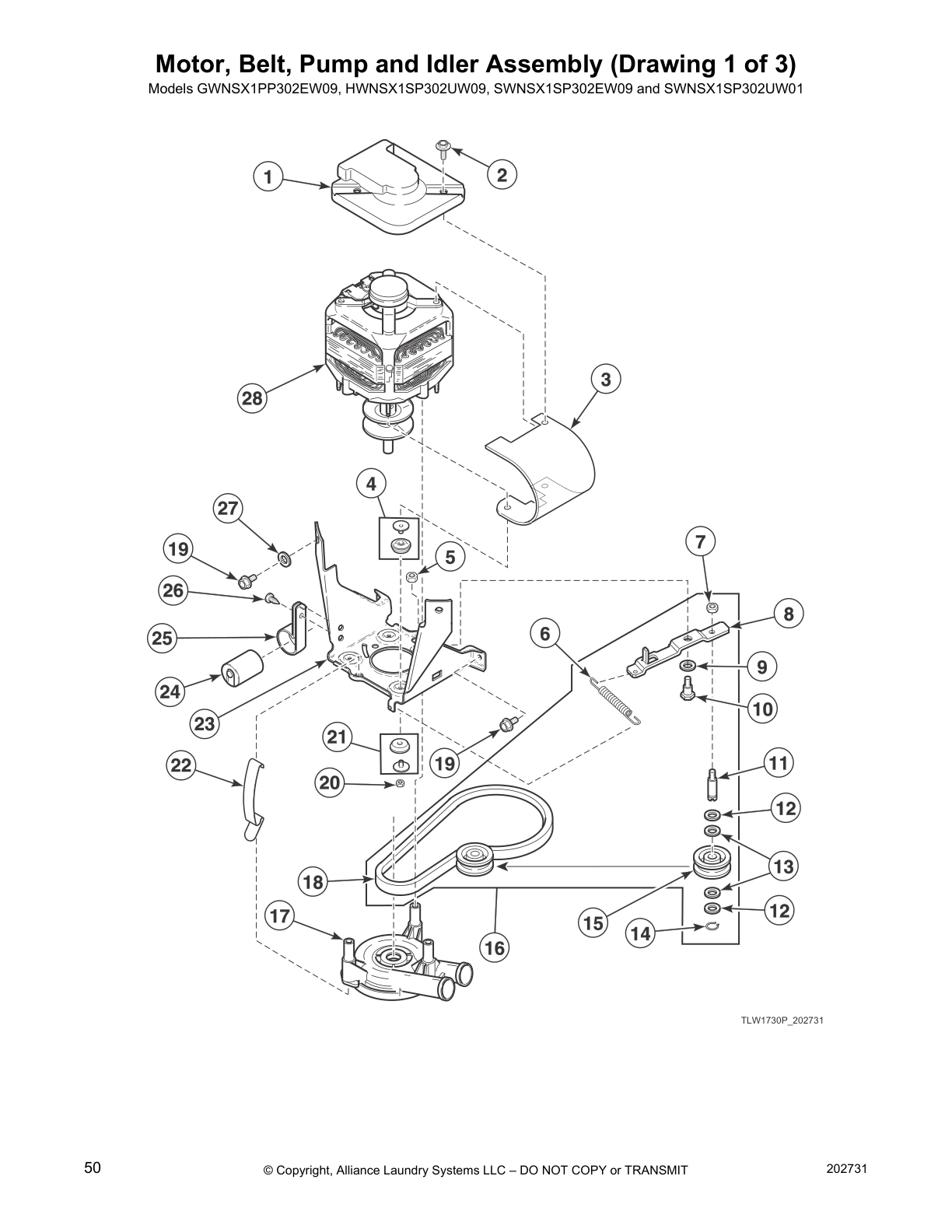

Motor, Belt, Pump and Idler Assembly (Drawing 1 of 3)

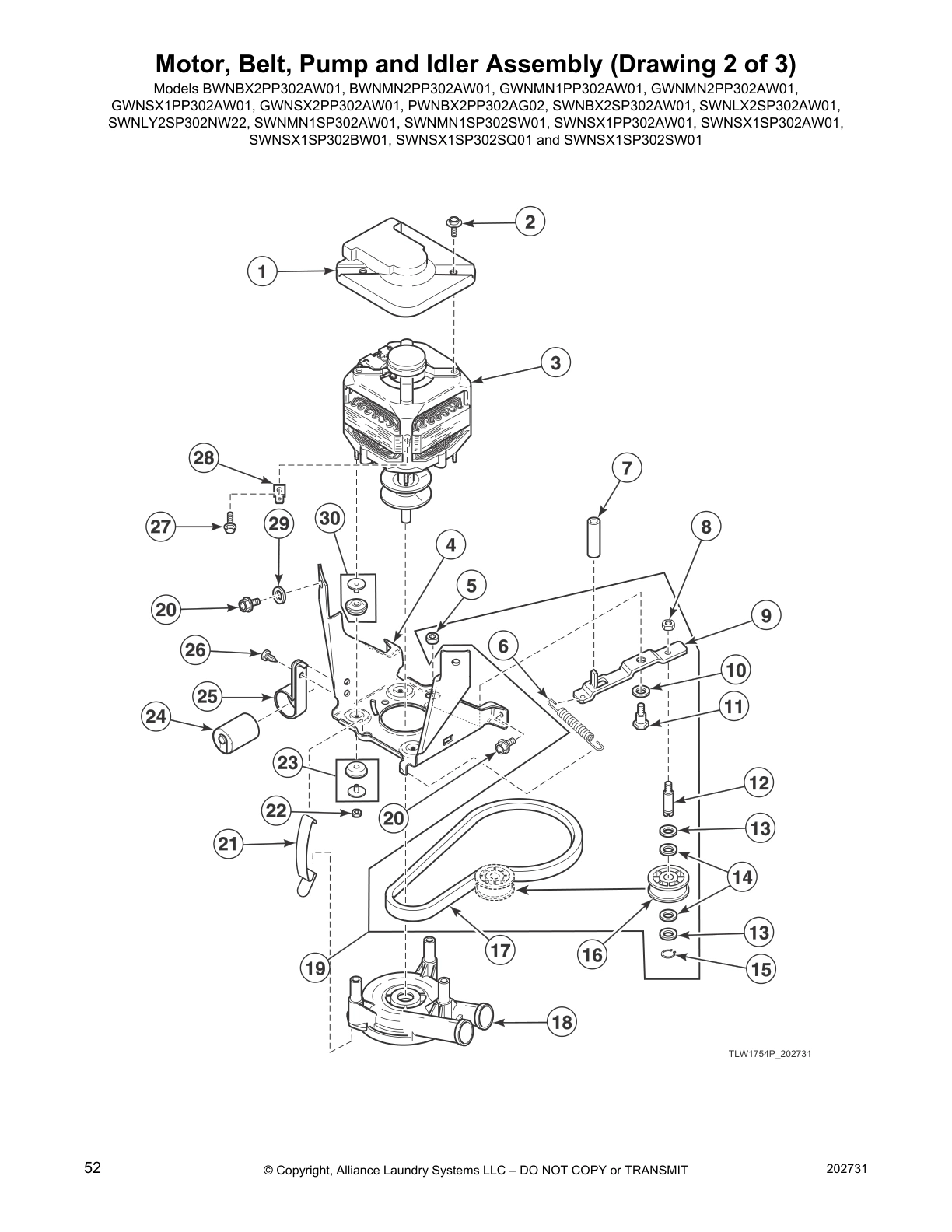

Motor, Belt, Pump and Idler Assembly (Drawing 2 of 3)

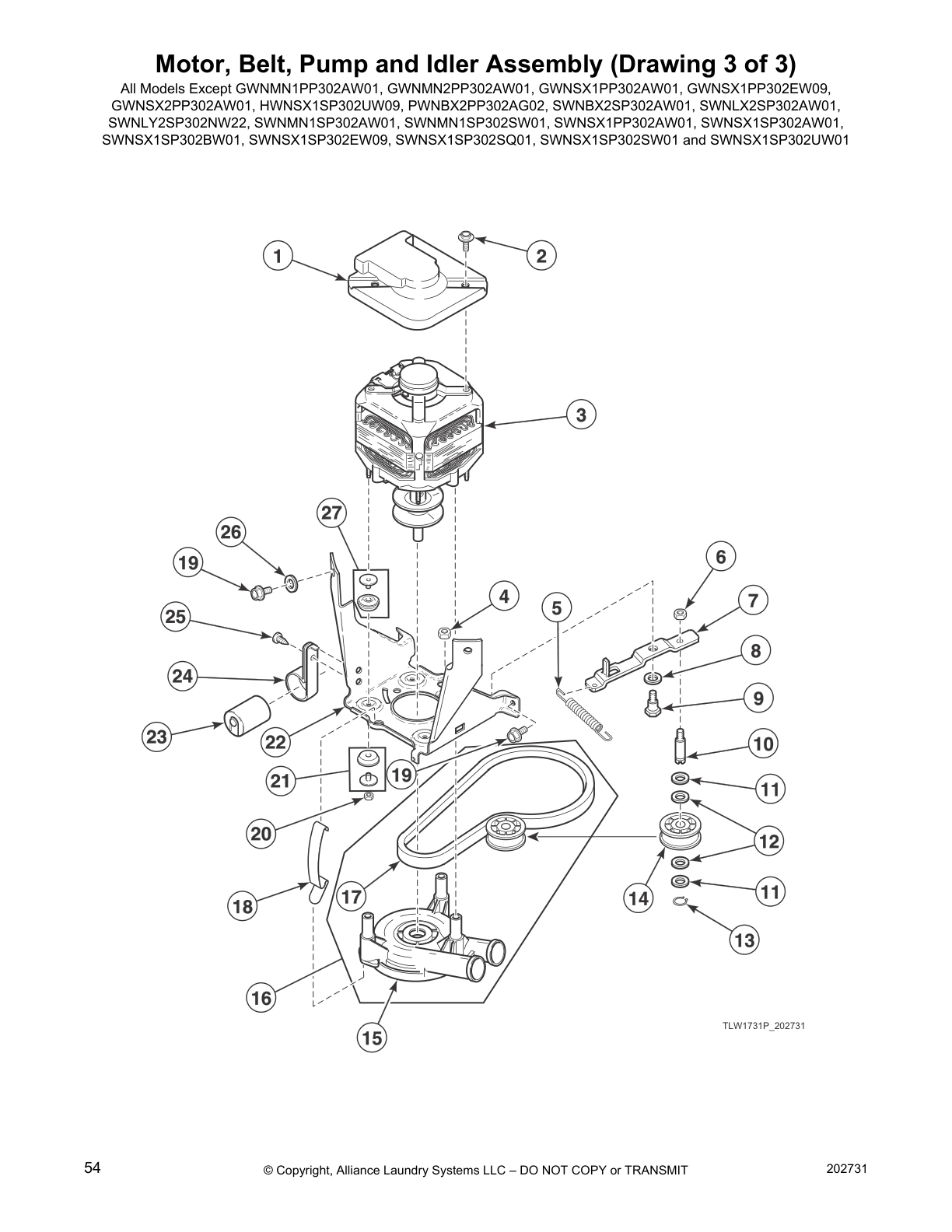

Motor, Belt, Pump and Idler Assembly (Drawing 3 of 3)
Idler Lever Kits

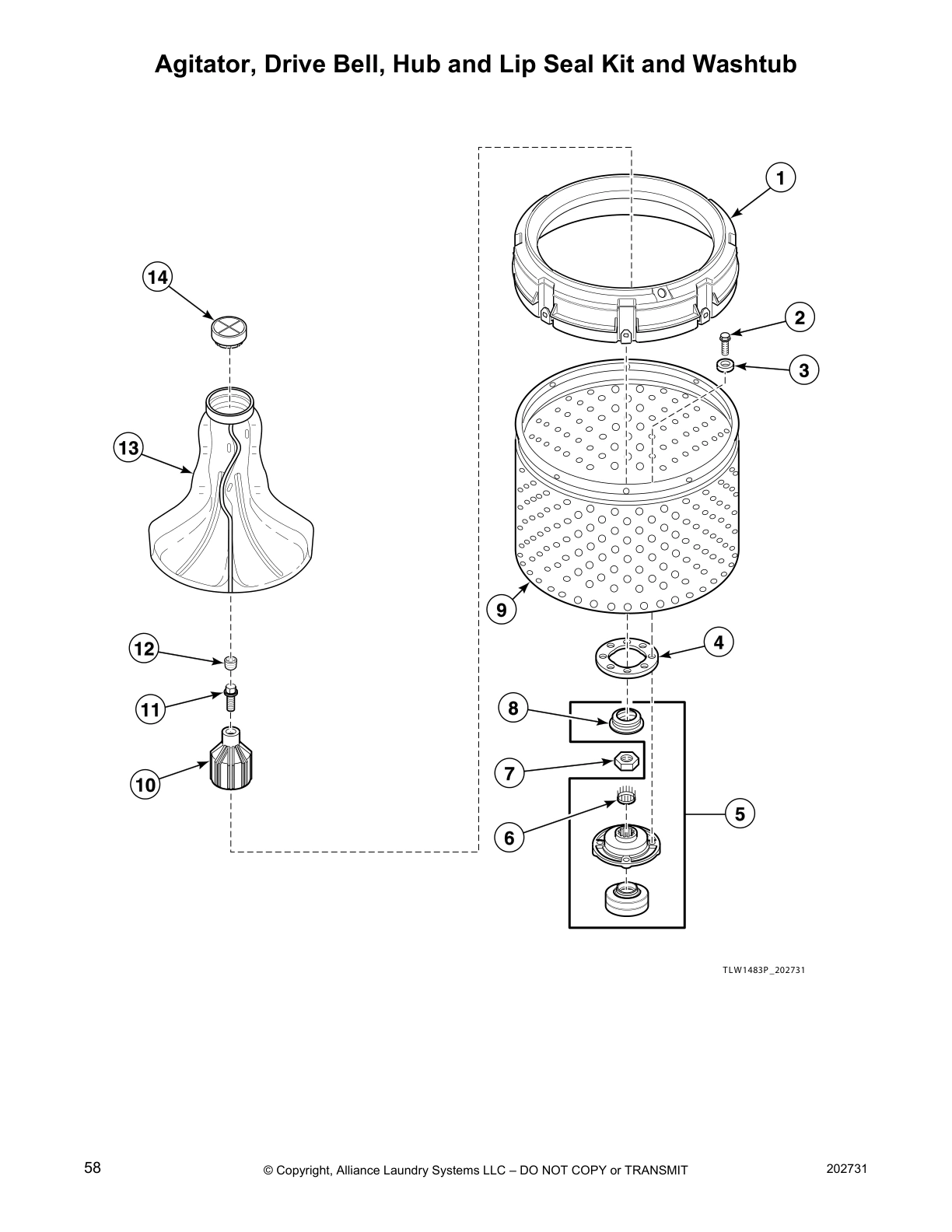

Agitator, Drive Bell, Hub and Lip Seal Kit and Washtub

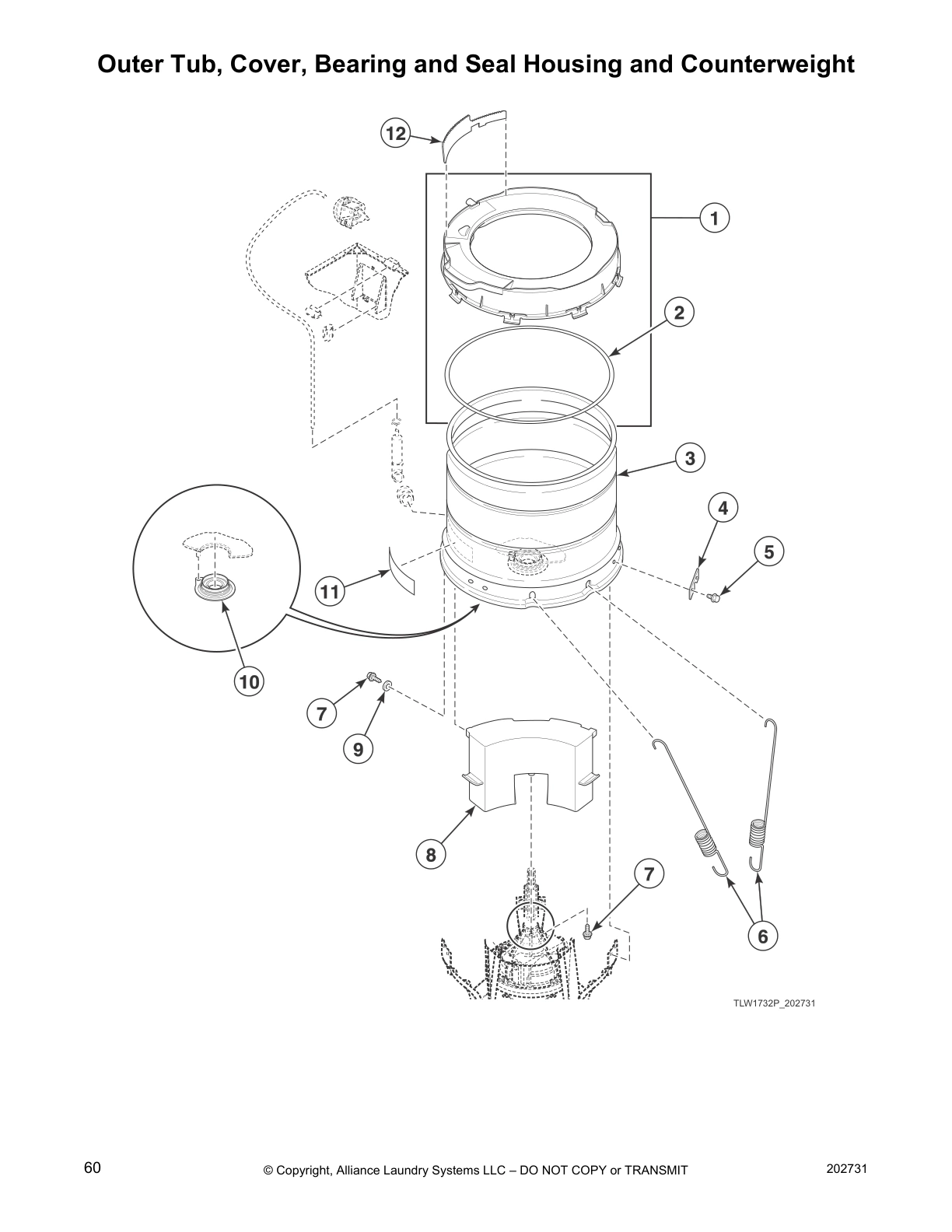

Outer Tub, Cover, Bearing and Seal Housing and Counterweight

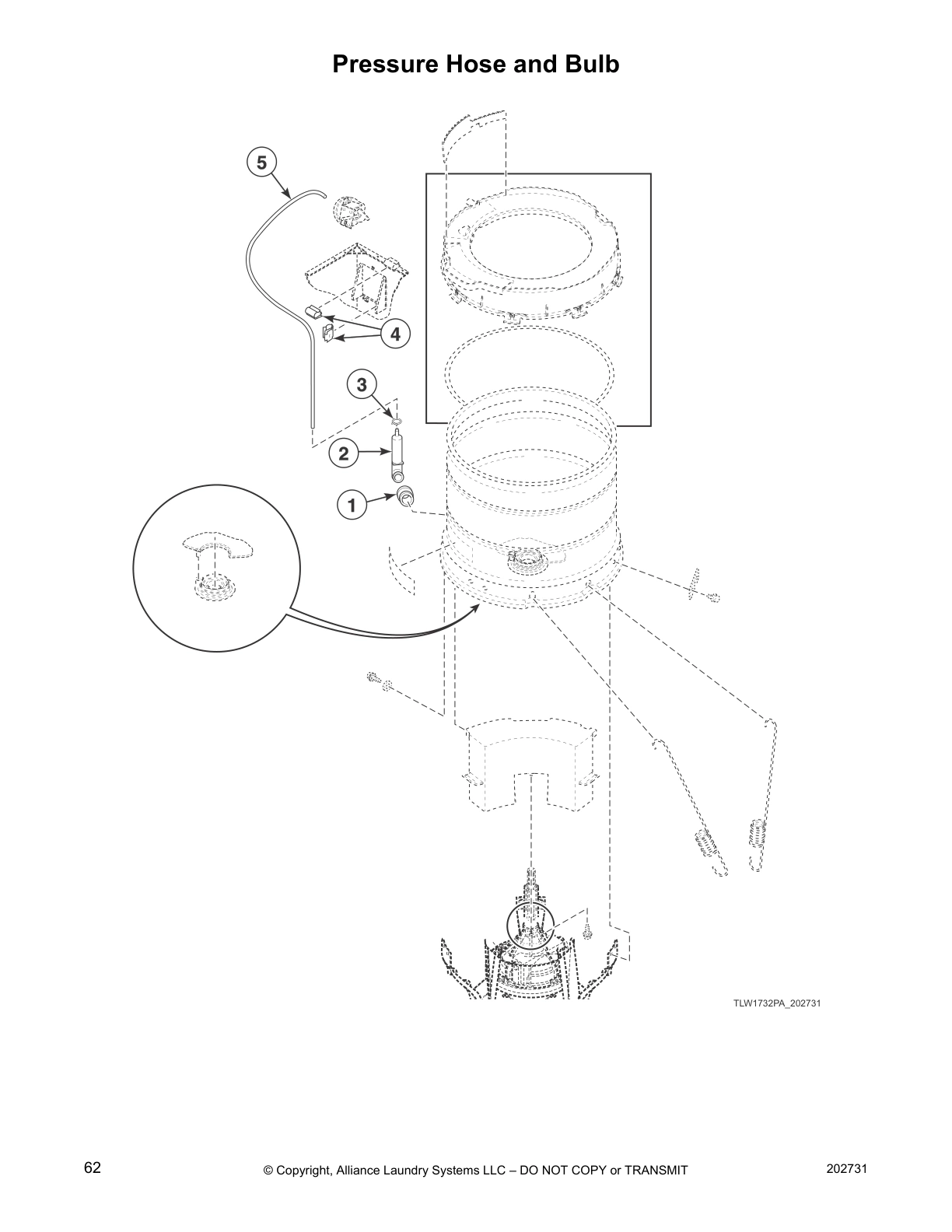

Pressure Hose and Bulb

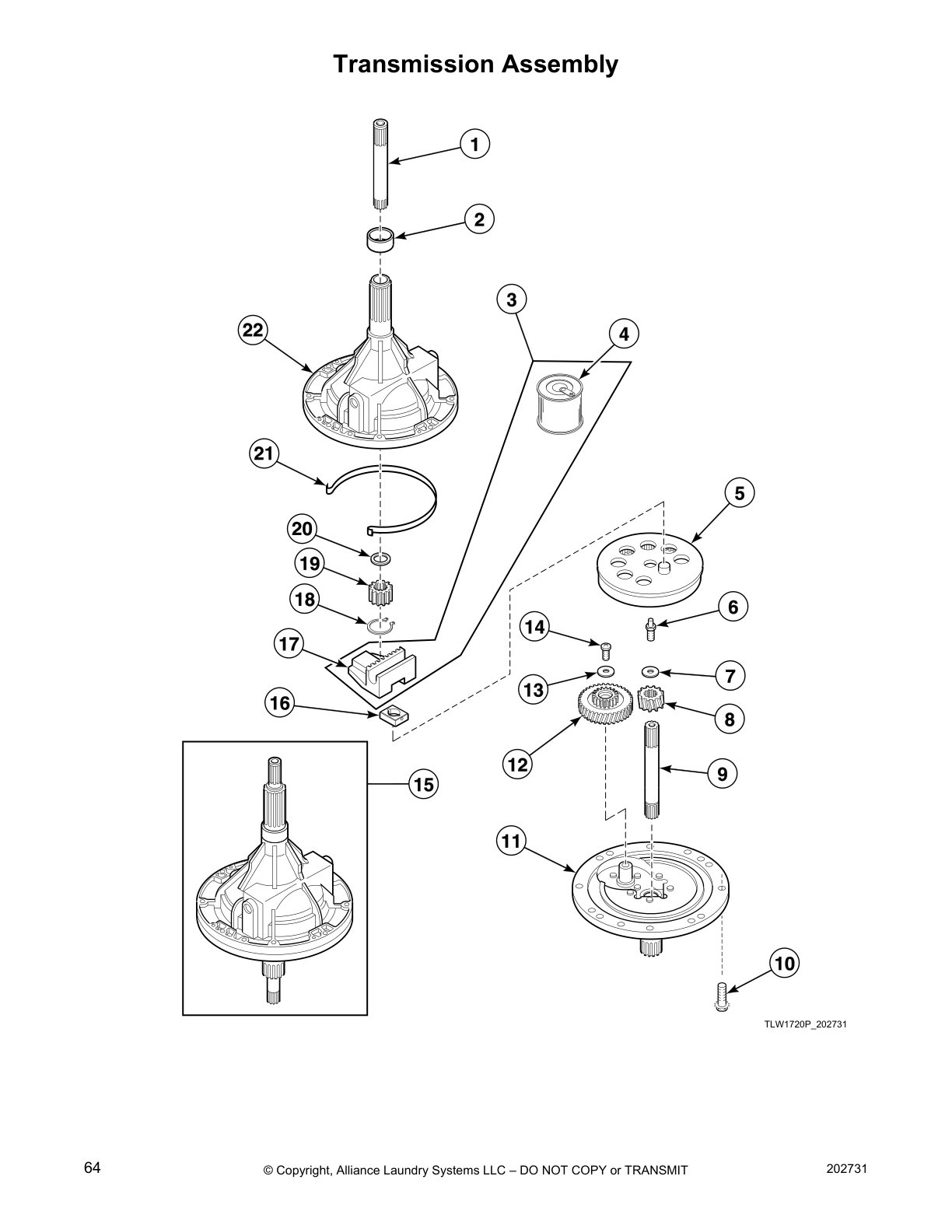

Transmission Assembly

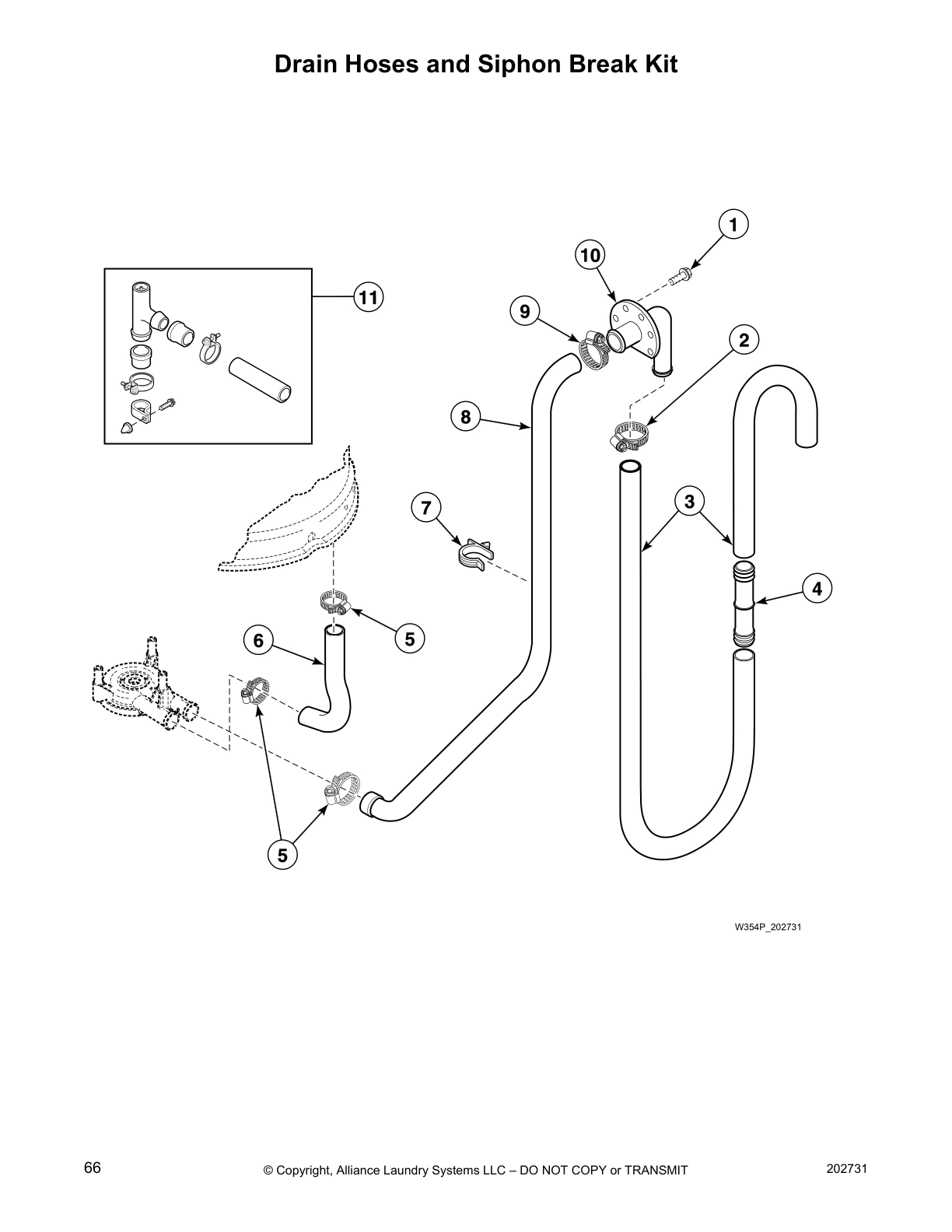

Drain Hoses and Siphon Break Kit
Weldment and Bearing Assembly, Brake and Pulley

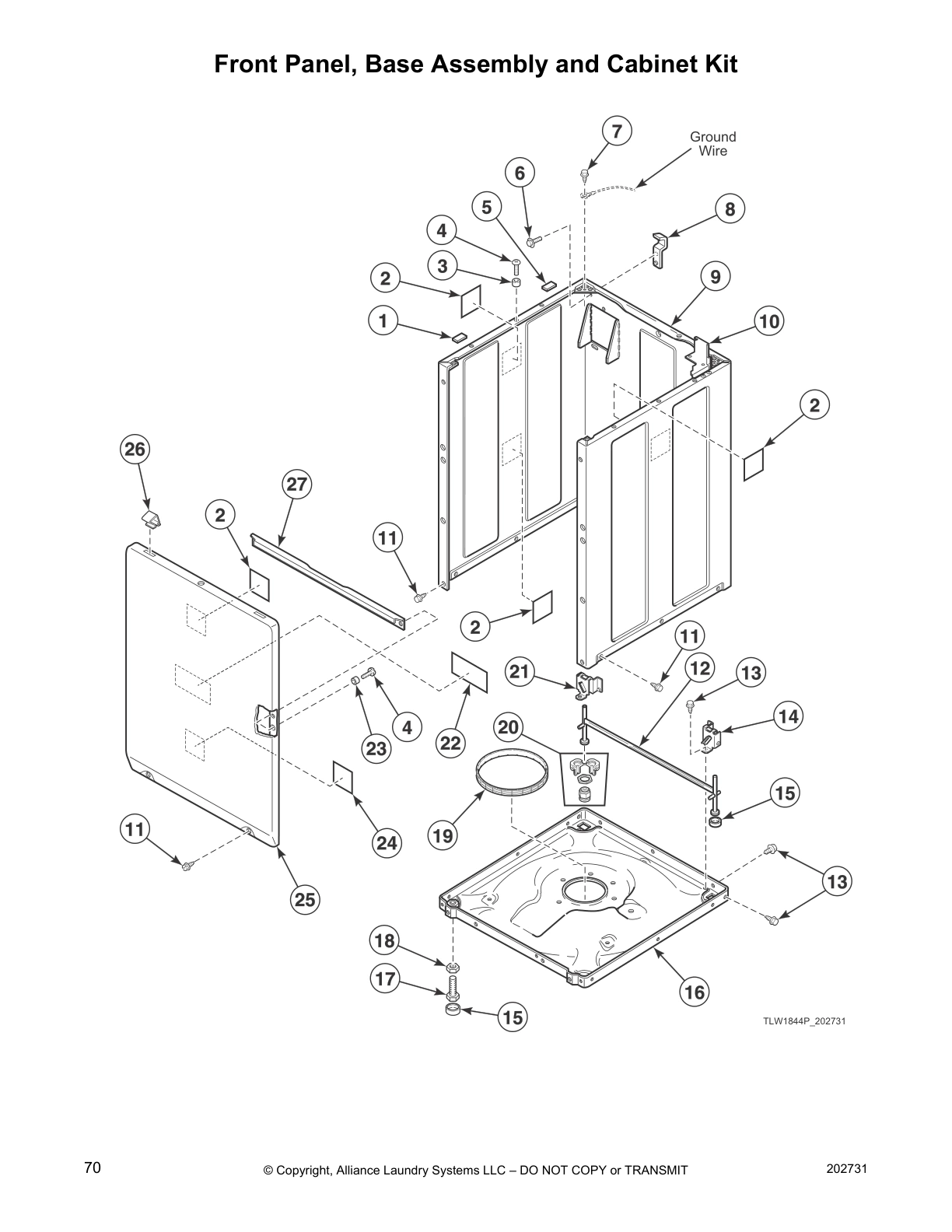

Front Panel, Base Assembly and Cabinet Kit

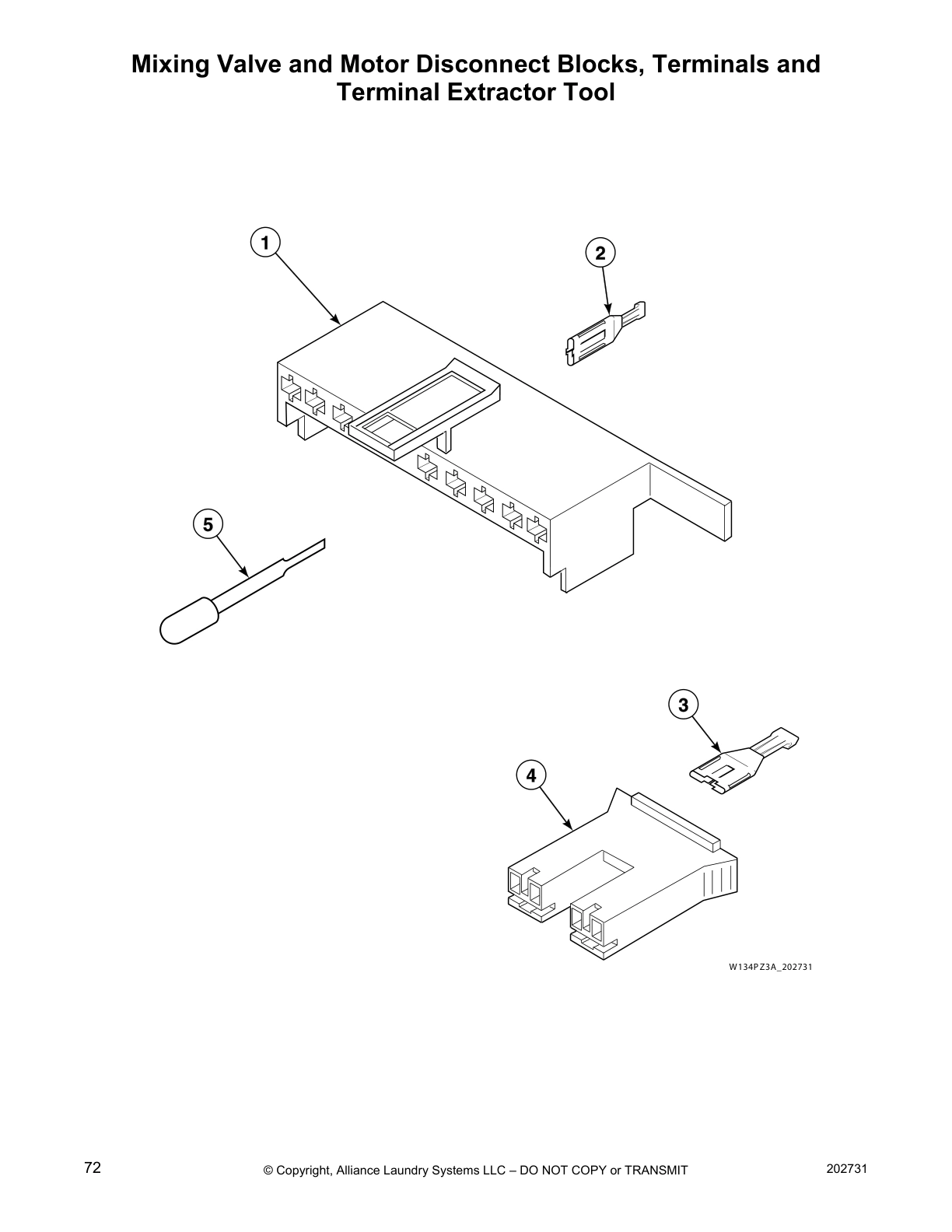

Mixing Valve and Motor Disconnect Blocks, Terminals and
Terminal Extractor Tool
Lead-In Cord

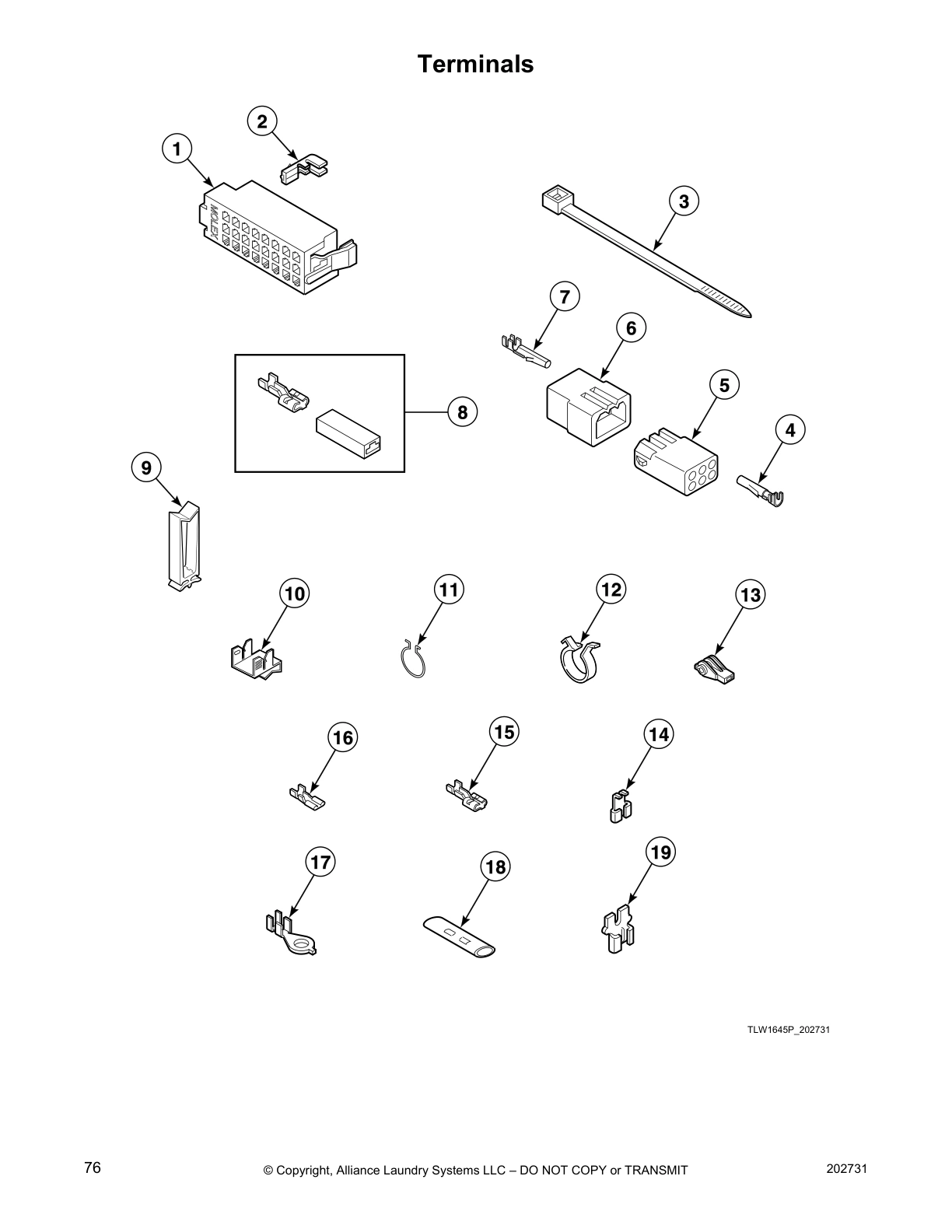

Terminals

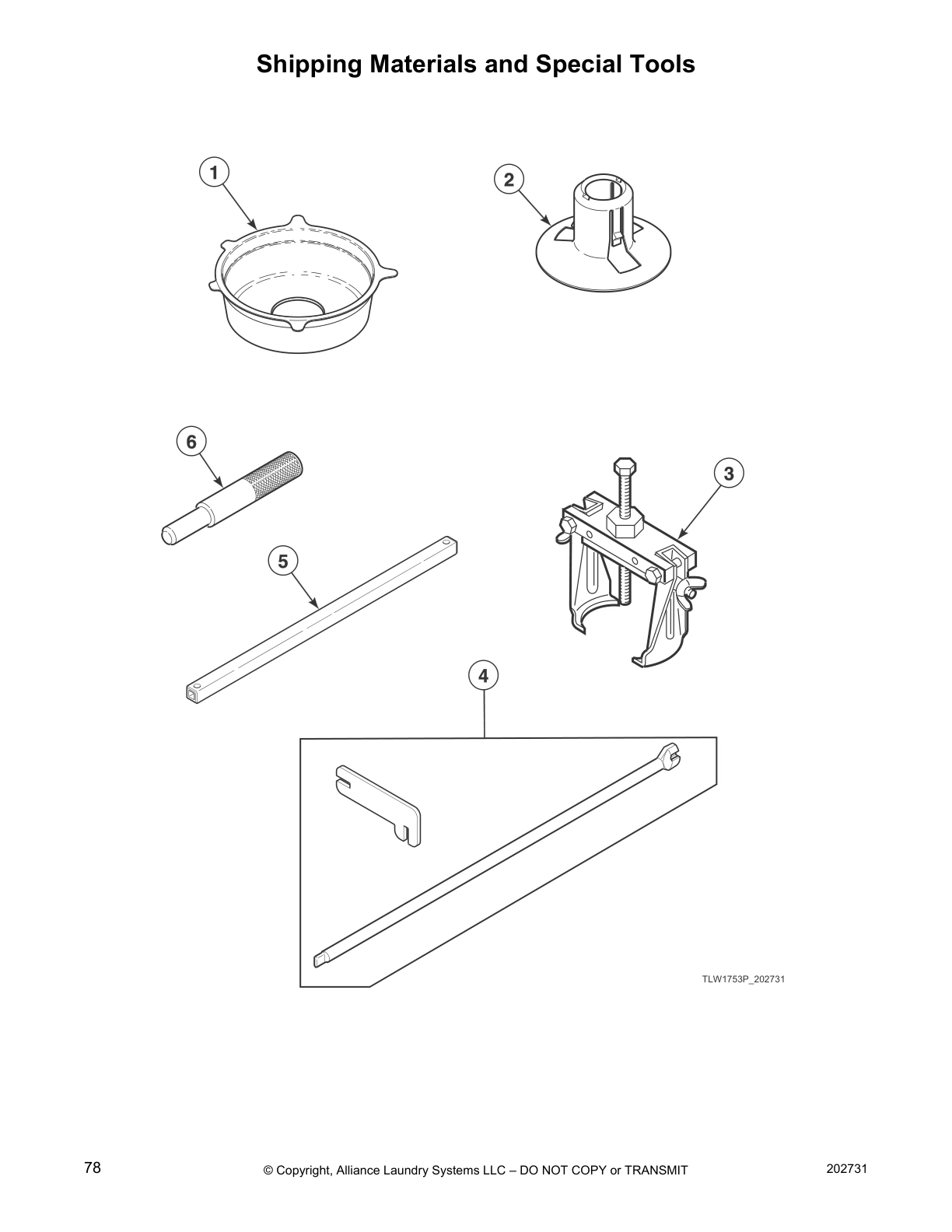

Shipping Materials and Special Tools
Special Tools
Wire Harnesses and Wires (Drawing 1 of 2)

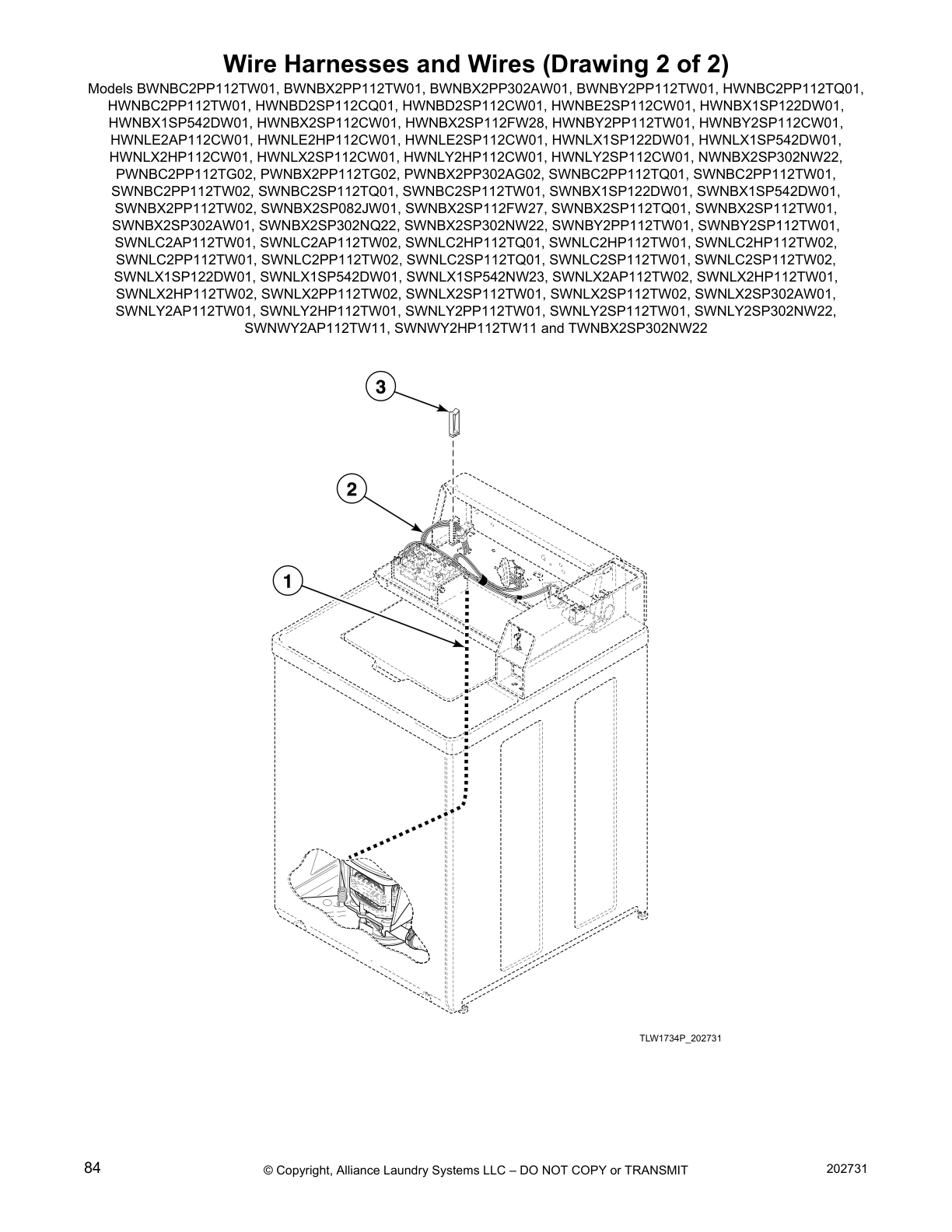

Wire Harnesses and Wires (Drawing 2 of 2)
Common parts from model Speed Queen SWNSX2SP112TQ01 Washer
16
Bolt SPQ 201010QP Contact Us For Availability
× ![]()
