Model Speed Queen STEX17*N Stacked Washer and Dryer – Common Parts & Diagrams

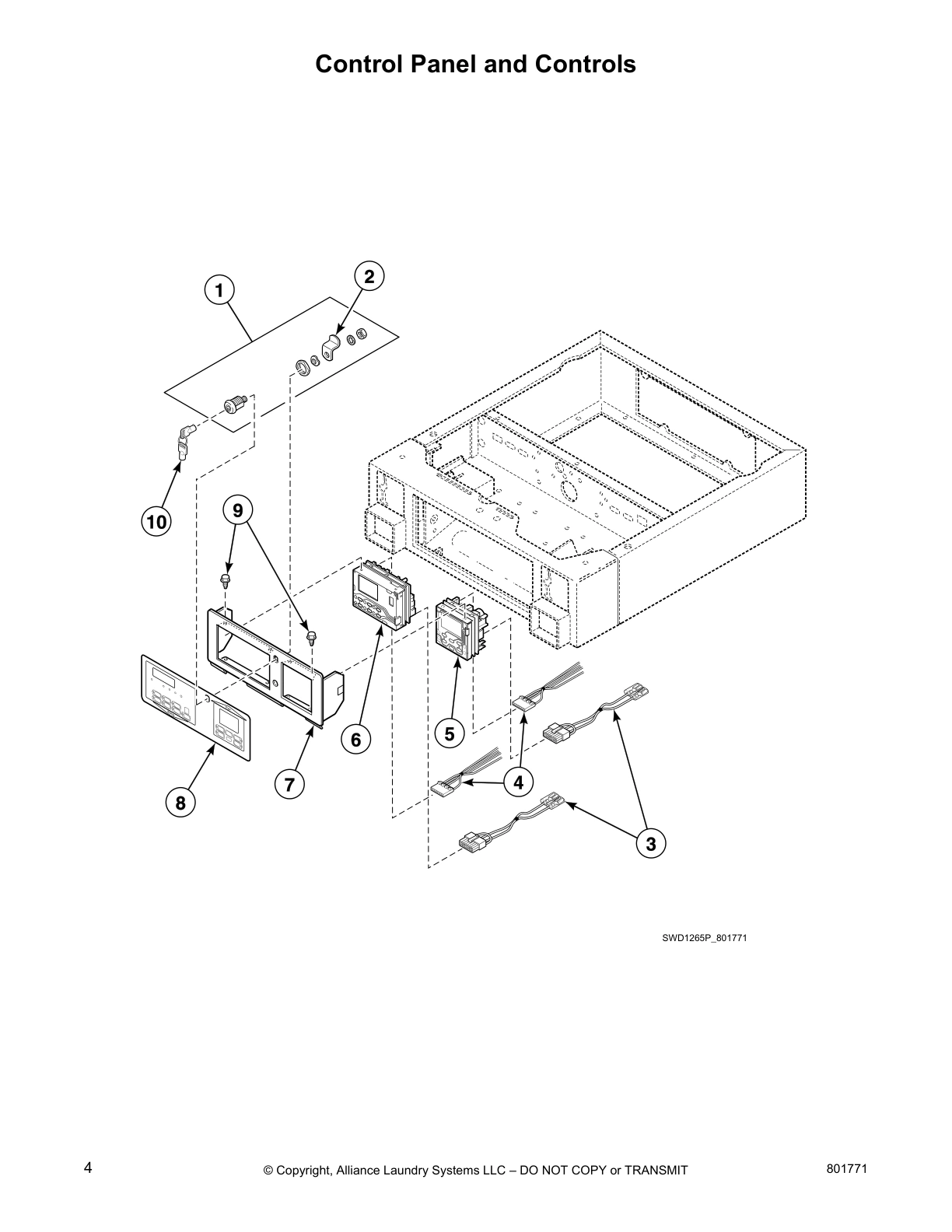

Control Panel and Controls

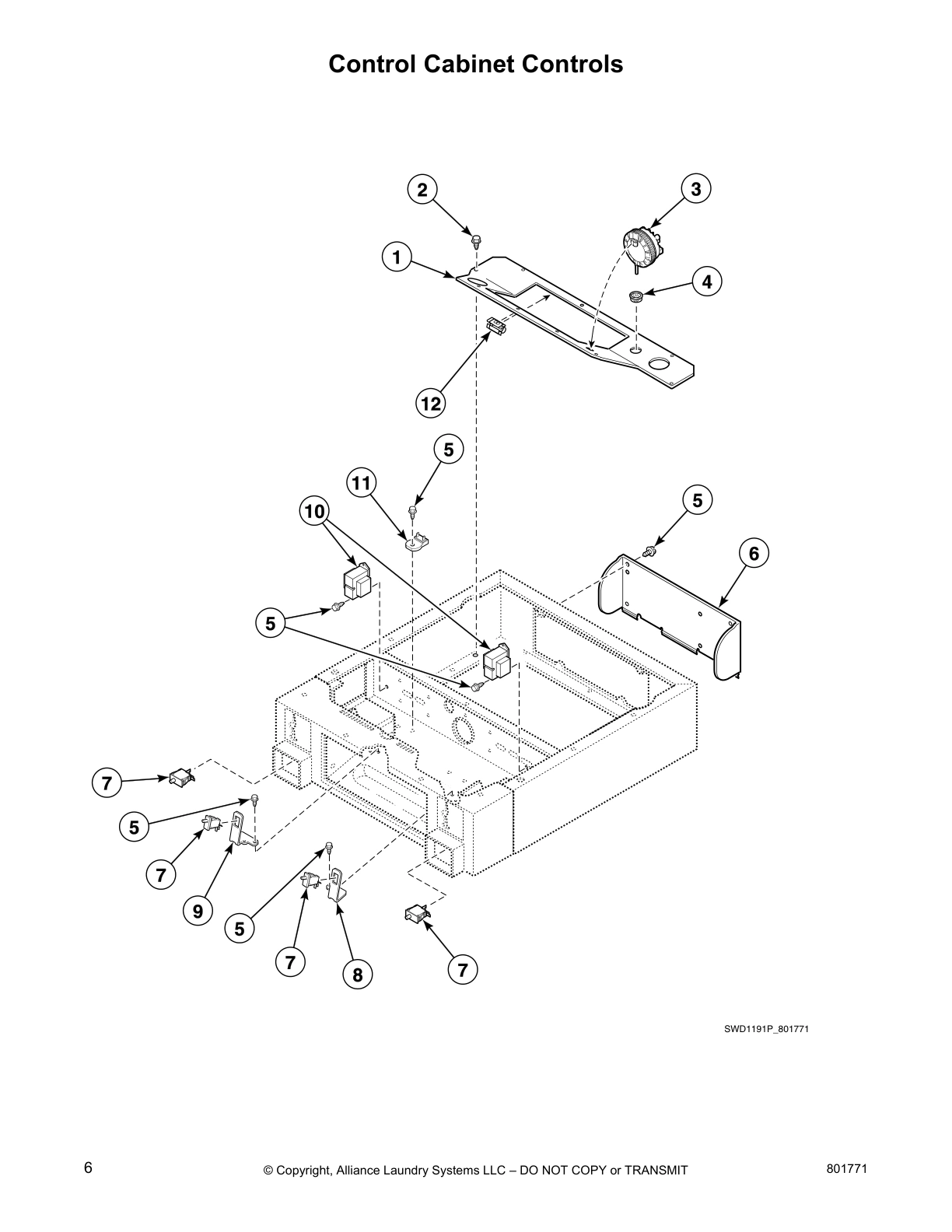

Control Cabinet Controls
Cabinet Wrapper and Coin Drop
Cabinet Wrapper and Card Reader
Electronic Coin Drop
Washer Front Panel, Door Assembly and Door Seal
Washer Front Panel, Door Assembly and Door Seal
Dispenser Assembly
Mixing Valve, Valve-to-Dispenser Inlet Hose and Fill Hose
Outer Tub, Front and Clamp Ring
Inner Basket, Trunnion, Bearing Housing and Pulley
Washer Motor and Belt
Drain Hoses and Valve
Hoses and Pump
Washer Base, Panels and Rear Panel
Wire Ties, Harness Clips and Washer Lead-In Cord
Dryer Loading Door With Window
Dryer Access Panel, Front Panel and Seal
Dryer Motor, Blower Fan and Belt
Front Bulkhead, Air Duct, Felt Seal and Cylinder
Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block
Heater Duct and Element Assembly
Heater Duct Assembly
Gas Valve, Igniter and Gas Conversion Kits
Dryer Cabinet, Exhaust Duct and Base
Dryer Lead-In Cord
Dryer Terminals and Terminal Extractor Tools
Shipping Materials
Special Tools
Wire Harnesses and Wires
Common parts from model Speed Queen STEX17*N Stacked Washer and Dryer
1
Door Seal and Hose Assembly Kit SPQ 801784P Contact Us For Availability
4
SPQ 800211 SPQ 800211 Contact Us For Availability
5
SPQ 801928WP SPQ 801928WP Contact Us For Availability
6
SPQ 802434P SPQ 802434P Contact Us For Availability
10
Key SPQ 54612 No Longer Available
10
Hose Clamp SPQ 800232P Contact Us For Availability
11
Coin Drop SPQ 70441601P No Longer Available
15
Screw SPQ 801476P Contact Us For Availability
16
Inner Basket Assembly SPQ 800428P Contact Us For Availability
26
Sealant SPQ 802428 Contact Us For Availability
NI
SPQ 62853 SPQ 62853 Contact Us For Availability
× ![]()
