Model GE PDP715SYN2FS Dishwasher – Common Parts & Diagrams
INSTALLATION PARTS
ESCUTCHEON & DOOR ASSEMBLY

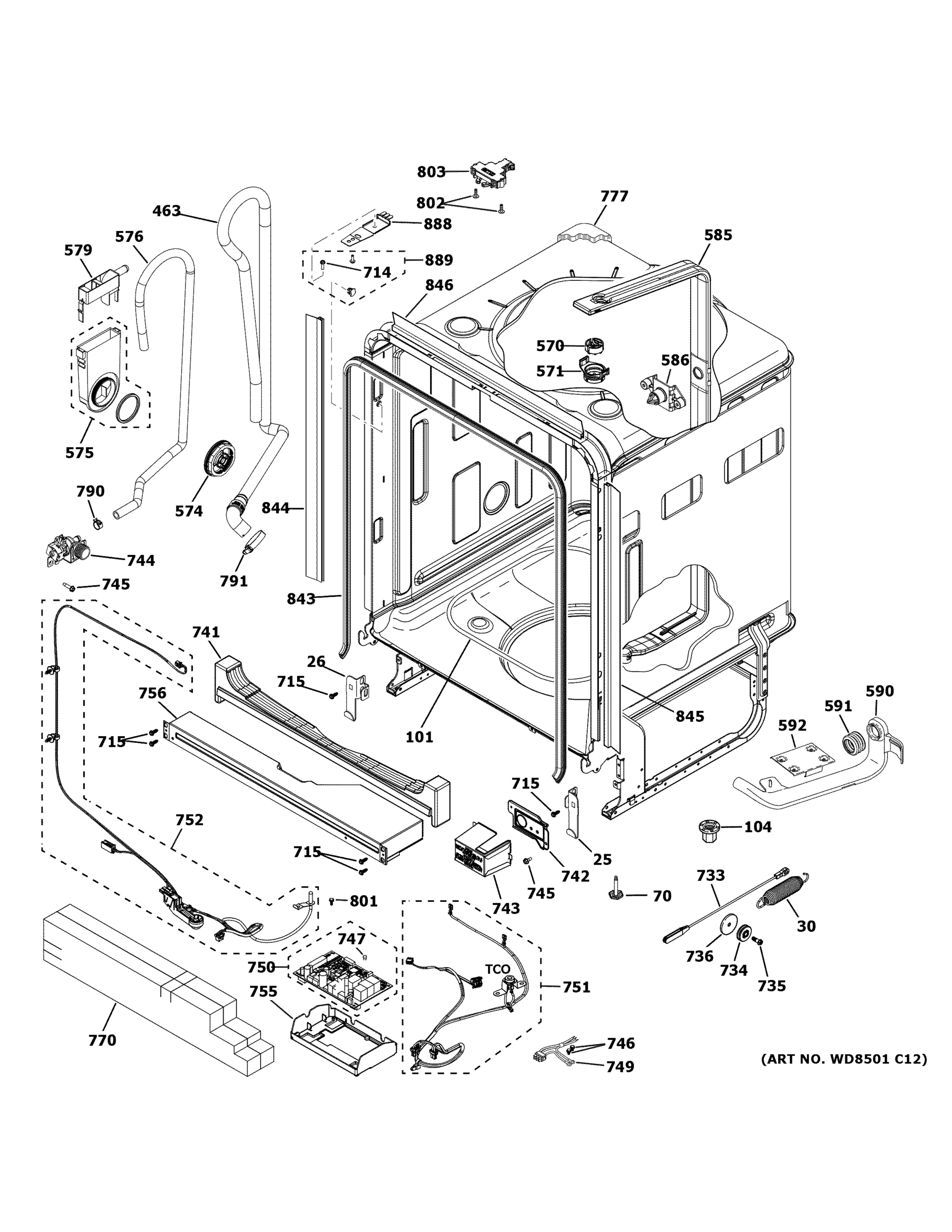

BODY PARTS (1)

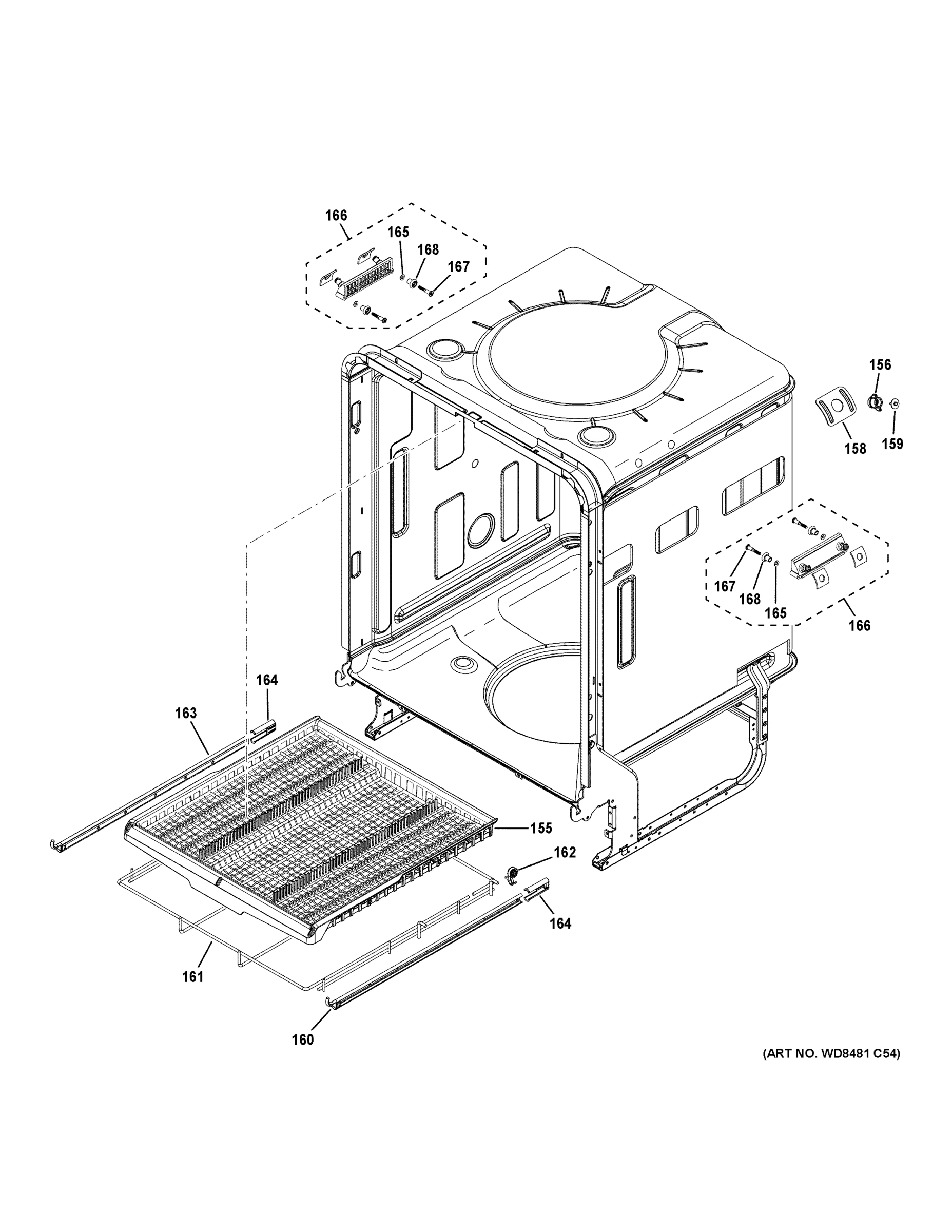

BODY PARTS (2)

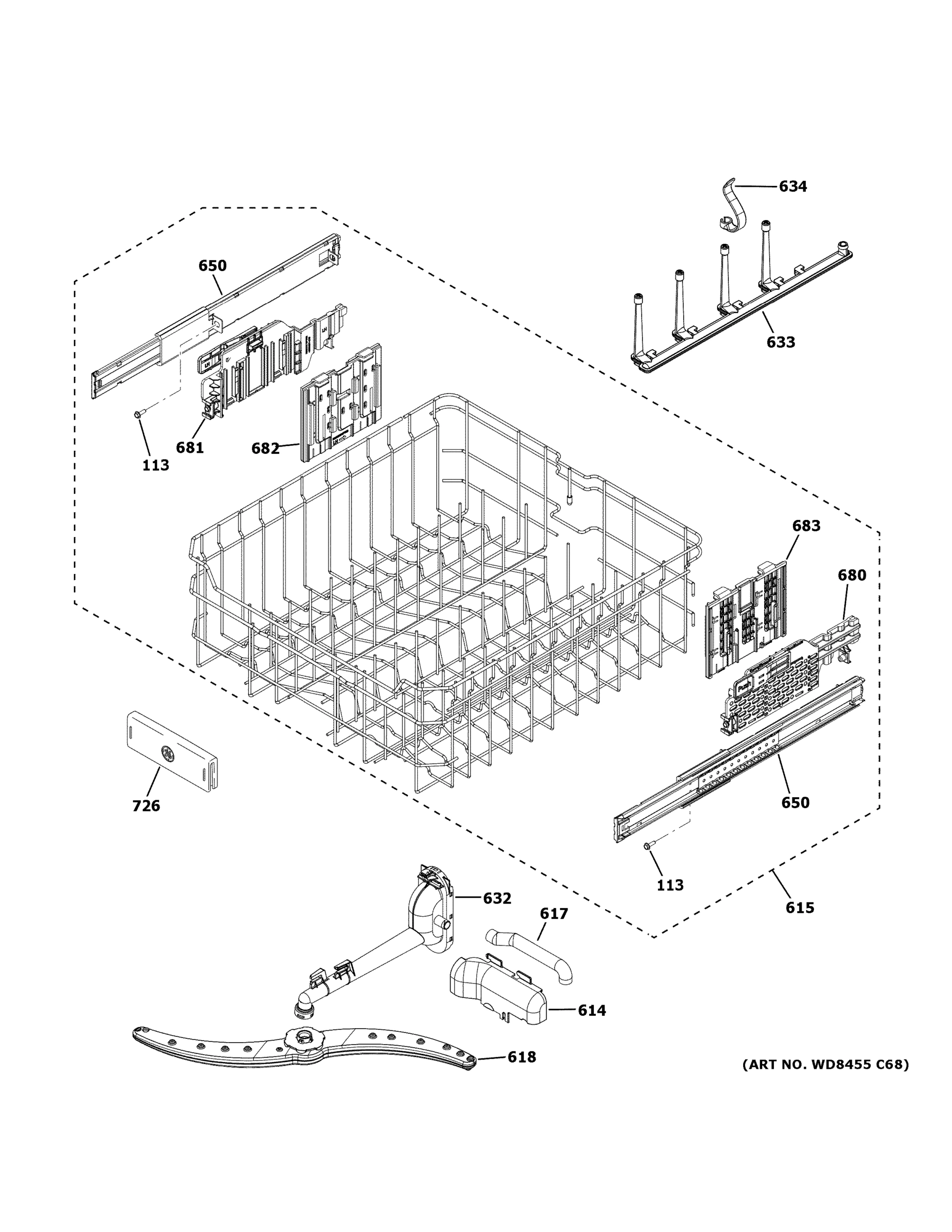

UPPER RACK ASSEMBLY

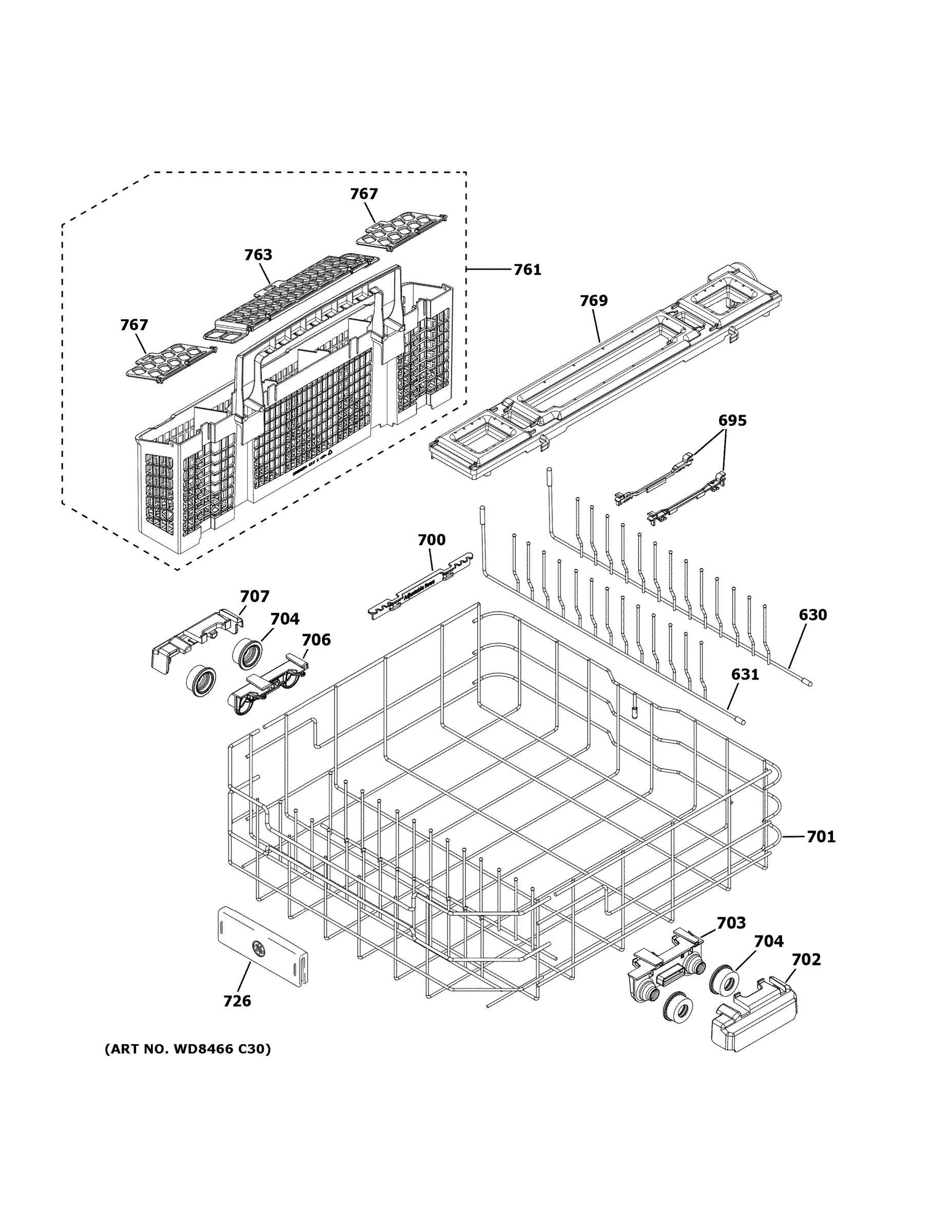

LOWER RACK ASSEMBLY

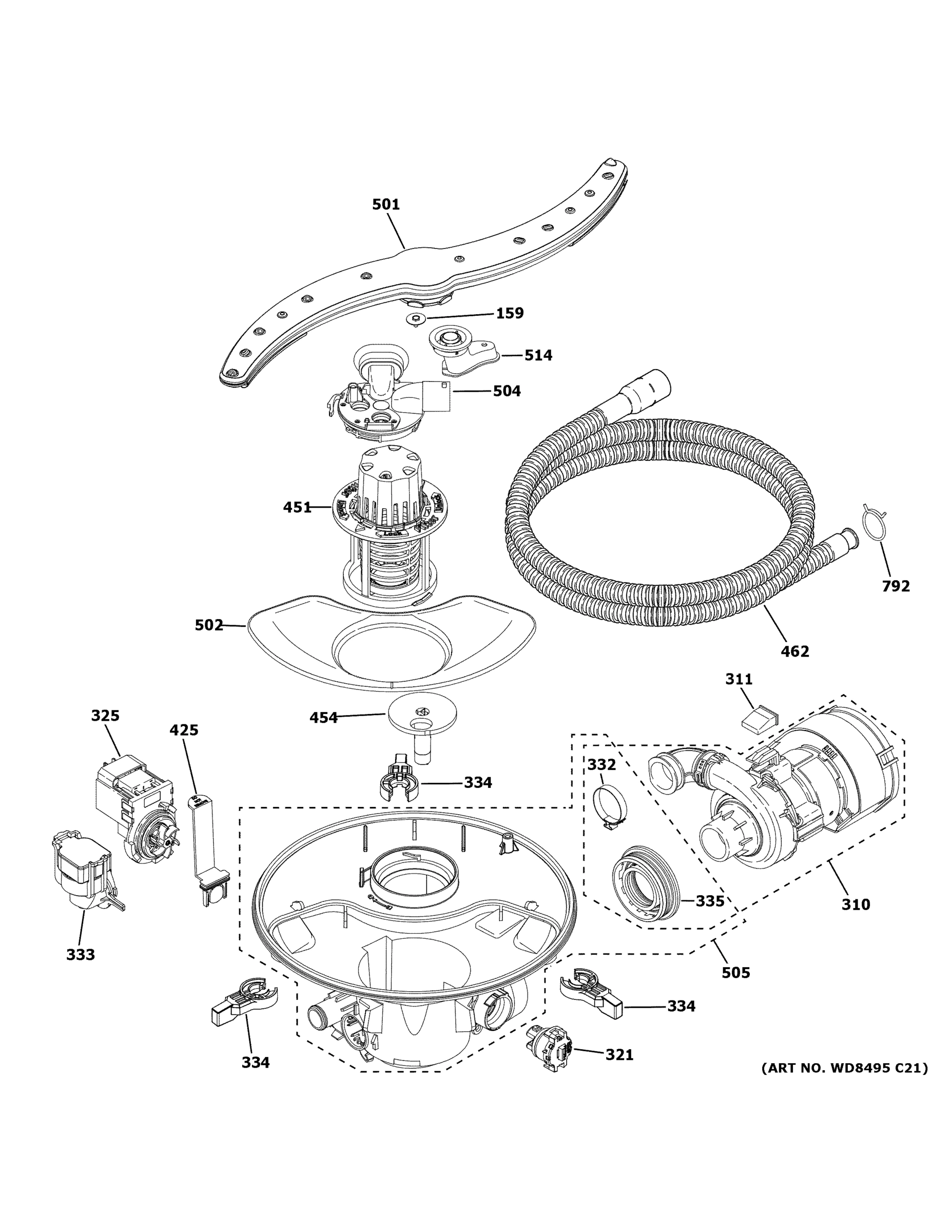

MOTOR, SUMP & FILTER ASSEMBLY
Common parts from model GE PDP715SYN2FS Dishwasher
25
BRACKET CABLE RH GEN WD01X23776 Contact Us For Availability
26
BRACKET CABLE LH GEN WD01X23777 Contact Us For Availability
155
TRAY THIRD RACK GEN WD28X24462 Contact Us For Availability
156
SLEEVE TUB MOUNT GEN WD02X20685 Contact Us For Availability
158
BRACE TUB MOUNT GEN WD30X22340 Contact Us For Availability
162
ROLLER AND BRACKET ASM GEN WD30X22347 Contact Us For Availability
163
RAIL AND END CAP ASM GEN WD27X22351 Contact Us For Availability
164
END CAP THIRD RACK REAR GEN WD02X22342 Contact Us For Availability
165
WASHER GEN WD3X767 Contact Us For Availability
200
ARM HINGE ASM LH GEN WD14X23739 Contact Us For Availability
201
ARM HINGE ASM RH GEN WD14X23738 Contact Us For Availability
311
PUMP ISOLATOR HANGER GEN WD02X25462 Contact Us For Availability
321
SENSOR TURBIDITY ASM GEN WD21X22830 Contact Us For Availability
325
DRAIN PUMP ASM GEN WD19X25461 Contact Us For Availability
333
PRESSURE SENSOR ASM GEN WD21X25468 Contact Us For Availability
425
VALVE CHECK GEN WD12X25476 Contact Us For Availability
451
FINE FILTER AND BASKET ASM GEN WD12X25995 Contact Us For Availability
502
PLASTIC COURSE FILTER GEN WD22X25465 Contact Us For Availability
504
FOUR PORT DIVERTER AND PLUG ASM GEN WD19X25598 Contact Us For Availability
514
S ARM ADAPTER GEN WD12X25864 Contact Us For Availability
571
HUB GEN WD22X20688 Contact Us For Availability
579
FILL FUNNEL CAP GEN WD12X25080 Contact Us For Availability
614
COVER BOTTLE BLASTER GEN WD24X20263 Contact Us For Availability
617
HOSE BOTTLE BLASTER GEN WD24X20262 Contact Us For Availability
633
BOTTLE BLASTER ASM GEN WD22X25478 Contact Us For Availability
682
BRACKET FIXED GEN WD12X20112 Contact Us For Availability
683
BRACKET FIXED GEN WD12X20113 Contact Us For Availability
700
INDEXER GEN WD28X20166 Contact Us For Availability
709
SCR 8-18 AB HXW 9/16 S GEN WR01X11012 Contact Us For Availability
710
BLOCK FOAM DOOR GEN WD01X10585 Contact Us For Availability
713
POCKET HANDLE GEN WD09X25927 Contact Us For Availability
726
RACK HANDLE GEN WD09X25644 Contact Us For Availability
735
SCR 10-32 TT CB 1/4 ZN GEN WD01X21837 Contact Us For Availability
736
FRICTION WASHER GEN WD01X20593 Contact Us For Availability
741
SPACER TUB FRONT GEN WD01X23558 Contact Us For Availability
744
WATER VALVE ASM GEN WD15X26078 Contact Us For Availability
745
SCR 10-32 GX IHXW 9/16 S GEN WD01X22514 Contact Us For Availability
747
CONTROL BOARD FUSE 4.1 AMP GEN WD21X25696 Contact Us For Availability
749
HARNESS ASM JUMPER GEN WD21X23559 Contact Us For Availability
753
DOOR HARNESS ASM GEN WD21X25474 Contact Us For Availability
755
CONTROL BOX BOTTOM GEN WD30X24239 Contact Us For Availability
761
BASKET ASM SILVERWARE GEN WD28X24469 Contact Us For Availability
769
BLASTER SILVERWARE ASM GEN WD22X22863 Contact Us For Availability
790
CLAMP HOSE GEN WD01X22786 Contact Us For Availability
791
CLAMP GEN WD01X24246 Contact Us For Availability
795
SCREW T15 8-16 PLASTITE GEN WD02X22628 Contact Us For Availability
796
ATTACH STRIP RH GEN WD01X22836 Contact Us For Availability
805
ATTACHMENT STRIP TOP GEN WD13X22837 Contact Us For Availability
812
VENT COVER GEN WD01X25611 Contact Us For Availability
818
TRANSITION PIECE ASM GEN WD12X23557 Contact Us For Availability
820
FAN VENT ASM GEN WD24X25325 Contact Us For Availability
× ![]()
