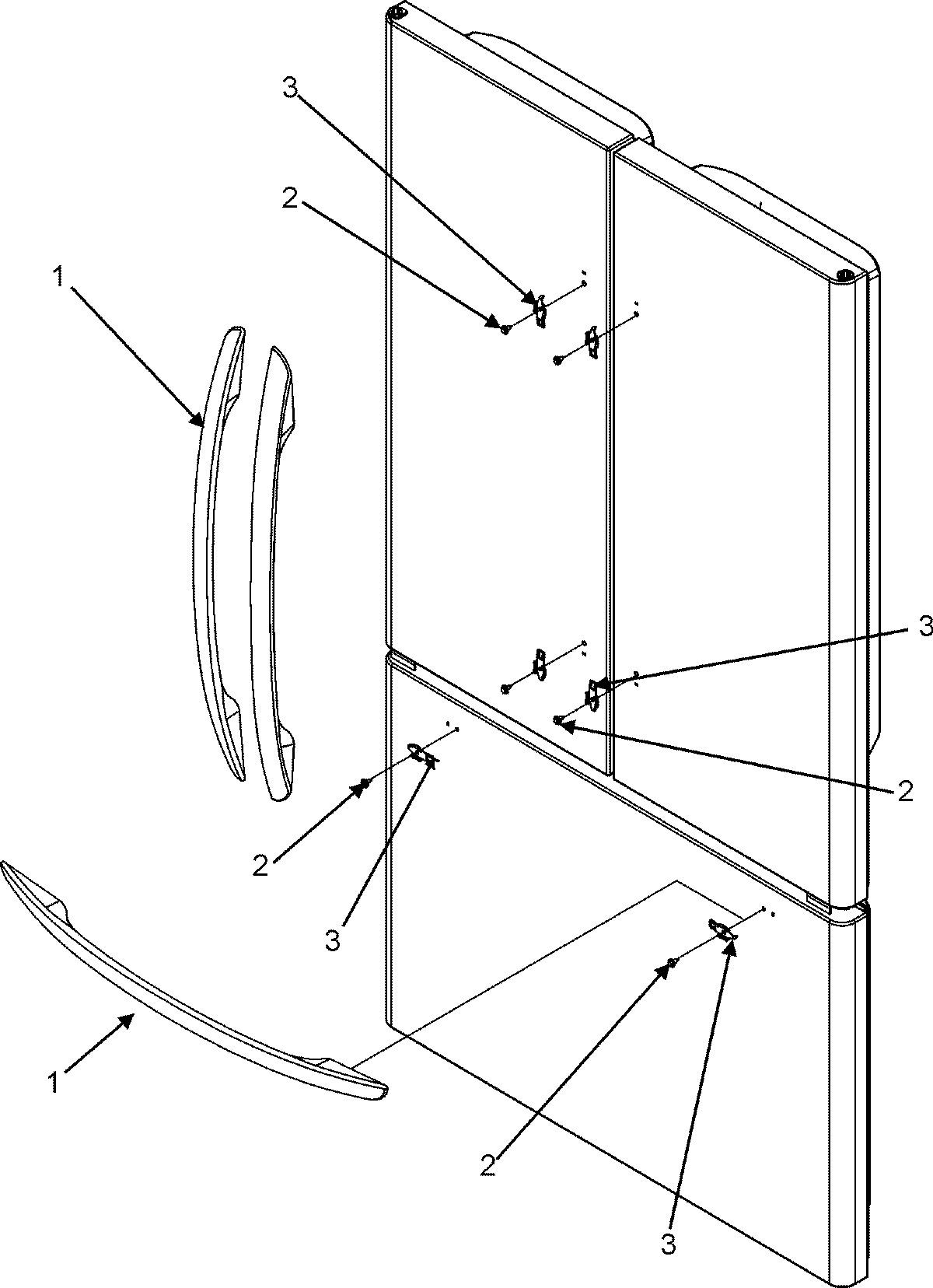

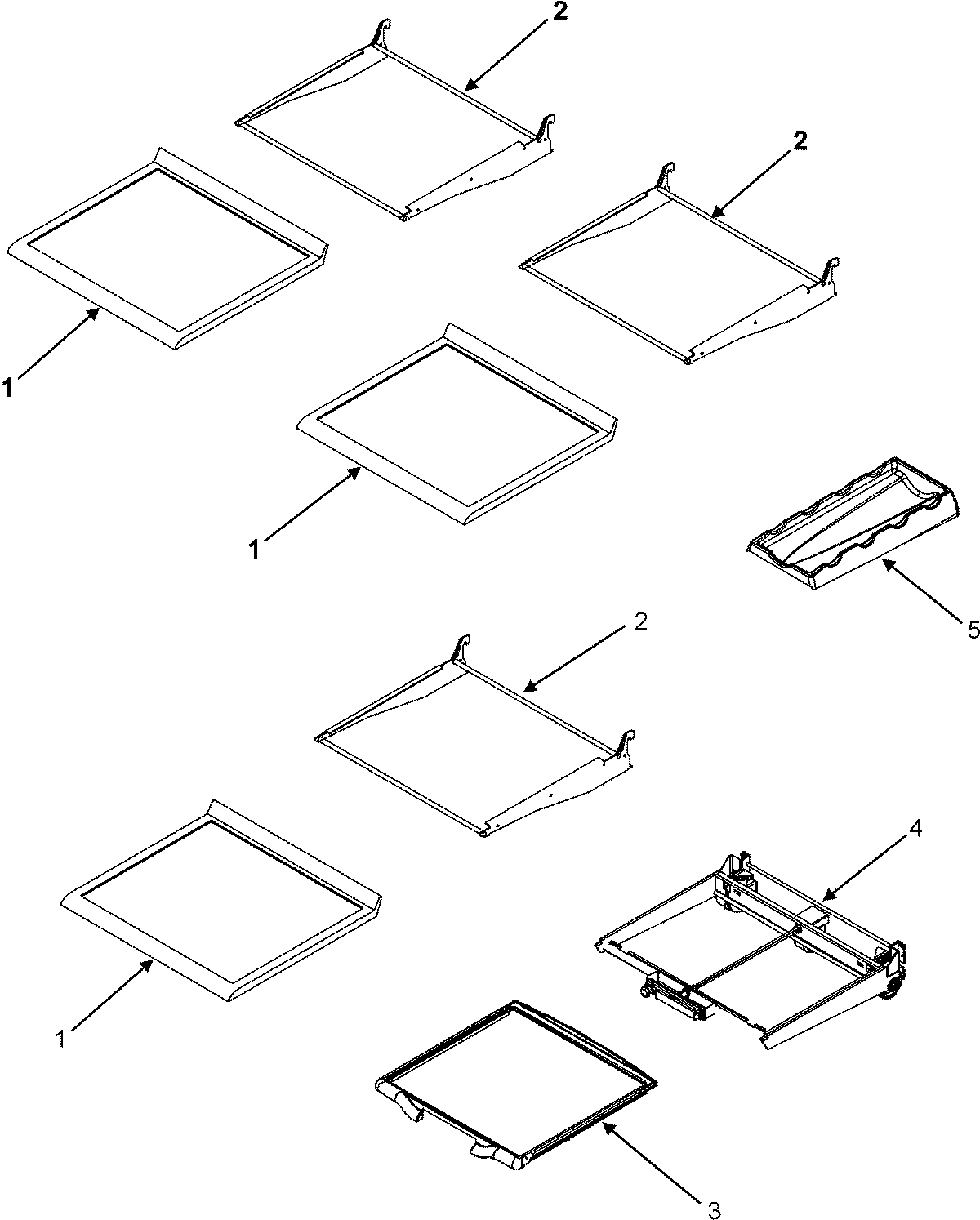

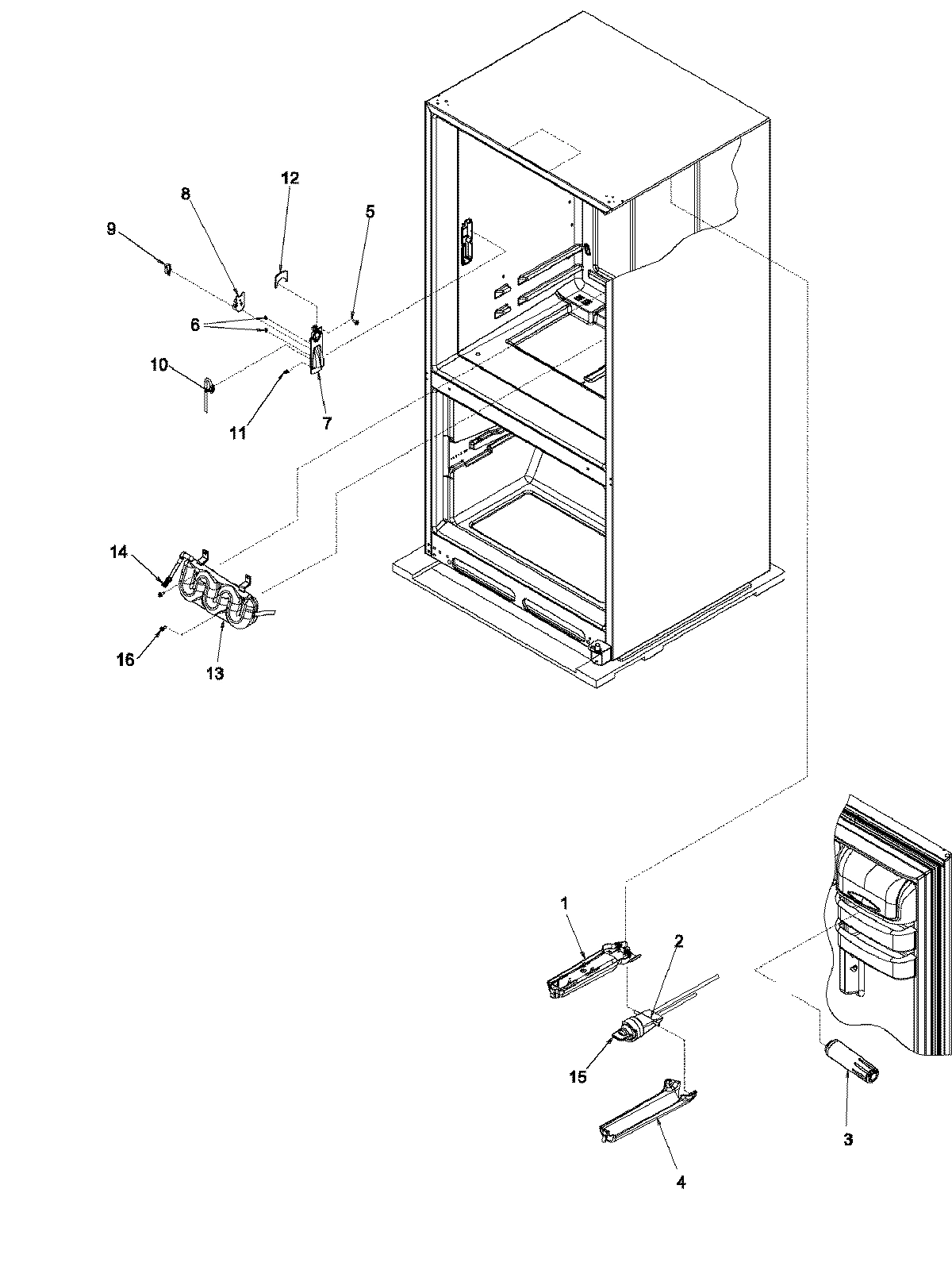

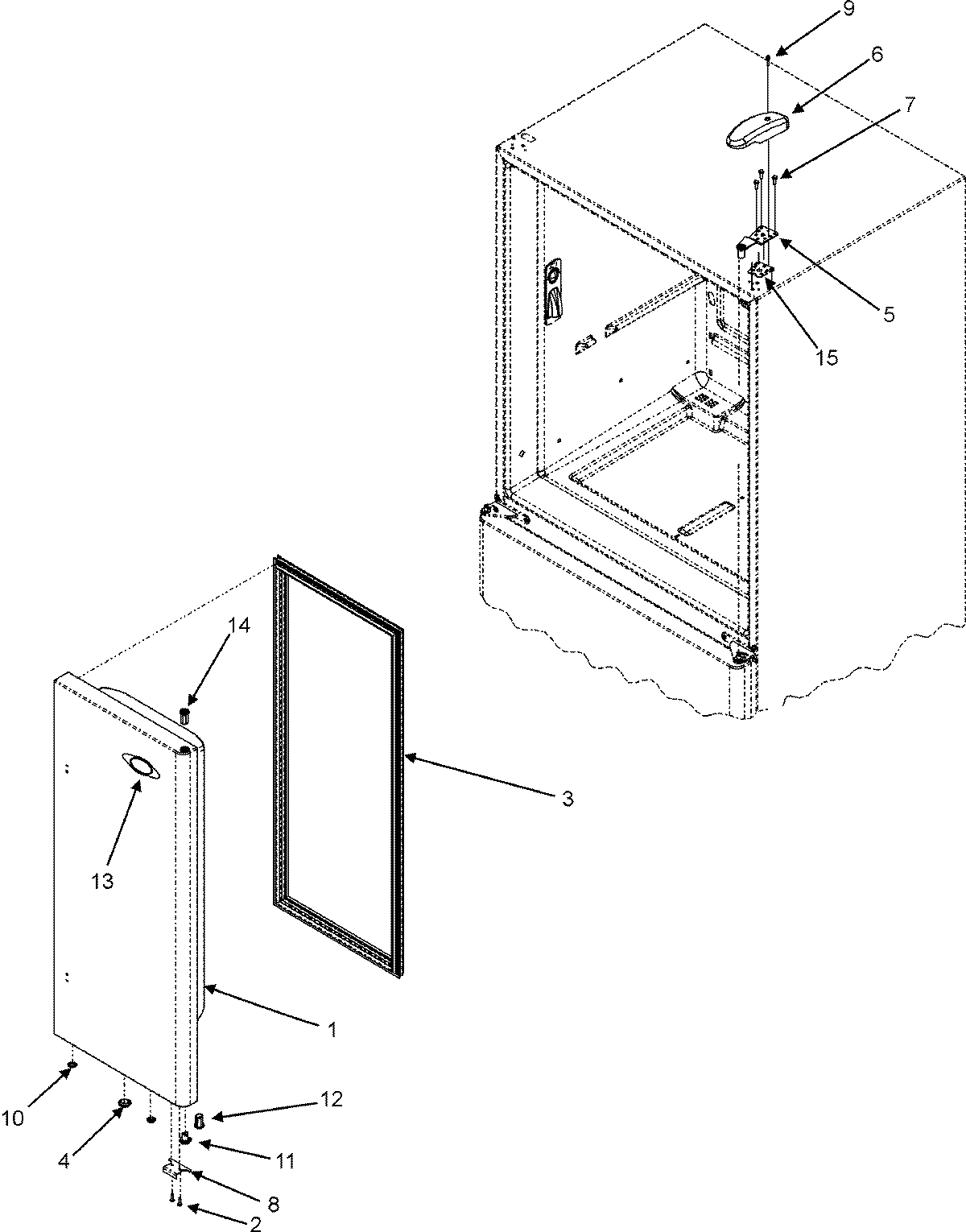

Model Whirlpool MFD2560HES REFRIGERATOR – Common Parts &amp; Diagrams

1

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $16.36

1

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $33.29

1

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $53.90

1

WP67001668 Whirlpool Water Filter Housing In Stock WPL WP67001668 $6.88

1

WP67006704 Whirlpool Glass Crisper Cover In Stock WPL WP67006704 $138.31

1

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $3.84

1

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.90

1

CARD, HANDLE RELEASE WPL 67003876 Contact Us For Availability

1

DOOR ASSY., FRZ. FOAM (STNLS) WPL 67004002 Contact Us For Availability

1

PAN, BASE WPL 67001512 Contact Us For Availability

1

BACK, MACH COMP WPL 12575101ED Contact Us For Availability

1

GLASS, PANTRY WPL 67002761 Contact Us For Availability

1

HANDLE ASSY., DOOR (STNLS) WPL 67004056 Contact Us For Availability

1

DOOR ASSY., RT REF FOAM(STNLS) WPL 67004640 Contact Us For Availability

1

DOOR ASSY., LT REF FOAM(STNLS) WPL 67004001 Contact Us For Availability

2

12991101 Whirlpool Refrigerator Screw Backorder WPL 12991101 $9.96

2

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $32.00

2

W11812285 Whirlpool Support Backorder WPL W11812285 $22.76

2

WP67003637 Whirlpool Dairy Door Backorder WPL WP67003637 $48.32

2

WP67003854 Whirlpool Shelf Frame Backorder WPL WP67003854 $148.89

2

WP67004106 Whirlpool Water Filter Housing In Stock WPL WP67004106 $75.78

2

WP7101P126-60 Whirlpool Screw Backorder WPL WP7101P126-60 $2.60

2

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.74

2

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.60

2

SHROUD, CONDENSER FAN WPL 67001090 Contact Us For Availability

2

COVER, WATER VALVE WPL 67004098 Contact Us For Availability

2

MODULE, LIGHT WPL 67004078 Contact Us For Availability

2

DIVIDER, BASKET (UPPER) WPL 67001723 Contact Us For Availability

3

67004040 Whirlpool Refrigerator Bucket Door Backorder WPL 67004040 $59.16

3

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.60

3

EDR4RXD1 Whirlpool EveryDrop® Refrigerator W In Stock WPL EDR4RXD1 $57.82

3

W10436252 Whirlpool Door Gasket In Stock WPL W10436252 $141.97

3

W10874836 Whirlpool Endcap Assembly Left Hand In Stock WPL W10874836 $19.49

3

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $41.95

3

W11368721 Whirlpool Refrigerator French Door In Stock WPL W11368721 $119.82

3

WP67006852 Whirlpool Clip Backorder WPL WP67006852 $14.21

3

WPW10326469 Whirlpool Drawer Slide Rail In Stock WPL WPW10326469 $12.50

3

MOTOR, CONDENSER FAN (ECM) WPL 12628701 Contact Us For Availability

3

EJECTOR, ICE WPL 951011 Contact Us For Availability

3

POP RIVET WPL A4539607 Contact Us For Availability

3

SCREW WPL 67001310 Contact Us For Availability

4

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $11.17

4

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.48

4

WP12566607ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566607ED $34.01

4

WP12568001 Whirlpool Filter Cover In Stock WPL WP12568001 $40.18

4

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $3.84

4

BUCKET, REF DR GAL WPL 67004641 Contact Us For Availability

4

BRKT, ECM COND MOTOR WPL 67003644 Contact Us For Availability

4

STRIPPER, ICE WPL 951021 Contact Us For Availability

4

MODULE, REF CONTROL WPL 67004005 Contact Us For Availability

4

HANDLE, BASKET/SHELF WPL 10508506 Contact Us For Availability

5

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $18.70

5

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.84

5

WP67003417 Whirlpool Refrigerator Front Seal Backorder WPL WP67003417 $3.84

5

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.60

5

WPW10503184 Whirlpool Refrigerator Freezer Ba Backorder WPL WPW10503184 $145.54

5

WPW10503278 Whirlpool Refrigerator Electronic In Stock WPL WPW10503278 $132.37

5

INLET, WATER WPL 951001 Contact Us For Availability

5

GASKET, MC BACK WPL B5759649 Contact Us For Availability

5

TUBE, DRAIN WPL 67001066 Contact Us For Availability

5

SCREW-SM WPL M0238636 Contact Us For Availability

5

TRAY, BUTTER WPL 67004404 Contact Us For Availability

5

COVER, TOP HINGE (LT-BLK) WPL 12684201B Contact Us For Availability

6

67001067 Whirlpool Refrigerator Drain Tube Cl Backorder WPL 67001067 $4.58

6

W10819546 Whirlpool Refrigerator Clip Backorder WPL W10819546 $5.30

6

WP12227305WD Whirlpool Drawer Support Backorder WPL WP12227305WD $49.48

6

WP12587601 Whirlpool Refrigerator Condenser B Backorder WPL WP12587601 $60.91

6

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $43.72

6

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.60

6

WP67002513 Whirlpool Refrigerator Rear Crispe Backorder WPL WP67002513 $4.29

6

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $36.35

6

DIVIDER, BASKET (LWR) WPL 67004064 Contact Us For Availability

6

LID, BUTTER TRAY WPL 67004405 Contact Us For Availability

6

COVER, TOP HINGE (RT-BLK) WPL 12684202B Contact Us For Availability

7

67003900 Whirlpool Refrigerator Insert Damper Backorder WPL 67003900 $3.84

7

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.74

7

WP12642303WD Whirlpool Refrigerator Drawer Su Backorder WPL WP12642303WD $49.82

7

WP67001719 Whirlpool Refrigerator Track Backorder WPL WP67001719 $2.60

7

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $30.76

7

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $3.84

7

SLIDE, DRAWER WPL 67004065 Contact Us For Availability

7

TRAY, EGG WPL 672152 Contact Us For Availability

7

FACADE, DISPENSER WPL 67002979 Contact Us For Availability

8

12707303SP Whirlpool Refrigerator Plate Backorder WPL 12707303SP $34.22

8

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $328.61

8

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.26

8

W11772394 Whirlpool Screw In Stock WPL W11772394 $8.02

8

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $54.89

8

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $3.84

8

WPB5705307 Whirlpool Refrigerator Tube In Stock WPL WPB5705307 $7.68

8

WPW10231345 Whirlpool Refrigerator Shelf Trim Backorder WPL WPW10231345 $54.44

8

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $40.58

8

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $40.58

8

SCREW, BOTTOM HINGE WPL 67003858 Contact Us For Availability

9

12656202 Whirlpool Refrigerator Housing Backorder WPL 12656202 $60.35

9

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $50.05

9

67004838 Whirlpool Refrigerator Button Vent P Backorder WPL 67004838 $4.90

9

WP12575501 Whirlpool Refrigerator Micro Switc Backorder WPL WP12575501 $32.15

9

WP67004515 Whirlpool Crisper Drawer In Stock WPL WP67004515 $75.00

9

WP67006642 Whirlpool Refrigerator Pin Backorder WPL WP67006642 $3.84

9

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $3.84

9

SCREW, SHLDR WPL M0221523 Contact Us For Availability

9

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

9

HINGE, BOTTOM E-CT (BLK) WPL 67001238 Contact Us For Availability

9

ADAPTER, SIDE (LT) WPL 67004010 Contact Us For Availability

9

ADAPTER, SIDE (RT) WPL 67004011 Contact Us For Availability

67002329 Whirlpool Refrigerator Pantry Gasket Backorder WPL 67002329 $11.17

W10613606 Whirlpool Refrigerator Start Device In Stock WPL W10613606 $36.61

W11177593 Whirlpool Leveling Feet Backorder WPL W11177593 $7.35

W11311945 Whirlpool Refrigerator Screw Backorder WPL W11311945 $9.96

W11573362 Whirlpool Screw Assembly Backorder WPL W11573362 $9.96

W11677725 Whirlpool Refrigerator Guide Backorder WPL W11677725 $13.26

WP12722803B Whirlpool Door Guide Backorder WPL WP12722803B $144.56

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.85

WP67005154 Whirlpool Water Valve In Stock WPL WP67005154 $60.50

WP67005923 Whirlpool Refrigerator Front Cover In Stock WPL WP67005923 $35.76

GROMMET, SCREW WPL M0580205 Contact Us For Availability

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

67002816 Whirlpool Refrigerator Waterline Cli Backorder WPL 67002816 $11.42

WP12603701 Whirlpool Refrigerator Support In Stock WPL WP12603701 $4.48

WP65889-4 Whirlpool Refrigerator Capacitor In Stock WPL WP65889-4 $42.29

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $32.15

WP67003793 Whirlpool Refrigerator Temperature Backorder WPL WP67003793 $31.16

WPB2150504 Whirlpool Refrigerator Dryer Backorder WPL WPB2150504 $74.65

WPM0104106 Whirlpool Refrigerator Clip Backorder WPL WPM0104106 $2.60

PLUG, BUTTON (BLK) WPL A3080001 Contact Us For Availability

CLIP, TOE GRILLE WPL 12627302 Contact Us For Availability

BRACKET, DRAWER SLIDE (LT) WPL 67004012 Contact Us For Availability

BRACKET, DRAWER SLIDE (RT) WPL 67004013 Contact Us For Availability

12002041 Whirlpool Refrigerator Evaporator Re In Stock WPL 12002041 $204.19

W11519867 Whirlpool Refrigerator Cover In Stock WPL W11519867 $13.03

WP67001255 Whirlpool Ice Bucket Backorder WPL WP67001255 $94.92

WP67002731 Whirlpool Refrigerator Door Bushin Backorder WPL WP67002731 $3.84

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $4.77

WPW10235370 Whirlpool Refrigerator Glide Backorder WPL WPW10235370 $125.32

STRAP, BALE WPL 12576801 Contact Us For Availability

OVERLAY, CONTROL MODULE WPL 67004642 Contact Us For Availability

ADAPTER, CTR LADDER WPL 67003721 Contact Us For Availability

LADDER, CENTER WPL 67004644 Contact Us For Availability

BUSHING, DOOR (BLK) WPL 12395501B Contact Us For Availability

2324038 Whirlpool Refrigerator Nameplate Backorder WPL 2324038 $35.51

W10833902 Whirlpool Refrigerator Clamp Backorder WPL W10833902 $4.62

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.96

W11361728 Whirlpool Reservoir Assembly In Stock WPL W11361728 $66.63

WP12579803 Whirlpool Refrigerator Drain Pan Backorder WPL WP12579803 $176.42

WP67003405 Whirlpool Pivot Block In Stock WPL WP67003405 $4.03

WP67003903 Whirlpool Refrigerator Damper Cont In Stock WPL WP67003903 $85.48

DAM, LEFT RETURN WPL 67001083 Contact Us For Availability

LADDER, L/R SIDE WPL 67004645 Contact Us For Availability

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $7.43

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $11.17

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $11.17

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $23.96

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $8.11

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $11.74

W11498983 Whirlpool Refrigerator Knob Backorder WPL W11498983 $11.57

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $10.89

WP67002721 Whirlpool Refrigerator Door Bushin Backorder WPL WP67002721 $3.84

DAM, RIGHT RETURN WPL 67001084 Contact Us For Availability

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $9.20

WP67002493 Whirlpool Refrigerator Defrost Hea In Stock WPL WP67002493 $79.39

WP67003795 Whirlpool Refrigerator Temperature Backorder WPL WP67003795 $3.84

TUBE, DISCHARGE WPL 67002494 Contact Us For Availability

CLIP, WATERLINE WPL 67004100 Contact Us For Availability

COVER, FZ LIGHT WPL 67003905 Contact Us For Availability

SHIM, TOP HINGE WPL 12579702 Contact Us For Availability

PLUG, BYPASS WPL 12664501 Contact Us For Availability

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $48.36

W11673433 Whirlpool Clip Backorder WPL W11673433 $69.09

WP67003531 Whirlpool Drawer Assembly In Stock WPL WP67003531 $105.39

MODULE, FZ CONTROL WPL 67003906 Contact Us For Availability

COVER, LWR HINGE (BLK) WPL 12561901B Contact Us For Availability

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $14.42

W10827015 Whirlpool Refrigerator Pantry Drawe In Stock WPL W10827015 $120.38

FIBER, ACOUSTIC WPL 67003796 Contact Us For Availability

SHROUD, EVAP FAN WPL 67002777 Contact Us For Availability

HOUSING, LIGHT WPL 67001035 Contact Us For Availability

12002744 Whirlpool Refrigerator Evaporator Fa In Stock WPL 12002744 $77.14

12831101 Whirlpool Refrigerator Tube Clamp Backorder WPL 12831101 $7.98

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $4.75

WP67002759 Whirlpool Refrigerator Divider In Stock WPL WP67002759 $31.31

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $5.93

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $3.00

WP67006131 Whirlpool Refrigerator Condenser Backorder WPL WP67006131 $169.07

CLIP, EVAP MOTOR WPL 67002779 Contact Us For Availability

TRACK, WATERLINE WPL 67004102 Contact Us For Availability

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $16.36

WP67002780 Whirlpool Refrigerator Grommet Backorder WPL WP67002780 $3.84

TUBING, DAMPER 1.6 WPL 10699602 Contact Us For Availability

CLIP, CORD WPL M0104102 Contact Us For Availability

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $14.17

WP67006506 Whirlpool Refrigerator Power Cord Backorder WPL WP67006506 $18.24

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $2.60

HARNESS, MC WPL 67004097 Contact Us For Availability

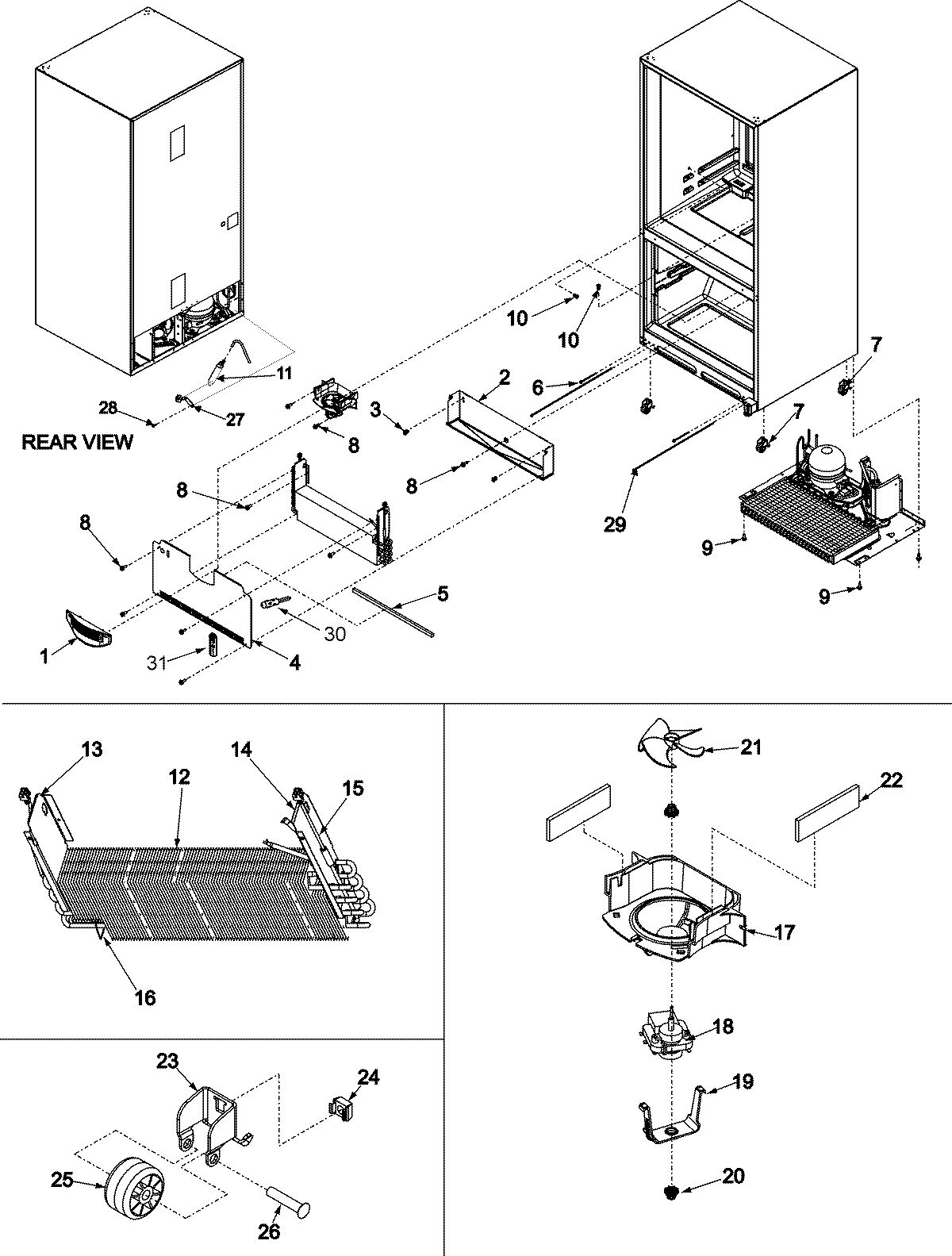

22

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $3.84

23

12456801V Whirlpool Refrigerator Bracket Backorder WPL 12456801V $34.54

23

W11478401 Whirlpool Refrigerator Housing Backorder WPL W11478401 $96.33

24

M0286708 Whirlpool Refrigerator Holder Nut As Backorder WPL M0286708 $30.91

24

WP12868601 Whirlpool Refrigerator Wire Harnes Backorder WPL WP12868601 $55.80

24

HARNESS, FZ MODULE WPL 67003908 Contact Us For Availability

25

WP10450603 Whirlpool Refrigerator Roller In Stock WPL WP10450603 $4.03

26

RIVET WPL M1205302 Contact Us For Availability

27

CLIP, DRIER WPL 10547002 Contact Us For Availability

28

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.60

29

SCREW, ADJUSTING WPL 67002781 Contact Us For Availability

30

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $27.89

31

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $3.84

32

WP67003426 Whirlpool Refrigerator Thermostat In Stock WPL WP67003426 $37.09

33

HARNESS, EVAP HEATER WPL 67004080 Contact Us For Availability

NI

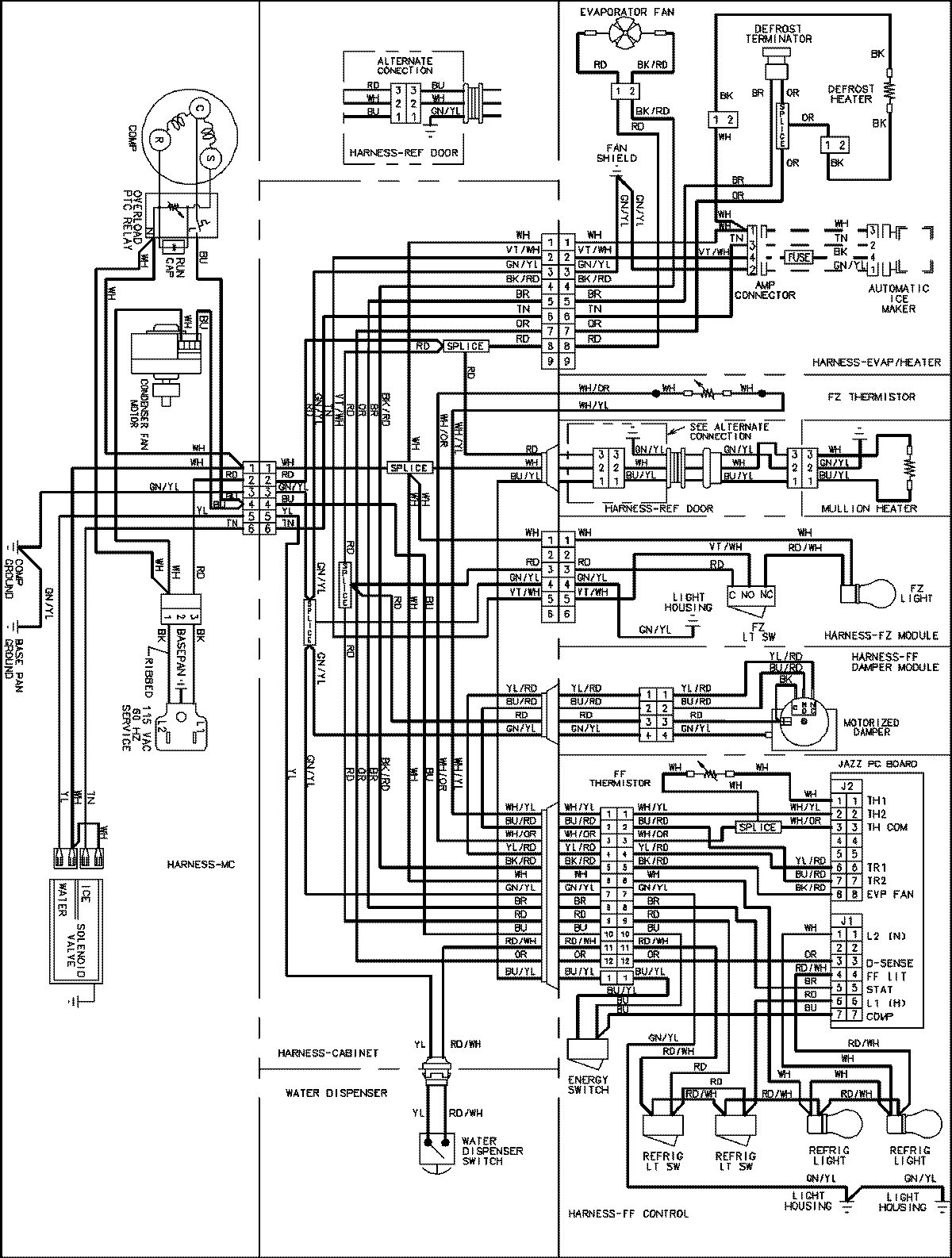

WIRING INFORMATION WPL 15003556 Contact Us For Availability
