Model Whirlpool LSR9434PQ4 AUTOMATIC WASHER – Common Parts & Diagrams

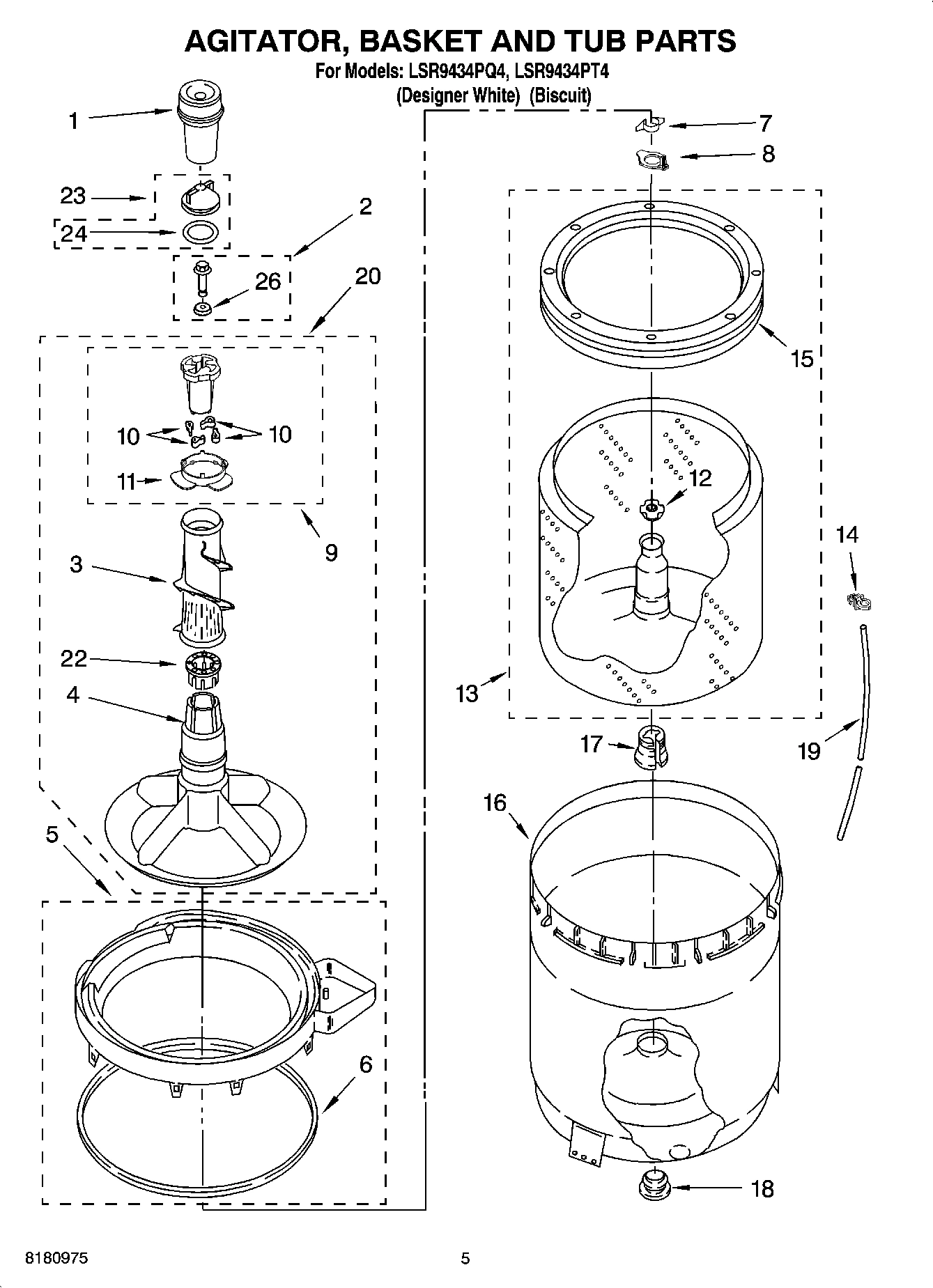

03 - AGITATOR, BASKET AND TUB PARTS
07 - BRAKE AND DRIVE TUBE PARTS

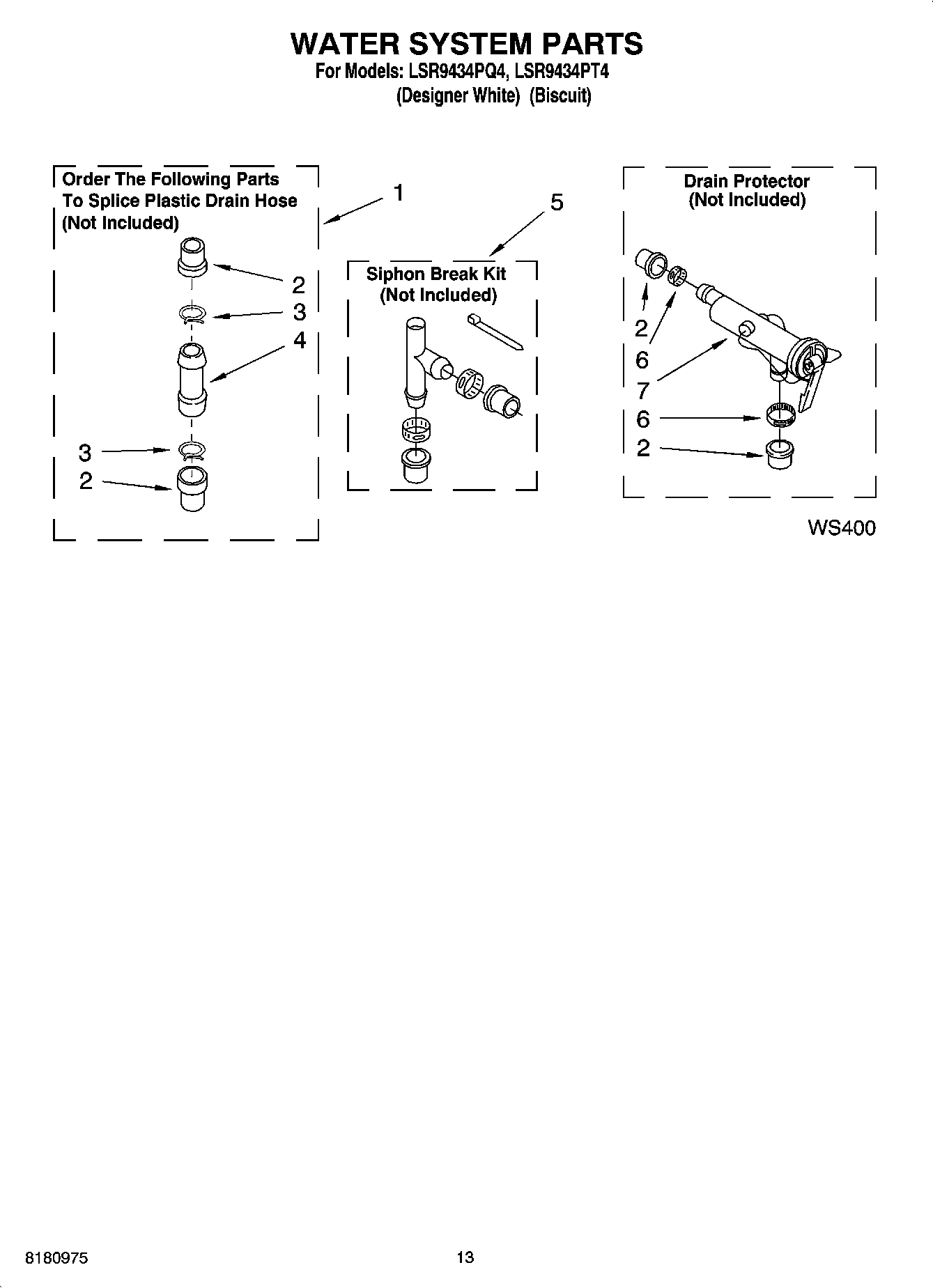

09 - WATER SYSTEM PARTS, OPTIONAL PARTS (NOT INCLUDED)

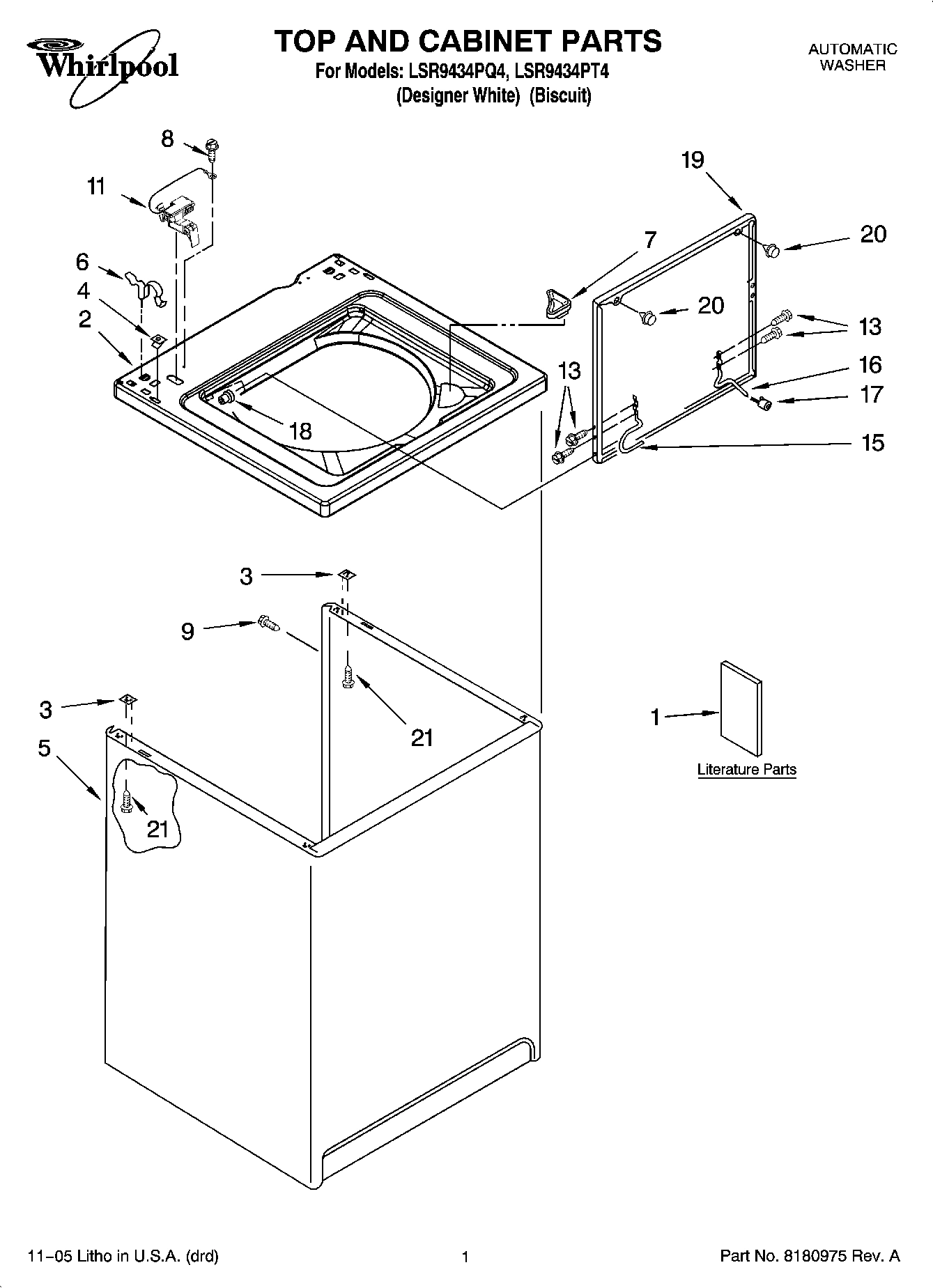

01 - TOP AND CABINET PARTS
06 - WIRING HARNESS PARTS
08 - GEARCASE PARTS

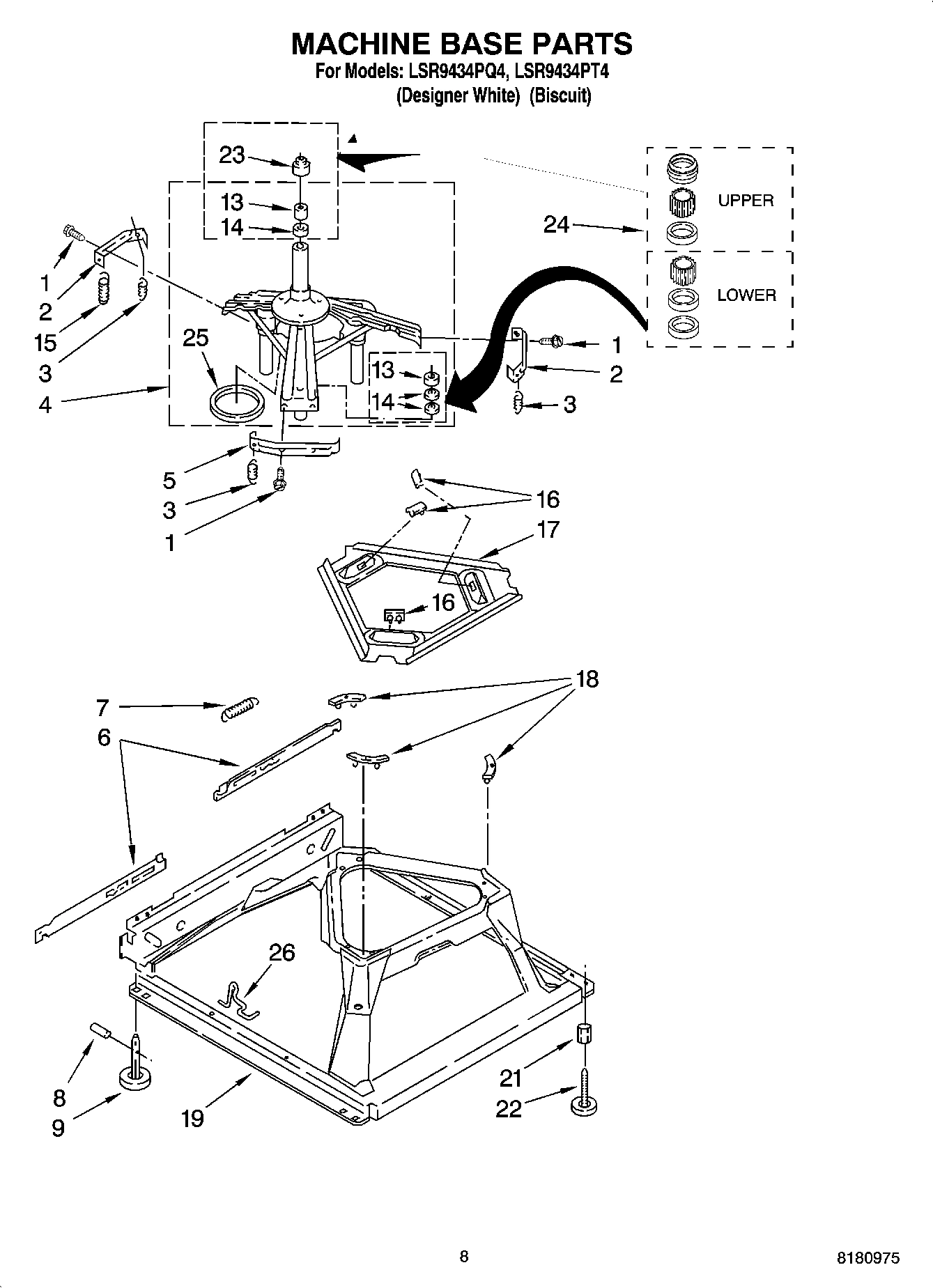

05 - MACHINE BASE PARTS

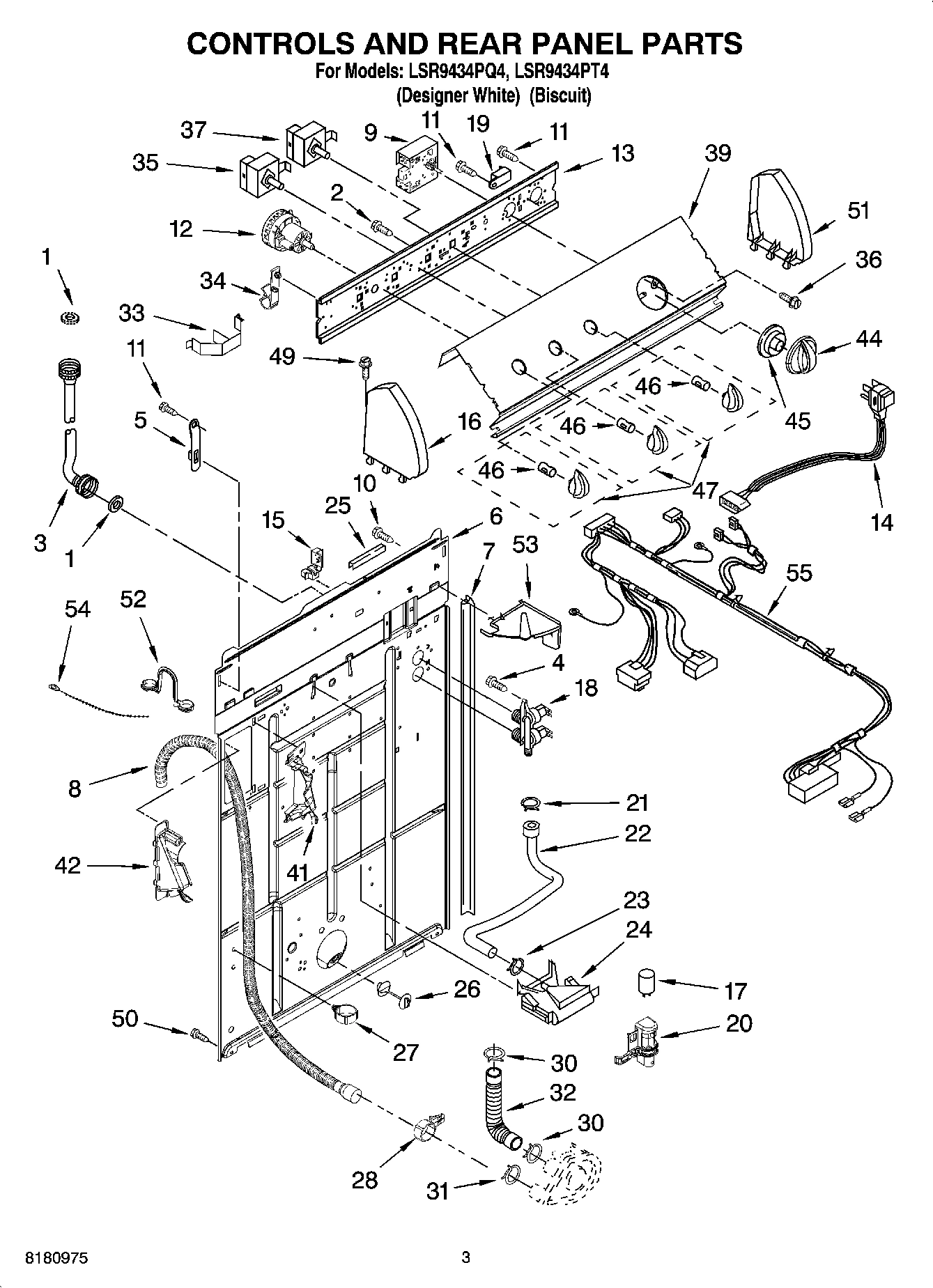

02 - CONTROLS AND REAR PANEL PARTS
04 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS
Common parts from model Whirlpool LSR9434PQ4 AUTOMATIC WASHER
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
PAINT, TOUCH-UP (1/2oz.) (Biscuit) WPL 4392899 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT) WPL 4392901 Contact Us For Availability
Siphon Break Kit WPL 285320 Contact Us For Availability
OIL WPL 350572 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GR WPL 350938 Contact Us For Availability
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
1
Dispenser, Fabric Softener WPL 63580 Contact Us For Availability
1
Manual, Washer WPL 4313896 Contact Us For Availability
1
Connector Kit, Plastic Drain Hose WPL 285442 Contact Us For Availability
1
Clip, Harness WPL 3349557 Contact Us For Availability
2
Cover, Gearcase WPL 285202 Contact Us For Availability
2
Screw, Ground WPL 3400073 Contact Us For Availability
4
Support & Brake, Tub WPL 8575214 Contact Us For Availability
5
Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability
5
Cabinet (White) WPL 63424 Contact Us For Availability
6
Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability
6
Panel, Rear WPL 8318015 Contact Us For Availability
8
Timer, Block Disconnect (White) WPL 3948614 Contact Us For Availability
8
Ring, Retaining (2) WPL 90369 Contact Us For Availability
9
Retainer, Spring WPL 62677 Contact Us For Availability
10
Plug, Terminal (3-Way) (Power Cord) (Use Term WPL 353424 Contact Us For Availability
10
Spring, Agitate WPL 62676 Contact Us For Availability
12
Washer, Agitate Gear WPL 62619 Contact Us For Availability
14
Cord, Power (Includes Item 15) WPL 661661 Contact Us For Availability
15
Hinge, Lid (L.H.) WPL 8318088 Contact Us For Availability
15
Strain Relief, Power Cord WPL 8559349 Contact Us For Availability
15
Clip, Anti-Rattle WPL 3355454 Contact Us For Availability
16
Tub WPL 63849 Contact Us For Availability
16
Washer, Cam Thrust WPL 62618 Contact Us For Availability
16
Cap, End (L.H.) (White) WPL 8271365 Contact Us For Availability
16
Cap, End (L.H.) (BIscuit) WPL 8271368 Contact Us For Availability
17
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
19
Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability
19
Base Assembly (Includes Items 6, 7, 8, 9, 16, WPL 3946512 Contact Us For Availability
20
Switch, Main Drive Motor WPL 3952056 Contact Us For Availability
20
Clip, Capacitor WPL 8318046 Contact Us For Availability
21
Seal, Thrust Plug WPL 285352 Contact Us For Availability
22
Block, Connector (Cold Valve) WPL 3354925 Contact Us For Availability
22
Block, Connector (Hot Valve) WPL 3354926 Contact Us For Availability
23
Ring, Retaining WPL 3362552 Contact Us For Availability
24
Centerpost Bearing Kit (Includes Items 13, 14 WPL 285203 Contact Us For Availability
24
Washer Kit, Thrust WPL 285735 Contact Us For Availability
25
Edge Protector WPL 303294 Contact Us For Availability
27
Clamp, Hose WPL 8541667 Contact Us For Availability
28
Clamp, Hose WPL 8541668 Contact Us For Availability
33
Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability
34
Retainer, Harness WPL 8317975 Contact Us For Availability
39
Panel, Console (White) WPL 3956559 Contact Us For Availability
39
Panel, Console (Biscuit) WPL 3956560 Contact Us For Availability
41
(Left Half) WPL ARI158739A Contact Us For Availability
42
(Right Half) WPL ARI158740A Contact Us For Availability
44
Knob, Timer (White) WPL 8544943 Contact Us For Availability
44
Knob, Timer (Biscuit) WPL 8544944 Contact Us For Availability
45
Dial, Timer (Biscuit) WPL 8544948 Contact Us For Availability
47
WPL 8544935 WPL 8544935 Contact Us For Availability
47
WPL 8544936 WPL 8544936 Contact Us For Availability
51
WPL 8271359 WPL 8271359 Contact Us For Availability
51
WPL 8271362 WPL 8271362 Contact Us For Availability
53
WPL 8539874 WPL 8539874 Contact Us For Availability
55
WPL 3957015 WPL 3957015 Contact Us For Availability
55
WPL 3957361 WPL 3957361 Contact Us For Availability
55
WPL ARI158741A WPL ARI158741A Contact Us For Availability
× ![]()
