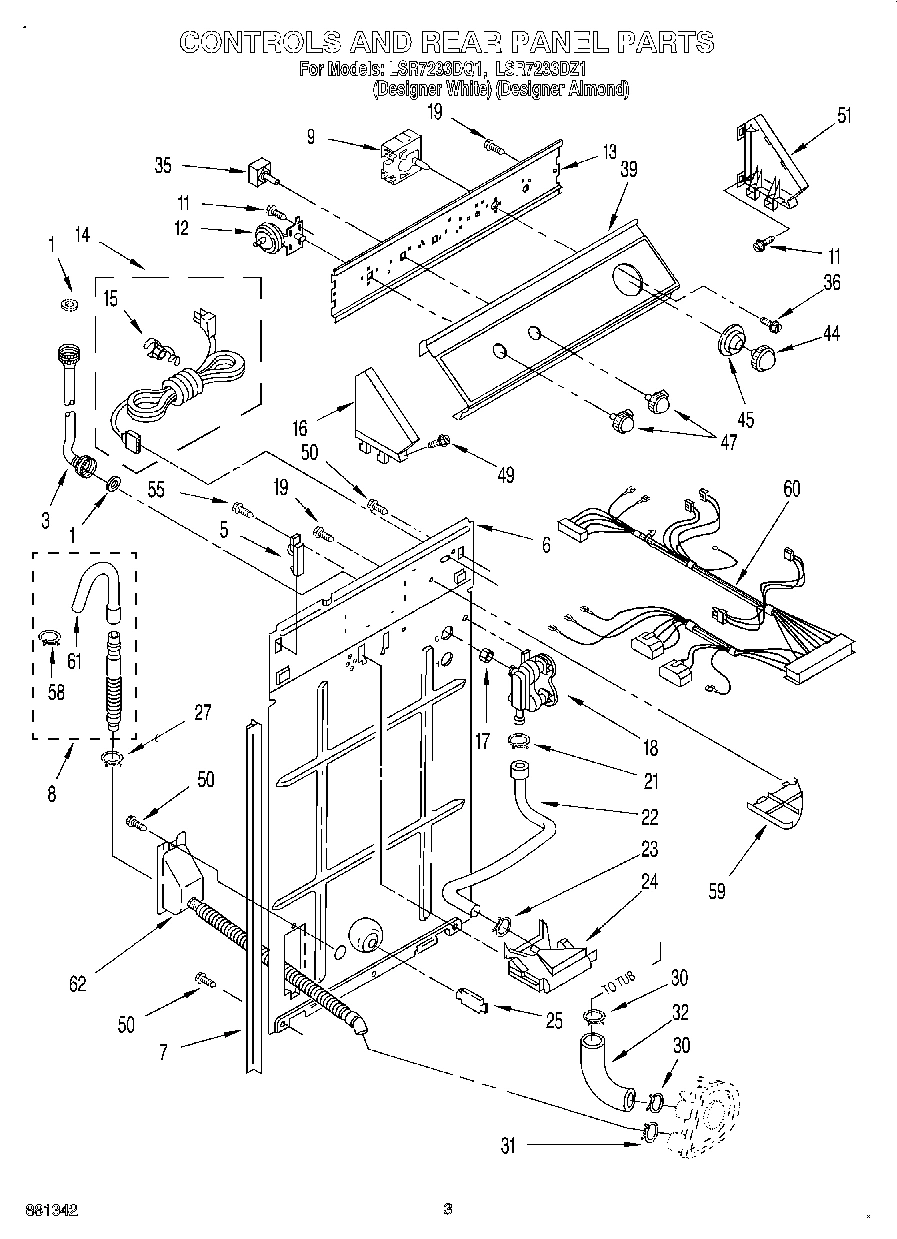

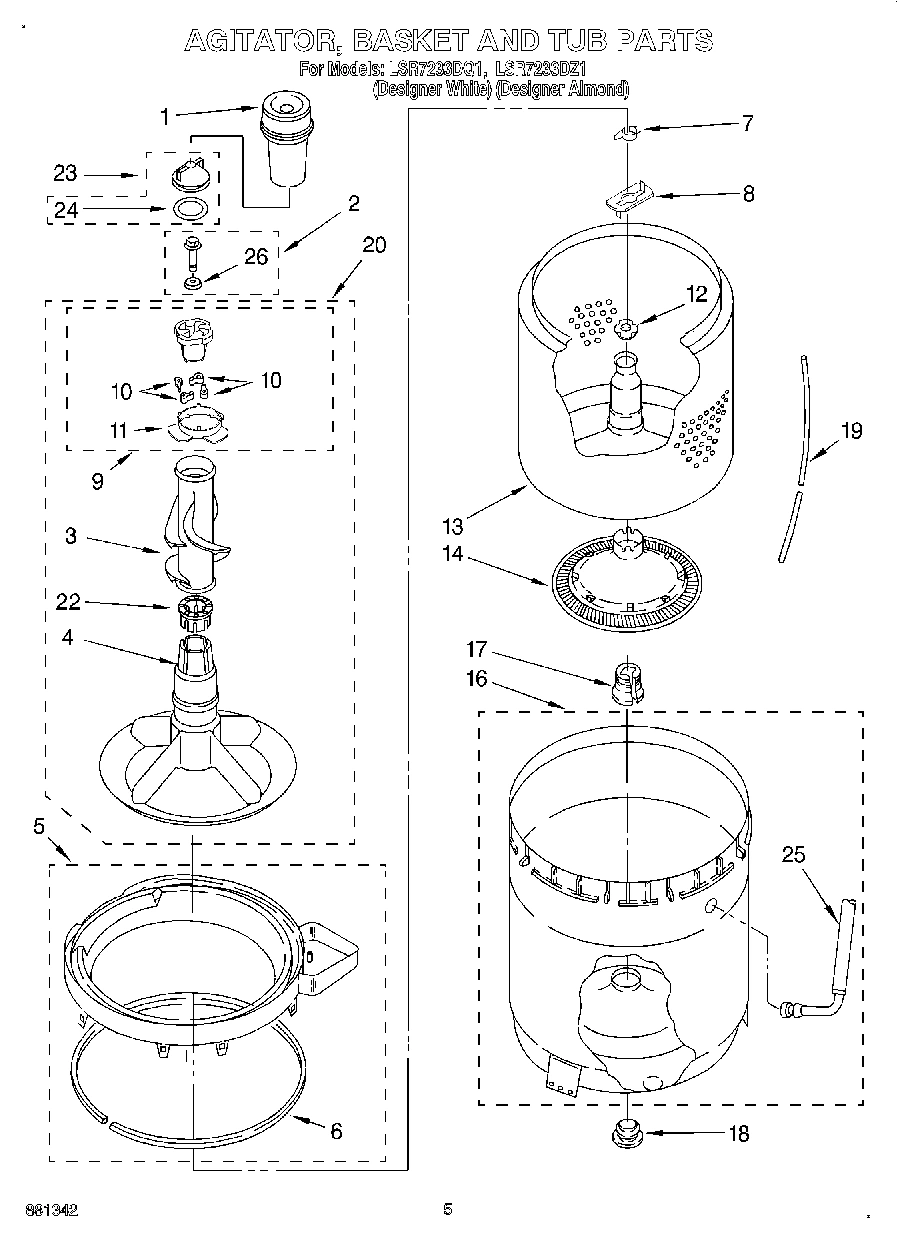

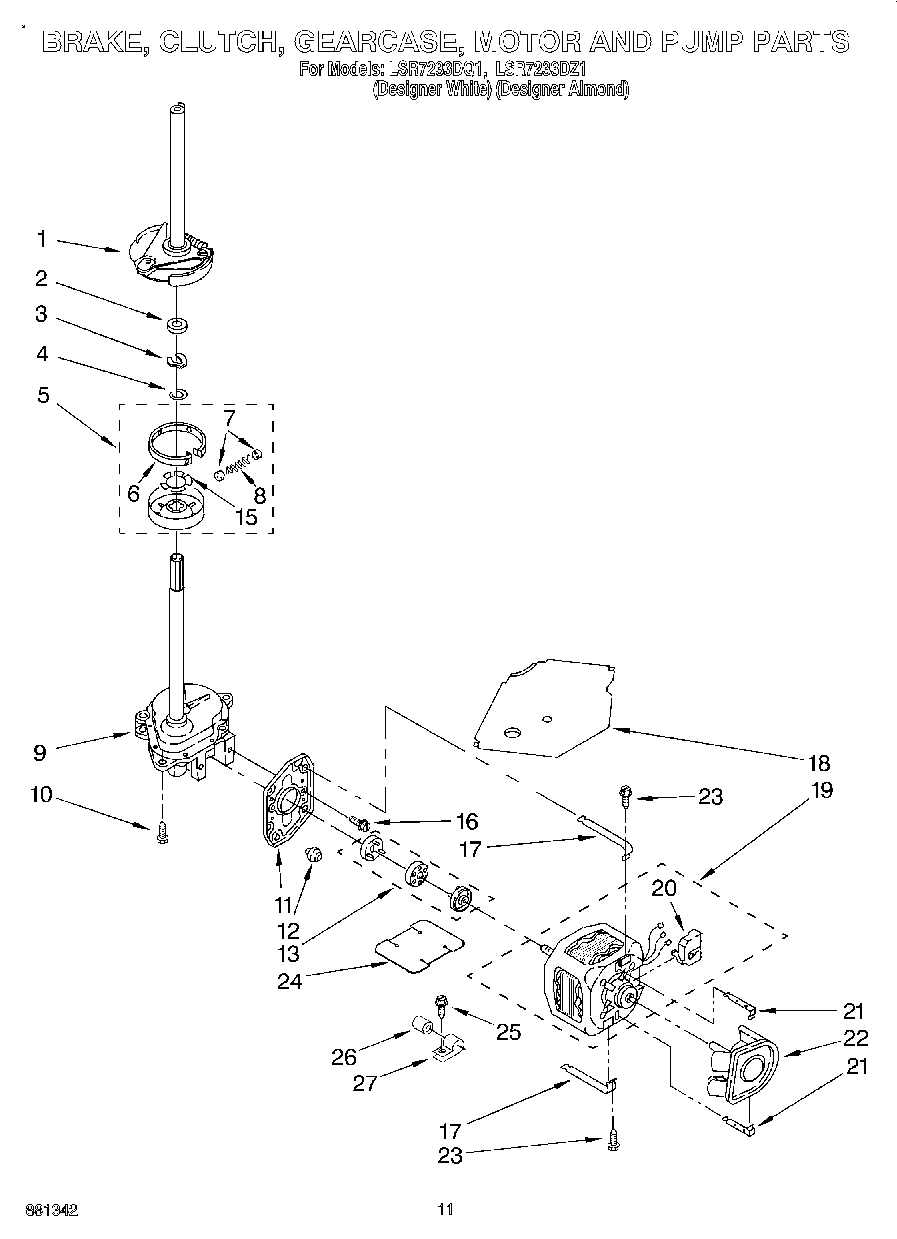

Model Whirlpool LSR7233DQ1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

1

285442 Whirlpool Coupling Backorder WPL 285442 $28.80

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $9.99

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

1

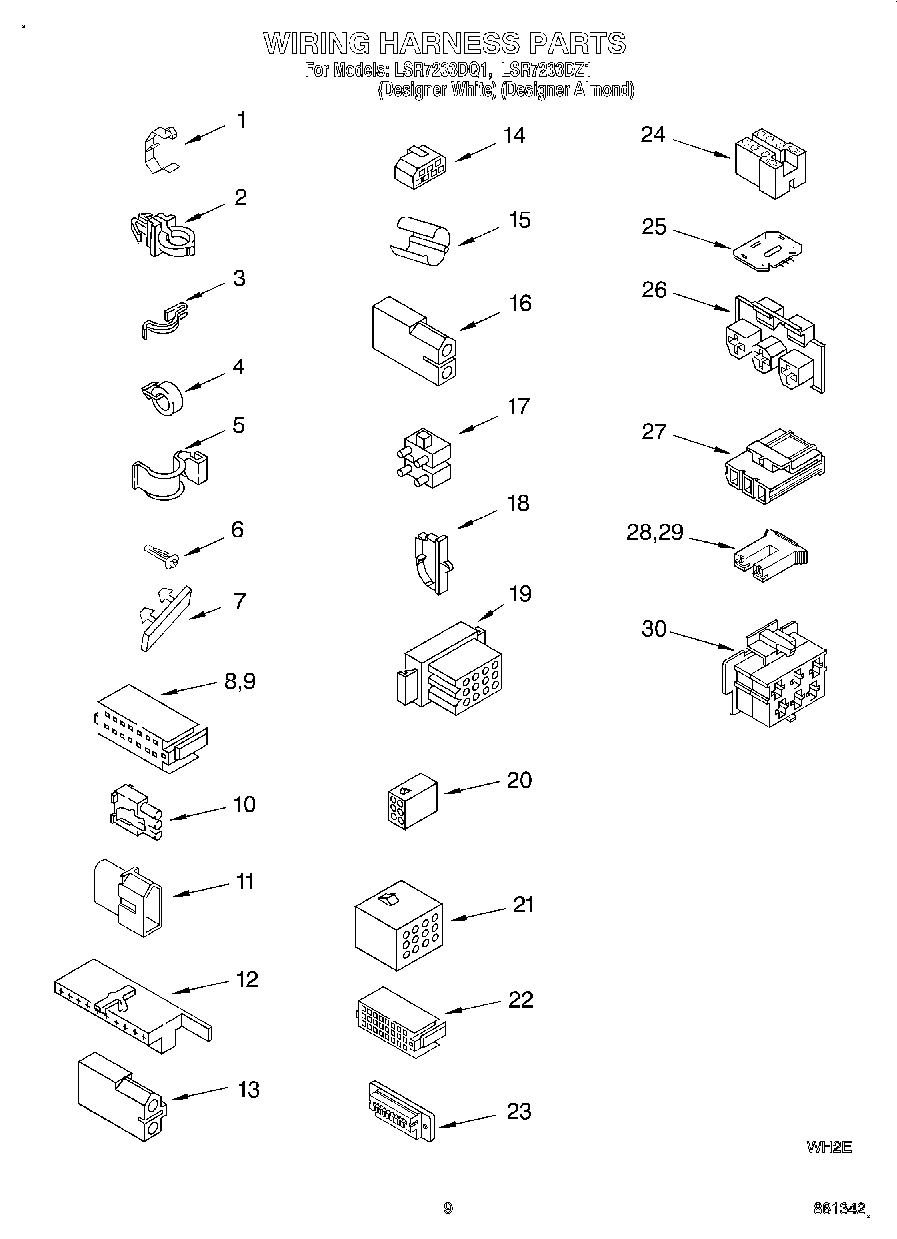

Clip, Harness WPL 3349557 Contact Us For Availability

1

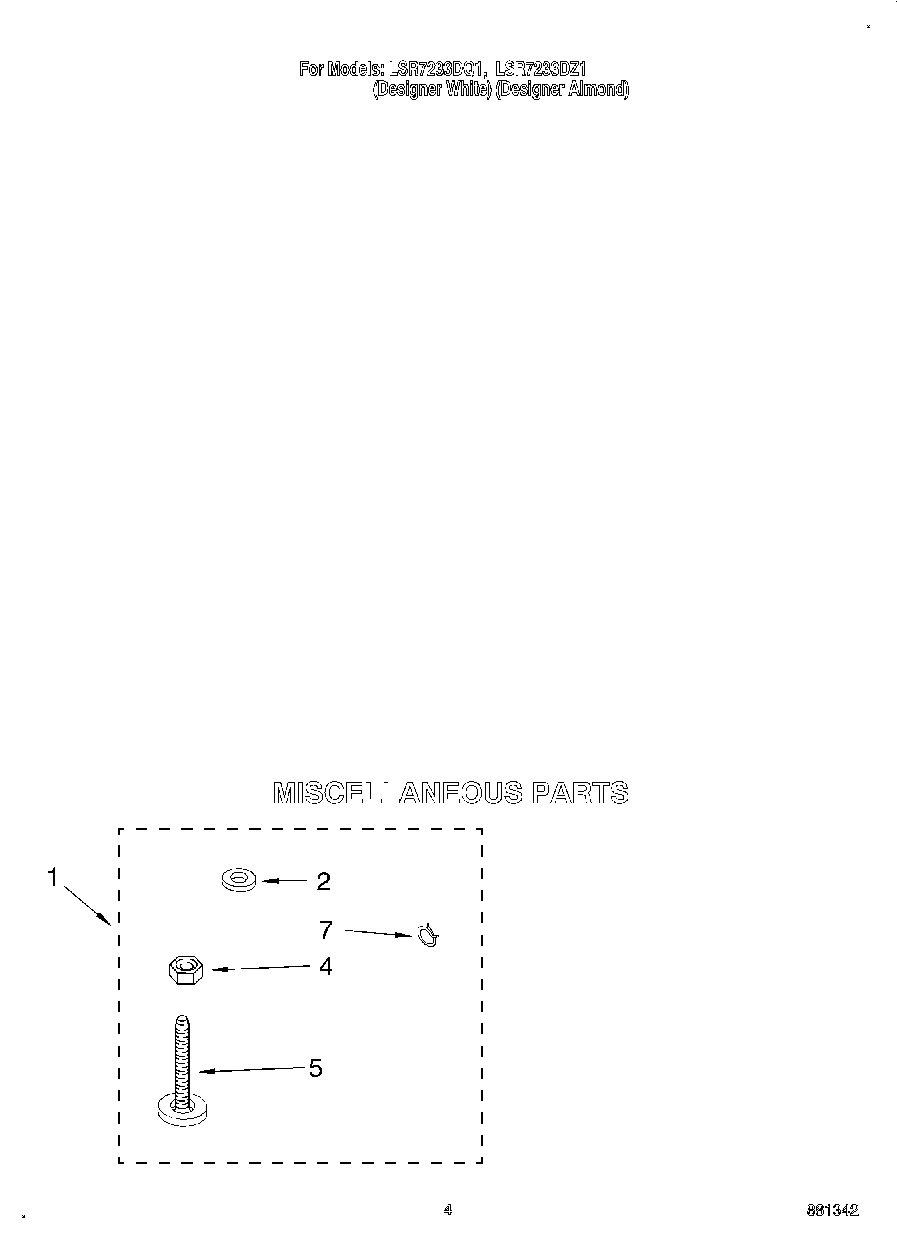

Miscellaneous Parts Bag WPL 3359460 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $89.14

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $3.62

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

4

WP3347288 Whirlpool Washer Agitator Base In Stock WPL WP3347288 $73.90

5

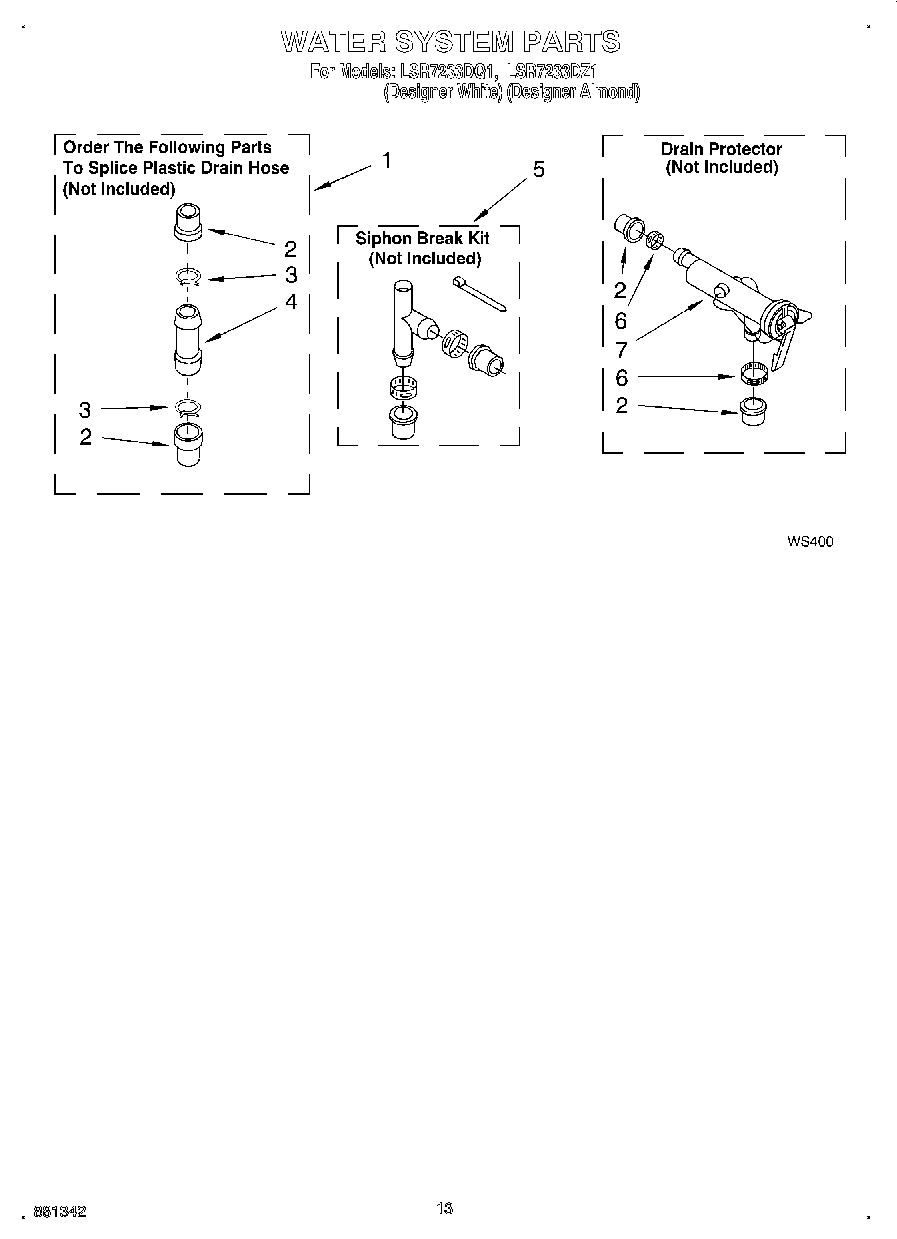

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $255.69

5

W10880720 Whirlpool Tub Ring Backorder WPL W10880720 $76.64

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

WP3357978 Whirlpool Rear Panel Backorder WPL WP3357978 $152.90

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $9.42

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $127.32

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $75.04

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $28.37

8

285702 Whirlpool Extensions Backorder WPL 285702 $37.95

8

WP3356311 Whirlpool Screw Backorder WPL WP3356311 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $5.27

9

285811 Whirlpool Washer Agitator Repair Kit In Stock WPL 285811 $8.76

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP3949339 Whirlpool Timer Backorder WPL WP3949339 $190.56

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.70

10

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

10

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $1.10

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

353424 Whirlpool Connector Backorder WPL 353424 $10.76

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $3.70

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

Spring, Brake WPL 387806 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP3356467 Whirlpool Washer Water Level Switch In Stock WPL WP3356467 $87.79

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

13

W10389328 Whirlpool Basket Backorder WPL W10389328 $190.38

13

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $41.82

13

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

14

285868 Whirlpool Washer Filter Plug Kit In Stock WPL 285868 $9.92

14

W10820044 Whirlpool Power Cord Backorder WPL W10820044 $56.25

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $28.49

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

Strain Relief, Power Cord WPL 3949468 Contact Us For Availability

3361596 Whirlpool Outer Tub Primary Backorder WPL 3361596 $180.24

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Cap, End (L.H.) (For White Model) WPL 3358528 Contact Us For Availability

Cap, End (L.H.) (For Almond Model) WPL 3358529 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

18

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $13.91

18

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

19

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

19

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $138.84

19

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

20

Agitator, Asy (Complete) WPL 3946501 Contact Us For Availability

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

21

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

21

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

285587 Whirlpool Thrust Washer In Stock WPL 285587 $1.43

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $7.83

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

23

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.47

23

Ring, Retaining WPL 3362552 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $26.24

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $3.70

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

25

Hose, Bleach WPL 3358198 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

26

WP21365 Whirlpool Washer Backorder WPL WP21365 $4.72

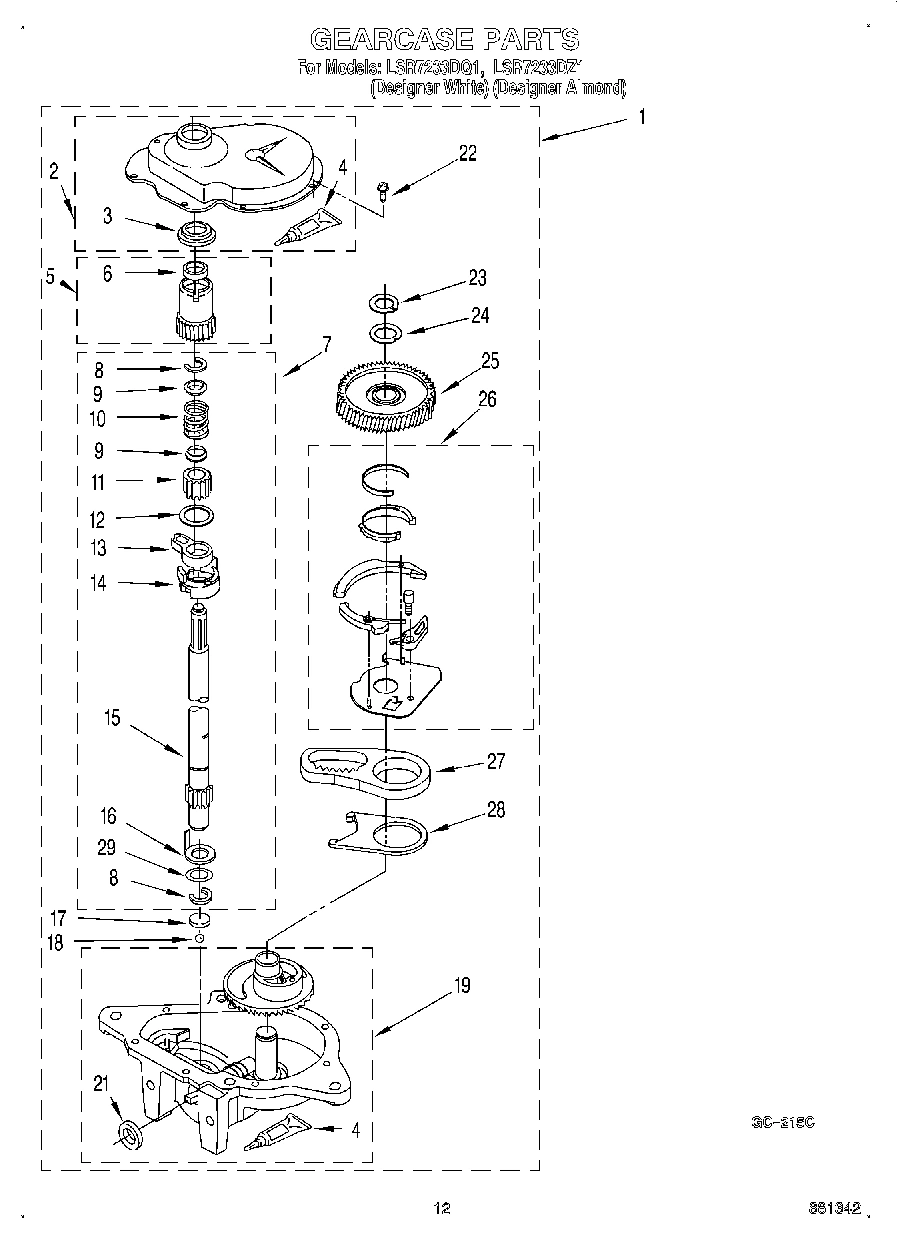

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $8.69

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

35

WPW10168256 Whirlpool Temperature Switch Backorder WPL WPW10168256 $47.54

35

(Alt.) WPL 3347117 Contact Us For Availability

35

(Alt.) WPL 3348352 Contact Us For Availability

36

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

39

Panel, Console (For White Model) WPL 3948229 Contact Us For Availability

39

Panel, Console (For Almond Model) WPL 3948230 Contact Us For Availability

44

WP3364293 Whirlpool Timer Knob Backorder WPL WP3364293 $30.07

45

280193 Whirlpool Timer Knob Backorder WPL 280193 $33.31

45

Dial, Timer (For White Model) WPL 3946261 Contact Us For Availability

47

3957797 Whirlpool Knob Backorder WPL 3957797 $29.43

47

WP3957796 Whirlpool Knob Backorder WPL WP3957796 $30.93

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

50

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

51

WPL 3358513 WPL 3358513 Contact Us For Availability

51

WPL 3358514 WPL 3358514 Contact Us For Availability

55

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

58

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

59

WPL 3348424 WPL 3348424 Contact Us For Availability

60

WPL 3948422 WPL 3948422 Contact Us For Availability

61

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $28.80

62

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $14.40
