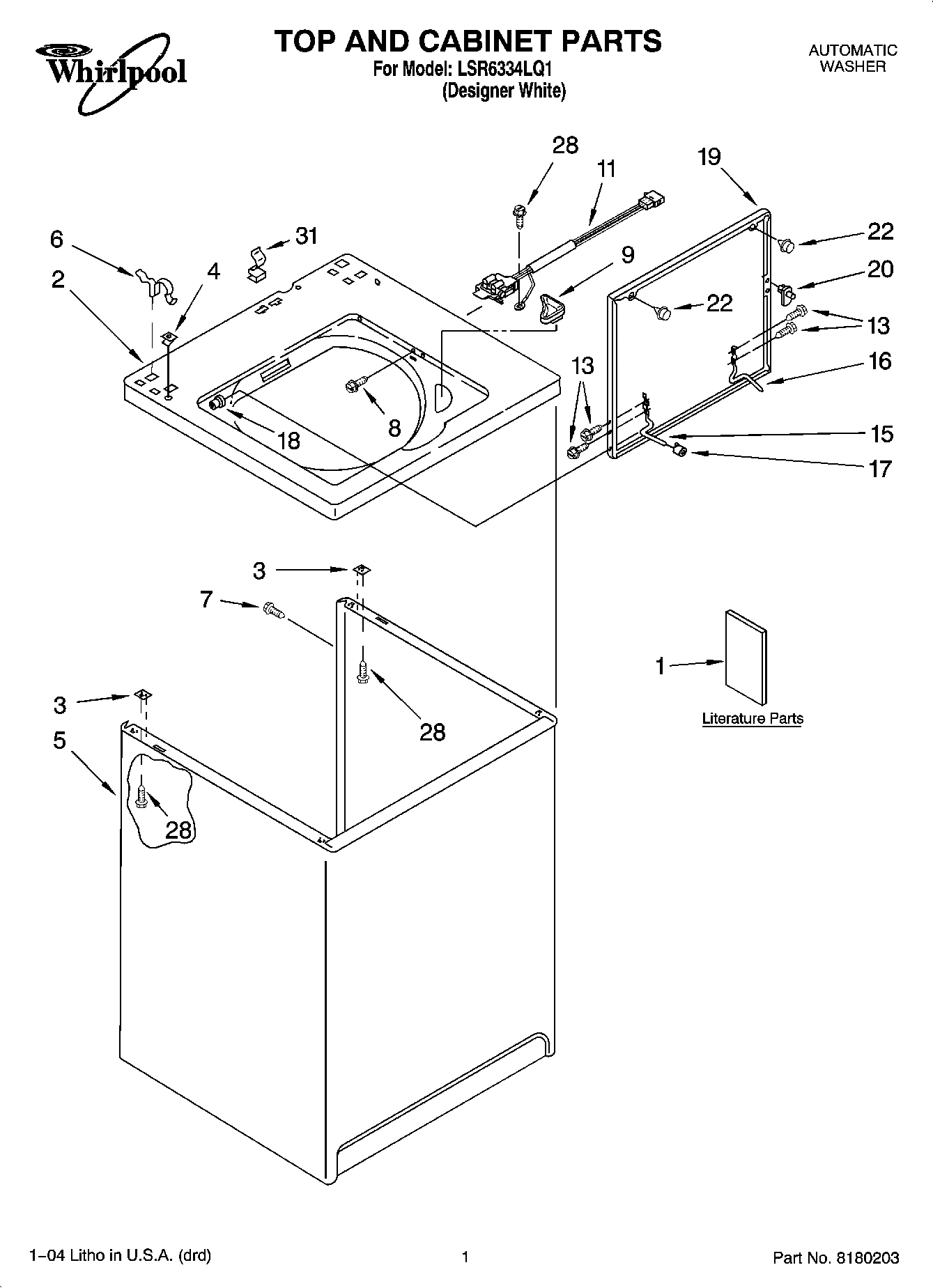

Model Whirlpool LSR6334LQ1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Miscellaneous Parts Bag WPL 3976263 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $3.11

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $4.52

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $4.70

2

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

2

Clip, Harness WPL 388498 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $10.17

3

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.52

3

WP358912 Whirlpool Gasket Backorder WPL WP358912 $3.70

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $4.52

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.70

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.07

4

8559320 Whirlpool Clip Backorder WPL 8559320 $13.91

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

4

WP389386 Whirlpool Agitator Assembly Backorder WPL WP389386 $78.08

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $3.11

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

6

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $33.38

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

6

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

6

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $11.31

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

6

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

6

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $4.52

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.70

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $11.67

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $4.70

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

6

Clip, Harness WPL 3390496 Contact Us For Availability

6

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

6

Drain Protector WPL 367031 Contact Us For Availability

6

OIL WPL ARI158502A Contact Us For Availability

6

LUBRICANT WPL ARI158503A Contact Us For Availability

6

SEALER WPL ARI158504A Contact Us For Availability

6

ACCESSORY PARTS WPL ARI158505A Contact Us For Availability

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $3.70

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Timer, Block Disconnect (White) WPL 3948614 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

W10876590 Whirlpool Connector In Stock WPL W10876590 $4.94

9

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.84

9

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $3.70

9

Timer, Control (60 Hz.) (Motor Not A Service WPL 3955489 Contact Us For Availability

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

10

Spring, Agitate WPL 62676 Contact Us For Availability

11

353424 Whirlpool Connector Backorder WPL 353424 $10.76

11

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.52

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $10.45

13

Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

14

Protector WPL 63523 Contact Us For Availability

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

Strain Relief, Power Cord WPL 3952821 Contact Us For Availability

Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $133.48

WP91770 Whirlpool Hinge In Stock WPL WP91770 $8.80

Cap, End (L.H.) WPL 8271365 Contact Us For Availability

Clip, Harness WPL 3352944 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $9.26

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $80.64

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $31.31

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $3.40

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability

19

Clamp, Hose WPL 3976395 Contact Us For Availability

19

Connector, Etc WPL 3349494 Contact Us For Availability

19

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

Clip, Capacitor WPL 8318201 Contact Us For Availability

E.T.C. Control WPL 3407125 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $31.51

WP2172937 Whirlpool Connector In Stock WPL WP2172937 $8.66

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $3.33

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $9.04

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $35.58

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $3.46

Connector (T.P.A.) (3-Circuit) (Pressure Swit WPL 3360056 Contact Us For Availability

23

3354925 Whirlpool Connector Backorder WPL 3354925 $10.76

23

Ring, Retaining WPL 3362552 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $76.00

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $42.23

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.78

Block, Connector (Hot Valve) WPL 3354926 Contact Us For Availability

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

Edge Protector WPL 303294 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

26

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $15.23

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $195.01

28

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $3.33

28

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $45.77

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.52

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $8.75

33

Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability

35

WPW10168256 Whirlpool Temperature Switch Backorder WPL WPW10168256 $49.92

36

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $2.51

39

Panel, Console WPL 3955402 Contact Us For Availability

44

W10807860 Whirlpool White Control Knob In Stock WPL W10807860 $32.35

45

WP3957849 Whirlpool Timer Dial Backorder WPL WP3957849 $28.09

47

WP3957799 Whirlpool Knob Backorder WPL WP3957799 $31.38

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

51

Cap, End (R.H.) WPL 8271359 Contact Us For Availability

55

Shield, Capacitor WPL 3976286 Contact Us For Availability

59

Shield, Suds WPL 8539874 Contact Us For Availability

60

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $30.25

61

Wiring Harness (For Detail Se WPL 3955491 Contact Us For Availability
