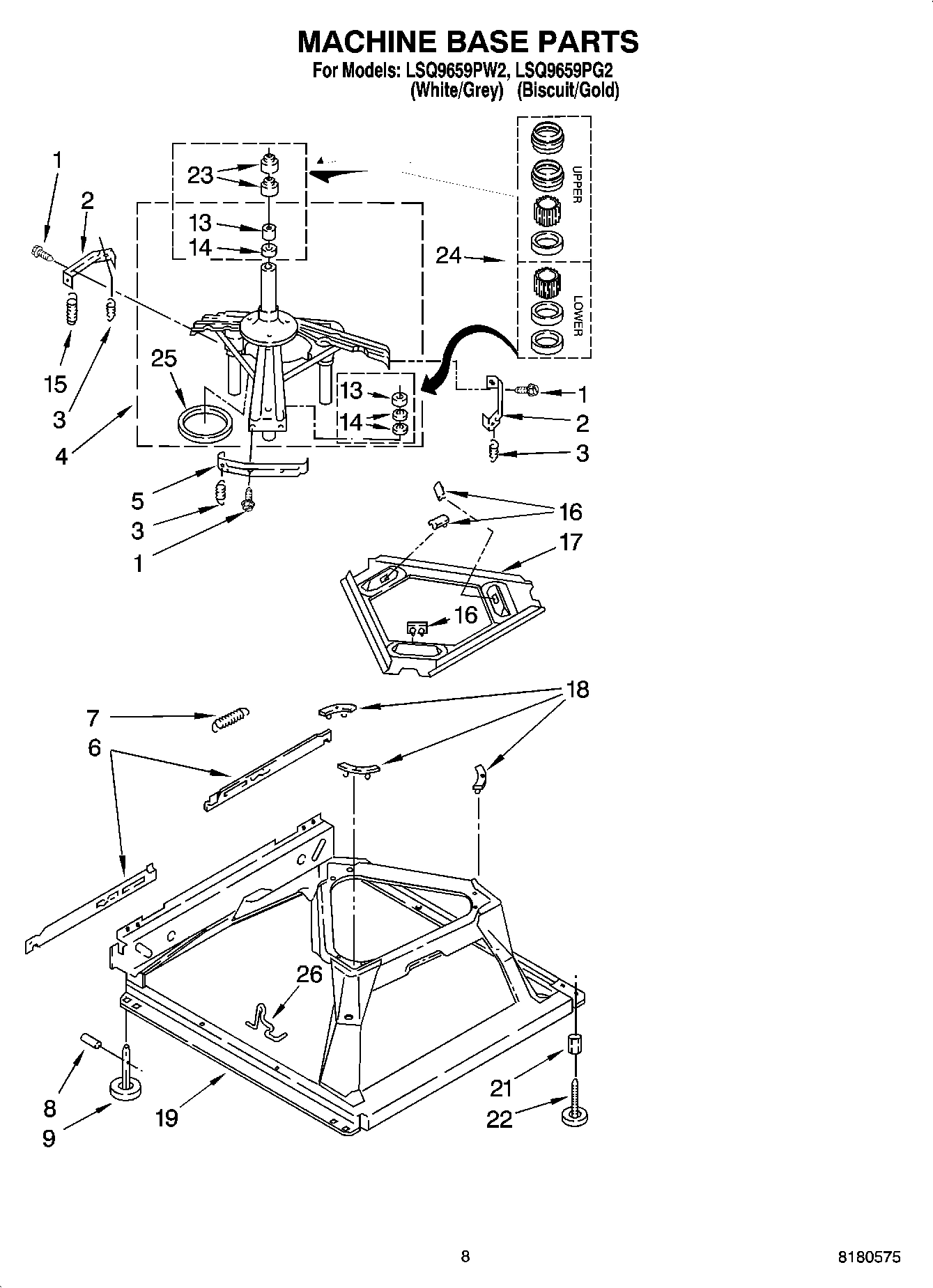

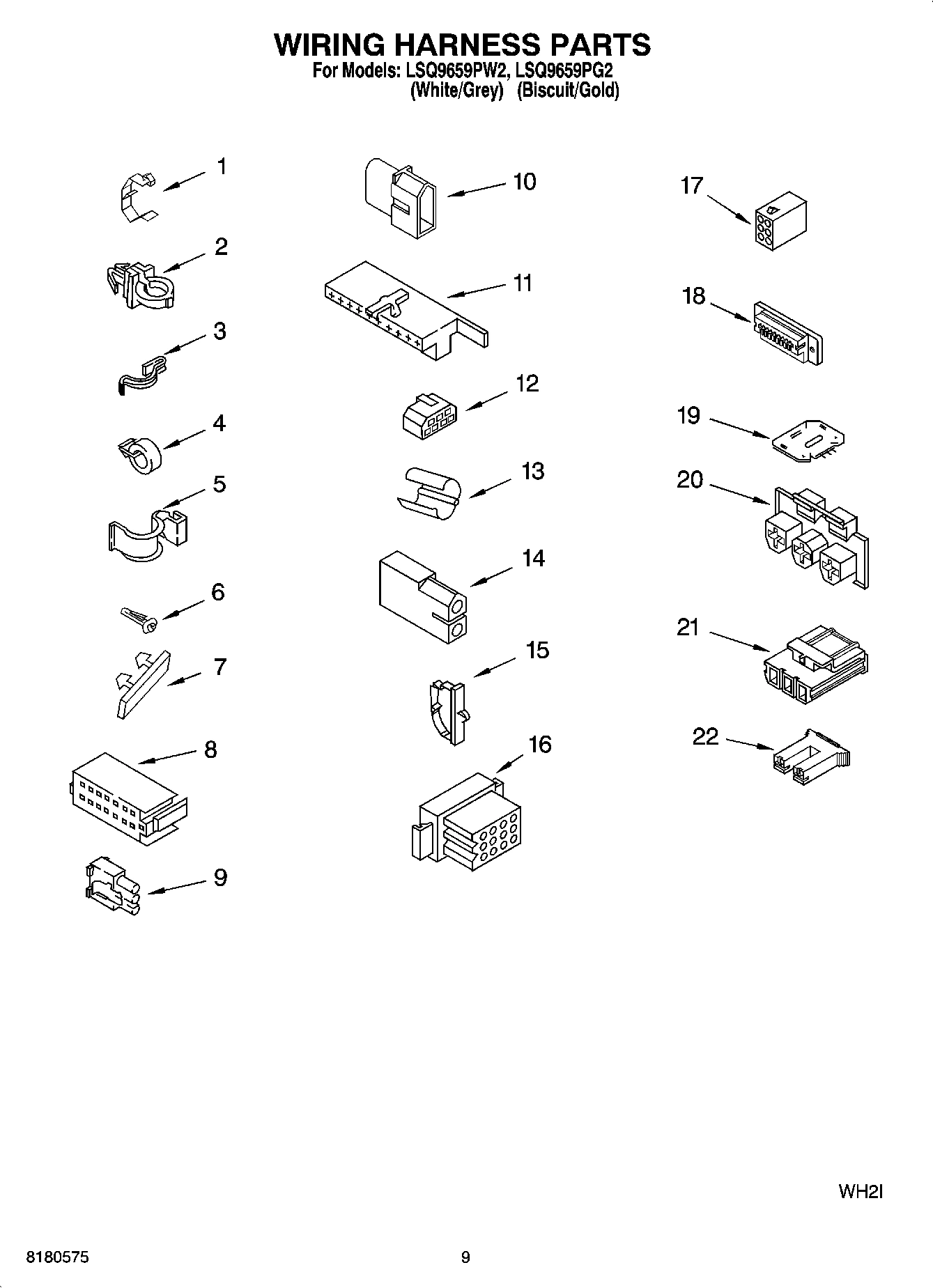

Model Whirlpool LSQ9659PW2 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

1

285442 Whirlpool Coupling Backorder WPL 285442 $28.80

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $9.99

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

Manual, Washer WPL 4313896 Contact Us For Availability

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Use & Care Guide WPL 3955869 Contact Us For Availability

1

Feature Sheet WPL 3955903 Contact Us For Availability

1

Installation Instructions WPL 3956025 Contact Us For Availability

1

Energy Guide WPL 3956925 Contact Us For Availability

1

Wiring Diagram WPL 8565445 Contact Us For Availability

1

Following May Be Purchased DO-IT-YOURSELF REP WPL ARI158312A Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $49.52

2

Top (White) WPL 8543451 Contact Us For Availability

2

Top (Biscuit) WPL 8543452 Contact Us For Availability

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $89.14

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WPW10080230 Whirlpool Ring In Stock WPL WPW10080230 $4.98

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

4

WP3951632 Whirlpool Washer Lower Agitator In Stock WPL WP3951632 $77.21

4

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $127.32

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $18.42

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $255.69

5

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Cabinet (Biscuit) WPL 3954357 Contact Us For Availability

6

285438 Whirlpool Brake Shoe In Stock WPL 285438 $75.04

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $28.49

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $9.42

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.70

7

Cabinet - Sound Damper WPL 3976348 Contact Us For Availability

8

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $3.70

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Timer, Block Disconnect (White) WPL 3948614 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

9

WP3955765 Whirlpool Timer Assembly Backorder WPL WP3955765 $166.29

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

9

Spring, Brake WPL 387806 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $10.76

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $2.51

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

Spring, Agitate WPL 62676 Contact Us For Availability

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62611 Whirlpool Plate Backorder WPL WP62611 $37.28

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $16.93

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

13

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

14

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

14

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

14

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI158313A Contact Us For Availability

15

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

15

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

15

Hinge, Lid (L.H.) WPL 8559336 Contact Us For Availability

16

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $126.36

16

WP91770 Whirlpool Hinge Backorder WPL WP91770 $8.80

16

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

18

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

18

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

18

Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability

WP8529935 Whirlpool Drive Motor Backorder WPL WP8529935 $236.28

Lid (White) WPL 8558398 Contact Us For Availability

Lid (Biscuit) WPL 8558399 Contact Us For Availability

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

20

285565 Whirlpool Agitator Assembly In Stock WPL 285565 $136.35

20

Clip, Capacitor WPL 8318046 Contact Us For Availability

20

Switch, Main Drive Motor WPL 8529896 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $8.69

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.70

22

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

22

WP3951608 Whirlpool Washer Agitator Thrust Sp In Stock WPL WP3951608 $3.70

23

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

23

Ring, Retaining WPL 3362552 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

24

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

24

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

26

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.72

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

28

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

31

Cover, Dispenser WPL 3955788 Contact Us For Availability

32

Dispenser, Bleach WPL 8519517 Contact Us For Availability

33

Clamp, Hose WPL 3976395 No Longer Available

34

W10168264 Whirlpool Cycle Switch Backorder WPL W10168264 $47.51

38

WP8564139 Whirlpool Temperature Switch Backorder WPL WP8564139 $61.36

42

Switch, Rotary WPL 3956080 Contact Us For Availability

44

WPL 8544945 WPL 8544945 Contact Us For Availability

45

WP8544947 Whirlpool Dial Backorder WPL WP8544947 $27.18

46

WPL 8544937 WPL 8544937 Contact Us For Availability

46

WPL 8544938 WPL 8544938 Contact Us For Availability

47

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $3.70

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

50

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

53

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $28.80

55

WPL 8539874 WPL 8539874 Contact Us For Availability
