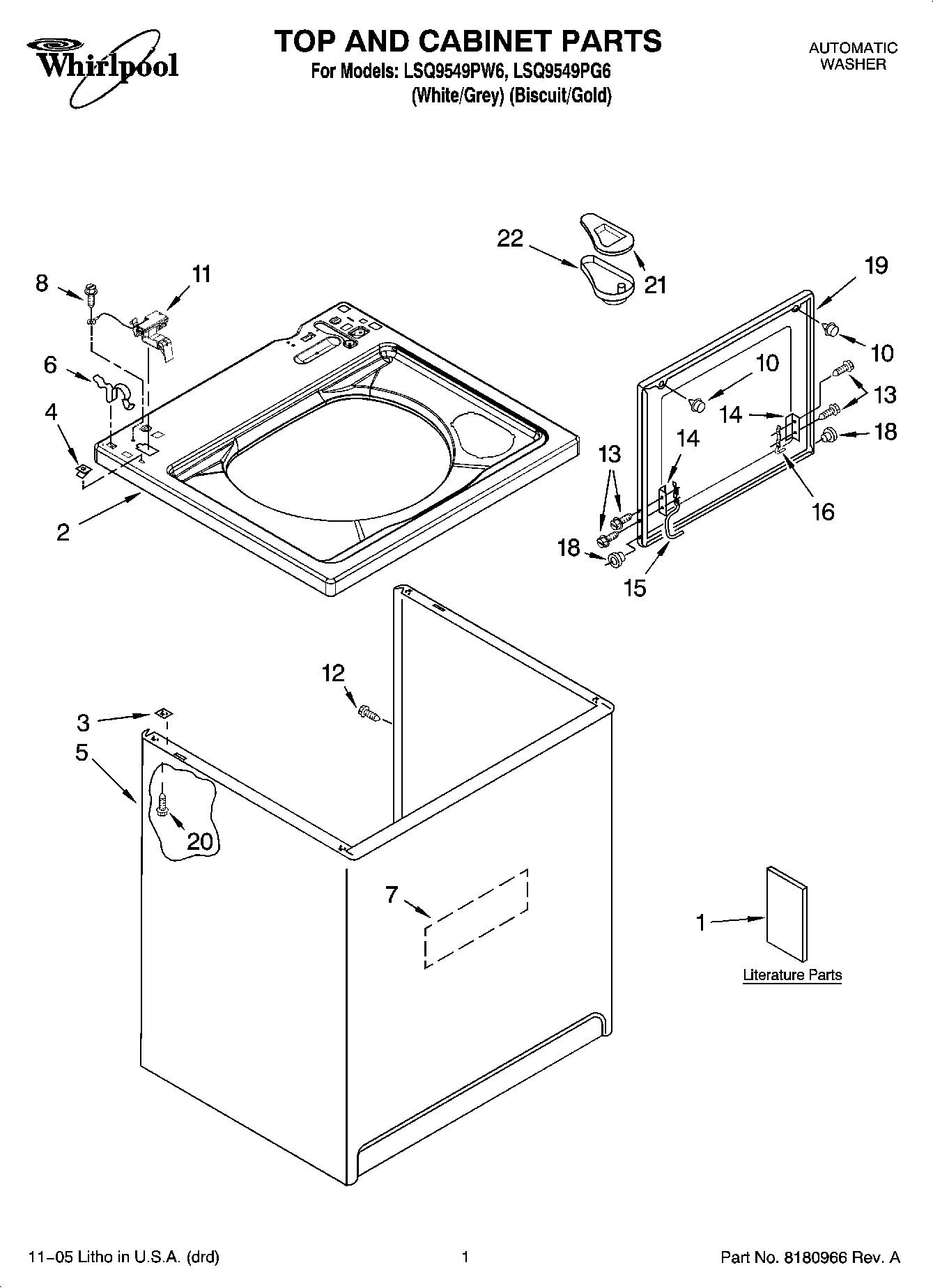

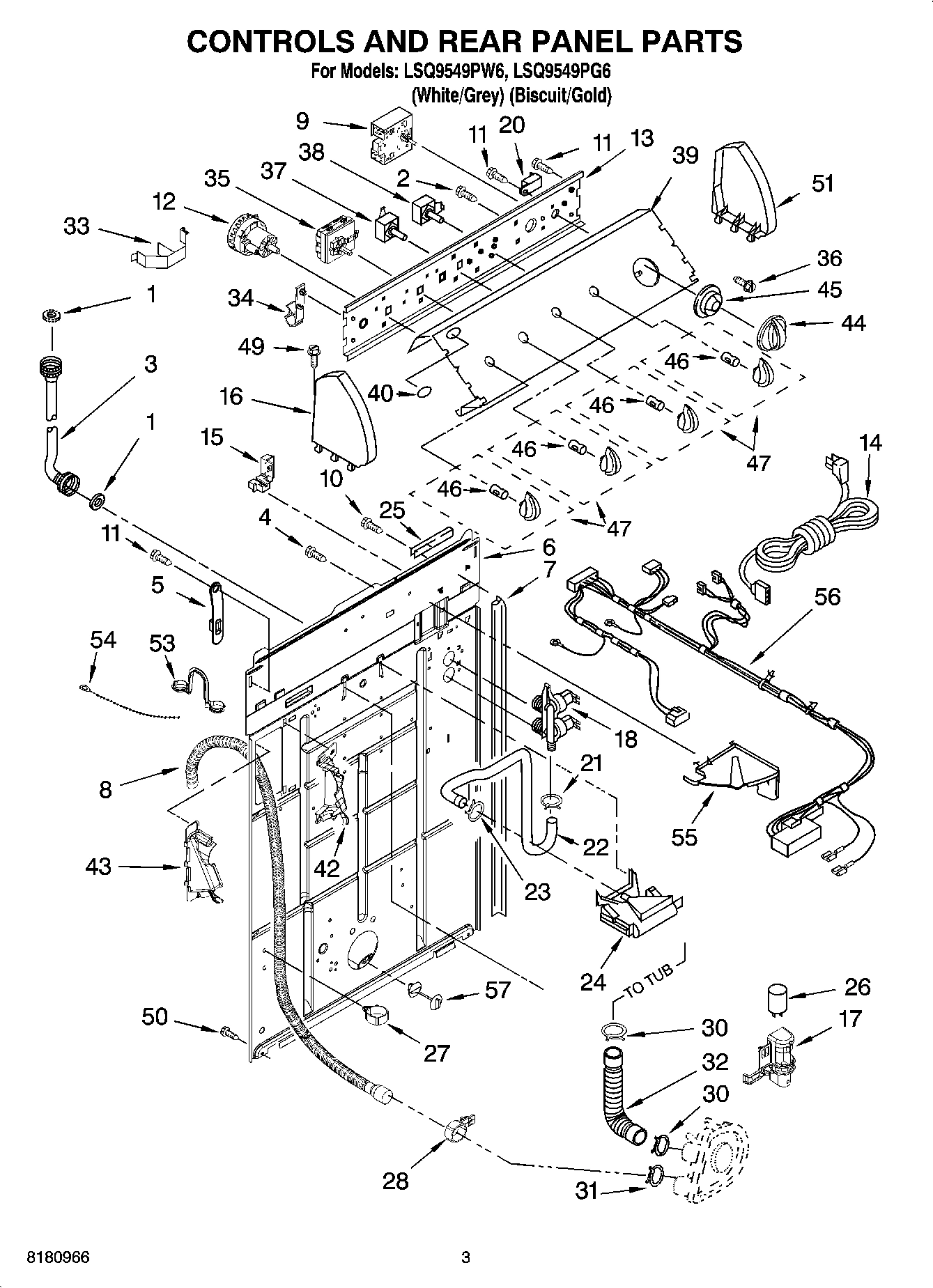

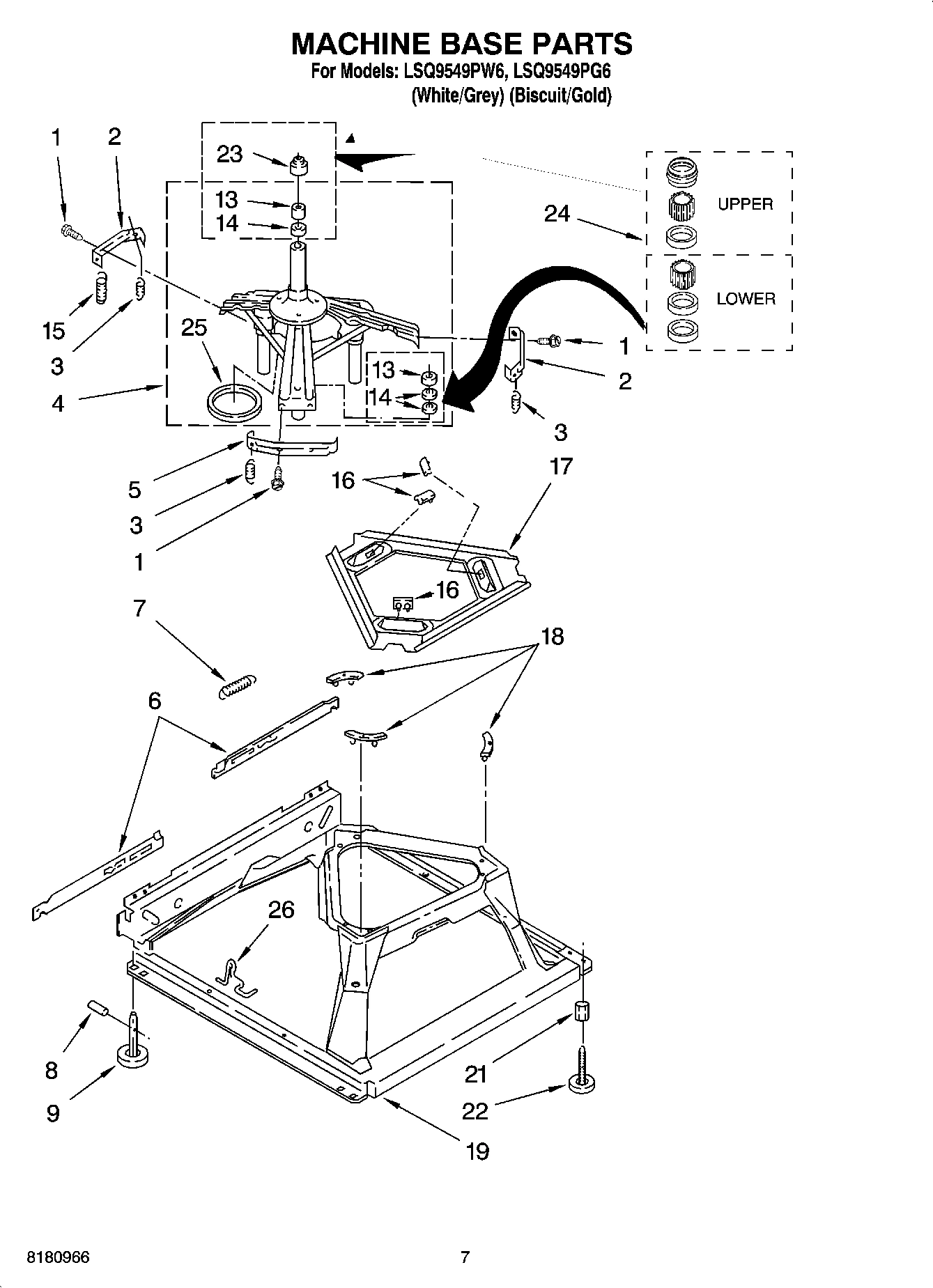

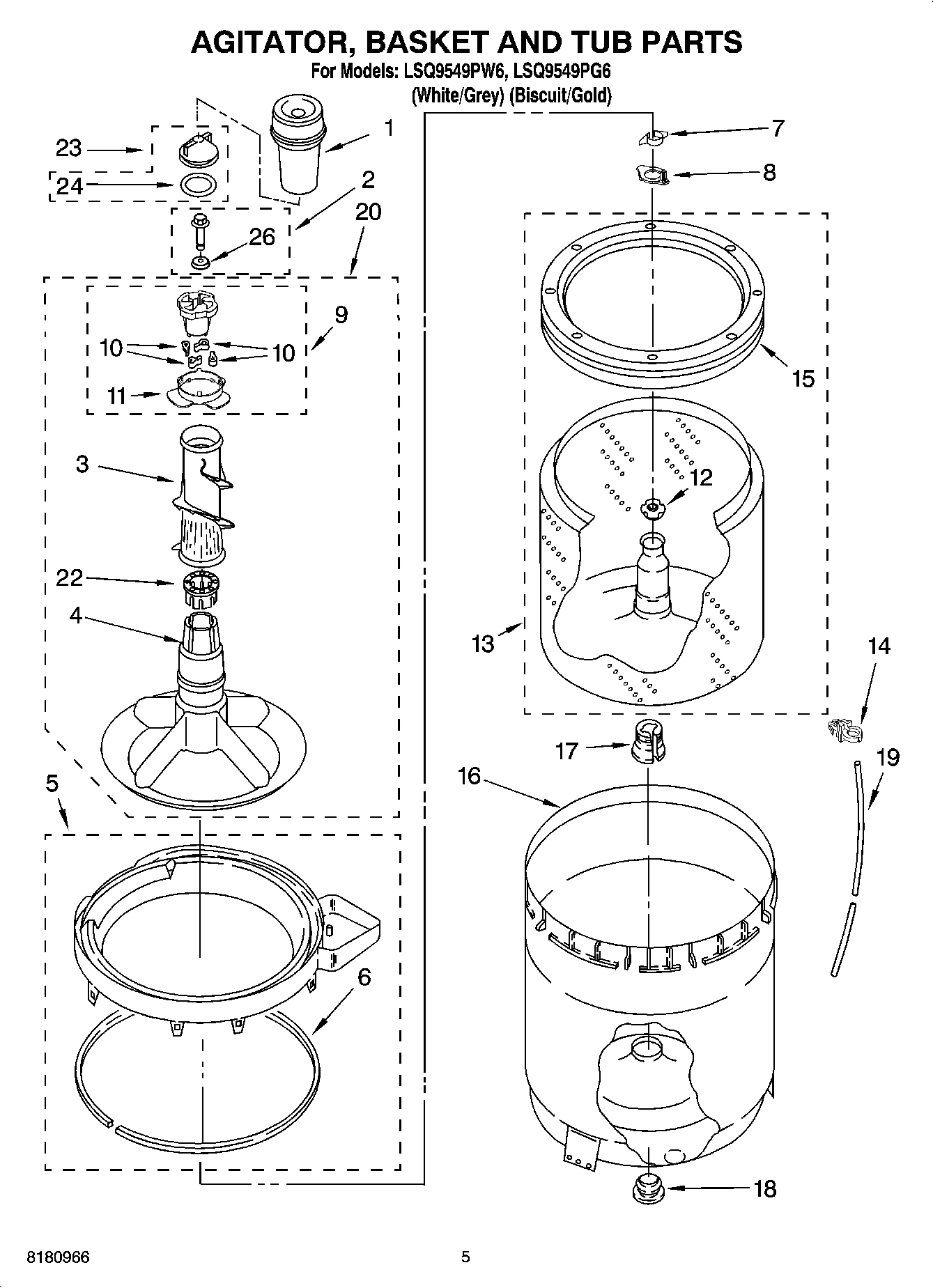

Model Whirlpool LSQ9549PW6 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $32.56

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $30.25

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $10.49

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

Manual, Washer Do-It-Yourself WPL 4313896 Contact Us For Availability

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Feature Sheet WPL 3955907 Contact Us For Availability

1

Energy Guide WPL 3957488 Contact Us For Availability

1

Installation Instructions WPL 3958075 Contact Us For Availability

1

Wiring Diagram WPL 8577358 Contact Us For Availability

1

Use & Care Guide WPL 8578232 Contact Us For Availability

1

Following May Be Purchased DO-IT-YOURSELF REP WPL ARI158054A Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

2

Top (White) WPL 8543451 Contact Us For Availability

2

Top (Biscuit) WPL 8543452 Contact Us For Availability

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $93.60

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $4.98

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

4

WP3951632 Whirlpool Washer Lower Agitator In Stock WPL WP3951632 $81.07

4

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $31.44

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

W10880720 Whirlpool Tub Ring Backorder WPL W10880720 $80.47

5

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $3.70

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Cabinet (Biscuit) WPL 3954357 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $11.67

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

Cabinet - Sound Damper WPL 3976348 Contact Us For Availability

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $3.70

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $5.53

8

Timer, Block Disconnect (White) WPL 3948614 Contact Us For Availability

9

285809 Whirlpool Washer Agitator Cam Kit In Stock WPL 285809 $5.87

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $195.01

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

9

WP8577356 Whirlpool Washer Timer In Stock WPL WP8577356 $131.57

353424 Whirlpool Connector Backorder WPL 353424 $10.76

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $1.25

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $2.51

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.64

WP3952374 Whirlpool Bearing In Stock WPL WP3952374 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62611 Whirlpool Plate In Stock WPL WP62611 $39.14

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $30.56

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

W10389328 Whirlpool Basket Backorder WPL W10389328 $199.90

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.64

14

2219077 Whirlpool Refrigerator Clip Backorder WPL 2219077 $30.25

14

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

14

WP8577374 Whirlpool Seal Shaft In Stock WPL WP8577374 $3.88

WP387240 Whirlpool Balance Ring Backorder WPL WP387240 $79.32

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

Hinge, Lid (L.H.) WPL 8559336 Contact Us For Availability

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

16

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $132.68

16

WP91770 Whirlpool Hinge In Stock WPL WP91770 $8.80

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $80.64

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Clip, Capacitor WPL 8318046 Contact Us For Availability

18

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

18

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

18

Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability

WP353244 Whirlpool Hose In Stock WPL WP353244 $32.17

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $145.78

Lid (White) WPL 8558398 Contact Us For Availability

Lid (Biscuit) WPL 8558399 Contact Us For Availability

285565 Whirlpool Agitator Assembly In Stock WPL 285565 $140.64

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $51.99

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $30.69

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

Cover, Dispenser WPL 3955788 Contact Us For Availability

Connector (T.P.A.) (3-Circuit) (Pressure Swit WPL 3360056 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $35.58

WP3951608 Whirlpool Washer Agitator Thrust Sp In Stock WPL WP3951608 $3.88

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

Dispenser, Bleach WPL 8519517 Contact Us For Availability

23

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

23

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.83

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $75.19

24

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

24

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $3.88

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.96

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $44.94

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

28

8541668 Whirlpool Washer Clamp Backorder WPL 8541668 $10.76

35

Switch, Water Temperature (ATC) WPL 8564140 Contact Us For Availability

43

WPW10096921 Whirlpool Hose In Stock WPL WPW10096921 $39.11

44

Knob, Timer (Silver) WPL 8544945 Contact Us For Availability

45

WP8544947 Whirlpool Dial Backorder WPL WP8544947 $27.18

46

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $4.97

47

WPL 8544937 WPL 8544937 Contact Us For Availability

47

WPL 8544938 WPL 8544938 Contact Us For Availability

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

55

WPL 8539874 WPL 8539874 Contact Us For Availability

57

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96
