Model Whirlpool LSQ9549PW5 AUTOMATIC WASHER – Common Parts & Diagrams

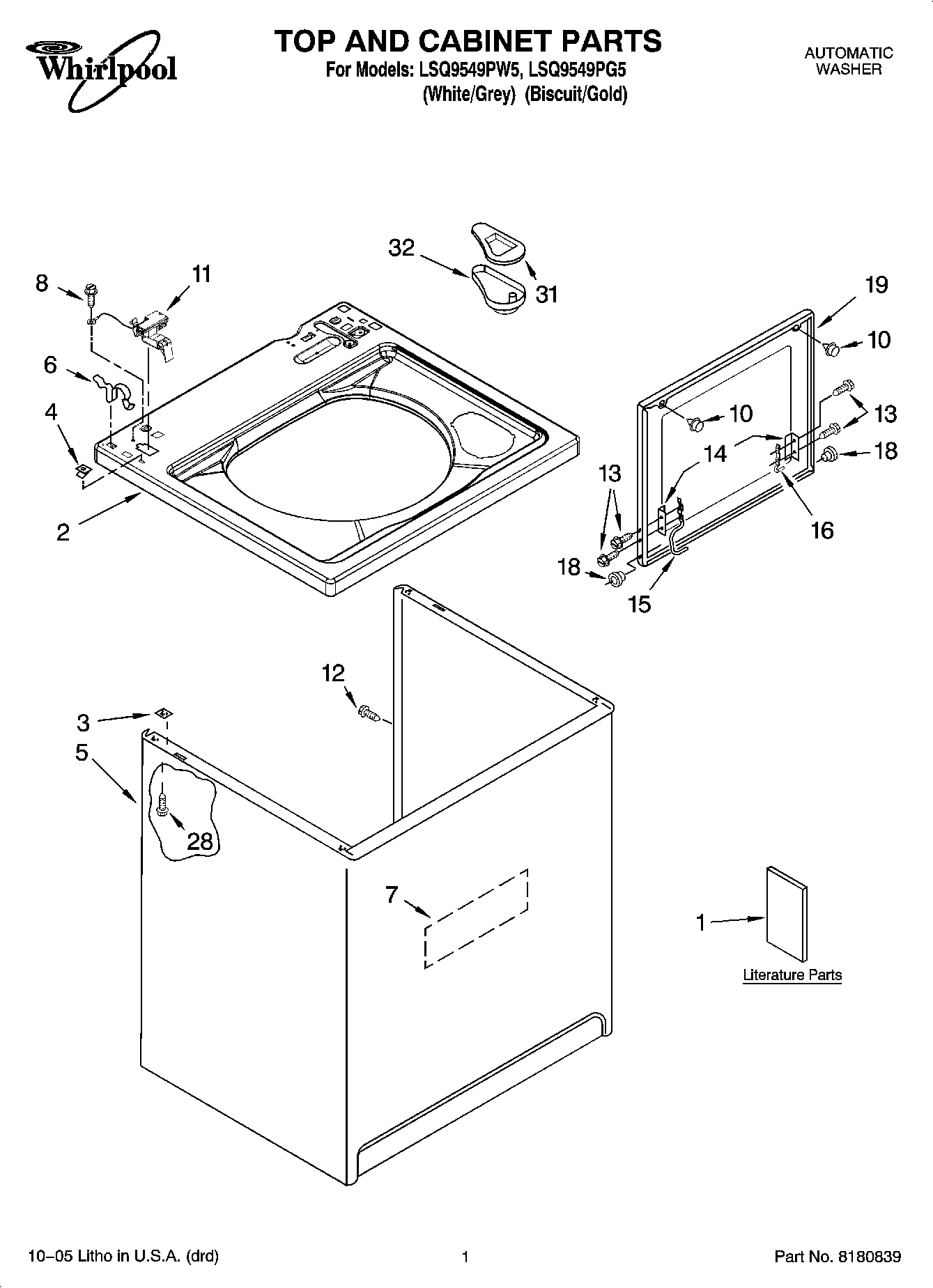

01 - TOP AND CABINET PARTS

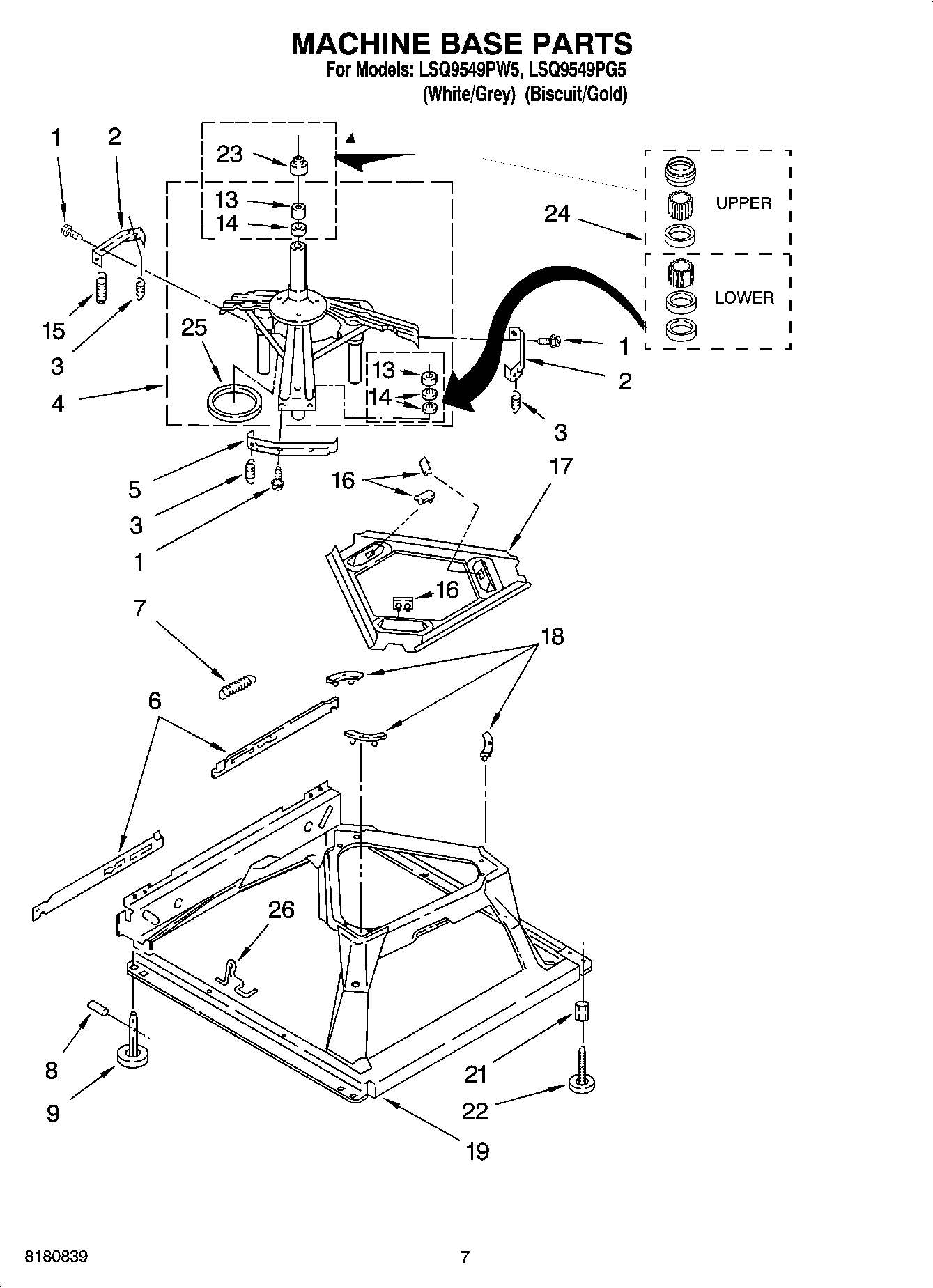

04 - MACHINE BASE PARTS

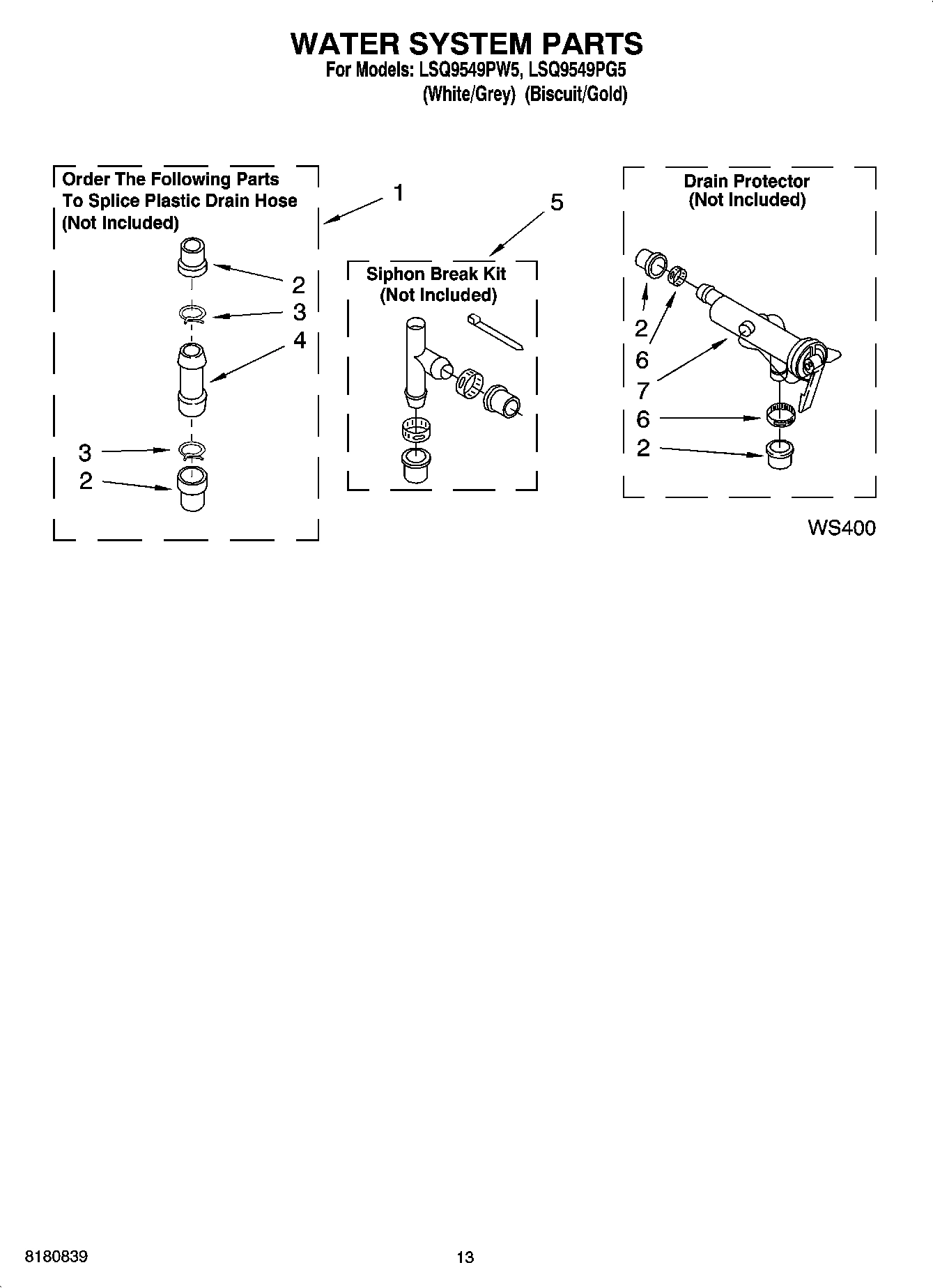

09 - WATER SYSTEM PARTS, OPTIONAL PARTS (NOT INCLUDED)

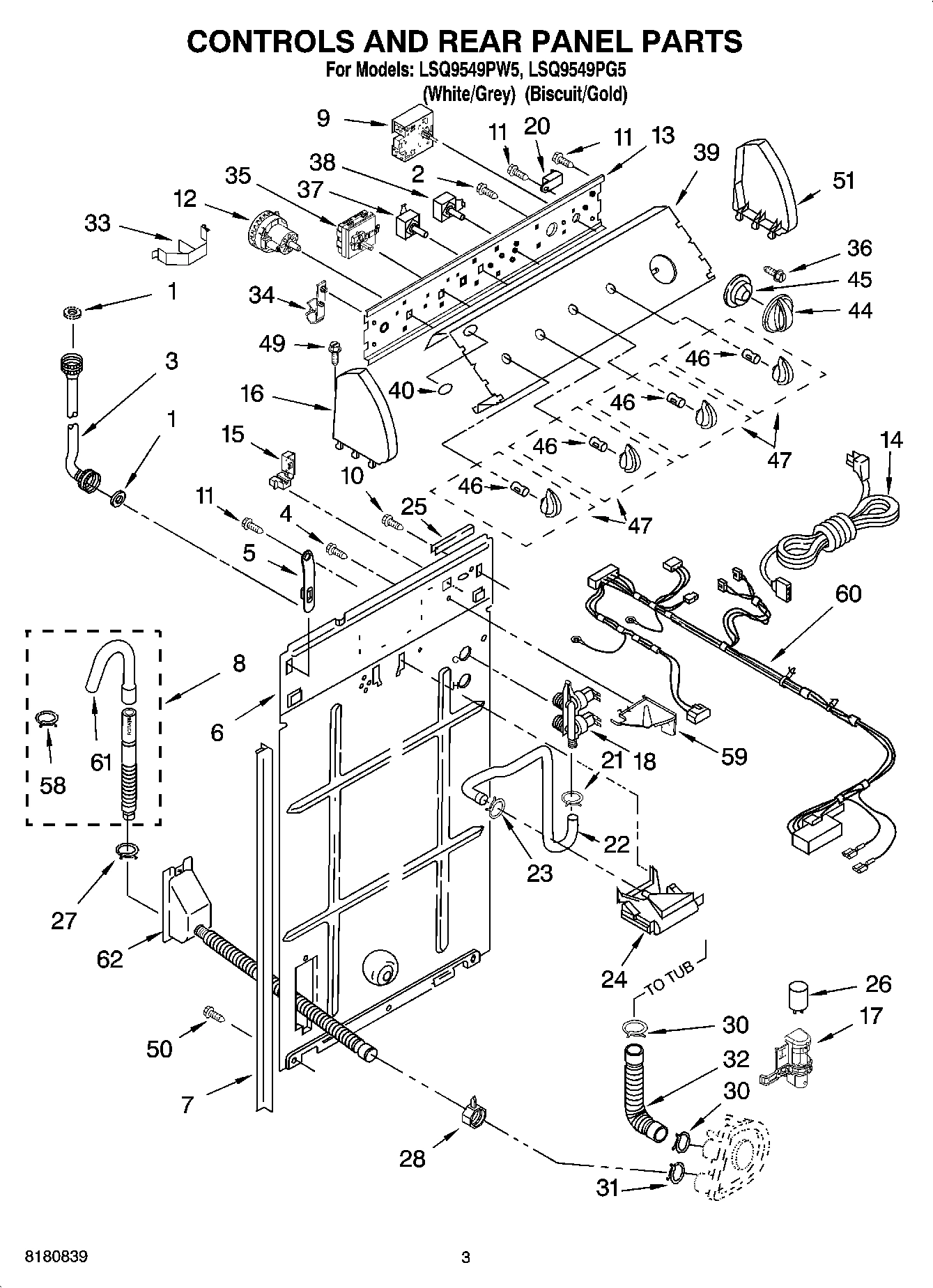

02 - CONTROLS AND REAR PANEL PARTS

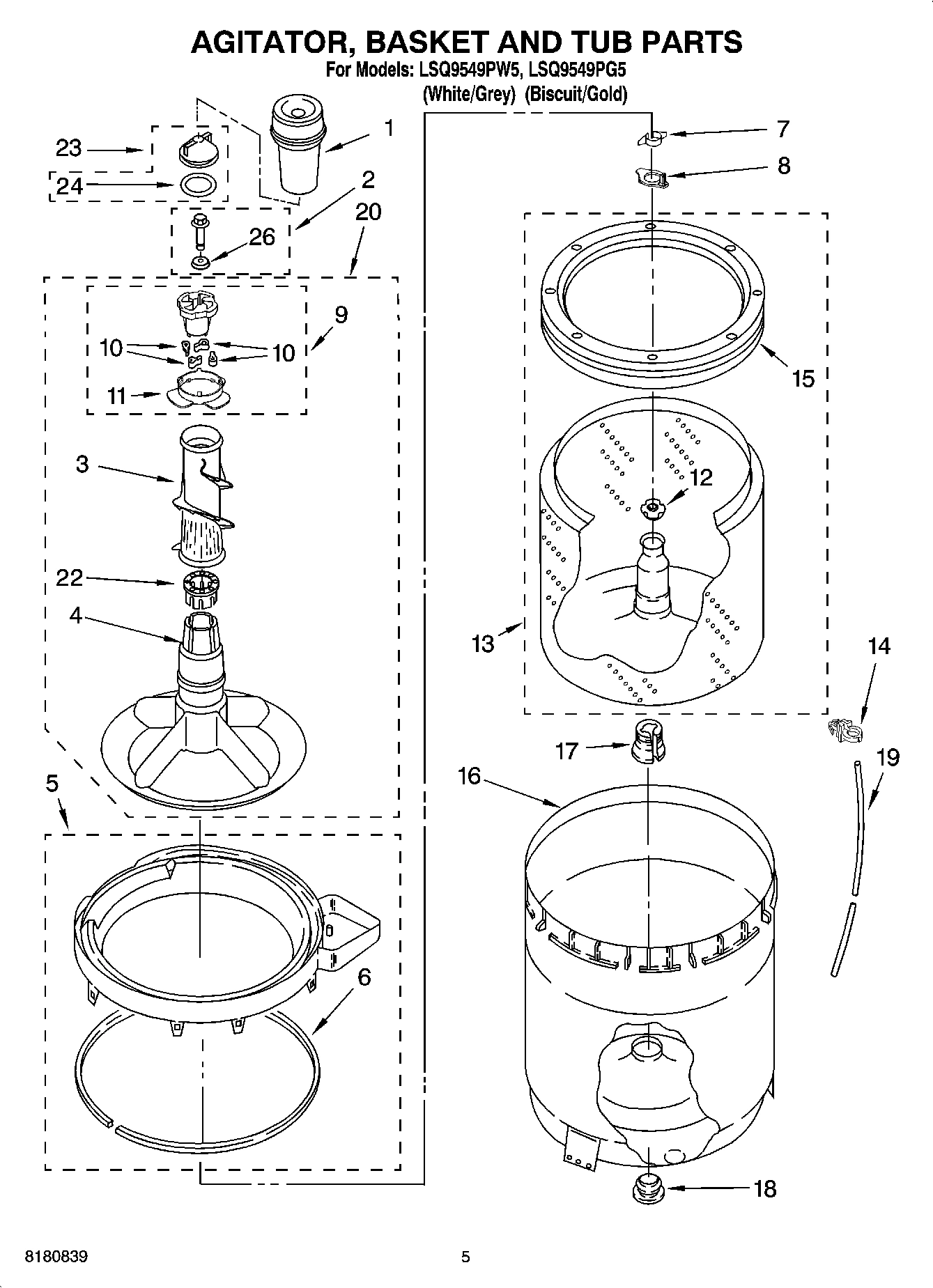

03 - AGITATOR, BASKET AND TUB PARTS

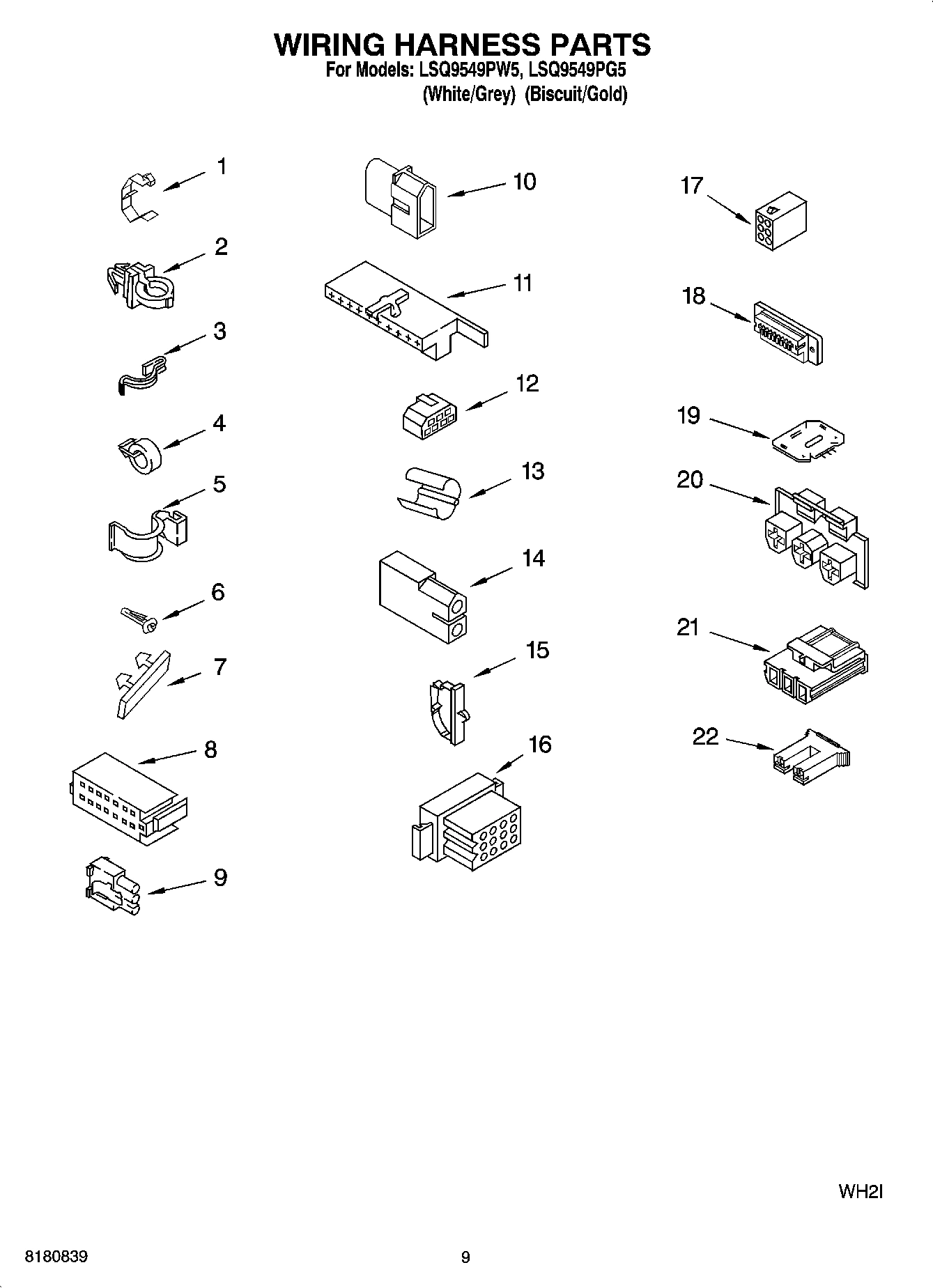

06 - WIRING HARNESS PARTS

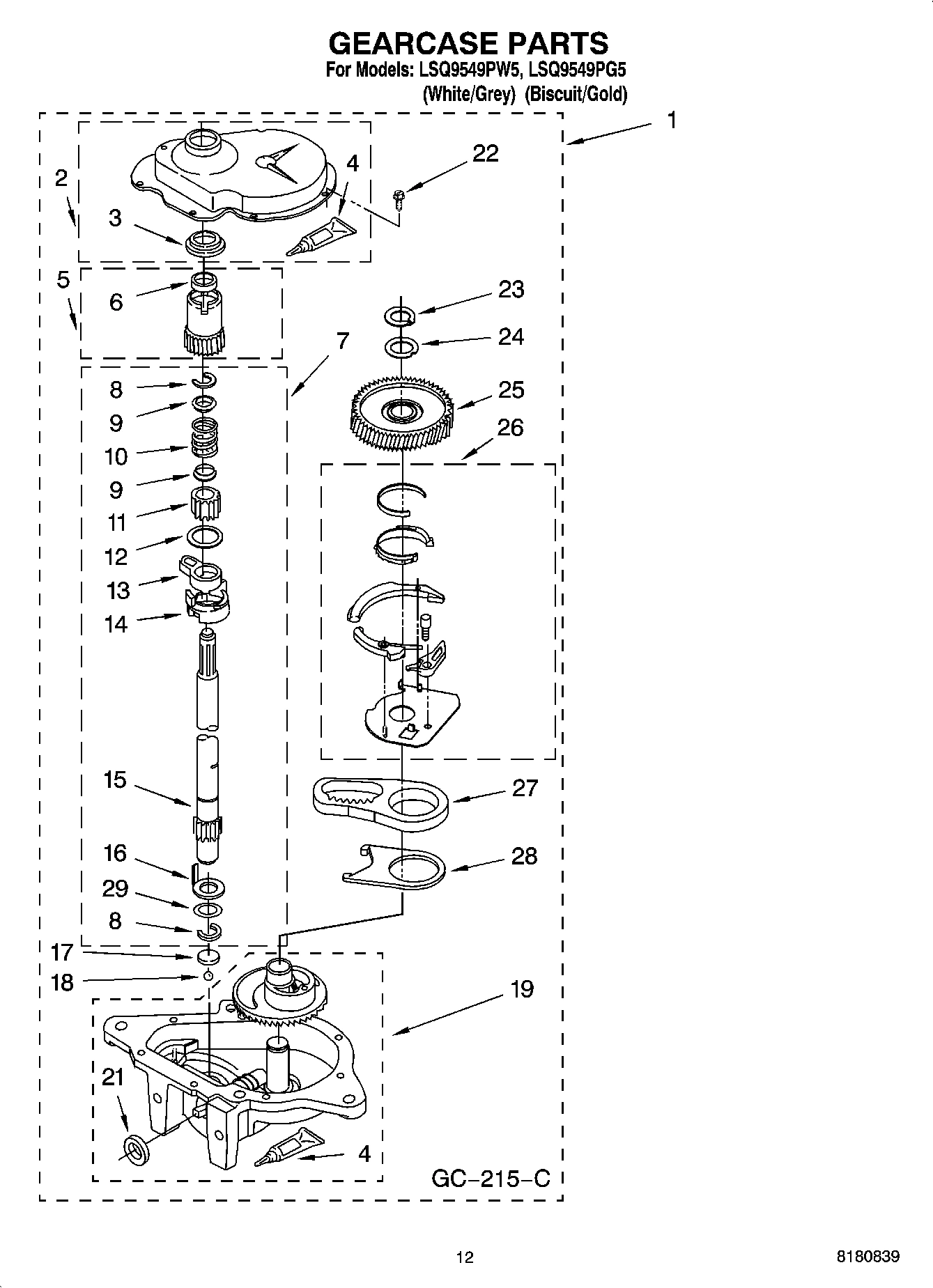

08 - GEARCASE PARTS

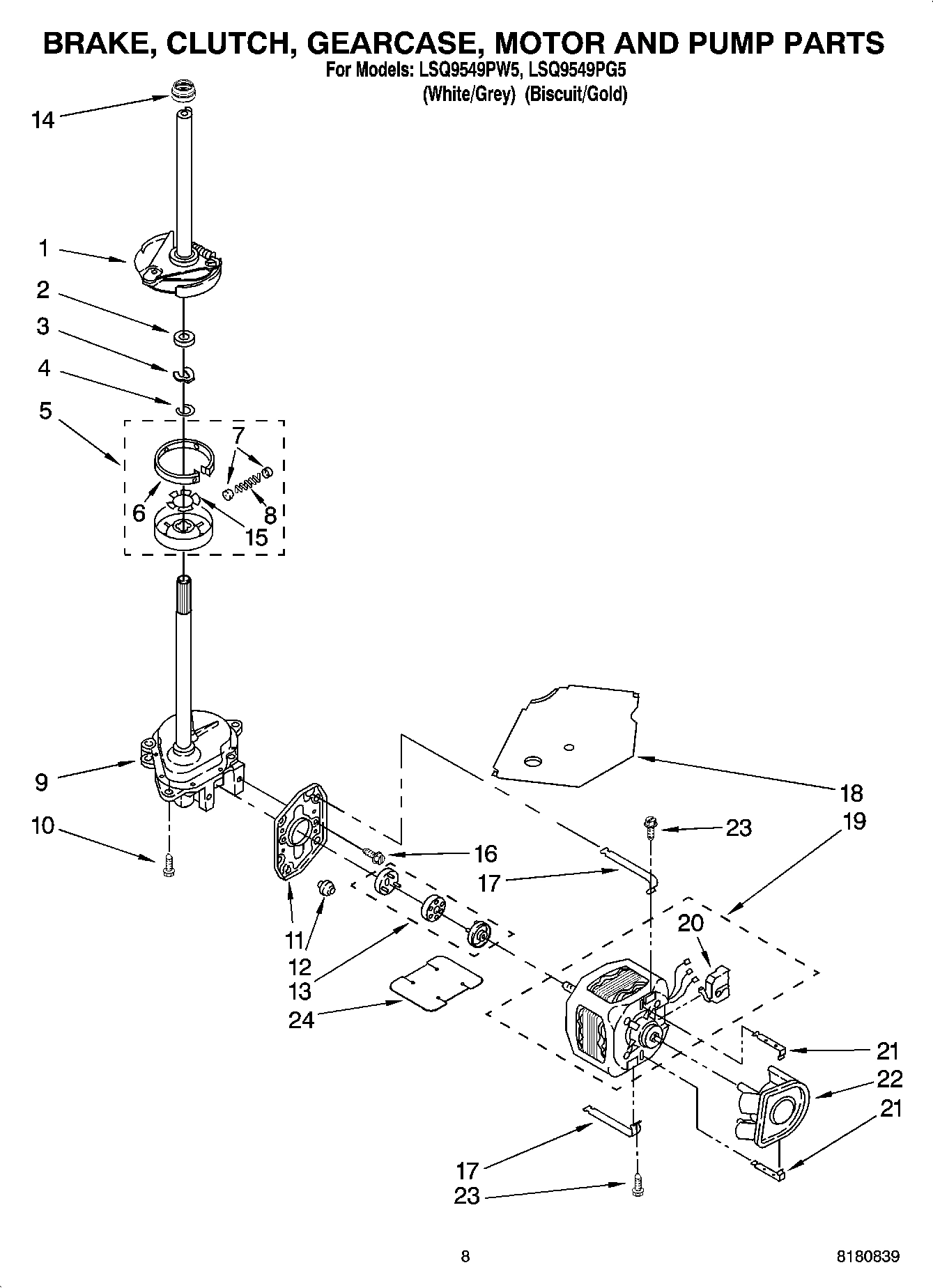

05 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

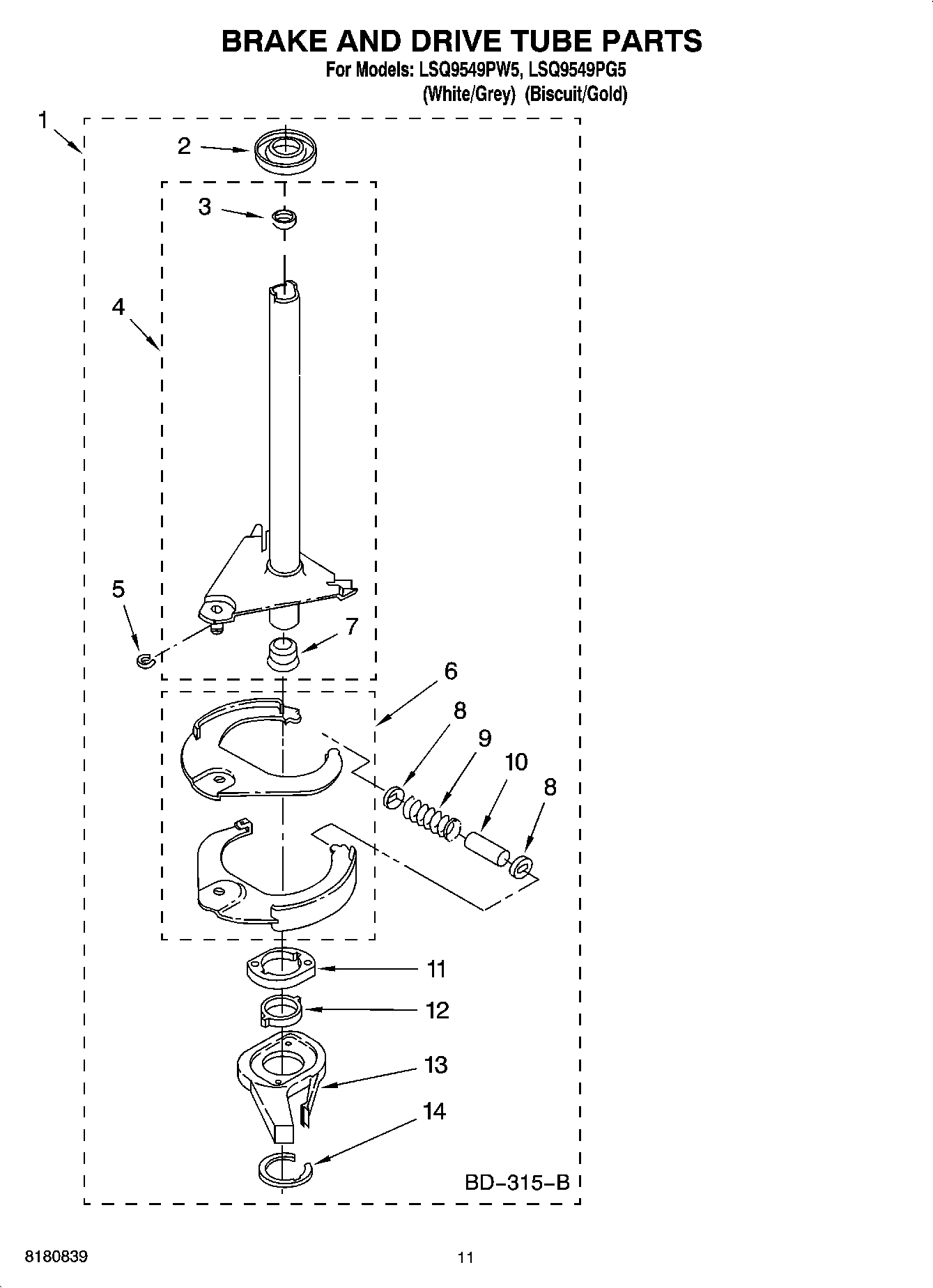

07 - BRAKE AND DRIVE TUBE PARTS
Common parts from model Whirlpool LSQ9549PW5 AUTOMATIC WASHER
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
PAINT, TOUCH-UP (1/2oz.) (Biscuit) WPL 4392899 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT) WPL 4392901 Contact Us For Availability
Siphon Break Kit WPL 285320 Contact Us For Availability
OIL WPL 350572 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GR WPL 350938 Contact Us For Availability
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
1
Dispenser WPL 63580 Contact Us For Availability
1
Manual, Washer Do-It-Yourself WPL 4313896 Contact Us For Availability
1
Connector Kit, Plastic Drain Hose WPL 285442 Contact Us For Availability
1
Clip, Harness WPL 3349557 Contact Us For Availability
2
Cover, Gearcase WPL 285202 Contact Us For Availability
2
Clip, Harness WPL 388498 Contact Us For Availability
5
Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability
5
Cabinet (White) WPL 63424 Contact Us For Availability
6
Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability
6
Clip, Harness WPL 3390496 Contact Us For Availability
7
Cabinet - Sound Damper WPL 3976348 Contact Us For Availability
8
Timer, Block Disconnect (White) WPL 3948614 Contact Us For Availability
8
Ring, Retaining (2) WPL 90369 Contact Us For Availability
9
Retainer, Spring WPL 62677 Contact Us For Availability
9
Spring, Brake WPL 387806 Contact Us For Availability
10
Plug, Terminal (3-Way) (Power Cord) (Use Term WPL 353424 Contact Us For Availability
10
Spring, Agitate WPL 62676 Contact Us For Availability
12
Washer, Agitate Gear WPL 62619 Contact Us For Availability
12
Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability
13
Protector WPL 63523 Contact Us For Availability
14
Clip, Pressure Switch Hose WPL 2219077 Contact Us For Availability
14
Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability
14
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability
14
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI158049A Contact Us For Availability
15
Clip, Harness WPL 3352944 Contact Us For Availability
15
Clip, Anti-Rattle WPL 3355454 Contact Us For Availability
16
Tub WPL 63849 Contact Us For Availability
16
Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability
16
Washer, Cam Thrust WPL 62618 Contact Us For Availability
17
Clip, Capacitor WPL 8318046 Contact Us For Availability
17
Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability
18
Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability
18
Connector, Etc WPL 3349494 Contact Us For Availability
19
E.T.C. Control WPL 3407125 Contact Us For Availability
19
Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability
20
Switch, Main Drive Motor WPL 3952056 Contact Us For Availability
21
Seal, Thrust Plug WPL 285352 Contact Us For Availability
22
Block, Connector (Cold Valve) WPL 3354925 Contact Us For Availability
22
Block, Connector (Hot Valve) WPL 3354926 Contact Us For Availability
23
Ring, Retaining WPL 3362552 Contact Us For Availability
24
Centerpost Bearing Kit (Includes Illus. 13, 1 WPL 285203 Contact Us For Availability
24
Washer Kit, Thrust WPL 285735 Contact Us For Availability
28
Clamp, Hose WPL 3976395 Contact Us For Availability
31
Cover, Dispenser WPL 3955788 Contact Us For Availability
32
Dispenser, Bleach WPL 8519517 Contact Us For Availability
35
Switch, Water Temperature (ATC) WPL 8564140 Contact Us For Availability
44
Knob, Timer (Silv WPL 8544945 Contact Us For Availability
45
WPL 8544948 WPL 8544948 Contact Us For Availability
47
WPL 8544937 WPL 8544937 Contact Us For Availability
47
WPL 8544938 WPL 8544938 Contact Us For Availability
51
WPL 8271359 WPL 8271359 Contact Us For Availability
51
WPL 8271362 WPL 8271362 Contact Us For Availability
59
WPL 8539874 WPL 8539874 Contact Us For Availability
60
WPL 3957274 WPL 3957274 Contact Us For Availability
62
WPL 3976263 WPL 3976263 Contact Us For Availability
62
WPL ARI158048A WPL ARI158048A Contact Us For Availability
× ![]()
