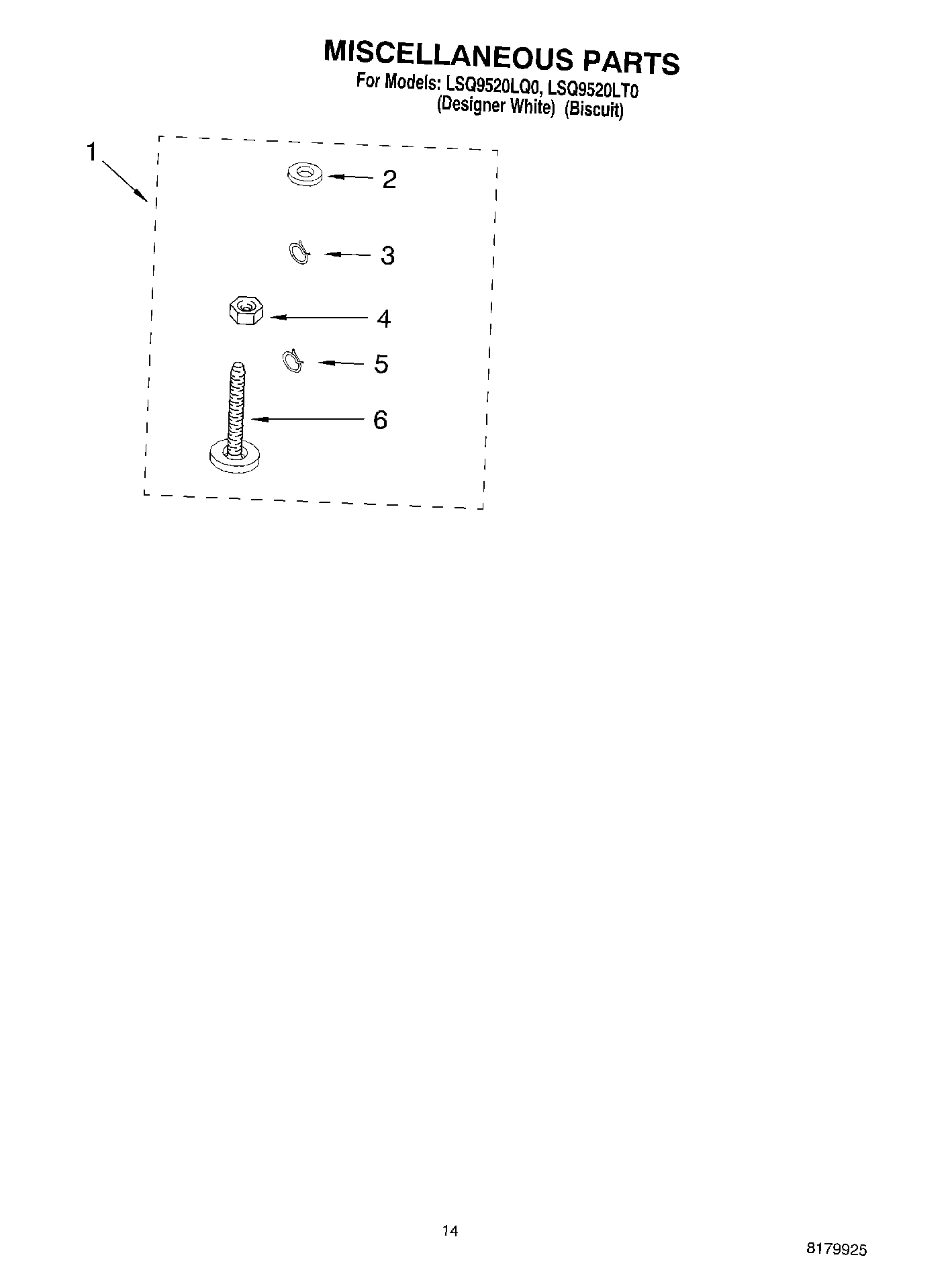

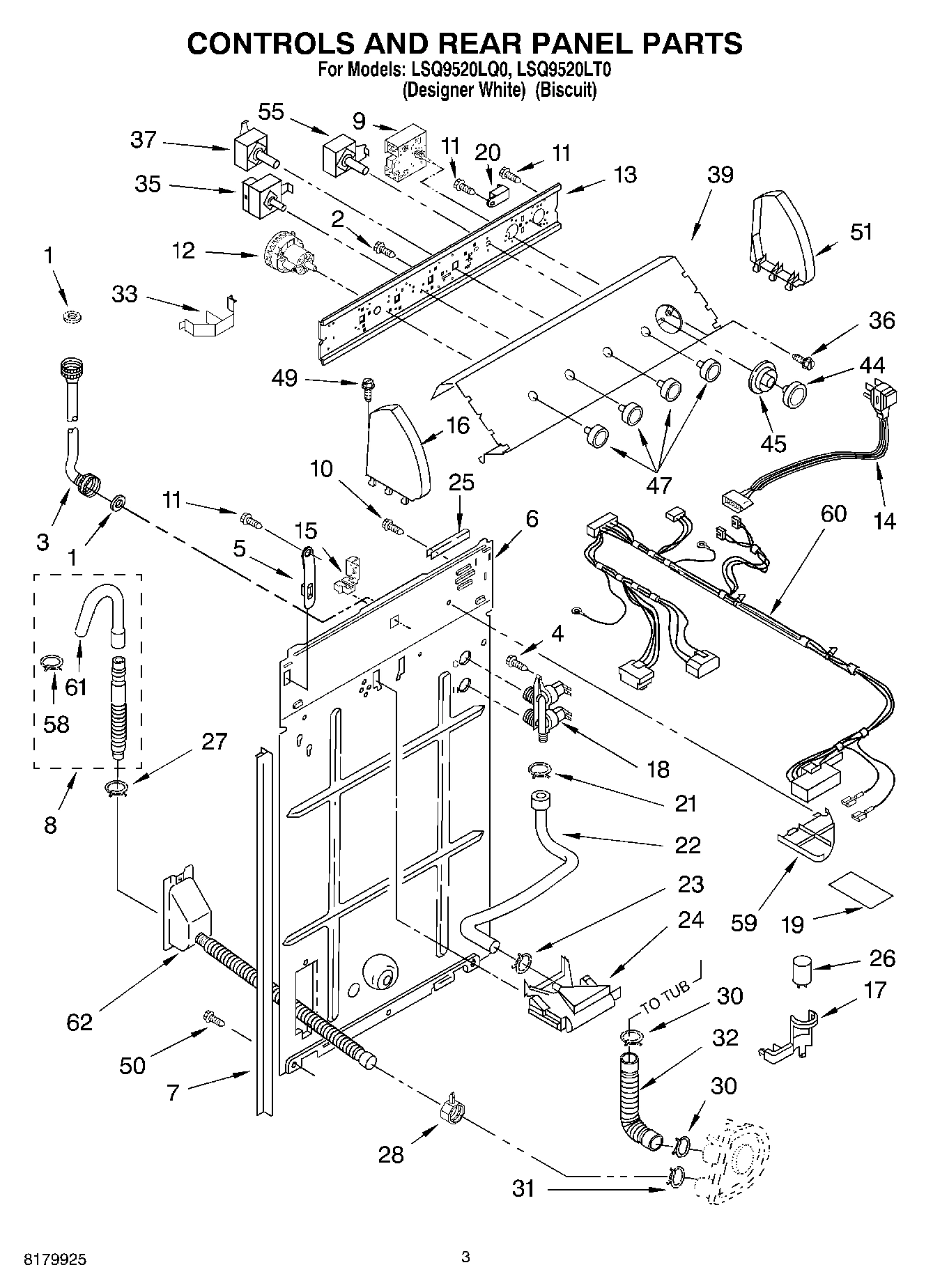

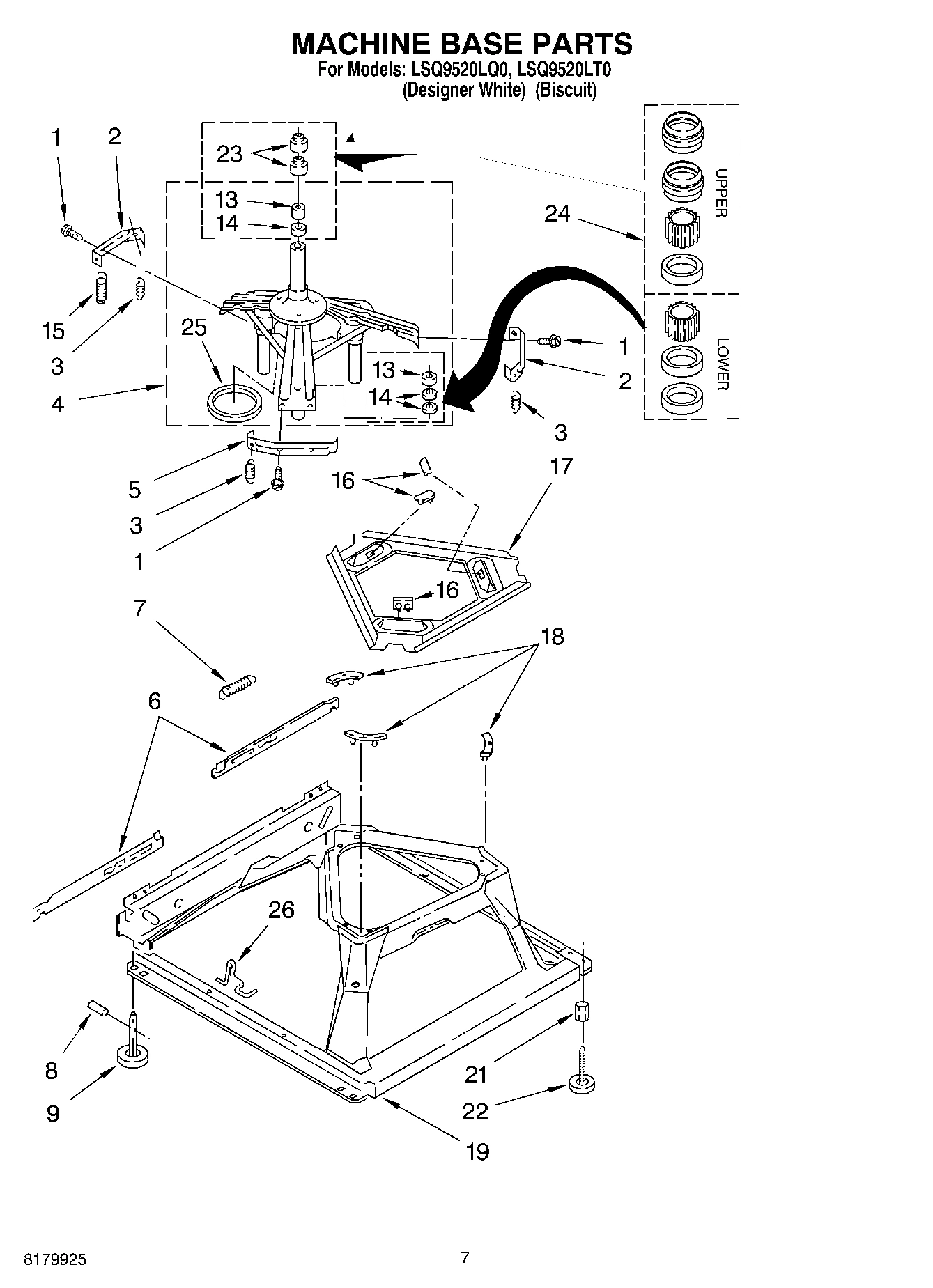

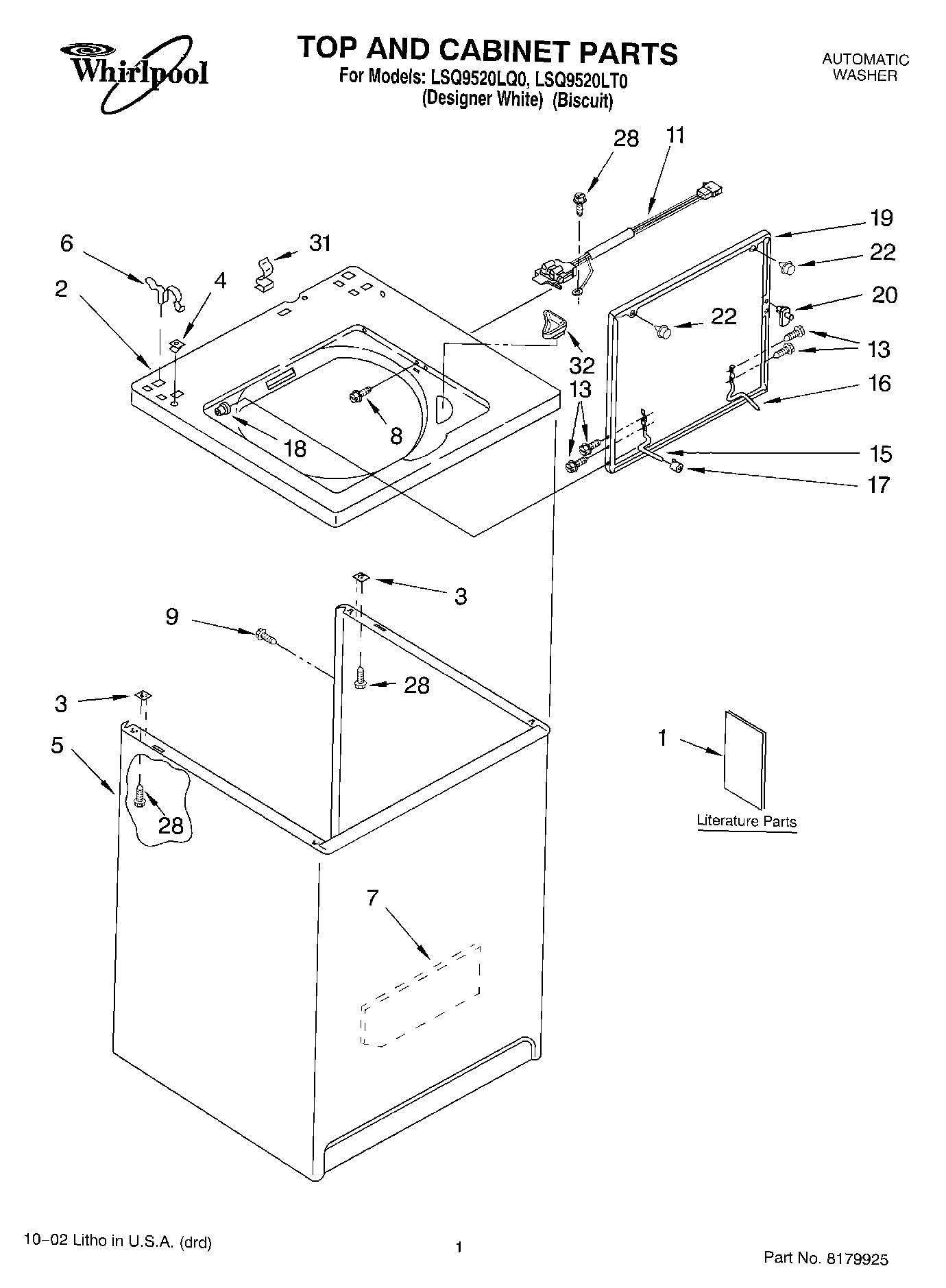

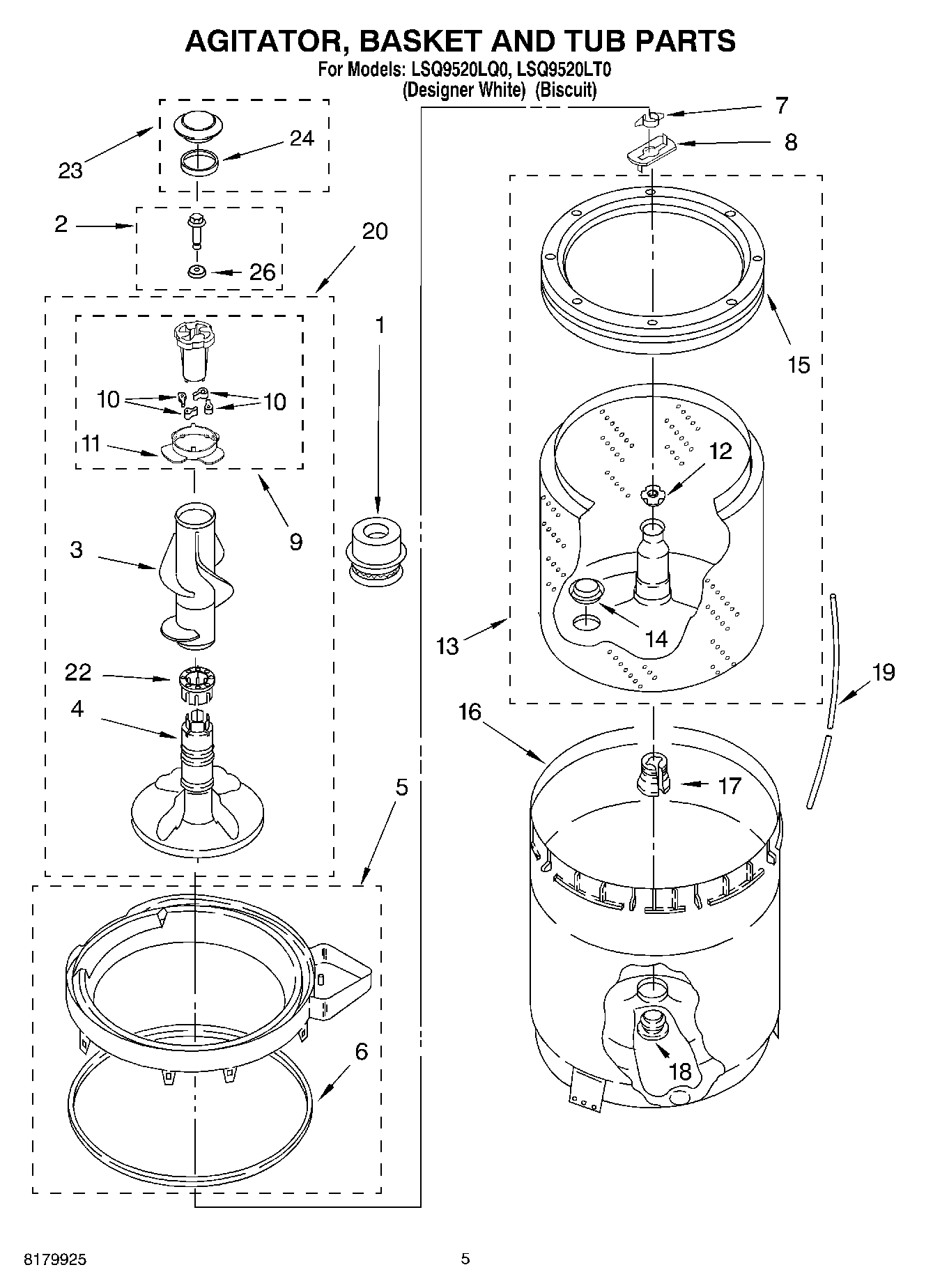

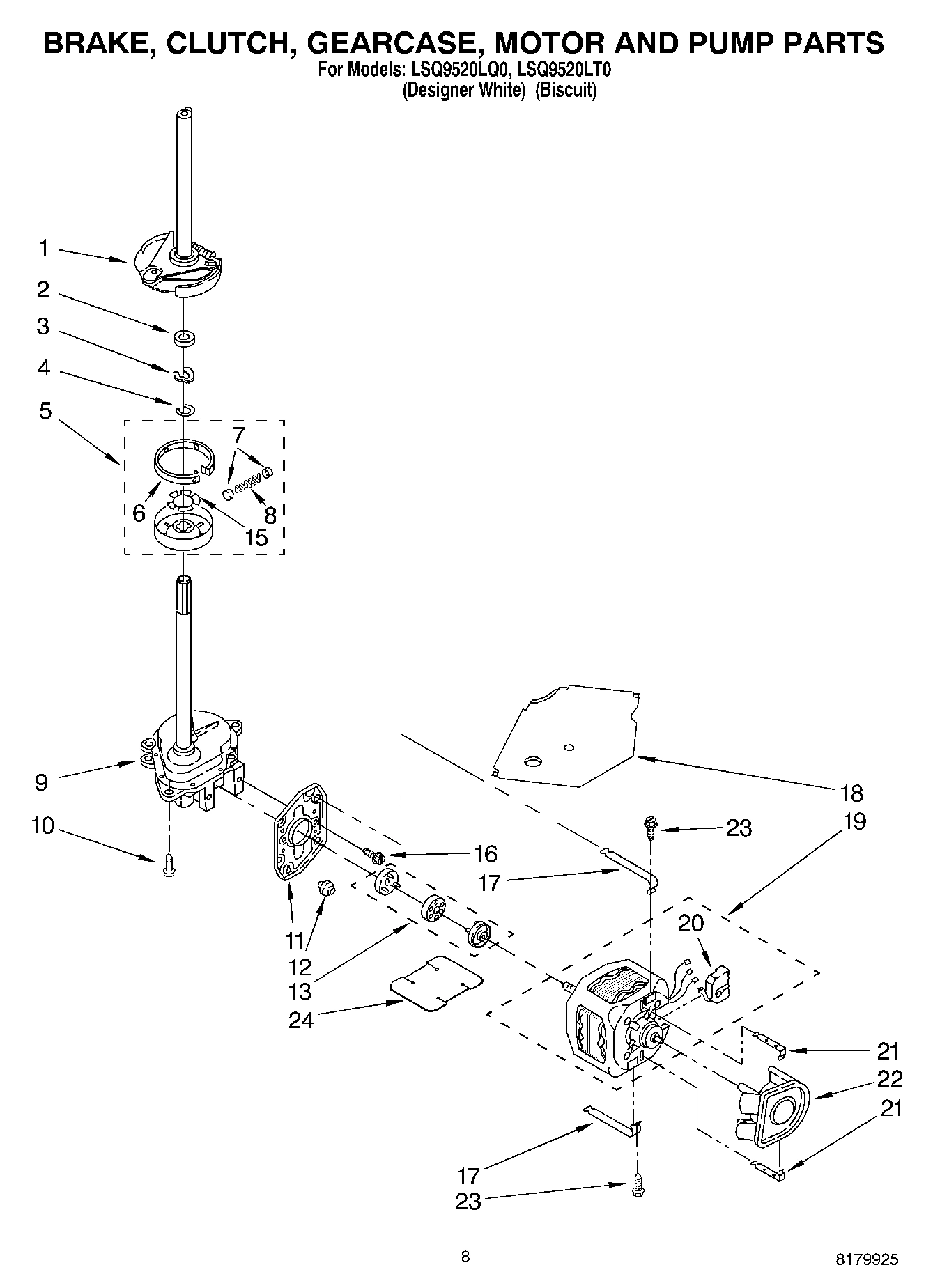

Model Whirlpool LSQ9520LQ0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

1

WP63594 Whirlpool Dispenser In Stock WPL WP63594 $10.98

1

Clip, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

3400073 Whirlpool Screw Backorder WPL 3400073 $5.65

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $3.62

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

3

WPW10080230 Whirlpool Ring In Stock WPL WPW10080230 $4.98

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

4

WP389386 Whirlpool Agitator Assembly Backorder WPL WP389386 $73.59

4

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

4

Support & Brake, Tub WPL 3362087 Contact Us For Availability

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $18.42

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $255.69

5

WP8568314 Whirlpool Strap In Stock WPL WP8568314 $3.70

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $28.49

6

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

6

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

6

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

6

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

6

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

6

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

6

WP3357978 Whirlpool Rear Panel Backorder WPL WP3357978 $152.90

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.70

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

Cabinet - Sound Damper WPL 3976348 Contact Us For Availability

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $28.37

8

285702 Whirlpool Extensions Backorder WPL 285702 $37.95

8

WP3356311 Whirlpool Screw Backorder WPL WP3356311 $2.51

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $3.70

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $10.82

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP3951702 Whirlpool Timer In Stock WPL WP3951702 $177.43

10

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $2.51

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

353424 Whirlpool Connector Backorder WPL 353424 $10.76

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $3.70

WP62611 Whirlpool Plate Backorder WPL WP62611 $37.28

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W10339326 Whirlpool Washer Water Level Switch In Stock WPL W10339326 $40.32

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

13

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $41.82

13

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

14

W10820044 Whirlpool Power Cord Backorder WPL W10820044 $56.25

14

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

Strain Relief, Power Cord WPL 3952821 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $10.60

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $126.36

WP91770 Whirlpool Hinge Backorder WPL WP91770 $8.80

Cap, End (L.H.) (BIscuit) WPL 8271368 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Clip, Capacitor WPL 8318201 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $13.91

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

19

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $138.84

19

Shield, Capacitor WPL 3976286 Contact Us For Availability

19

Base Assembly (Includes Illus, 6, 7, 8, 9, 16 WPL 3946512 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

20

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $49.52

20

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.70

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $7.83

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

23

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $26.24

WP358912 Whirlpool Gasket In Stock WPL WP358912 $3.70

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

Edge Protector WPL 303294 Contact Us For Availability

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.72

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $42.80

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

27

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $8.69

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

28

Clamp, Hose WPL 3976395 No Longer Available

28

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

33

Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability

35

WPW10168256 Whirlpool Temperature Switch Backorder WPL WPW10168256 $47.54

36

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $2.51

37

WPW10168257 Whirlpool Cycle Switch Backorder WPL WPW10168257 $54.41

39

Panel, Console (White) WPL 3955826 Contact Us For Availability

39

Panel, Console (Biscuit) WPL 3955827 Contact Us For Availability

44

W10807860 Whirlpool White Control Knob In Stock WPL W10807860 $30.03

44

WP3957822 Whirlpool Knob Backorder WPL WP3957822 $30.14

45

WP3957849 Whirlpool Timer Dial Backorder WPL WP3957849 $26.75

45

Dial, Timer (Biscuit) WPL 8271370 Contact Us For Availability

47

3957797 Whirlpool Knob Backorder WPL 3957797 $29.43

47

WP3957799 Whirlpool Knob Backorder WPL WP3957799 $29.88

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

51

W10820038 Whirlpool Endcap In Stock WPL W10820038 $49.21

51

WPL 8271362 WPL 8271362 Contact Us For Availability

55

W10851055 Whirlpool Cycle Switch Backorder WPL W10851055 $59.35

58

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

59

WPL 3348424 WPL 3348424 Contact Us For Availability

60

WPL 3956007 WPL 3956007 Contact Us For Availability

61

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $28.80

62

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $14.40
