Model Whirlpool KSRB27FHWH01 – Common Parts & Diagrams
Common parts from model Whirlpool KSRB27FHWH01
1

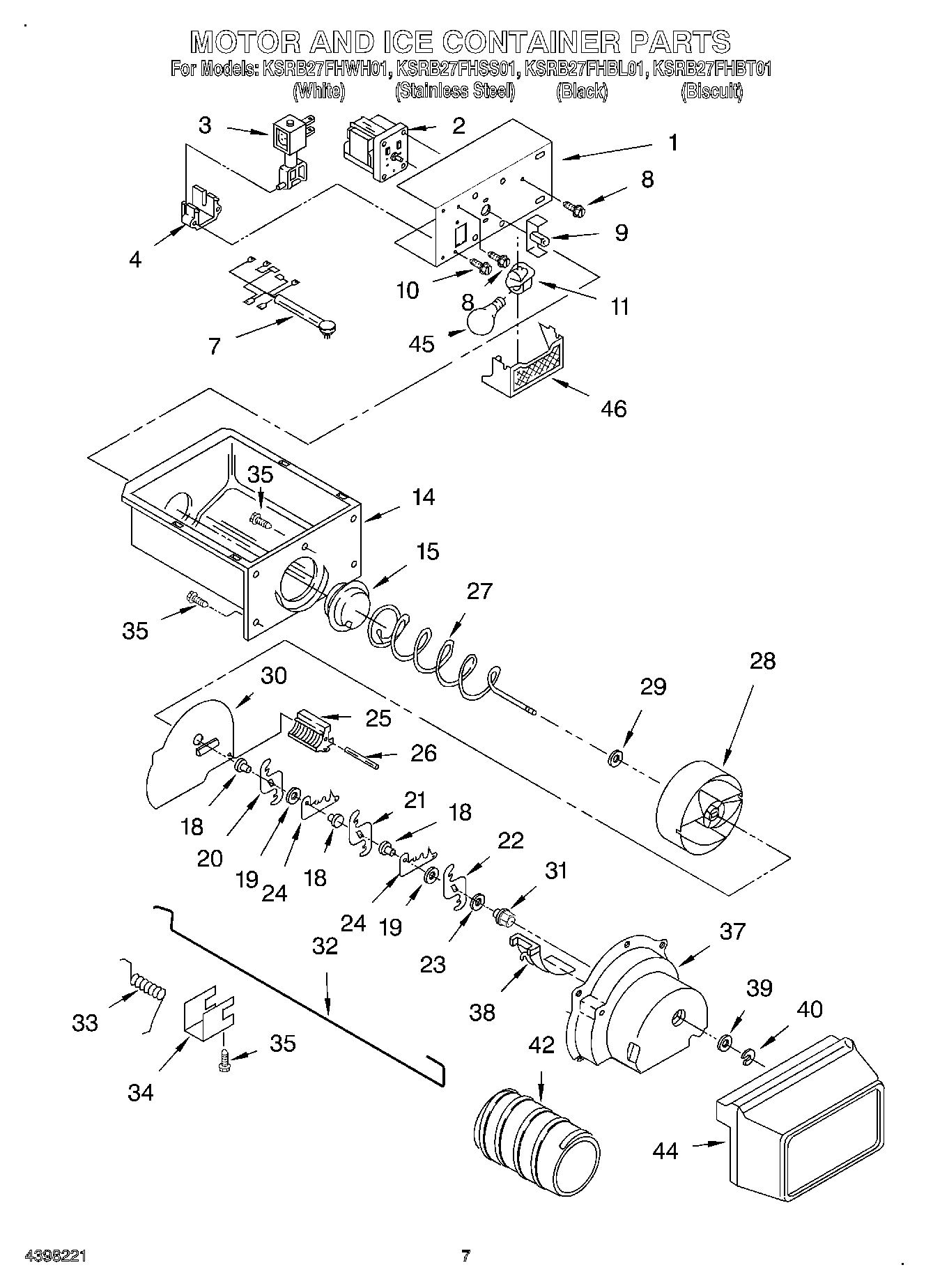

Bracket, Motor WPL 2183726 Contact Us For Availability
1

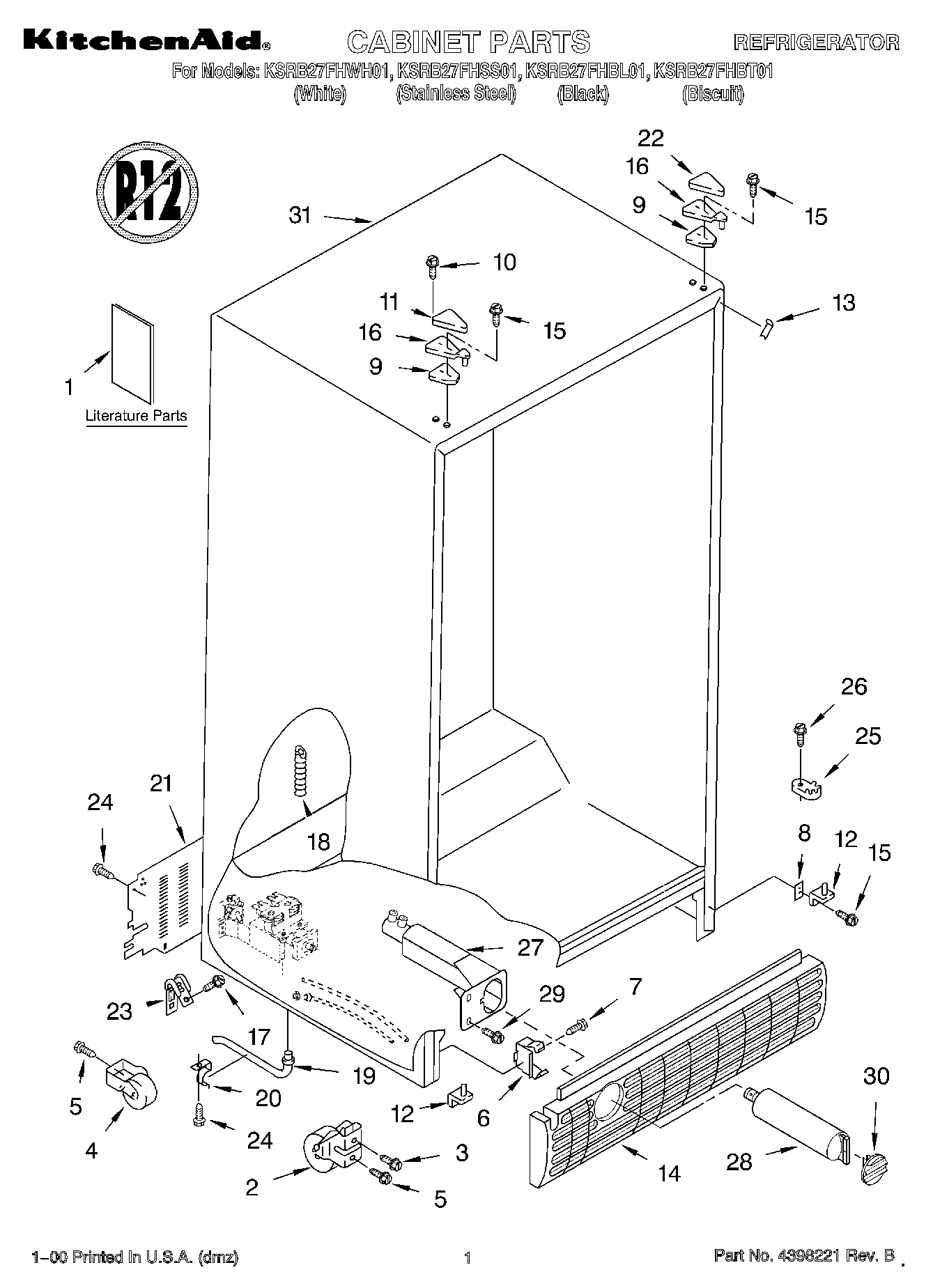

LITERATURE PARTS (Use & Care Guide) WPL LIT2200139 Contact Us For Availability
1
LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2200278 Contact Us For Availability
1
Energy Label WPL LIT2203998 Contact Us For Availability
1

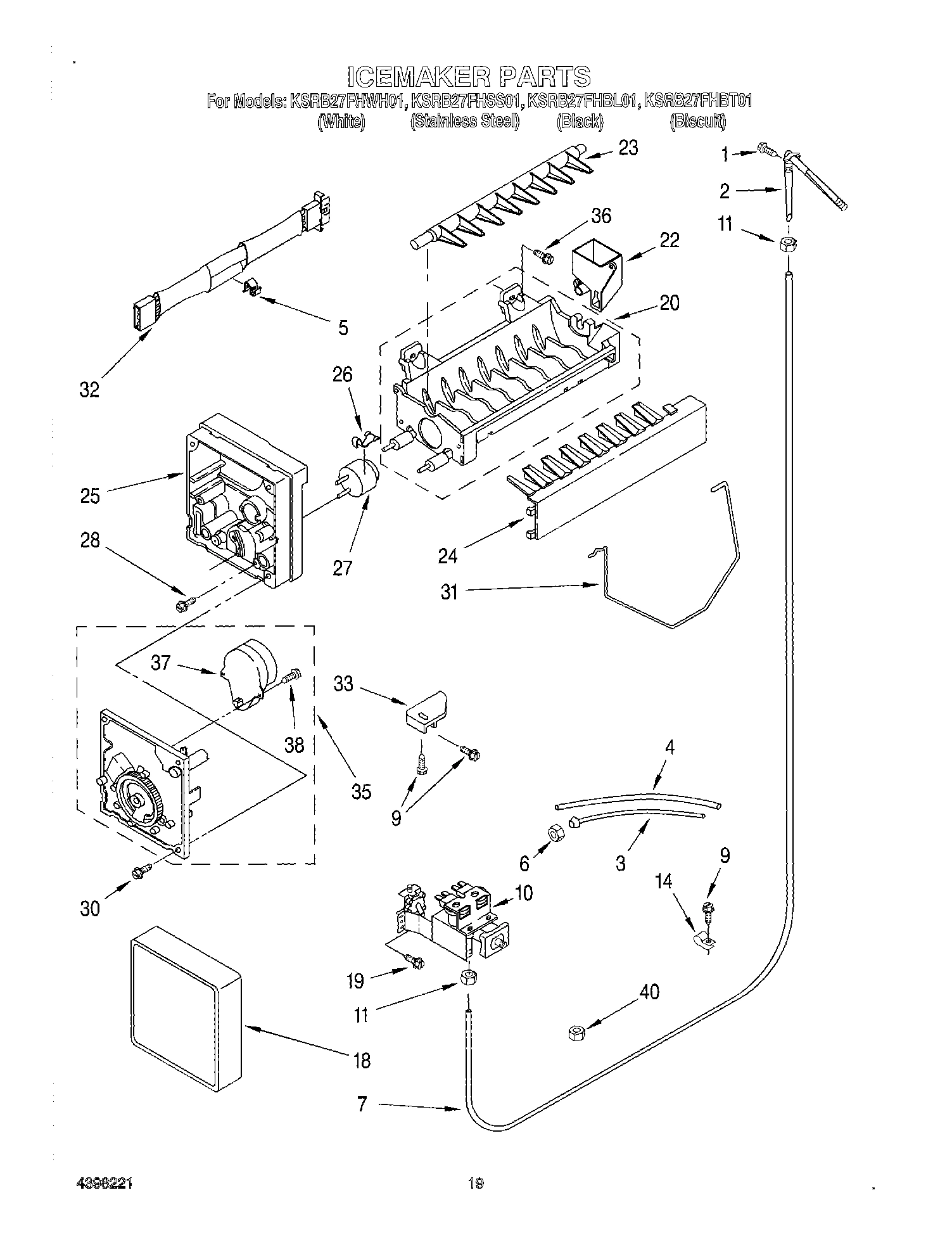

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI95050A7 Contact Us For Availability
1

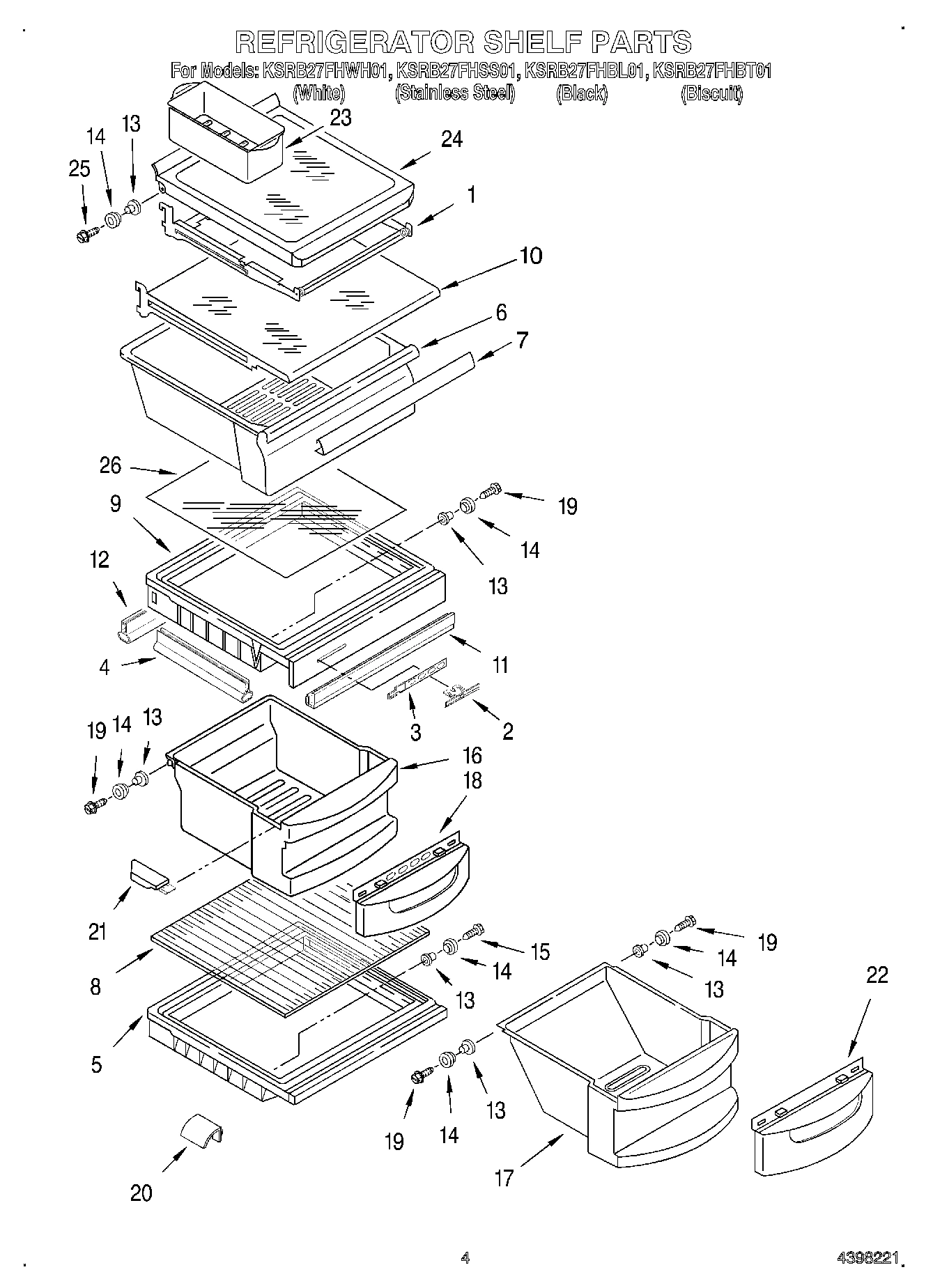

Shelf Assembly, Cantilever (2) WPL 2195978 Contact Us For Availability
2

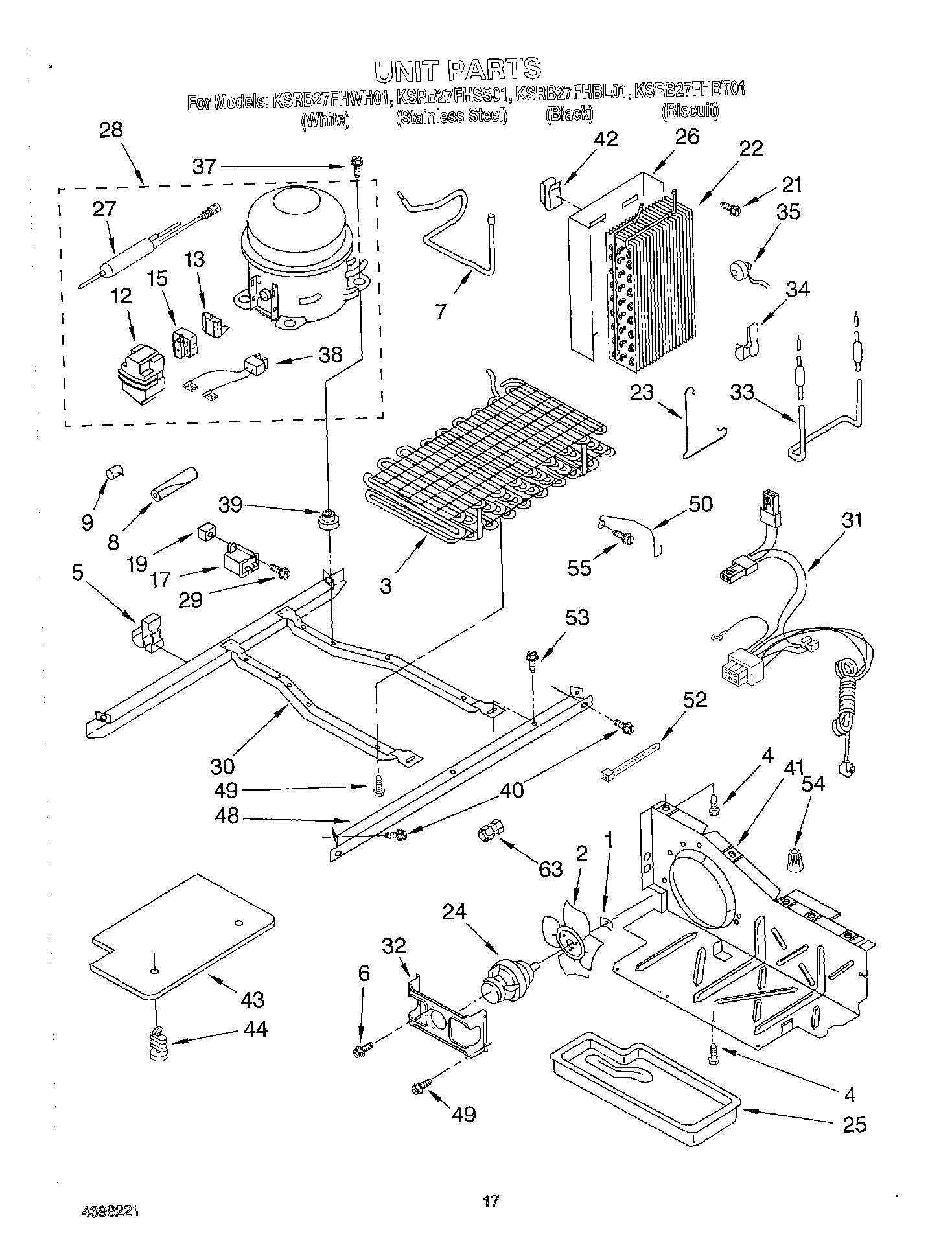

Blade, Fan WPL 2190685 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Button, Humidity WPL 2174253 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Gasket, Side (2) WPL 2174273 Contact Us For Availability
5
Air Duct Freezer WPL 2203593 Contact Us For Availability
6
Nut, Compression WPL 2200083 Contact Us For Availability
6
Door, Ice WPL 2180205 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2186815 Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
8
Glass, Cover WPL 2189526 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Screw (Black) WPL 3400899 Contact Us For Availability
9
Grille, Overflow (White) WPL 2180323 Contact Us For Availability
9
Shim, Hinge Top WPL 2196049 Contact Us For Availability
9
Grille, Overflow (Biscuit) WPL 2186860 Contact Us For Availability
10
Screw WPL 489284 Contact Us For Availability
10
Shelf, Snack Bin WPL 2208298 Contact Us For Availability
11
Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability
11
Hinge Cover (Black) WPL 2171947 Contact Us For Availability
11
Hinge Cover (Biscuit) WPL 2171947T Contact Us For Availability
11
Hinge Cover (White) WPL 2171947W Contact Us For Availability
11
Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2180261 Contact Us For Availability
11
Lever, Ice Dispenser (Biscuit (Almond Shadow WPL 2186850 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2186800 Contact Us For Availability
12
Gasket, (Rear) WPL 2174274 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
13
Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability
13
Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Grille (Biscuit) WPL 2198468T Contact Us For Availability
14
Roller WPL 2188212 Contact Us For Availability
15
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
16

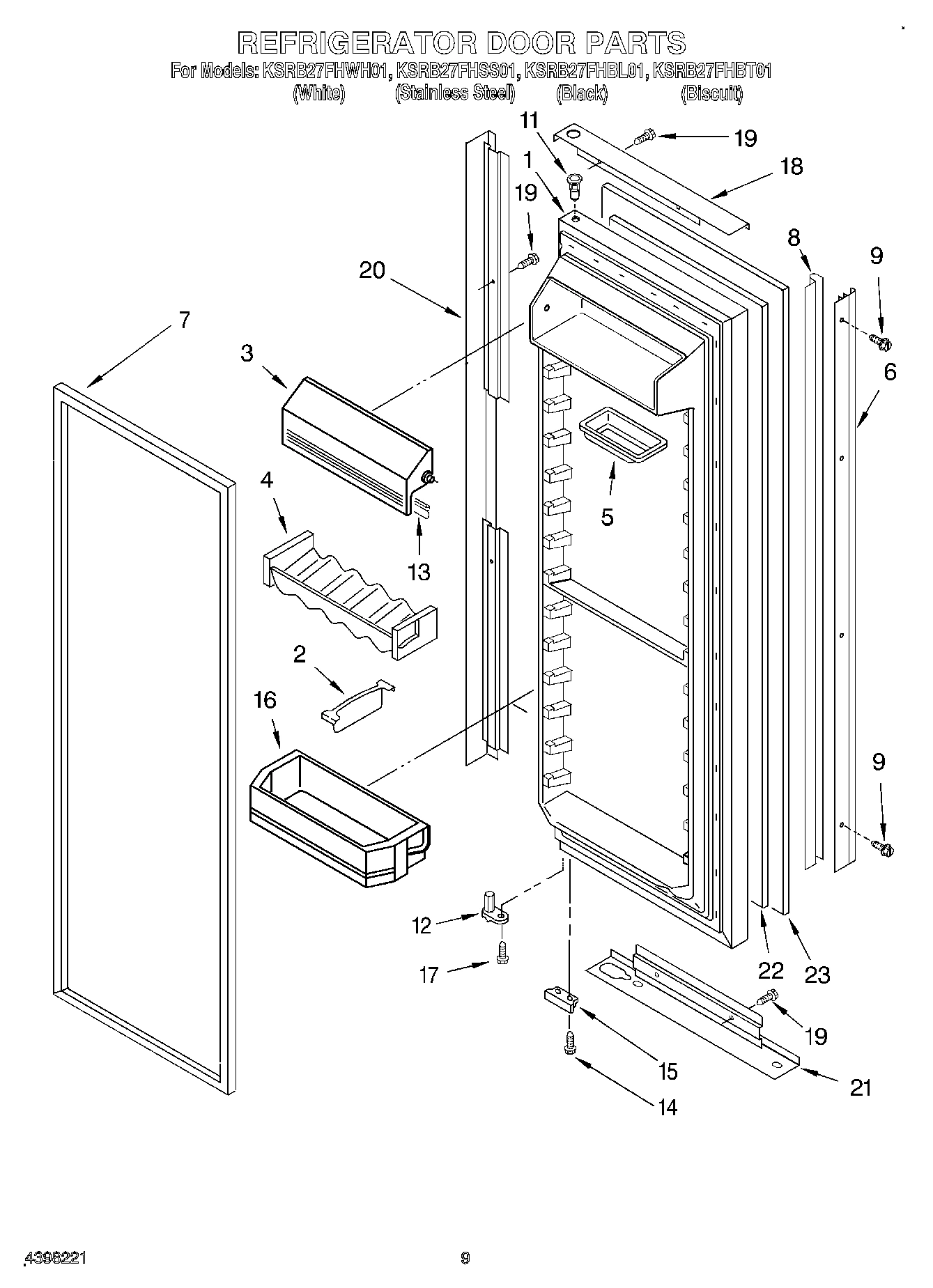

Shelf Bin (4) WPL 2171062 Contact Us For Availability
17
Cover, Evaporator WPL 2203841 Contact Us For Availability
17
Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
18

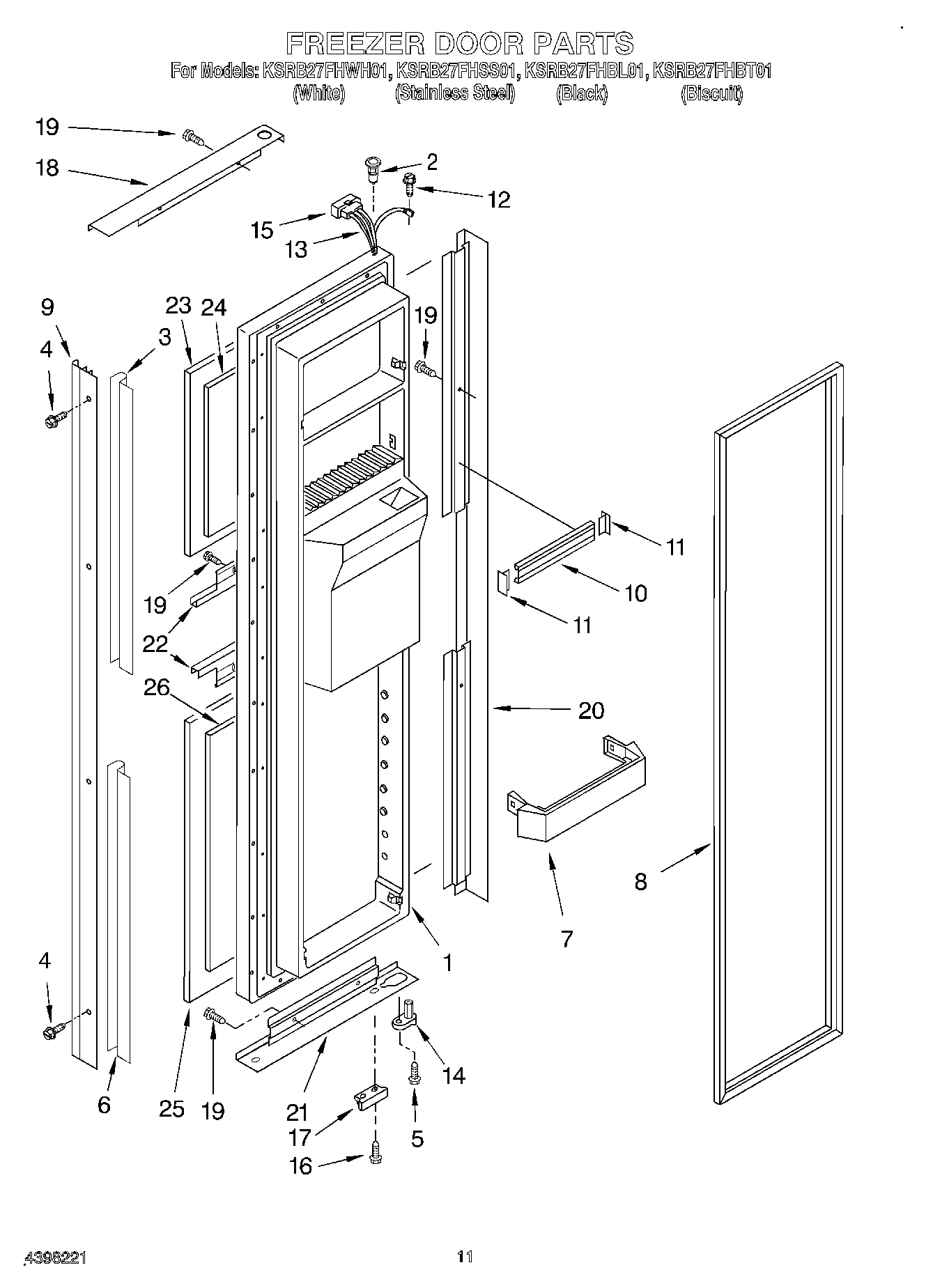

Trim, Door (Top) (White) WPL 2203374W Contact Us For Availability
18
Trim, Door (Top) (Stainless) WPL 2203375S Contact Us For Availability
19
Overlay, Front Cover (Black) WPL 2186718B Contact Us For Availability
19
Overlay, Front Cover (Biscuit) WPL 2186718T Contact Us For Availability
19
Overlay, Front Cover (White) WPL 2186718W Contact Us For Availability
20
Trim, Door (Hinge Side) (Black) WPL 2186689B Contact Us For Availability
20
Trim, Door (Hinge Side) (Biscuit) WPL 2186689T Contact Us For Availability
20
Trim, Door (Hinge Side) (White) WPL 2186689W Contact Us For Availability
20
Trim, Door (Hinge Side) (Stainl WPL 2186766S Contact Us For Availability
20

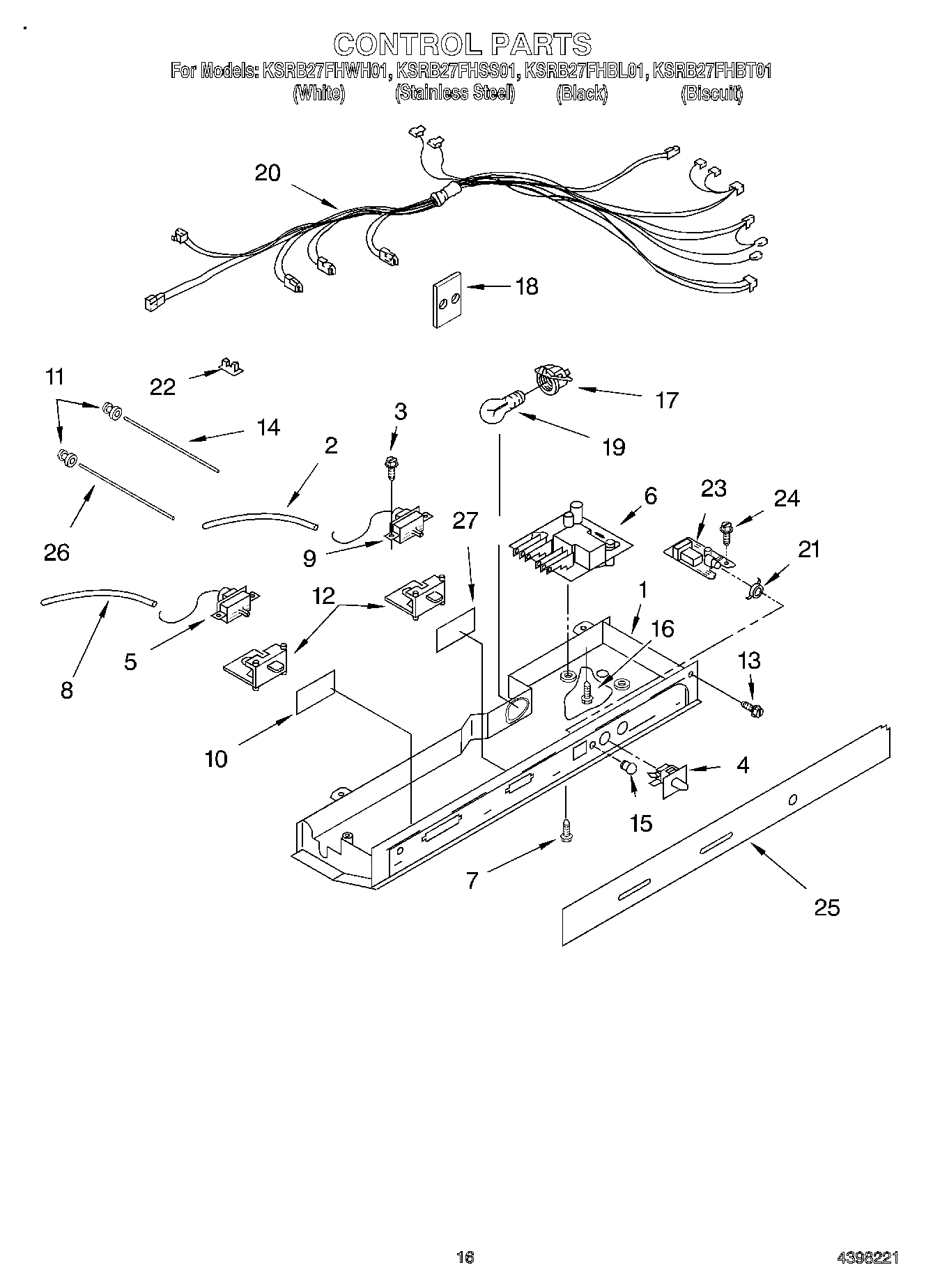

Control Box Harness WPL 2200442 Contact Us For Availability
21
WPL 2203368B WPL 2203368B Contact Us For Availability
21
WPL 2203368T WPL 2203368T Contact Us For Availability
21
WPL 2203368W WPL 2203368W Contact Us For Availability
21
WPL 2203369S WPL 2203369S Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI95051A7 Contact Us For Availability
21
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
21
Retainer, Light Lens WPL 2200097 Contact Us For Availability
22
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
22
WPL 2186702B WPL 2186702B Contact Us For Availability
22
WPL 2186702T WPL 2186702T Contact Us For Availability
22
WPL 2186702W WPL 2186702W Contact Us For Availability
22
WPL 2186778S WPL 2186778S Contact Us For Availability
22
Window, Meat Pan WPL 2174362 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
WPL 2203284B WPL 2203284B Contact Us For Availability
23
WPL 2203284T WPL 2203284T Contact Us For Availability
23
WPL 2203284W WPL 2203284W Contact Us For Availability
23
WPL 2203290S WPL 2203290S Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2186714B Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2186714T Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2186714W Contact Us For Availability
23
P.C. Board Filter Indicator WPL 2203384 Contact Us For Availability
24
WPL 2208277 WPL 2208277 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Shelf & Roller Assembly WPL 2174021 Contact Us For Availability
25
WPL 2203286B WPL 2203286B Contact Us For Availability
25
WPL 2203286T WPL 2203286T Contact Us For Availability
25
WPL 2203286W WPL 2203286W Contact Us For Availability
25
WPL 2203292S WPL 2203292S Contact Us For Availability
25
Screw WPL 489439 Contact Us For Availability
25
Escutcheon, Control Box WPL 2200099 Contact Us For Availability
26
WPL 2208278 WPL 2208278 Contact Us For Availability
26
Glass, Cover WPL 2174148 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
31
Cabinet (Not A Serviceable Part) WPL ARI95047A6 Contact Us For Availability
34
Light Lens WPL 2203266 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
44
Front Cover, Ice Container WPL 2204321 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
Torx Key WPL 1117510 Contact Us For Availability
100
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
100
Brush Touch-Up Kit (Biscuit) WPL 4398299 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
