Model GSW9800PW1 – Common Parts & Diagrams

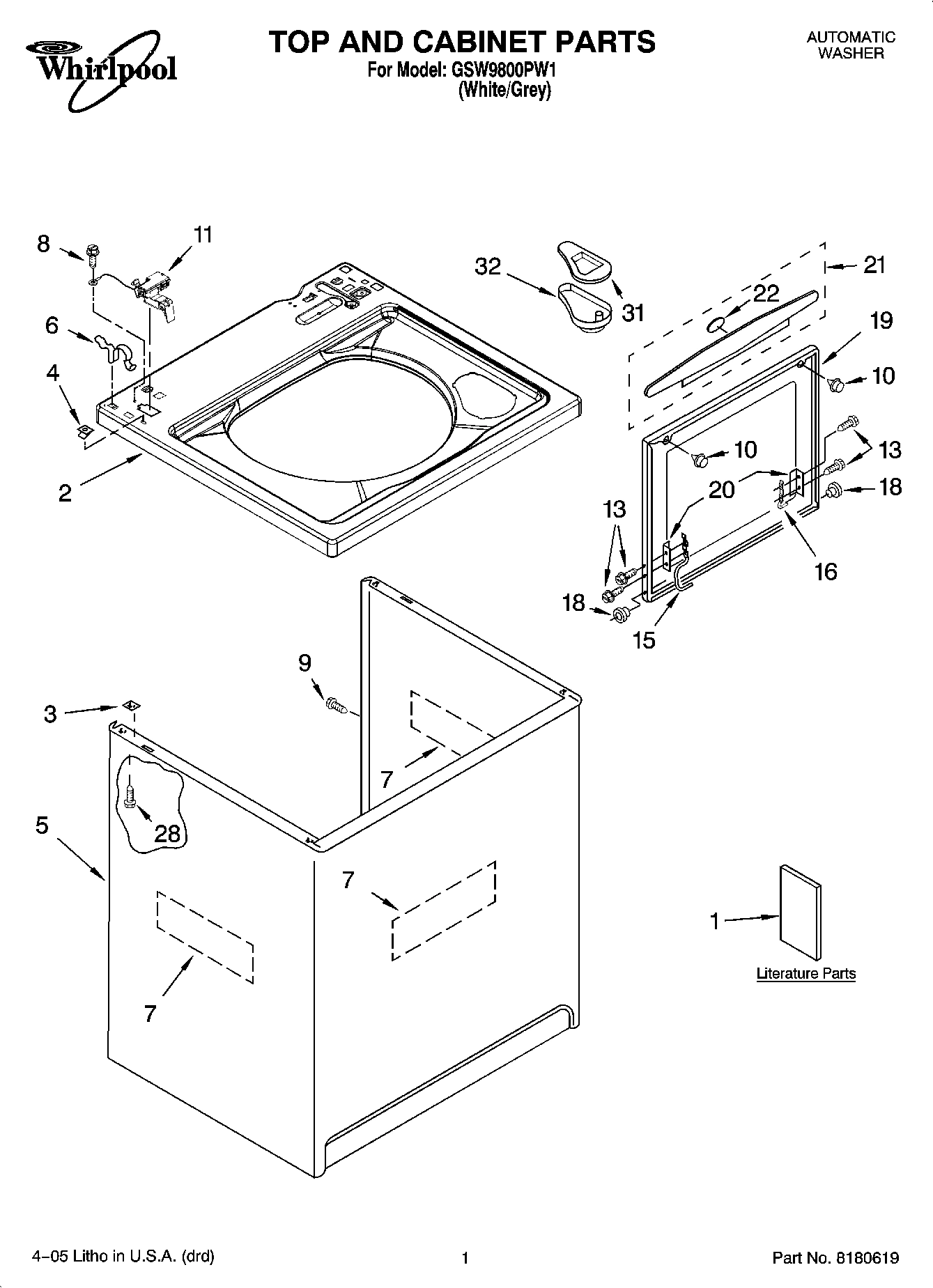

01 - TOP AND CABINET PARTS

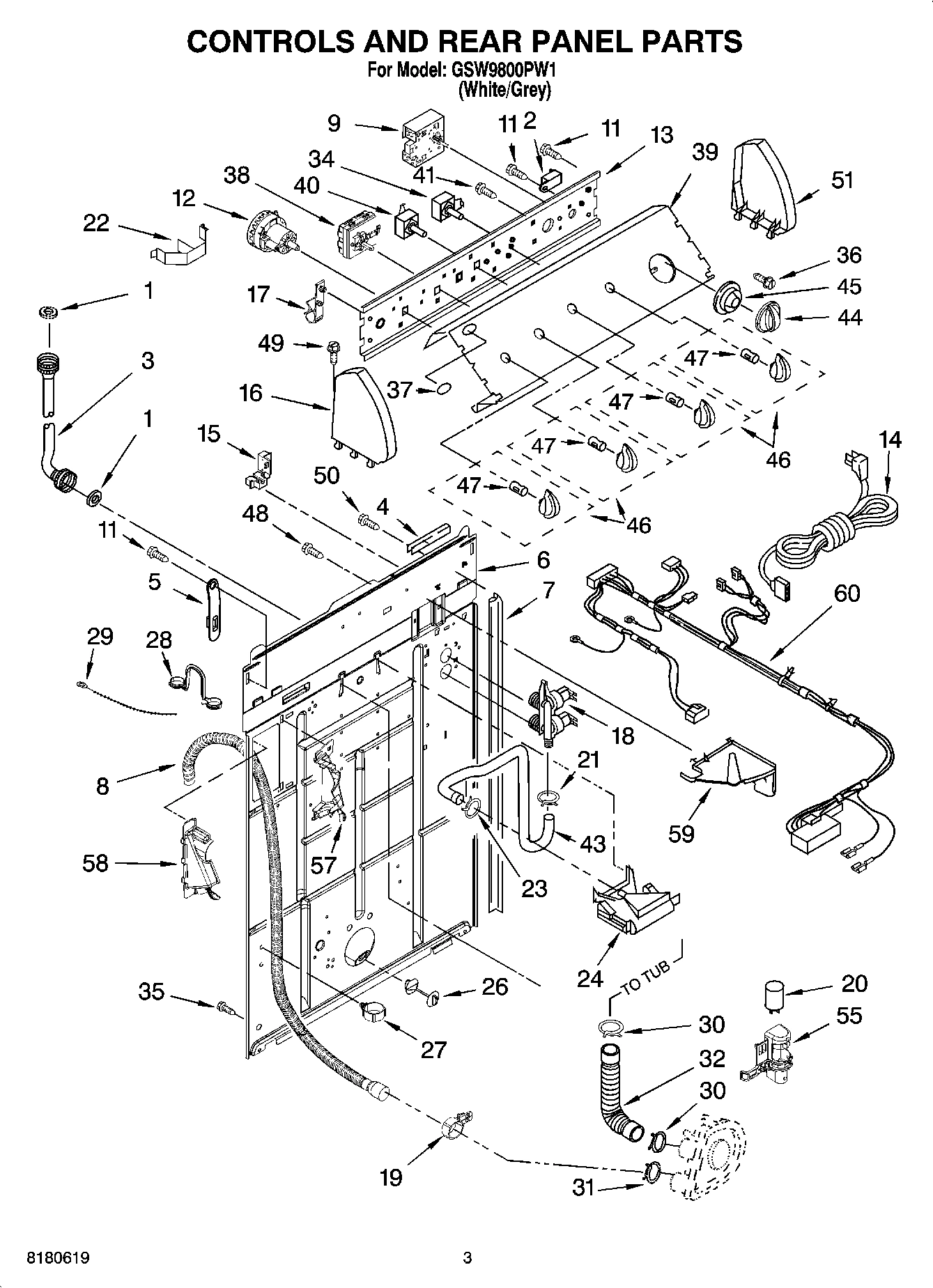

02 - CONTROLS AND REAR PANEL PARTS

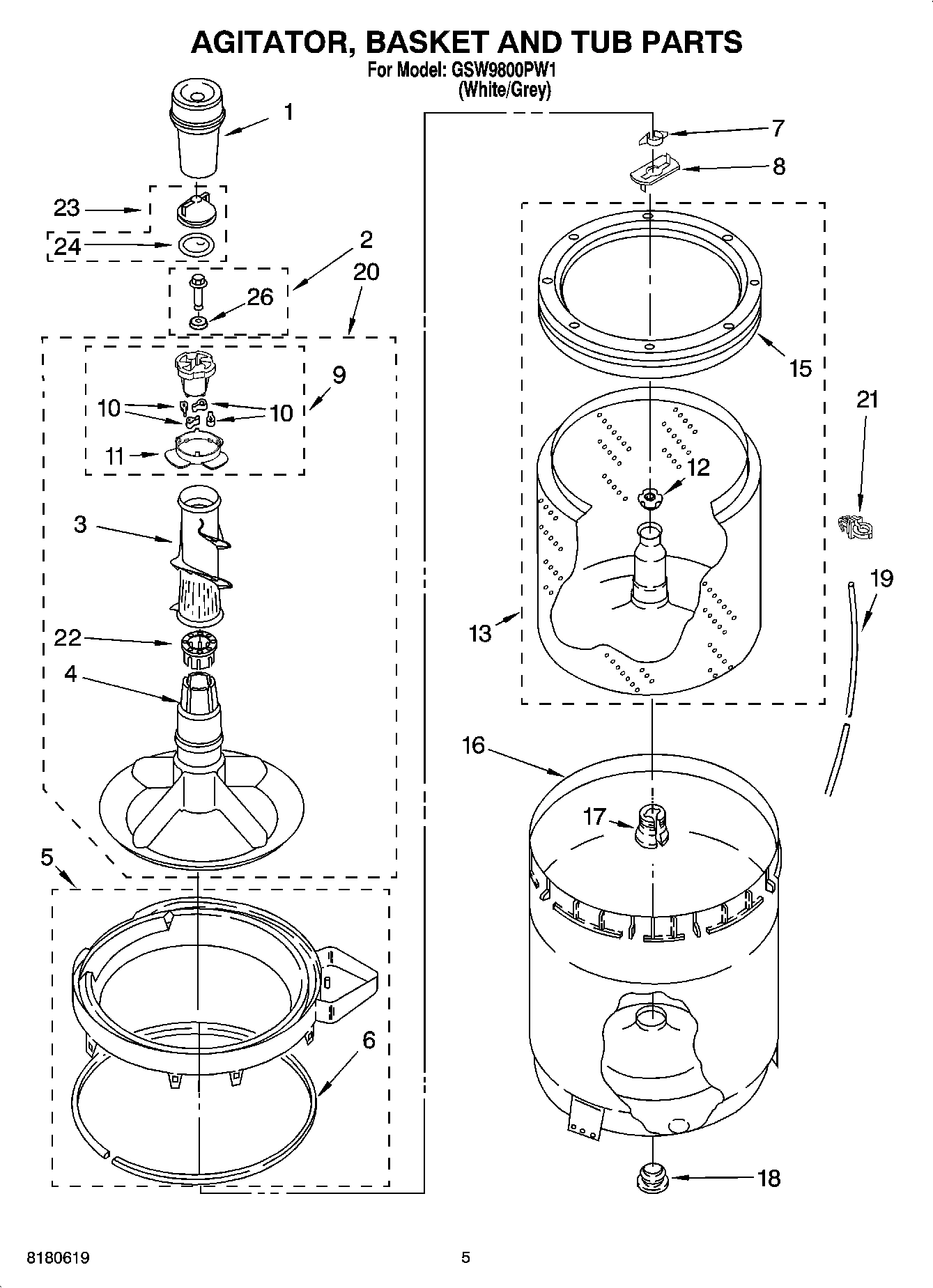

03 - AGITATOR, BASKET AND TUB PARTS
04 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS
05 - MACHINE BASE PARTS
06 - WIRING HARNESS PARTS
07 - BRAKE AND DRIVE TUBE PARTS

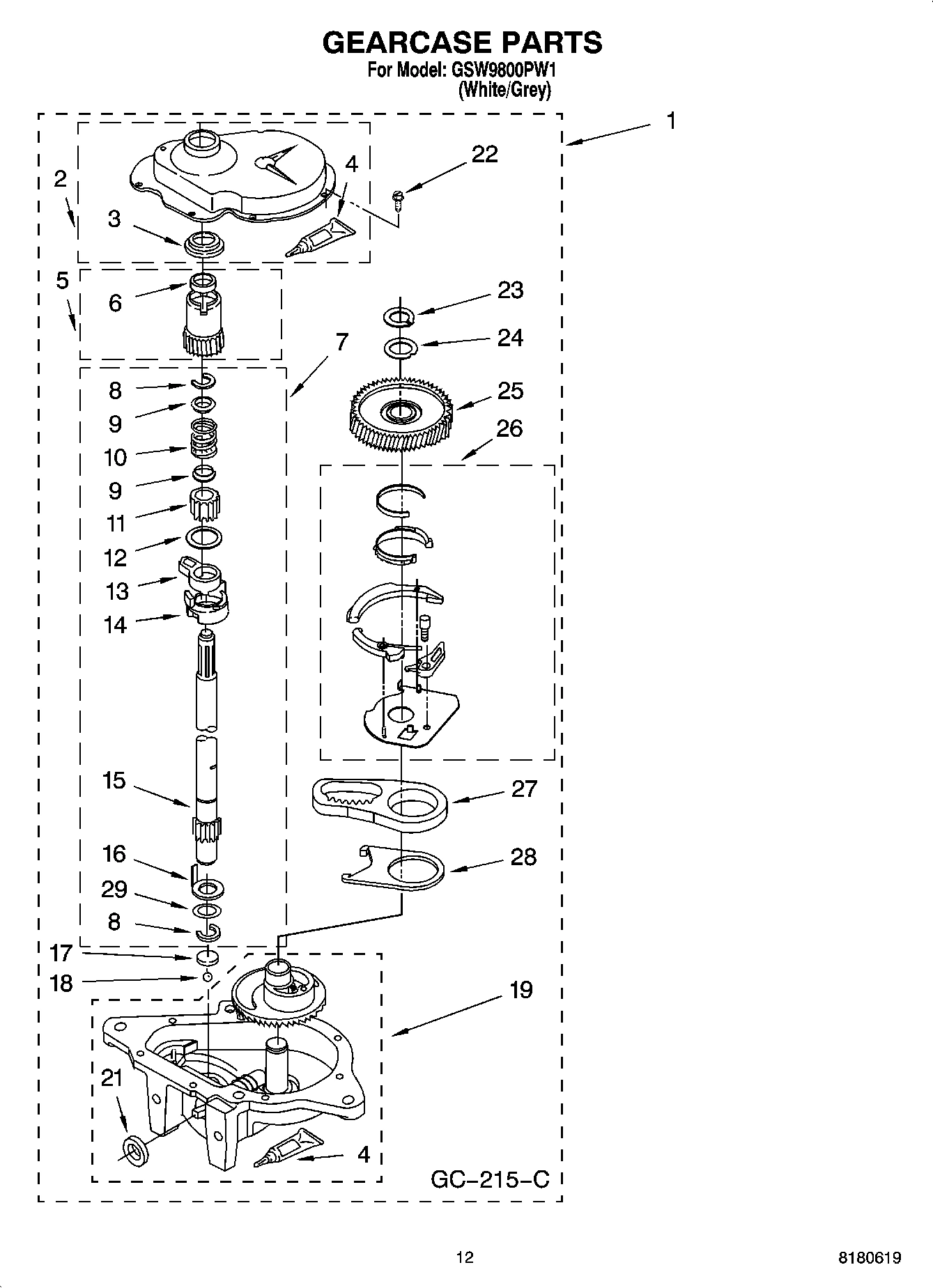

08 - GEARCASE PARTS
09 - WATER SYSTEM PARTS, MISCELLANEOUS PARTS, OPTIONAL PARTS (NOT INCLUDED)
