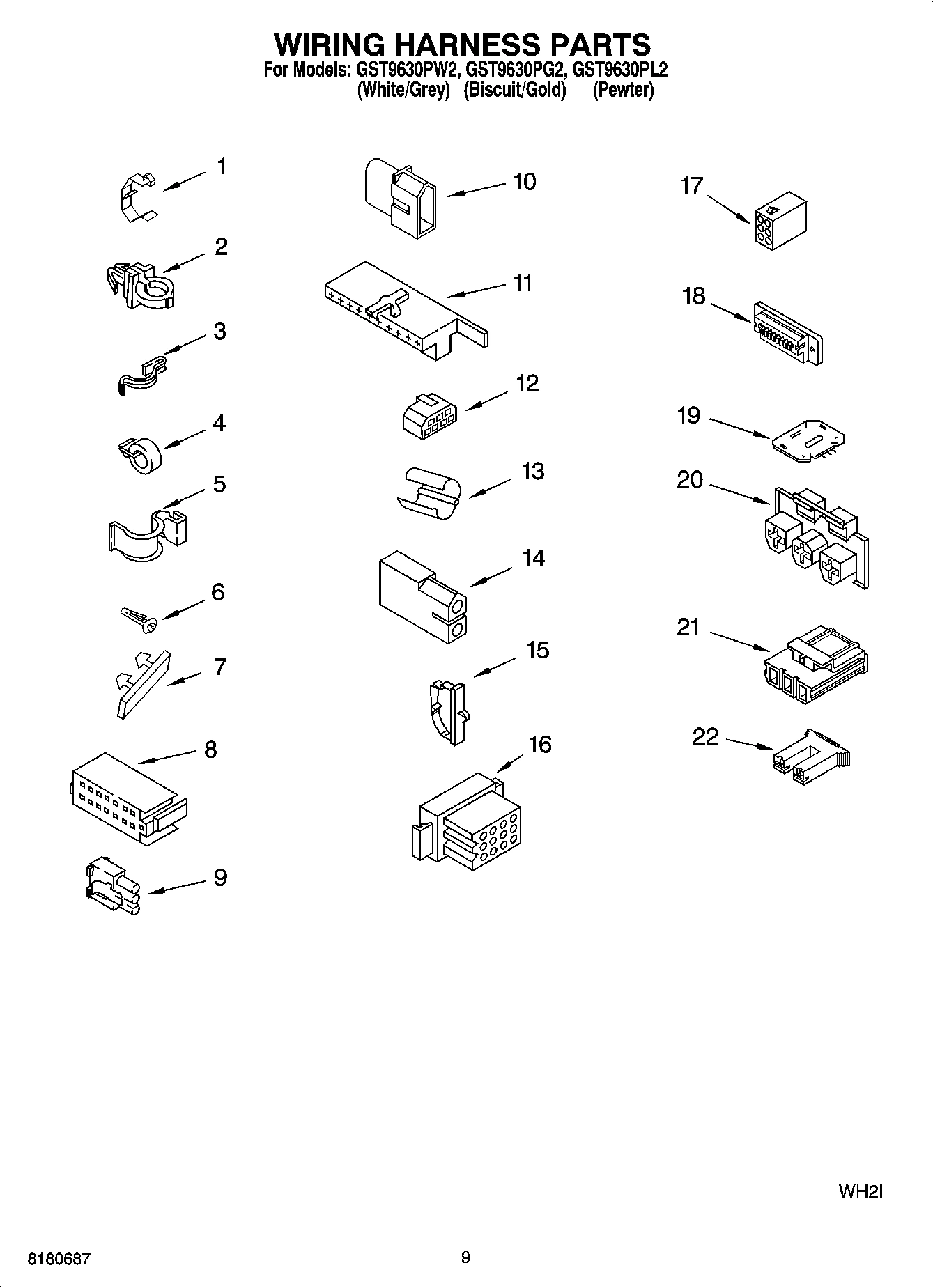

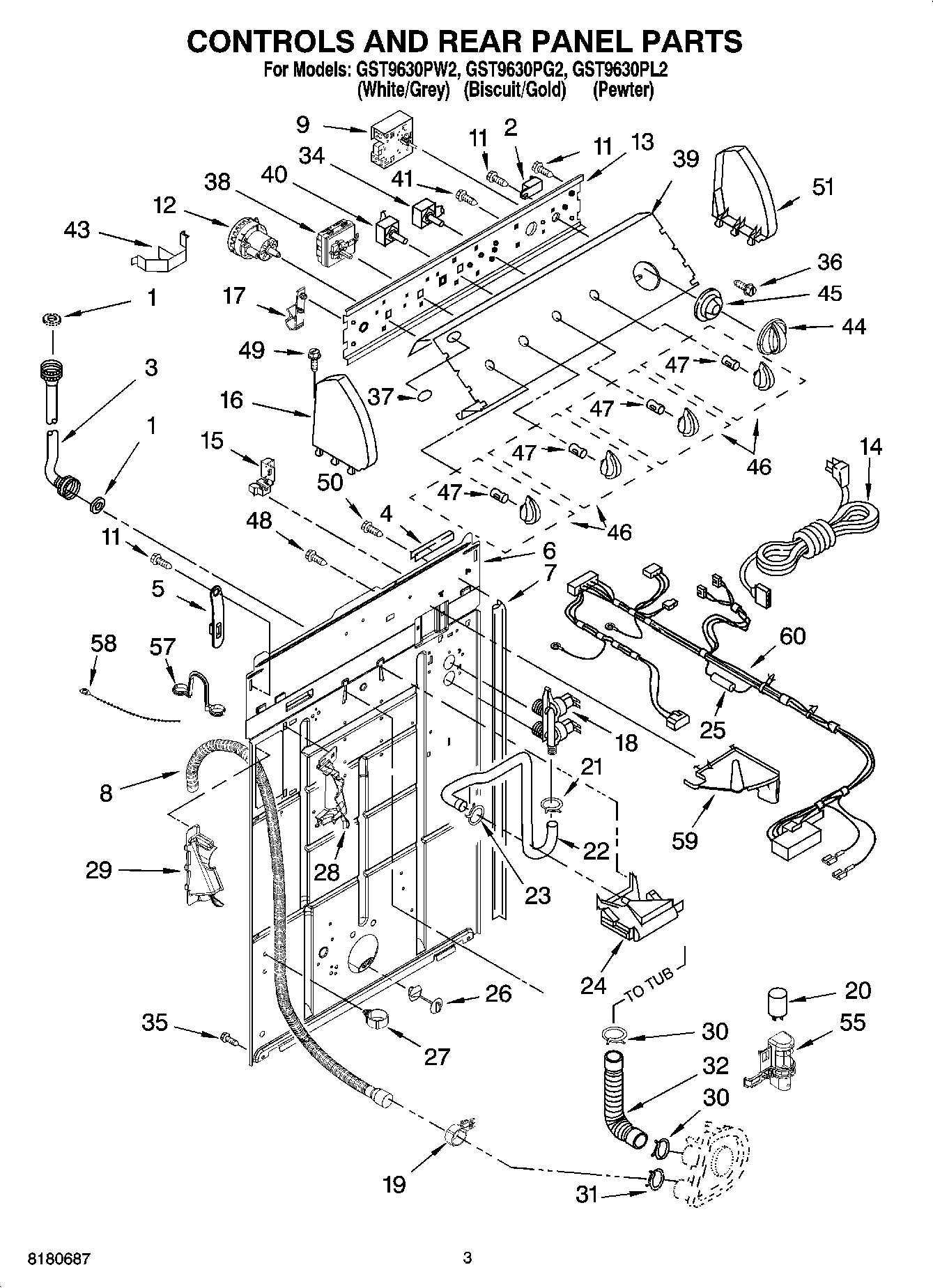

Model Whirlpool GST9630PL2 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

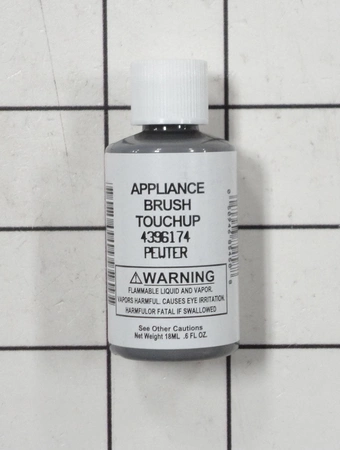

WP4396174 Whirlpool Touch-Up Paint Backorder WPL WP4396174 $10.30

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

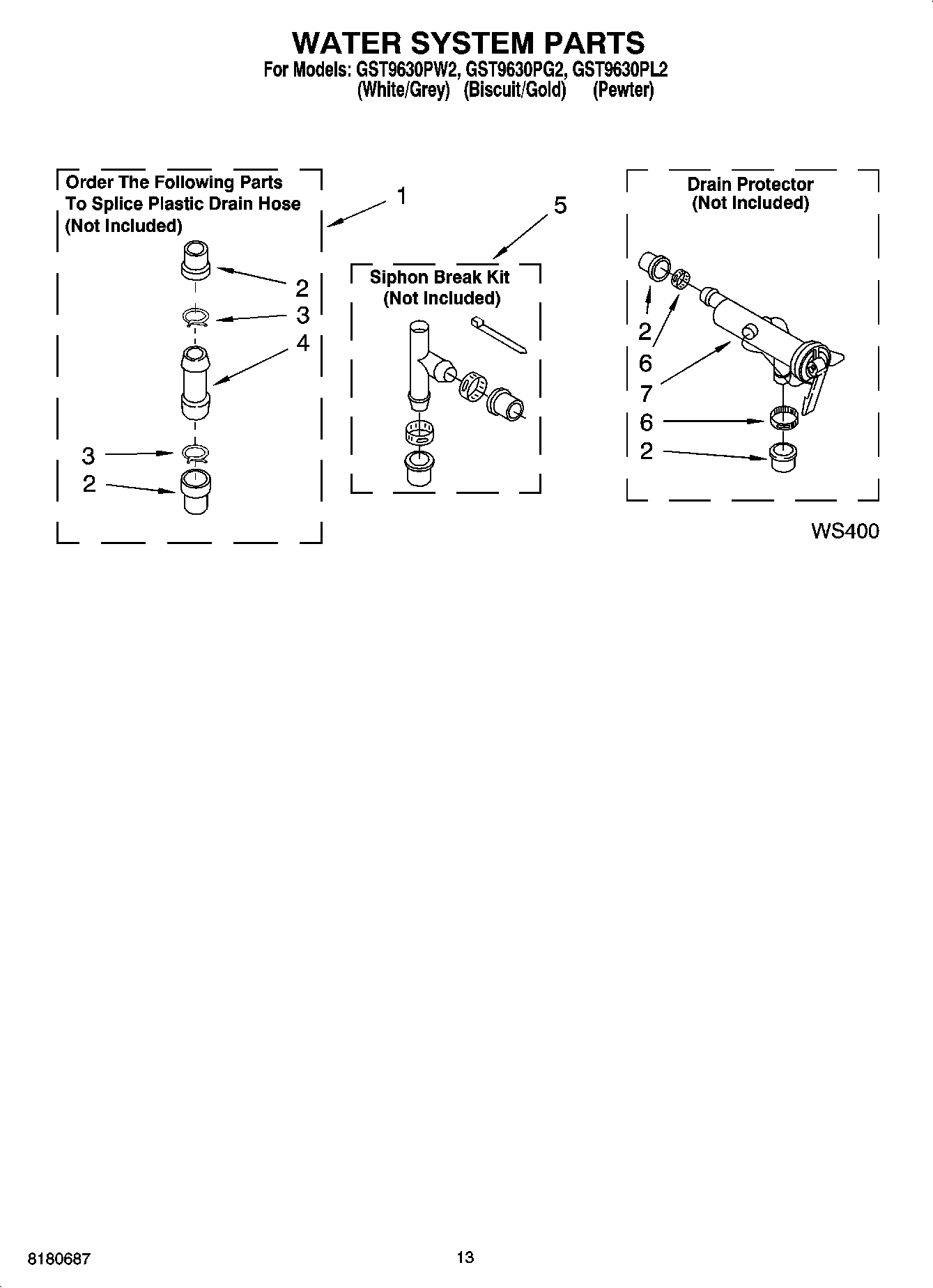

Drain Protector WPL 367031 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 oz.) (Pewter) WPL 4396175 Contact Us For Availability

OIL WPL ARI151312A Contact Us For Availability

LUBRICANT WPL ARI151313A Contact Us For Availability

SEALER WPL ARI151314A Contact Us For Availability

ACCESSORY PARTS WPL ARI151315A Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $30.25

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

Manual, Washer WPL 4313896 Contact Us For Availability

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

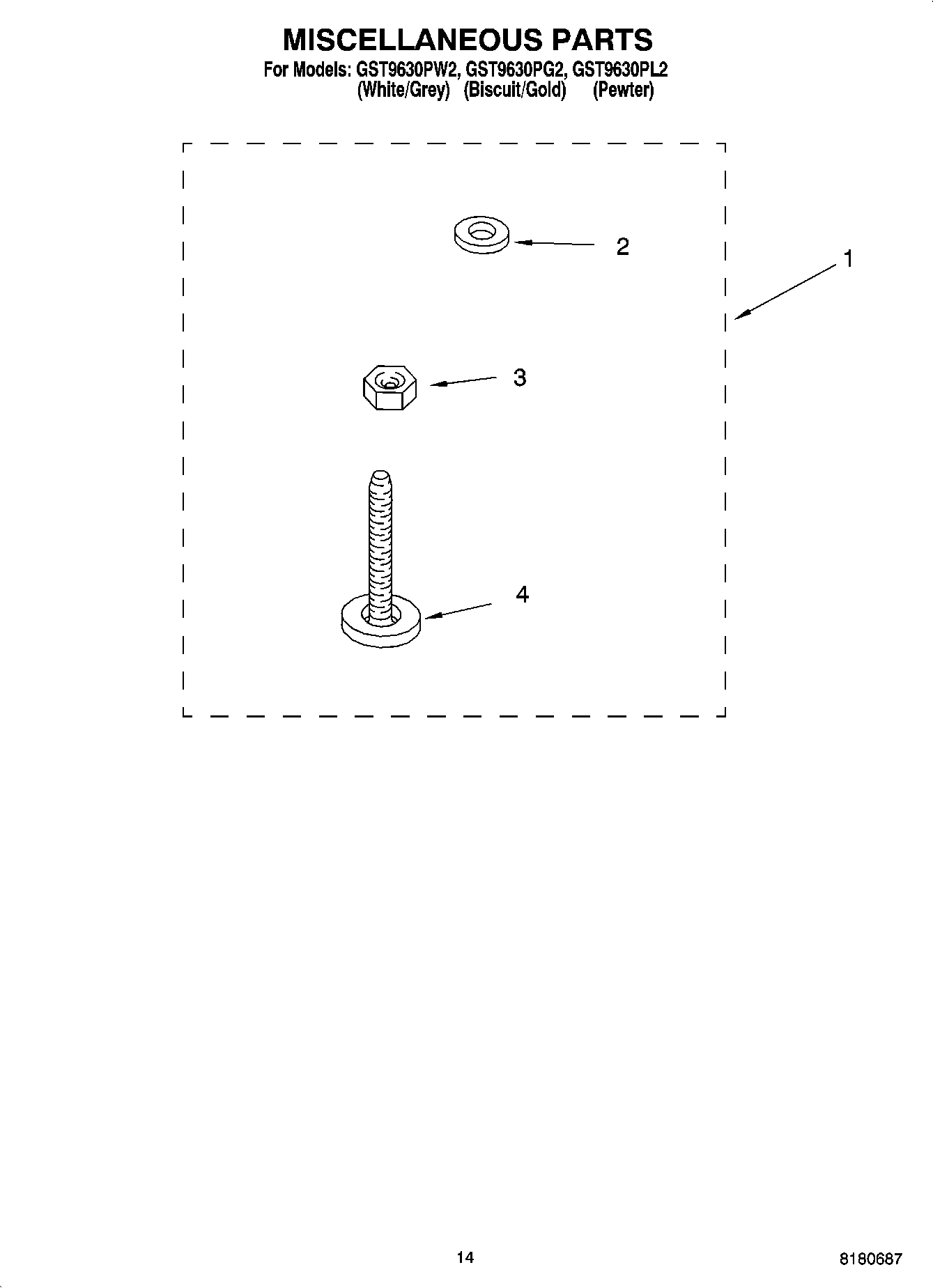

Miscellaneous Parts Bag WPL 3957361 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

2

285321 Whirlpool Sleeve Backorder WPL 285321 $28.09

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

2

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $51.99

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

4

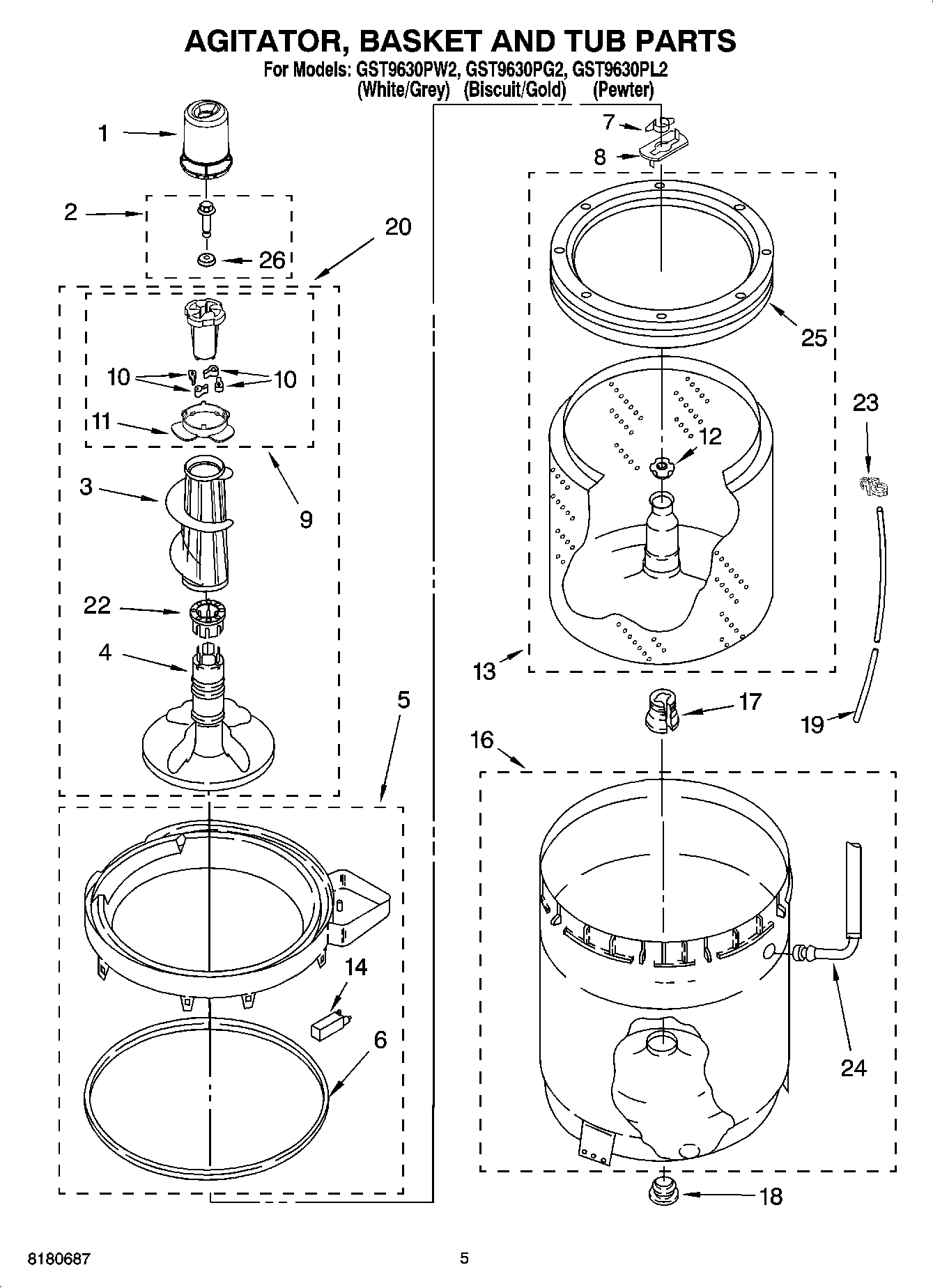

WP389386 Whirlpool Agitator Assembly Backorder WPL WP389386 $77.27

4

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $133.70

4

Support & Brake, Tub WPL 8575214 Contact Us For Availability

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

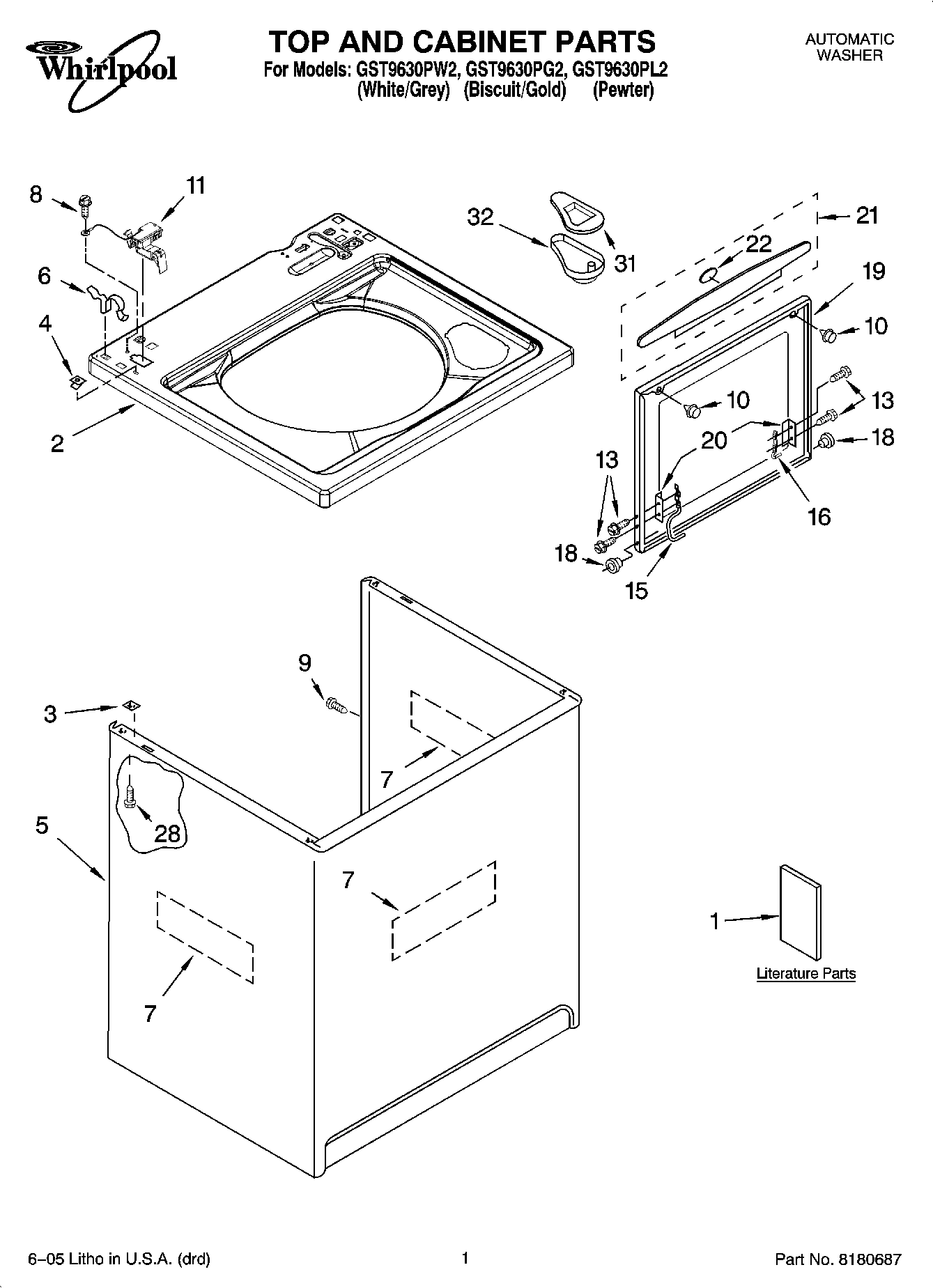

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

5

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $3.70

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

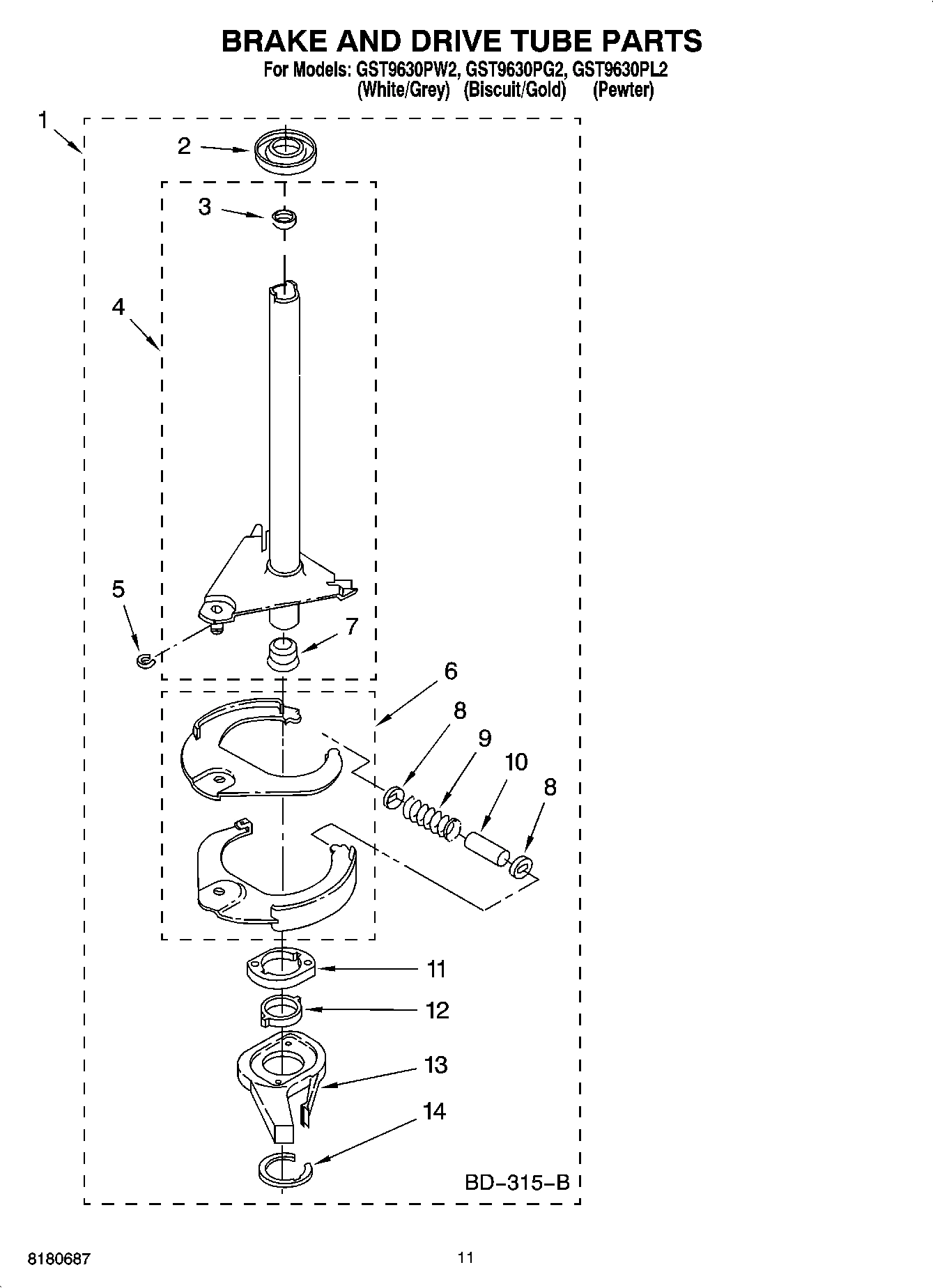

285438 Whirlpool Brake Shoe In Stock WPL 285438 $78.79

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.88

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.88

7

Cabinet - Sound Damper (3) WPL 3976348 Contact Us For Availability

8

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Timer, Block Disconnect (White) WPL 3948614 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $11.36

9

285748 Whirlpool Agitator Cam Kit In Stock WPL 285748 $16.43

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

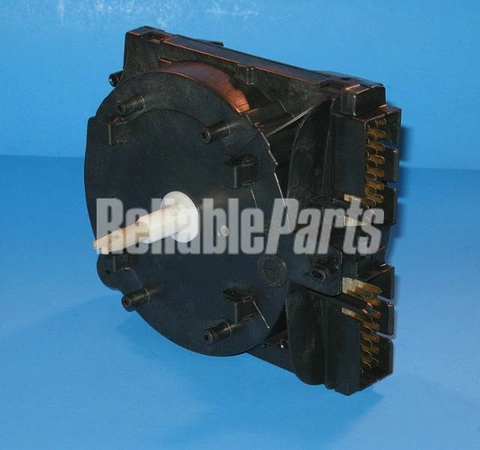

WP3955765 Whirlpool Timer Assembly In Stock WPL WP3955765 $166.29

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

9

Spring, Brake WPL 387806 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $10.76

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $1.25

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.64

Spring, Agitate WPL 62676 Contact Us For Availability

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $30.56

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

W10389328 Whirlpool Basket Backorder WPL W10389328 $199.90

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Wax Motor WPL 8318246 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Following Parts Not Illustrated WPL ARI151311A Contact Us For Availability

15

285901 Whirlpool Spring Kit Assembly In Stock WPL 285901 $45.52

15

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $20.97

WP91770 Whirlpool Hinge In Stock WPL WP91770 $8.80

Tub (Includes Item 24) WPL 8283125 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

17

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

17

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

17

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $80.64

18

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

18

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

18

Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability

8541668 Whirlpool Washer Clamp Backorder WPL 8541668 $10.76

WP353244 Whirlpool Hose In Stock WPL WP353244 $32.17

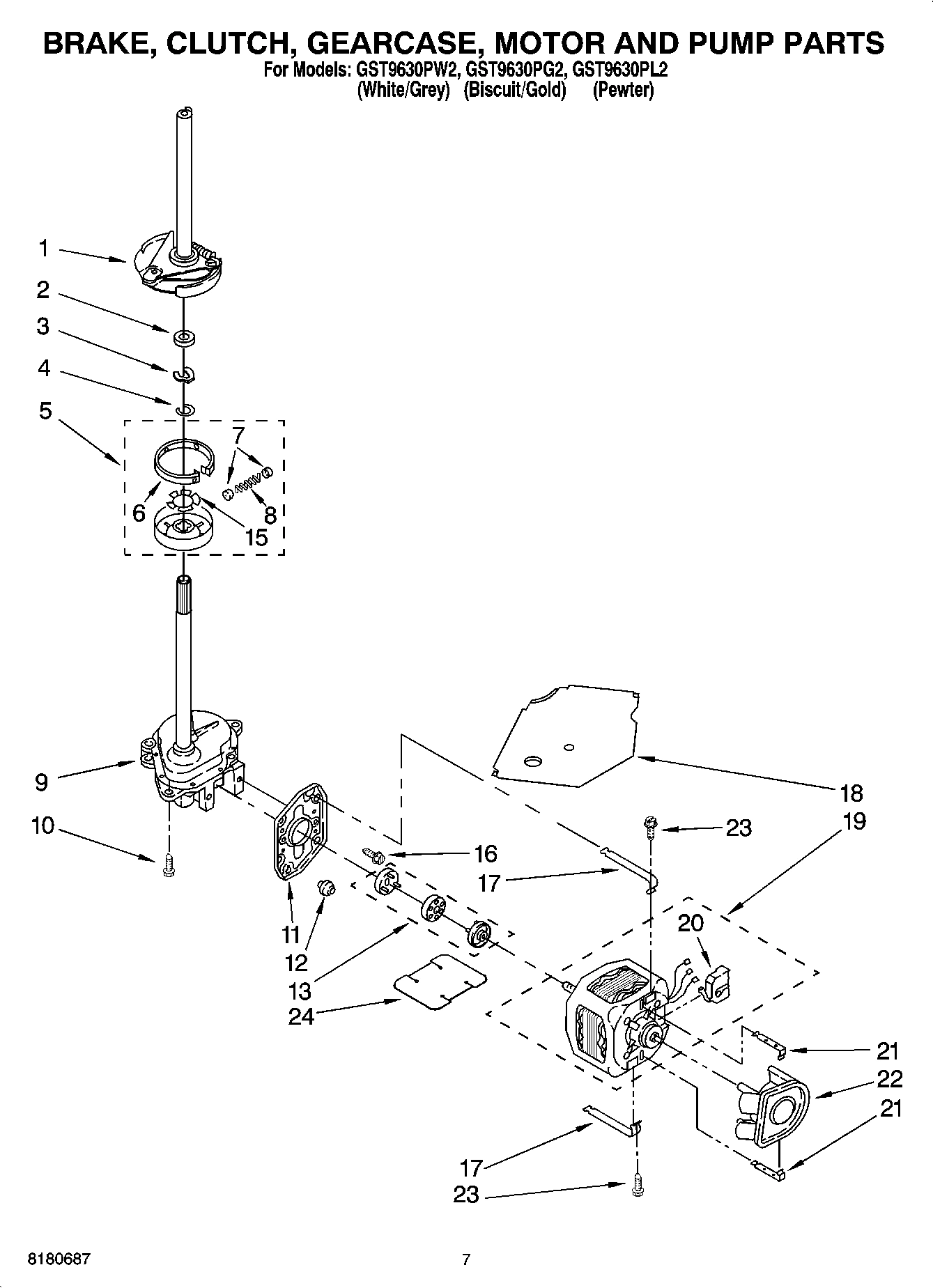

WP8529935 Whirlpool Drive Motor Backorder WPL WP8529935 $236.28

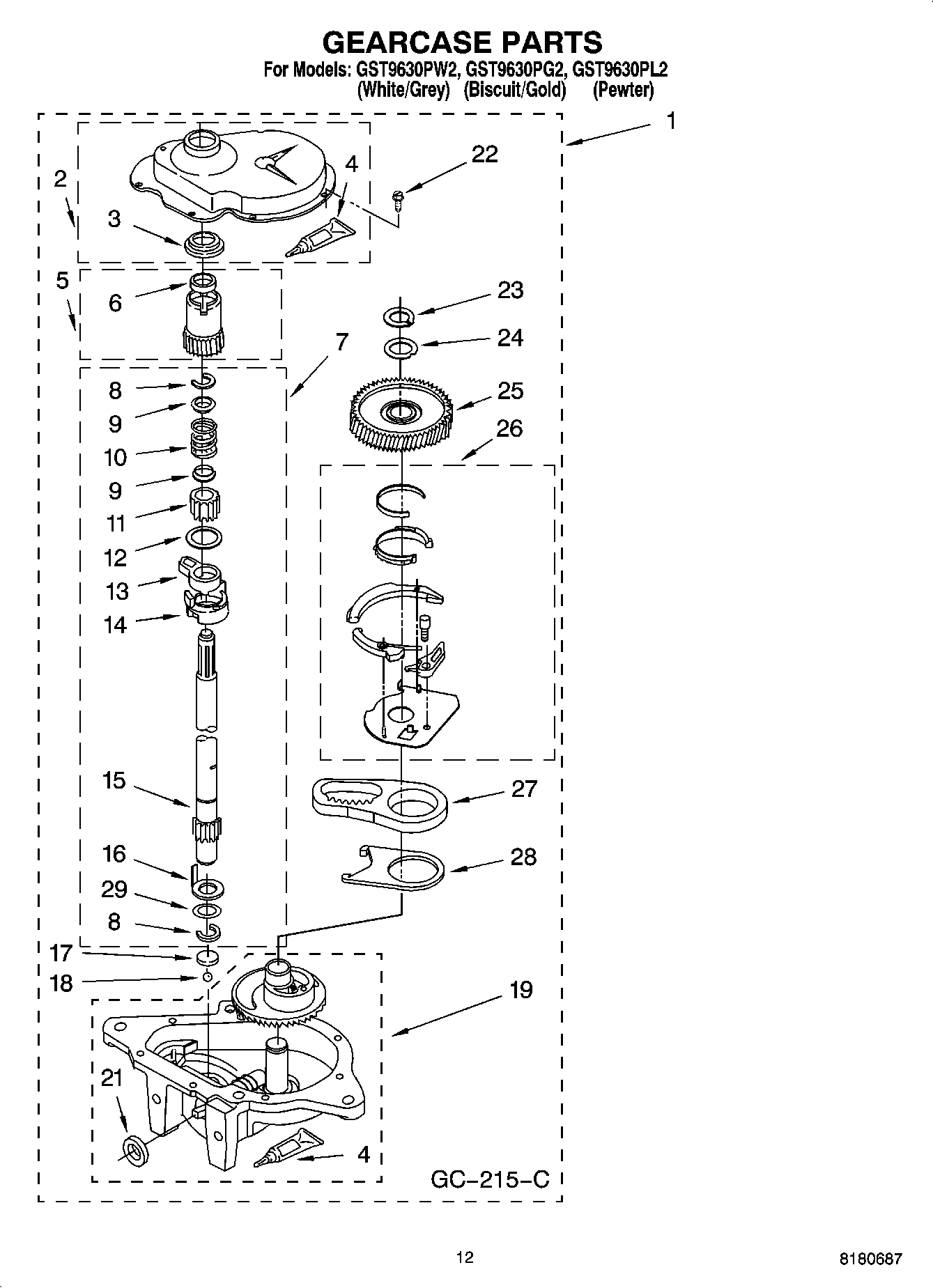

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

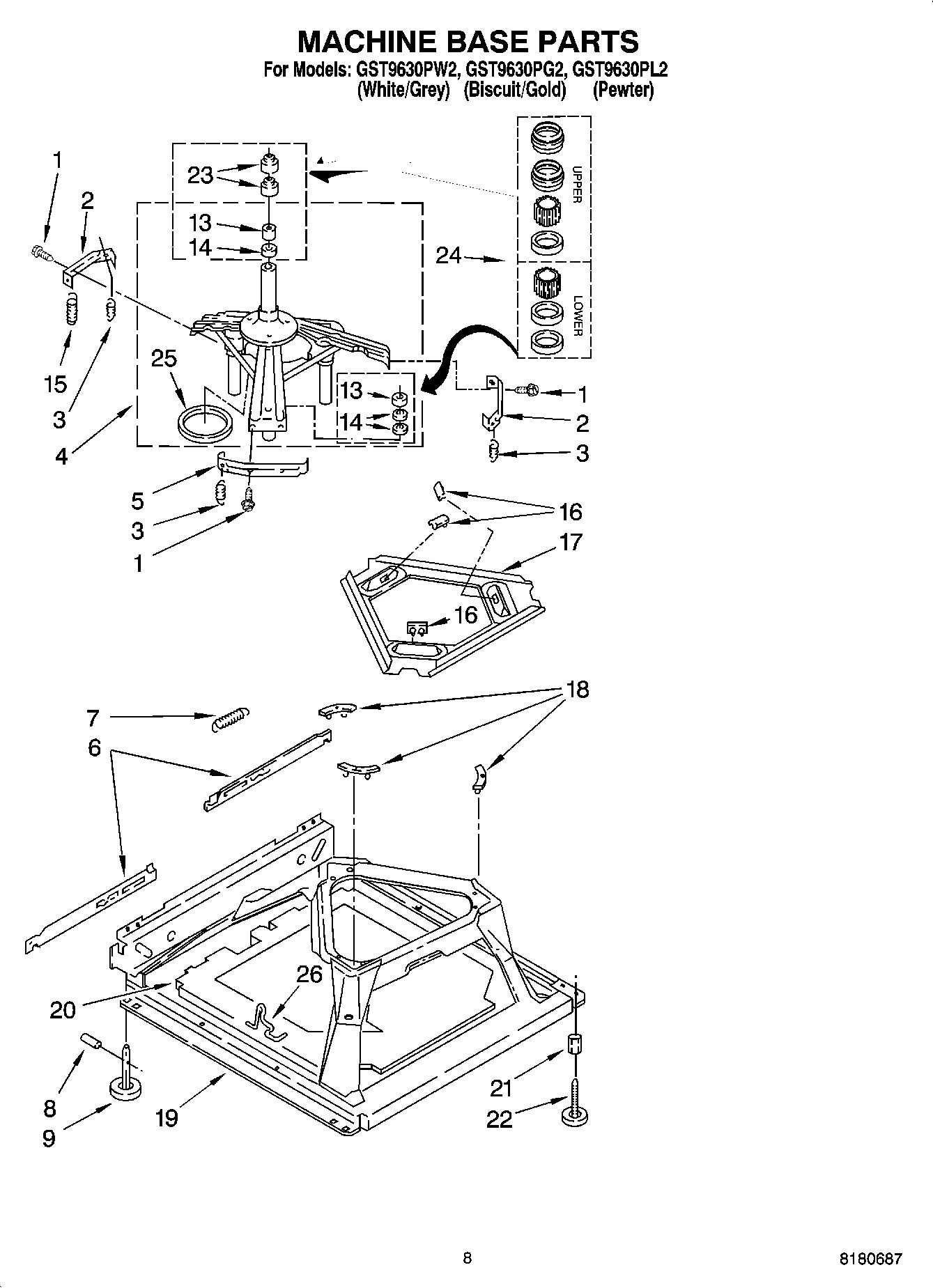

Base Assembly (Includes Illus, 6, 7, 8, 9, 16 WPL 3946512 Contact Us For Availability

285727 Whirlpool Agitator Assembly In Stock WPL 285727 $126.97

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

Switch, Main Drive Motor WPL 8529896 Contact Us For Availability

Sound Absorber WPL 8544816 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $30.69

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

Connector (T.P.A.) (3-Circuit) (Pressure Swit WPL 3360056 Contact Us For Availability

22

285587 Whirlpool Thrust Washer In Stock WPL 285587 $1.43

22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $35.58

22

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

23

2219077 Whirlpool Refrigerator Clip Backorder WPL 2219077 $30.25

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

23

Ring, Retaining WPL 3362552 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $75.19

24

Hose, Bleach WPL 3948705 Contact Us For Availability

24

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP387240 Whirlpool Balance Ring Backorder WPL WP387240 $79.32

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.96

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $195.01

28

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

29

WPW10096921 Whirlpool Hose In Stock WPL WPW10096921 $39.11

32

Dispenser, Bleach WPL 8519517 Contact Us For Availability

34

Switch, Rotary WPL 3956080 Contact Us For Availability

38

Switch, Water Temperature (ATC) WPL 8564137 Contact Us For Availability

40

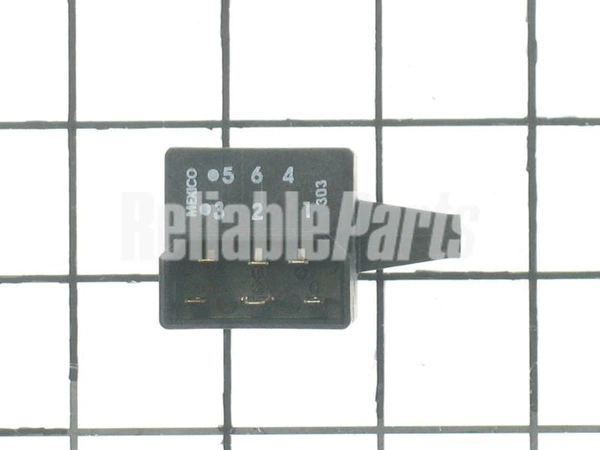

W10168264 Whirlpool Cycle Switch Backorder WPL W10168264 $49.89

44

WPL 8544945 WPL 8544945 Contact Us For Availability

45

WP8544947 Whirlpool Dial Backorder WPL WP8544947 $27.18

46

WPL 8544937 WPL 8544937 Contact Us For Availability

46

WPL 8544938 WPL 8544938 Contact Us For Availability

47

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $4.97

48

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

50

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

55

WPL 8318046 WPL 8318046 Contact Us For Availability

59

WPL 8539874 WPL 8539874 Contact Us For Availability

60

WPL 3957254 WPL 3957254 Contact Us For Availability
