Model GE GSS25QFMCCC Refrigerator – Common Parts & Diagrams
DOOR KIT
FREEZER DOOR

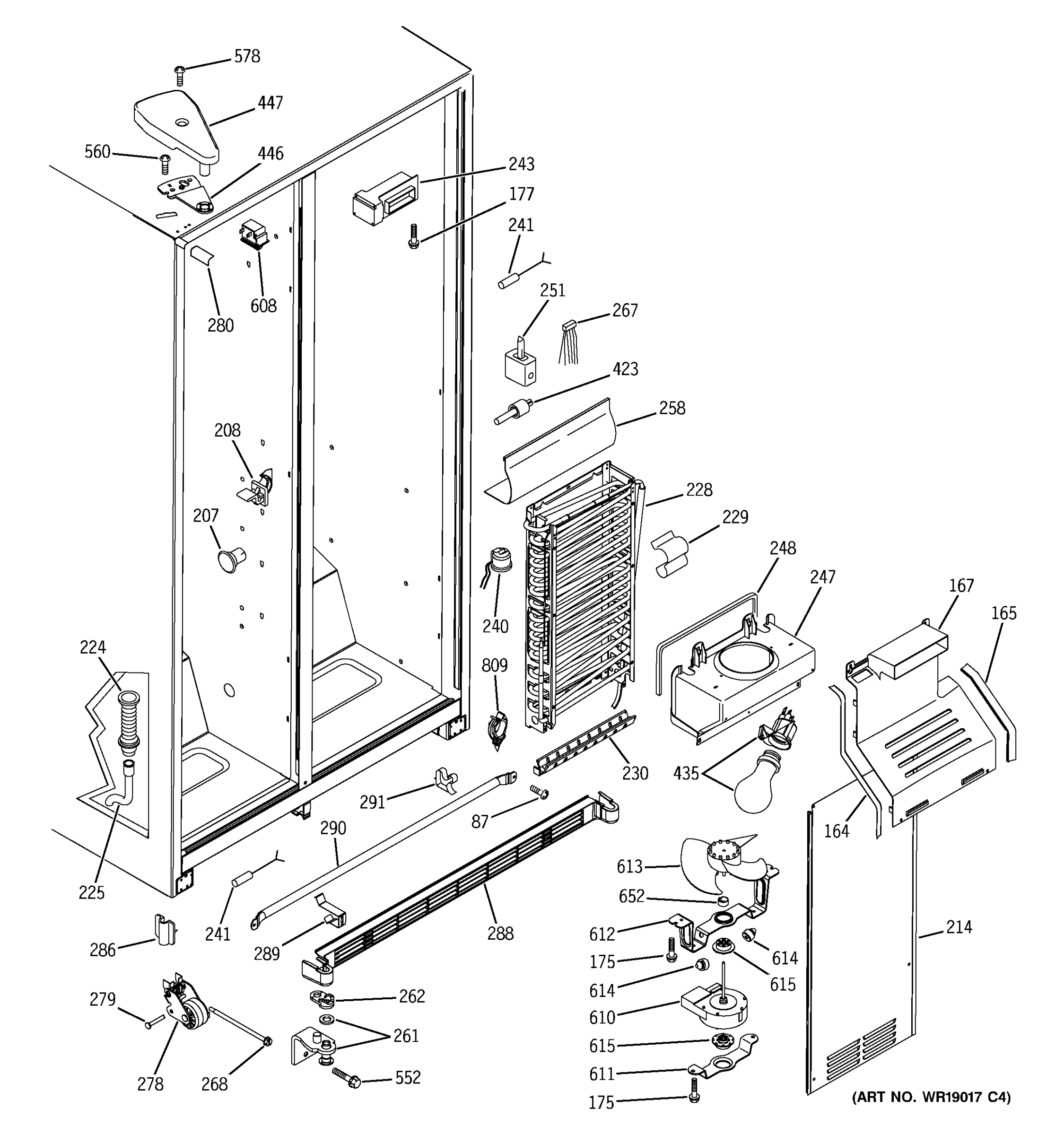

FREEZER SECTION

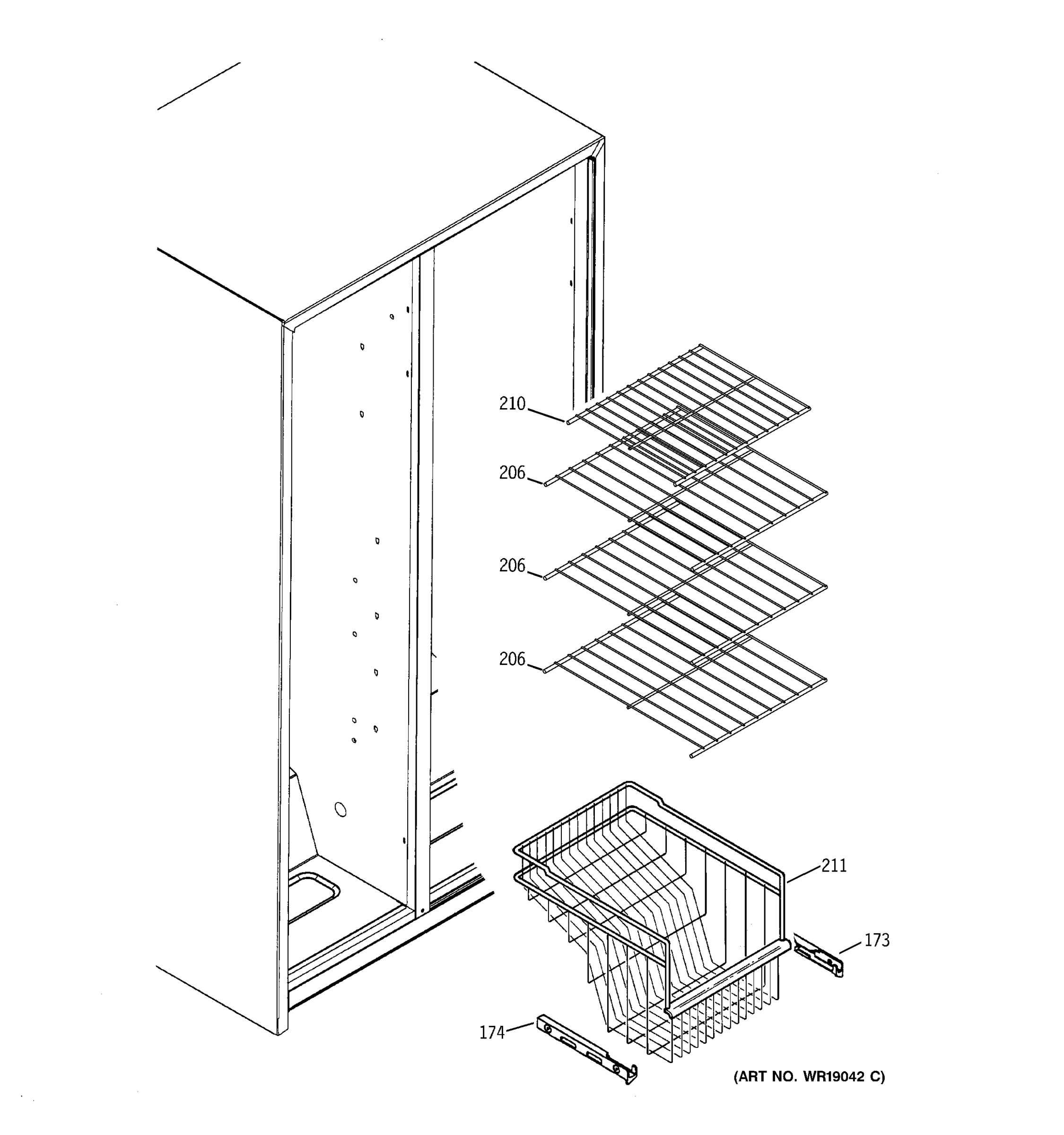

FREEZER SHELVES
FRESH FOOD DOOR

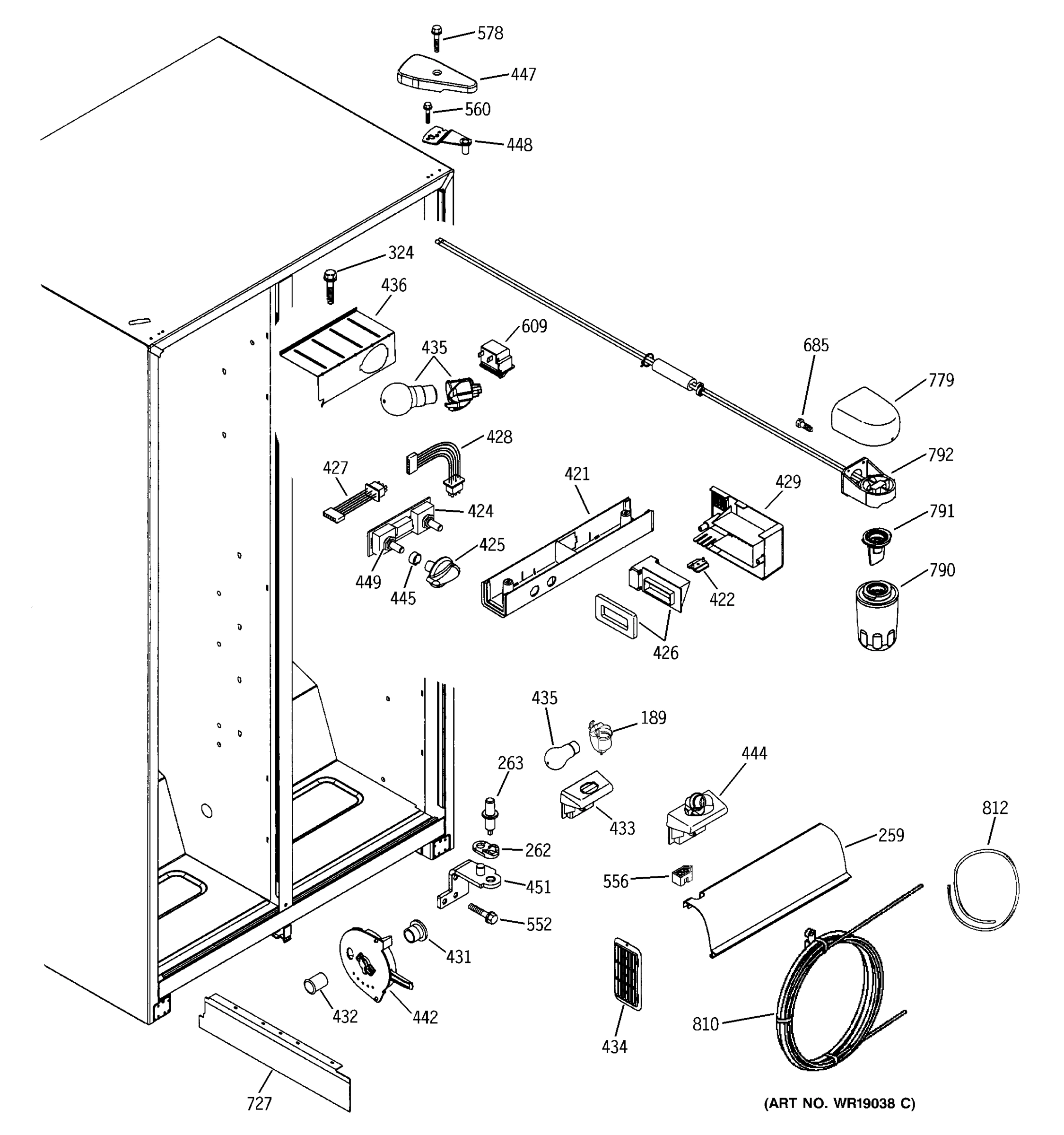

FRESH FOOD SECTION

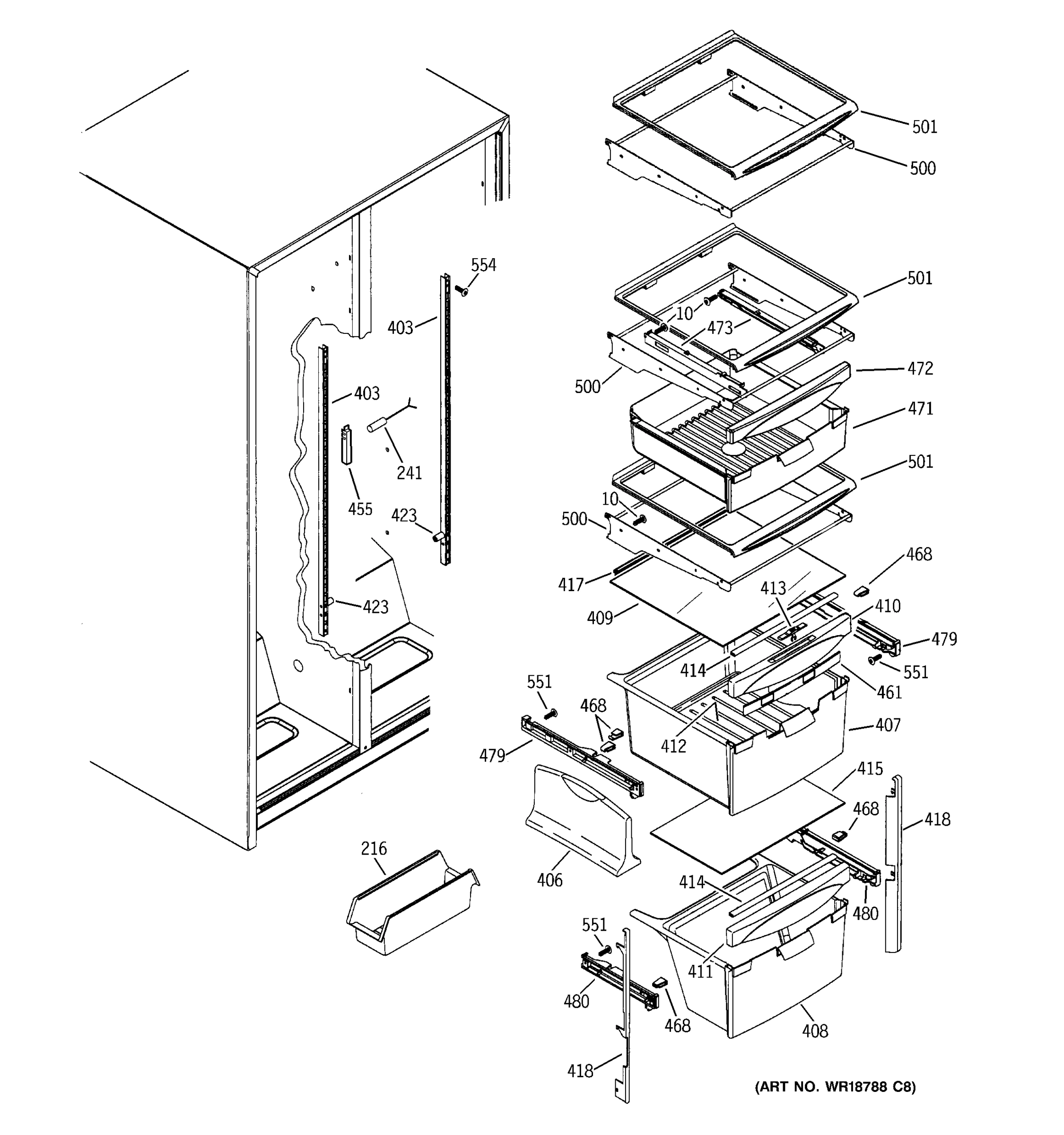

FRESH FOOD SHELVES

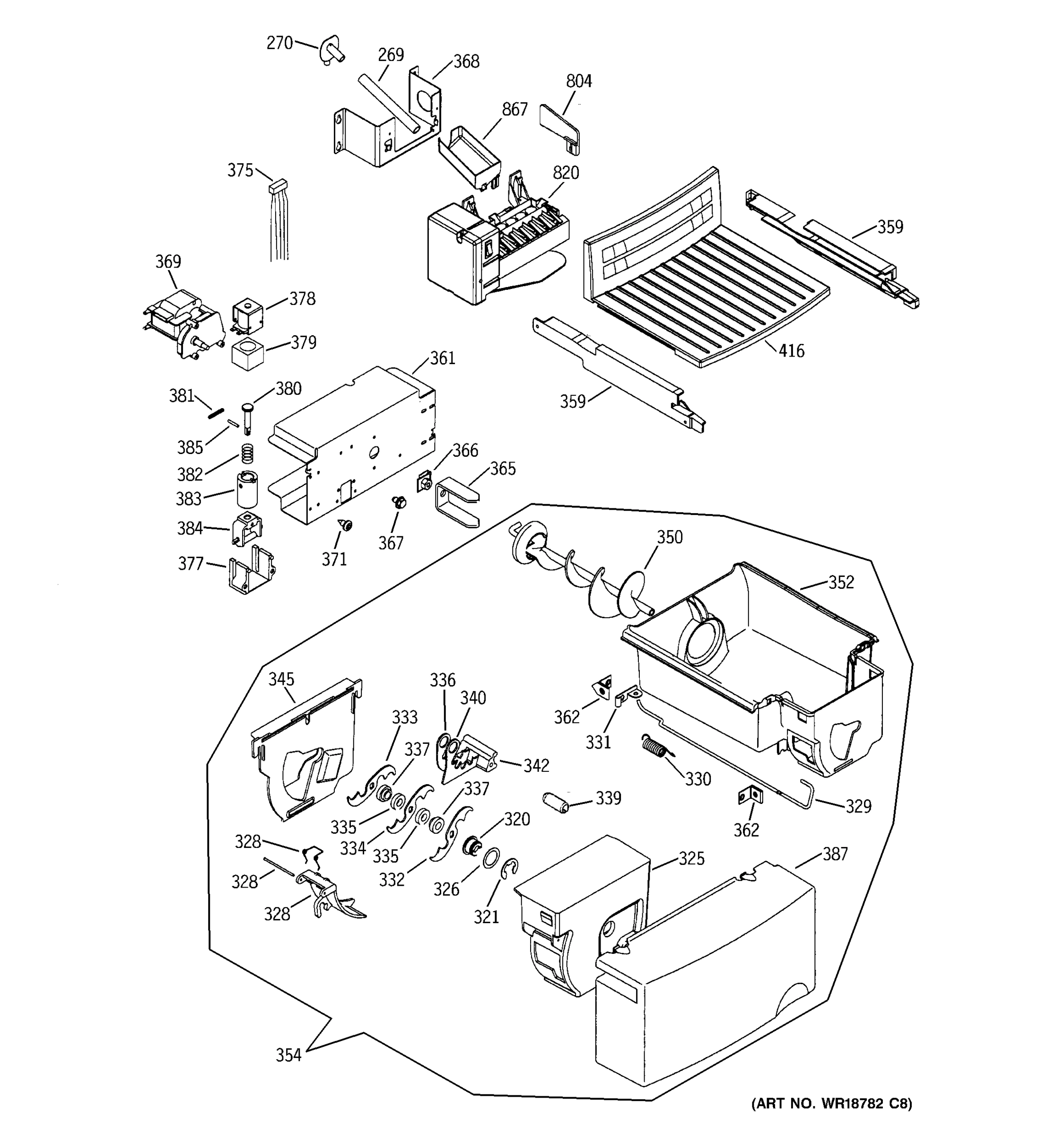

ICE MAKER & DISPENSER

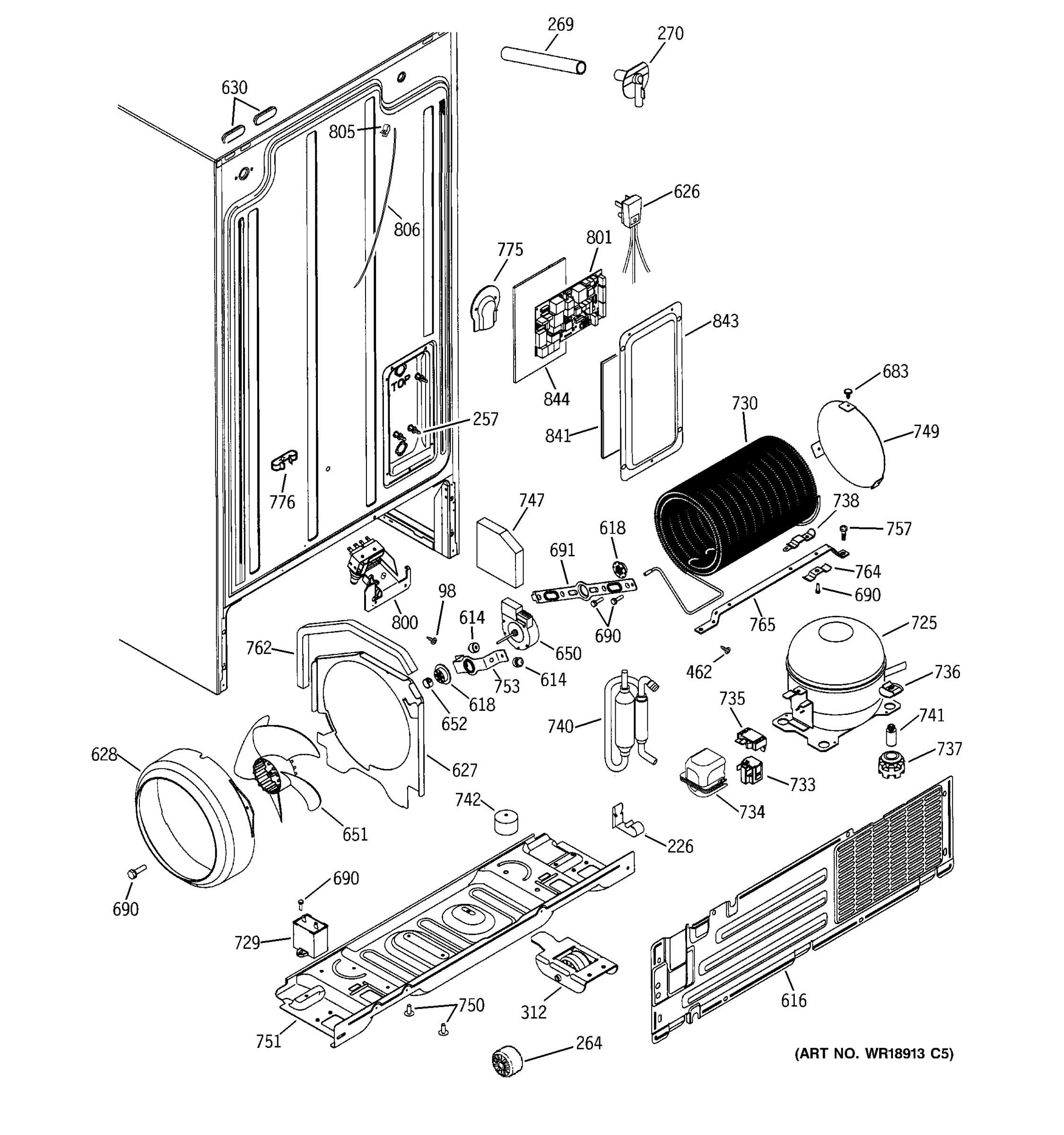

SEALED SYSTEM & MOTHER BOARD
Common parts from model GE GSS25QFMCCC Refrigerator
5
GEN WR02X10431 GEN WR02X10431 Contact Us For Availability
7
GEN WR12X10349 GEN WR12X10349 Contact Us For Availability
10
GEN WR01X10065 GEN WR01X10065 Contact Us For Availability
14
GEN WR24X10053 GEN WR24X10053 Contact Us For Availability
23
GEN WR17X10710 GEN WR17X10710 Contact Us For Availability
31
GEN WR17X10751 GEN WR17X10751 Contact Us For Availability
63
GEN WR02X10585 GEN WR02X10585 Contact Us For Availability
67
GEN WR17X10706 GEN WR17X10706 Contact Us For Availability
75
GEN WR17X11116 GEN WR17X11116 Contact Us For Availability
109
GEN WR71X10232 GEN WR71X10232 Contact Us For Availability
121
GEN WR12X10394 GEN WR12X10394 Contact Us For Availability
128
GEN WR02X10582 GEN WR02X10582 Contact Us For Availability
134
GEN WR01X10019 GEN WR01X10019 Contact Us For Availability
149
GEN WR01X10196 GEN WR01X10196 Contact Us For Availability
152
GEN WR01X10038 GEN WR01X10038 Contact Us For Availability
206
GEN WR71X1936 GEN WR71X1936 Contact Us For Availability
210
GEN WR71X10230 GEN WR71X10230 Contact Us For Availability
211
GEN WR21X10021 GEN WR21X10021 Contact Us For Availability
214
GEN WR14X10045 GEN WR14X10045 Contact Us For Availability
214
GEN WR17X11144 GEN WR17X11144 Contact Us For Availability
216
GEN WR32X1575 GEN WR32X1575 Contact Us For Availability
226
GEN WR02X10558 GEN WR02X10558 Contact Us For Availability
229
GEN WR02X10552 GEN WR02X10552 Contact Us For Availability
230
GEN WR51X10055 GEN WR51X10055 Contact Us For Availability
248
GEN WR14X10050 GEN WR14X10050 Contact Us For Availability
257
GEN WR02X10159 GEN WR02X10159 Contact Us For Availability
258
GEN WR17X10724 GEN WR17X10724 Contact Us For Availability
259
GEN WR17X10725 GEN WR17X10725 Contact Us For Availability
261
GEN WR01X10202 GEN WR01X10202 Contact Us For Availability
262
GEN WR02X10568 GEN WR02X10568 Contact Us For Availability
263
GEN WR02X10592 GEN WR02X10592 Contact Us For Availability
264
GEN WR02X10695 GEN WR02X10695 Contact Us For Availability
268
GEN WR01X10199 GEN WR01X10199 Contact Us For Availability
270
GEN WR02X10967 GEN WR02X10967 Contact Us For Availability
289
GEN WR02X10560 GEN WR02X10560 Contact Us For Availability
320
GEN WR01X10189 GEN WR01X10189 Contact Us For Availability
326
GEN WR01X1366 GEN WR01X1366 Contact Us For Availability
328
GEN WR17X10703 GEN WR17X10703 Contact Us For Availability
328
GEN WR02X4561 GEN WR02X4561 Contact Us For Availability
331
GEN WR02X10580 GEN WR02X10580 Contact Us For Availability
332
BLADES MOVING DISP GEN WR17X1361 Contact Us For Availability
333
BLADES MOVING DISP GEN WR17X1362 Contact Us For Availability
334
BLADES MOVING DISP GEN WR17X1363 Contact Us For Availability
335
SPACER GEN WR02X4139 Contact Us For Availability
336
GEN WR17X1009 GEN WR17X1009 Contact Us For Availability
339
GEN WR02X4141 GEN WR02X4141 Contact Us For Availability
340
GEN WR17X2058 GEN WR17X2058 Contact Us For Availability
342
GEN WR02X10691 GEN WR02X10691 Contact Us For Availability
352
GEN WR30X10016 GEN WR30X10016 Contact Us For Availability
354
GEN WR17X10778 GEN WR17X10778 Contact Us For Availability
361
GEN WR17X10788 GEN WR17X10788 Contact Us For Availability
362
GEN WR02X10971 GEN WR02X10971 Contact Us For Availability
366
GEN WR01X10190 GEN WR01X10190 Contact Us For Availability
368
GEN WR02X10981 GEN WR02X10981 Contact Us For Availability
375
GEN WR23X10157 GEN WR23X10157 Contact Us For Availability
387
GEN WR17X10779 GEN WR17X10779 Contact Us For Availability
406
GEN WR17X10704 GEN WR17X10704 Contact Us For Availability
409
GEN WR32X10130 GEN WR32X10130 Contact Us For Availability
410
GEN WR17X11139 GEN WR17X11139 Contact Us For Availability
412
GEN WR17X10708 GEN WR17X10708 Contact Us For Availability
414
GEN WR14X10084 GEN WR14X10084 Contact Us For Availability
415
GEN WR32X10129 GEN WR32X10129 Contact Us For Availability
417
GEN WR14X10052 GEN WR14X10052 Contact Us For Availability
418
GEN WR17X10729 GEN WR17X10729 Contact Us For Availability
418
GEN WR17X10730 GEN WR17X10730 Contact Us For Availability
421
GEN WR14X10044 GEN WR14X10044 Contact Us For Availability
421
GEN WR17X10716 GEN WR17X10716 Contact Us For Availability
422
GEN WR02X10546 GEN WR02X10546 Contact Us For Availability
423
GEN WR02X6347 GEN WR02X6347 Contact Us For Availability
425
GEN WR02X10570 GEN WR02X10570 Contact Us For Availability
426
GEN WR14X10047 GEN WR14X10047 Contact Us For Availability
427
GEN WR23X10246 GEN WR23X10246 Contact Us For Availability
428
GEN WR23X10245 GEN WR23X10245 Contact Us For Availability
429
GEN WR02X10618 GEN WR02X10618 Contact Us For Availability
432
GEN WR02X10561 GEN WR02X10561 Contact Us For Availability
433
GEN WR02X11126 GEN WR02X11126 Contact Us For Availability
434
GEN WR17X10262 GEN WR17X10262 Contact Us For Availability
435
GEN WR02X10591 GEN WR02X10591 Contact Us For Availability
436
GEN WR02X10578 GEN WR02X10578 Contact Us For Availability
442
GEN WR17X10060 GEN WR17X10060 Contact Us For Availability
444
GEN WR23X10247 GEN WR23X10247 Contact Us For Availability
447
GEN WR02X10614 GEN WR02X10614 Contact Us For Availability
448
GEN WR13X10122 GEN WR13X10122 Contact Us For Availability
449
GEN WR01X10191 GEN WR01X10191 Contact Us For Availability
451
GEN WR13X10154 GEN WR13X10154 Contact Us For Availability
455
GEN WR02X10622 GEN WR02X10622 Contact Us For Availability
462
GEN WZ06X0136 GEN WZ06X0136 Contact Us For Availability
471
GEN WR32X10294 GEN WR32X10294 Contact Us For Availability
472
GEN WR17X10827 GEN WR17X10827 Contact Us For Availability
473
GEN WR72X10058 GEN WR72X10058 Contact Us For Availability
473
GEN WR72X10059 GEN WR72X10059 Contact Us For Availability
500
GEN WR71X10238 GEN WR71X10238 Contact Us For Availability
501
GEN WR32X10142 GEN WR32X10142 Contact Us For Availability
551
GEN WZ04X0244 GEN WZ04X0244 Contact Us For Availability
556
GEN WH12X0497 GEN WH12X0497 Contact Us For Availability
560
GEN WR01X10195 GEN WR01X10195 Contact Us For Availability
610
GEN WR60X10074 GEN WR60X10074 Contact Us For Availability
611
GEN WR02X10764 GEN WR02X10764 Contact Us For Availability
612
GEN WR02X11124 GEN WR02X11124 Contact Us For Availability
614
GEN WR02X10540 GEN WR02X10540 Contact Us For Availability
618
GROMMET COND FAN GEN WR02X10520 Contact Us For Availability
683
GEN WR02X10562 GEN WR02X10562 Contact Us For Availability
691
GEN WR02X10593 GEN WR02X10593 Contact Us For Availability
727
GEN WR17X10723 GEN WR17X10723 Contact Us For Availability
730
CONDENSER REPL ASM GEN WR84X10022 Contact Us For Availability
734
COVER RELAY SNAP (MEI) GEN WR02X10556 Contact Us For Availability
735
GEN WR08X10026 GEN WR08X10026 Contact Us For Availability
736
GEN WR02X8203 GEN WR02X8203 Contact Us For Availability
742
GEN WR02X10587 GEN WR02X10587 Contact Us For Availability
747
GEN WR82X10073 GEN WR82X10073 Contact Us For Availability
751
GEN WR17X10693 GEN WR17X10693 Contact Us For Availability
762
GEN WR14X10053 GEN WR14X10053 Contact Us For Availability
765
GEN WR17X10695 GEN WR17X10695 Contact Us For Availability
776
GEN WR02X10522 GEN WR02X10522 Contact Us For Availability
779
GEN WR02X10621 GEN WR02X10621 Contact Us For Availability
804
GEN WR29X10054 GEN WR29X10054 Contact Us For Availability
841
GEN WR02X10599 GEN WR02X10599 Contact Us For Availability
843
GEN WR17X10700 GEN WR17X10700 Contact Us For Availability
844
GEN WR02X10569 GEN WR02X10569 Contact Us For Availability
911
GEN WR01X10201 GEN WR01X10201 Contact Us For Availability
914
GEN WR01X10200 GEN WR01X10200 Contact Us For Availability
× ![]()
