Model GE GSS25KSTASS Refrigerator – Common Parts & Diagrams
FREEZER DOOR

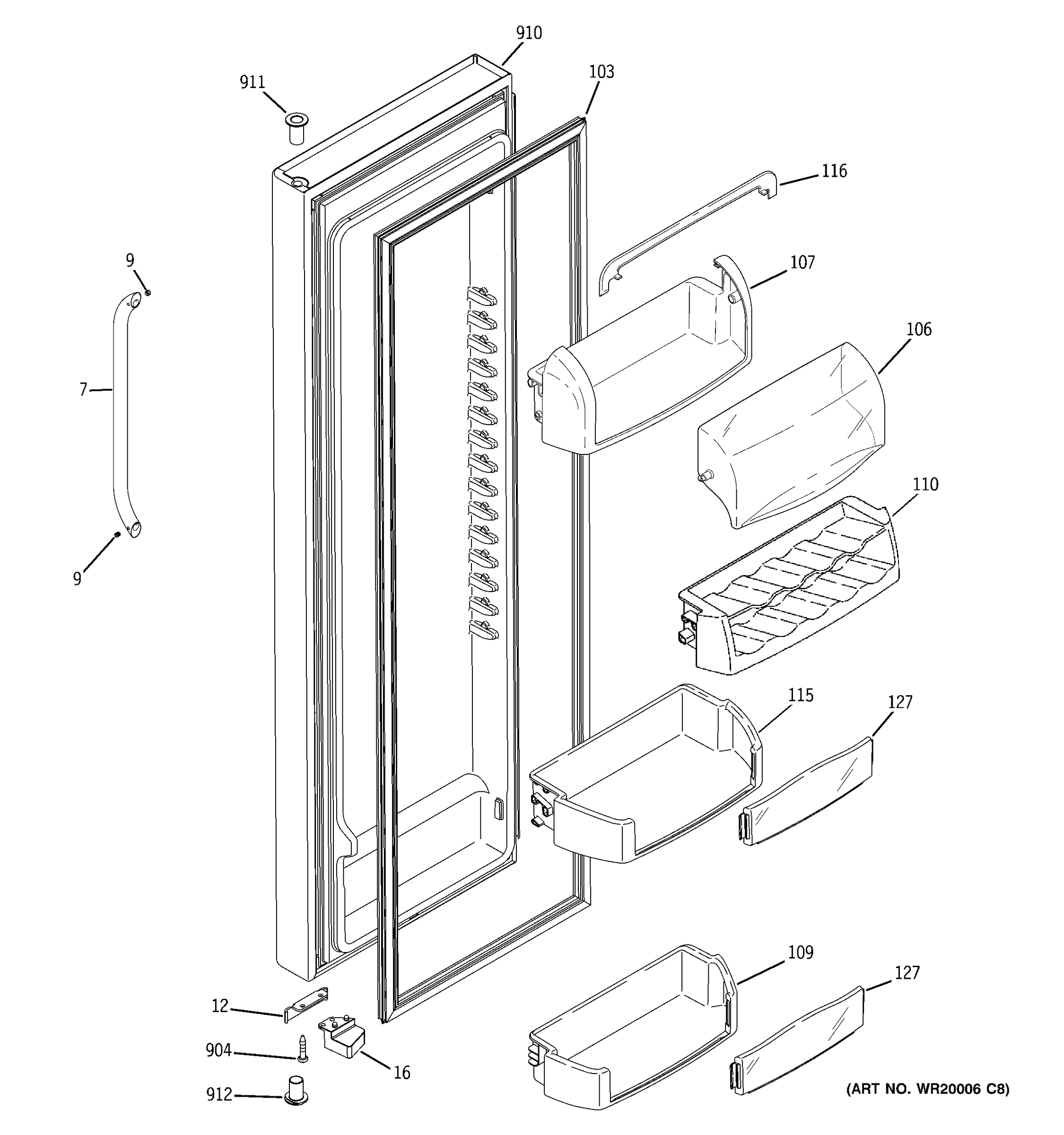

FRESH FOOD DOOR
FREEZER SECTION
EVAPORATOR INSTRUCTIONS
FREEZER SHELVES
ICE MAKER & DISPENSER
FRESH FOOD SECTION
FRESH FOOD SHELVES
MACHINE COMPARTMENT
Common parts from model GE GSS25KSTASS Refrigerator
6
SET SCREW GEN WR01X10450 Contact Us For Availability
7
TUBULAR HANDLE ASM GEN WR12X10744 Contact Us For Availability
10
SCREW 10-32 GXTT FLP 595 GEN WR01X10065 Contact Us For Availability
11
RECESS TRIM BOWED BLACK GEN WR38X10219 Contact Us For Availability
12
STOP DOOR BLACK GEN WR02X10782 Contact Us For Availability
15
CAM CLOSURE FF BLACK GEN WR02X10780 Contact Us For Availability
16
CAM CLOSURE FZ BLACK GEN WR02X10779 Contact Us For Availability
23
MODULE FZ UPPER GEN WR71X10493 Contact Us For Availability
31
GRILLE RECESS BK GEN WR17X11655 Contact Us For Availability
62
DOOR RECESS ASM GEN WR17X11653 Contact Us For Availability
63
SPRING RECESS DOOR GEN WR02X10585 Contact Us For Availability
67
CRANK DOOR RECESS GEN WR17X10706 Contact Us For Availability
106
DOOR DAIRY CLEAR GEN WR22X10042 Contact Us For Availability
107
COMPARTMENT DAIRY GEN WR22X10041 Contact Us For Availability
116
TRIM DAIRY COMPARTMENT GEN WR22X10043 Contact Us For Availability
125
MODULE SHELF FZ FIXED GEN WR71X10501 Contact Us For Availability
127
INSERT MODULE GEN WR71X10761 Contact Us For Availability
164
GASKET PLENUM GEN WR14X10164 Contact Us For Availability
167
PLENUM FAN EVAPORATOR GEN WR17X11977 Contact Us For Availability
174
SUPPORT SLIDE BASKET GEN WR72X10062 Contact Us For Availability
174
SUPPORT SLIDE BASKET GEN WR72X10061 Contact Us For Availability
186
BASKET WIRE SLIDEOUT FZ GEN WR21X10029 Contact Us For Availability
203
COVER WATER FILTER GEN WR17X10800 Contact Us For Availability
204
SUPPORT SHELF GEN WR02X12187 Contact Us For Availability
205
GROMMET GEN WR02X10678 Contact Us For Availability
207
COVER INLET DISCHARGE GEN WR17X10909 Contact Us For Availability
211
SCR8-18 AB UFL 1 1/2 SS GEN WR01X10568 Contact Us For Availability
212
GROMMET BASE GRILL GEN WR02X10689 Contact Us For Availability
213
COVER EVAPORATOR FRONT GEN WR17X11668 Contact Us For Availability
214
GASKET EVAP COVER GEN WR14X10072 Contact Us For Availability
225
TUBE DRAIN GEN WR02X11426 Contact Us For Availability
227
HARNESS AC FZ INTERMEDIA GEN WR23X10487 Contact Us For Availability
229
CLIP EVAP THERMISTOR GEN WR02X10552 Contact Us For Availability
230
HEATER & BRACKET ASSY GEN WR51X10055 Contact Us For Availability
232
SHIELD ASSY TROUGH GEN WR17X10811 Contact Us For Availability
234
GRILLE SENSOR GEN WR02X10647 Contact Us For Availability
235
SHUNT SENSOR GEN WR02X10668 Contact Us For Availability
240
THERMOSTAT DEF GEN WR50X10069 Contact Us For Availability
247
ORIFICE FAN ASSY GEN WR17X10812 Contact Us For Availability
249
GASKET PLENUM GEN WR14X10165 Contact Us For Availability
257
STAND OFF GEN WR02X10663 Contact Us For Availability
258
SHIELD LIGHT FZ GEN WR17X11446 Contact Us For Availability
259
LIGHT SHIELD GEN WR17X10911 Contact Us For Availability
261
HINGE BTM & PIN ASSY GEN WR13X10160 Contact Us For Availability
263
PIN HINGE BTM ADJ HOLLOW GEN WR02X12263 Contact Us For Availability
312
MOBILITY WHEEL KIT GEN WR02X11998 Contact Us For Availability
320
COARSE THREAD AUGER NUT GEN WR01X10315 Contact Us For Availability
328
DEFLECTOR ICE DISPLAY GEN WR17X10703 Contact Us For Availability
329
WIRE ACTUATOR DISP GEN WR17X11456 Contact Us For Availability
331
RETAINER SPRING GEN WR02X10580 Contact Us For Availability
345
COVER CRUSHER GEN WR17X11453 Contact Us For Availability
350
AUGER HELIX DISP GEN WR17X11455 Contact Us For Availability
359
GLIDE BUCKET LH GEN WR72X10137 Contact Us For Availability
361
COVER MTR & SOLENOID GEN WR17X11460 Contact Us For Availability
365
DRIVE AUGER DISP GEN WR02X11534 Contact Us For Availability
375
HARNESS MOTOR & SOL GEN WR23X10330 Contact Us For Availability
386
BOOT AUGER MOTOR INT GEN WR02X11767 Contact Us For Availability
387
COVER BUCKET BOTTOM GEN WR17X11454 Contact Us For Availability
400
WHEEL PAN COVER GEN WR01X10209 Contact Us For Availability
404
DIVERTER FF AIRFLOW GEN WR17X11609 Contact Us For Availability
409
COVER PAN GLASS GEN WR32X10156 Contact Us For Availability
414
GASKET PAN CRV FRONT GEN WR14X10059 Contact Us For Availability
417
GASKET PAN CRV REAR GEN WR14X10058 Contact Us For Availability
418
SLIDE MIDDLE PAN COVER GEN WR02X10633 Contact Us For Availability
432
REFLECTOR ASM MIDDLE GEN WR02X12287 Contact Us For Availability
434
SOCKET LAMP GEN WR02X10645 Contact Us For Availability
447
COVER HINGE BLACK GEN WR02X10783 Contact Us For Availability
448
HINGE TOP & PIN ASSY FZ GEN WR13X10216 Contact Us For Availability
450
COVER HINGE BLACK GEN WR02X10784 Contact Us For Availability
451
HINGE BTM BLACK GEN WR13X10159 Contact Us For Availability
460
AASM COVER FF INLET KIT GEN WR49X10091 Contact Us For Availability
483
GASKET COVER REAR GEN WR14X10060 Contact Us For Availability
484
COVER FRONT MEAT GEN WR32X10146 Contact Us For Availability
486
COVER PAN GLASS GEN WR32X10155 Contact Us For Availability
501
SHELF SLIDEOUT ASM GEN WR71X10582 Contact Us For Availability
505
STOP SHELF GEN WR02X10662 Contact Us For Availability
611
BRACKET EVAP FAN BTM GEN WR02X10764 Contact Us For Availability
612
BRACKET ORIFICE FAN GEN WR02X10653 Contact Us For Availability
614
BUMPER GEN WR02X10540 Contact Us For Availability
618
GROMMET EVAP FAN GEN WR02X11331 Contact Us For Availability
652
RING COMPRESSION GEN WR02X12149 Contact Us For Availability
653
CAP DUST GEN WR02X10322 Contact Us For Availability
735
OVERLOAD GEN WR08X10025 Contact Us For Availability
765
BRACKET CONDENSER BAR GEN WR17X10695 Contact Us For Availability
803
MAIN BOARD ENCLOSURE ASM GEN WR02X12025 Contact Us For Availability
806
TUBE PLASTIC GEN WR17X11625 Contact Us For Availability
810
WATER TANK DISP ASM GEN WR17X11440 Contact Us For Availability
811
INSUL TUBE FOAM GEN WR02X11288 Contact Us For Availability
842
LEVER ASSY FF SIDE BLACK GEN WR11X10009 Contact Us For Availability
843
LEVER ASSY FZ BLACK GEN WR11X10010 Contact Us For Availability
903
THIMBLE DOOR BTM FZ BLAC GEN WR01X10234 Contact Us For Availability
912
THIMBLE DOOR BOT BLACK GEN WR01X10232 Contact Us For Availability
× ![]()
