Model GE GDF540HSD1SS Dishwasher – Common Parts & Diagrams

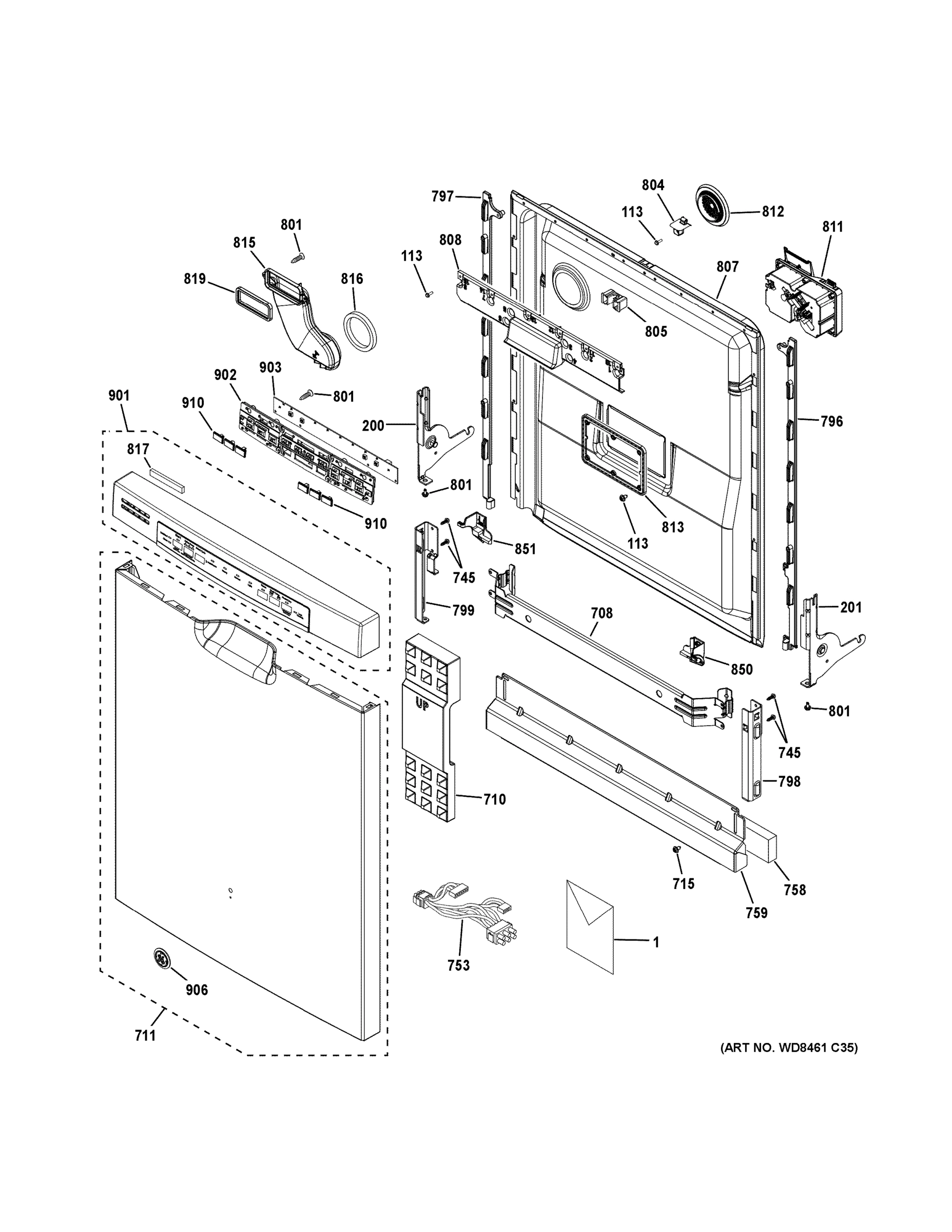

ESCUTCHEON & DOOR ASSEMBLY

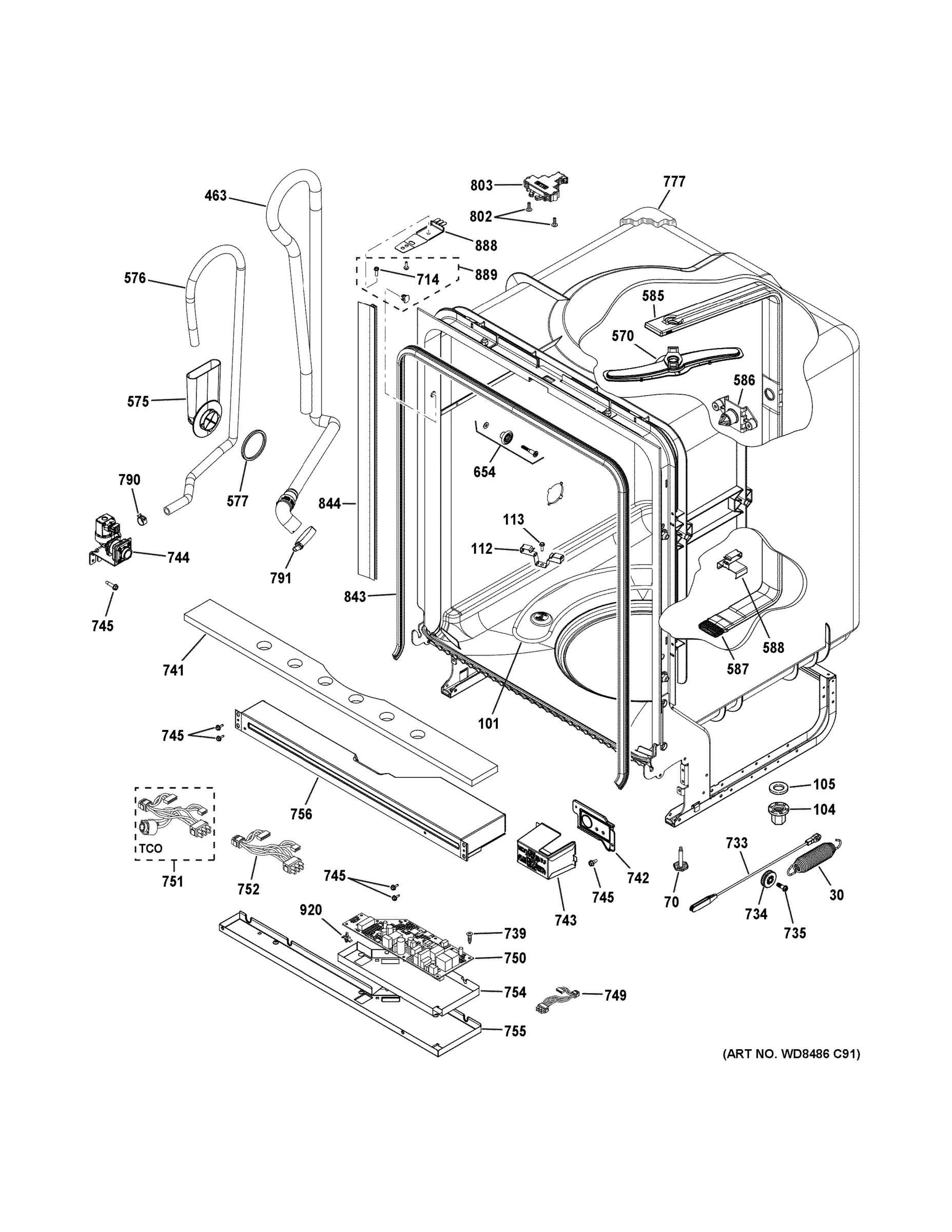

BODY PARTS
UPPER RACK ASSEMBLY
LOWER RACK ASSEMBLY
SUMP & FILTER ASSEMBLY
SUMP & MOTOR MECHANISM
Common parts from model GE GDF540HSD1SS Dishwasher
104
NUT TOWER HEATER GEN WD01X10070 Contact Us For Availability
112
SUPPORT HEATER GEN WD01X10568 Contact Us For Availability
113
SCREW 8-16 HXW 1/2 SS GEN WD02X10067 Contact Us For Availability
308
SWITCH FLOOD ASM GEN WD21X10519 Contact Us For Availability
310
P1B WASH PUMP KIT GEN WD49X23779 Contact Us For Availability
321
SENSOR TURBIDITY ASM GEN WD21X10494 Contact Us For Availability
324
SHIELD WASH PUMP GEN WD01X10580 Contact Us For Availability
326
HOSE ELBOW DRAIN GEN WD24X10060 Contact Us For Availability
333
LATCH CAM GEN WD01X10632 Contact Us For Availability
334
LATCH CAM GEN WD01X10575 Contact Us For Availability
425
GROMMET GEN WD01X10101 Contact Us For Availability
453
VENT FILTER GEN WD24X10057 Contact Us For Availability
454
ADAPTOR FILTER GEN WD12X10419 Contact Us For Availability
455
ADAPTER CONDUIT ASM GEN WD18X10051 Contact Us For Availability
462
DRAIN TUBE ASM GEN WD24X10062 Contact Us For Availability
502
FILTER COARSE SS GEN WD22X10093 Contact Us For Availability
503
SCR 10-16 AB HXW .532 GEN WB01T10103 Contact Us For Availability
505
SUMP MANIFOLD GEN WD18X10054 Contact Us For Availability
509
PLATE FLOOR MANUAL GEN WD12X10421 Contact Us For Availability
585
CONDUIT MAIN ASM GEN WD12X10414 Contact Us For Availability
587
SEAL CONDUIT GEN WD08X10098 Contact Us For Availability
615
SERIVICE KIT UPPER RACK GEN WD28X10352 Contact Us For Availability
616
SHELF CUP GEN WD28X10350 Contact Us For Availability
632
CONDUIT MID ASM GEN WD22X10094 Contact Us For Availability
652
END CAP GEN WD12X10426 Contact Us For Availability
654
TUB ROLLER AND STUD ASM GEN WD12X10433 Contact Us For Availability
685
CLIP BRACKET GEN WD12X10430 Contact Us For Availability
691
TINE BLOCK GEN WD28X10364 Contact Us For Availability
692
TINE BLOCK GEN WD28X10365 Contact Us For Availability
695
CLIP RACK GEN WD12X10463 Contact Us For Availability
707
COVER ROLLER RH GEN WD12X10438 Contact Us For Availability
708
BRACE DOOR ASM GEN WD30X10045 Contact Us For Availability
710
BLOCK FOAM DOOR GEN WD01X10585 Contact Us For Availability
715
SCR 10-32 GX HXW 3/8 GEN WD02X10220 Contact Us For Availability
733
CABLE ASM PULLEY GEN WD01X10569 Contact Us For Availability
735
PULLEY SCREW GEN WD02X10206 Contact Us For Availability
743
COVER JUNCTION BOX GEN WD12X10412 Contact Us For Availability
744
VALVE WATER ASM GEN WD15X10015 Contact Us For Availability
745
SCR 10-32 TT HXW 14/25 S GEN WD02X10221 Contact Us For Availability
749
HARNESS ASM JUMPER GEN WD21X10541 Contact Us For Availability
752
HARNESS ASM DC GEN WD21X10543 Contact Us For Availability
753
HARNESS ASM DOOR GEN WD21X10544 Contact Us For Availability
756
CONTROL BOX TOP GEN WD27X10390 Contact Us For Availability
761
BASKET SILVERWARE ASM GEN WD28X10355 Contact Us For Availability
762
BASKET SILVERWARE GEN WD28X10356 Contact Us For Availability
777
INSULATION TUB BLANKET GEN WD01X10612 Contact Us For Availability
792
CLAMP GEN WD01X10104 Contact Us For Availability
801
6-19 X 1/4 TORX PAN HEAD GEN WD02X10129 Contact Us For Availability
802
SCREW 10-32 GXTT FLP 595 GEN WR01X10065 Contact Us For Availability
804
STRIKER LATCH GEN WD13X10071 Contact Us For Availability
808
POCKET HANDLE GEN WD12X10422 Contact Us For Availability
813
PLATE DETERGENT GEN WD12X10462 Contact Us For Availability
816
DOOR VENT SEAL GEN WD08X10092 Contact Us For Availability
850
TRIM DOOR RH GEN WD12X22540 Contact Us For Availability
851
TRIM DOOR LH GEN WD12X22541 Contact Us For Availability
889
CT SCREW ASM GEN WD35X10383 Contact Us For Availability
901
PANEL CONTROL ASM GEN WD34X11836 Contact Us For Availability
902
SILICONE LIGHT PIPE GEN WD12X10449 Contact Us For Availability
906
BADGE GE ASM GEN WR04X10181 Contact Us For Availability
910
BUTTON TREE GEN WD09X10097 Contact Us For Availability
920
CLIP CONTROL BOARD GEN WD01X21975 Contact Us For Availability
× ![]()
