Model GE ESS22XGMBCC Refrigerator – Common Parts & Diagrams

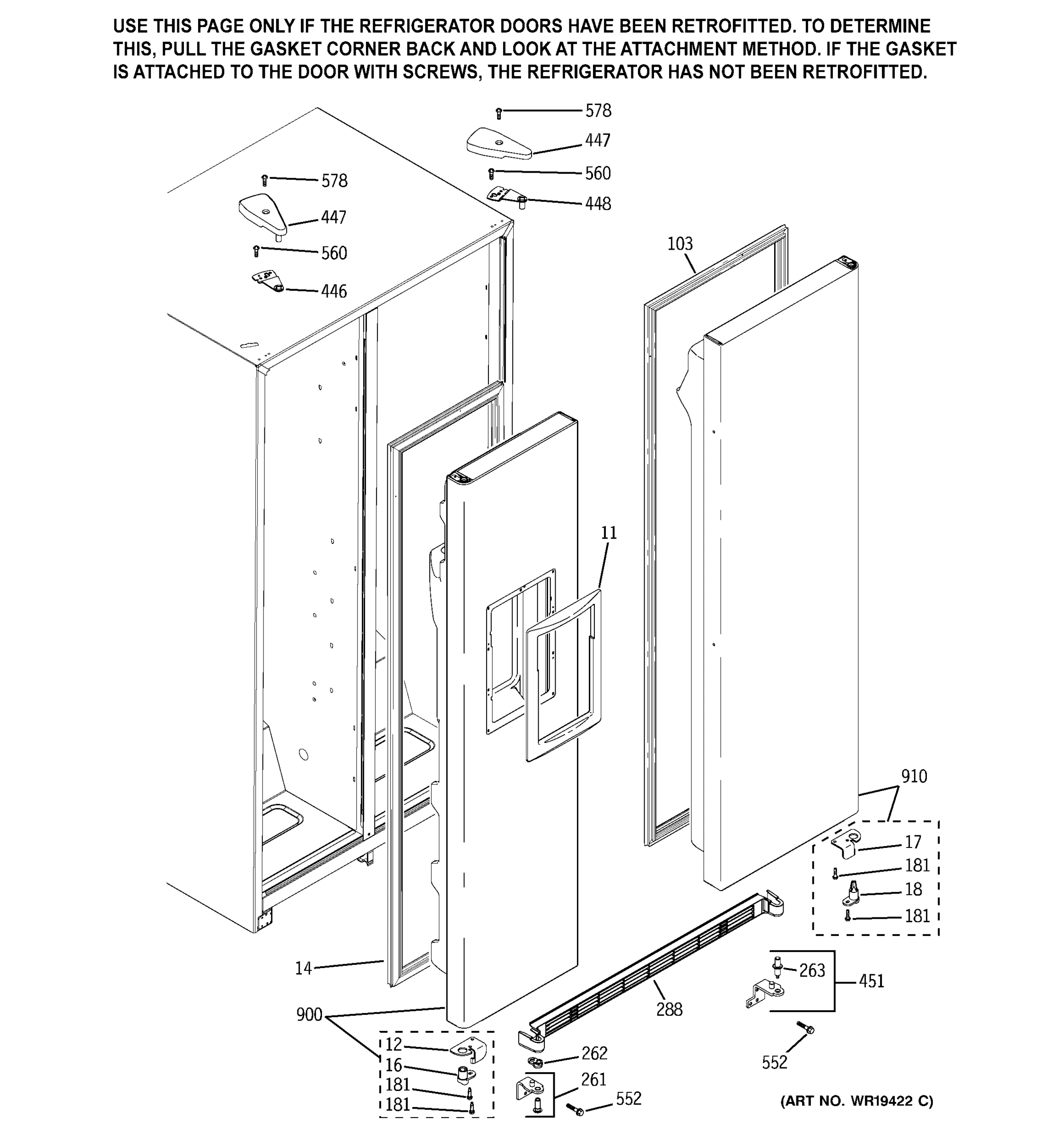

DOOR KIT

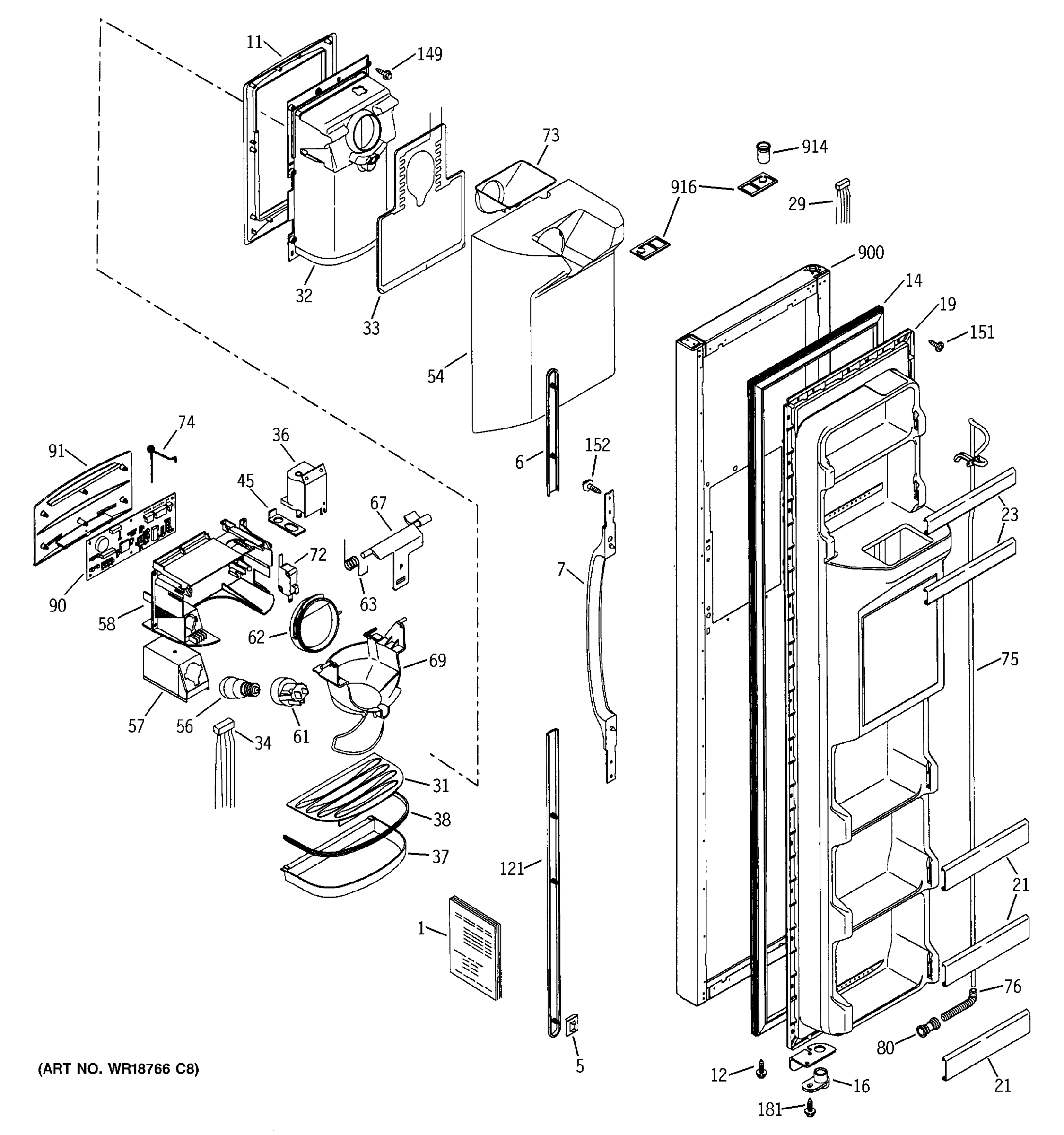

FREEZER DOOR

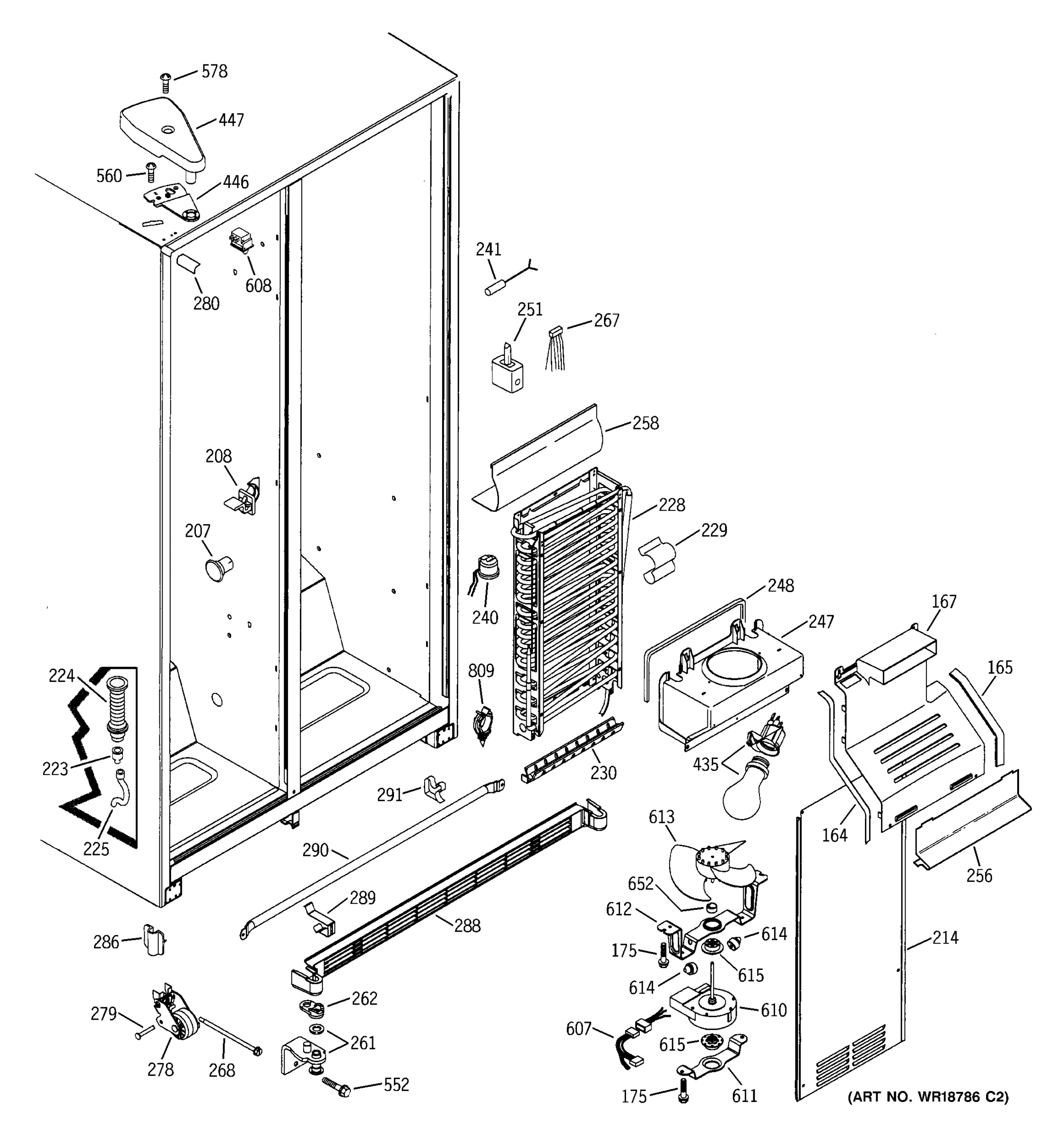

FREEZER SECTION
FREEZER SHELVES

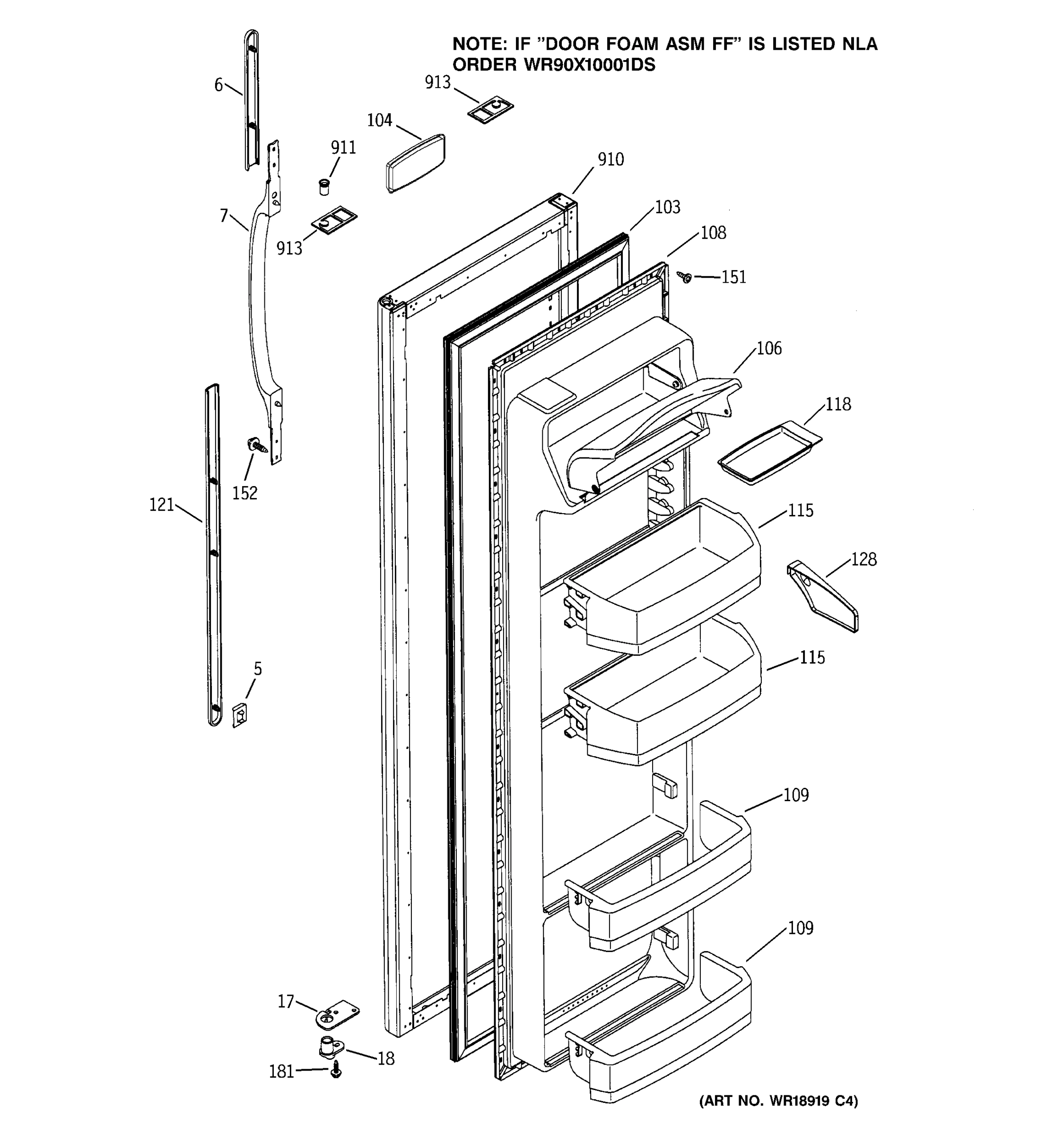

FRESH FOOD DOOR

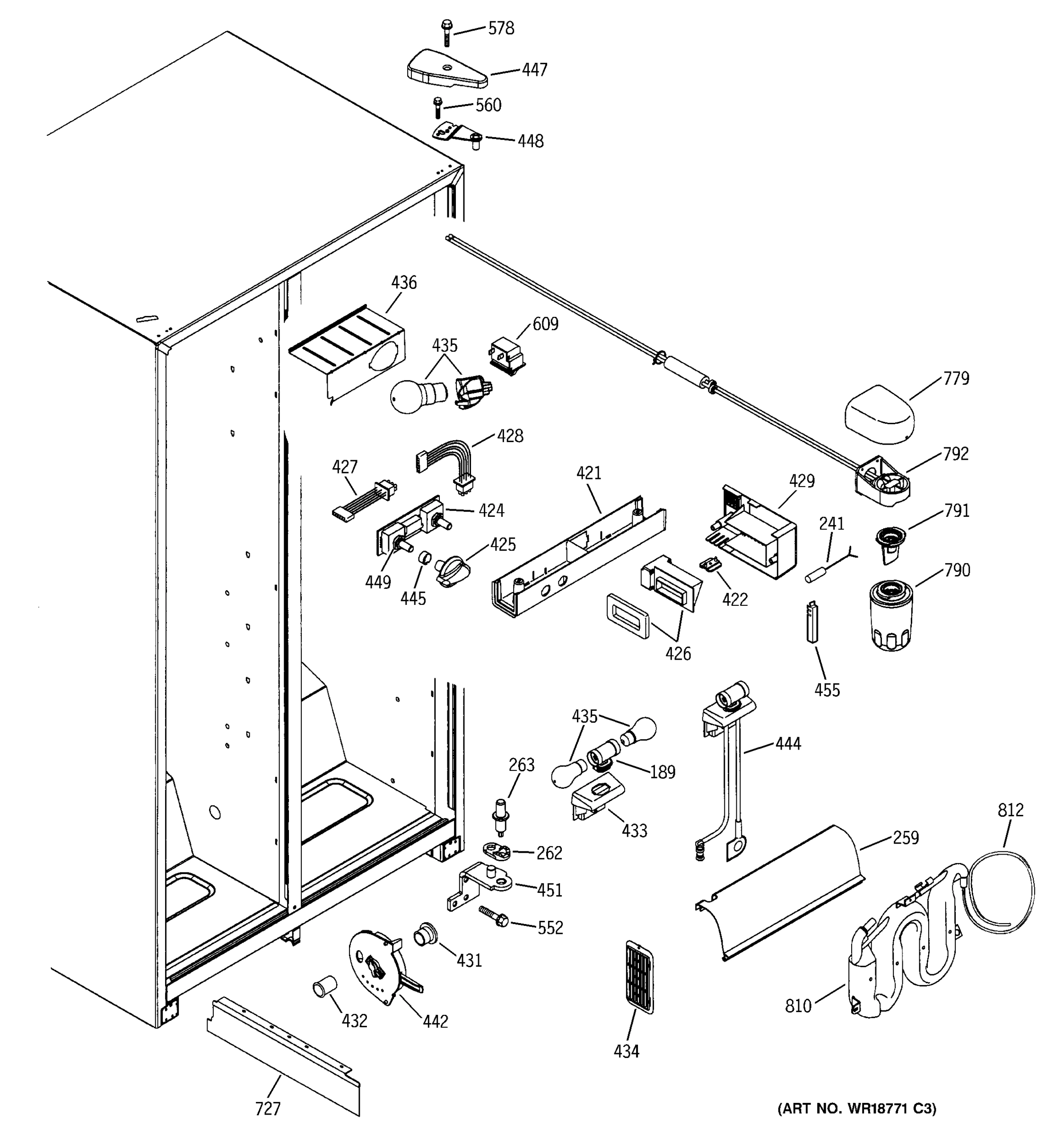

FRESH FOOD SECTION

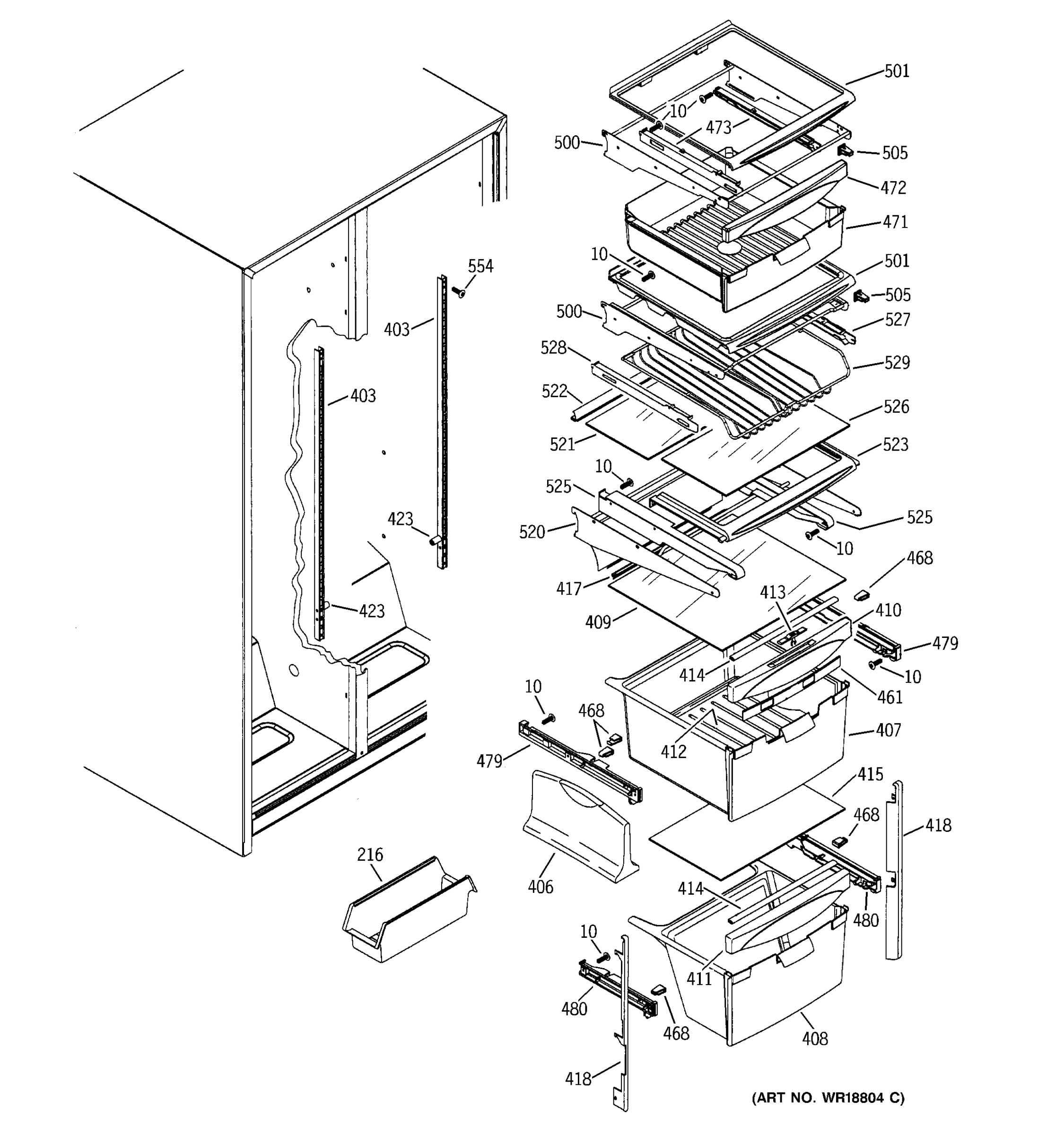

FRESH FOOD SHELVES
ICE MAKER & DISPENSER

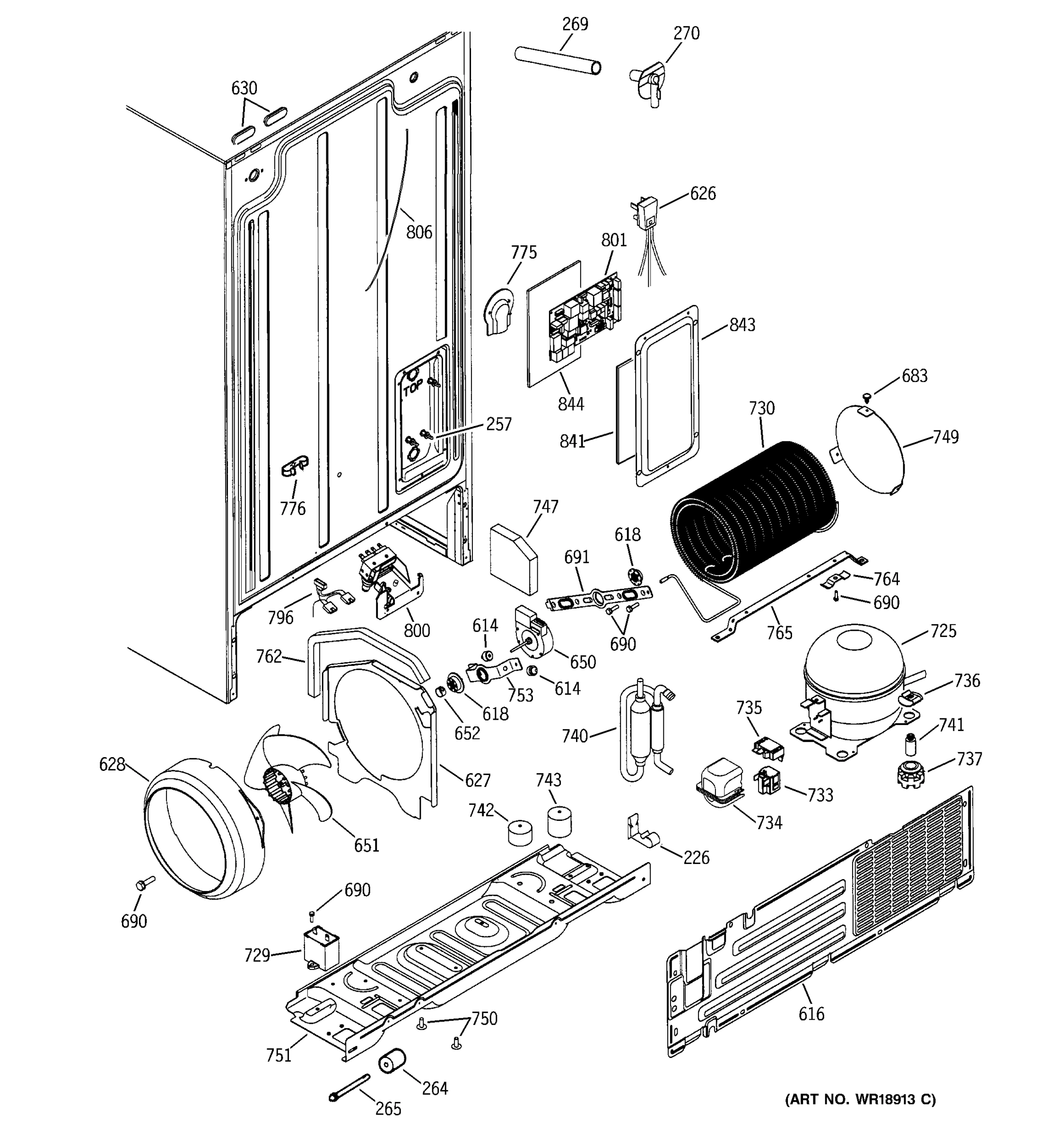

SEALED SYSTEM & MOTHER BOARD
Common parts from model GE ESS22XGMBCC Refrigerator
5
GEN WR02X10431 GEN WR02X10431 Contact Us For Availability
6
GEN WR12X10395 GEN WR12X10395 Contact Us For Availability
7
GEN WR12X10349 GEN WR12X10349 Contact Us For Availability
10
GEN WR01X10065 GEN WR01X10065 Contact Us For Availability
14
GEN WR24X10058 GEN WR24X10058 Contact Us For Availability
17
GEN WR02X10611 GEN WR02X10611 Contact Us For Availability
18
GEN WR02X10567 GEN WR02X10567 Contact Us For Availability
31
GEN WR17X10751 GEN WR17X10751 Contact Us For Availability
57
GEN WR02X10670 GEN WR02X10670 Contact Us For Availability
63
GEN WR02X10585 GEN WR02X10585 Contact Us For Availability
67
GEN WR17X10706 GEN WR17X10706 Contact Us For Availability
103
GEN WR24X10057 GEN WR24X10057 Contact Us For Availability
104
GEN WR04X10091 GEN WR04X10091 Contact Us For Availability
108
GEN WR77X10036 GEN WR77X10036 Contact Us For Availability
109
GEN WR71X10232 GEN WR71X10232 Contact Us For Availability
118
BUTTER DISH GEN WR19X5003 Contact Us For Availability
121
GEN WR12X10350 GEN WR12X10350 Contact Us For Availability
128
GEN WR02X10582 GEN WR02X10582 Contact Us For Availability
149
GEN WR01X10196 GEN WR01X10196 Contact Us For Availability
152
GEN WR01X10038 GEN WR01X10038 Contact Us For Availability
171
GEN WR71X10148 GEN WR71X10148 Contact Us For Availability
173
GEN WR72X10079 GEN WR72X10079 Contact Us For Availability
174
SUPPORT SLIDE BASKET LH GEN WR02X8667 Contact Us For Availability
181
GEN WR01X10215 GEN WR01X10215 Contact Us For Availability
189
GEN WR02X9243 GEN WR02X9243 Contact Us For Availability
209
GEN WR38X10205 GEN WR38X10205 Contact Us For Availability
210
GEN WR71X10234 GEN WR71X10234 Contact Us For Availability
211
GEN WR21X10020 GEN WR21X10020 Contact Us For Availability
214
GEN WR14X10054 GEN WR14X10054 Contact Us For Availability
216
GEN WR32X1575 GEN WR32X1575 Contact Us For Availability
226
GEN WR02X10558 GEN WR02X10558 Contact Us For Availability
229
GEN WR02X10552 GEN WR02X10552 Contact Us For Availability
248
GEN WR14X10050 GEN WR14X10050 Contact Us For Availability
257
GEN WR02X10159 GEN WR02X10159 Contact Us For Availability
258
GEN WR17X10765 GEN WR17X10765 Contact Us For Availability
259
GEN WR17X10725 GEN WR17X10725 Contact Us For Availability
261
GEN WR01X10202 GEN WR01X10202 Contact Us For Availability
262
GEN WR02X10568 GEN WR02X10568 Contact Us For Availability
263
GEN WR02X10592 GEN WR02X10592 Contact Us For Availability
264
WHEEL MOBILITY GEN WR02X10695 Contact Us For Availability
265
GEN WR01X10039 GEN WR01X10039 Contact Us For Availability
266
GEN WR51X10057 GEN WR51X10057 Contact Us For Availability
268
GEN WR01X10199 GEN WR01X10199 Contact Us For Availability
289
GEN WR02X10560 GEN WR02X10560 Contact Us For Availability
320
GEN WR01X10189 GEN WR01X10189 Contact Us For Availability
326
GEN WR01X1366 GEN WR01X1366 Contact Us For Availability
328
GEN WR17X10703 GEN WR17X10703 Contact Us For Availability
328
GEN WR02X4561 GEN WR02X4561 Contact Us For Availability
331
GEN WR02X10580 GEN WR02X10580 Contact Us For Availability
332
BLADES MOVING DISP GEN WR17X1361 Contact Us For Availability
333
BLADES MOVING DISP GEN WR17X1362 Contact Us For Availability
334
BLADES MOVING DISP GEN WR17X1363 Contact Us For Availability
335
SPACER GEN WR02X4139 Contact Us For Availability
342
GEN WR02X10691 GEN WR02X10691 Contact Us For Availability
352
GEN WR30X10017 GEN WR30X10017 Contact Us For Availability
361
GEN WR17X10787 GEN WR17X10787 Contact Us For Availability
362
GEN WR02X10971 GEN WR02X10971 Contact Us For Availability
366
GEN WR01X10190 GEN WR01X10190 Contact Us For Availability
368
GEN WR02X10981 GEN WR02X10981 Contact Us For Availability
375
GEN WR23X10157 GEN WR23X10157 Contact Us For Availability
387
GEN WR17X10769 GEN WR17X10769 Contact Us For Availability
403
GEN WR71X2588 GEN WR71X2588 Contact Us For Availability
406
GEN WR17X10704 GEN WR17X10704 Contact Us For Availability
409
GEN WR32X10130 GEN WR32X10130 Contact Us For Availability
412
GEN WR17X10708 GEN WR17X10708 Contact Us For Availability
414
GEN WR14X10084 GEN WR14X10084 Contact Us For Availability
415
GEN WR32X10129 GEN WR32X10129 Contact Us For Availability
417
GEN WR14X10052 GEN WR14X10052 Contact Us For Availability
418
GEN WR17X10729 GEN WR17X10729 Contact Us For Availability
418
GEN WR17X10730 GEN WR17X10730 Contact Us For Availability
421
GEN WR14X10044 GEN WR14X10044 Contact Us For Availability
421
GEN WR17X10716 GEN WR17X10716 Contact Us For Availability
422
GEN WR02X10546 GEN WR02X10546 Contact Us For Availability
423
GEN WR02X6347 GEN WR02X6347 Contact Us For Availability
425
GEN WR02X10570 GEN WR02X10570 Contact Us For Availability
425
GEN WR02X10984 GEN WR02X10984 Contact Us For Availability
426
GEN WR09X10050 GEN WR09X10050 Contact Us For Availability
426
GEN WR14X10047 GEN WR14X10047 Contact Us For Availability
427
GEN WR23X10165 GEN WR23X10165 Contact Us For Availability
428
GEN WR23X10156 GEN WR23X10156 Contact Us For Availability
429
GEN WR02X10618 GEN WR02X10618 Contact Us For Availability
432
GEN WR02X10561 GEN WR02X10561 Contact Us For Availability
433
GEN WR02X9239 GEN WR02X9239 Contact Us For Availability
434
GEN WR17X10262 GEN WR17X10262 Contact Us For Availability
435
GEN WR02X10591 GEN WR02X10591 Contact Us For Availability
436
GEN WR02X10578 GEN WR02X10578 Contact Us For Availability
442
GEN WR17X10060 GEN WR17X10060 Contact Us For Availability
444
GEN WR23X10159 GEN WR23X10159 Contact Us For Availability
447
GEN WR02X10614 GEN WR02X10614 Contact Us For Availability
448
GEN WR13X10122 GEN WR13X10122 Contact Us For Availability
449
GEN WR01X10191 GEN WR01X10191 Contact Us For Availability
451
GEN WR13X10154 GEN WR13X10154 Contact Us For Availability
455
GEN WR02X10622 GEN WR02X10622 Contact Us For Availability
461
GEN WZ06X0136 GEN WZ06X0136 Contact Us For Availability
471
GEN WR32X10132 GEN WR32X10132 Contact Us For Availability
472
GEN WR17X10827 GEN WR17X10827 Contact Us For Availability
473
GEN WR72X10058 GEN WR72X10058 Contact Us For Availability
473
GEN WR72X10059 GEN WR72X10059 Contact Us For Availability
500
GEN WR71X10226 GEN WR71X10226 Contact Us For Availability
501
GEN WR32X10134 GEN WR32X10134 Contact Us For Availability
505
GEN WR01X2080 GEN WR01X2080 Contact Us For Availability
520
GEN WR71X10227 GEN WR71X10227 Contact Us For Availability
521
GEN WR32X10136 GEN WR32X10136 Contact Us For Availability
522
GEN WR38X10198 GEN WR38X10198 Contact Us For Availability
523
GEN WR71X10229 GEN WR71X10229 Contact Us For Availability
525
GEN WR72X10050 GEN WR72X10050 Contact Us For Availability
525
GEN WR72X10051 GEN WR72X10051 Contact Us For Availability
526
GEN WR32X10135 GEN WR32X10135 Contact Us For Availability
527
GEN WR72X10038 GEN WR72X10038 Contact Us For Availability
528
GEN WR72X10039 GEN WR72X10039 Contact Us For Availability
529
GEN WR72X10060 GEN WR72X10060 Contact Us For Availability
560
GEN WR01X10195 GEN WR01X10195 Contact Us For Availability
607
GEN WR23X10215 GEN WR23X10215 Contact Us For Availability
611
GEN WR02X10764 GEN WR02X10764 Contact Us For Availability
612
GEN WR02X10547 GEN WR02X10547 Contact Us For Availability
614
GEN WR02X10540 GEN WR02X10540 Contact Us For Availability
618
GROMMET COND FAN GEN WR02X10520 Contact Us For Availability
683
GEN WR02X10562 GEN WR02X10562 Contact Us For Availability
691
GEN WR02X10593 GEN WR02X10593 Contact Us For Availability
727
GEN WR17X10723 GEN WR17X10723 Contact Us For Availability
730
CONDENSER ASSEMBLY GEN WR84X10022 Contact Us For Availability
734
COVER RELAY SNAP (MEI) GEN WR02X10556 Contact Us For Availability
735
GEN WR08X10026 GEN WR08X10026 Contact Us For Availability
736
GEN WR02X8203 GEN WR02X8203 Contact Us For Availability
742
GEN WR02X10587 GEN WR02X10587 Contact Us For Availability
743
GEN WR02X10588 GEN WR02X10588 Contact Us For Availability
747
GEN WR82X10073 GEN WR82X10073 Contact Us For Availability
751
GEN WR17X10753 GEN WR17X10753 Contact Us For Availability
762
GEN WR14X10053 GEN WR14X10053 Contact Us For Availability
765
GEN WR17X10763 GEN WR17X10763 Contact Us For Availability
776
GEN WR02X10522 GEN WR02X10522 Contact Us For Availability
779
GEN WR02X10557 GEN WR02X10557 Contact Us For Availability
796
GEN WR23X10168 GEN WR23X10168 Contact Us For Availability
810
GEN WR17X10734 GEN WR17X10734 Contact Us For Availability
841
GEN WR02X10599 GEN WR02X10599 Contact Us For Availability
843
GEN WR17X10700 GEN WR17X10700 Contact Us For Availability
844
GEN WR02X10569 GEN WR02X10569 Contact Us For Availability
910
GEN WR78X10365 GEN WR78X10365 Contact Us For Availability
911
GEN WR01X10201 GEN WR01X10201 Contact Us For Availability
913
GEN WR02X10616 GEN WR02X10616 Contact Us For Availability
914
GEN WR01X10200 GEN WR01X10200 Contact Us For Availability
× ![]()
