Model GE DWN412SP111CW01 General Electric Model DWN412SP111CW01 – Common Parts & Diagrams
Terminals
Terminals and Clips

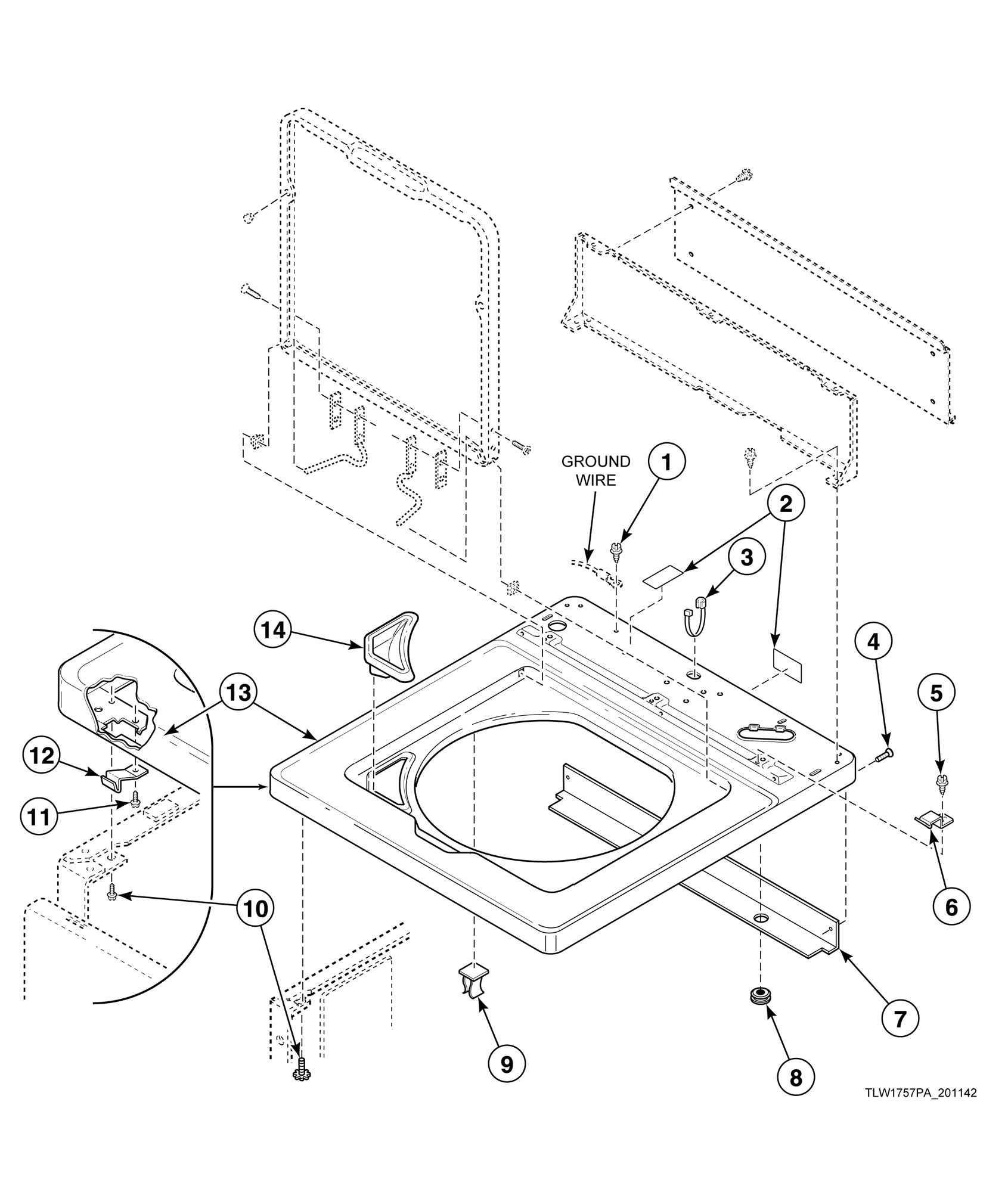

Top

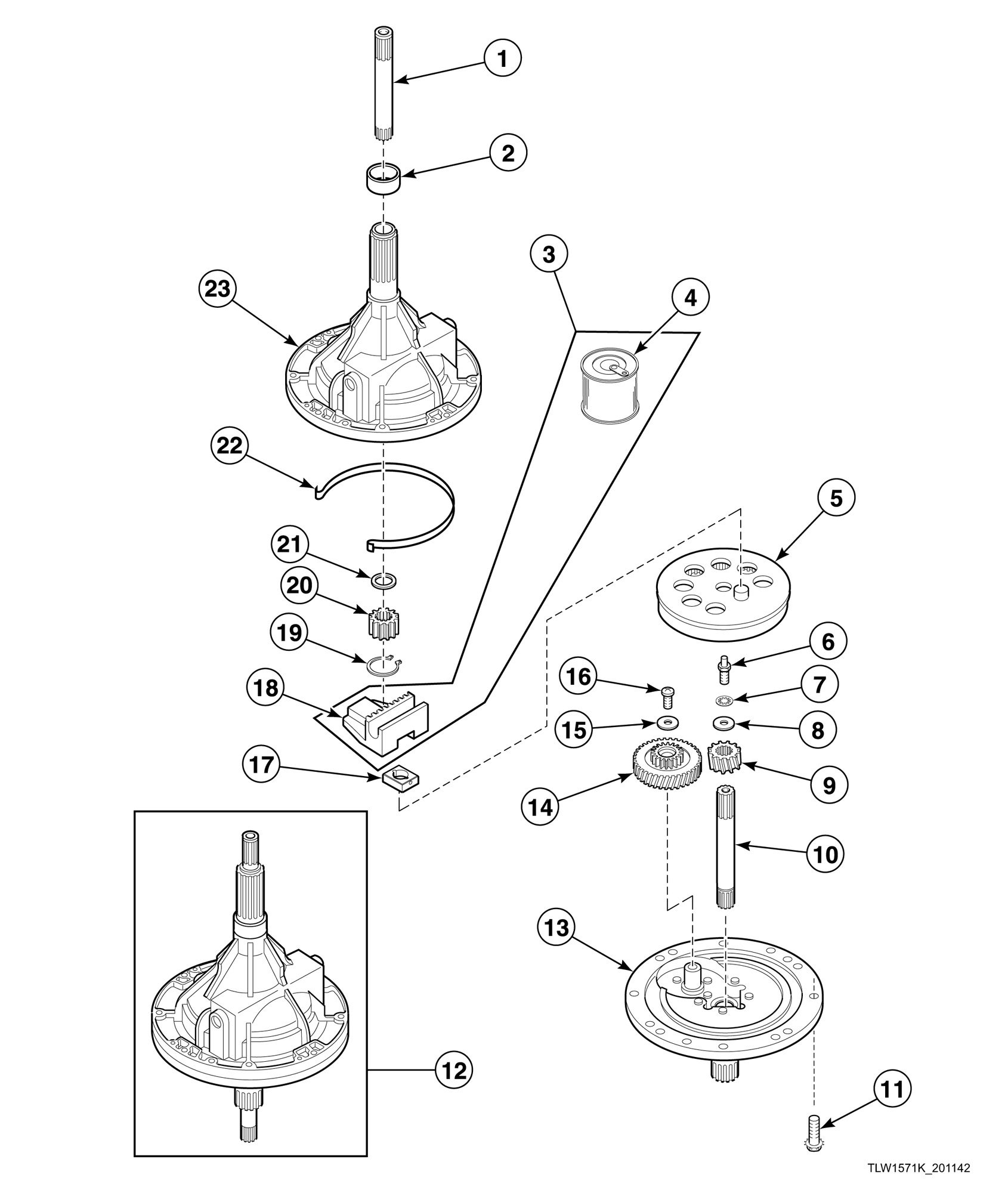

Transmission Assembly (Drawing 1 of 2)

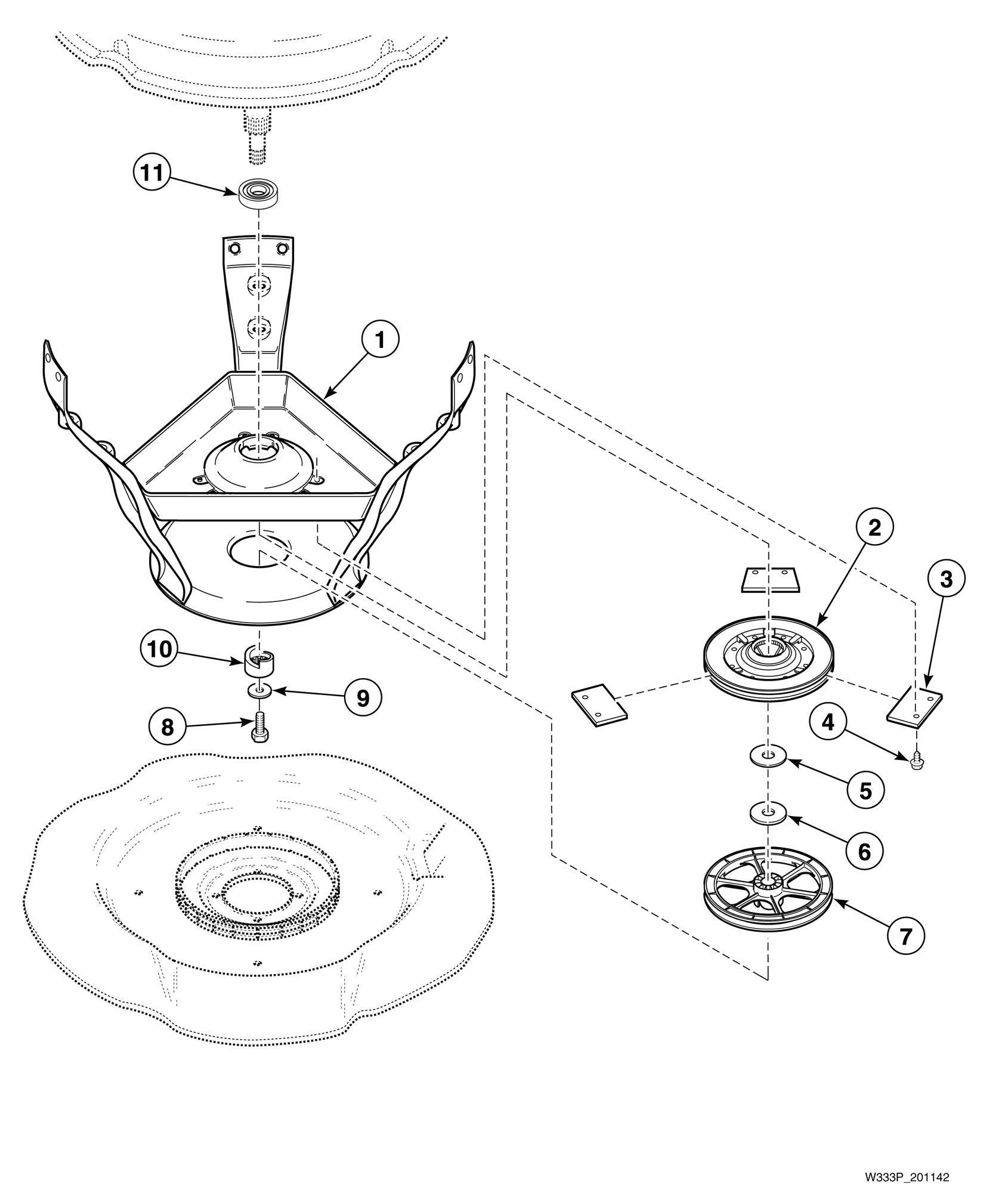

Weldment and Bearing Assembly, Brake and Pulley

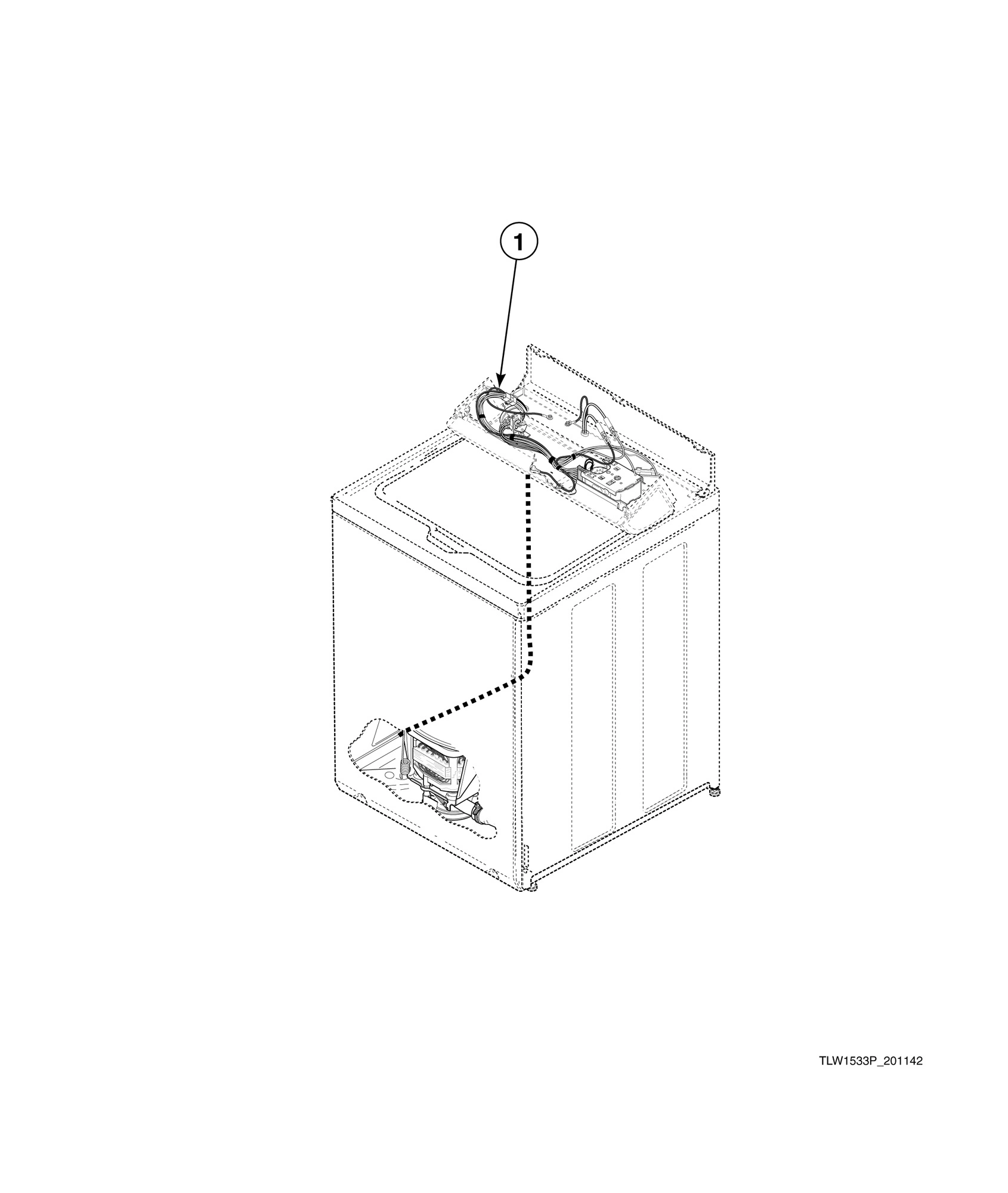

Wire Harnesses and Wires (Drawing 1 of 3)

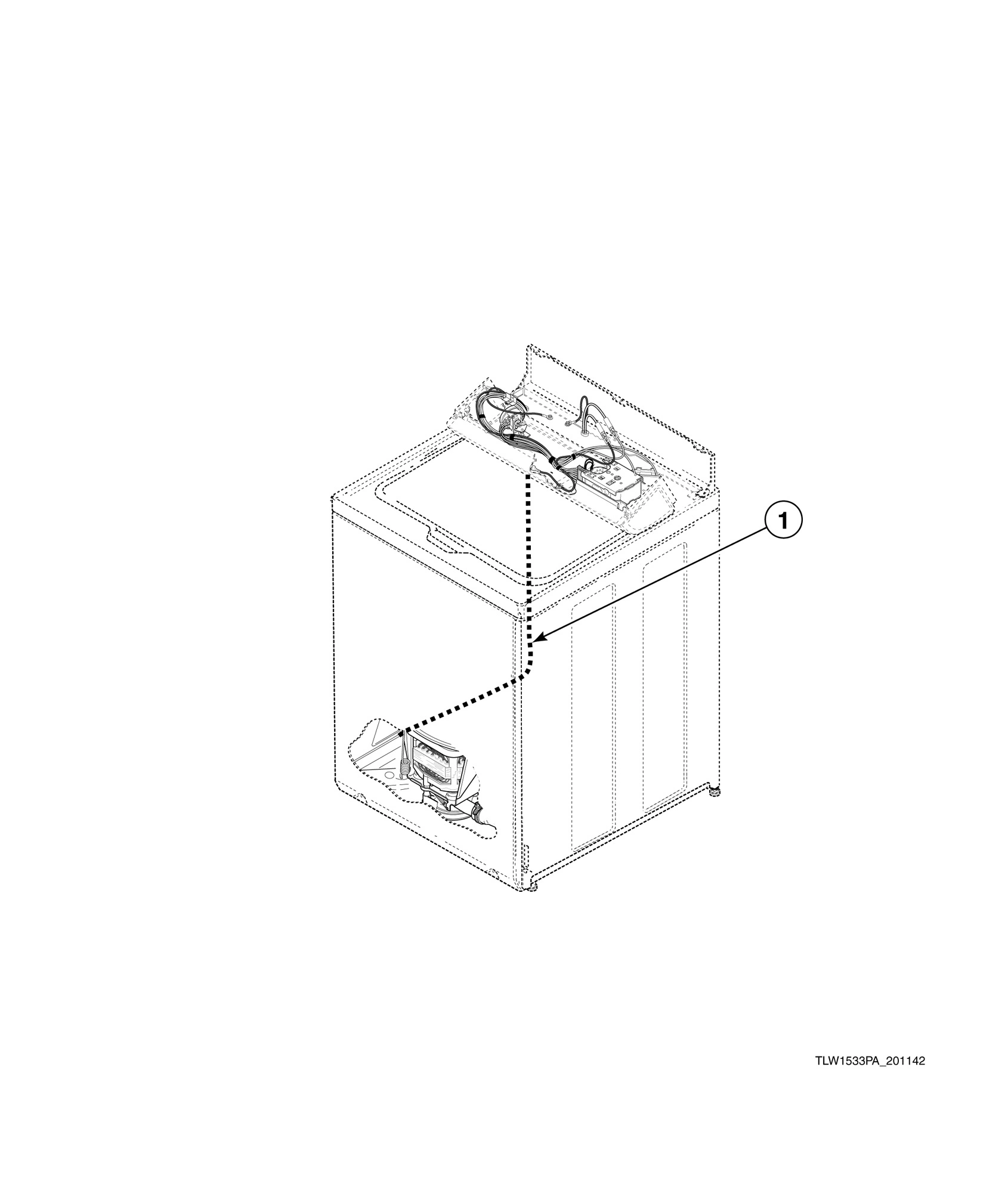

Wire Harnesses and Wires (Drawing 2 of 3)
Wire Harnesses and Wires (Drawing 3 of 3)
Common parts from model GE DWN412SP111CW01 General Electric Model DWN412SP111CW01
1
24 Position Housing (Comment: Right, Black) GEN 32746 Contact Us For Availability
1
24 Position Housing (Comment: Left, White) GEN 34123 Contact Us For Availability
1
NOT ON YOUR MODEL GEN - Contact Us For Availability
1
Screw GEN 52909 Contact Us For Availability
1
Output Shaft GEN 36570P Contact Us For Availability
1
Weldment and Bearing Assembly GEN 39253 Contact Us For Availability
1
Hood Wire Harness Assembly GEN 201851P Contact Us For Availability
1
Wire Harness Assembly (Comment: Base) GEN 38661P Contact Us For Availability
2
Female Terminal (Comment: Used for 1 or 2 wir GEN 00188 Contact Us For Availability
2
Warning Label GEN D500316 Contact Us For Availability
2
Brake Kit GEN 38505P Contact Us For Availability
3
Insulated Female Spade Terminal GEN 00359 Contact Us For Availability
3
Strain Relief GEN 38384 Contact Us For Availability
3
Transmission Rebuild Kit (Comment: Includes i GEN RB150004 Contact Us For Availability
3
Silicone Grease (Comment: Apply small amount GEN 26594P Contact Us For Availability
3
Brake Pad Kit (Comment: Includes 3 pads and 6 GEN 735P3 Contact Us For Availability
4
Male Pin Terminal GEN 00116 Contact Us For Availability
4
Transmission Oil (Comment: 1 fill) GEN 27243P Contact Us For Availability
4
Screw GEN 39739 Contact Us For Availability
5
9 Circuit Plug GEN 23033 Contact Us For Availability
5
6 Circuit Plug GEN 23041 Contact Us For Availability
5
1 Circuit Plug GEN 26302 Contact Us For Availability
5
Screw GEN 23962 Contact Us For Availability
5
Gear and Stud Assembly GEN 26577 Contact Us For Availability
5
Washer (Comment: Thin) GEN 35535 Contact Us For Availability
6
Harness Clip GEN N/A Contact Us For Availability
6
Hold-Down Clip GEN 35358 Contact Us For Availability
6
Screw GEN 201773 Contact Us For Availability
6
Washer (Comment: Thick) GEN 27015 Contact Us For Availability
7
Cable Clip GEN 21036 Contact Us For Availability
7
Washer (Comment: Models through Serial No. 97 GEN 21456 Contact Us For Availability
7
Pulley GEN 202795 Contact Us For Availability
8
Female Flag Terminal GEN 00120 Contact Us For Availability
8
9 Circuit Receptacle GEN 26163 Contact Us For Availability
8
1 Circuit Receptacle GEN 26301 Contact Us For Availability
8
6 Circuit Receptacle GEN 26708 Contact Us For Availability
8
Screw GEN 27220 Contact Us For Availability
9
Female Pin Terminal GEN 00117 Contact Us For Availability
9
Hinge Stop Clip GEN 36519 Contact Us For Availability
9
Washer GEN 26509 Contact Us For Availability
9
Drive Pinion (Comment: Use with 38165P Transm GEN 37405 Contact Us For Availability
9
Drive Pinion (Comment: Use with 38826P Transm GEN 37406P Contact Us For Availability
10
Harness Strap GEN 55881 Contact Us For Availability
10
Screw GEN 33562 Contact Us For Availability
10
Input Shaft GEN 38268P Contact Us For Availability
10
Helix GEN 38008 Contact Us For Availability
11
Screw GEN D501086 Contact Us For Availability
11
Screw GEN 32814 Contact Us For Availability
11
Lower Bearing GEN 28944RP Contact Us For Availability
12
Wire Clip (Comment: 0.93 inch wide) GEN 70366201 Contact Us For Availability
12
Hold-Down Clip (Comment: Use for older style GEN 38271 Contact Us For Availability
12
Transmission Assembly (Comment: 710 RPM, High GEN 38165P Contact Us For Availability
13
Top (Comment: Almond) GEN 37992LP Contact Us For Availability
13
Top (Comment: Bisque) GEN 37992QP Contact Us For Availability
13
Top (Comment: White) GEN 37992WP Contact Us For Availability
13
Transmission Cover Assembly GEN 37471 Contact Us For Availability
14
Bleach Dispenser GEN 34776 Contact Us For Availability
14
Reduction Gear (Comment: Use with 38826P Tran GEN 37403P Contact Us For Availability
14
Reduction Gear (Comment: Use with 38165P Tran GEN 37404P Contact Us For Availability
15
Washer GEN 29260 Contact Us For Availability
16
Screw GEN 29273 Contact Us For Availability
17
Slide GEN 26493 Contact Us For Availability
18
Rack GEN 201664 Contact Us For Availability
19
Retaining Ring GEN 27197 Contact Us For Availability
20
Agitator Pinion GEN 27003 Contact Us For Availability
21
Washer GEN 35092 Contact Us For Availability
22
Gear Sleeve GEN 38864 Contact Us For Availability
23
Transmission Case Assembly GEN 33223P Contact Us For Availability
NA
Anti-Seize Compound (Comment: Apply to smooth GEN 27604P Contact Us For Availability
NA
Transmission Sealant (Comment: Use between tr GEN 37577P Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
× ![]()
