Model GE CDT845M5N3S5 – Common Parts & Diagrams

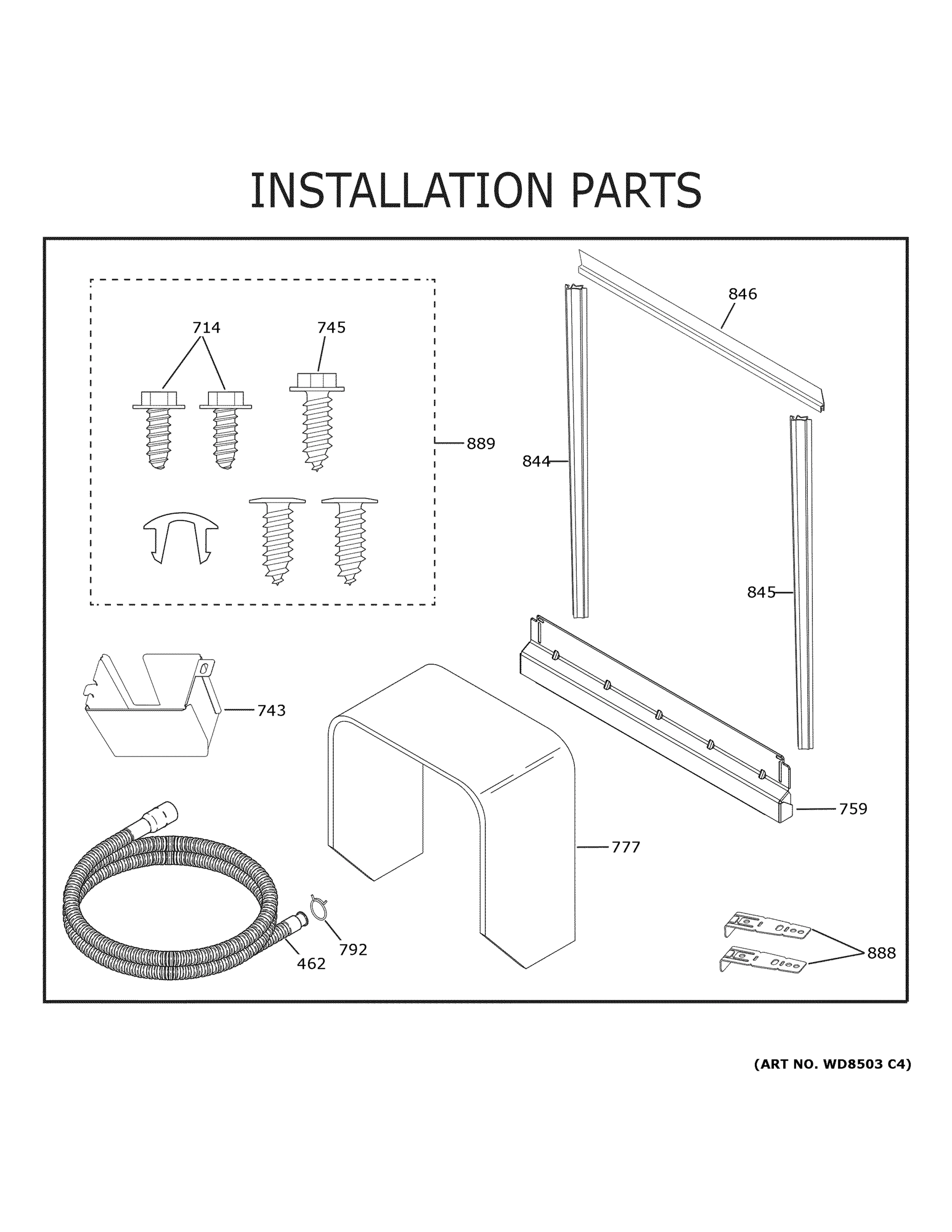

INSTALLATION PARTS

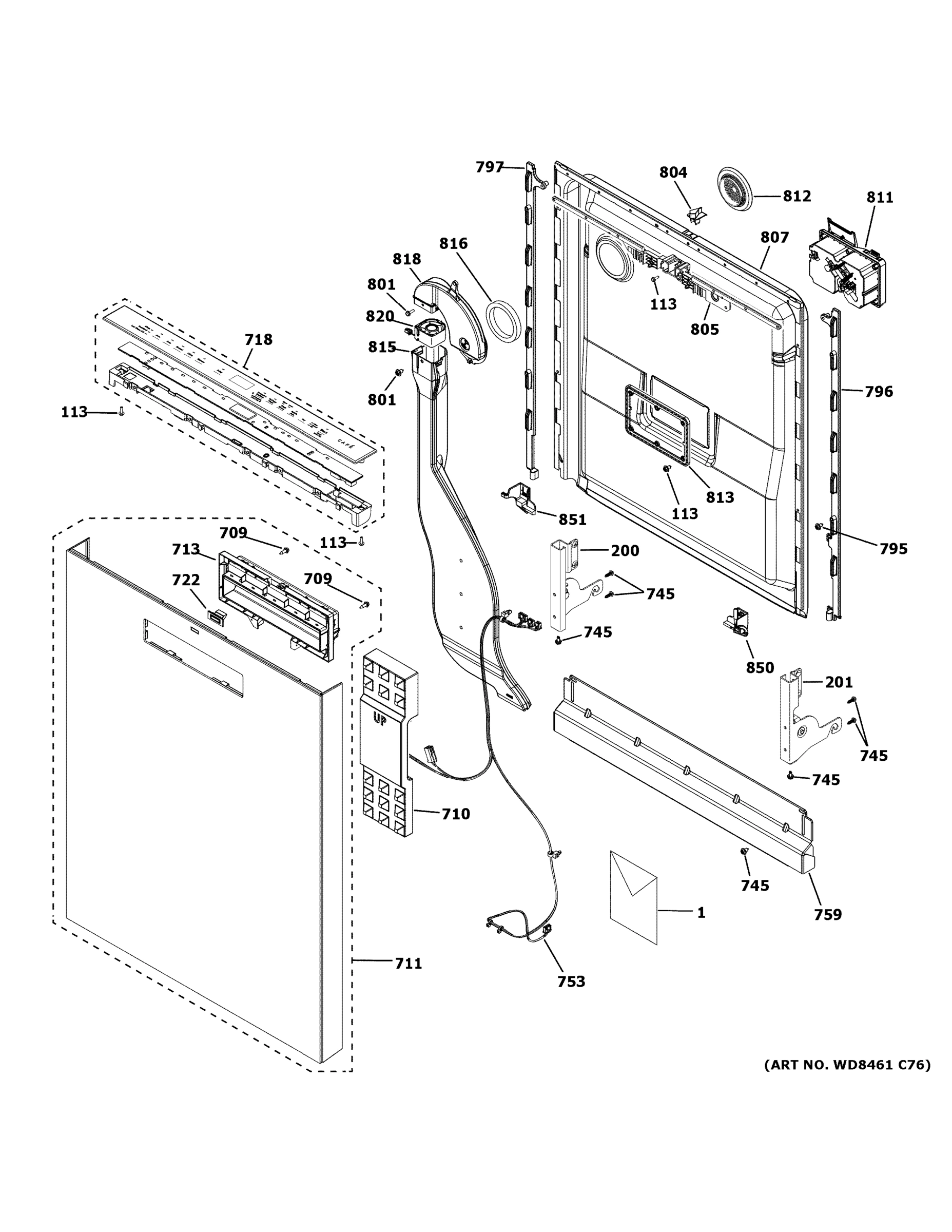

ESCUTCHEON & DOOR ASSEMBLY

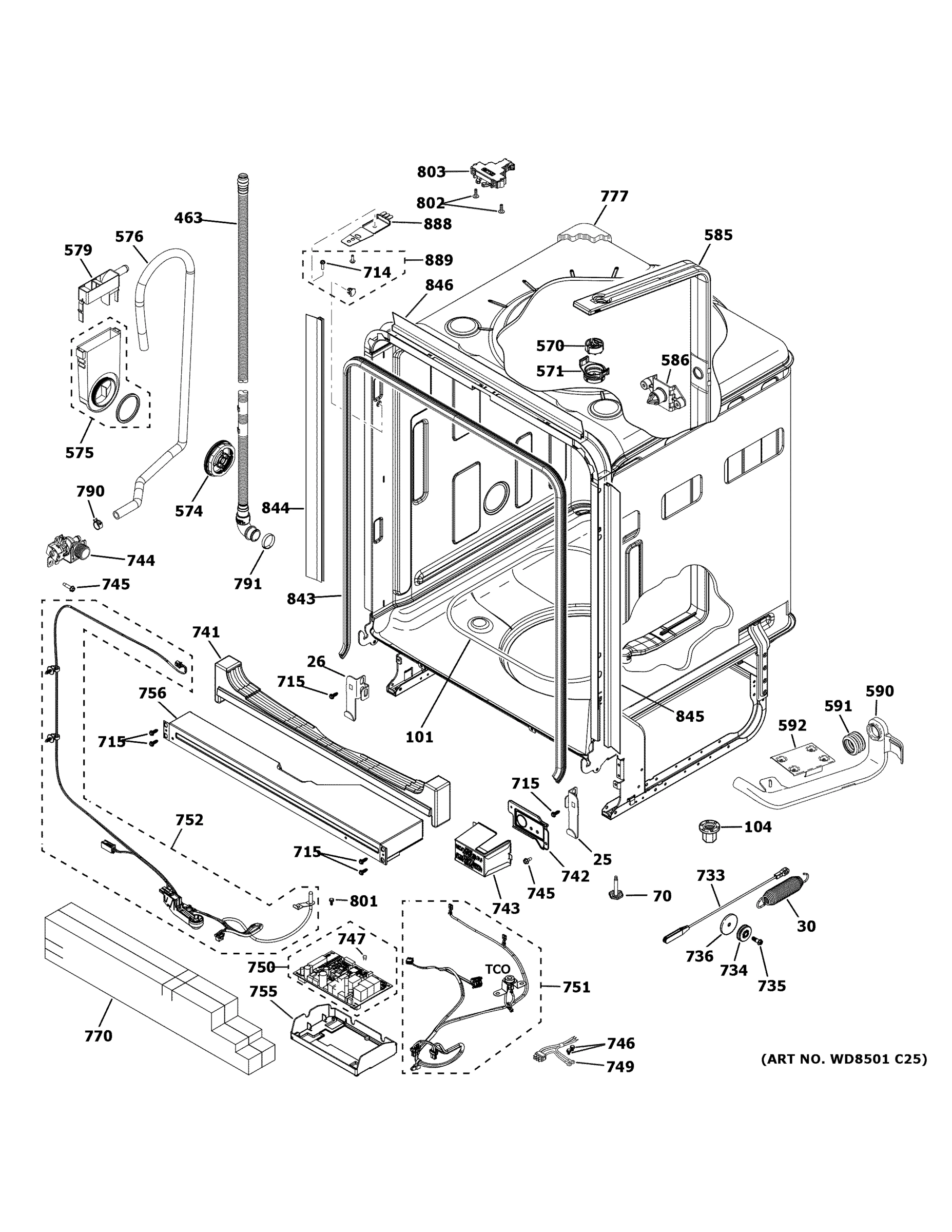

BODY PARTS (1)

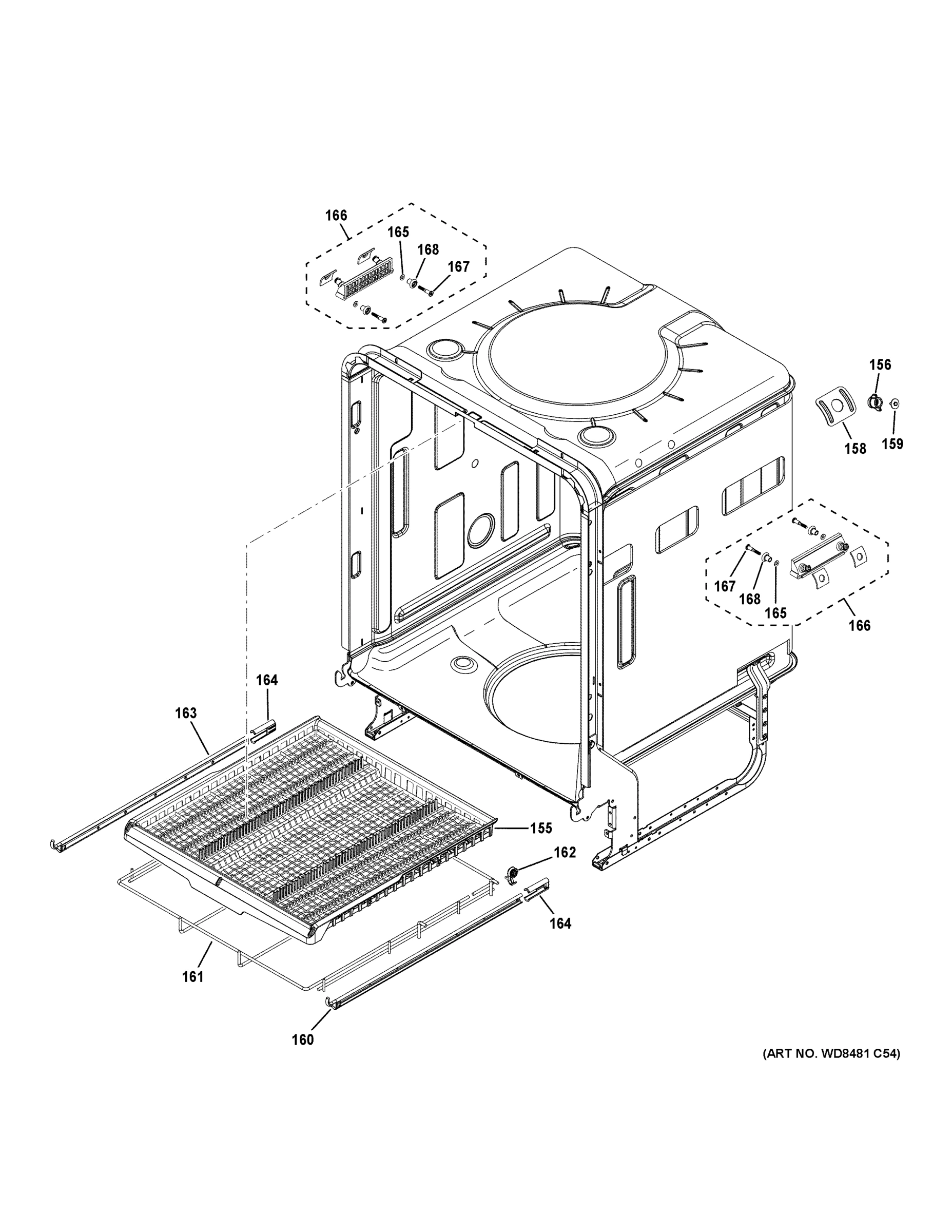

BODY PARTS (2)

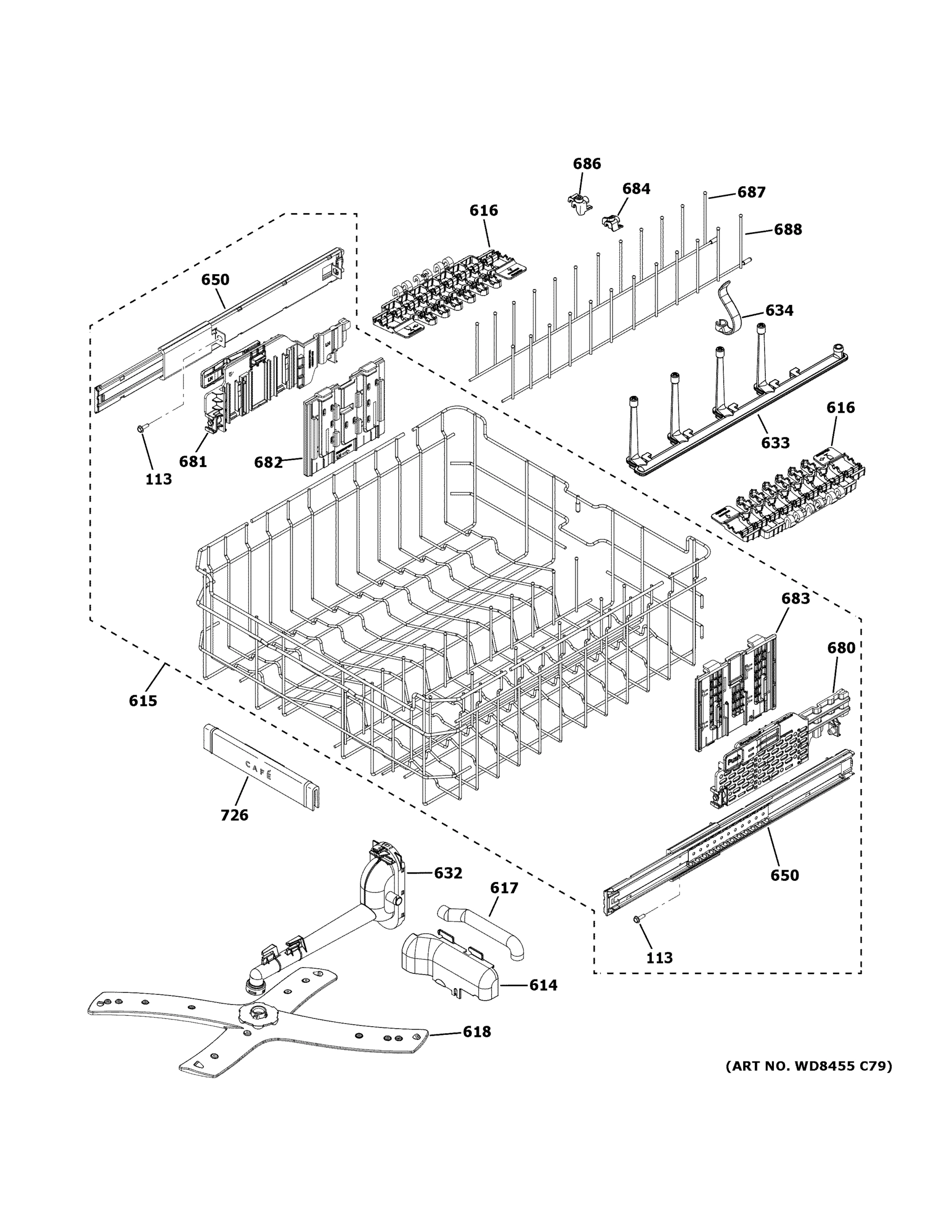

UPPER RACK ASSEMBLY

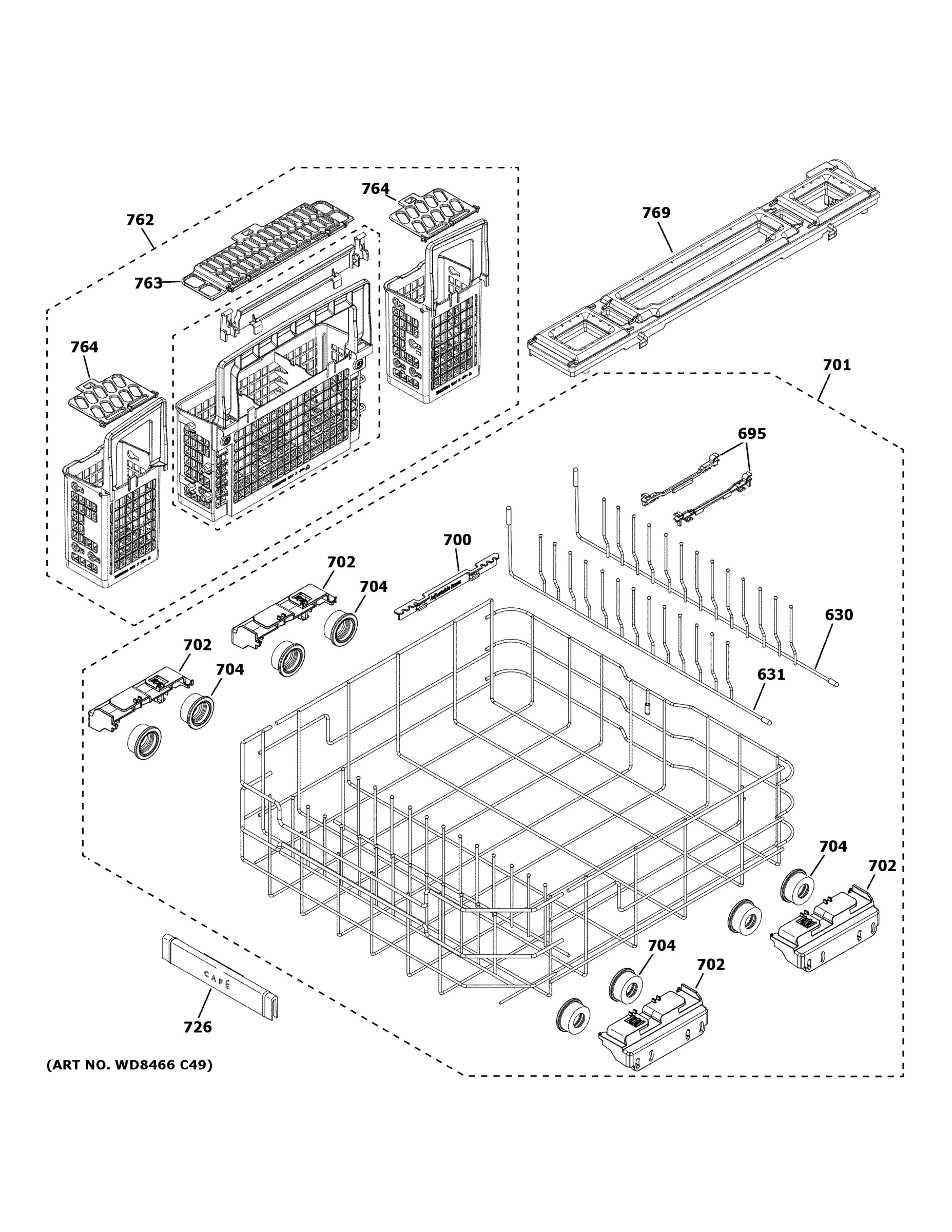

LOWER RACK ASSEMBLY

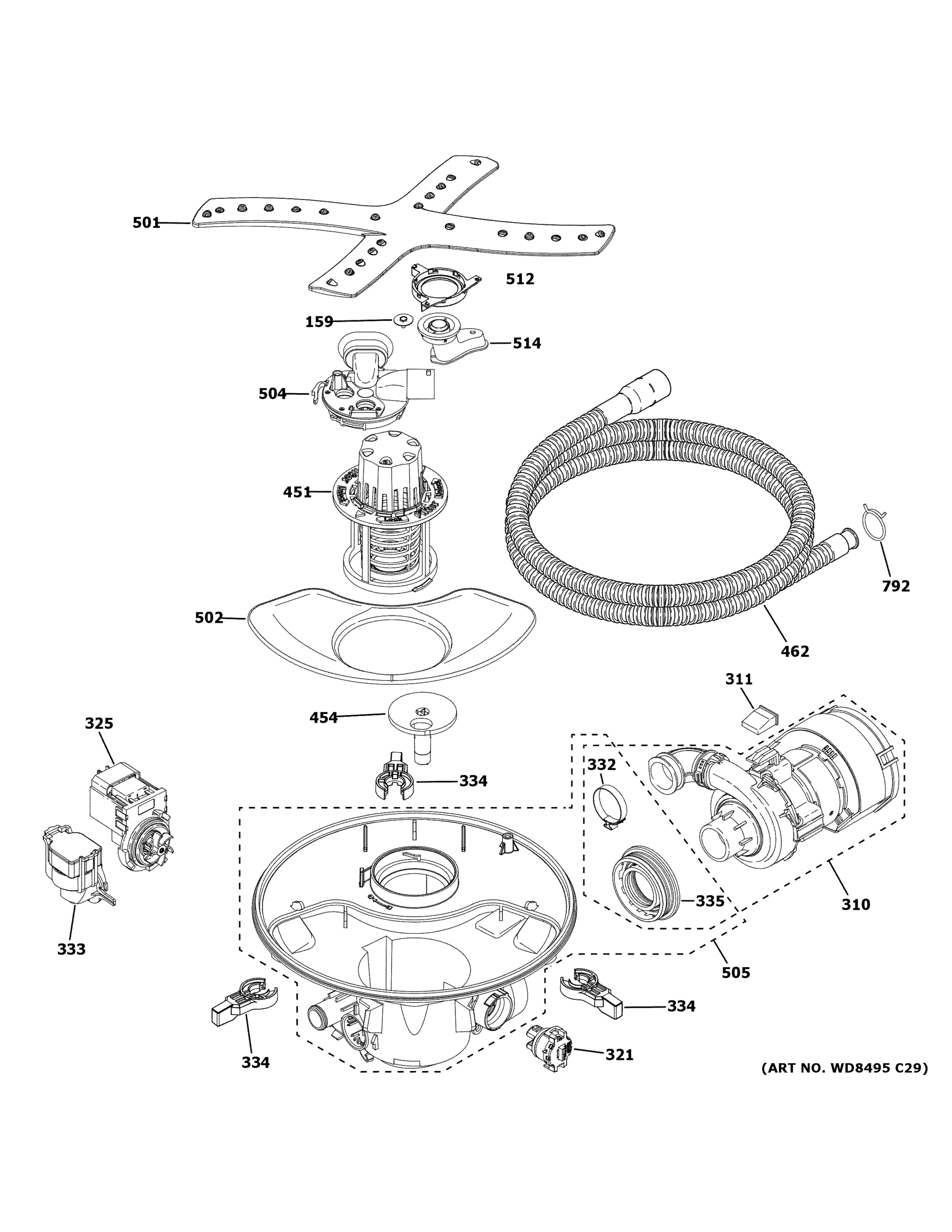

MOTOR, SUMP & FILTER ASSEMBLY
Common parts from model GE CDT845M5N3S5
25
BRACKET CABLE RH GEN WD01X23776 Contact Us For Availability
26
BRACKET CABLE LH GEN WD01X23777 Contact Us For Availability
155
TRAY THIRD RACK GEN WD28X22348 Contact Us For Availability
156
SLEEVE TUB MOUNT GEN WD02X20685 Contact Us For Availability
158
BRACE TUB MOUNT GEN WD30X22340 Contact Us For Availability
161
FRAME WIRE COATED ASM GEN WD30X24457 Contact Us For Availability
162
ROLLER AND BRACKET ASM GEN WD30X22347 Contact Us For Availability
163
RAIL AND END CAP ASM GEN WD27X22351 Contact Us For Availability
164
END CAP THIRD RACK REAR GEN WD02X22342 Contact Us For Availability
165
WASHER GEN WD3X767 Contact Us For Availability
200
ARM HINGE ASM LH GEN WD14X23739 Contact Us For Availability
200
ARM HINGE ASM LH GEN WD14X22896 Contact Us For Availability
201
ARM HINGE ASM RH GEN WD14X23738 Contact Us For Availability
201
ARM HINGE ASM RH GEN WD14X22895 Contact Us For Availability
311
PUMP ISOLATOR HANGER GEN WD02X25462 Contact Us For Availability
321
SENSOR TURBIDITY ASM GEN WD21X22830 Contact Us For Availability
325
DRAIN PUMP ASM GEN WD19X25461 Contact Us For Availability
333
PRESSURE SENSOR ASM GEN WD21X25468 Contact Us For Availability
451
FINE FILTER AND BASKET ASM GEN WD12X25995 Contact Us For Availability
501
LOWER ARM SPRAY ASM GEN WD22X25281 Contact Us For Availability
502
PLASTIC COURSE FILTER GEN WD22X25465 Contact Us For Availability
512
HUB SPRAY ARM GEN WD12X22852 Contact Us For Availability
514
X ARM ADAPTER GEN WD12X25865 Contact Us For Availability
571
HUB GEN WD22X20688 Contact Us For Availability
579
FILL FUNNEL CAP GEN WD12X25080 Contact Us For Availability
614
COVER BOTTLE BLASTER GEN WD24X20263 Contact Us For Availability
616
SHELF ASM STEM SAFE GEN WD28X20312 Contact Us For Availability
617
HOSE BOTTLE BLASTER GEN WD24X20262 Contact Us For Availability
618
MID SPRAY ARM ASM GEN WD22X25299 Contact Us For Availability
631
FDT COATED LOWER RACK GEN WD28X20165 Contact Us For Availability
682
BRACKET FIXED GEN WD12X20112 Contact Us For Availability
683
BRACKET FIXED GEN WD12X20113 Contact Us For Availability
684
FDT CLIP FLAT RACK GEN WD28X20311 Contact Us For Availability
686
FDT CLIP FLAT RACK GEN WD28X20310 Contact Us For Availability
688
FDT ASM UPPER COATED GEN WD28X20193 Contact Us For Availability
700
INDEXER GEN WD28X20166 Contact Us For Availability
704
ROLLER GEN WD12X26146 Contact Us For Availability
709
SCR 8-18 AB HXW 9/16 S GEN WR01X11012 Contact Us For Availability
710
BLOCK FOAM DOOR GEN WD01X10585 Contact Us For Availability
733
CABLE PULLEY ASM GEN WD01X22892 Contact Us For Availability
734
PULLEY HINGE GEN WD16X20592 Contact Us For Availability
735
SCR 10-32 TT CB 1/4 ZN GEN WD01X21837 Contact Us For Availability
736
FRICTION WASHER GEN WD01X20593 Contact Us For Availability
741
SPACER TUB FRONT GEN WD01X23558 Contact Us For Availability
744
WATER VALVE ASM GEN WD15X26078 Contact Us For Availability
745
SCR 10-32 GX IHXW 9/16 S GEN WD01X22514 Contact Us For Availability
747
CONTROL BOARD FUSE 4.1 AMP GEN WD21X25696 Contact Us For Availability
749
HARNESS ASM JUMPER GEN WD21X23559 Contact Us For Availability
753
DOOR HARNESS ASM GEN WD21X25474 Contact Us For Availability
755
CONTROL BOX BOTTOM GEN WD30X24239 Contact Us For Availability
762
SILVERWARE BASKET ASM WITH RAIL GEN WD28X25327 Contact Us For Availability
770
INSULATIONBAG ASM GEN WD30X28098 Contact Us For Availability
790
CLAMP HOSE GEN WD01X22786 Contact Us For Availability
791
CLAMP GEN WD01X24246 Contact Us For Availability
795
SCREW T15 8-16 PLASTITE GEN WD02X22628 Contact Us For Availability
796
ATTACH STRIP RH GEN WD01X22836 Contact Us For Availability
805
ATTACHMENT STRIP TOP GEN WD13X22837 Contact Us For Availability
812
COVER VENT GEN WD24X20586 Contact Us For Availability
818
TRANSITION PIECE ASM GEN WD12X23557 Contact Us For Availability
820
FAN VENT ASM GEN WD24X25325 Contact Us For Availability
× ![]()
