Model GE CDT836P3M4D1 – Common Parts & Diagrams

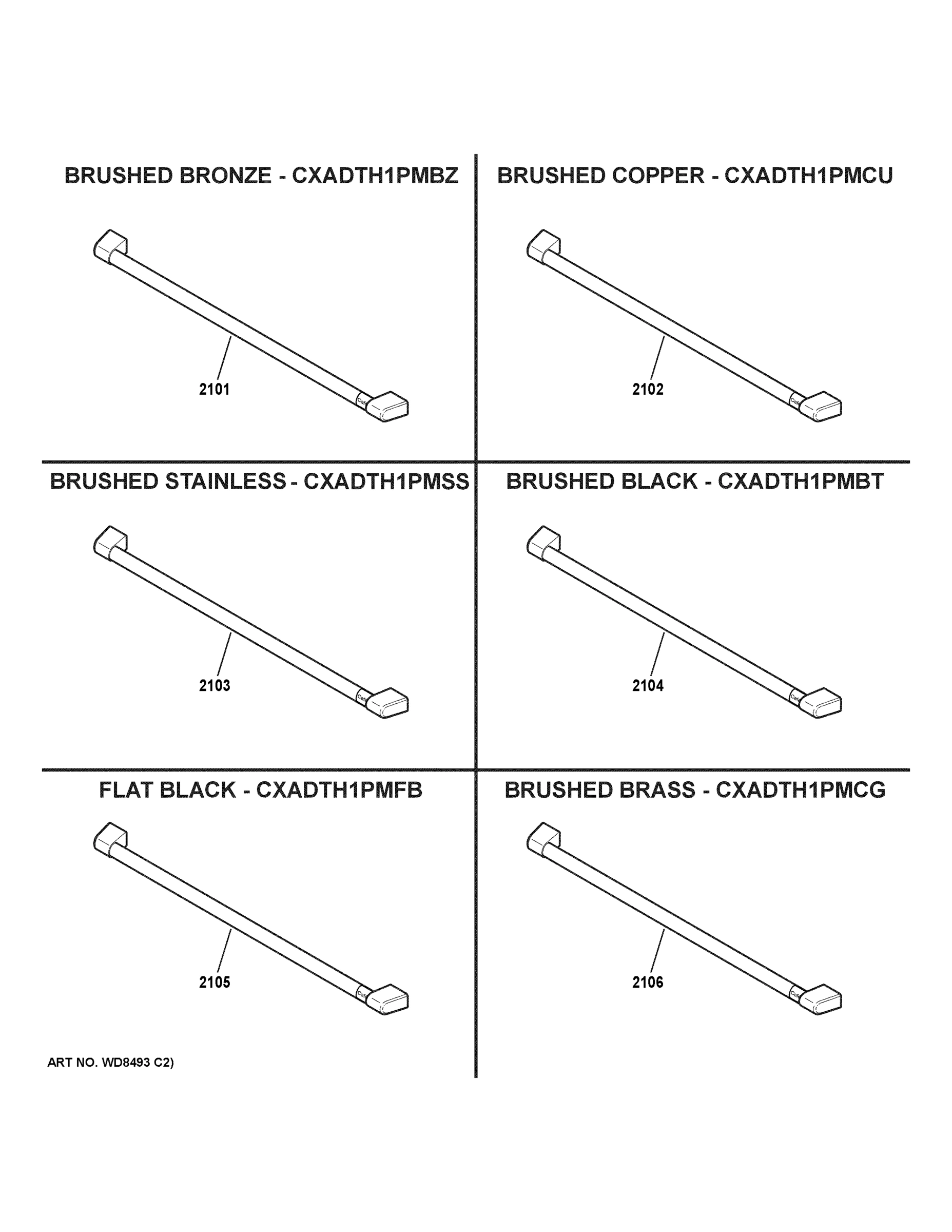

CAFE CUSTOMIZATION

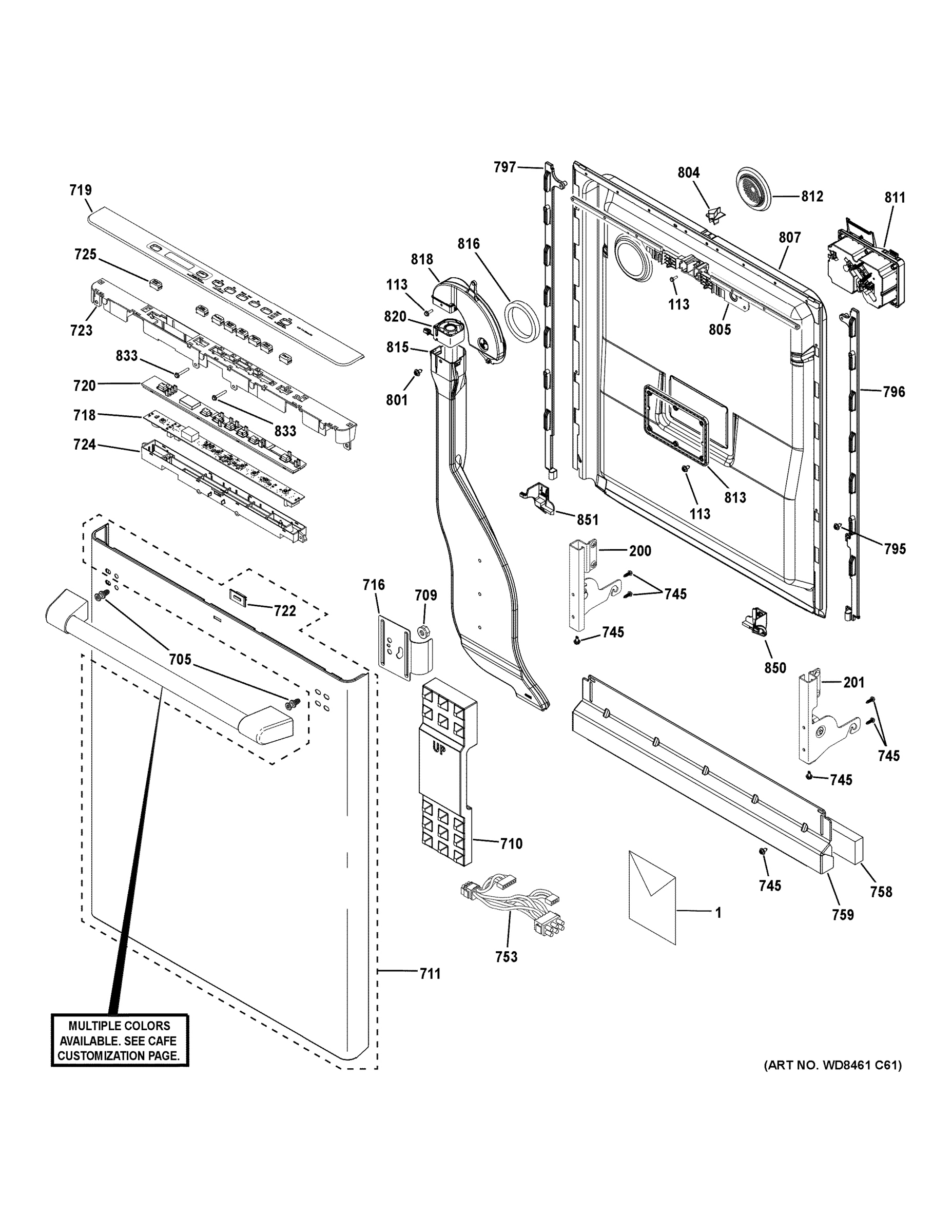

ESCUTCHEON & DOOR ASSEMBLY
BODY PARTS
UPPER RACK ASSEMBLY
LOWER RACK ASSEMBLY
SUMP & FILTER ASSEMBLY
SUMP & MOTOR MECHANISM
Common parts from model GE CDT836P3M4D1
25
BRACKET CABLE RH GEN WD01X23776 Contact Us For Availability
26
BRACKET CABLE LH GEN WD01X23777 Contact Us For Availability
30
SPRING DOOR GEN WD03X20316 Contact Us For Availability
42
SCR10 - 16 AB HXW 3/4 SS GEN WD02X22736 Contact Us For Availability
102
PAN LEAK GEN WD18X22842 Contact Us For Availability
200
ARM HINGE ASM LH GEN WD14X23739 Contact Us For Availability
201
ARM HINGE ASM RH GEN WD14X23738 Contact Us For Availability
209
CLIP HOSE SIDE BLASTER GEN WD01X22855 Contact Us For Availability
300
HOUSING SWITCH FLOOD GEN WD01X23496 Contact Us For Availability
301
LEVER SWITCH FLOOD GEN WD16X23497 Contact Us For Availability
303
SWITCH FLOOD GEN WD21X23498 Contact Us For Availability
308
FLOAT FLOOD GEN WD21X22822 Contact Us For Availability
321
SENSOR TURBIDITY ASM GEN WD21X22830 Contact Us For Availability
333
LATCH CAM GEN WD01X10632 Contact Us For Availability
334
LATCH CAM GEN WD01X10575 Contact Us For Availability
425
GROMMET GEN WD01X10101 Contact Us For Availability
426
SCR 10-18 X 5/8 GEN WD02X22781 Contact Us For Availability
453
VENT FILTER GEN WD24X10057 Contact Us For Availability
454
ADAPTOR FILTER GEN WD12X10419 Contact Us For Availability
462
DRAIN TUBE ASM GEN WD24X10062 Contact Us For Availability
501
ARM SPRAY LOWER ASM GEN WD22X22857 Contact Us For Availability
502
FILTER COARSE SS GEN WD22X10093 Contact Us For Availability
503
SCR 10-16 AB HXW .532 GEN WB01T10103 Contact Us For Availability
504
DIVERTER PASSIVE ASM GEN WD18X23220 Contact Us For Availability
505
SUMP MANIFOLD GEN WD18X22782 Contact Us For Availability
509
PLATE FLOOR MANUAL GEN WD12X21677 Contact Us For Availability
510
STEM FLOOD GEN WD21X22838 Contact Us For Availability
511
O RING GEN WD01X22825 Contact Us For Availability
512
HUB SPRAY ARM GEN WD12X22852 Contact Us For Availability
514
ADAPTER CONDUIT GEN WD18X22865 Contact Us For Availability
570
IMPELLER GEN WD22X20689 Contact Us For Availability
571
HUB GEN WD22X20688 Contact Us For Availability
576
HOSE FILL GEN WD24X10064 Contact Us For Availability
578
HOSE FILL GEN WD21X20339 Contact Us For Availability
585
CONDUIT MAIN GEN WD12X21681 Contact Us For Availability
588
CLIP CONDUIT GEN WD01X23982 Contact Us For Availability
590
CONDUIT SILVERWARE GEN WD12X22862 Contact Us For Availability
614
COVER BOTTLE BLASTER GEN WD24X20263 Contact Us For Availability
616
SHELF CUP GEN WD28X20177 Contact Us For Availability
617
HOSE BOTTLE BLASTER GEN WD24X20262 Contact Us For Availability
618
ARM SPRAY MID ASM GEN WD22X22853 Contact Us For Availability
630
FDT COATED LOWER RACK GEN WD28X20164 Contact Us For Availability
631
FDT COATED LOWER RACK GEN WD28X20165 Contact Us For Availability
636
SIDE BLASTER ASM GEN WD22X21034 Contact Us For Availability
650
INNER RAIL UPR RACK ASM GEN WD30X20110 Contact Us For Availability
680
BRACKET ASM UPPER RACK GEN WD12X20108 Contact Us For Availability
681
BRACKET ASM UPPER RACK GEN WD12X20109 Contact Us For Availability
682
BRACKET FIXED GEN WD12X20112 Contact Us For Availability
683
BRACKET FIXED GEN WD12X20113 Contact Us For Availability
684
FDT CLIP FLAT RACK GEN WD28X20311 Contact Us For Availability
686
FDT CLIP FLAT RACK GEN WD28X20310 Contact Us For Availability
688
FDT ASM UPPER COATED GEN WD28X20193 Contact Us For Availability
695
CLIP LOWER RACK GEN WD12X20171 Contact Us For Availability
700
INDEXER GEN WD28X20166 Contact Us For Availability
702
COVER ROLLER GEN WD12X20161 Contact Us For Availability
705
FASTENER DOOR HANDLE GEN WR01X11007 Contact Us For Availability
710
BLOCK FOAM DOOR GEN WD01X10585 Contact Us For Availability
719
COVER CONSOLE ASM IML GEN WD34X24946 Contact Us For Availability
720
SILICONE LIGHT PIPE GEN WD12X20246 Contact Us For Availability
722
LENS AND ADHESIVE ASM GEN WD09X20248 Contact Us For Availability
723
CONSOLE TOP CONTROL GEN WD12X20250 Contact Us For Availability
724
HOUSING BOTTOM GEN WD12X10470 Contact Us For Availability
725
BUTTON AND GRAPHICS ASM GEN WD09X22921 Contact Us For Availability
734
PULLEY HINGE GEN WD16X21836 Contact Us For Availability
735
SCR 10-32 TT CB 1/4 ZN GEN WD01X21837 Contact Us For Availability
736
FRICTION WASHER GEN WD01X20593 Contact Us For Availability
741
SPACER TUB FRONT GEN WD01X23558 Contact Us For Availability
743
COVER JUNCTION BOX GEN WD12X10412 Contact Us For Availability
744
VALVE WATER ASM GEN WD15X22948 Contact Us For Availability
745
SCR 10-32 GX IHXW 9/16 S GEN WD01X22514 Contact Us For Availability
749
HARNESS ASM JUMPER GEN WD21X23559 Contact Us For Availability
751
HARNESS ASM AC GEN WD21X24536 Contact Us For Availability
753
HARNESS ASM DOOR GEN WD21X20149 Contact Us For Availability
754
SHIELD DIELECTRIC GEN WD01X21974 Contact Us For Availability
755
CONTROL BOX BOTTOM GEN WD30X21714 Contact Us For Availability
758
INSULATION TOE KICK GEN WD27X21334 Contact Us For Availability
761
BASKET SILVERWARE ASM WI GEN WD28X22867 Contact Us For Availability
769
BLASTER SILVERWARE ASM GEN WD22X22863 Contact Us For Availability
770
BAG INSULATION ASM GEN WD01X23983 Contact Us For Availability
790
CLAMP HOSE GEN WD01X22786 Contact Us For Availability
791
CLAMP GEN WD01X24246 Contact Us For Availability
795
SCREW T15 8-16 PLASTITE GEN WD02X22628 Contact Us For Availability
796
ATTACH STRIP RH GEN WD01X22836 Contact Us For Availability
801
SCR 6-20 GXB IHXW 3/8 NI GEN WB02T10324 Contact Us For Availability
802
SCR 8-18 AB TSQ 5/8 SS GEN WR01X10380 Contact Us For Availability
803
LATCH TUB SIDE STANDARD GEN WD21X10490 Contact Us For Availability
804
STRIKER LATCH GEN WD13X10071 Contact Us For Availability
805
ATTACHMENT STRIP TOP GEN WD13X22837 Contact Us For Availability
812
COVER VENT GEN WD24X20586 Contact Us For Availability
813
PLATE DETERGENT GEN WD12X10462 Contact Us For Availability
815
VENT CONDUIT ASM GEN WD12X20218 Contact Us For Availability
816
DOOR VENT SEAL GEN WD08X10092 Contact Us For Availability
818
TRANSITION PIECE ASM GEN WD12X23557 Contact Us For Availability
820
VENT FAN ASM GEN WD24X20331 Contact Us For Availability
833
SCR 10-16 PL PNT 2.25 S GEN WD02X20140 Contact Us For Availability
888
BRACKET COUNTERTOP GEN WD01X21740 Contact Us For Availability
889
CT SCREW ASM GEN WD35X10383 Contact Us For Availability
920
CLIP CONTROL BOARD GEN WD01X21975 Contact Us For Availability
2101
BRONZE DISHWASHER HANDLE GEN WD09X25420 Contact Us For Availability
× ![]()
