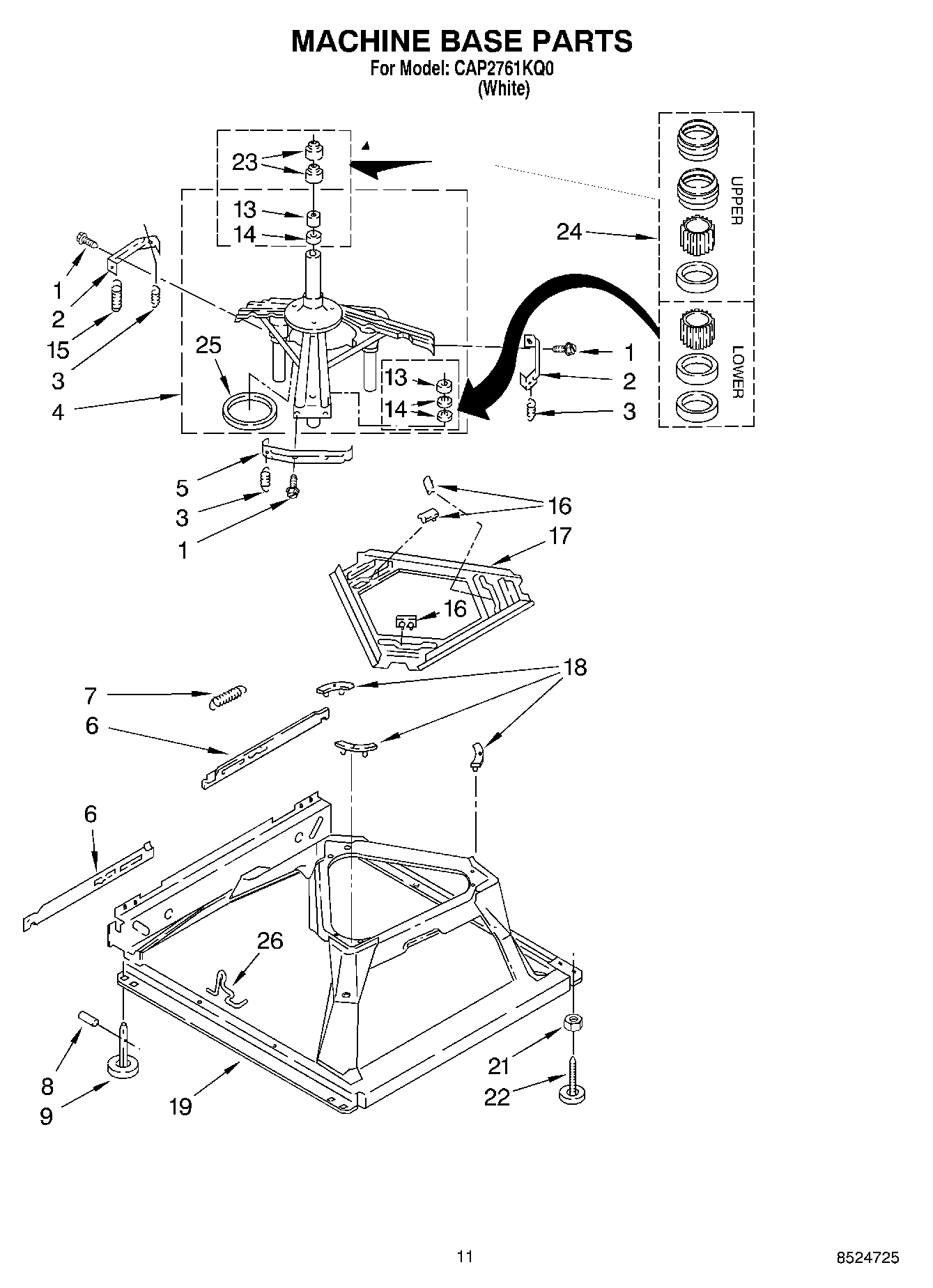

Model Whirlpool CAP2761KQ0 COMMERCIAL WASHER – Common Parts &amp; Diagrams

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $3.70

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Cap, Mounting Stud WPL 3951768 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP385421 Whirlpool Washer Coin-Operated Laund In Stock WPL WP385421 $27.83

2

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

Backer Plate (Side) WPL 3950775 Contact Us For Availability

2

Snap-In-Plugs WPL 3352284 Contact Us For Availability

3

339805 Whirlpool Screw Backorder WPL 339805 $9.59

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP3949380 Whirlpool Fill Hose Backorder WPL WP3949380 $13.98

3

WP3949381 Whirlpool Fill Hose Backorder WPL WP3949381 $17.06

3

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.72

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

3

Spacer, Cabinet To Top (4) WPL 3353950 Contact Us For Availability

4

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

4

WP8281182 Whirlpool Screw Assembly Backorder WPL WP8281182 $2.51

4

Nut, Push-In (2) WPL 358473 Contact Us For Availability

4

Clip, Harness WPL 8282518 Contact Us For Availability

4

Support & Brake, Tub WPL 3362087 Contact Us For Availability

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

5

Backer Plate WPL 3950773 Contact Us For Availability

5

Agitator WPL 3350151 Contact Us For Availability

6

285929 Whirlpool Rear Panel Backorder WPL 285929 $153.28

6

W11715721 Whirlpool Screw Assembly Backorder WPL W11715721 $2.43

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $127.32

6

Tub Ring WPL 3360611 Contact Us For Availability

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

End Cap (R.H.) WPL 8316516 Contact Us For Availability

7

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

7

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

7

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

7

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

7

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.70

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

7

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

7

WP3359586 Whirlpool Tub Seal Backorder WPL WP3359586 $28.80

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

Mounting Stud WPL 3950774 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $75.04

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $28.37

8

285702 Whirlpool Extensions Backorder WPL 285702 $37.95

8

W11283272 Whirlpool Washer Dryer Access Door In Stock WPL W11283272 $71.26

8

W11686050 Whirlpool Drive Motor In Stock WPL W11686050 $98.21

8

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP96743 Whirlpool Hose In Stock WPL WP96743 $23.59

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $10.82

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.70

9

Panel, Control WPL 8318583 Contact Us For Availability

9

Edge Protector WPL 303294 Contact Us For Availability

9

Basket and Balance Ring WPL 8271650 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

Spring, Agitate WPL 62676 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $10.76

W10339019 Whirlpool Washer Water Level Switch Backorder WPL W10339019 $134.39

WP62647 Whirlpool Spring Pressure Backorder WPL WP62647 $3.51

WP8054980 Whirlpool Lid Switch Assembly In Stock WPL WP8054980 $93.36

Tub WPL 63125 Contact Us For Availability

Bracket, Control WPL 3950800 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP387371 Whirlpool Plug Backorder WPL WP387371 $45.33

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

Bezel, Display WPL 3949599 Contact Us For Availability

13

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

13

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

13

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

285928 Whirlpool Power Cord Assembly Backorder WPL 285928 $53.60

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $28.49

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

WP8524784 Whirlpool Hinge Assembly Backorder WPL WP8524784 $11.05

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

Display, Electronic WPL 3407151 Contact Us For Availability

Strain Relief, Power Cord WPL 63848 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $10.60

WP3407152 Whirlpool Electronic Control Board Backorder WPL WP3407152 $298.55

WP3956205 Whirlpool Balance Ring Backorder WPL WP3956205 $71.69

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

3347825 Whirlpool Plate Backorder WPL 3347825 $2.40

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $2.51

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Clip, Harness WPL 8054658 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $13.91

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

Switch, Service Diagnostic WPL 3402784 Contact Us For Availability

Clip (2) WPL 3363338 Contact Us For Availability

19

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

19

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

19

Base Assembly (Includes Illus, 6, 7, 8, 9, 18 WPL 3946512 Contact Us For Availability

20

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

20

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

21

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

21

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

W10113937 Whirlpool Clamp Backorder WPL W10113937 $4.78

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $7.83

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

BUMPER WPL 356908 Contact Us For Availability

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

23

Switch, Membrane WPL 3407158 Contact Us For Availability

23

Ring, Retaining WPL 3362552 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $28.69

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

W11126319 Whirlpool Washer Dryer Coin Chute In Stock WPL W11126319 $159.65

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $14.40

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

27

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $8.69

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

28

Clamp, Hose WPL 3976395 No Longer Available

29

W11318367 Whirlpool Extension Backorder WPL W11318367 $11.55

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

30

Screw, 10-32 x 3/8 WPL 3400086 Contact Us For Availability

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

32

WP356907 Whirlpool Rivet Backorder WPL WP356907 $3.70

38

Harness, Wiring (Includes No. 20) WPL 3955493 Contact Us For Availability

39

285930 Whirlpool Plate Backorder WPL 285930 $26.75

40

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78
