Model GE AWNE82SN303AW01 General Electric Model AWNE82SN303AW01 – Common Parts & Diagrams
Agitator, Fabric Softener Dispenser, Drive Bell, Hub and Lip Seal Kit and Washtub
Electric Drain Pump, Drain Hose and Siphon Break Kit

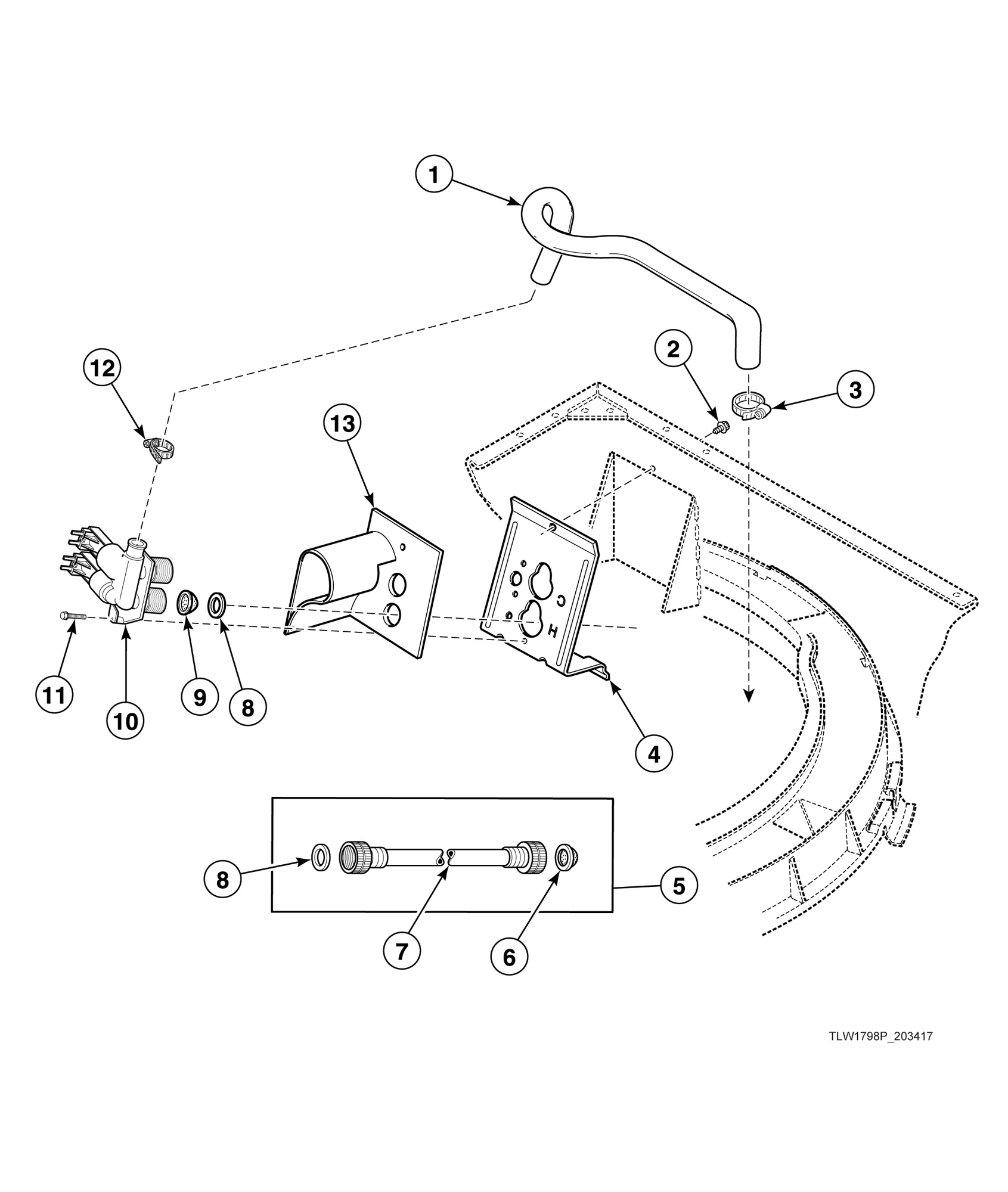

Fill Hose, Mixing Valve-to-Tub Cover Hose, Mixing Valve and Bracket

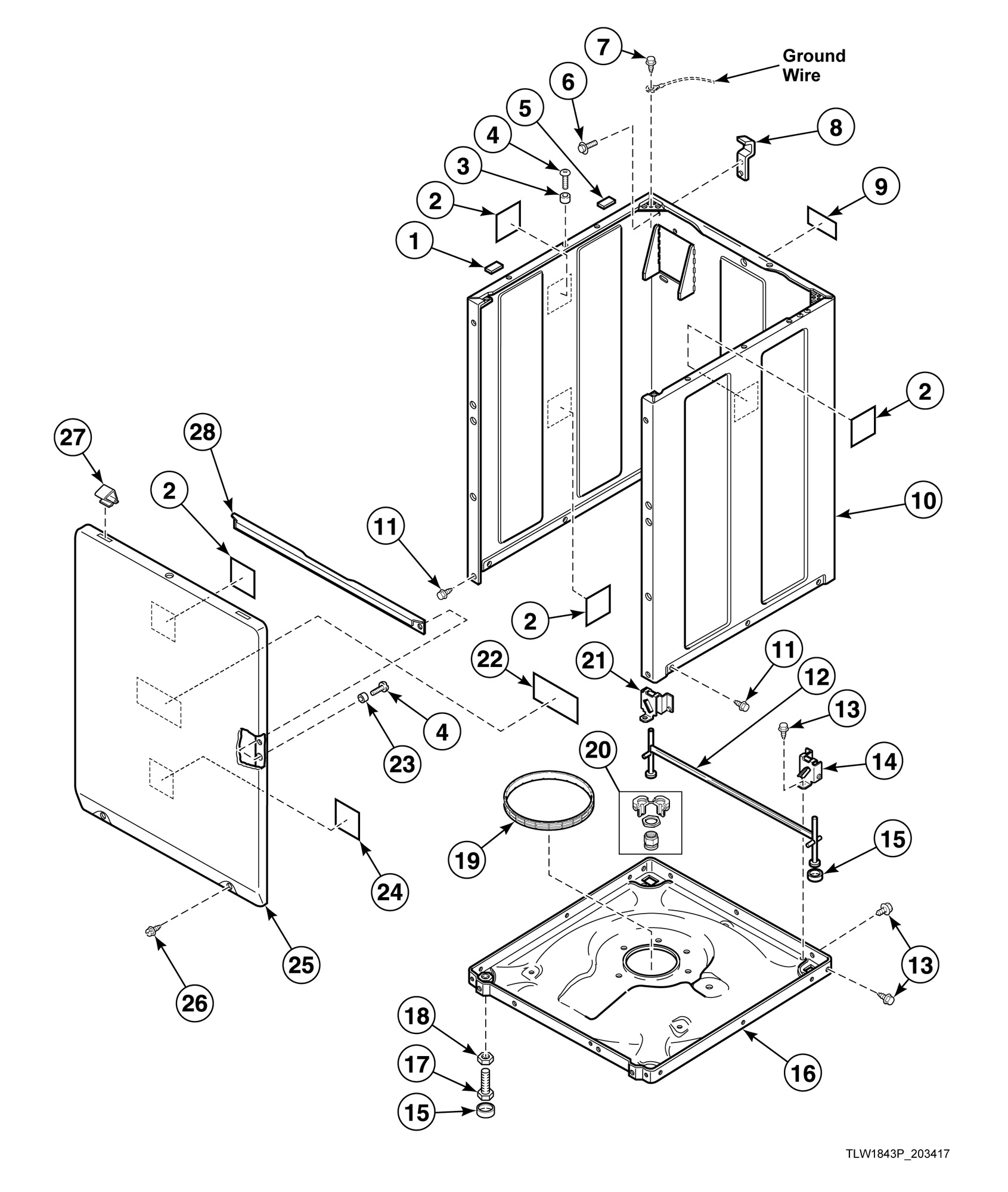

Front Panel, Base Assembly and Cabinet Kit

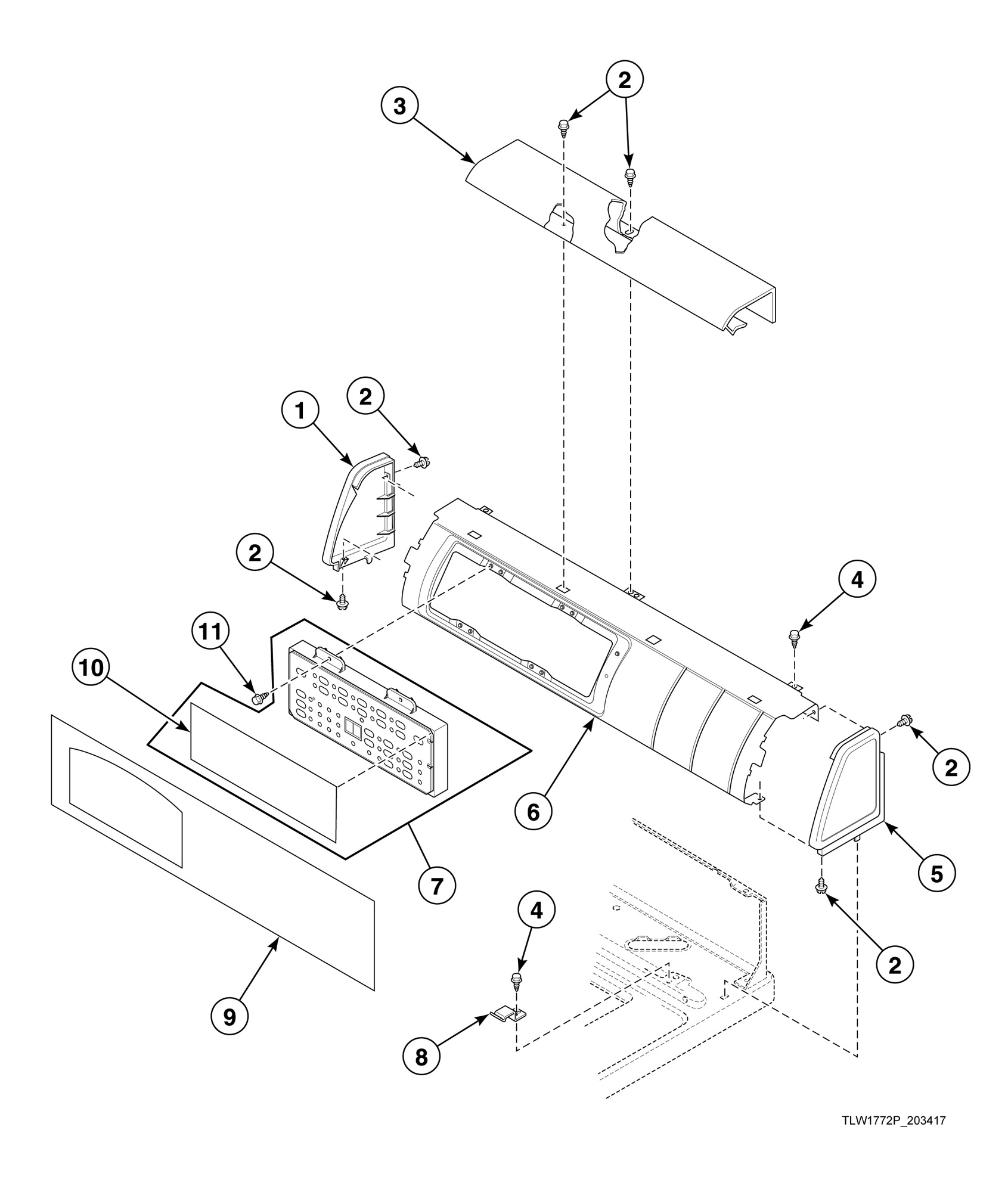

Graphic Panel, Control Support Panel and Controls (Drawing 2 of 3)

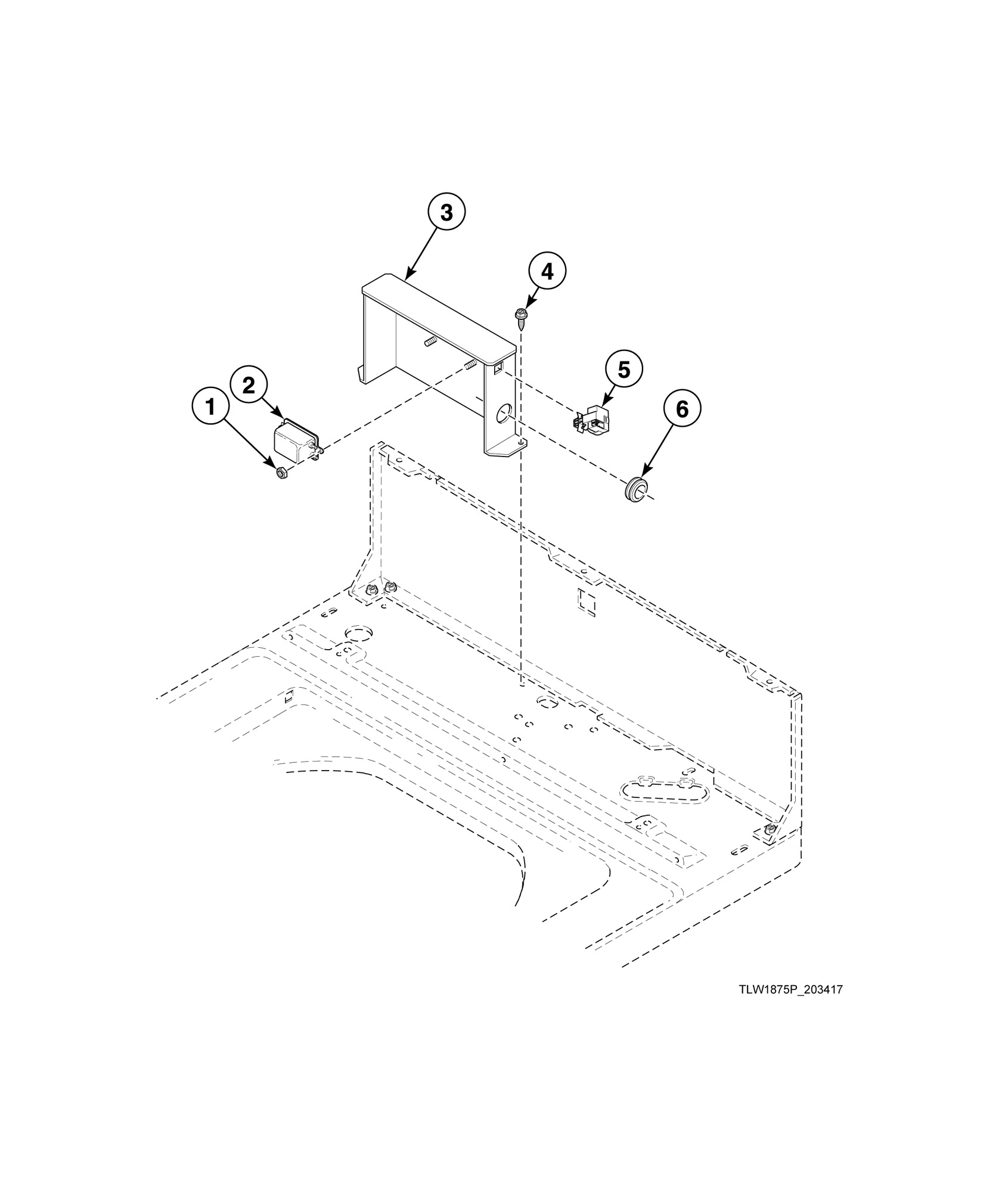

Junction Box

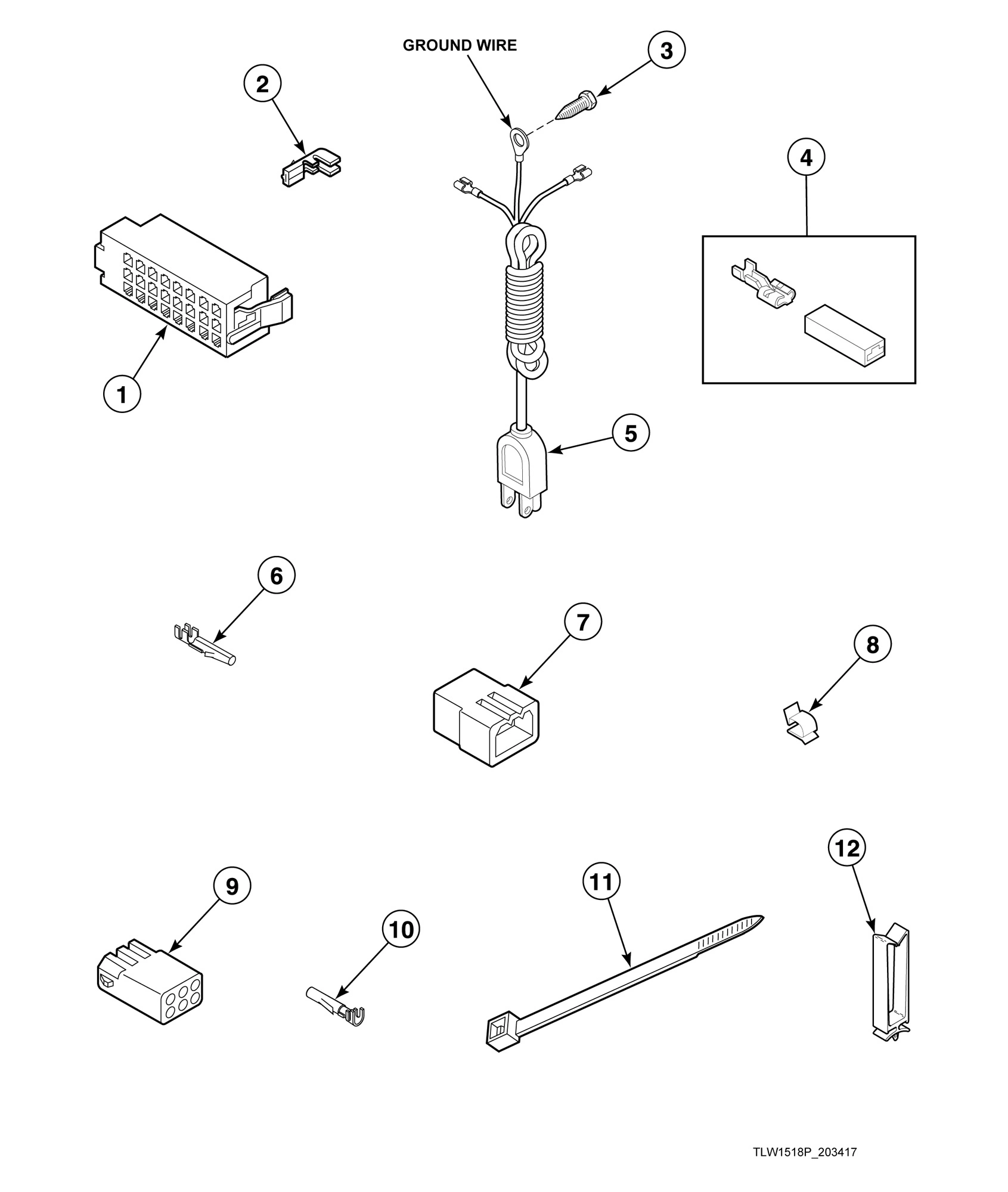

Lead-In Cord and Terminals

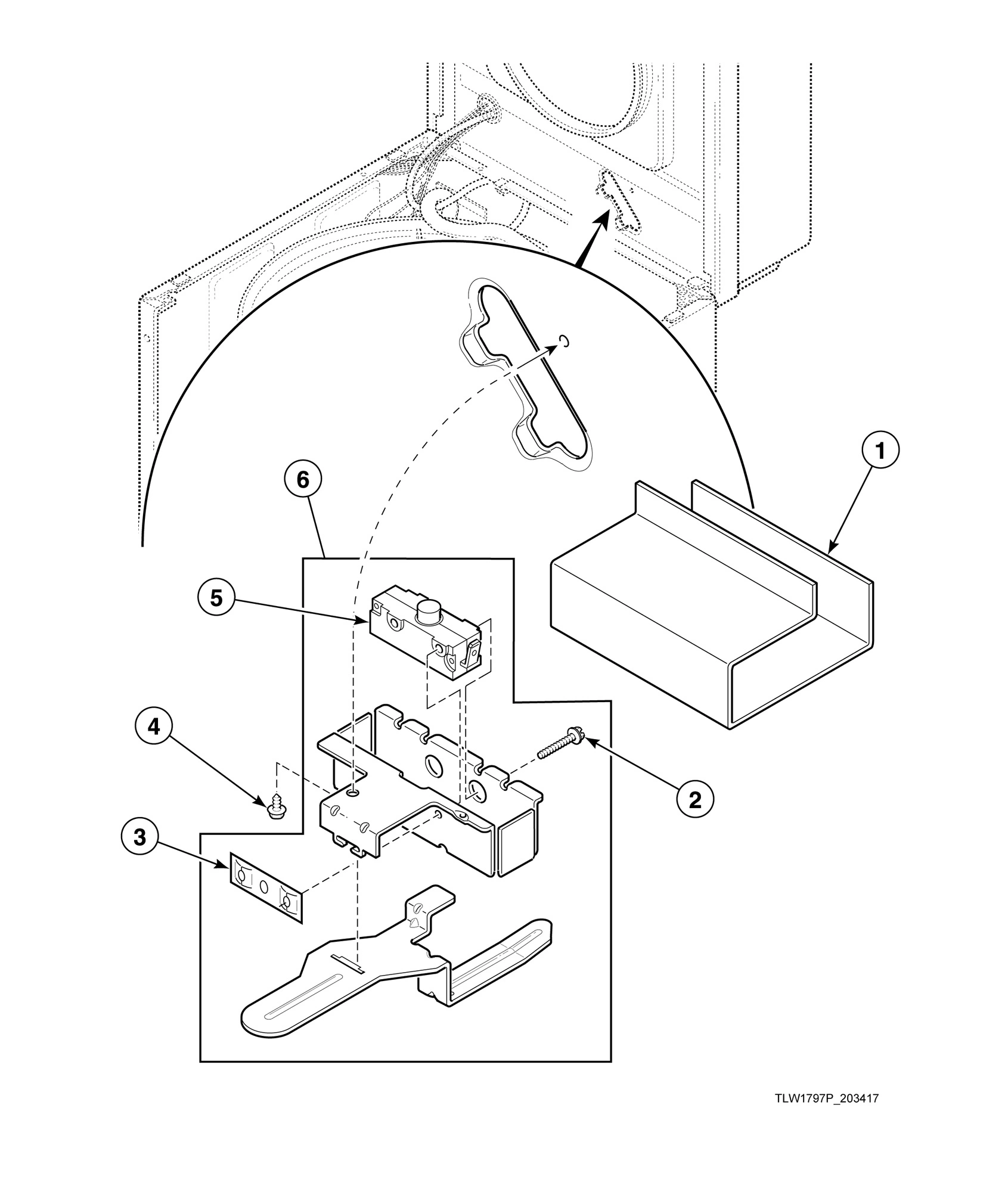

Lid Switch Assembly

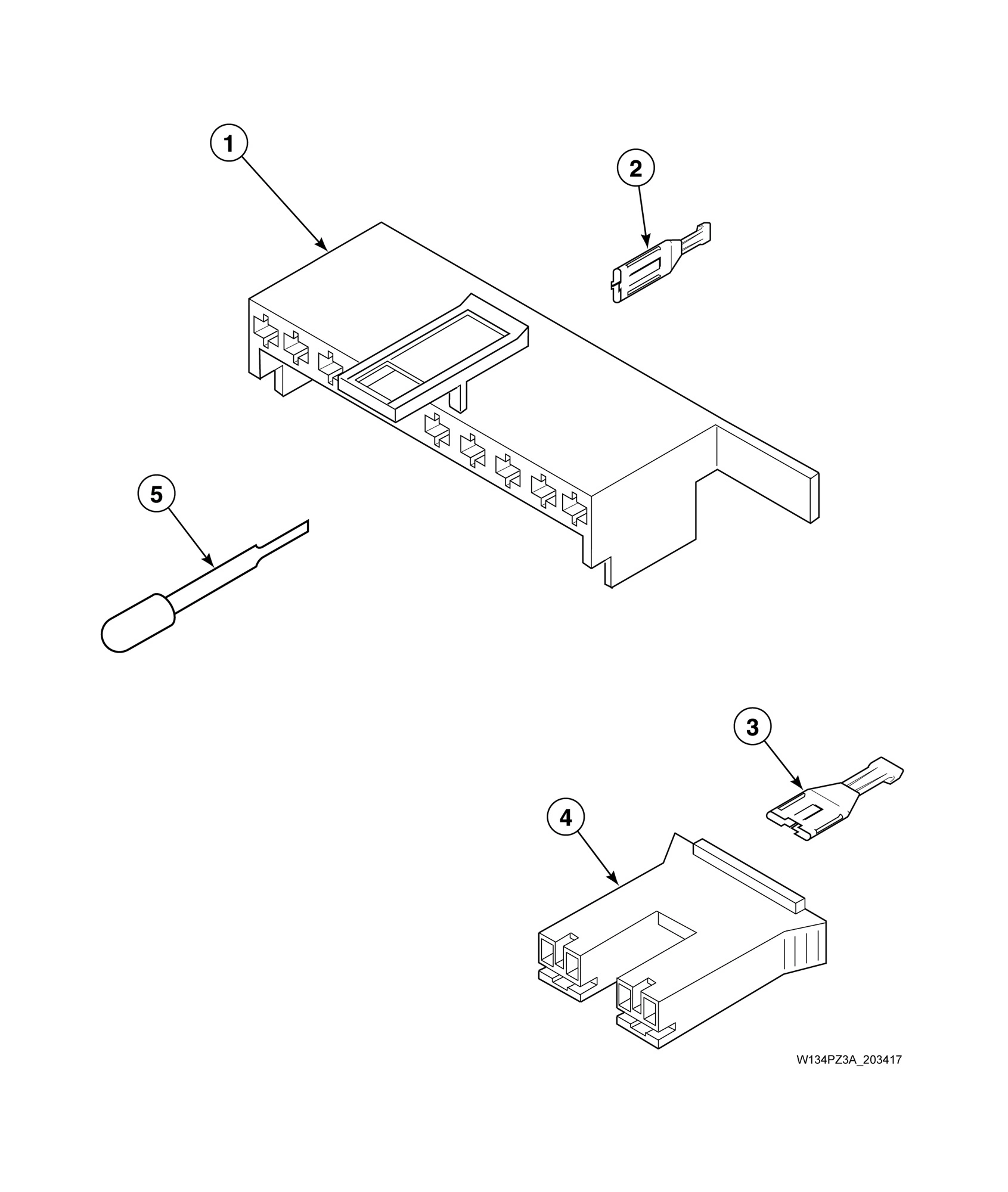

Mixing Valve and Motor Connection Blocks, Terminals and Extractor Tool

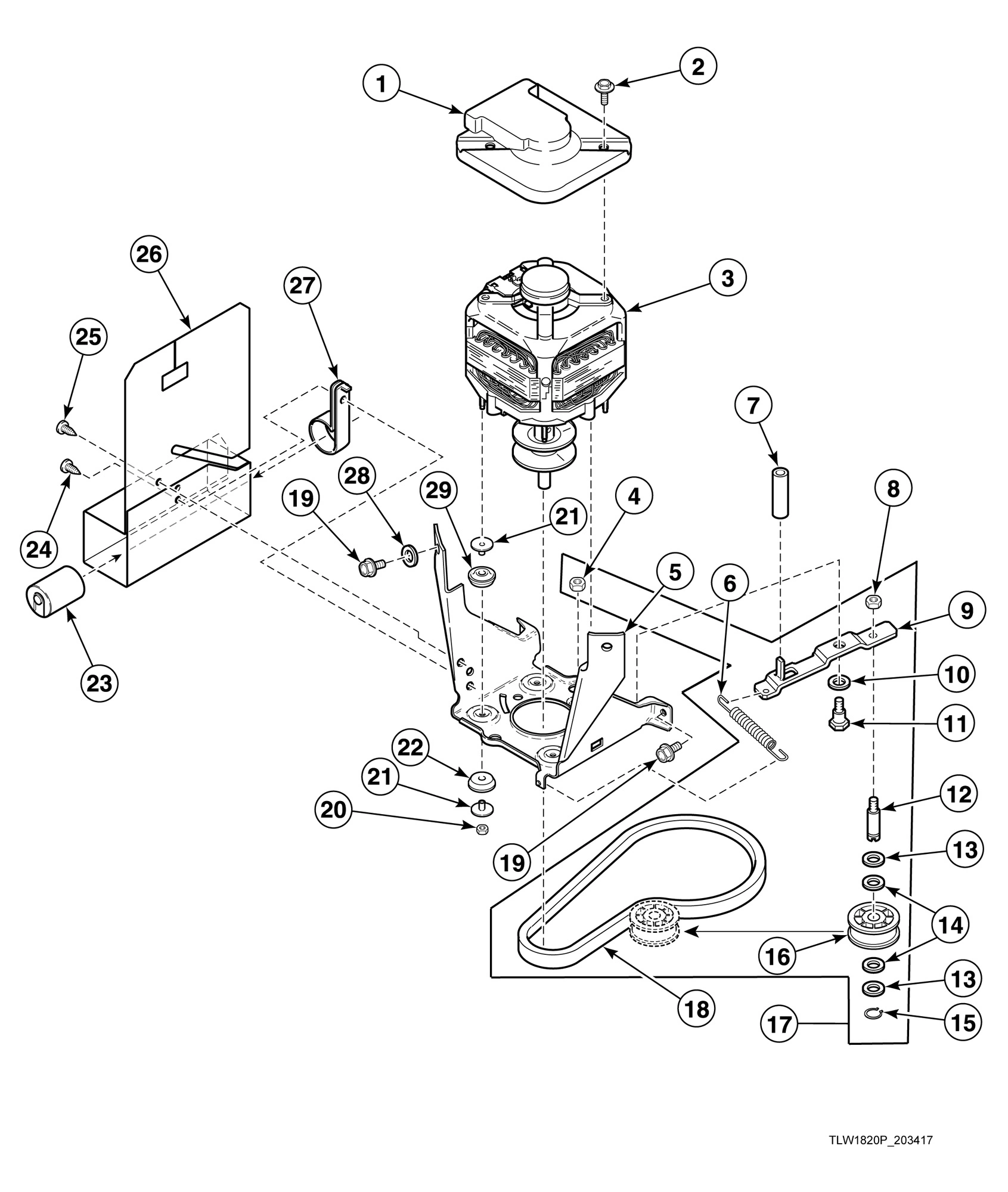

Motor, Mounting Bracket, Belt, and Idler Assembly

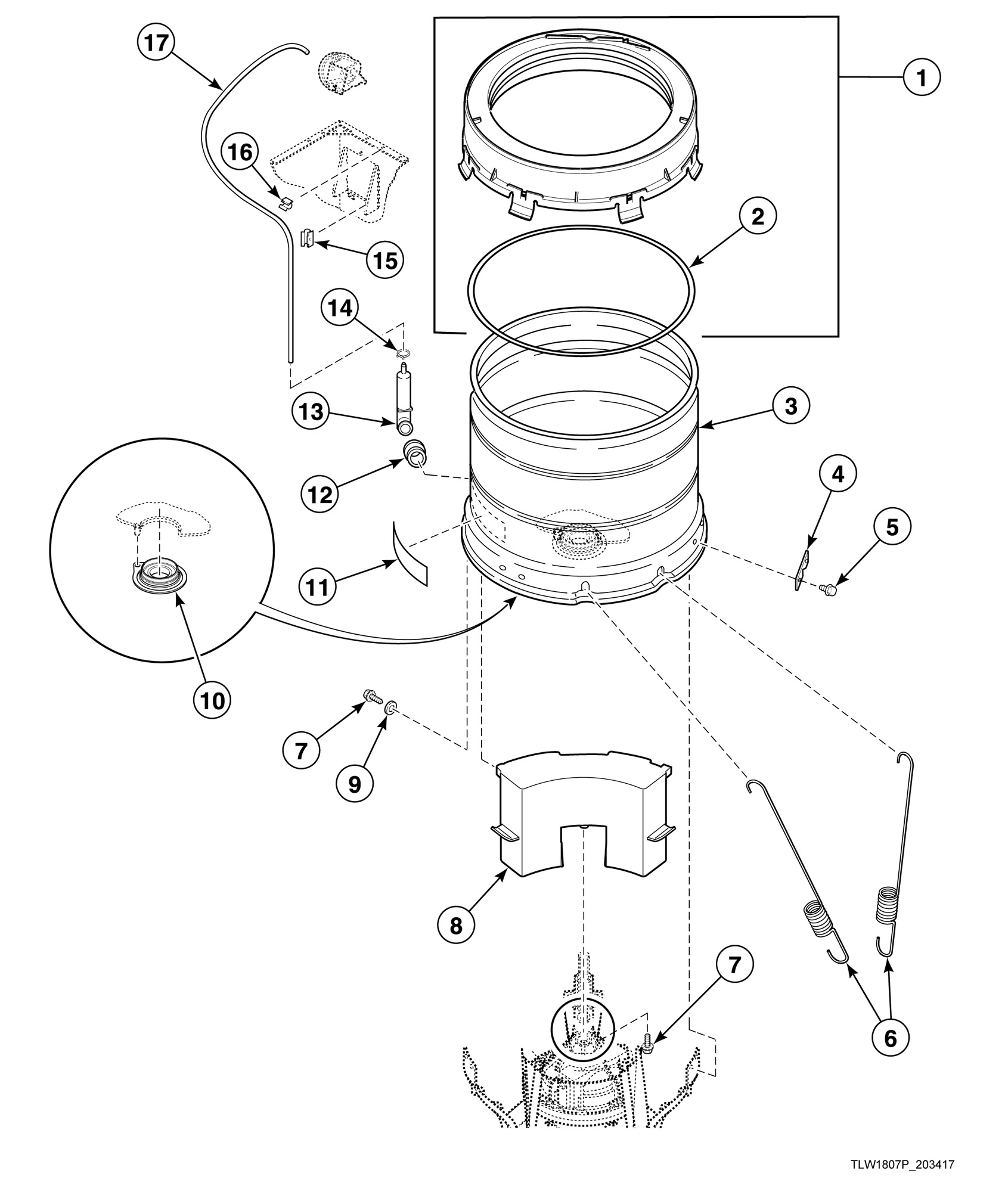

Outer Tub, Cover, Bearing and Seal Housing, Pressure Hose and Counterweight

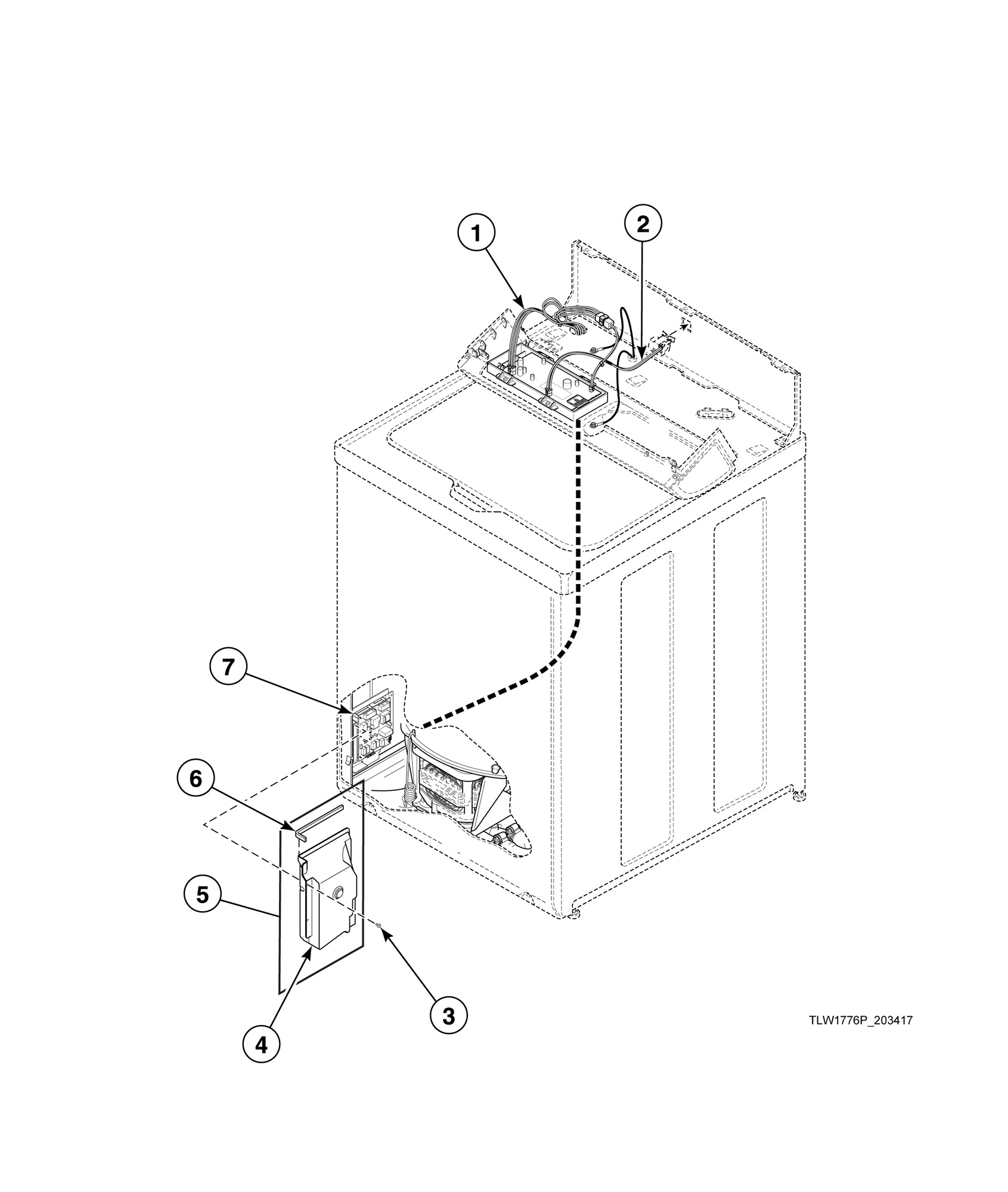

Output Board, Wire Harnesses and Wires

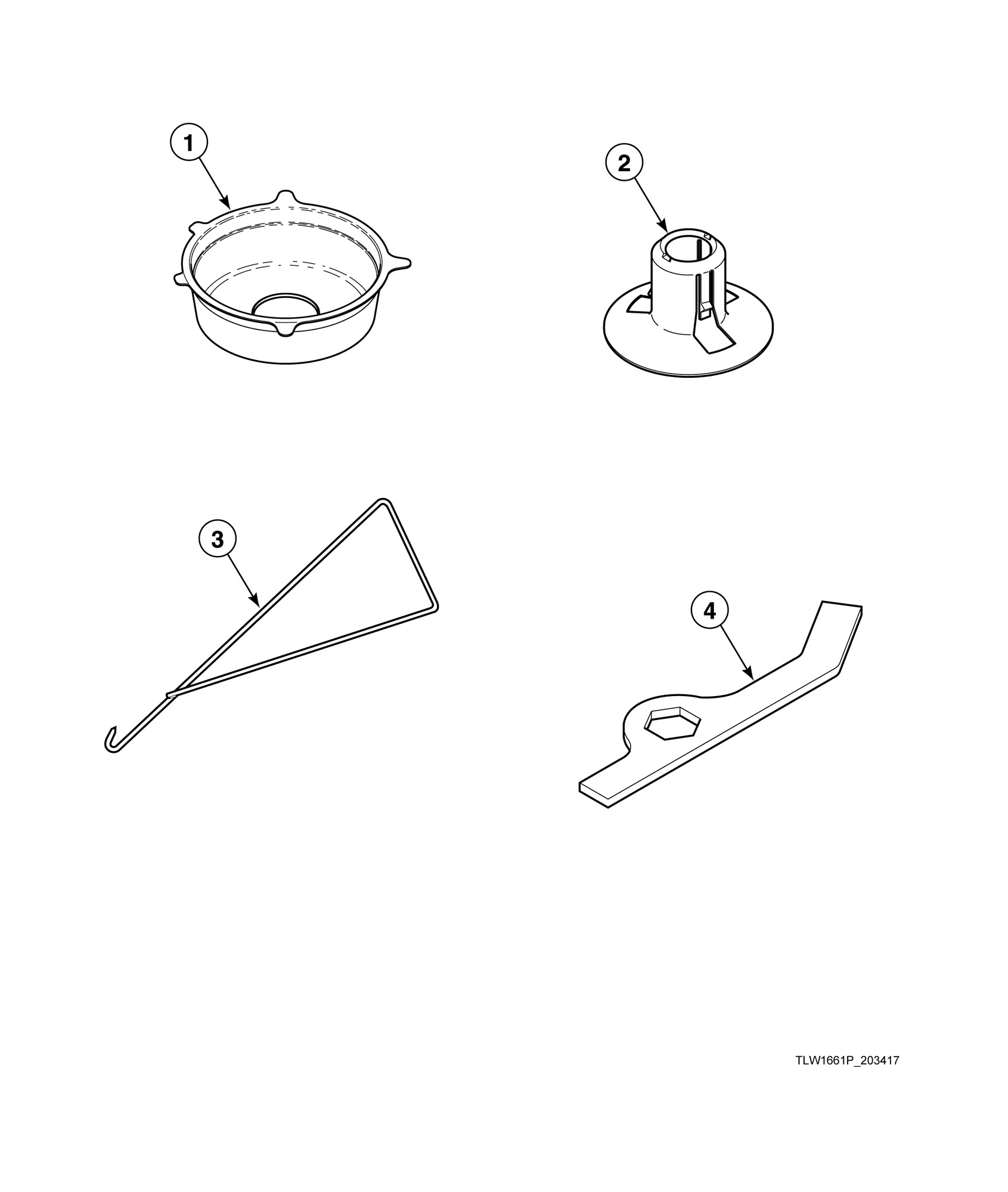

Shipping Brace, Plug and Special Tools

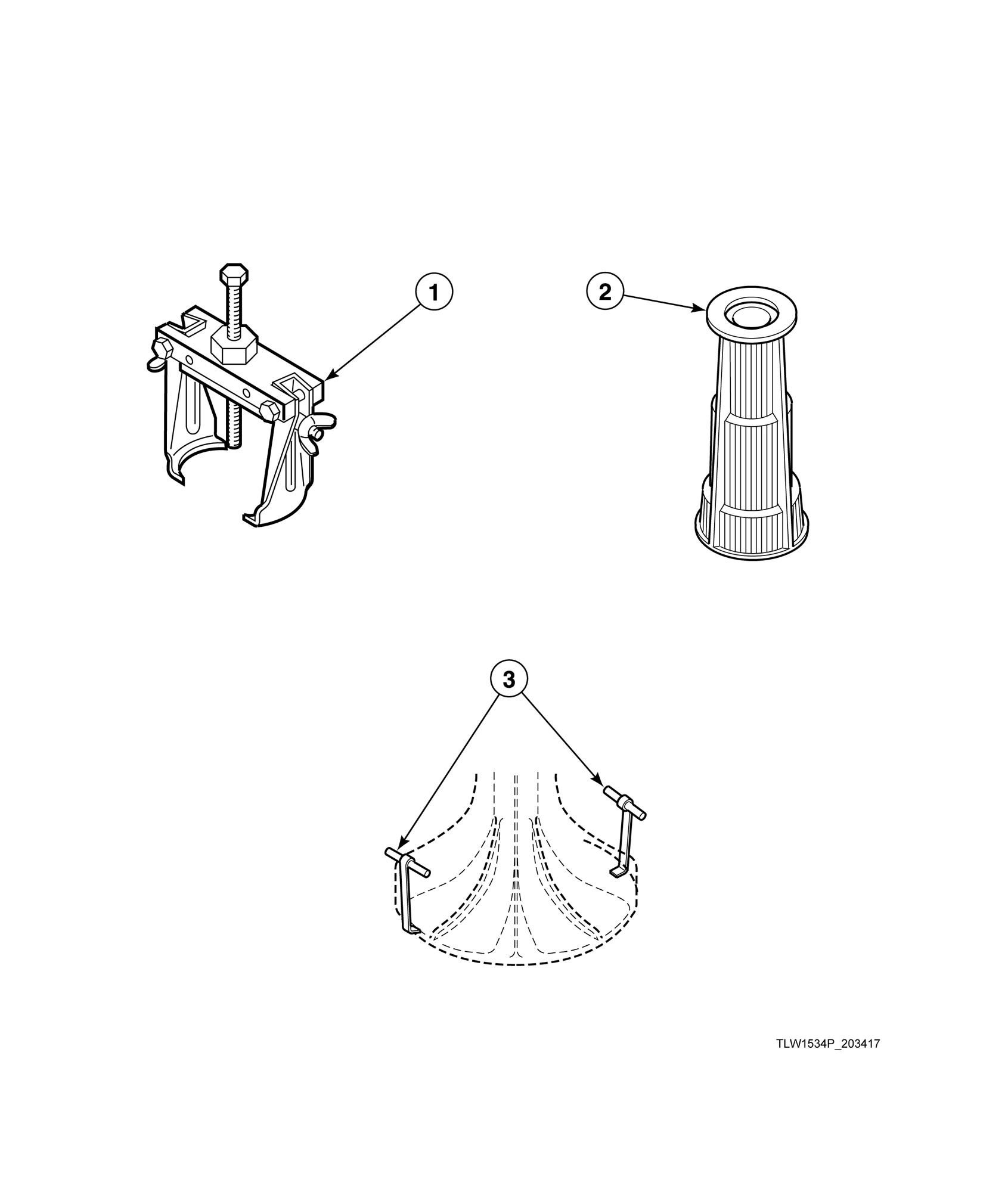

Special Tools

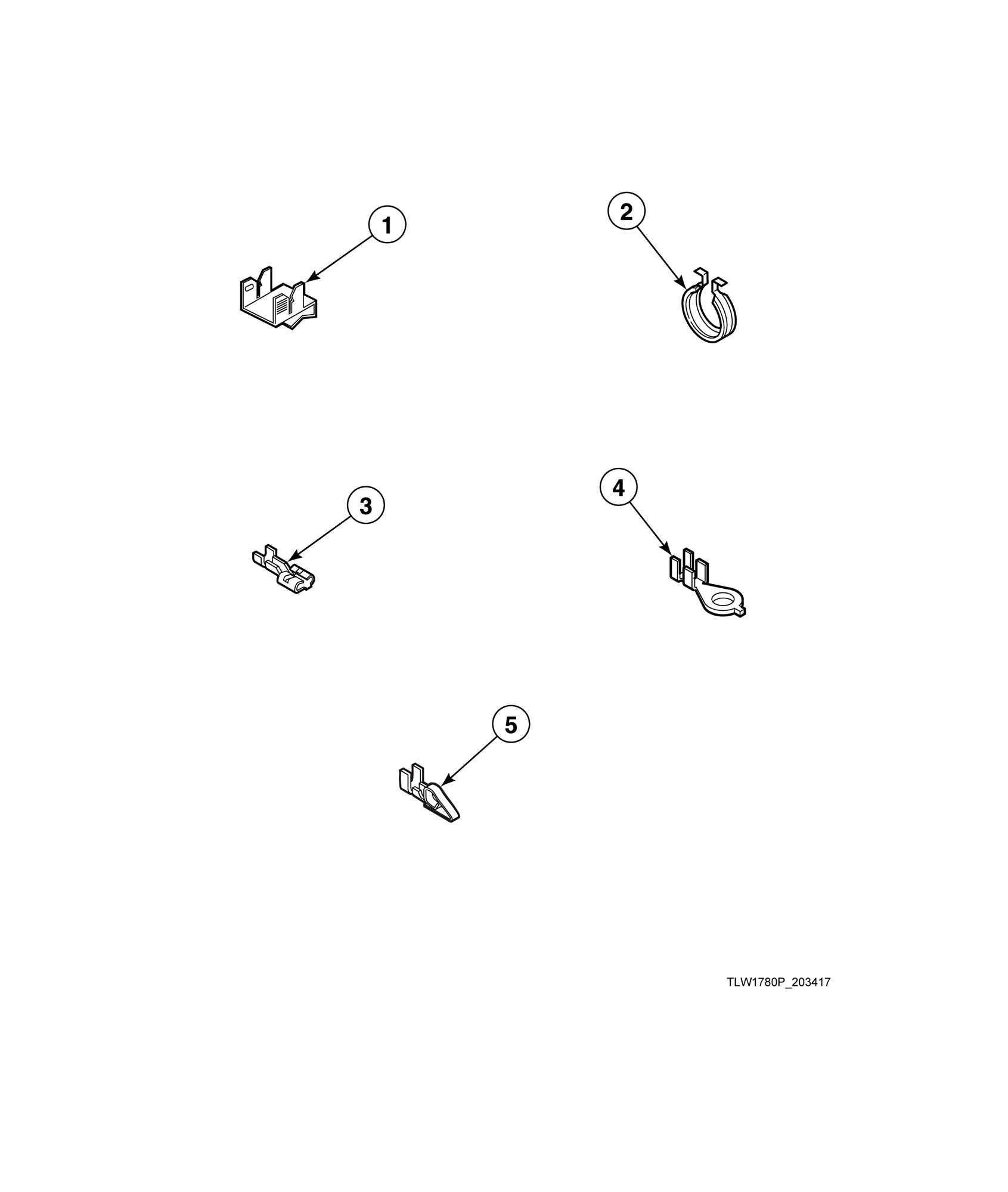

Terminals

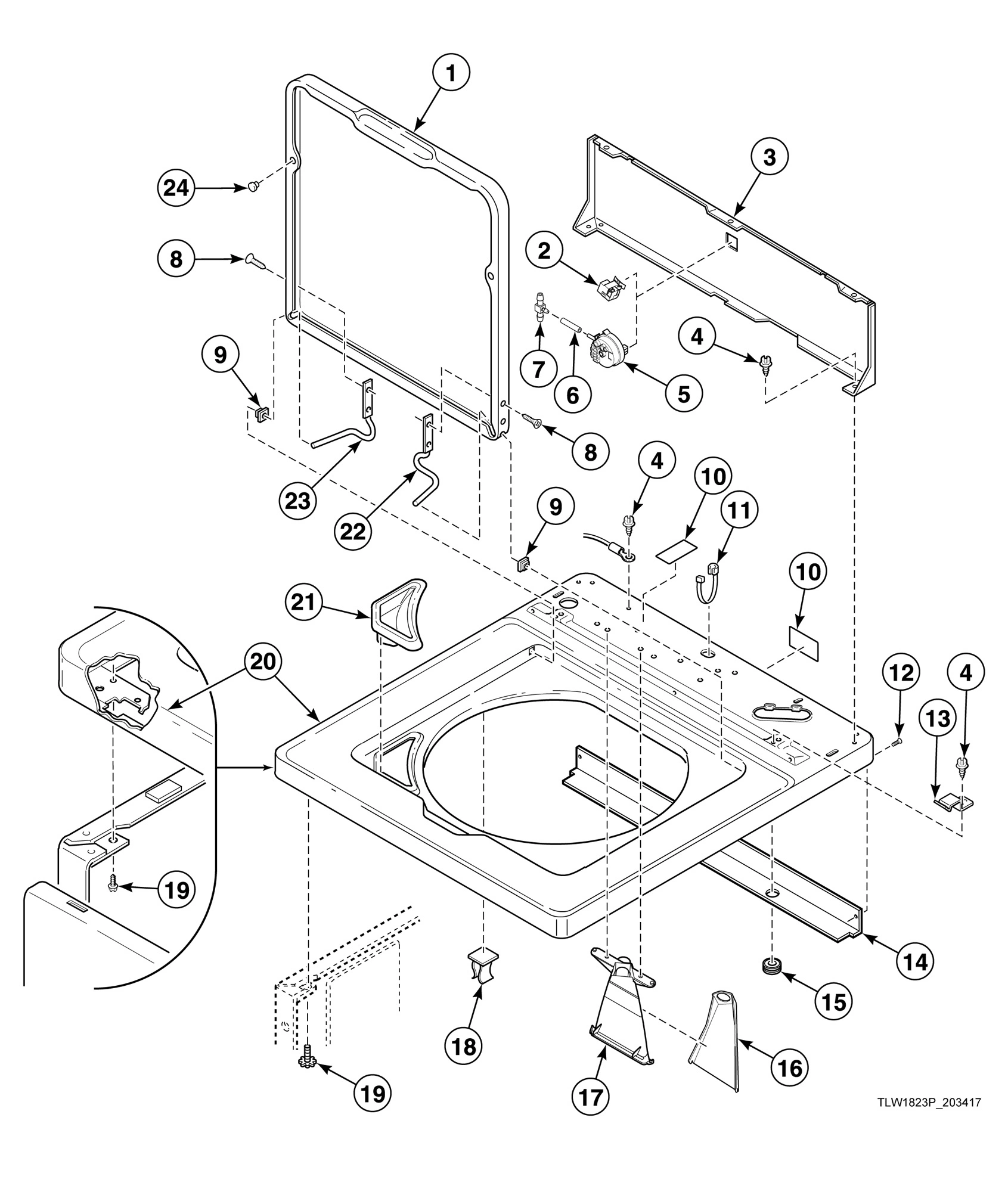

Top, Lid and Hood Back Panel

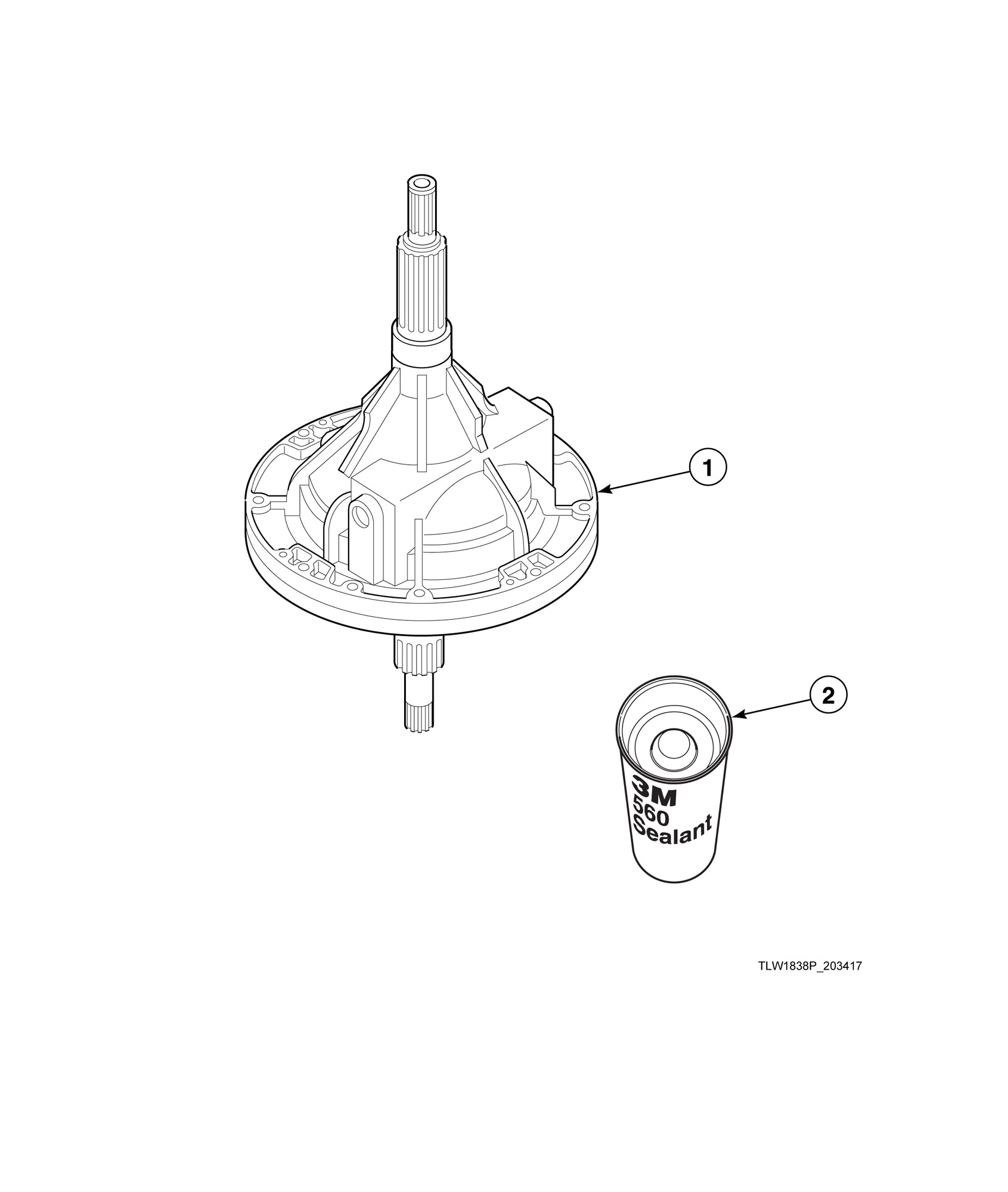

Transmission Assembly

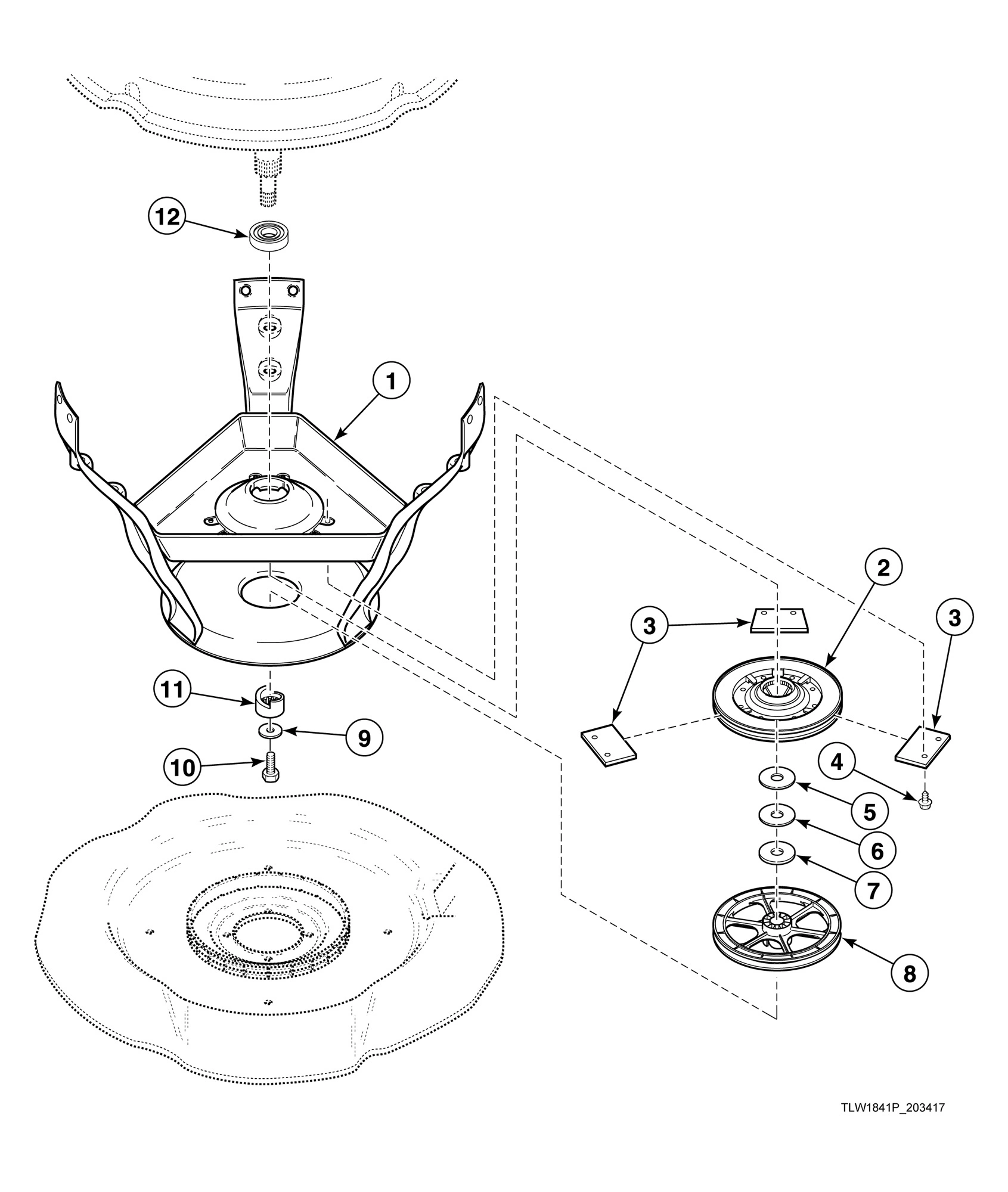

Weldment and Bearing Assembly, Brake and Pulley
Common parts from model GE AWNE82SN303AW01 General Electric Model AWNE82SN303AW01
1
Screw GEN 27202 Contact Us For Availability
1
Siphon Break Kit (Comment: Siphon break kit M GEN 562P3 Contact Us For Availability
1
Valve to Inlet Hose (Comment: Through Serial GEN 202884 Contact Us For Availability
1
Valve to Inlet Hose (Comment: Starting Serial GEN 204400 Contact Us For Availability
1
Bumper Pad GEN 56128 Contact Us For Availability
1
End Panel (Comment: Left) GEN D504009WP Contact Us For Availability
1
Nut GEN 29787 Contact Us For Availability
1
24 Position Housing (Comment: Right, Black) GEN 32746 Contact Us For Availability
1
Lid Switch Drip Shield GEN 203136 Contact Us For Availability
1
10 Circuit Plug (Comment: Motor) GEN 34677 Contact Us For Availability
1
Motor Shield GEN 34754 Contact Us For Availability
1
Tub Cover Assembly (Comment: Includes item 2) GEN 202888 Contact Us For Availability
1
Control Harness GEN 202685 Contact Us For Availability
1
Shipping Brace (Comment: Install whenever mov GEN 200553 Contact Us For Availability
1
Agitator Drive Bell Puller (Comment: For remo GEN 294P4 Contact Us For Availability
1
Grounding Clip GEN 00161 Contact Us For Availability
1
Terminal Grounding Clip GEN 00569SG Contact Us For Availability
1
Lid Warning Label GEN 203045 Contact Us For Availability
1
Lid GEN 37395WP Contact Us For Availability
1
Transmission Assembly (Comment: Includes item GEN 203768 Contact Us For Availability
1
Weldment and Bearing Assembly GEN 39253 Contact Us For Availability
2
Balance Ring Assembly GEN 39837 Contact Us For Availability
2
Sealant GEN 200996P Contact Us For Availability
2
Drain Hose Sleeve GEN 33615 Contact Us For Availability
2
Foam Pad GEN 39480 Contact Us For Availability
2
Screw GEN D501086 Contact Us For Availability
2
Line Filter GEN 804864 Contact Us For Availability
2
Female Terminal (Comment: For 1 or 2 wire app GEN 00188 Contact Us For Availability
2
Terminal GEN 00568SG Contact Us For Availability
2
Screw GEN M402574 Contact Us For Availability
2
Screw GEN 36639 Contact Us For Availability
2
Tub Cover Gasket GEN 38359 Contact Us For Availability
2
Pressure Sensor Harness GEN 804432 Contact Us For Availability
2
Shipping Plug (Comment: Install before moving GEN 38149 Contact Us For Availability
2
Drive Bell Seal Tool (Comment: For installati GEN 293P4 Contact Us For Availability
2
Wire Clip GEN D504034 Contact Us For Availability
2
Brake Kit GEN 38505P Contact Us For Availability
3
Washtub Kit (Comment: Stainless steel) GEN 719P3 Contact Us For Availability
3
Standpipe Strap GEN 33489 Contact Us For Availability
3
Hose Clamp GEN 800803 Contact Us For Availability
3
Panel Locator GEN 56079 Contact Us For Availability
3
Top Cover GEN 39905W Contact Us For Availability
3
Screw GEN 804667 Contact Us For Availability
3
Junction Box GEN 203068 Contact Us For Availability
3
Screw GEN D503688 Contact Us For Availability
3
Nut GEN M400981 Contact Us For Availability
3
Female Spade Terminal (Comment: 1/4 inch) GEN 00121 Contact Us For Availability
3
Motor Assembly (Comment: 2 speed, 240Volt/50 GEN 202544P Contact Us For Availability
3
Outer Tub Assembly GEN 203603P Contact Us For Availability
3
Outer Tub Kit (Comment: Includes item 10 inst GEN 204383 Contact Us For Availability
3
Outer Tub and Transmission Kit (Comment: Incl GEN 204568 Contact Us For Availability
3
Spring Hook Tool (Comment: For removal of mod GEN 321P4 Contact Us For Availability
3
Agitator Hook (Comment: Set of 2, Use to remo GEN 254P4P Contact Us For Availability
3
Female Spade Terminal (Comment: Large spade) GEN 00223 Contact Us For Availability
3
Terminal Tab GEN 00577 Contact Us For Availability
3
Hood Back Panel GEN 203110 Contact Us For Availability
3
Brake Pad Kit (Comment: Includes 3 pads) GEN 735P3 Contact Us For Availability
4
Washtub Gasket GEN 39122 Contact Us For Availability
4
Drain Hose GEN 39864 Contact Us For Availability
4
Mixing Valve Mounting Bracket (Comment: Start GEN 203558 Contact Us For Availability
4
Mixing Valve Mounting Bracket (Comment: Throu GEN 39407 Contact Us For Availability
4
Screw GEN 39733 Contact Us For Availability
4
Screw GEN 23962 Contact Us For Availability
4
Screw GEN 800258 Contact Us For Availability
4
Insulated Female Spade Terminal GEN 00359 Contact Us For Availability
4
Mixing Valve Plug (Comment: Natural) GEN 34675 Contact Us For Availability
4
Mixing Valve Plug (Comment: Red) GEN 34676 Contact Us For Availability
4
Nut GEN 52566 Contact Us For Availability
4
Leg Plate GEN 27926 Contact Us For Availability
4
Output Control Shield GEN 202939 Contact Us For Availability
4
Hex Wrench Tool (Comment: For removal of lock GEN 306P4 Contact Us For Availability
4
Ring Terminal (Comment: Small shank) GEN 00319 Contact Us For Availability
4
Screw GEN 39739 Contact Us For Availability
5
Hose Stand GEN 38732 Contact Us For Availability
5
Bumper Pad GEN 36226 Contact Us For Availability
5
End Panel (Comment: Right) GEN D504008WP Contact Us For Availability
5
Pressure Sensor GEN 203843 Contact Us For Availability
5
Lead-In Cord GEN 203120 Contact Us For Availability
5
Switch GEN 33445 Contact Us For Availability
5
Terminal Extractor Tool GEN 283P4 Contact Us For Availability
5
Motor Mount Bracket GEN 200941 Contact Us For Availability
5
Screw GEN 35369 Contact Us For Availability
5
Shield Assembly (Comment: Includes items 4 an GEN 202965 Contact Us For Availability
5
Pressure Switch Terminal GEN 00257 Contact Us For Availability
6
Spline Insert GEN 29728 Contact Us For Availability
6
Drain Pump GEN 39255P Contact Us For Availability
6
Washer (Comment: Flow restrictor, Water press GEN 802254 Contact Us For Availability
6
Washer (Comment: Filter screen) GEN 803615 Contact Us For Availability
6
Screw GEN 51780 Contact Us For Availability
6
Control Support Panel GEN 202942 Contact Us For Availability
6
Male Pin Terminal GEN 00116 Contact Us For Availability
6
Lid Switch Assembly GEN 37631 Contact Us For Availability
6
Idler Lever Spring GEN 201189 Contact Us For Availability
6
Leg Spring GEN 37575 Contact Us For Availability
6
Output Board Cover Gasket GEN 202964 Contact Us For Availability
6
Washer (Comment: Thick) GEN 27015 Contact Us For Availability
7
Nut GEN 29220 Contact Us For Availability
7
NOT ON YOUR MODEL GEN - Contact Us For Availability
7
Pump Bracket GEN 38789 Contact Us For Availability
7
Fill Hose (Comment: Marked for hot water, 4 f GEN 203718 Contact Us For Availability
7
Fill Hose (Comment: Marked for hot water, 4 f GEN 203719 Contact Us For Availability
7
Fill Hose (Comment: Marked for cold water, 4 GEN 203720 Contact Us For Availability
7
Fill Hose (Comment: Marked for cold water, 4 GEN 203750 Contact Us For Availability
7
Fill Hose (Comment: Marked for hot water, 4 f GEN 204102 Contact Us For Availability
7
Fill Hose (Comment: Marked for cold water, 4 GEN 204103 Contact Us For Availability
7
Control Assembly (Comment: Includes item 10) GEN 202772P Contact Us For Availability
7
9 Circuit Plug GEN 23033 Contact Us For Availability
7
Tube GEN 202333 Contact Us For Availability
7
Screw GEN 39566 Contact Us For Availability
7
Output Board Control Assembly GEN 202508P Contact Us For Availability
7
Silicone Grease (Comment: Apply small amount GEN 26594P Contact Us For Availability
7
Washer (Comment: For machines experiencing sq GEN 35535 Contact Us For Availability
7
Washer (Comment: Starting Serial Nos. beginni GEN 203950 Contact Us For Availability
8
Bell and Transmission Tube Seal GEN 36425 Contact Us For Availability
8
Screw (Comment: Metric) GEN 38096 Contact Us For Availability
8
GEN 20290 GEN 20290 Contact Us For Availability
8
Hold-Down Lug Hinge GEN 27103 Contact Us For Availability
8
Nut GEN 28803 Contact Us For Availability
8
Counterweight Assembly GEN 38769 Contact Us For Availability
8
Screw GEN 34337 Contact Us For Availability
8
Pulley GEN 202795 Contact Us For Availability
9
Screw GEN D503661 Contact Us For Availability
9
GEN 24122 GEN 24122 Contact Us For Availability
9
Warning Label GEN 803260 Contact Us For Availability
9
Graphic Panel GEN 202797P Contact Us For Availability
9
9 Circuit Receptacle GEN 26163 Contact Us For Availability
9
Idler Lever GEN 38011 Contact Us For Availability
9
Washer GEN 39249 Contact Us For Availability
9
Bushing GEN 33446 Contact Us For Availability
9
Washer GEN 26509 Contact Us For Availability
10
Hub and Lip Seal Kit GEN 766P3A Contact Us For Availability
10
Drive Bell and Seal Kit (Comment: Includes it GEN 39508P Contact Us For Availability
10
Pump Isolator GEN 38095 Contact Us For Availability
10
GEN 202396P GEN 202396P Contact Us For Availability
10
GEN 203928 GEN 203928 Contact Us For Availability
10
Service Cabinet Kit GEN 38612WP Contact Us For Availability
10
Control Overlay GEN 202751 Contact Us For Availability
10
Female Pin Terminal GEN 00574SG Contact Us For Availability
10
Washer GEN 81392 Contact Us For Availability
10
Disconnect Power Warning Label GEN D505281 Contact Us For Availability
10
Screw GEN 27220 Contact Us For Availability
11
Screw GEN 39432 Contact Us For Availability
11
Pump Shield GEN 38768 Contact Us For Availability
11
GEN 39397 GEN 39397 Contact Us For Availability
11
Screw GEN 27196 Contact Us For Availability
11
Harness Strap GEN 55881 Contact Us For Availability
11
Screw GEN 27229 Contact Us For Availability
11
Warning Label GEN D500049 Contact Us For Availability
11
Strain Relief GEN 38384 Contact Us For Availability
11
Helix GEN 38008 Contact Us For Availability
12
Bell Plug GEN 36511 Contact Us For Availability
12
Hose Clamp GEN 20391 Contact Us For Availability
12
GEN 36801 GEN 36801 Contact Us For Availability
12
Leg and Stabilizer Assembly GEN 34443 Contact Us For Availability
12
Wire Tie GEN 70296701 Contact Us For Availability
12
Idler Shaft GEN 210186 Contact Us For Availability
12
Grommet GEN 29175 Contact Us For Availability
12
Screw GEN 431287 Contact Us For Availability
12
Lower Bearing GEN 28944RP Contact Us For Availability
13
Flex Vane Agitator GEN 36507 Contact Us For Availability
13
Retainer Clip GEN 36014 Contact Us For Availability
13
GEN 202899 GEN 202899 Contact Us For Availability
13
Screw GEN 35148 Contact Us For Availability
13
Hold-Down Clip GEN 35358 Contact Us For Availability
13
Washer GEN D504082 Contact Us For Availability
13
Pressure Bulb GEN 30907 Contact Us For Availability
14
Fabric Softener Dispenser Assembly GEN 36542 Contact Us For Availability
14
Tub-to-Pump Hose GEN 38759 Contact Us For Availability
14
Bracket (Comment: Right) GEN 36036 Contact Us For Availability
14
Washer (Comment: Nylatron) GEN 52549 Contact Us For Availability
14
Hose Clamp GEN 39282 Contact Us For Availability
14
Top Shield GEN 203946 Contact Us For Availability
15
Hose Clamp GEN F200204 Contact Us For Availability
15
Rubber Foot GEN 34318 Contact Us For Availability
15
Grommet GEN 80262 Contact Us For Availability
15
Retaining Ring GEN 23748 Contact Us For Availability
15
Hose Clip GEN 36985 Contact Us For Availability
16
Strain Relief GEN 32219 Contact Us For Availability
16
Base Assembly GEN 39788 Contact Us For Availability
16
Cable Clip GEN 21036 Contact Us For Availability
16
Idler Pulley GEN 38225P Contact Us For Availability
16
Inlet Cover GEN 202894 Contact Us For Availability
17
Leveling Leg GEN 34319 Contact Us For Availability
17
Idler Lever and Belt Kit (Comment: Includes i GEN 202972 Contact Us For Availability
17
Tubing GEN 202700 Contact Us For Availability
17
Inlet Deflector GEN 202900 Contact Us For Availability
18
Nut GEN 21899 Contact Us For Availability
18
Agitate and Spin Belt GEN 200923 Contact Us For Availability
18
Hinge Stop Clip GEN 36519 Contact Us For Availability
19
Screw GEN 33562 Contact Us For Availability
19
Friction Ring GEN 37937 Contact Us For Availability
20
Adjustable Leg Extension Kit GEN 566P3 Contact Us For Availability
20
Nut GEN 35423 Contact Us For Availability
20
Top GEN 37992WP Contact Us For Availability
21
Bracket (Comment: Left) GEN 36037 Contact Us For Availability
21
Isolator Post GEN 38325 Contact Us For Availability
21
Bleach Dispenser GEN 38382 Contact Us For Availability
22
Front Panel Pad GEN 36204 Contact Us For Availability
22
Isolator Assembly GEN 204062 Contact Us For Availability
22
Lid Hinge (Comment: Right) GEN 36437 Contact Us For Availability
23
Panel Locator GEN 28102 Contact Us For Availability
23
Capacitor GEN 203140 Contact Us For Availability
23
Lid Hinge (Comment: Left) GEN 36513 Contact Us For Availability
24
Foam Pad GEN 203484 Contact Us For Availability
24
Screw GEN 31645 Contact Us For Availability
24
Bumper GEN 21685 Contact Us For Availability
25
Front Panel GEN 38335WP Contact Us For Availability
25
Screw GEN 52909 Contact Us For Availability
26
Screw GEN 38272 Contact Us For Availability
26
Motor Drip Shield GEN 203053 Contact Us For Availability
27
Hold-Down Clip GEN 35865 Contact Us For Availability
27
Capacitor Clamp GEN 37535 Contact Us For Availability
28
Front Panel Brace GEN 35097 Contact Us For Availability
28
Washer GEN 37772 Contact Us For Availability
29
Motor Mount GEN 38395 Contact Us For Availability
NA
Drain Extension Kit GEN 451P3 Contact Us For Availability
NA
Porcelain Touch-Up Paint GEN 122P4P Contact Us For Availability
NA
EMI Filter Assembly (Comment: Includes 29787 GEN 203111P Contact Us For Availability
NA
Cable Tie GEN 804724 Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
NA
Foam Shipping Brace (Comment: Install before GEN 202890 Contact Us For Availability
NA
Washer Installation Kit GEN 204058 Contact Us For Availability
NA
Tool Kit (Comment: Includes items 4, 5, sprin GEN 725P3 Contact Us For Availability
NA
Anti-Seize Compound (Comment: Apply to smooth GEN 27604P Contact Us For Availability
× ![]()
