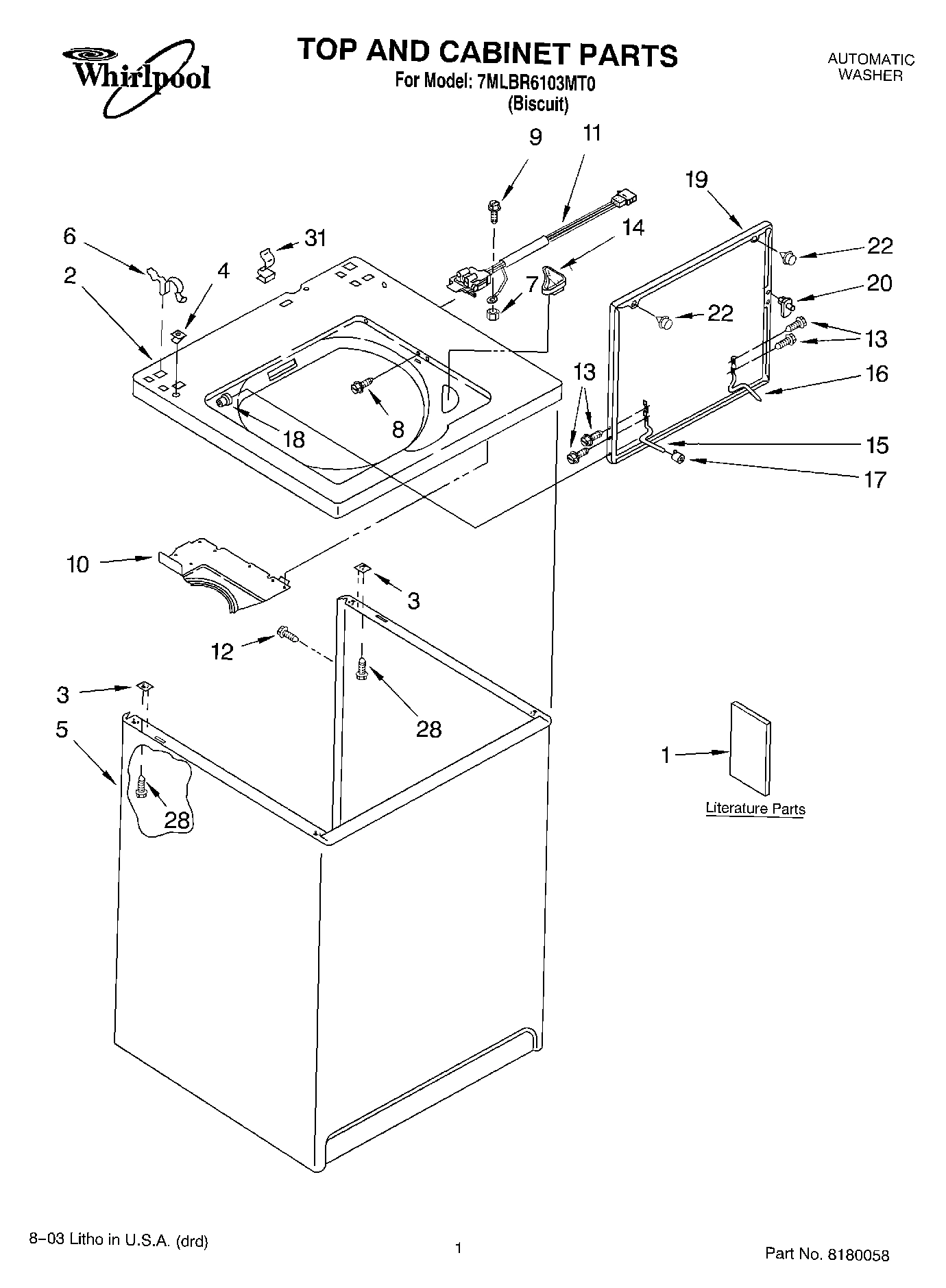

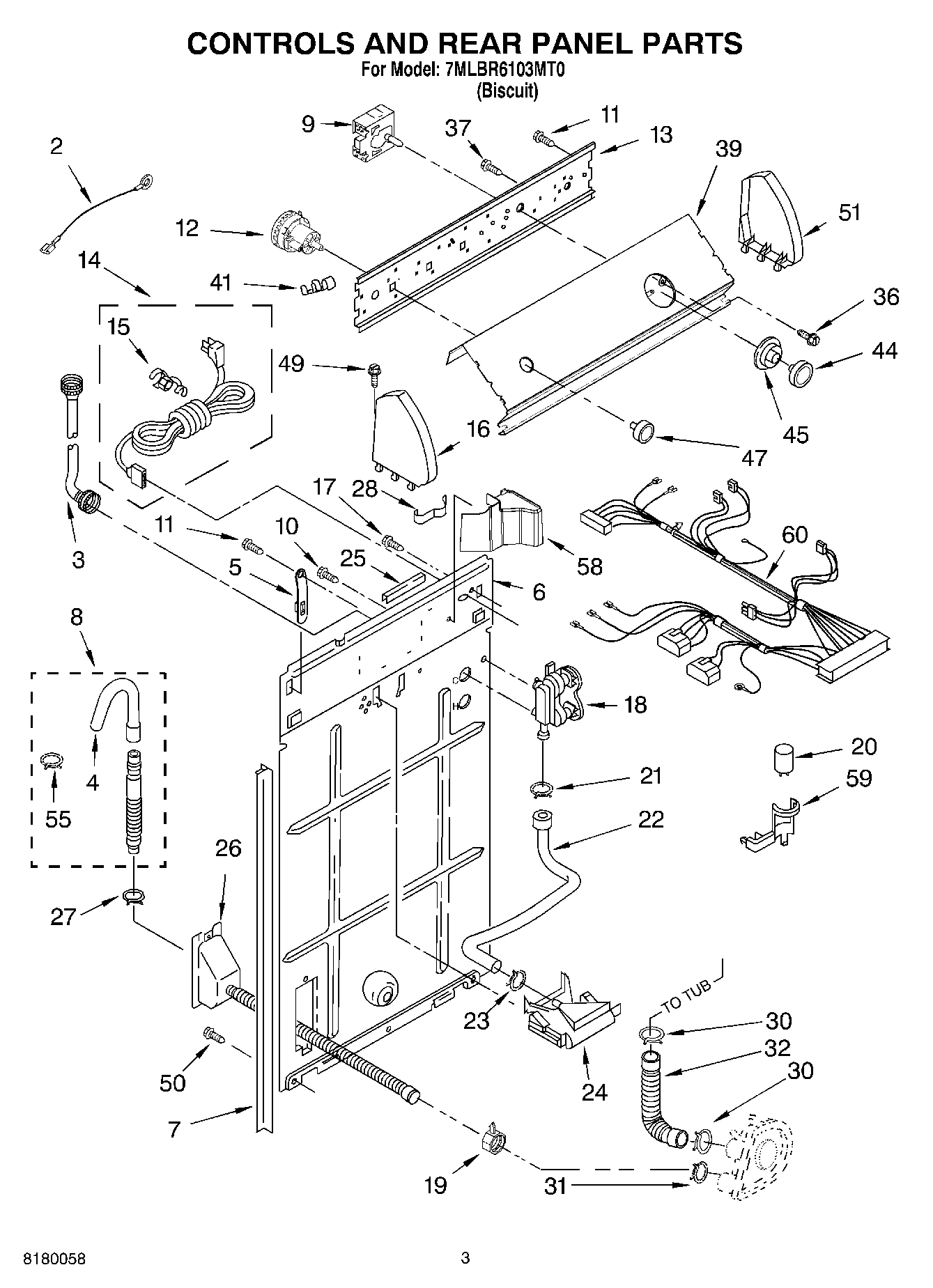

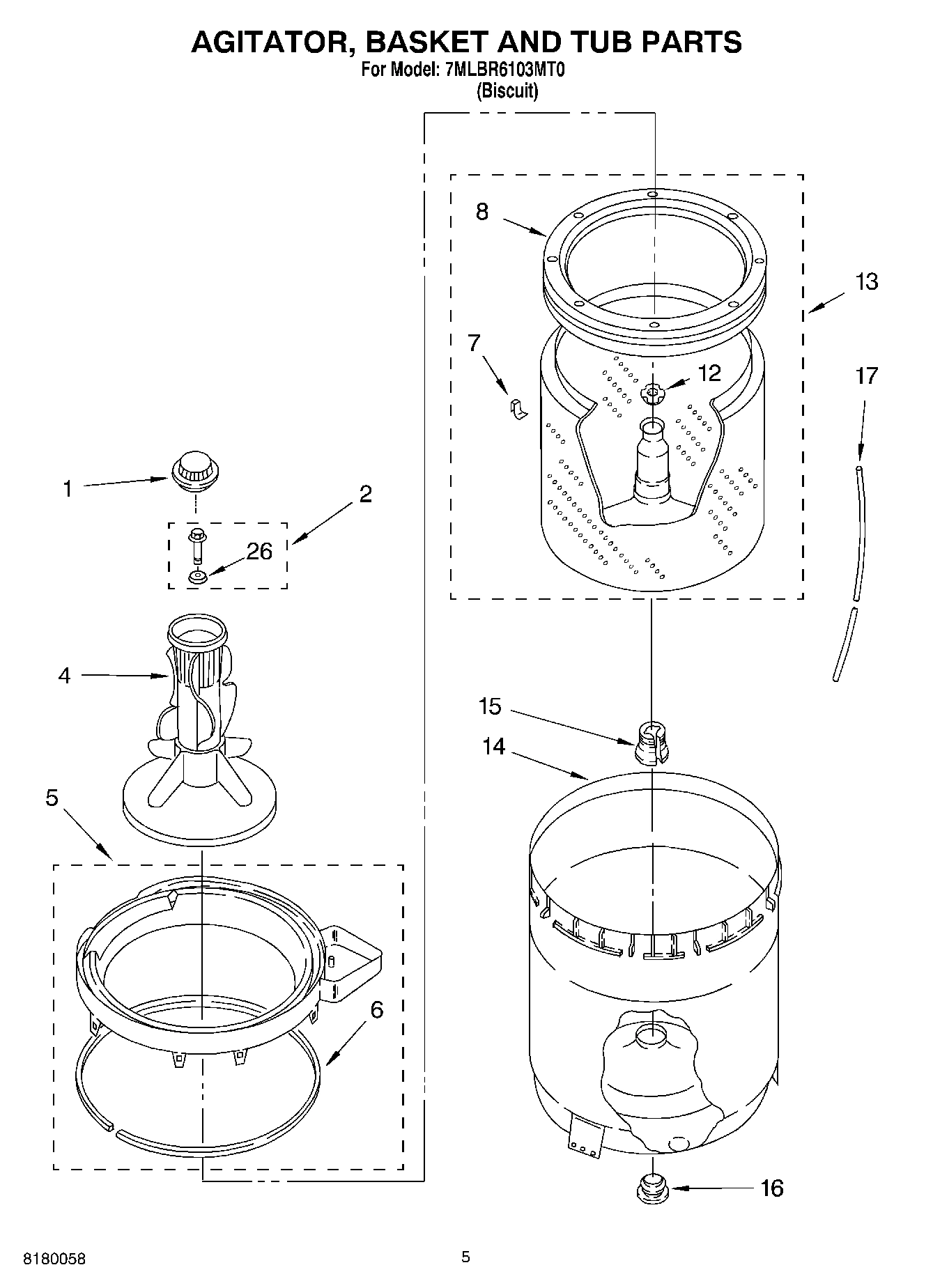

Model Whirlpool 7MLBR6103MT0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $3.70

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT8539736 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT8539757 Contact Us For Availability

1

Literature Parts (Energy Guide) WPL LIT8539773 Contact Us For Availability

1

Literature Parts (Wiring Diagram) WPL LIT8542379 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

285321 Whirlpool Sleeve Backorder WPL 285321 $26.75

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

Top WPL 8271410 Contact Us For Availability

2

Wire, Ground WPL 3398893 Contact Us For Availability

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $3.62

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $28.80

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

4

WP63235 Whirlpool Agitator Assembly Backorder WPL WP63235 $103.86

5

WP8568314 Whirlpool Strap In Stock WPL WP8568314 $3.70

5

Tub Ring WPL 3360611 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Cabinet WPL 3954777 Contact Us For Availability

6

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

6

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

6

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

6

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

6

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

6

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

6

WP3359586 Whirlpool Tub Seal Backorder WPL WP3359586 $28.80

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

Link, Leveling Mechanism (2) WPL 63138 Contact Us For Availability

6

Panel, Rear WPL 8318407 Contact Us For Availability

7

W10080180 Whirlpool Nut Backorder WPL W10080180 $9.59

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $2.51

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $28.37

8

285702 Whirlpool Extensions Backorder WPL 285702 $37.95

8

WP3356311 Whirlpool Screw Backorder WPL WP3356311 $2.51

8

WP3956205 Whirlpool Balance Ring Backorder WPL WP3956205 $71.69

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP8542377 Whirlpool Timer Backorder WPL WP8542377 $158.79

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

Spring, Agitate WPL 62676 Contact Us For Availability

Shield, Lid Switch WPL 3950995 Contact Us For Availability

11

353424 Whirlpool Connector Backorder WPL 353424 $10.76

11

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

11

Switch, Lid WPL 3950299 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W10820051 Whirlpool Washer Pressure Switch In Stock WPL W10820051 $89.43

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

BASKET WPL 3956206 Contact Us For Availability

Bracket, Control WPL 3948814 Contact Us For Availability

W10130795 Whirlpool Power Cord Backorder WPL W10130795 $58.70

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Tub WPL 63125 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

Strain Relief, Power Cord WPL 3949468 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP91770 Whirlpool Hinge Backorder WPL WP91770 $8.80

Washer, Cam Thrust WPL 62618 Contact Us For Availability

Cap, End (L.H.) WPL 8314852 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

18

WP8541697 Whirlpool Valve Backorder WPL WP8541697 $72.56

19

Clamp, Hose WPL 3976395 No Longer Available

19

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

19

Lid WPL 8541703 Contact Us For Availability

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $42.80

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

BLOCK TAB, TERMINAL WPL 3949116 Contact Us For Availability

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

21

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

21

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $7.83

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

23

Ring, Retaining WPL 3362552 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

24

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $28.69

24

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

Edge Protector WPL 303294 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

26

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.72

26

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $14.40

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

27

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $8.69

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

28

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

28

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

30

WPL 3948615 WPL 3948615 Contact Us For Availability

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

36

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $2.51

37

Screw, Ground WPL 3179795 Contact Us For Availability

39

Panel, Console WPL 8539611 Contact Us For Availability

41

W10113937 Whirlpool Clamp Backorder WPL W10113937 $4.78

44

WP3957822 Whirlpool Knob Backorder WPL WP3957822 $30.14

45

Dial, Timer WPL 8271370 Contact Us For Availability

47

3957797 Whirlpool Knob Backorder WPL 3957797 $29.43

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

51

Cap, End (R.H.) WPL 8314851 Contact Us For Availability

55

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

58

Shield, Inlet Valve WPL 8314879 Contact Us For Availability

59

Clip, Capacitor WPL 8318201 Contact Us For Availability

60

Harness, Wiring (For Detail See Pages 9 & 10) WPL 3956525 Contact Us For Availability
