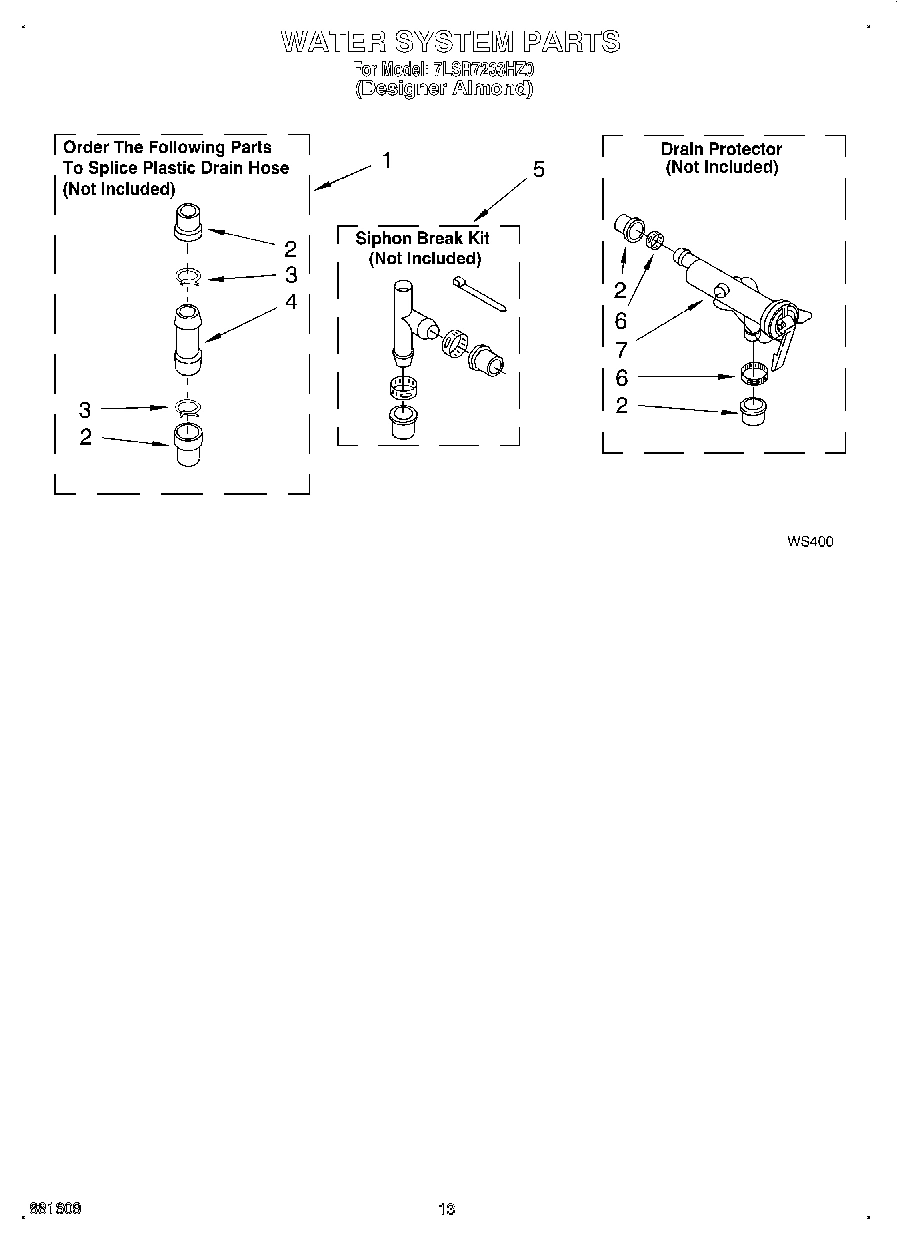

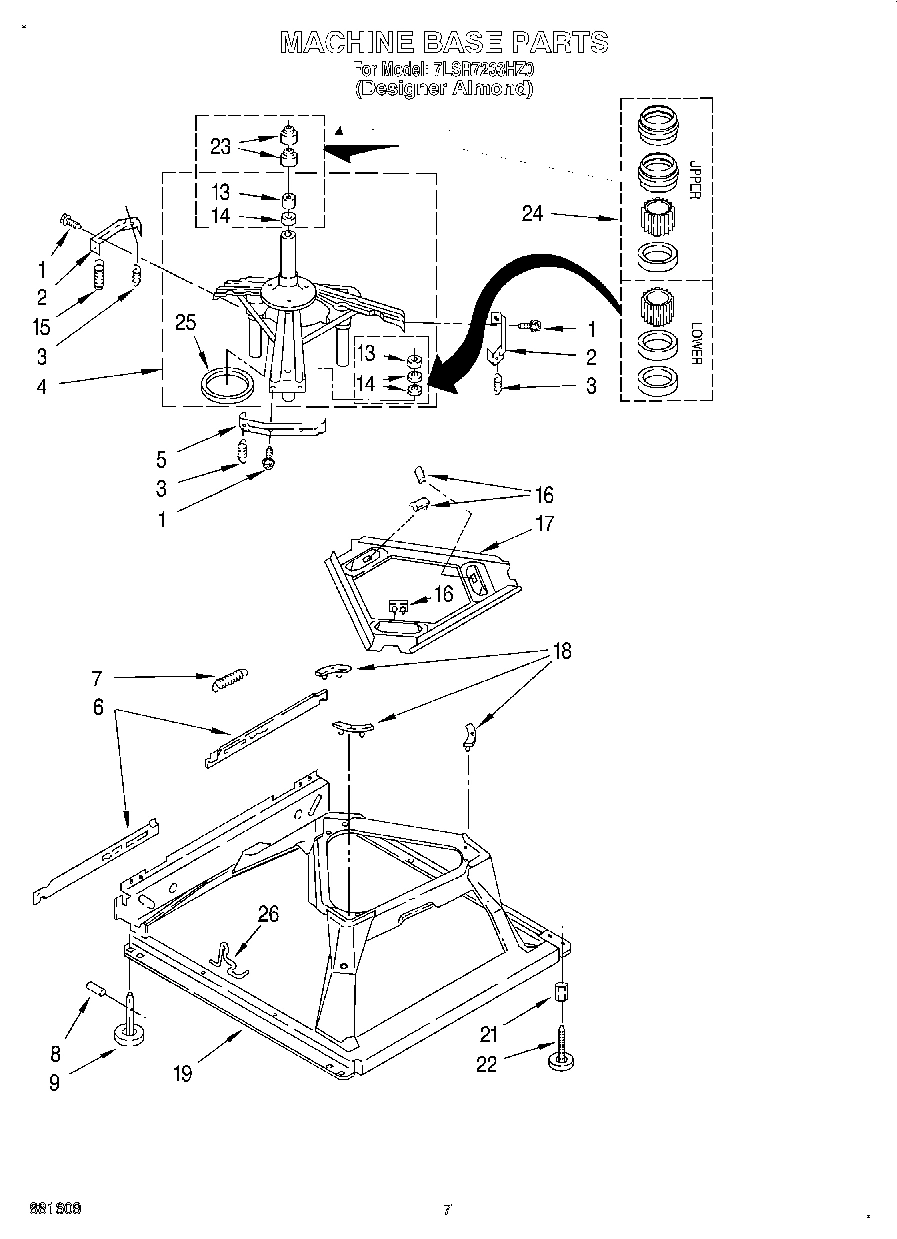

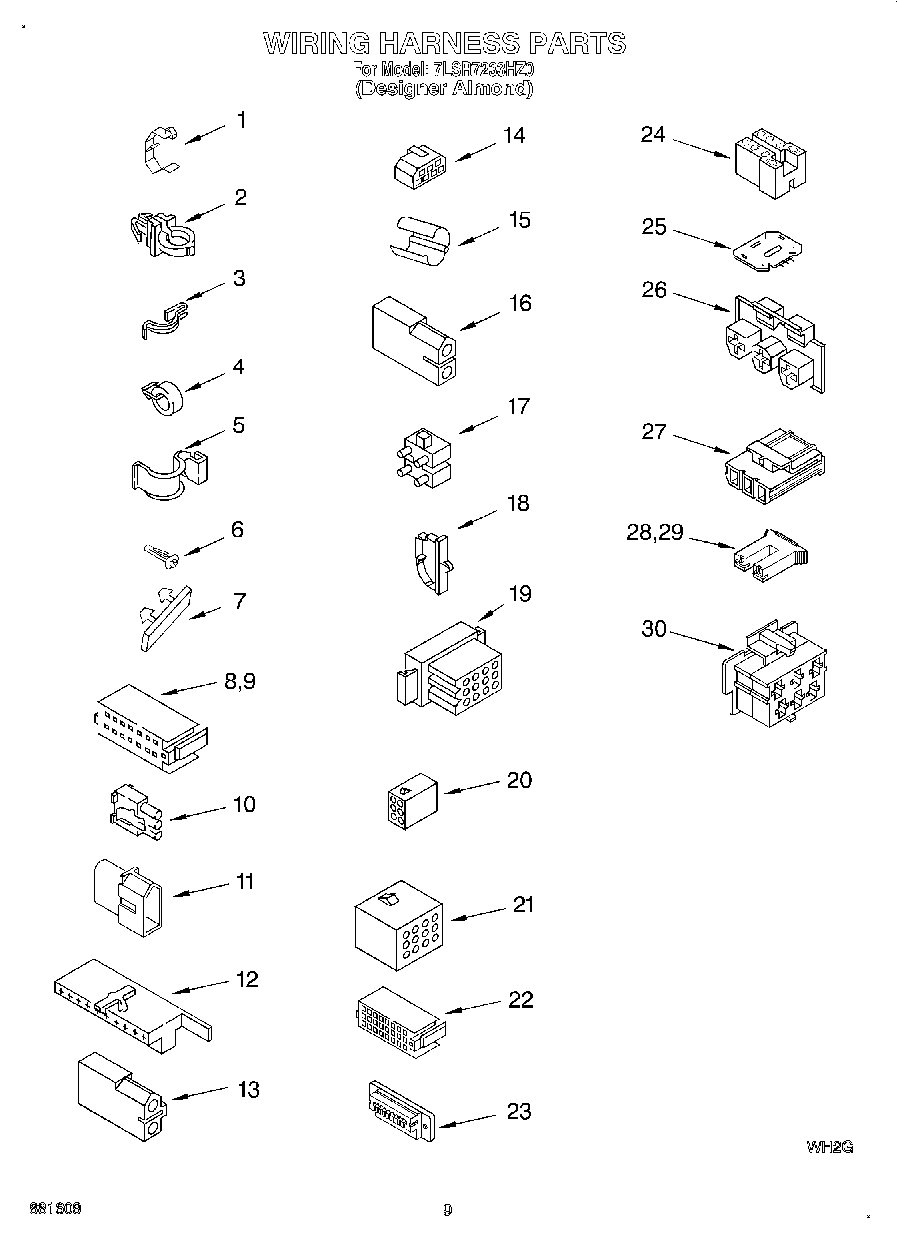

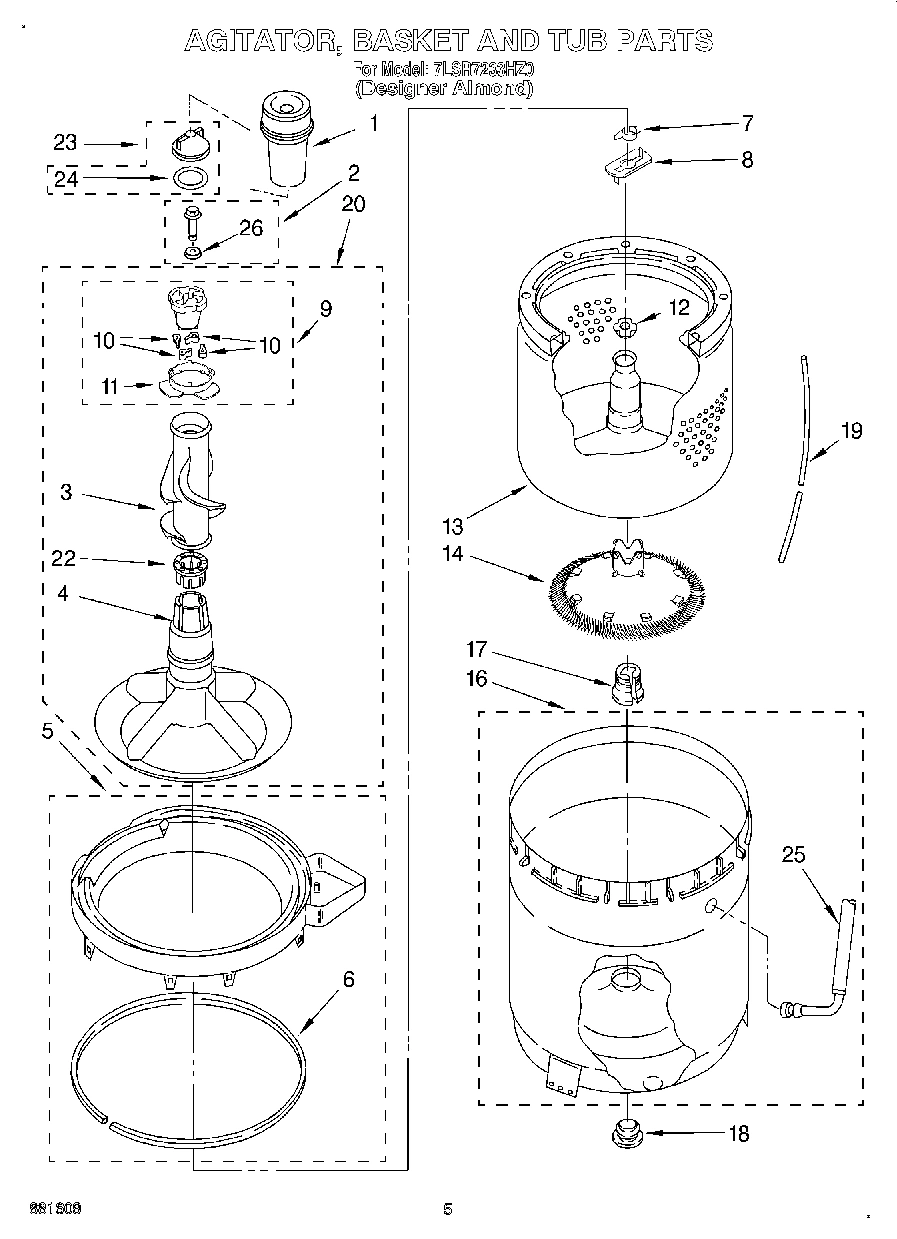

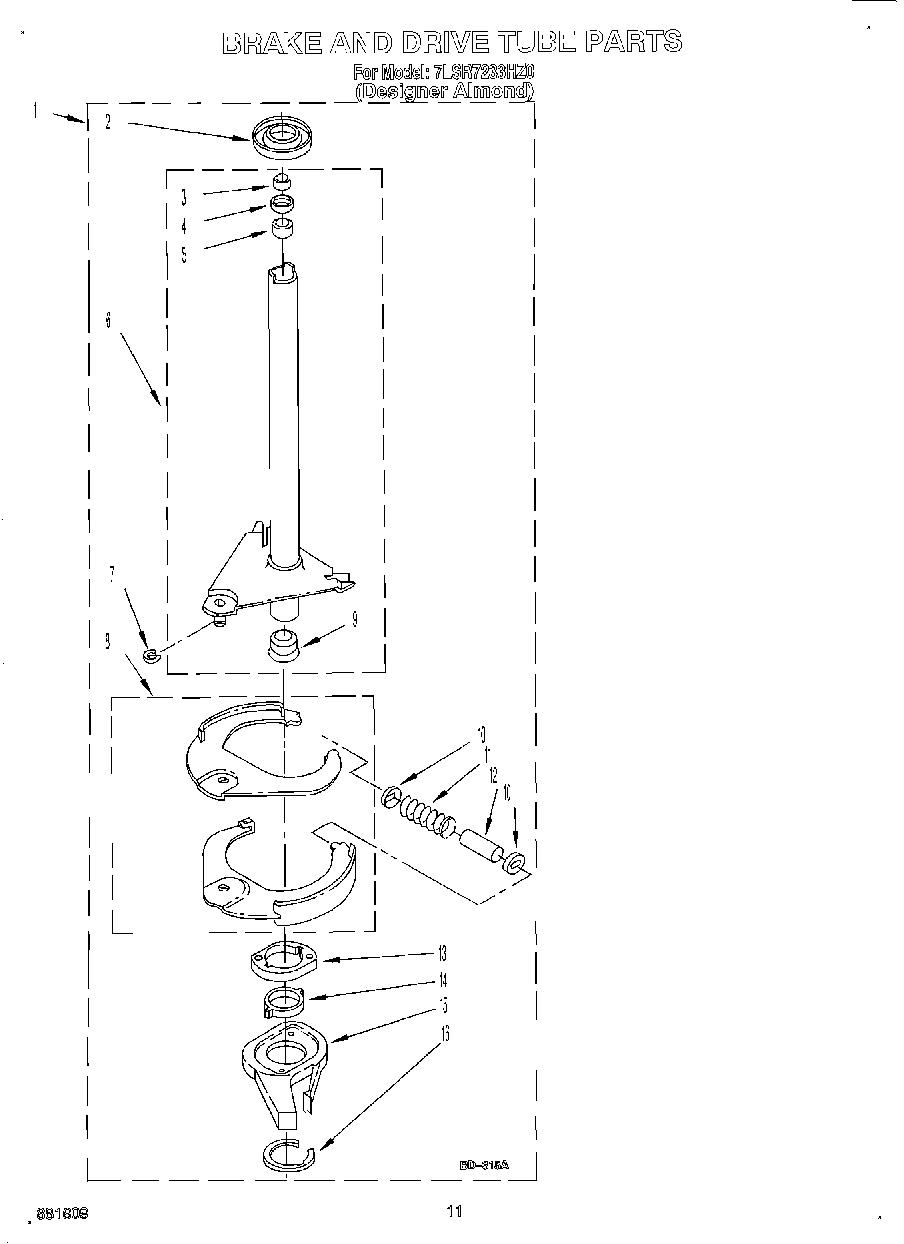

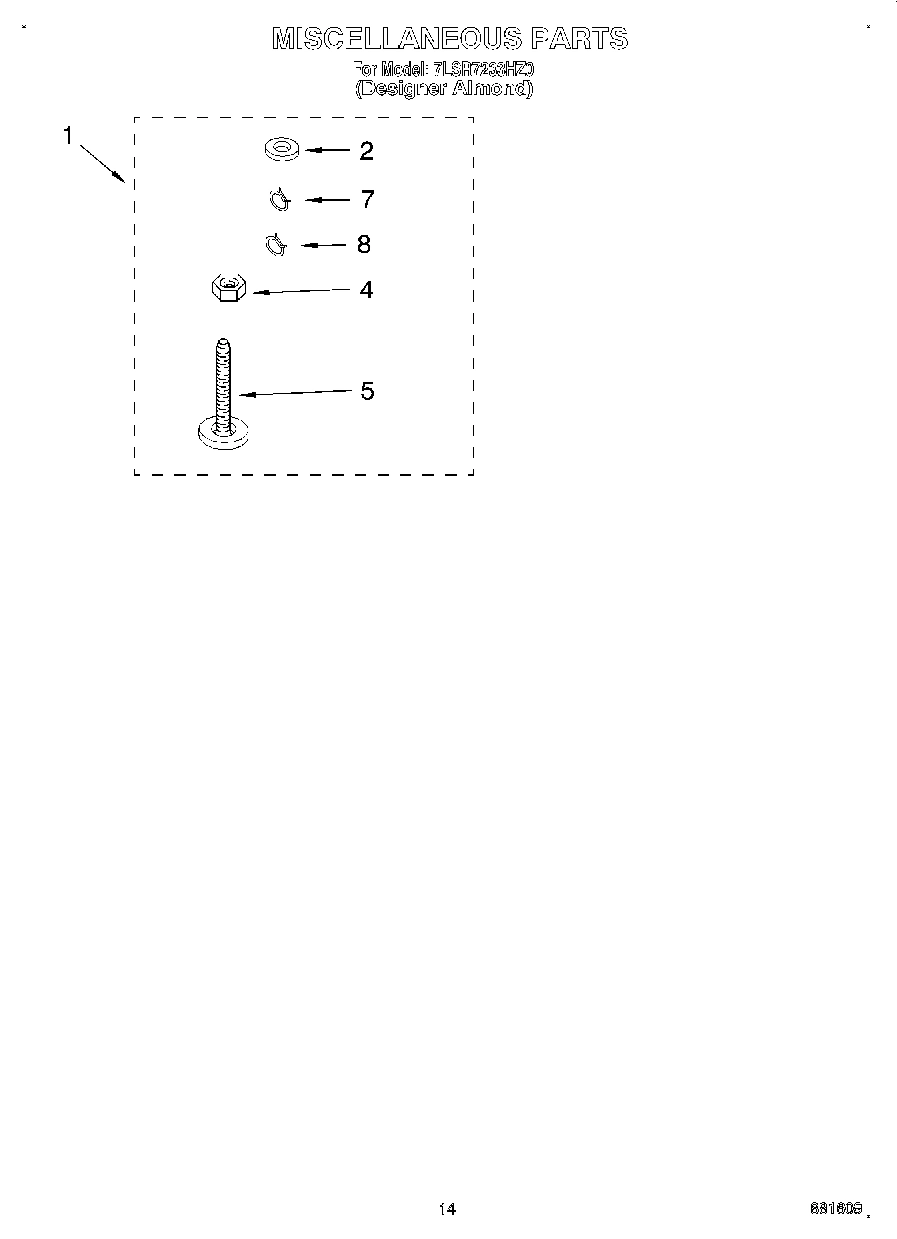

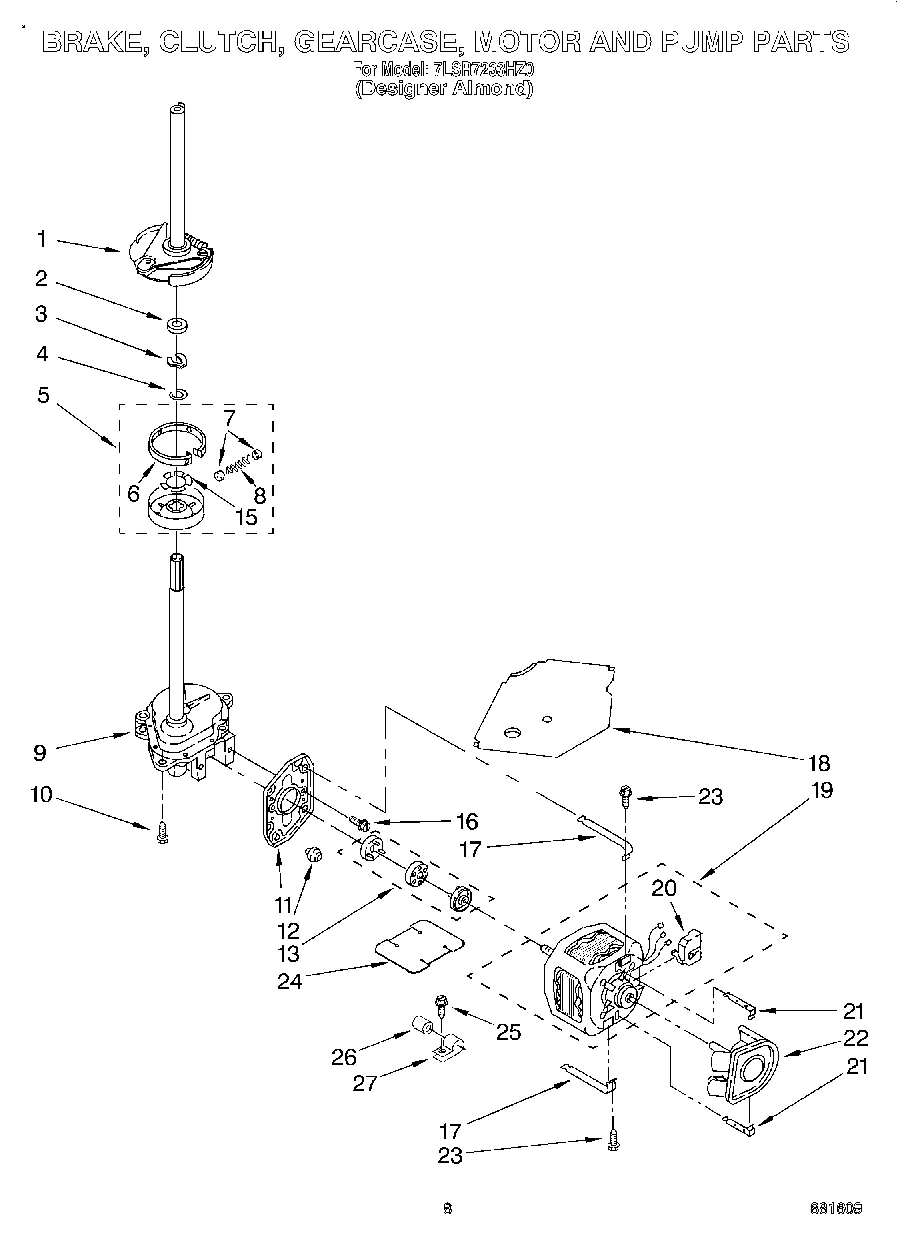

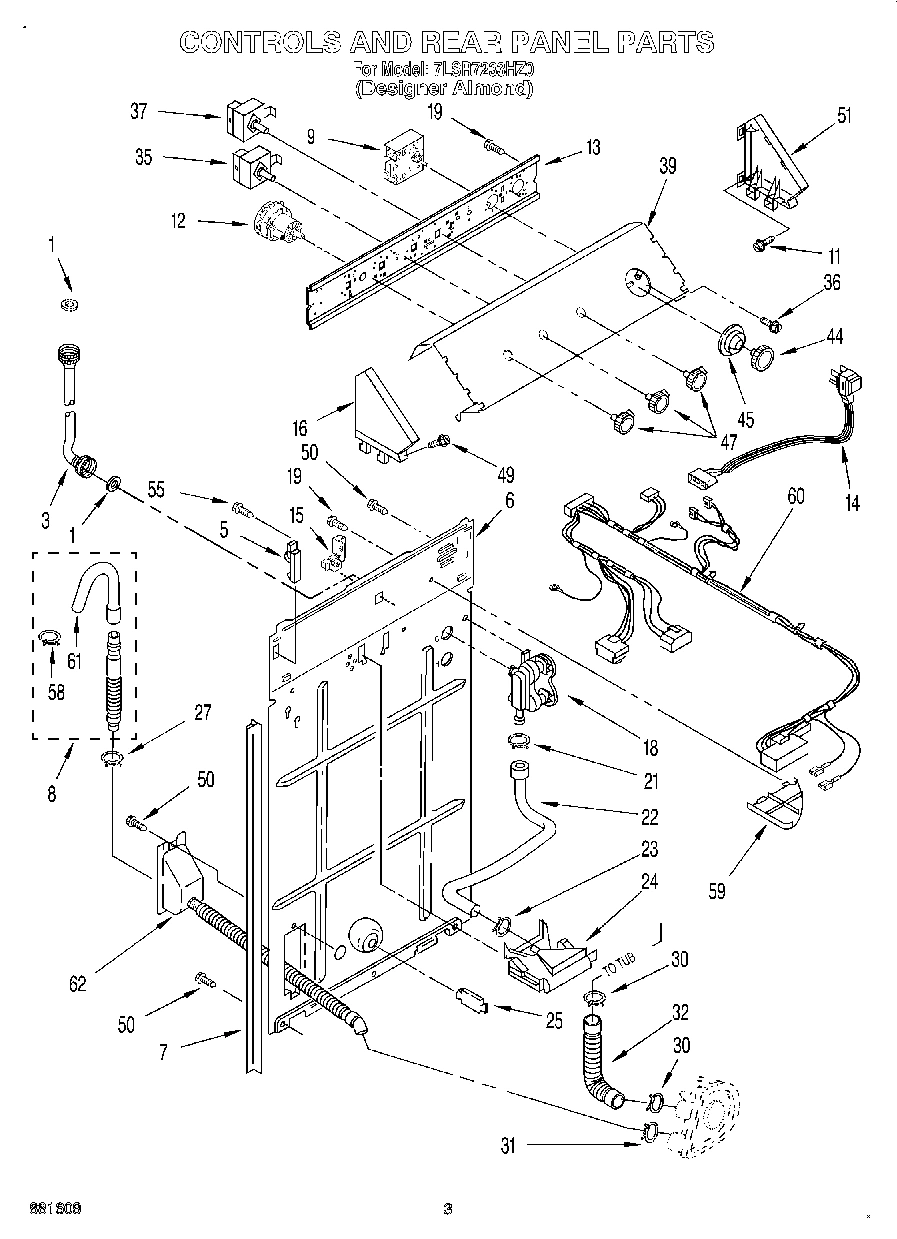

Model Whirlpool 7LSR7233HZ0 WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $20.04

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.89

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.62

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Shipping Kit WPL 3348675 Contact Us For Availability

Drain Protector WPL 367031 Contact Us For Availability

Stand-Pipe Kit WPL 89121 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Use & Care Guide WPL LIT3950324 Contact Us For Availability

Installation Instructions WPL LIT3952895 Contact Us For Availability

Wiring Diagram WPL LIT3953707 Contact Us For Availability

Manual, (Washer) Do-It-Yourself WPL LIT4313896 Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $30.25

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $11.31

1

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

1

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.33

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Miscellaneous Parts Bag WPL 3976252 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $3.11

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $4.52

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $4.70

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $10.17

3

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $93.60

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $4.52

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.70

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $5.29

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.07

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

4

WP3347288 Whirlpool Washer Agitator Base In Stock WPL WP3347288 $78.41

4

Support & Brake, Tub WPL 3362087 Contact Us For Availability

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $3.11

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

WP3357978 Whirlpool Rear Panel Backorder WPL WP3357978 $152.90

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.70

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $4.70

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $4.70

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

7

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $4.52

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $19.14

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $30.62

8

285702 Whirlpool Extensions Backorder WPL 285702 $37.95

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.51

8

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.52

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $12.19

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP3949208 Whirlpool Timer In Stock WPL WP3949208 $197.77

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

11

353424 Whirlpool Connector Backorder WPL 353424 $10.76

11

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $3.70

11

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W10820051 Whirlpool Washer Pressure Switch In Stock WPL W10820051 $80.00

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.52

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

13

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $43.90

13

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $10.28

14

W10820044 Whirlpool Power Cord In Stock WPL W10820044 $59.87

14

W11095997 Whirlpool Seal In Stock WPL W11095997 $11.58

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $3.11

Strain Relief, Power Cord WPL 3949468 Contact Us For Availability

16

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $20.97

16

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

16

Cap, End (L.H.) WPL 3358529 Contact Us For Availability

17

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $9.26

17

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $80.64

17

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $6.64

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $31.31

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $3.40

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

19

Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability

19

Base Assembly (Includes Illus, 6, 7, 8, 9, 16 WPL 3946512 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

20

Agitator, Asy (Complete) WPL 3946501 Contact Us For Availability

20

Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $31.51

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $3.33

Plug, Terminal (12-Way) (Use Term. 94613 Or 9 WPL 388818 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $9.04

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $35.58

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $3.46

Timer, Block Disconnect (Black) (Amp) (Use Te WPL 3369366 Contact Us For Availability

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.70

23

Connector, Etc WPL 3349494 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $76.00

24

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $42.23

24

Connector, Relay (Use Term. 308569) WPL 60687 Contact Us For Availability

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

Hose, Bleach WPL 3948705 Contact Us For Availability

Control, ETC WPL 3407125 Contact Us For Availability

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

WP2172937 Whirlpool Connector In Stock WPL WP2172937 $8.66

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.78

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $3.04

27

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

27

Connector (T.P.A) (3-Circuit) (Pressure Switc WPL 3360056 Contact Us For Availability

28

3354925 Whirlpool Connector Backorder WPL 3354925 $10.76

29

WPL 3354926 WPL 3354926 Contact Us For Availability

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

30

WPL 3948615 WPL 3948615 Contact Us For Availability

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.52

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $8.75

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.84

35

WPW10168256 Whirlpool Temperature Switch Backorder WPL WPW10168256 $49.92

36

W10915367 Whirlpool Screw Assembly Backorder WPL W10915367 $2.95

37

W10851055 Whirlpool Cycle Switch Backorder WPL W10851055 $62.32

39

Panel, Console WPL 3967140 Contact Us For Availability

44

WP3957823 Whirlpool Knob Backorder WPL WP3957823 $31.66

45

Dial, Timer WPL 3950763 Contact Us For Availability

47

3957797 Whirlpool Knob In Stock WPL 3957797 $30.89

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

50

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

51

Cap , End (R.H.) WPL 3358514 Contact Us For Availability

55

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.33

59

Sheild, Suds WPL 3348424 Contact Us For Availability

60

Harness, Wiring (For Detail See Parts Page) A WPL 3952571 Contact Us For Availability

61

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $30.25

62

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $15.23
