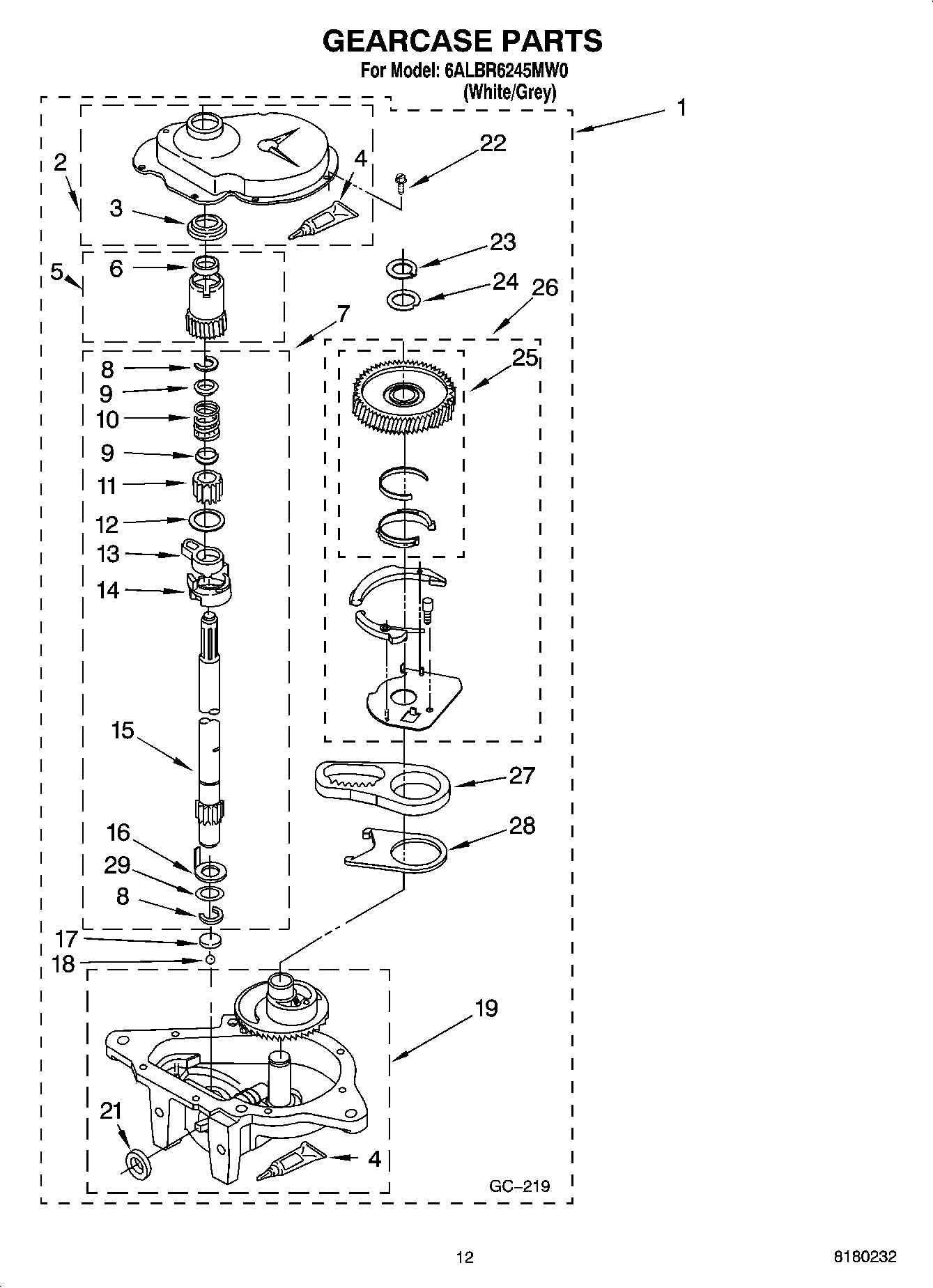

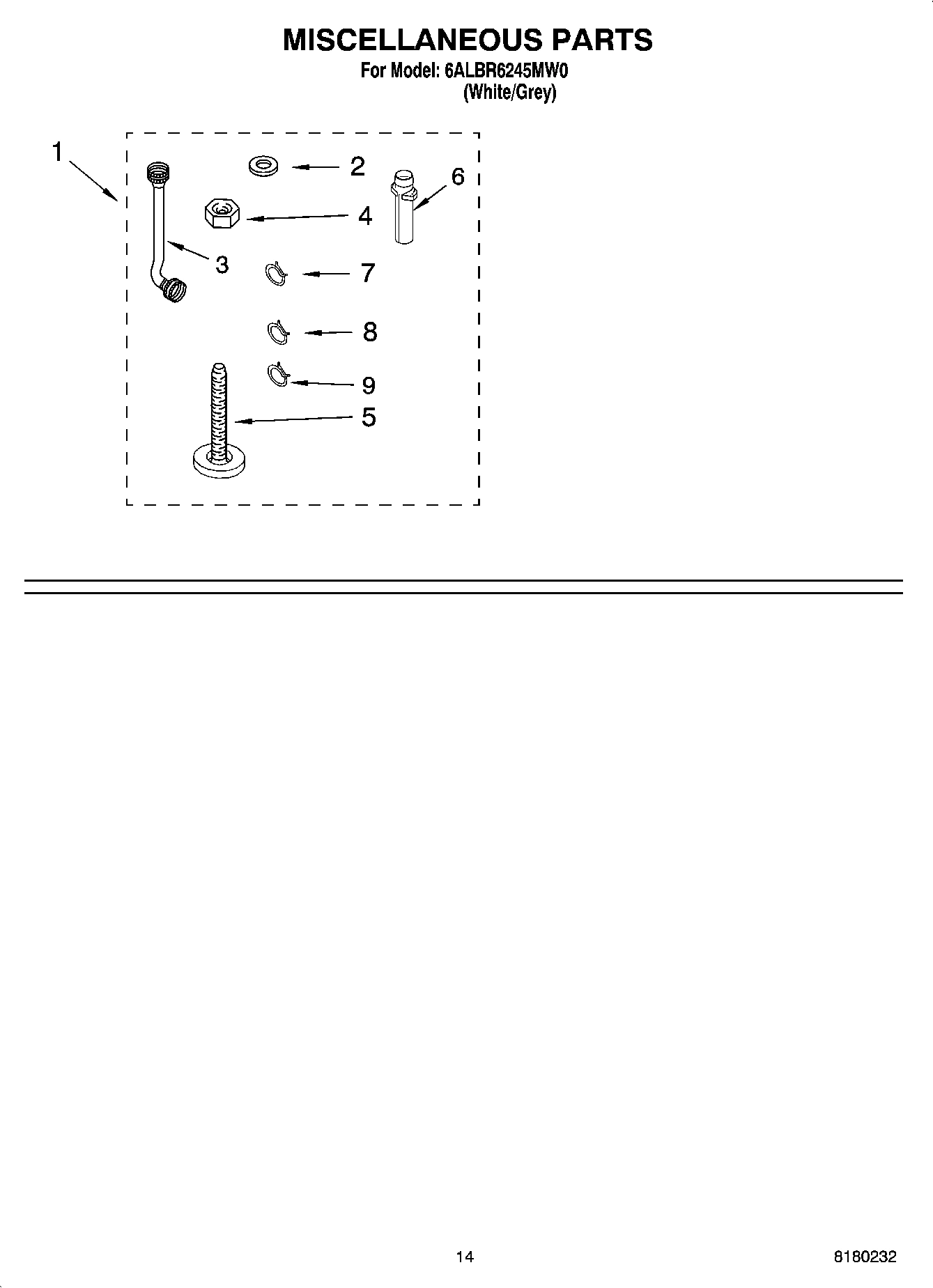

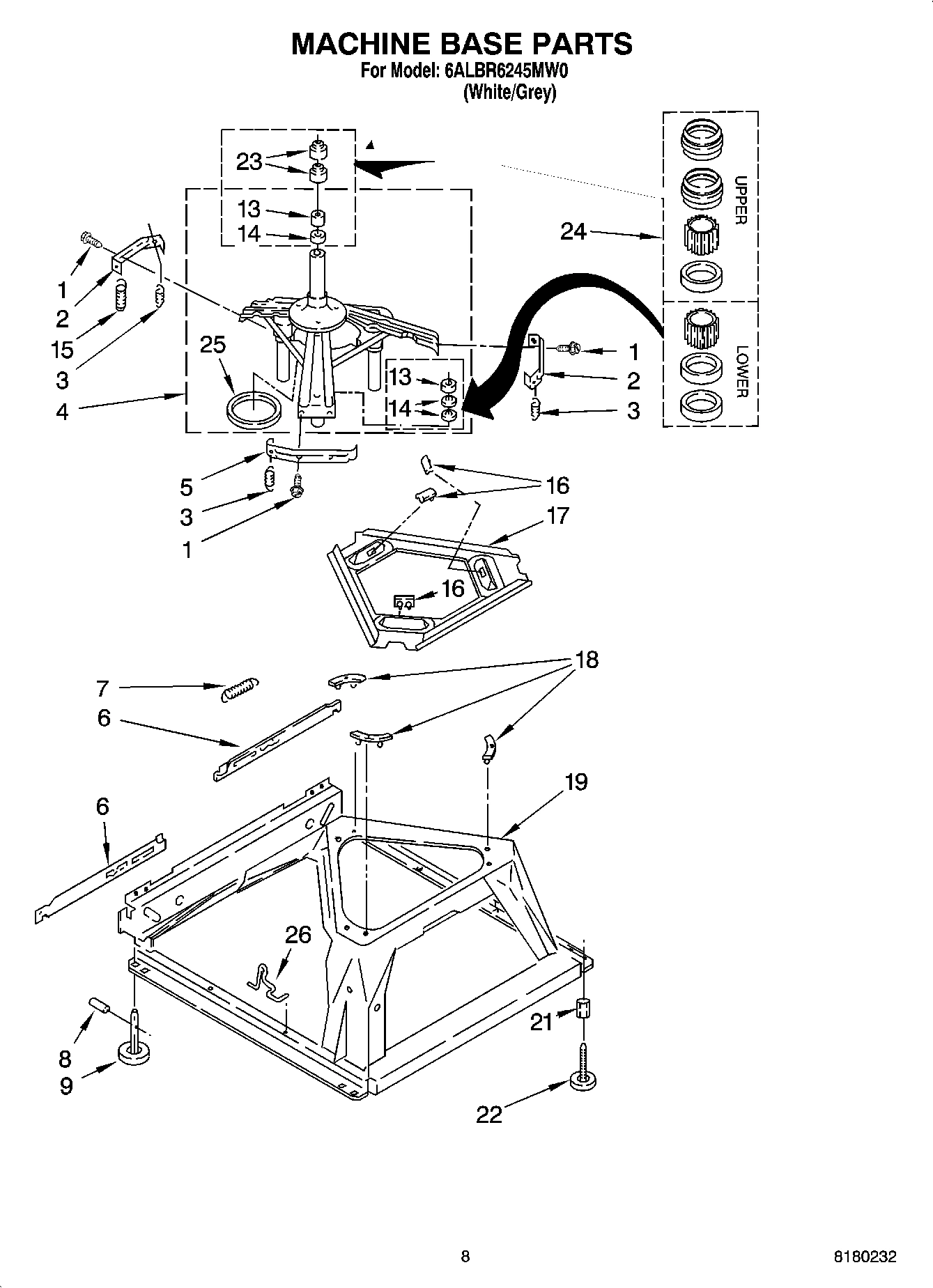

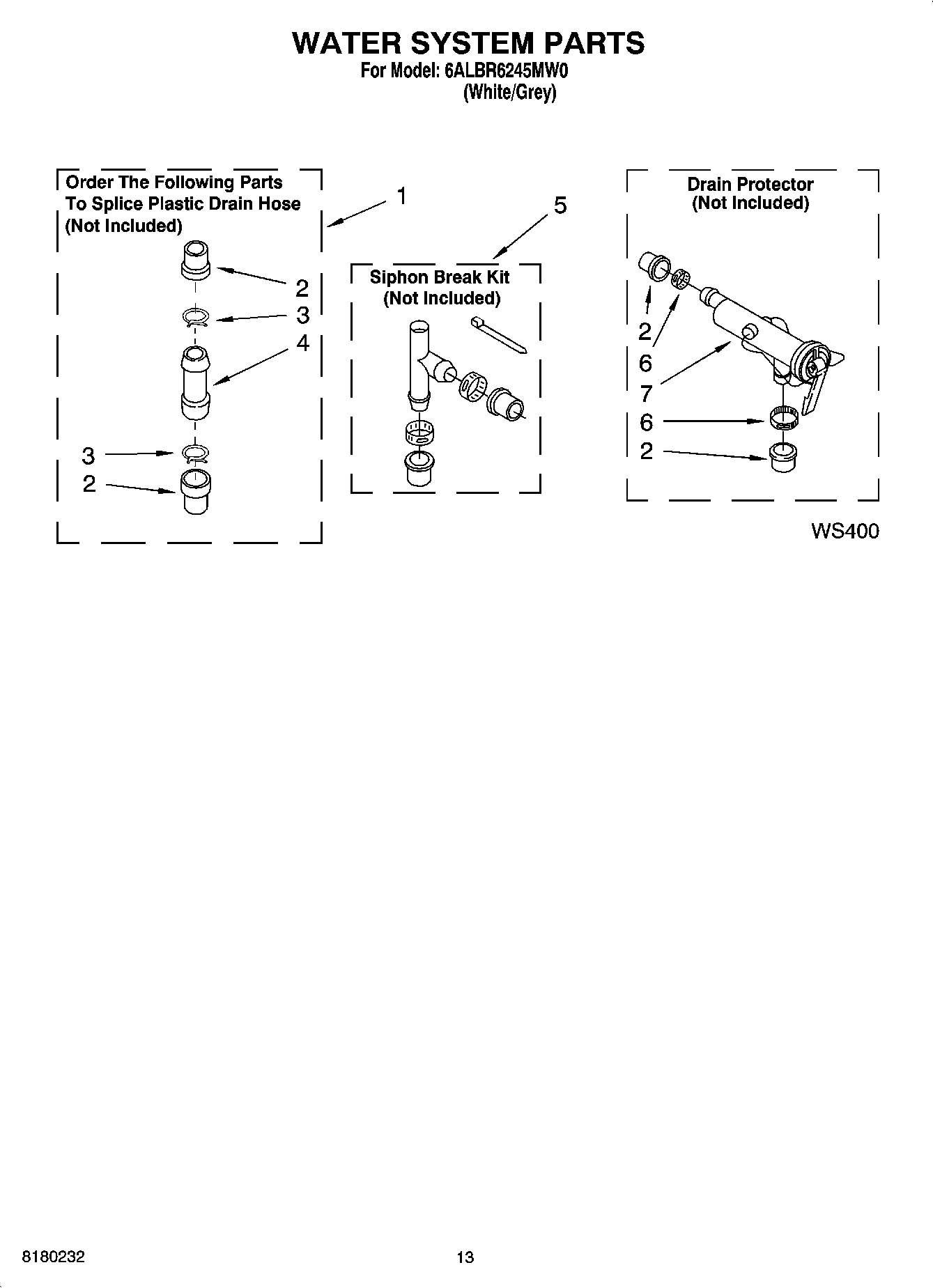

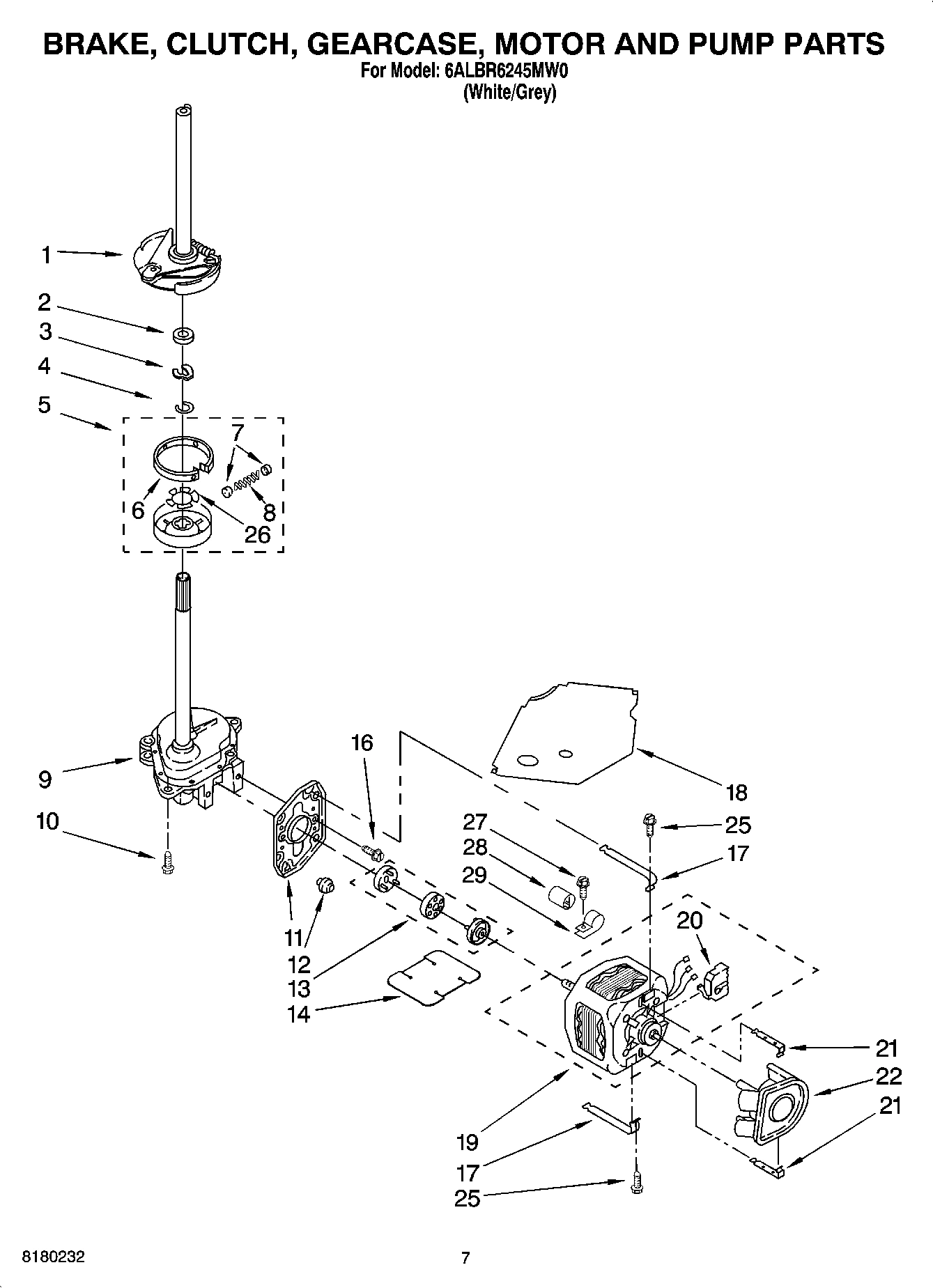

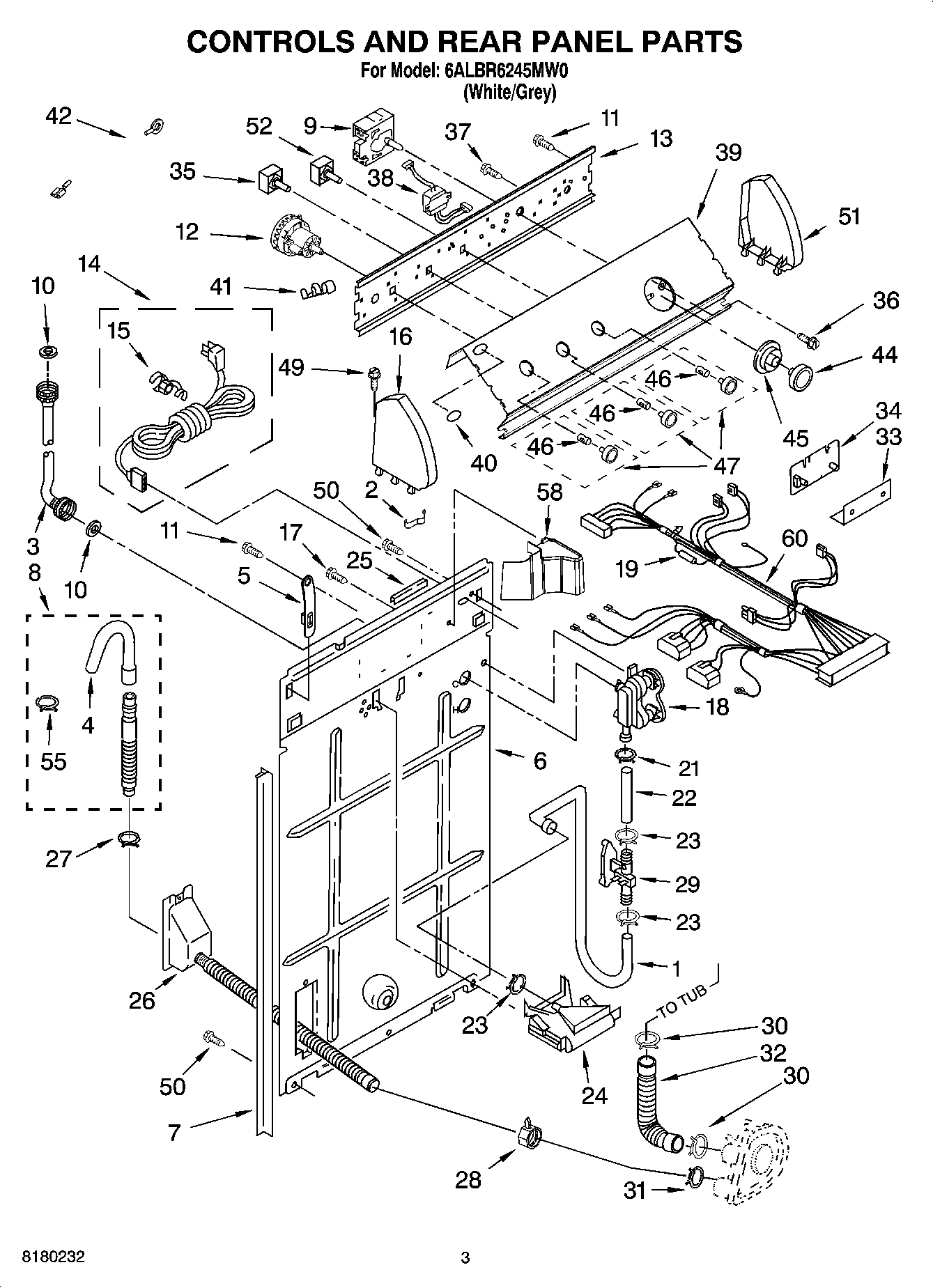

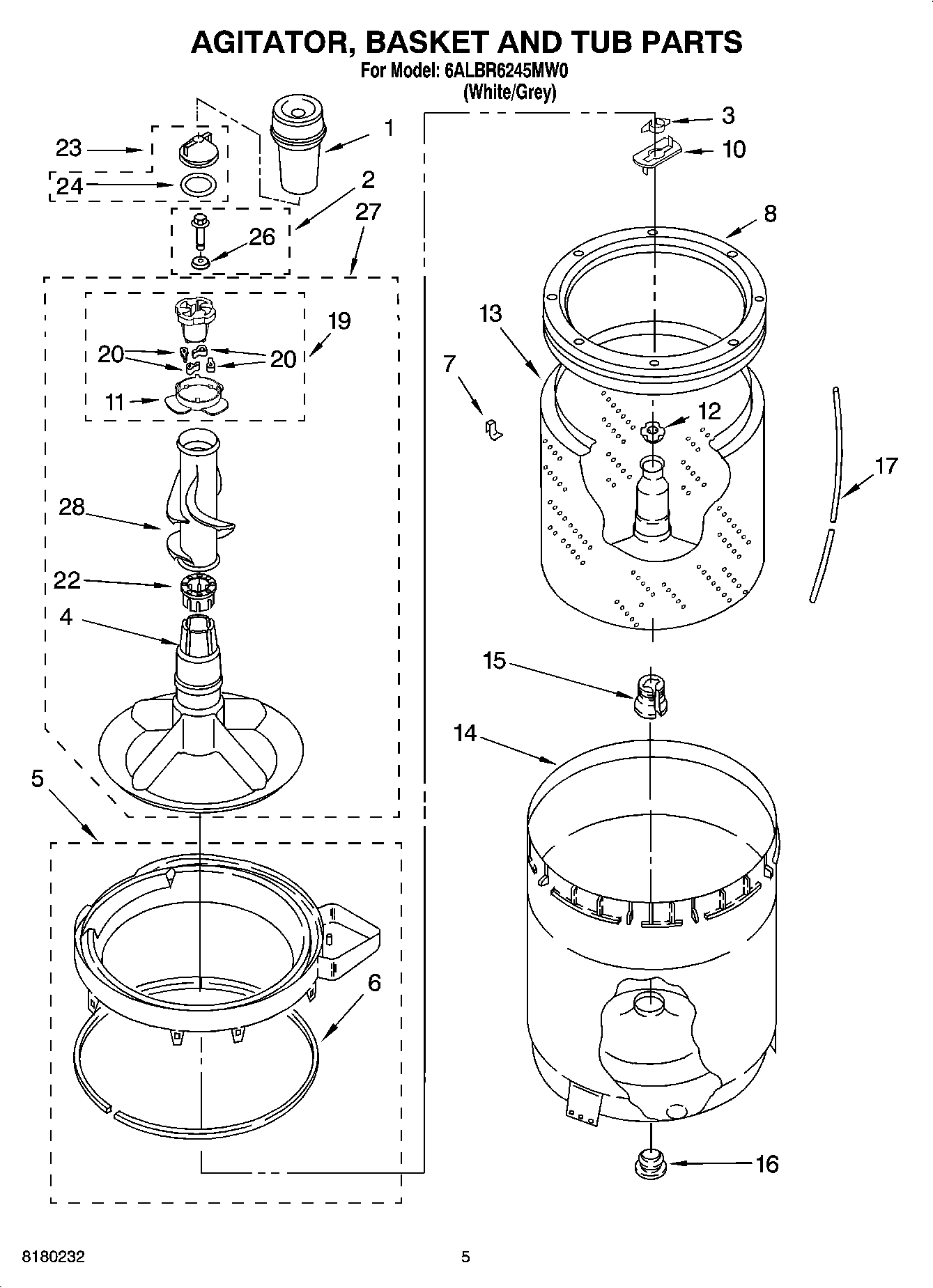

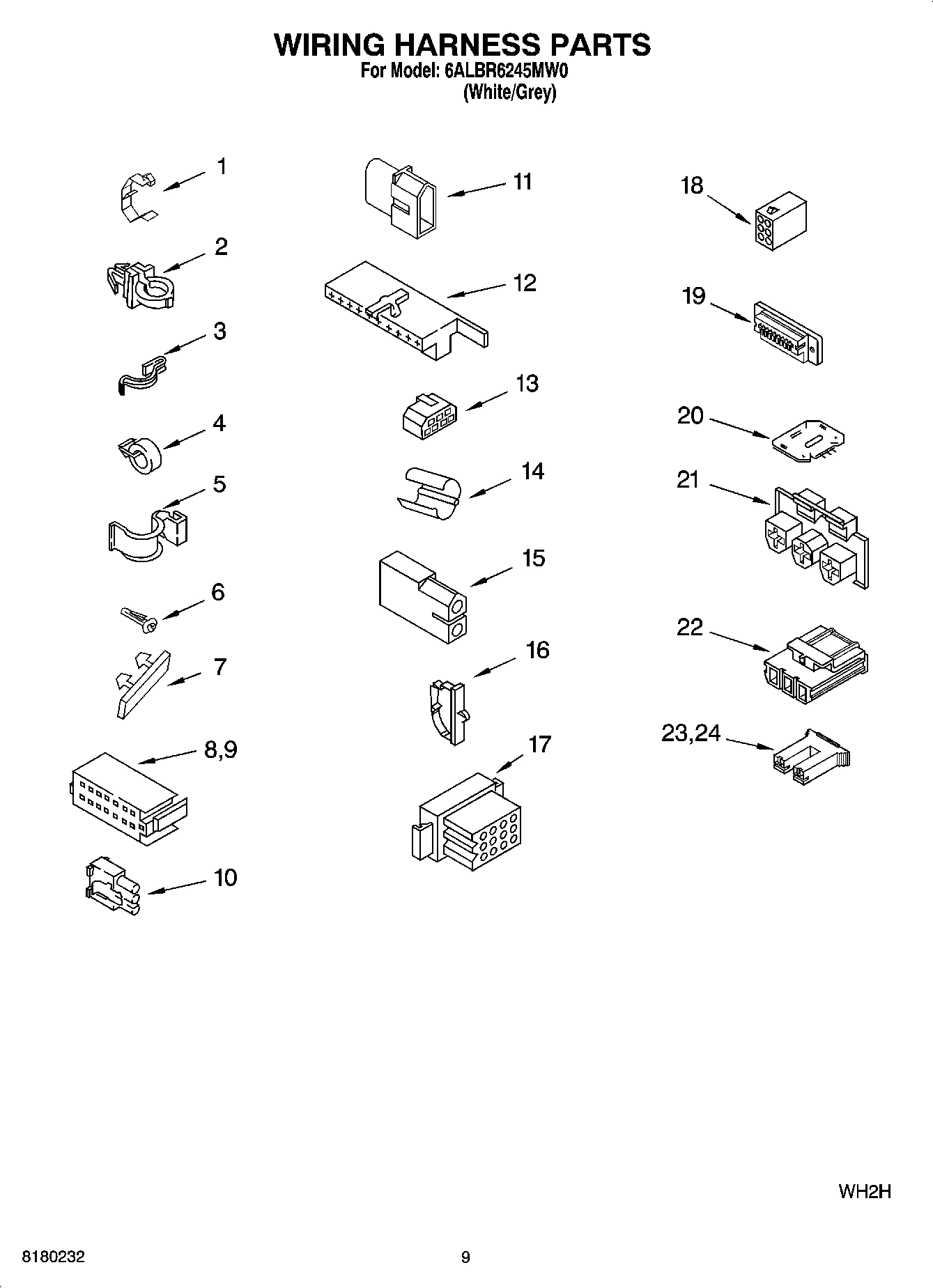

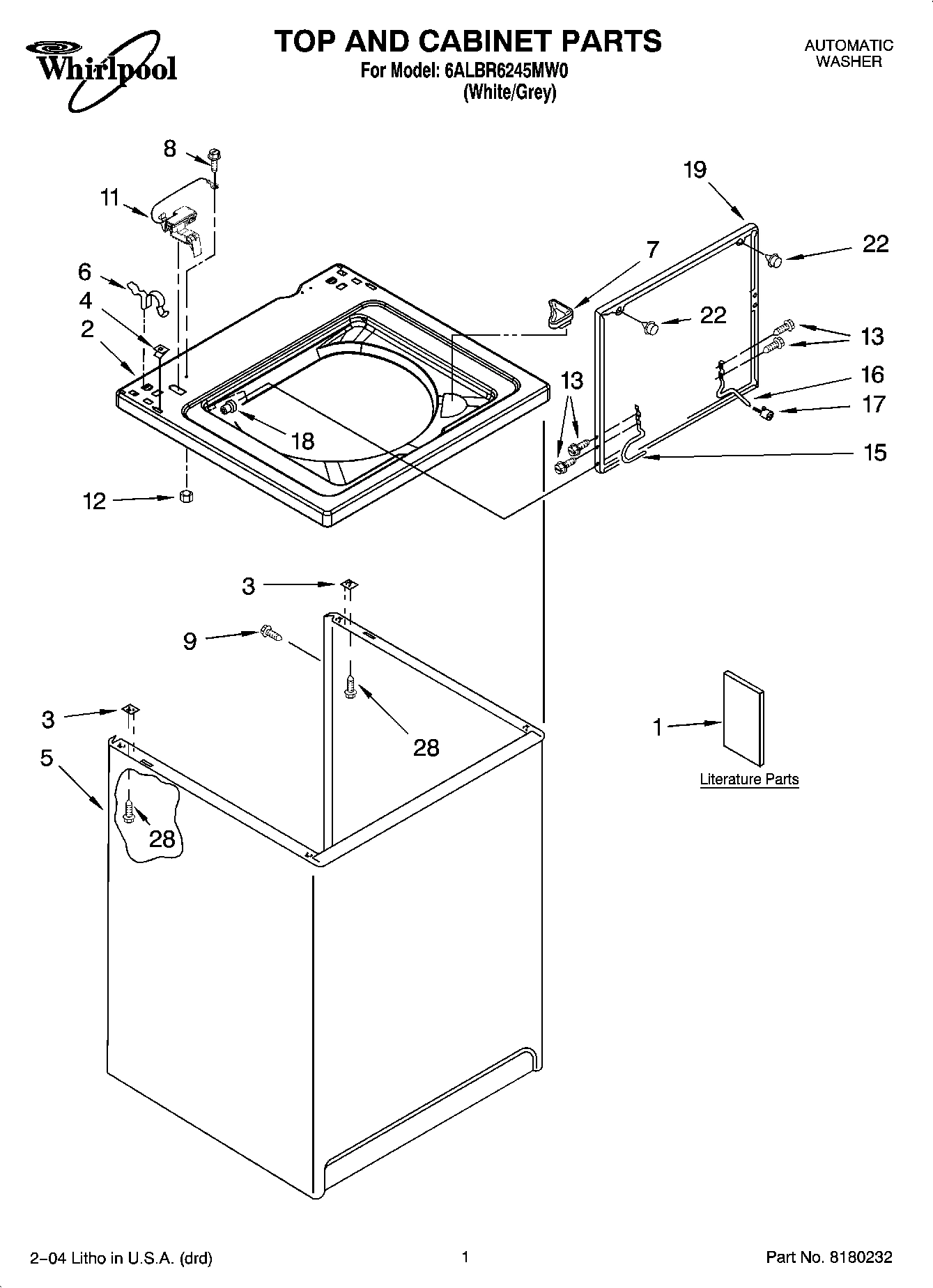

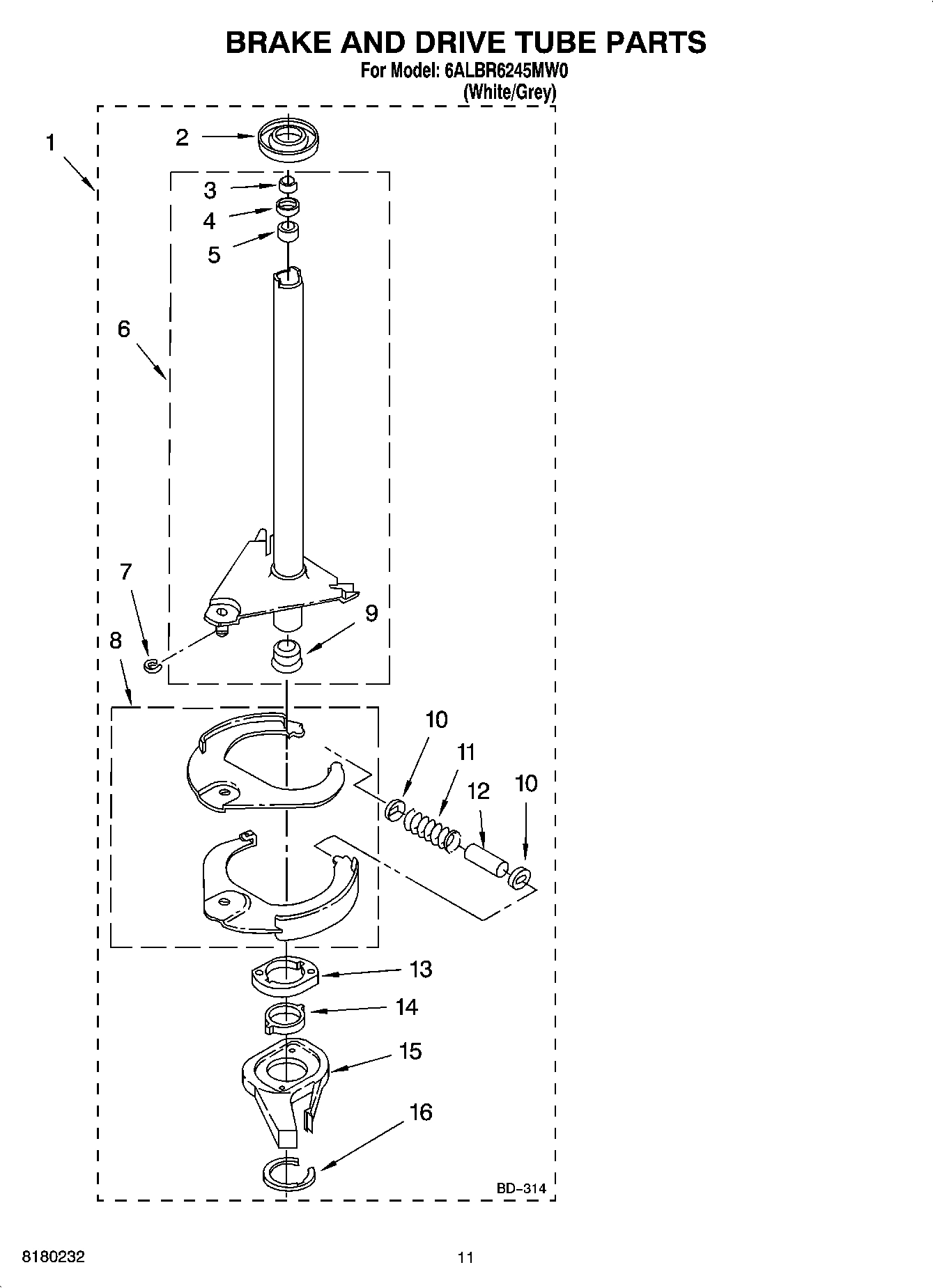

Model Whirlpool 6ALBR6245MW0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $9.99

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Hose, Sensor (Lower) WPL 3363509 Contact Us For Availability

1

Literature Parts (Energy Guide) WPL LIT8315951 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT8539788 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT8539795 Contact Us For Availability

1

Literature Parts (Feature Sheet) WPL LIT8558485 Contact Us For Availability

1

Literature Parts (Wiring Diagram) WPL LIT8559432 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

285321 Whirlpool Sleeve Backorder WPL 285321 $26.75

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

Clip, Harness WPL 388498 Contact Us For Availability

2

Top WPL 8541617 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

4

8559320 Whirlpool Clip Backorder WPL 8559320 $13.91

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

WP3350830 Whirlpool Agitator Assembly Backorder WPL WP3350830 $67.11

4

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $28.80

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

4

Support & Brake, Tub WPL 3362087 Contact Us For Availability

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

5

Cabinet WPL 3951171 Contact Us For Availability

6

WP3359586 Whirlpool Tub Seal Backorder WPL WP3359586 $28.80

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $127.32

6

Link, Leveling Mechanism (2) WPL 63138 Contact Us For Availability

6

Clip, Harness WPL 3390496 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.70

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

7

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $3.70

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $2.51

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $75.04

8

WP3956205 Whirlpool Balance Ring Backorder WPL WP3956205 $71.69

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Timer, Block Disconnect (White) WPL 3948614 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $10.82

9

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

9

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

9

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

9

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

9

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

9

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

9

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

9

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.70

10

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

353424 Whirlpool Connector Backorder WPL 353424 $10.76

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $3.70

WP62647 Whirlpool Spring Pressure Backorder WPL WP62647 $3.51

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $16.93

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W10080180 Whirlpool Nut Backorder WPL W10080180 $9.59

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Tub WPL 63125 Contact Us For Availability

Protector WPL 63523 Contact Us For Availability

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $28.49

8318088 Whirlpool Hinge Assembly Backorder WPL 8318088 $12.08

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $10.60

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Clip, Harness WPL 3352944 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI141385A Contact Us For Availability

17

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

17

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

17

Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

WP3360397 Whirlpool Valve Backorder WPL WP3360397 $151.58

Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability

19

285459 Whirlpool Washer Base Backorder WPL 285459 $202.38

19

WPW10193857 Whirlpool Lid Assembly Backorder WPL WPW10193857 $188.00

19

Connector, Etc WPL 3349494 Contact Us For Availability

20

Switch, Main Drive Motor WPL 8529896 Contact Us For Availability

20

E.T.C. Control WPL 3407125 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

WP2172937 Whirlpool Connector In Stock WPL WP2172937 $8.66

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.70

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $8.69

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

23

3354925 Whirlpool Connector Backorder WPL 3354925 $10.76

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $28.69

Washer Kit, Thrust WPL 285735 Contact Us For Availability

Block, Connector (Hot Valve) WPL 3354926 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

WPW10233584 Whirlpool Spin Gear Backorder WPL WPW10233584 $84.65

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

26

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.72

26

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

28

Clamp, Hose WPL 3976395 No Longer Available

28

WP3349019 Whirlpool Upper Agitator Backorder WPL WP3349019 $77.78

28

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

29

Sensor, Inline WPL 3352282 Contact Us For Availability

29

GC-219 WPL ARI141386A Contact Us For Availability

44

WP8538949 Whirlpool Knob In Stock WPL WP8538949 $33.29

45

WP8538955 Whirlpool Dial Backorder WPL WP8538955 $29.92

46

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $3.70

47

WP8538957 Whirlpool Knob Backorder WPL WP8538957 $32.90

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51
