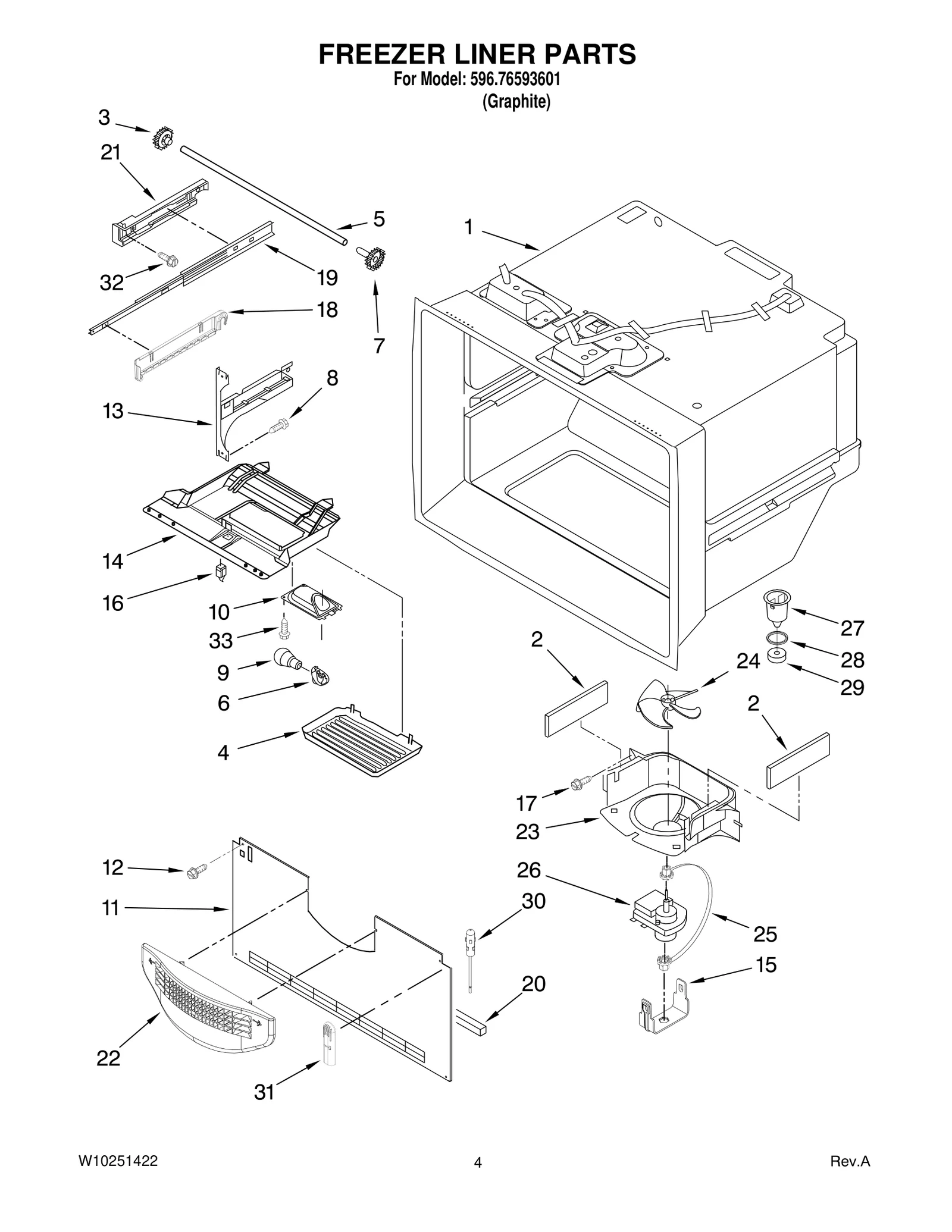

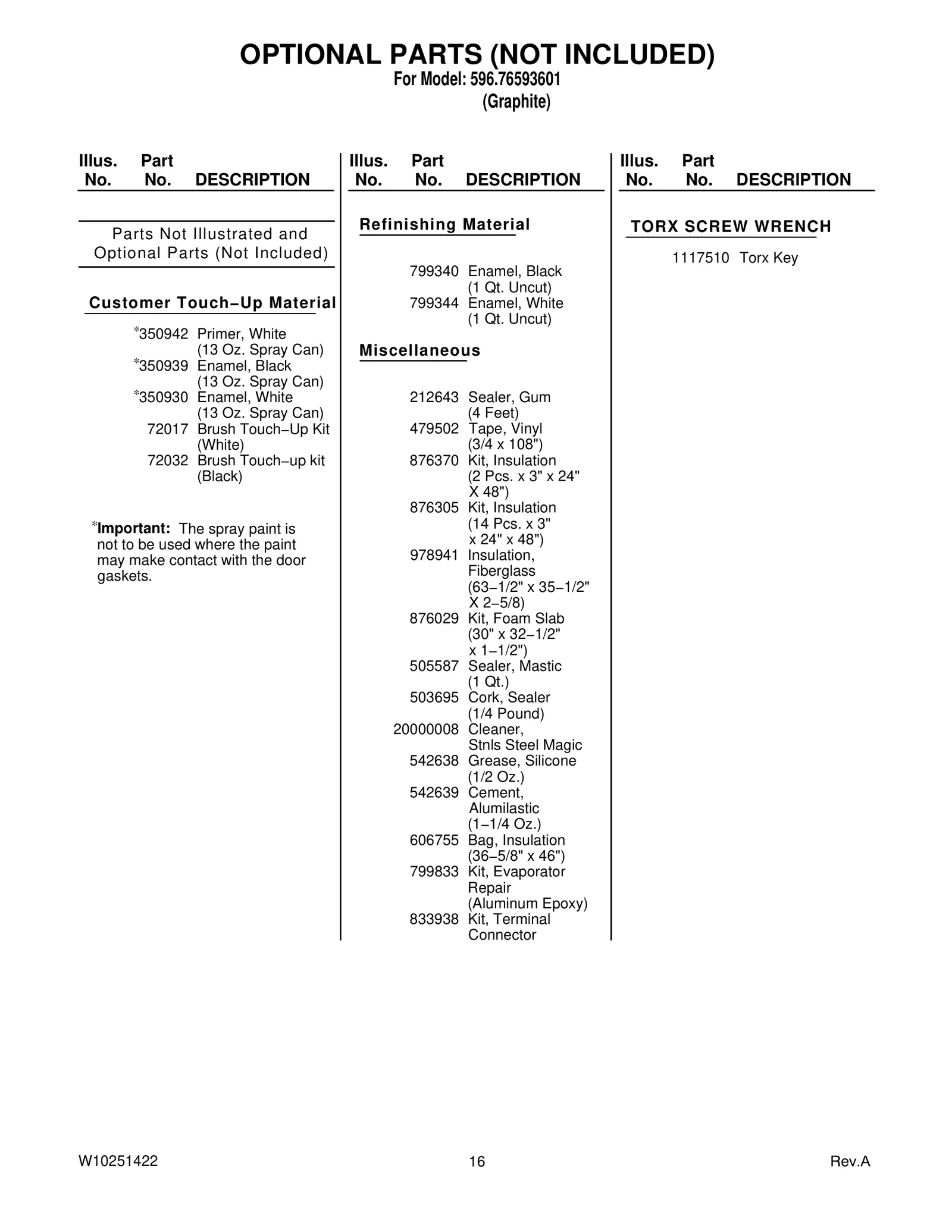

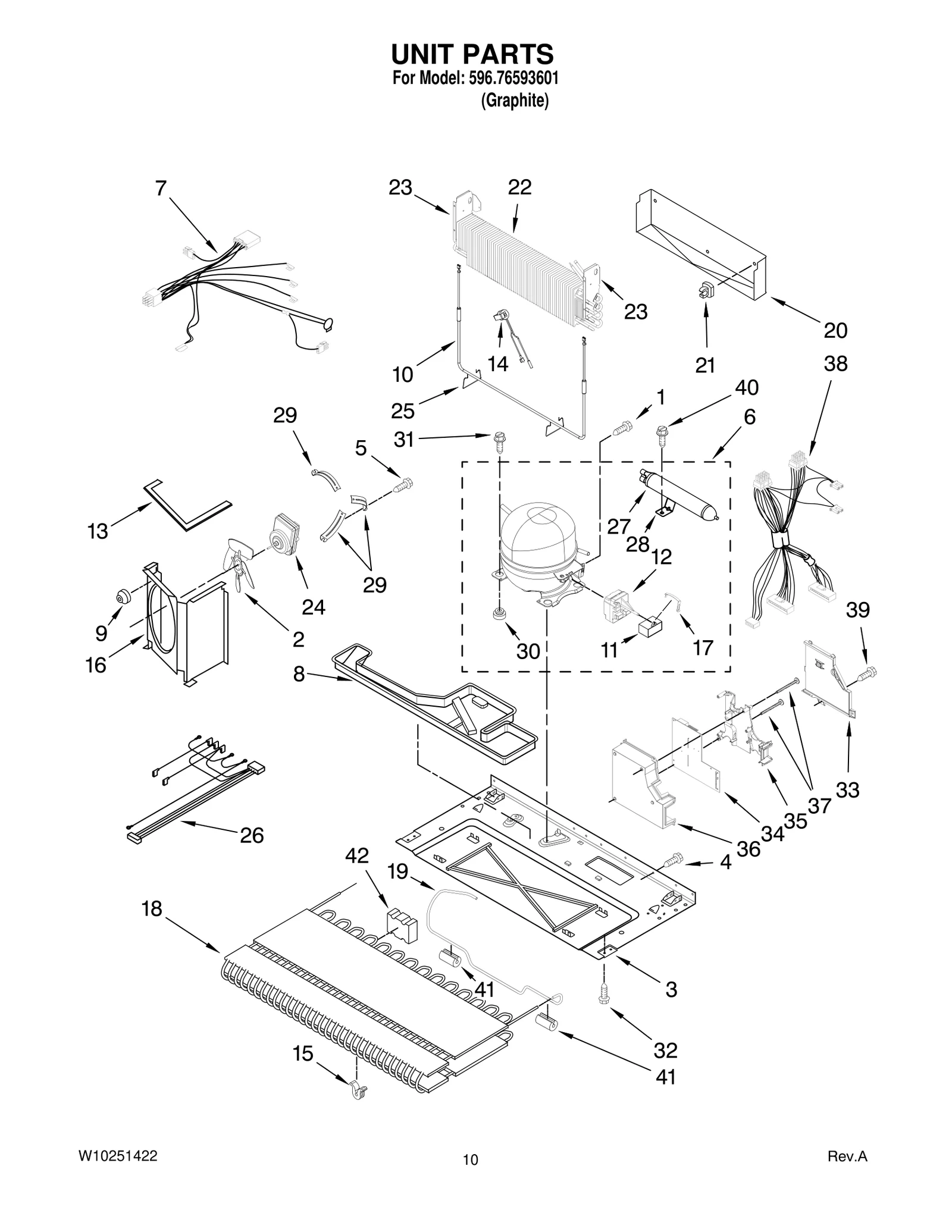

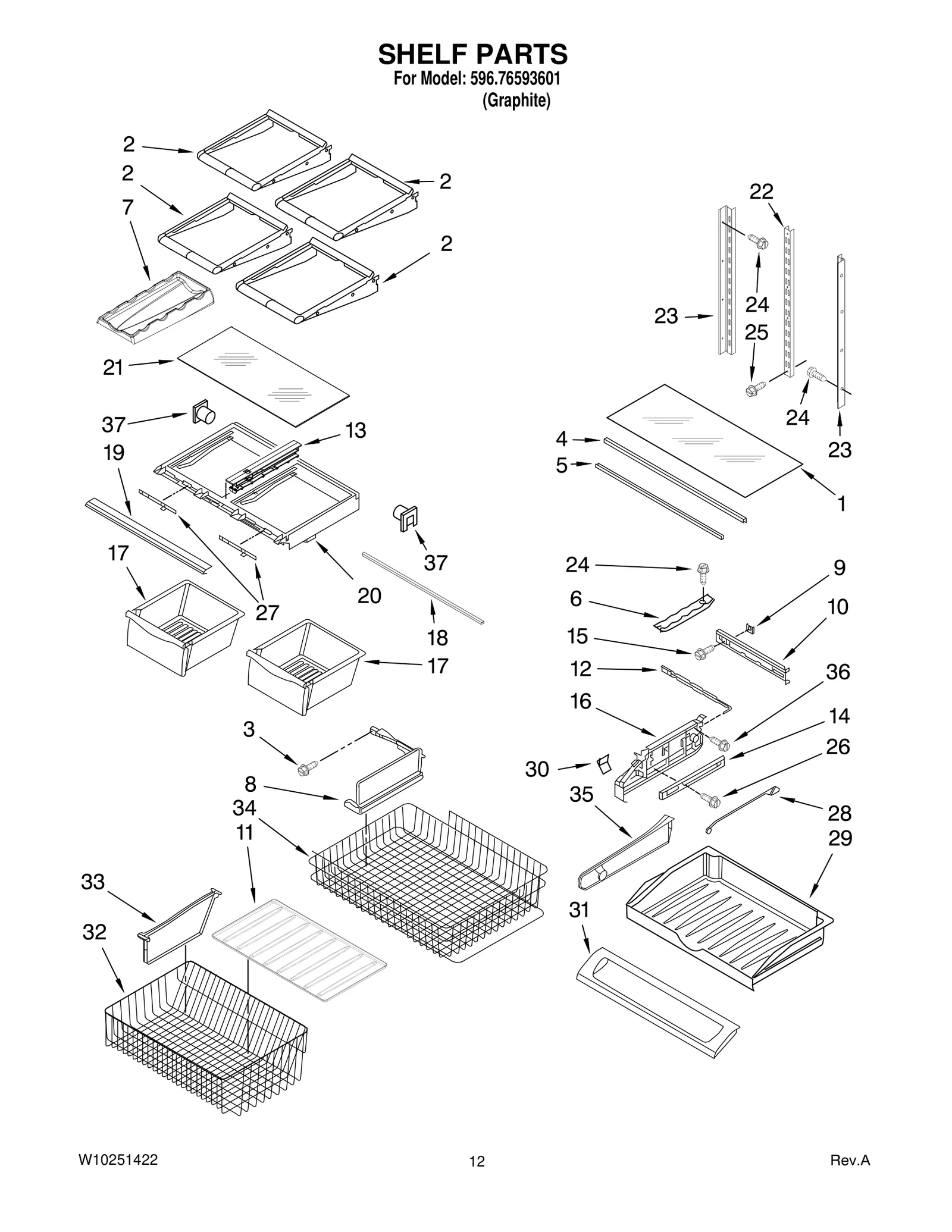

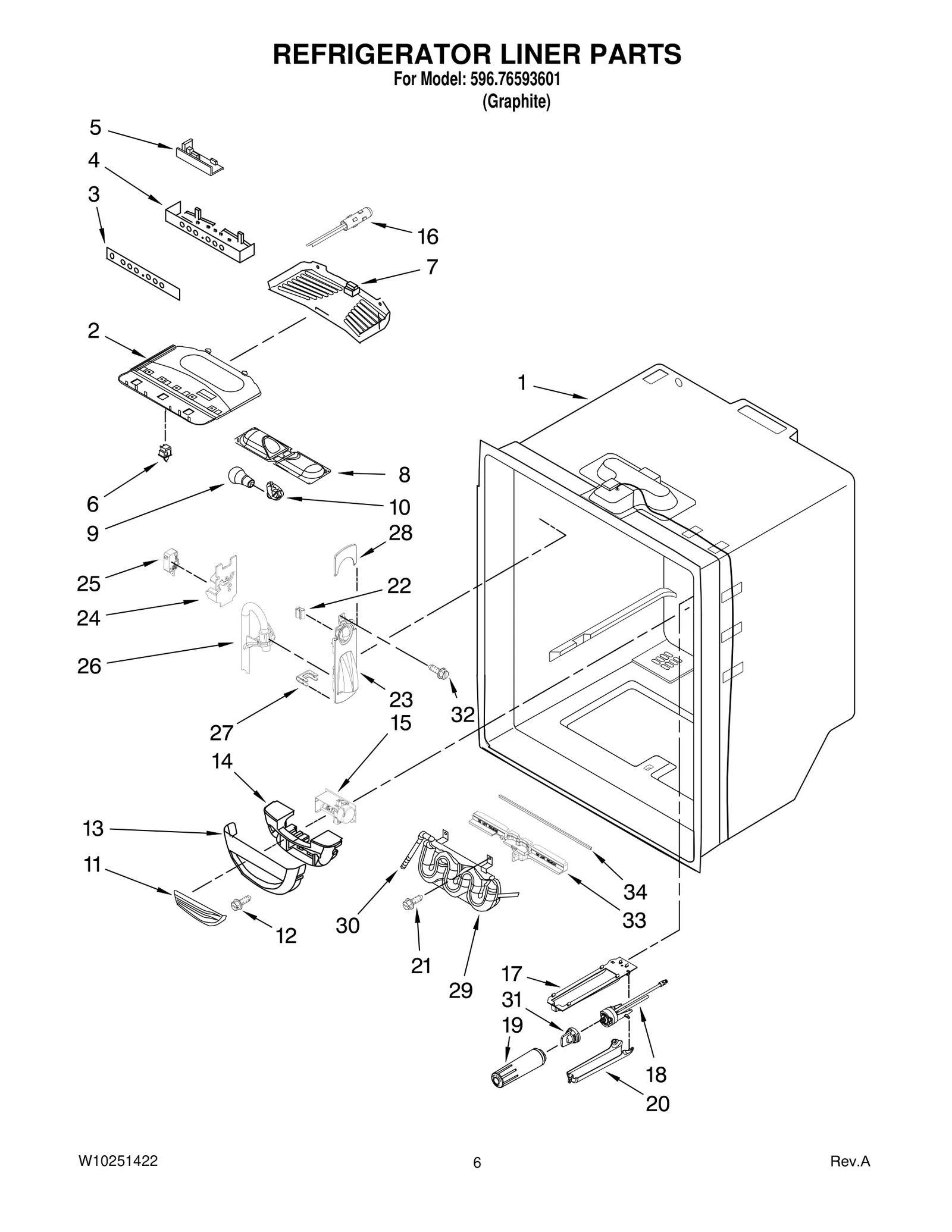

Model Whirlpool 596.76593601 Refrigerator – Common Parts &amp; Diagrams

1

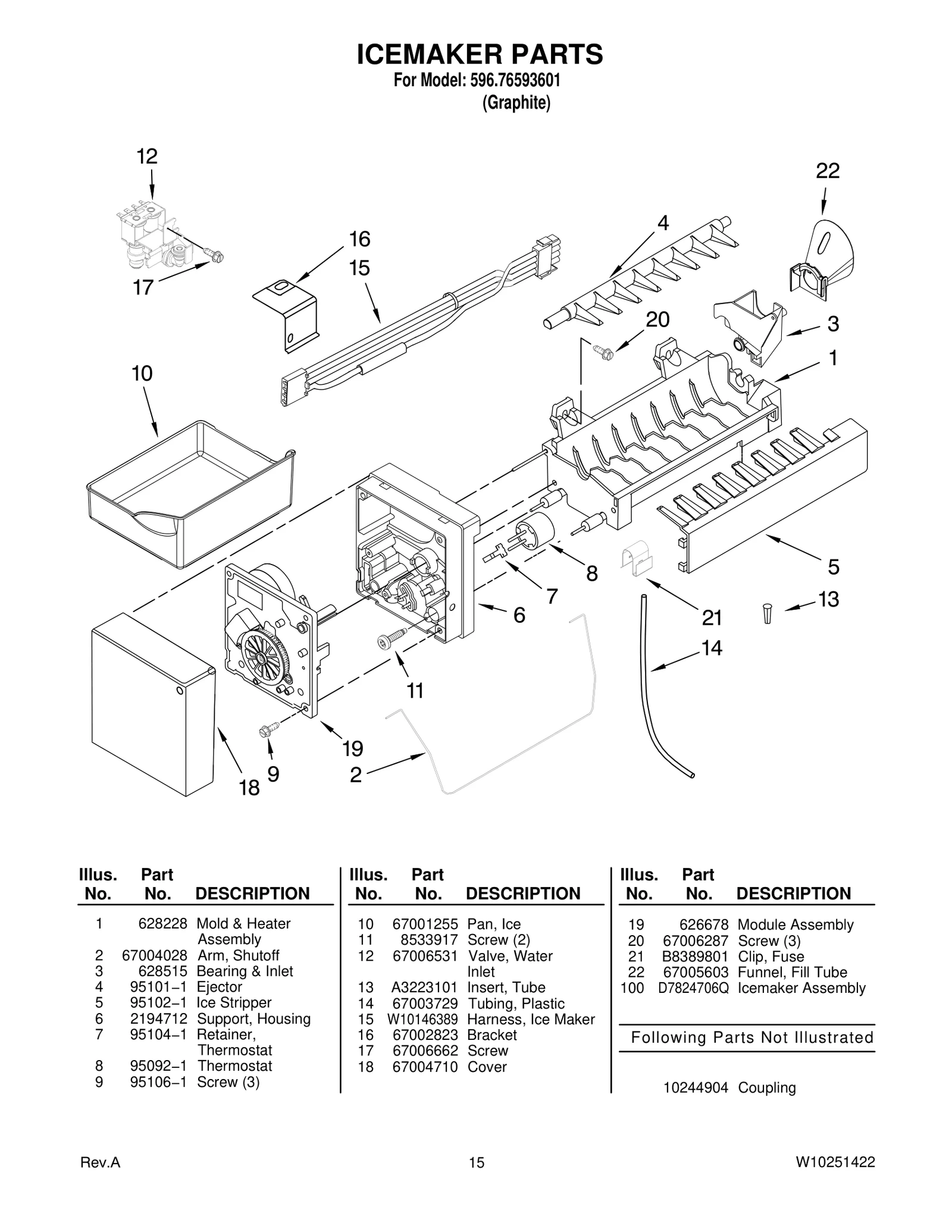

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $156.08

1

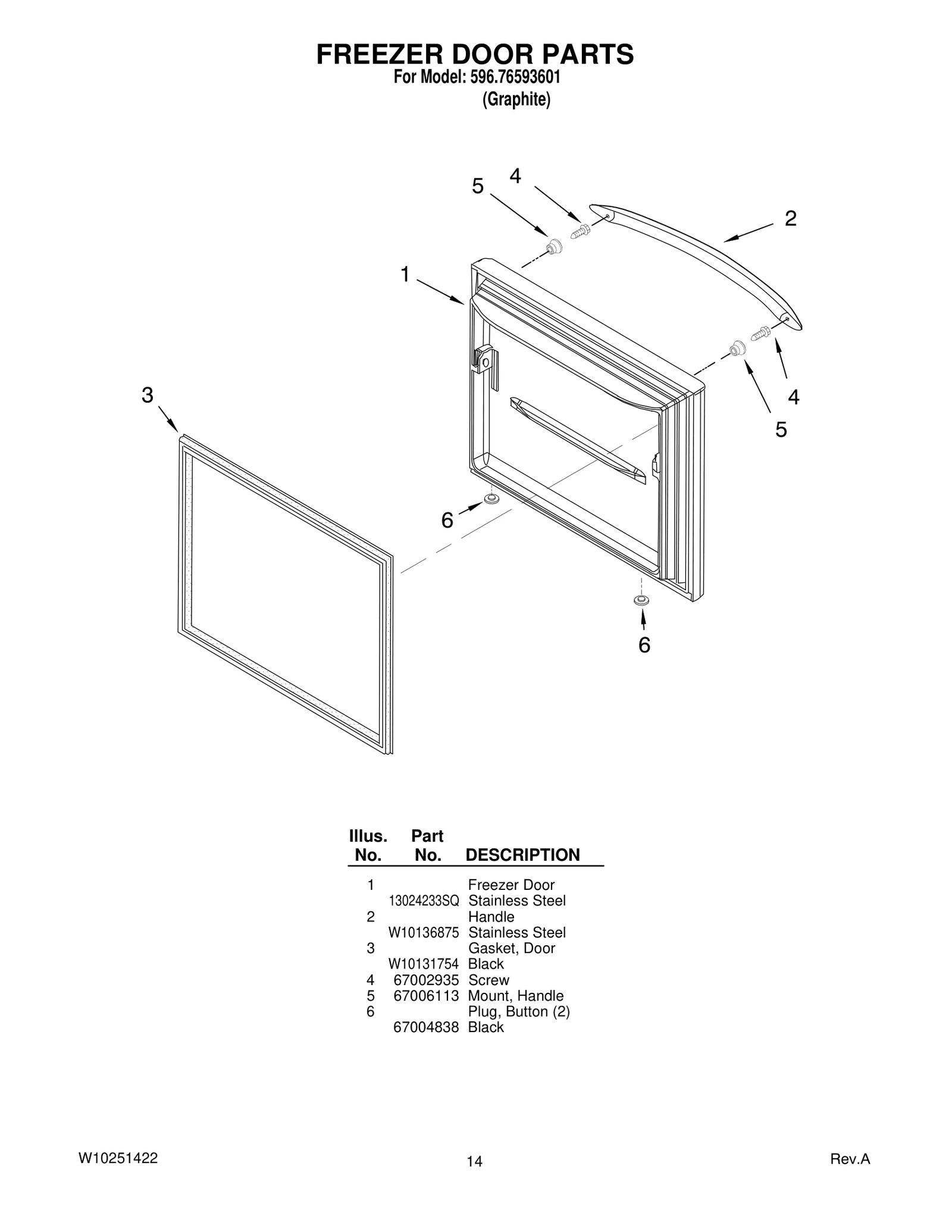

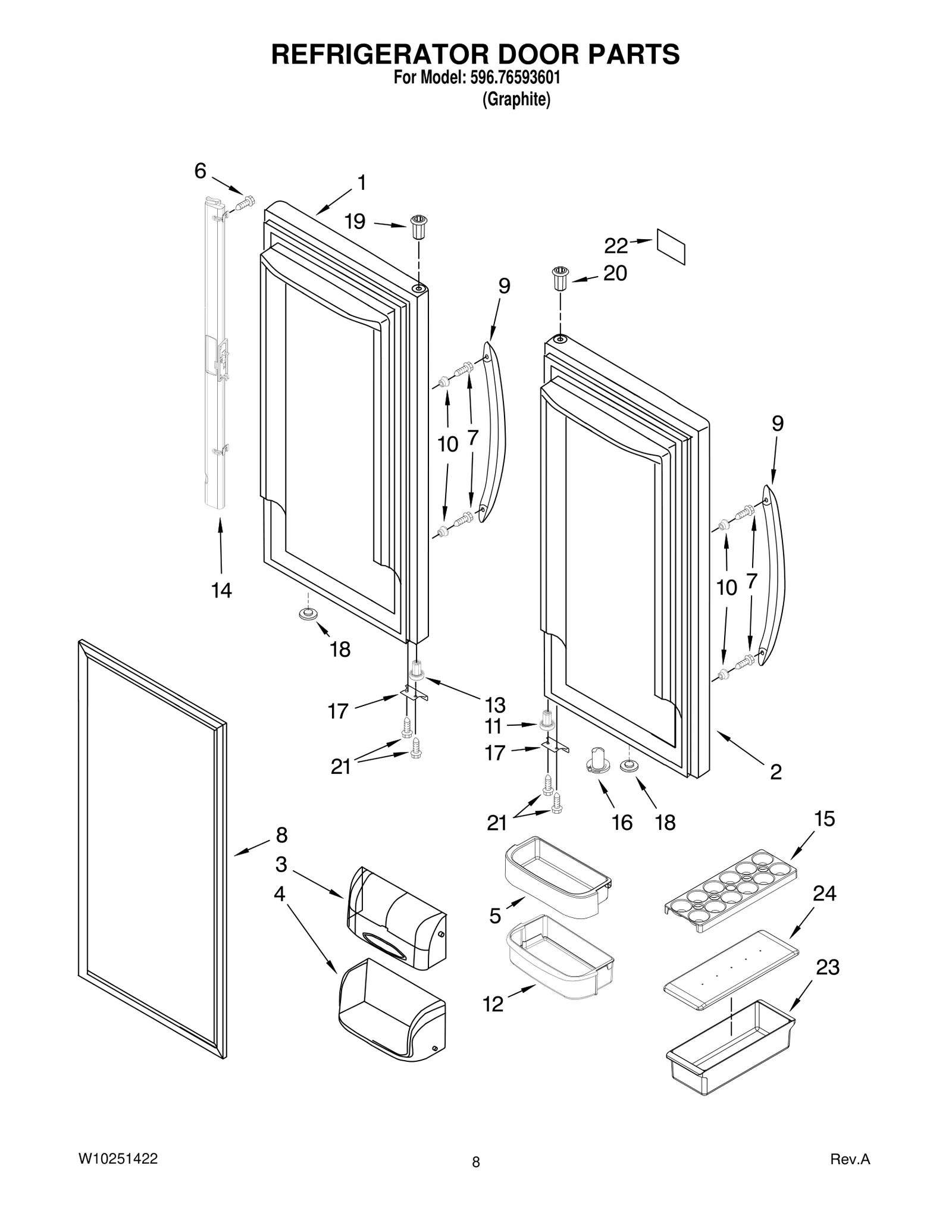

Door, Left — Stainless Steel WPL W10180072 Contact Us For Availability

1

Glass, Pantry WPL 67002761 Contact Us For Availability

1

Freezer Door — Stainless Steel WPL 13024233SQ Contact Us For Availability

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $32.52

2

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $47.34

2

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $35.58

2

Bracket, Control and Lights WPL 67004078 Contact Us For Availability

2

Door, Right — Stainless Steel WPL W10180074 Contact Us For Availability

2

Handle — Stainless Steel WPL W10136875 Contact Us For Availability

2

Shelf, Glide Out (4) WPL 67004093 Contact Us For Availability

3

W10122561 Whirlpool Refrigerator Cup Fill In Stock WPL W10122561 $10.38

3

W10436252 Whirlpool Door Gasket In Stock WPL W10436252 $138.90

3

WP12744905 Whirlpool Refrigerator Compressor Backorder WPL WP12744905 $60.04

3

Keyboard WPL 67005416 Contact Us For Availability

3

Basepan WPL 67005889 Contact Us For Availability

3

Screw WPL 67006608 Contact Us For Availability

4

W11812285 Whirlpool Support Backorder WPL W11812285 $22.28

4

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.68

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $52.77

4

Housing, Control WPL 67005444 Contact Us For Availability

5

WP12227305WD Whirlpool Drawer Support Backorder WPL WP12227305WD $48.43

5

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $2.55

5

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $5.08

5

Bucket, Shelf (3) WPL 67006630 Contact Us For Availability

6

67004838 Whirlpool Refrigerator Button Vent P Backorder WPL 67004838 $4.80

6

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $328.61

6

W11311945 Whirlpool Refrigerator Screw Backorder WPL W11311945 $9.75

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $16.01

6

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $41.98

6

WP67001719 Whirlpool Refrigerator Track Backorder WPL WP67001719 $2.55

7

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $9.00

7

67001656 Whirlpool Refrigerator Bottle Trivet Backorder WPL 67001656 $34.26

7

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $41.07

7

Harness, Evap Heater WPL 12882301 Contact Us For Availability

8

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $48.99

8

W11368721 Whirlpool Refrigerator French Door In Stock WPL W11368721 $117.23

8

WP12579803 Whirlpool Refrigerator Drain Pan Backorder WPL WP12579803 $172.60

8

Divider, Upper Basket WPL 67004127 Contact Us For Availability

9

67002329 Whirlpool Refrigerator Pantry Gasket Backorder WPL 67002329 $10.94

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.94

9

95106−1 Screw (3) WPL N/S Contact Us For Availability

9

Grommet (3) WPL 61004743 Contact Us For Availability

12656202 Whirlpool Refrigerator Housing Backorder WPL 12656202 $59.06

W11447232 Whirlpool Refrigerator Socket Backorder WPL W11447232 $4.65

WP67001255 Whirlpool Ice Bucket Backorder WPL WP67001255 $92.90

WP67002493 Whirlpool Refrigerator Defrost Hea In Stock WPL WP67002493 $77.70

67003900 Whirlpool Refrigerator Insert Damper Backorder WPL 67003900 $3.76

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.75

WP67002731 Whirlpool Refrigerator Door Bushin Backorder WPL WP67002731 $3.76

WP67006104 Whirlpool Refrigerator Tray Backorder WPL WP67006104 $55.02

W10613606 Whirlpool Refrigerator Start Device In Stock WPL W10613606 $36.61

W11772394 Whirlpool Screw In Stock WPL W11772394 $7.85

WP67003793 Whirlpool Refrigerator Temperature Backorder WPL WP67003793 $30.50

WP67006531 Whirlpool Water Inlet Valve In Stock WPL WP67006531 $128.55

WPW10289497 Whirlpool Refrigerator Shelf Bin In Stock WPL WPW10289497 $36.41

WP67002721 Whirlpool Refrigerator Door Bushin Backorder WPL WP67002721 $3.76

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $5.80

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $3.76

WPW10326469 Whirlpool Drawer Slide Rail In Stock WPL WPW10326469 $12.24

Bracket, Door — Right WPL 12812502WD Contact Us For Availability

Bracket, Door — Left WPL 12812501WD Contact Us For Availability

Cover, Damper WPL 67004087 Contact Us For Availability

W11750607 Whirlpool Insulation Backorder WPL W11750607 $20.70

WP12722803AP Whirlpool Refrigerator Mullion R In Stock WPL WP12722803AP $108.54

WP67003426 Whirlpool Refrigerator Thermostat In Stock WPL WP67003426 $36.31

WPB5705307 Whirlpool Refrigerator Tube In Stock WPL WPB5705307 $7.51

WPW10235370 Whirlpool Refrigerator Glide Backorder WPL WPW10235370 $122.61

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $23.36

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $3.76

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $70.87

Tray, Egg WPL 10436506 Contact Us For Availability

W10874836 Whirlpool Endcap Assembly Left Hand In Stock WPL W10874836 $19.08

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $32.59

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $31.47

Shroud WPL W10158508 Contact Us For Availability

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.15

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.63

WP67001668 Whirlpool Water Filter Housing In Stock WPL WP67001668 $6.73

Clip, Capacitor WPL 67007052 Contact Us For Availability

Pan, Crisper (2) WPL 67005925 Contact Us For Availability

WP12642303WD Whirlpool Refrigerator Drawer Su Backorder WPL WP12642303WD $48.77

WP67006131 Whirlpool Refrigerator Condenser Backorder WPL WP67006131 $165.42

WP67006524 Whirlpool Refrigerator Housing In Stock WPL WP67006524 $88.32

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.68

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

EDR4RXD1 Whirlpool EveryDrop® Refrigerator W In Stock WPL EDR4RXD1 $55.44

WP12866903 Whirlpool Refrigerator Discharge T Backorder WPL WP12866903 $81.25

Bushing, Door — Black WPL 12395501B Contact Us For Availability

Trim, Crisper WPL 67004094 Contact Us For Availability

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $10.94

67006564 Whirlpool Refrigerator Screw Backorder WPL 67006564 $2.55

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $33.24

WP12568001 Whirlpool Filter Cover In Stock WPL WP12568001 $43.67

WP67003854 Whirlpool Shelf Frame In Stock WPL WP67003854 $161.84

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.55

21

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.69

21

WP67006704 Whirlpool Glass Crisper Cover In Stock WPL WP67006704 $135.32

21

Clip, Evaporator WPL 10623002 Contact Us For Availability

12002041 Whirlpool Refrigerator Evaporator Re In Stock WPL 12002041 $193.61

12918001 Whirlpool Refrigerator Funnel Backorder WPL 12918001 $7.81

67001073 Whirlpool Refrigerator Center Ladder Backorder WPL 67001073 $31.86

W10819546 Whirlpool Refrigerator Clip Backorder WPL W10819546 $5.19

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $31.21

Nameplate WPL 13056601 Contact Us For Availability

Shroud, Evap Fan WPL 67002777 Contact Us For Availability

Facade, Dispenser WPL W10181213 Contact Us For Availability

Bin, Utility WPL 10423131 Contact Us For Availability

Dam — Right Side WPL 67001084 Contact Us For Availability

Dam — Left Side WPL 67001083 Contact Us For Availability

Ladder, Side WPL 67002489 Contact Us For Availability

12707303SP Whirlpool Refrigerator Plate Backorder WPL 12707303SP $33.50

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.55

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.88

Lid, Utility WPL 10436404 Contact Us For Availability

Motor, Fan WPL 67004432 Contact Us For Availability

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $7.94

W11673433 Whirlpool Clip Backorder WPL W11673433 $67.62

WP12575501 Whirlpool Refrigerator Micro Switc Backorder WPL WP12575501 $31.47

WP67002780 Whirlpool Refrigerator Grommet Backorder WPL WP67002780 $3.76

W11677725 Whirlpool Refrigerator Guide Backorder WPL W11677725 $12.98

WP67006415 Whirlpool Refrigerator Screw Backorder WPL WP67006415 $3.76

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $40.79

Harness, MC Includes Cord WPL 13060201 Contact Us For Availability

67002816 Whirlpool Refrigerator Waterline Cli Backorder WPL 67002816 $11.18

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $31.32

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $3.76

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $14.92

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $4.67

W11519867 Whirlpool Refrigerator Cover In Stock WPL W11519867 $12.76

WP67003795 Whirlpool Refrigerator Temperature In Stock WPL WP67003795 $3.76

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.80

W11361728 Whirlpool Reservoir Assembly In Stock WPL W11361728 $65.21

WP67003531 Whirlpool Drawer Assembly In Stock WPL WP67003531 $103.15

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $33.28

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $3.76

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $27.30

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $10.66

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $3.76

Cover, Unit WPL 67006101 Contact Us For Availability

Knob, Temperature Control WPL 67004096 Contact Us For Availability

12846902 Whirlpool Refrigerator Screw Backorder WPL 12846902 $9.28

67003796 Whirlpool Refrigerator Fiber Acousti Backorder WPL 67003796 $10.94

W10827015 Whirlpool Refrigerator Pantry Drawe In Stock WPL W10827015 $117.78

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $3.76

Plug, ByPass WPL 67003146 Contact Us For Availability

32

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.79

32

WPW10503184 Whirlpool Refrigerator Freezer Ba Backorder WPL WPW10503184 $142.39

32

Screw (4) WPL 67006573 Contact Us For Availability

W11714300 Whirlpool Insulation Backorder WPL W11714300 $23.05

Harness, Fz Module WPL 67006094 Contact Us For Availability

Cover, HV Box WPL 67005421 Contact Us For Availability

Divider, Lower Basket WPL 67006644 Contact Us For Availability

67004987 Whirlpool Refrigerator Upper Basket Backorder WPL 67004987 $196.26

67005417 Whirlpool Refrigerator Harness F Backorder WPL 67005417 $45.66

Gasket Following Parts Not Illustrated WPL W10130483 Contact Us For Availability

Board, HV Control WPL W10173398 Contact Us For Availability

35

WP67002759 Whirlpool Refrigerator Divider In Stock WPL WP67002759 $30.65

35

Spacer, HV Box WPL 67005418 Contact Us For Availability

36

Box, HV WPL 67004969 Contact Us For Availability

37

WP12603701 Whirlpool Refrigerator Support In Stock WPL WP12603701 $4.39

37

Screw (2) WPL 67006550 Contact Us For Availability

38

67005419 Whirlpool Refrigerator HV Board Harn In Stock WPL 67005419 $66.87

40

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $29.65

41

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $10.94

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $36.55

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $38.41

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $40.18

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $29.30

Valve, Access WPL 978029 Contact Us For Availability

Block, Condenser Following Parts Not Illustra WPL 67005491 Contact Us For Availability

Valve, Access WPL 978028 Contact Us For Availability

100

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $64.55

OPT-1

350942 Whirlpool Spray Paint Backorder WPL 350942 $51.15

OPT-2

285006 Whirlpool Spray In Stock WPL 285006 $45.11

OPT-3

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.76

OPT-4

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $5.00

OPT-5

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $7.33

OPT-6

Enamel, Black WPL 799340 Contact Us For Availability

OPT-7

Enamel, White WPL 799344 Contact Us For Availability

OPT-8

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $30.75

OPT-9

Tape, Vinyl WPL 479502 Contact Us For Availability

OPT-11

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $108.62

OPT-13

Kit, Foam Slab WPL 876029 Contact Us For Availability

OPT-14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $65.43

OPT-15

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $44.32

OPT-16

Cleaner, WPL 20000008 Contact Us For Availability

OPT-17

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $24.96

OPT-18

Cement, WPL 542639 Contact Us For Availability

OPT-19

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $29.65

OPT-20

Kit, Evaporator WPL 799833 Contact Us For Availability

OPT-21

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.76

OPT-22

Torx Key WPL 1117510 Contact Us For Availability
