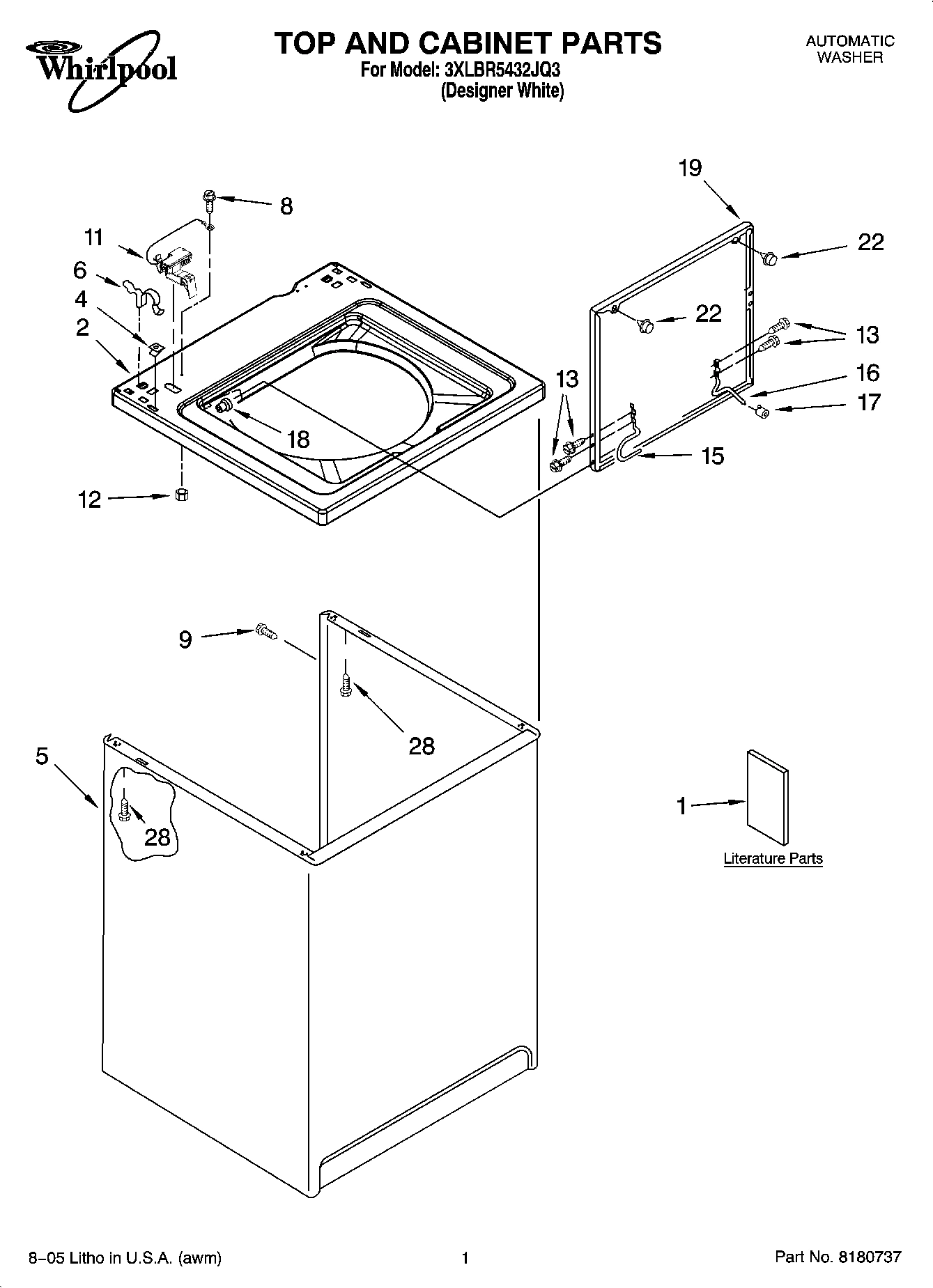

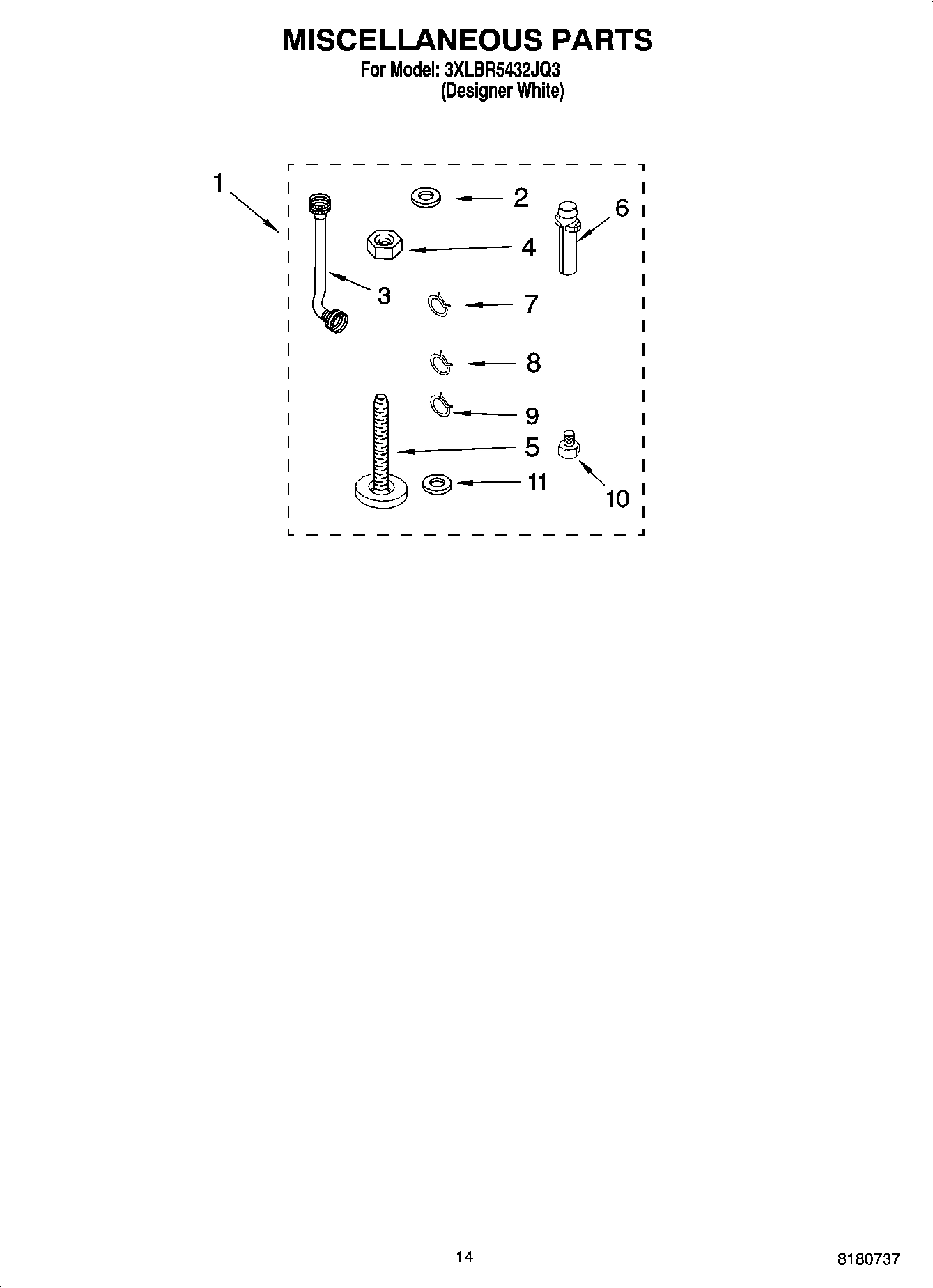

Model Whirlpool 3XLBR5432JQ3 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $30.25

1

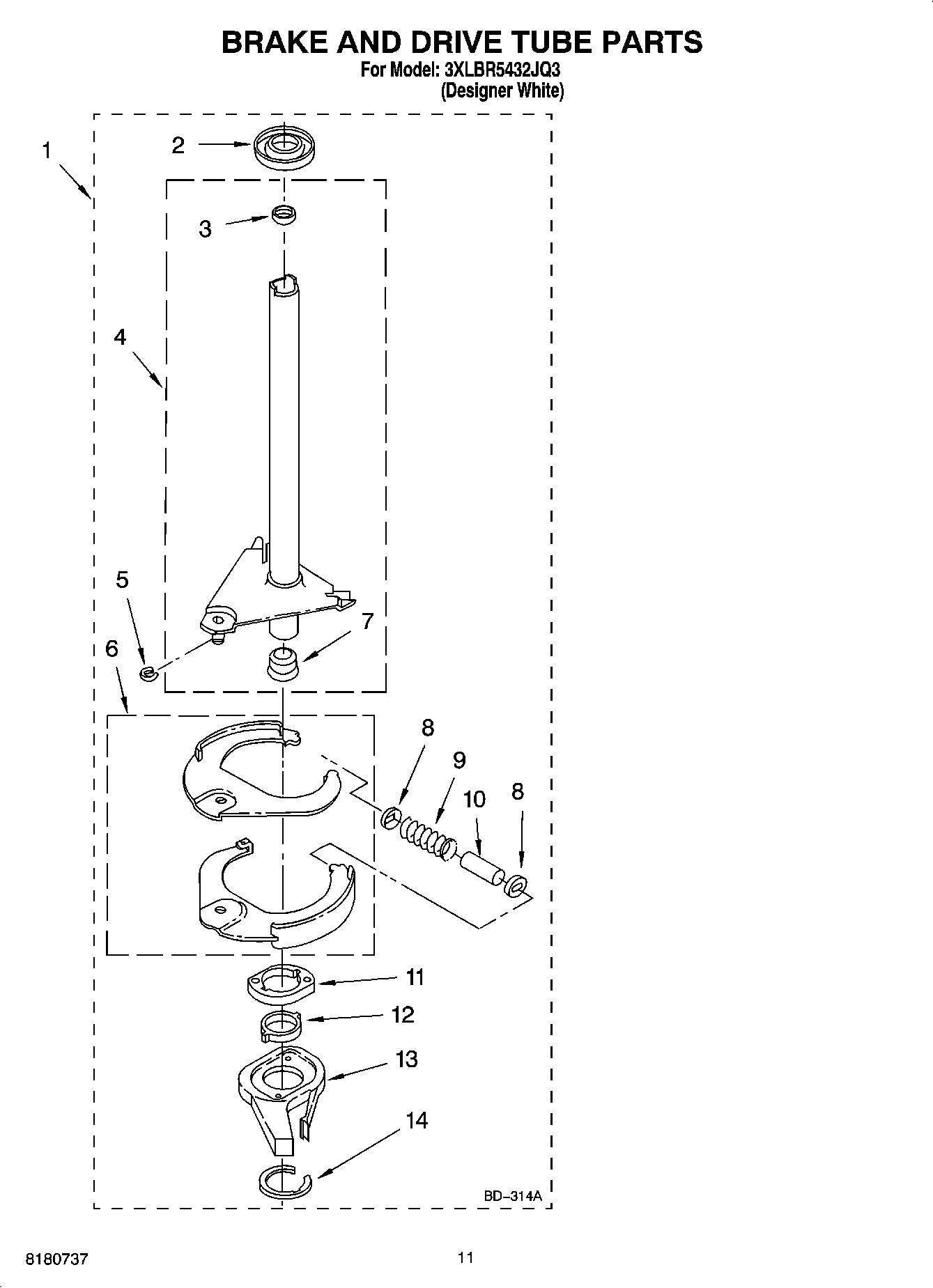

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $8.06

1

Clip, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

2

Clip, Harness WPL 388498 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $4.98

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

8559320 Whirlpool Clip Backorder WPL 8559320 $13.91

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

4

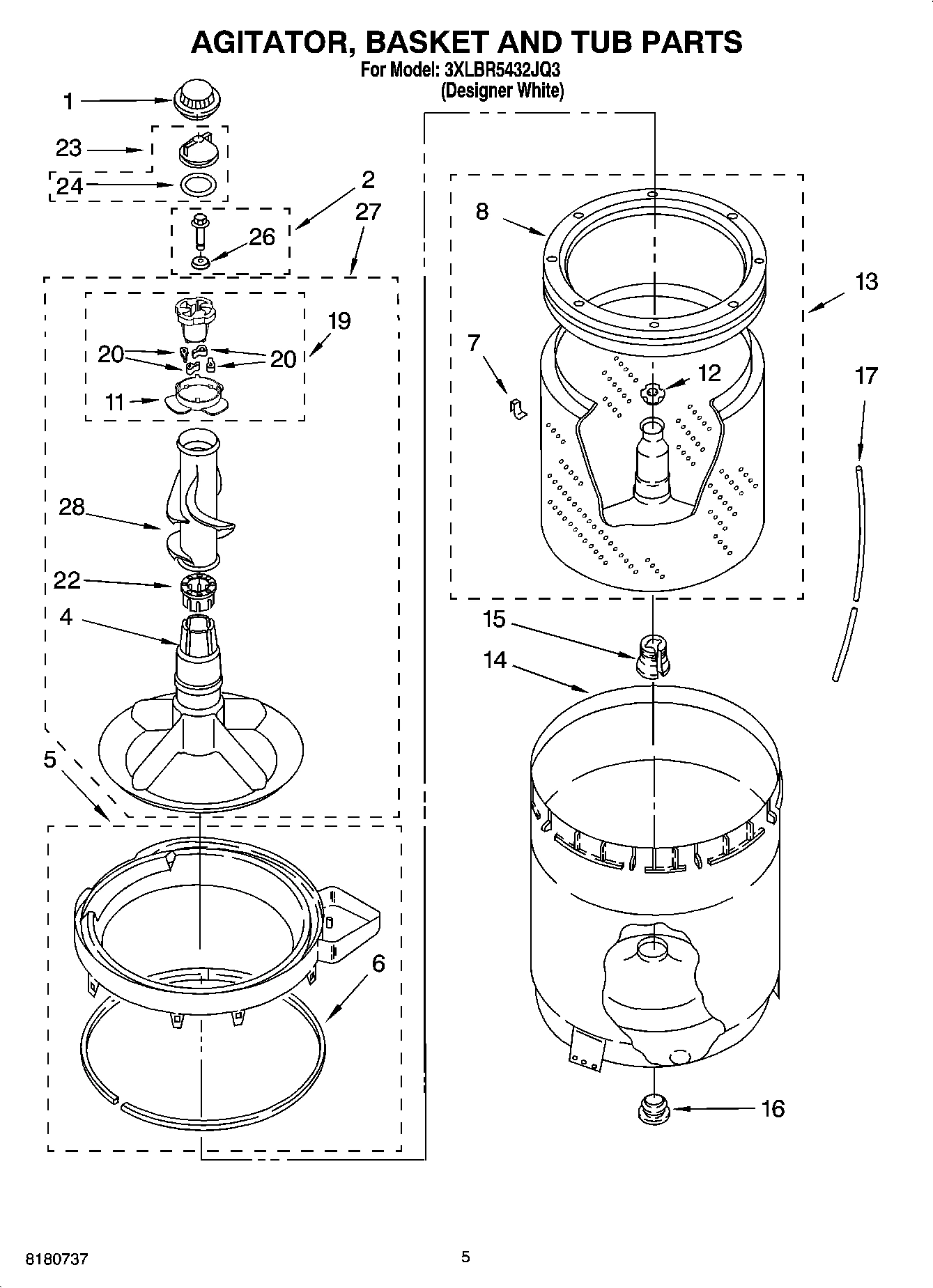

WP3350830 Whirlpool Agitator Assembly In Stock WPL WP3350830 $70.46

4

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $30.25

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $31.44

5

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $3.70

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

6

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $30.25

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

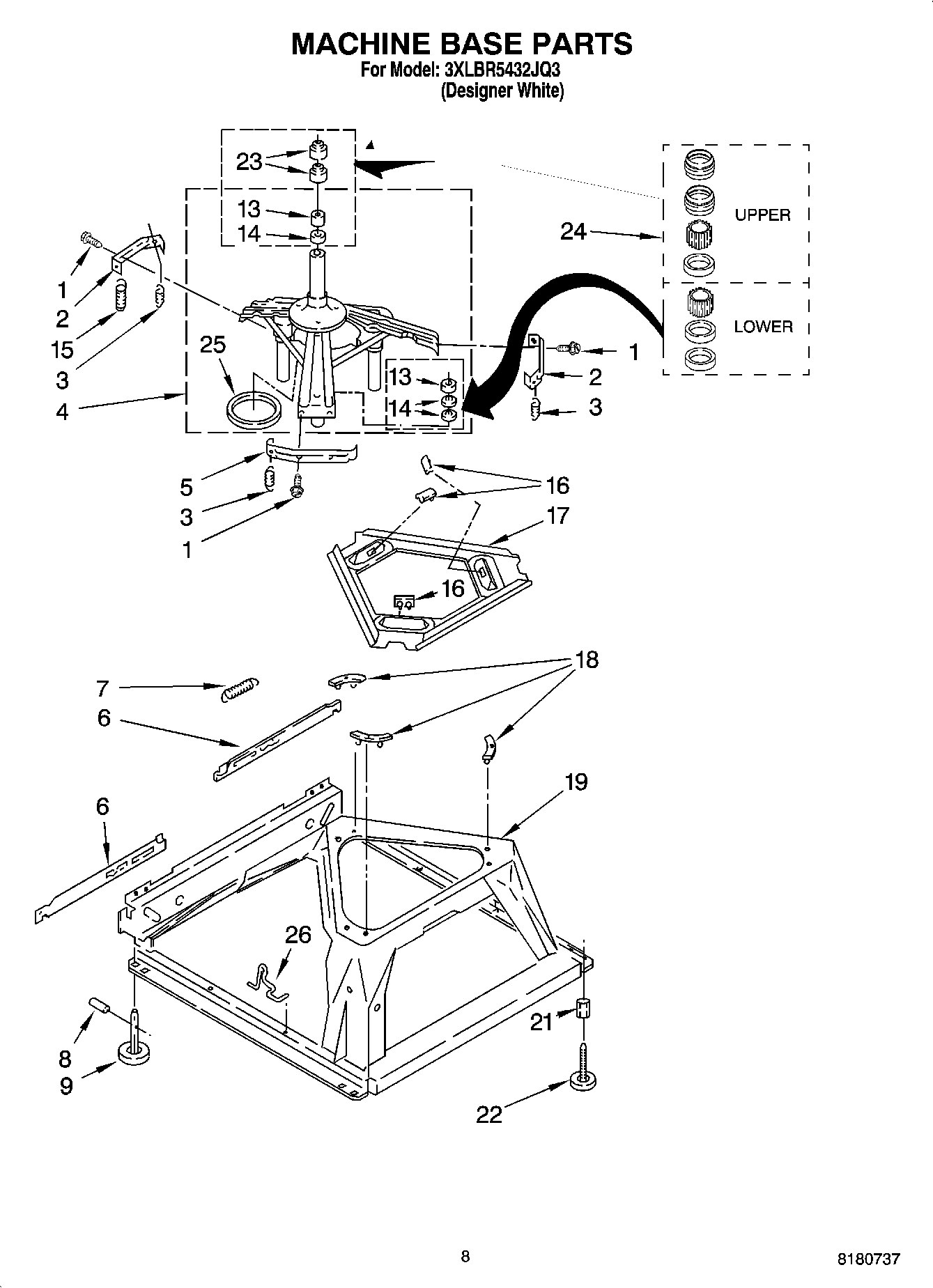

Link, Leveling Mechanism (2) WPL 63138 Contact Us For Availability

6

Clip, Harness WPL 3390496 Contact Us For Availability

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $3.70

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $2.51

8

W10876590 Whirlpool Connector In Stock WPL W10876590 $4.94

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $3.70

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Balance Ring WPL 3956205 Contact Us For Availability

8

Timer, Block Disconnect (White) WPL 3948614 Contact Us For Availability

9

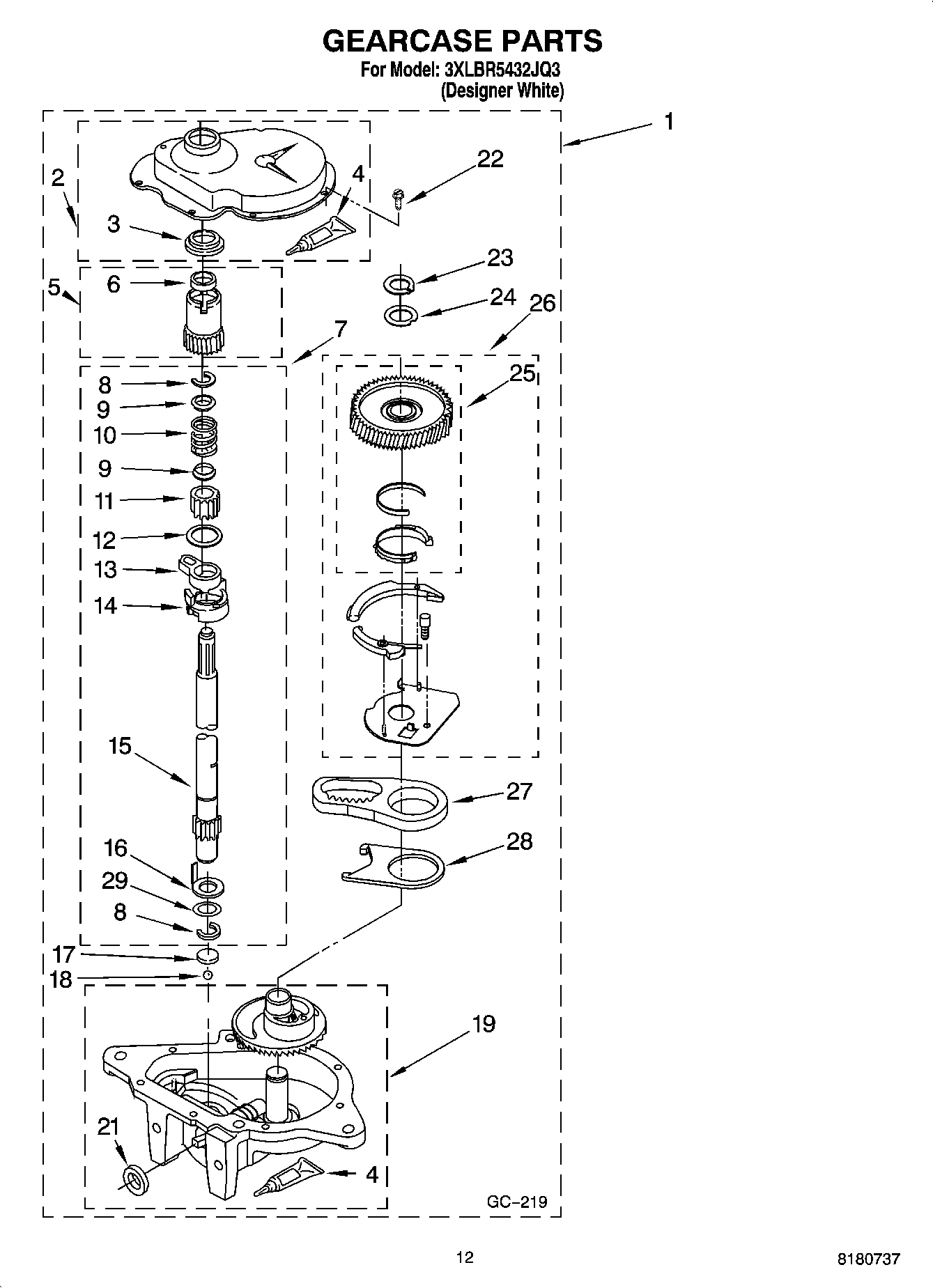

3363395 Whirlpool Gearcase Backorder WPL 3363395 $242.05

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

10

353424 Whirlpool Connector Backorder WPL 353424 $10.76

10

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

10

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $2.51

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62611 Whirlpool Plate In Stock WPL WP62611 $39.14

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $30.56

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W10339228 Whirlpool Washer Water Level Switch Backorder WPL W10339228 $121.13

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability

13

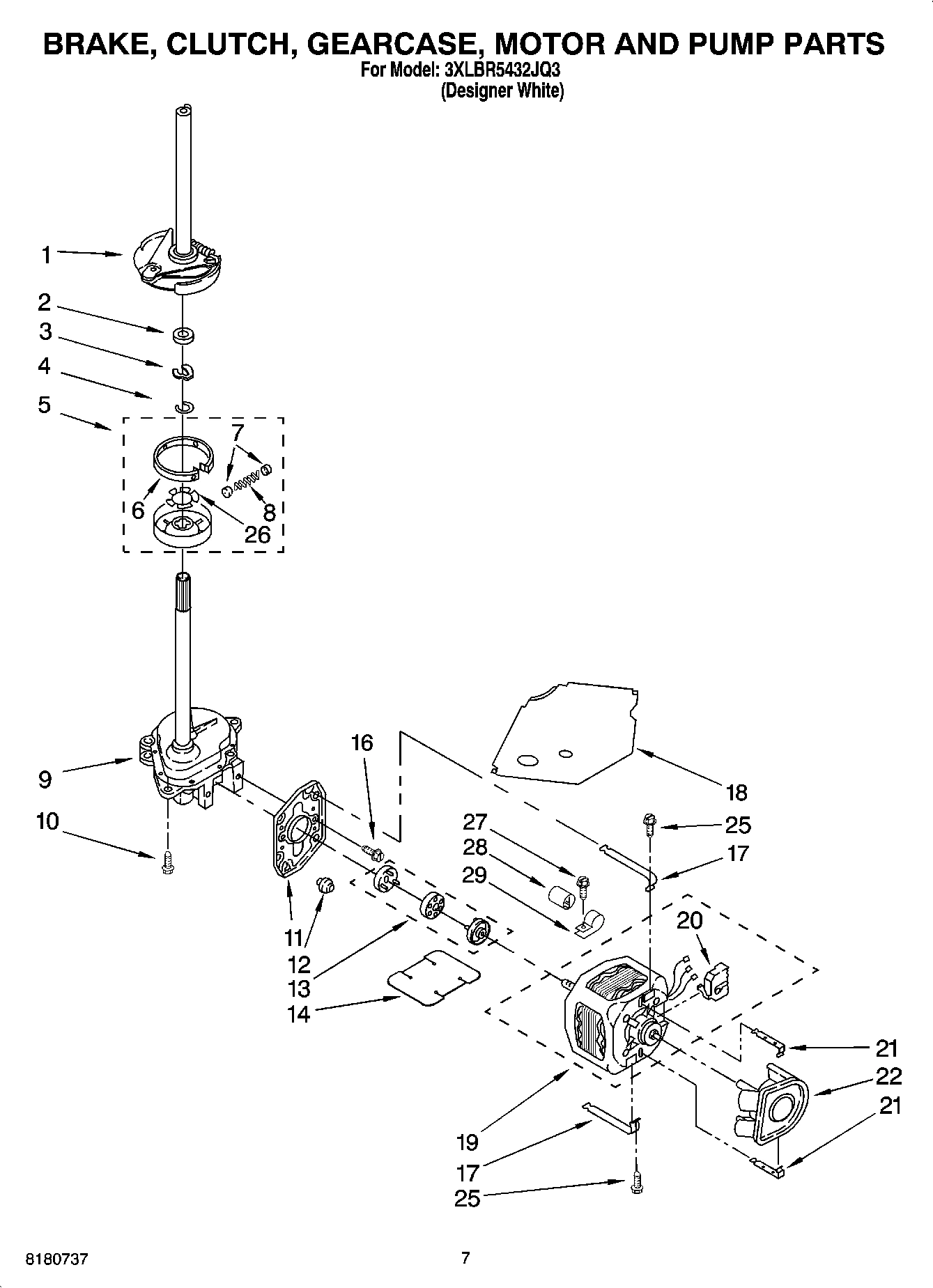

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

13

Bracket, Control WPL 3948814 Contact Us For Availability

13

Protector WPL 63523 Contact Us For Availability

8316060 Whirlpool Shield Backorder WPL 8316060 $27.52

Tub WPL 63125 Contact Us For Availability

Cord, Power WPL 8316045 Contact Us For Availability

Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability

8318088 Whirlpool Hinge Assembly Backorder WPL 8318088 $12.08

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

Strain Relief, Power Cord WPL 3949468 Contact Us For Availability

Clip, Harness WPL 3352944 Contact Us For Availability

16

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

16

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

16

Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $80.64

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

WP3360397 Whirlpool Valve Backorder WPL WP3360397 $159.17

Connector, Etc WPL 3349494 Contact Us For Availability

19

Clamp, Hose WPL 3976395 Contact Us For Availability

19

Motor, Main Drive WPL 3950297 Contact Us For Availability

19

E.T.C. Control WPL 3407125 Contact Us For Availability

20

2219077 Whirlpool Refrigerator Clip Backorder WPL 2219077 $30.25

20

WP2172937 Whirlpool Connector In Stock WPL WP2172937 $8.66

20

Switch, Main Drive Motor WPL 8529896 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $30.69

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

Connector (T.P.A.) (3-Circuit) (Pressure Swit WPL 3360056 Contact Us For Availability

3354925 Whirlpool Connector Backorder WPL 3354925 $10.76

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $8.22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $35.58

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.64

Block, Connector (Hot Valve) WPL 3354926 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $75.19

24

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $35.35

25

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

Edge Protector WPL 303294 Contact Us For Availability

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.96

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $14.40

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

WP3349019 Whirlpool Upper Agitator Backorder WPL WP3349019 $81.67

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

WP482156 Whirlpool Refrigerator Capacitor Backorder WPL WP482156 $40.86

WPW10111181 Whirlpool Fuse Assembly Backorder WPL WPW10111181 $10.47

29

Clamp, Capacitor WPL 3949496 Contact Us For Availability

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

36

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $2.51

37

Screw, Ground WPL 3179795 Contact Us For Availability

39

Panel, Console WPL 8318779 Contact Us For Availability

41

W10113937 Whirlpool Clamp Backorder WPL W10113937 $4.78

44

W10807860 Whirlpool White Control Knob In Stock WPL W10807860 $31.53

45

WP3957849 Whirlpool Timer Dial Backorder WPL WP3957849 $28.09

47

WP3957799 Whirlpool Knob Backorder WPL WP3957799 $31.38

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

55

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

58

Shield, Inlet Valve WPL 8314879 Contact Us For Availability

59

Shield Extension WPL 3950829 Contact Us For Availability

60

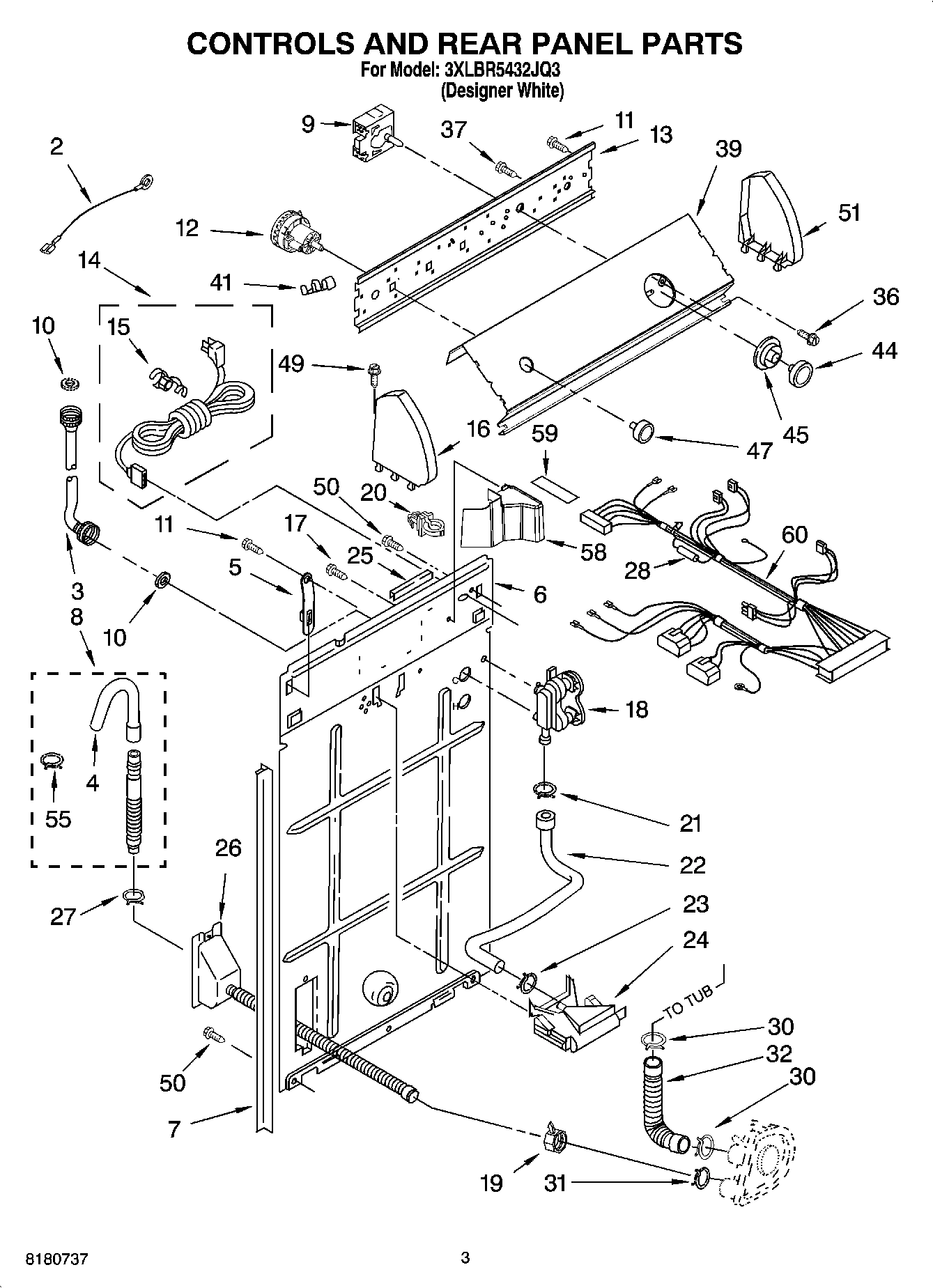

Harness, Wiring (For Detail See Pages 9 & 10) WPL 3956874 Contact Us For Availability
