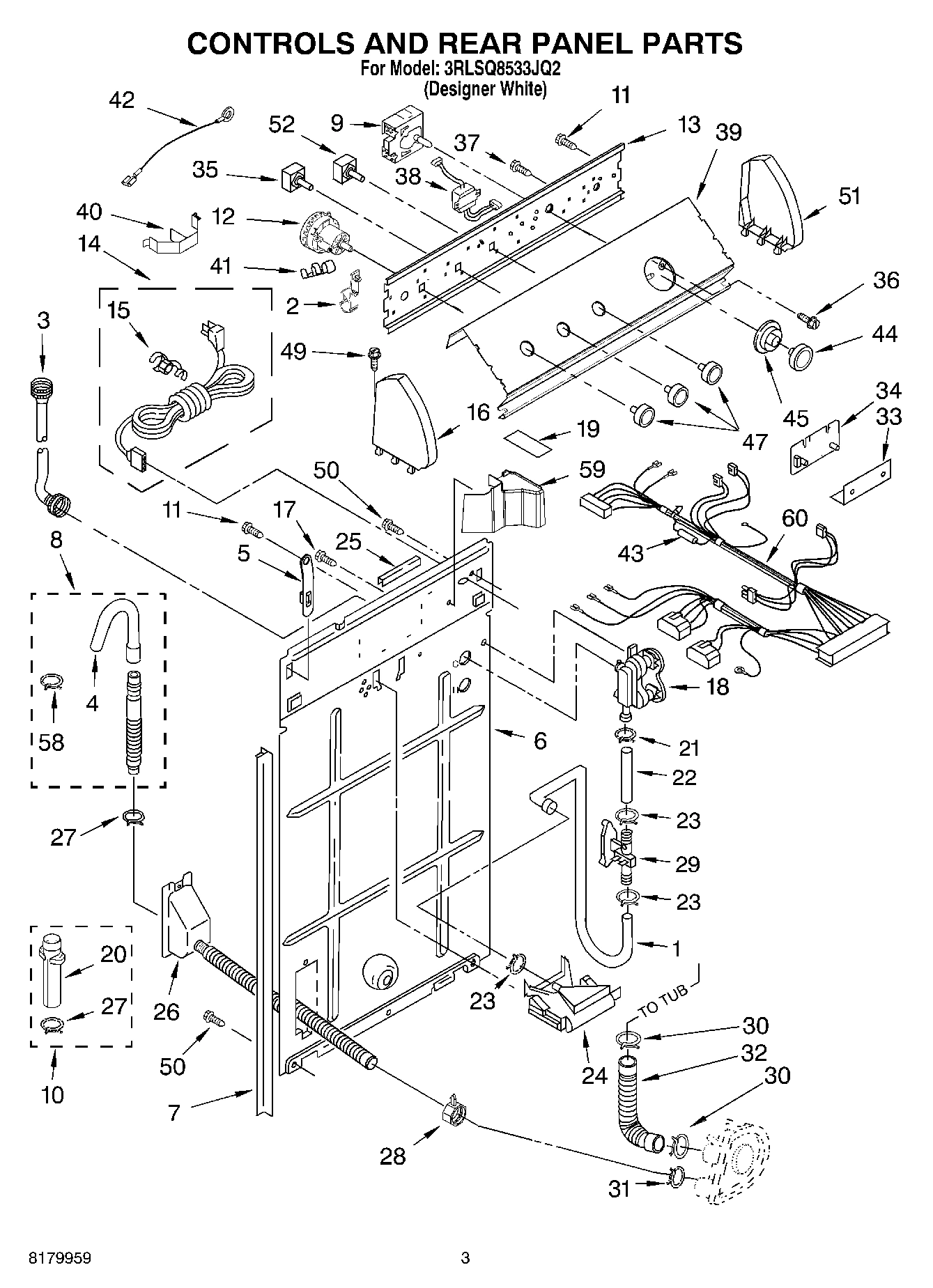

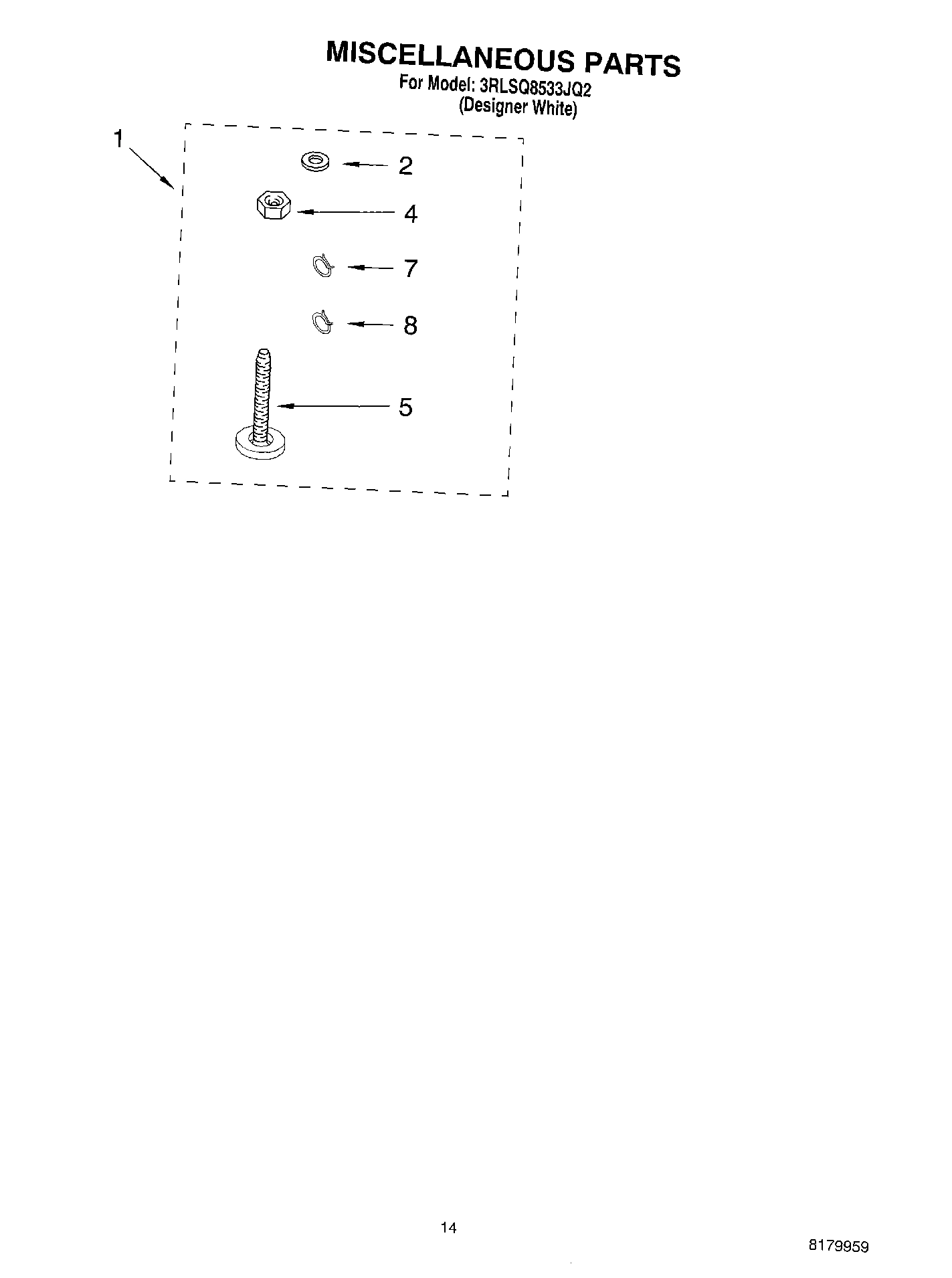

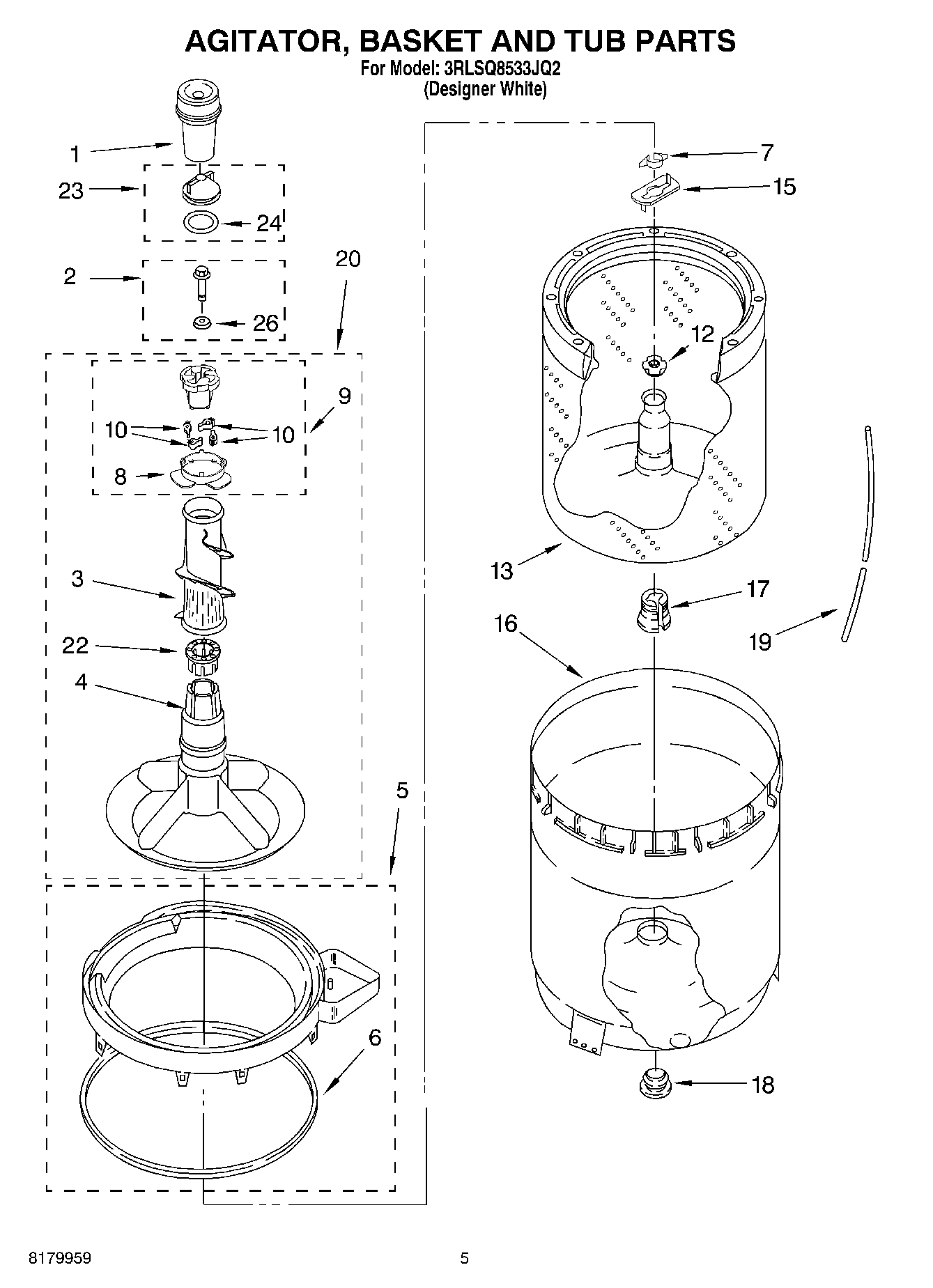

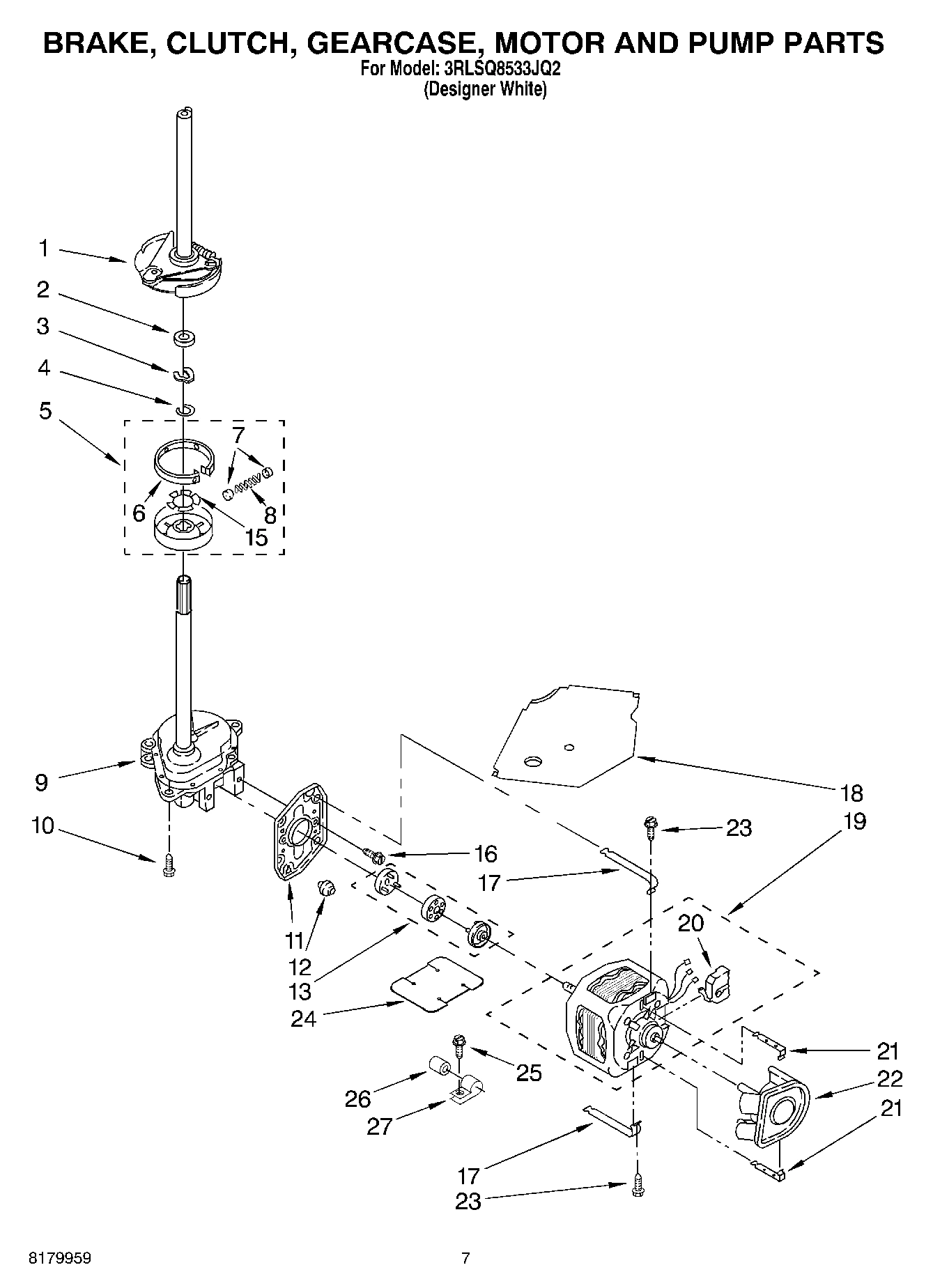

Model Whirlpool 3RLSQ8533JQ2 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $10.49

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

WP3349365 Whirlpool Hose In Stock WPL WP3349365 $7.47

1

Clip, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

2

Clip, Harness WPL 388498 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $93.60

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.07

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $4.98

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

8559320 Whirlpool Clip Backorder WPL 8559320 $13.91

4

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $30.25

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

4

WP3951632 Whirlpool Washer Lower Agitator In Stock WPL WP3951632 $81.07

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $31.44

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Clip, Harness WPL 3390496 Contact Us For Availability

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $3.70

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

8

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

8

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $32.56

8

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

8

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

8

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

8

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.51

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $3.70

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

8

Timer, Block Disconnect (White) WPL 352090 Contact Us For Availability

9

3363395 Whirlpool Gearcase Backorder WPL 3363395 $242.05

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

W10876590 Whirlpool Connector In Stock WPL W10876590 $4.94

10

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $2.51

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

11

353424 Whirlpool Connector Backorder WPL 353424 $10.76

11

WP62611 Whirlpool Plate In Stock WPL WP62611 $39.14

11

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

Sound Dampener, Cabinet WPL 3976348 Contact Us For Availability

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

13

Block, Disconnect (Motor 3 Speed) (Use Term. WPL 3348075 Contact Us For Availability

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

14

Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

Strain Relief, Power Cord WPL 3949468 Contact Us For Availability

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

Protector WPL 63523 Contact Us For Availability

16

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $132.68

16

WP91770 Whirlpool Hinge In Stock WPL WP91770 $8.80

16

Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $80.64

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Plug, Terminal (4-Way) (Power Cord) (Use M3 S WPL 387566 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

WP3360397 Whirlpool Valve Backorder WPL WP3360397 $159.17

Clip, Harness WPL 3352944 Contact Us For Availability

19

Motor, Main Drive WPL 3950297 Contact Us For Availability

19

Extension, Shield WPL 3950829 Contact Us For Availability

19

Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability

285565 Whirlpool Agitator Assembly In Stock WPL 285565 $140.64

3363920A Whirlpool Adapter Assembly Backorder WPL 3363920A $2.73

Switch, Main Drive Motor WPL 8529896 Contact Us For Availability

Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $30.69

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

Plug, Terminal (12-Way) (Use Term. 94613 Or 9 WPL 388818 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3357319 Whirlpool Hose In Stock WPL WP3357319 $9.44

WP3363892 Whirlpool Water Pump In Stock WPL WP3363892 $41.25

WP3951608 Whirlpool Washer Agitator Thrust Sp In Stock WPL WP3951608 $3.88

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.64

Timer, Block Disconnect (Black) (Amp) (Use Te WPL 3369366 Contact Us For Availability

23

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

23

Connector, Etc WPL 3349494 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $75.19

8316060 Whirlpool Shield Backorder WPL 8316060 $27.52

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $42.23

Connector, Relay (Use Term. 308569) WPL 60687 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

Edge Protector WPL 303294 Contact Us For Availability

25

E.T.C. Control WPL 3407125 Contact Us For Availability

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

WP2172937 Whirlpool Connector In Stock WPL WP2172937 $8.66

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.96

WP482156 Whirlpool Refrigerator Capacitor Backorder WPL WP482156 $40.86

Assembly, Drain Hose WPL 8317941 Contact Us For Availability

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

27

Connector (T.P.A) (3-Circuit) (Pressure Switc WPL 3360056 Contact Us For Availability

27

Clamp, Capacitor WPL 3949496 Contact Us For Availability

28

3354925 Whirlpool Connector Backorder WPL 3354925 $10.76

28

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

28

Clamp, Hose WPL 3976395 Contact Us For Availability

29

Sensor, Inline WPL 3352282 Contact Us For Availability

29

WPL 3354926 WPL 3354926 Contact Us For Availability

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

30

WPL 3948615 WPL 3948615 Contact Us For Availability

31

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

33

Shield, ATC WPL 8316039 Contact Us For Availability

34

WPW10110247 Whirlpool Electronic Control Boar Backorder WPL WPW10110247 $46.26

35

W10851055 Whirlpool Cycle Switch Backorder WPL W10851055 $62.32

36

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $2.51

37

Screw, Ground WPL 3179795 Contact Us For Availability

38

3407160 Whirlpool Transformer Backorder WPL 3407160 $112.09

39

Panel, Console WPL 8318795 Contact Us For Availability

40

Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability

41

W10113937 Whirlpool Clamp Backorder WPL W10113937 $4.78

42

Wire, Ground WPL 3398893 Contact Us For Availability

43

WPW10111181 Whirlpool Fuse Assembly Backorder WPL WPW10111181 $10.47

44

W10807860 Whirlpool White Control Knob In Stock WPL W10807860 $31.53

45

WP3957849 Whirlpool Timer Dial Backorder WPL WP3957849 $28.09

47

WP3957799 Whirlpool Knob Backorder WPL WP3957799 $31.38

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

52

Switch, Rotary (Tempe WPL 3950351 Contact Us For Availability

58

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

59

WPL 8314879 WPL 8314879 Contact Us For Availability

WP3357397 Whirlpool Adapter Backorder WPL WP3357397 $30.89

WP3357450 Whirlpool Washer Assembly Backorder WPL WP3357450 $4.72

WPL 3956201 WPL 3956201 Contact Us For Availability

WPL ARI140288A WPL ARI140288A Contact Us For Availability
