Model Whirlpool 3RGSC9455JQ1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

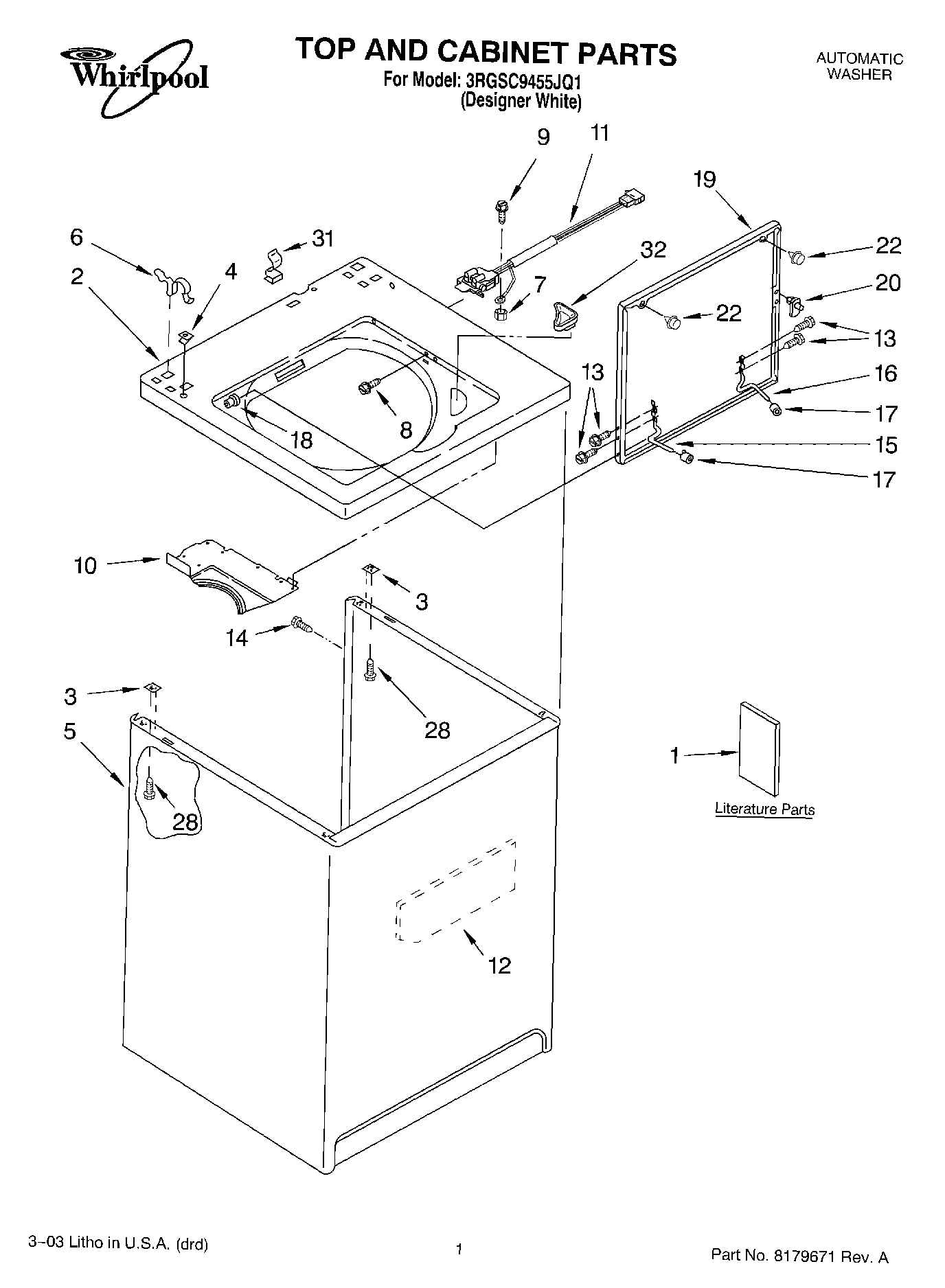

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $9.99

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

WP3349365 Whirlpool Hose In Stock WPL WP3349365 $7.47

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Literature Parts (Wiring Diagram) WPL LIT3954736 Contact Us For Availability

1

Literature Parts (Installation & User Guide) WPL LIT8315975 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT8315977 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT8318424 Contact Us For Availability

1

Miscellaneous Parts Bag WPL 8316044 Contact Us For Availability

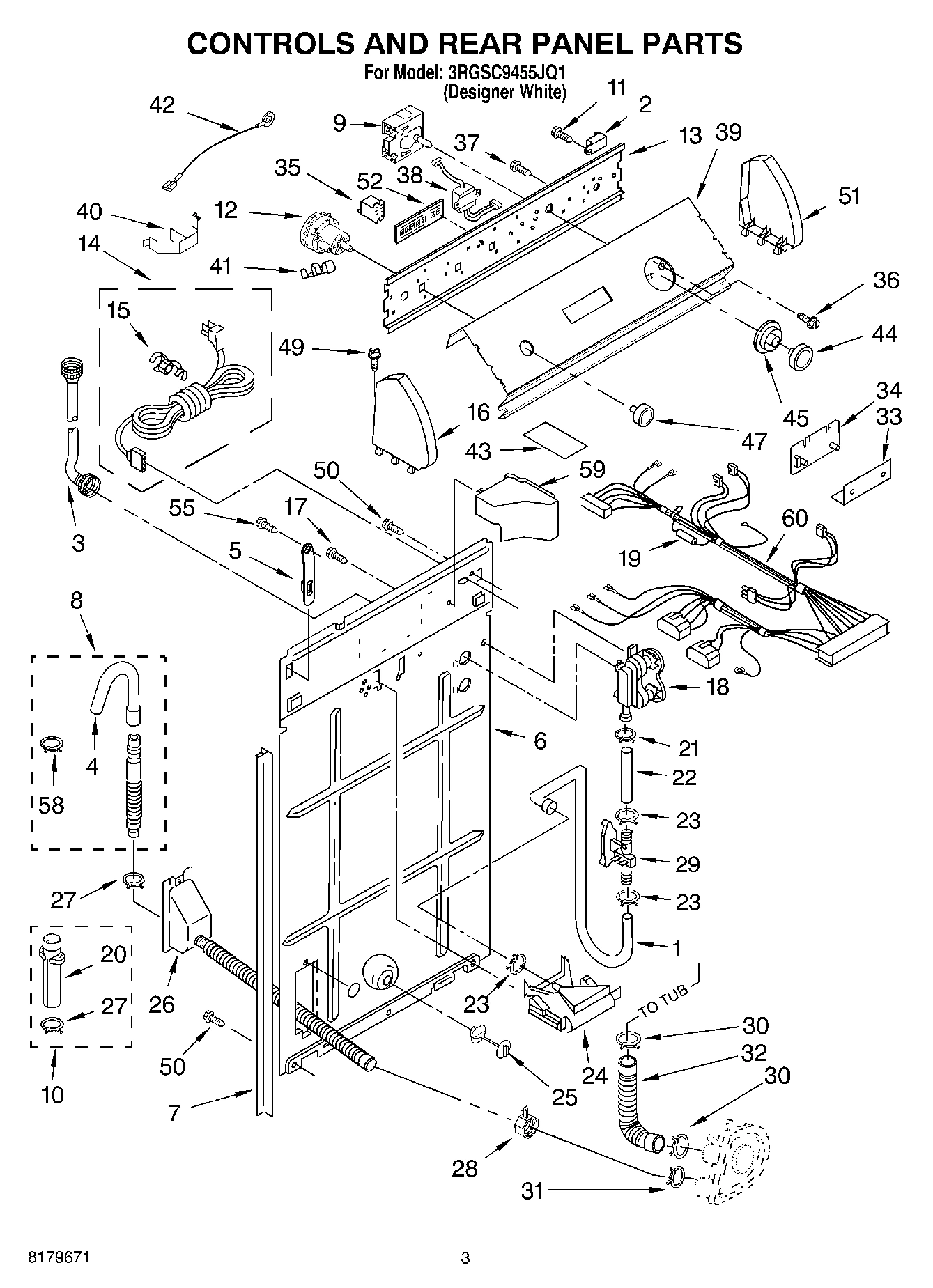

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

Top WPL 8271378 Contact Us For Availability

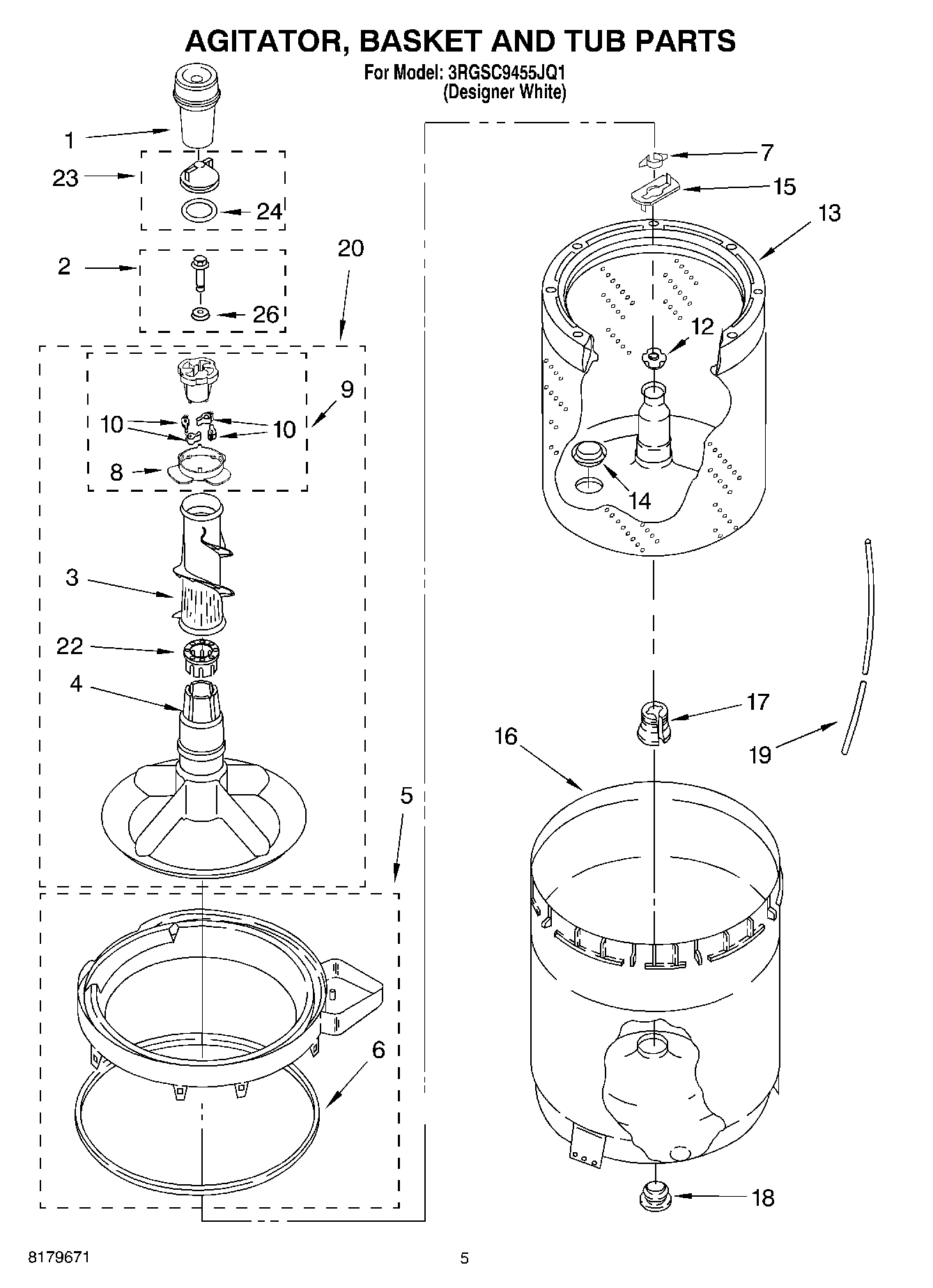

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $89.14

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

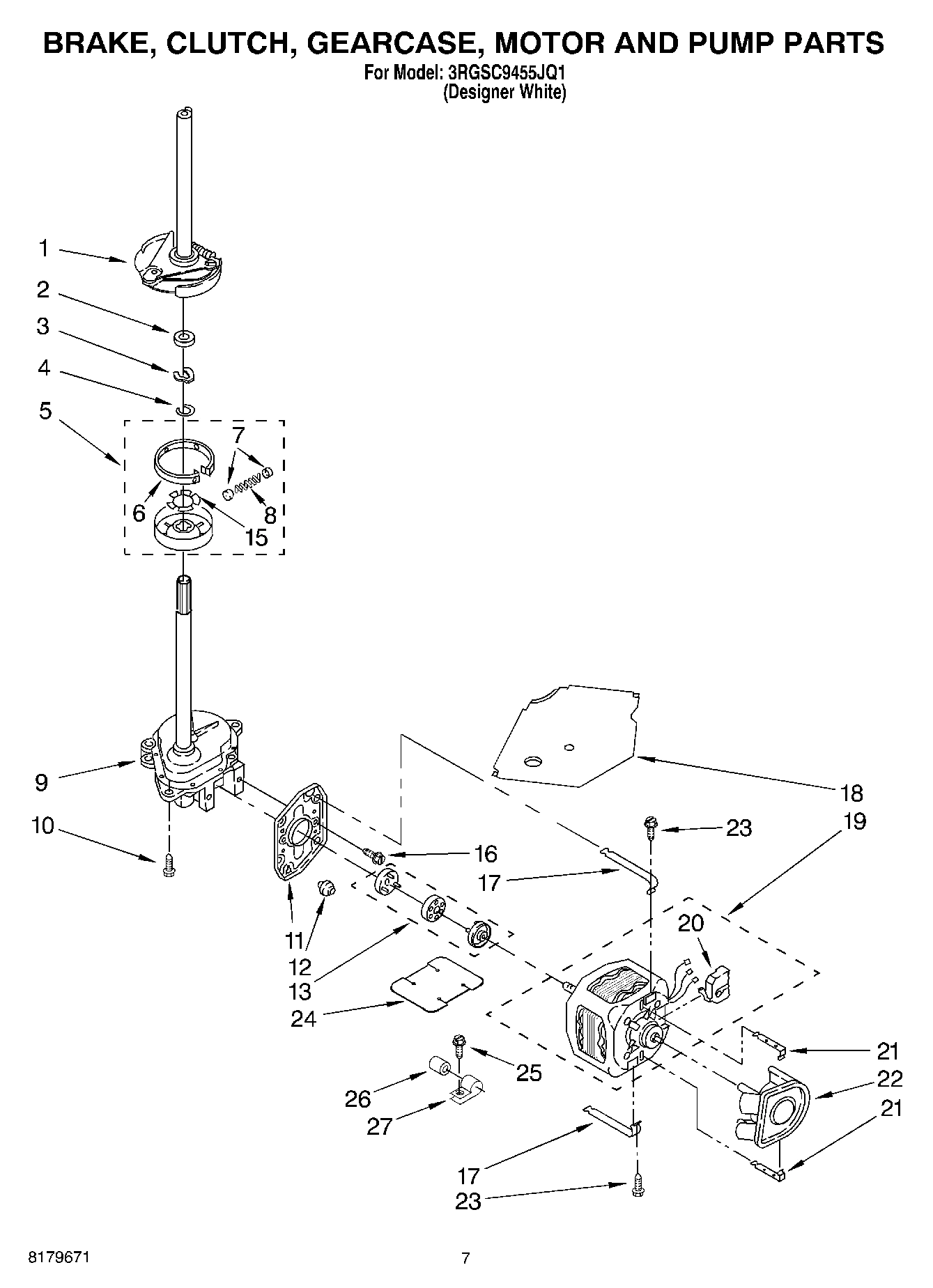

4

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $28.80

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

4

WP3951632 Whirlpool Washer Lower Agitator In Stock WPL WP3951632 $77.21

4

Support & Brake, Tub WPL 3362087 Contact Us For Availability

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $255.69

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Tub Ring & Gasket WPL 8316263 Contact Us For Availability

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $9.42

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Clip, Harness WPL 3390496 Contact Us For Availability

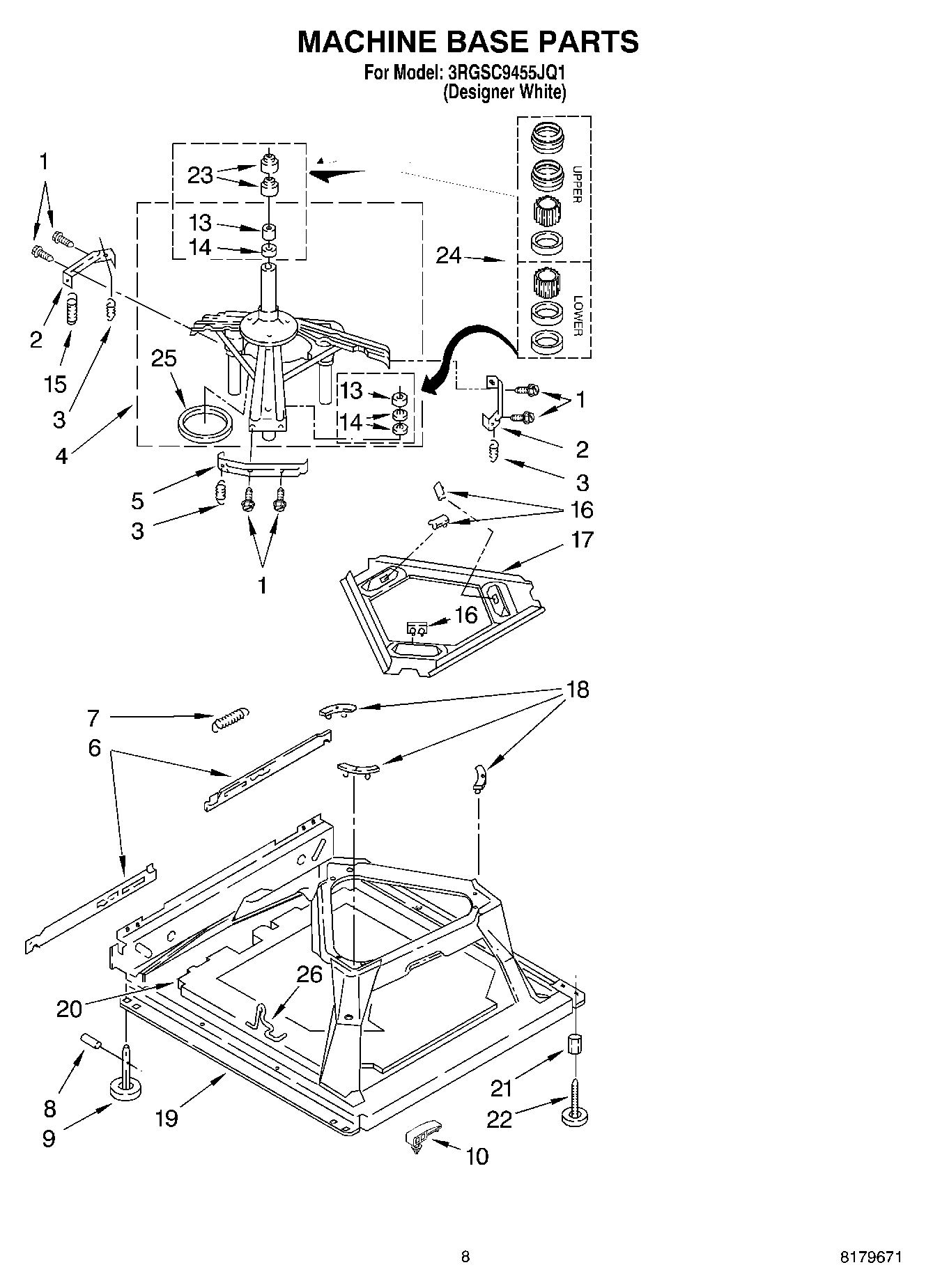

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.70

7

W10080180 Whirlpool Nut Backorder WPL W10080180 $9.59

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

7

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $3.70

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

8

WP3356311 Whirlpool Screw Backorder WPL WP3356311 $2.51

8

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

8

WP3952374 Whirlpool Bearing Backorder WPL WP3952374 $3.70

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Timer, Block Disconnect (White) WPL 352090 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $10.82

9

285809 Whirlpool Washer Agitator Cam Kit In Stock WPL 285809 $5.87

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $1.10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

Spring, Agitate WPL 62676 Contact Us For Availability

Shield, Lid Switch WPL 3950994 Contact Us For Availability

Clip, Sound Board WPL 3976276 Contact Us For Availability

11

353424 Whirlpool Connector Backorder WPL 353424 $10.76

11

WP3950298 Whirlpool Lid Switch Backorder WPL WP3950298 $48.60

11

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

Sound Dampener, Cabinet (3) WPL 3976348 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

W10389328 Whirlpool Basket Backorder WPL W10389328 $190.38

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

Block, Disconnect (Motor 3 Speed) (Use Term. WPL 3348075 Contact Us For Availability

285868 Whirlpool Washer Filter Plug Kit In Stock WPL 285868 $9.92

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $5.27

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

Protector WPL 63523 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $10.60

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $126.36

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Plug, Terminal (4-Way) (Power Cord) (Use M3 S WPL 387566 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

WP3360397 Whirlpool Valve Backorder WPL WP3360397 $151.58

Clip, Harness WPL 3352944 Contact Us For Availability

3363395 Whirlpool Gearcase Backorder WPL 3363395 $242.05

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

Motor, Main Drive WPL 3950297 Contact Us For Availability

Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability

LID WPL 8316048 Contact Us For Availability

Base Assembly (Includes Illus, 6, 7, 8, 9, 18 WPL 3946512 Contact Us For Availability

285565 Whirlpool Agitator Assembly In Stock WPL 285565 $136.35

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability

Sound, Absorber WPL 8283230 Contact Us For Availability

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

21

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

21

Plug, Terminal (12-Way) (Use Term. 94613 Or 9 WPL 388818 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3357319 Whirlpool Hose In Stock WPL WP3357319 $9.44

WP3363892 Whirlpool Water Pump In Stock WPL WP3363892 $41.25

WP3951608 Whirlpool Washer Agitator Thrust Sp In Stock WPL WP3951608 $3.70

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

Timer, Block Disconnect (Black) (Amp) (Use Te WPL 3369366 Contact Us For Availability

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.47

Connector, Etc WPL 3349494 Contact Us For Availability

Ring, Retaining WPL 3362552 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $3.70

Connector, Relay (Use Term. 308569) WPL 60687 Contact Us For Availability

Washer Kit, Thrust WPL 285735 Contact Us For Availability

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

WPW10233584 Whirlpool Spin Gear Backorder WPL WPW10233584 $84.65

E.T.C. Control WPL 3407125 Contact Us For Availability

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

WP2172937 Whirlpool Connector Backorder WPL WP2172937 $8.66

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.72

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

Assembly, Drain Hose WPL 8317941 Contact Us For Availability

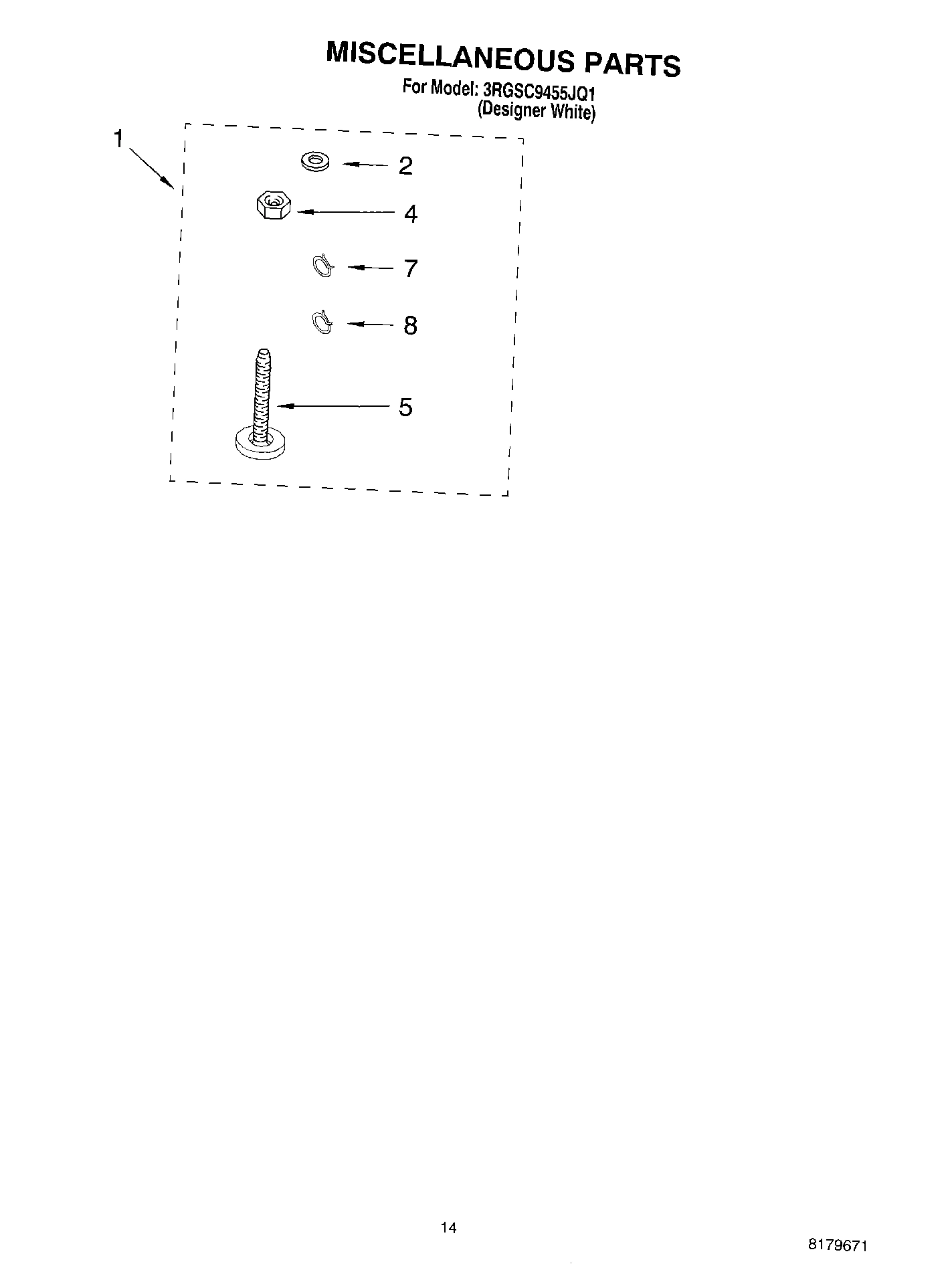

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

27

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $8.69

28

3354925 Whirlpool Connector Backorder WPL 3354925 $10.76

28

Clamp, Hose WPL 3976395 No Longer Available

28

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

Sensor, Inline WPL 3352282 Contact Us For Availability

WPL 3354926 WPL 3354926 Contact Us For Availability

GC-219 WPL ARI140184A Contact Us For Availability

30

WPL 3948615 WPL 3948615 Contact Us For Availability

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Shipping Kit WPL 3348675 Contact Us For Availability

Drain Protector WPL 367031 Contact Us For Availability

OIL WPL ARI140185A Contact Us For Availability

LUBRICANT WPL ARI140186A Contact Us For Availability

SEALER WPL ARI140187A Contact Us For Availability

SHIPPING KIT WPL ARI140188A Contact Us For Availability

ACCESSORY PARTS WPL ARI140189A Contact Us For Availability
