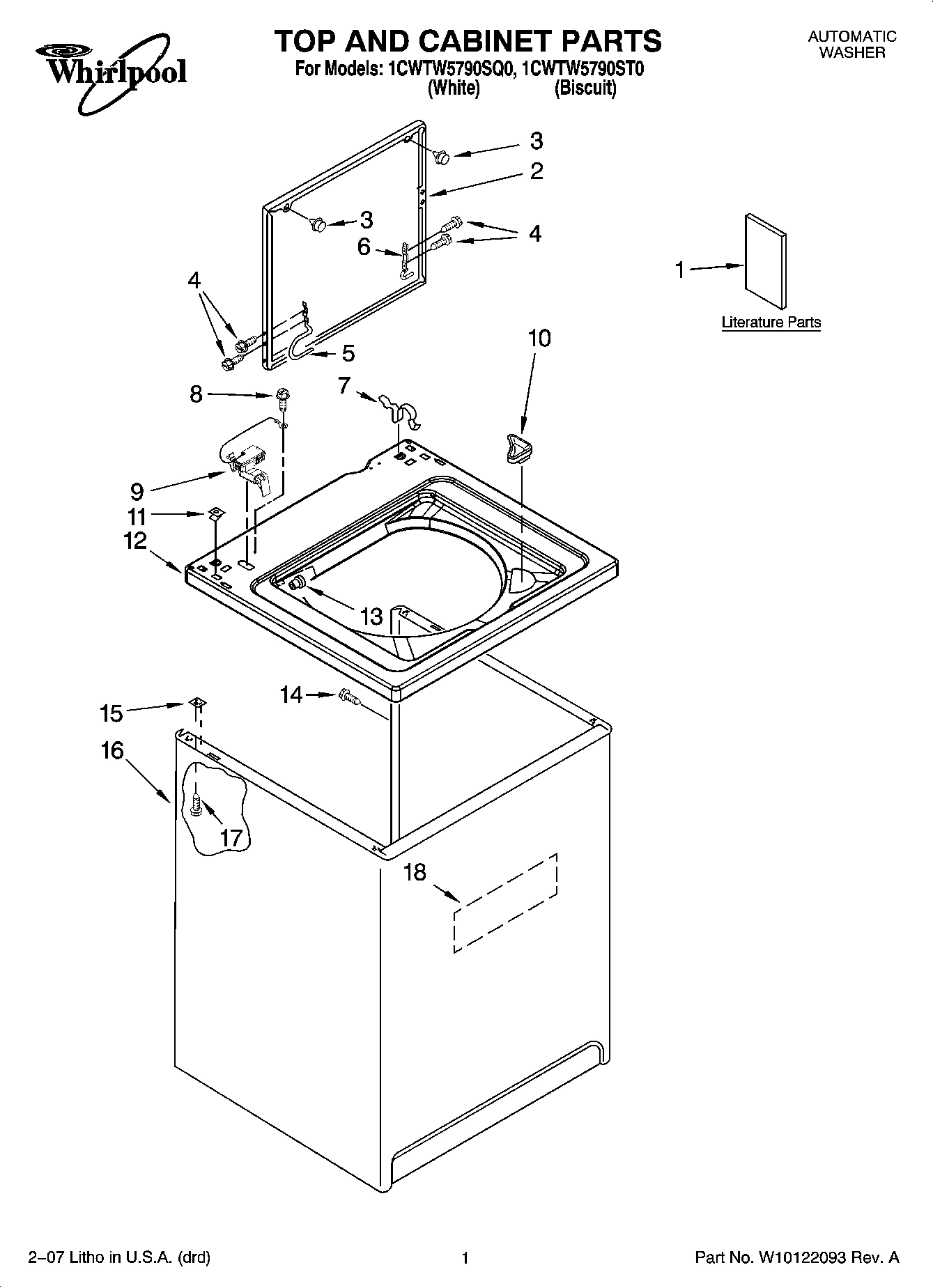

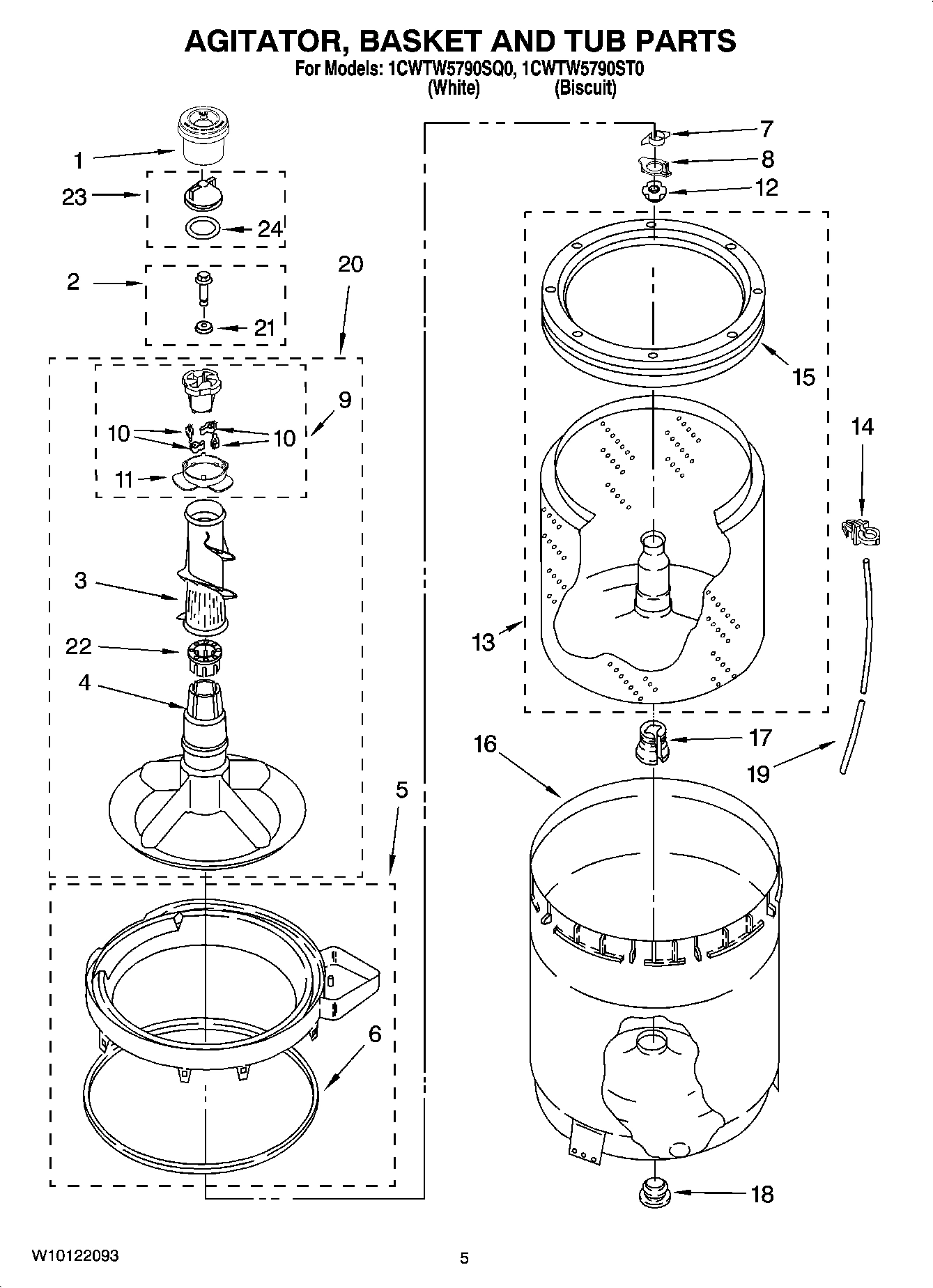

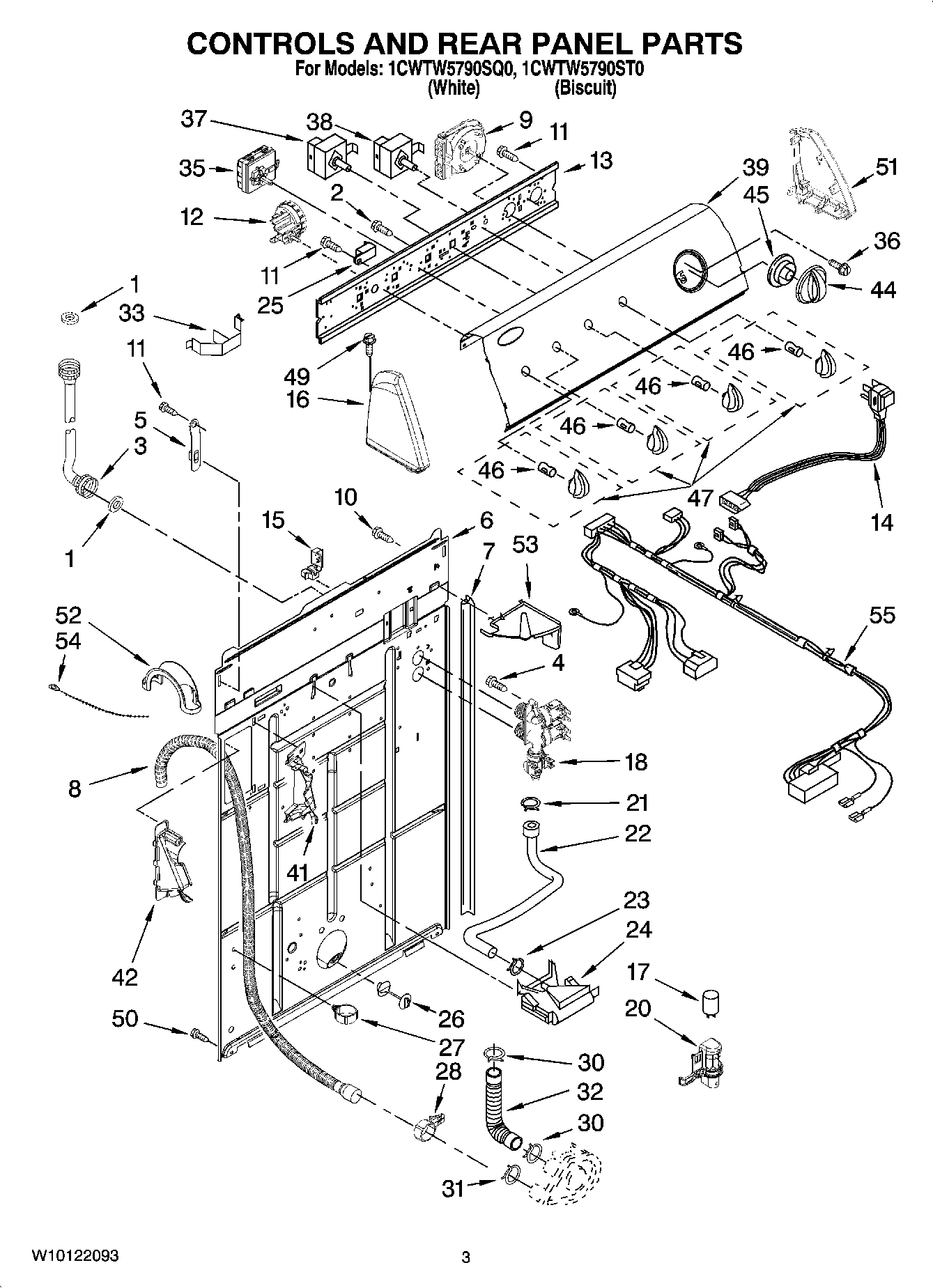

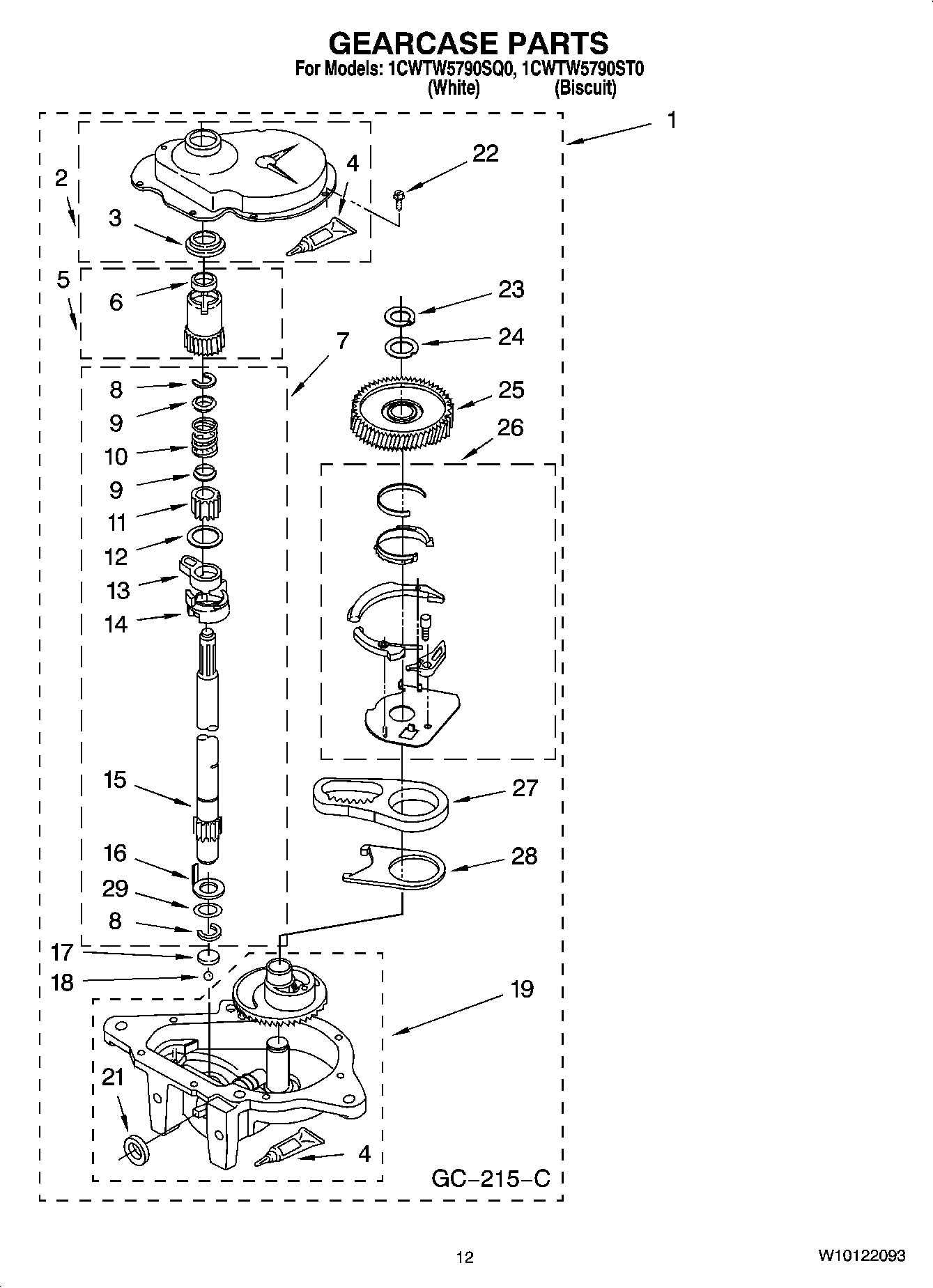

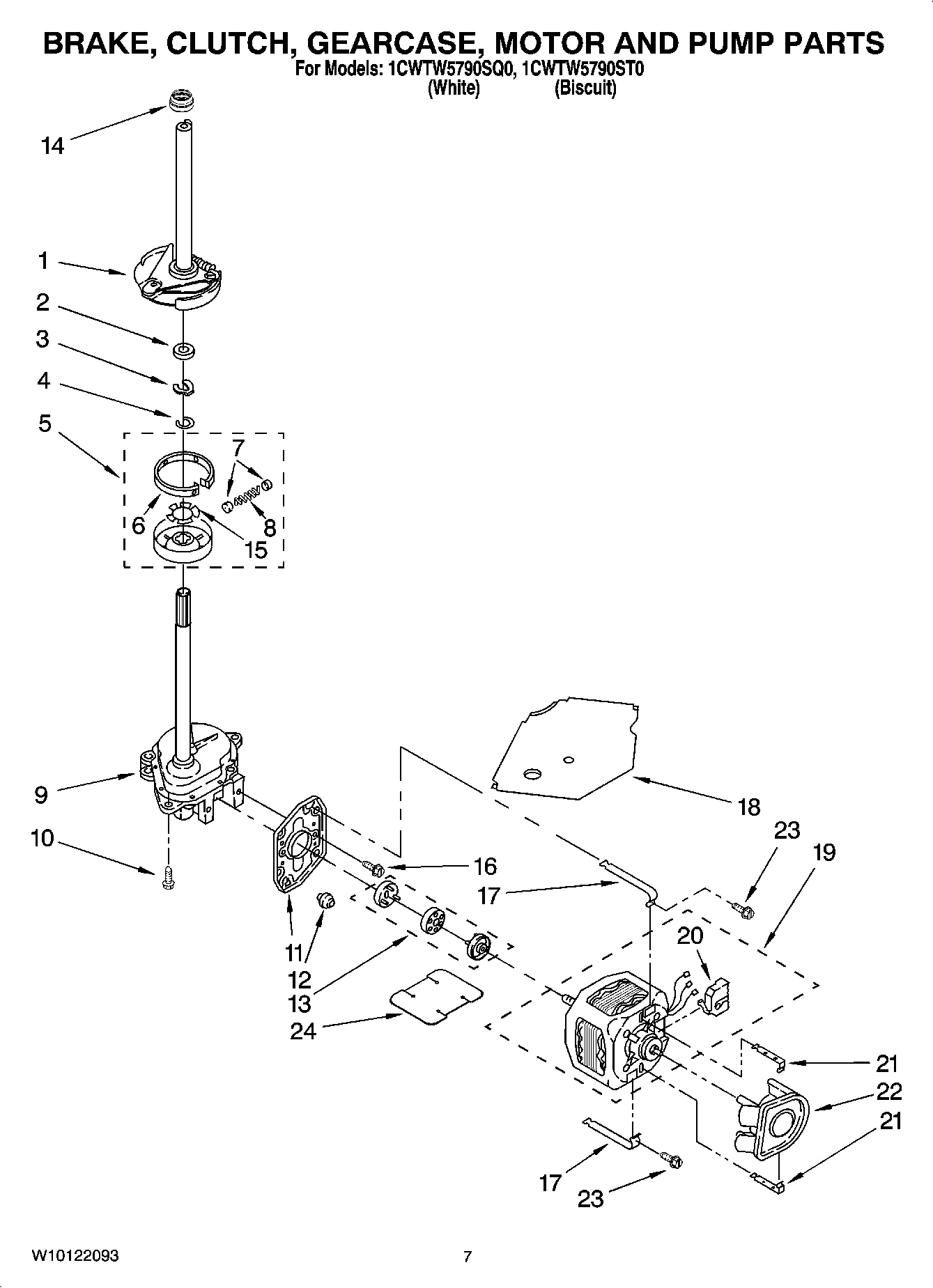

Model Whirlpool 1CWTW5790ST0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

1

Retainer, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

3400073 Whirlpool Screw Backorder WPL 3400073 $5.65

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

3

3805FF Supco 5' Reinforced Rubber Washer Fill In Stock SEA 3805FF $5.30

3

WP3348752 Whirlpool Agitator Mover Backorder WPL WP3348752 $85.90

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $3.62

3

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

4

WP3347288 Whirlpool Washer Agitator Base In Stock WPL WP3347288 $73.90

4

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

5

8318088 Whirlpool Hinge Assembly Backorder WPL 8318088 $12.08

5

WP8568314 Whirlpool Strap In Stock WPL WP8568314 $3.70

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $9.42

6

WP91770 Whirlpool Hinge Backorder WPL WP91770 $8.80

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Panel, Rear WPL 8318015 Contact Us For Availability

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $5.27

8

Timer, Block Disconnect (Natural) WPL 3948614 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

9

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $16.93

9

WP8577356 Whirlpool Washer Timer In Stock WPL WP8577356 $121.52

10

353424 Whirlpool Connector Backorder WPL 353424 $10.76

10

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

10

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $3.70

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W10339251 Whirlpool Washer Water Level Contro In Stock WPL W10339251 $106.41

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

13

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

13

Bracket, Control WPL 8544893 Contact Us For Availability

14

W10820044 Whirlpool Power Cord Backorder WPL W10820044 $56.25

14

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

14

WP8577374 Whirlpool Seal Shaft In Stock WPL WP8577374 $3.70

15

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

15

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

15

Strain Relief, Power Cord WPL 3952821 Contact Us For Availability

16

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $255.69

16

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $126.36

16

Cap, End (L.H.) (BIscuit) WPL 8271368 Contact Us For Availability

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $42.80

Receptacle, 6 Way WPL 3347730 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP2172937 Whirlpool Connector In Stock WPL WP2172937 $8.66

WP8578343 Whirlpool Valve In Stock WPL WP8578343 $120.29

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

Cabinet - Sound Damper WPL 3976348 Contact Us For Availability

19

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $8.69

19

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

3354925 Whirlpool Connector Backorder WPL 3354925 $10.76

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

Clip, Capacitor WPL 8318046 Contact Us For Availability

BLOCK, CONNECTOR (RED WPL 3354926 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.72

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.70

22

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

22

WP8317926 Whirlpool Inlet Hose In Stock WPL WP8317926 $10.61

24

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $26.24

25

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $49.52

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

26

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

27

Clamp, Hose WPL 8541667 Contact Us For Availability

28

8541668 Whirlpool Washer Clamp Backorder WPL 8541668 $10.76

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

33

Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability

35

WP8578338 Whirlpool Dishwasher Temperature Sw Backorder WPL WP8578338 $46.99

36

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $2.51

37

W10851055 Whirlpool Cycle Switch Backorder WPL W10851055 $59.35

38

WPW10168257 Whirlpool Cycle Switch Backorder WPL WPW10168257 $54.41

39

Panel, Console (White) WPL 8578797 Contact Us For Availability

39

Panel, Console (Biscuit) WPL 8578798 Contact Us For Availability

42

WPW10096921 Whirlpool Hose In Stock WPL WPW10096921 $37.24

44

W10034740 Whirlpool Knob Assembly Backorder WPL W10034740 $28.80

44

Knob, Timer (White) WPL 8566022 Contact Us For Availability

45

WP8566018 Whirlpool Dial Assembly Backorder WPL WP8566018 $28.33

46

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $3.70

47

Knob, Control (White) WPL 8565944 Contact Us For Availability

47

K WPL 8565947 Contact Us For Availability

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

51

W10820038 Whirlpool Endcap In Stock WPL W10820038 $49.21

51

WPL 8271362 WPL 8271362 Contact Us For Availability

52

WP8577378 Whirlpool Retainer Backorder WPL WP8577378 $3.70

53

WPL 8539874 WPL 8539874 Contact Us For Availability

54

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

55

WPL 3958097 WPL 3958097 Contact Us For Availability
